Jupybara: Operationalizing a Design Space for Actionable Data Analysis and Storytelling with LLMs

T0 review · 4 major / 6 minor · reviewed 2026-08-10 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read Jupybara argues that a semantic-rhetorical-pragmatic design space, encoded in LLM prompts and multi-agent critique, improves actionable data analysis and storytelling.

desk verdict Solid design-space and system paper; the abstract's effectiveness claim outruns the confounded small-n evaluation. read the letter →

arxiv 2501.16661 v1 pith:PR7VIQEQ submitted 2025-01-28 cs.HC

Huichen Will Wang , Larry Birnbaum , Vidya Setlur This is my paper · ORCID
classification cs.HC
keywords ActionableInsightsHuman-AICollaborationMulti-AgentSystemLargeLanguageModelExploratoryDataAnalysisStorytellingSemanticsPragmatics
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

This paper tries to establish that the messy process of turning data into decisions can be guided by a three-part design space, and that large language models can be made to follow it. The three parts are semantic precision (saying exactly what the data and results mean), rhetorical persuasion (choosing analytical methods and narrative structure that support an argument), and pragmatic relevance (connecting findings to domain knowledge and concrete actions). The authors build Jupybara, a Jupyter Notebook assistant, on two strategies that put this design space inside LLM workflows: prompts distilled from the three dimensions, and multi-agent teams in which critics and a refiner revise responses until the critics agree they are ready. Nine expert analysts gave Jupybara higher ratings than a web-based LLM tool on usability, steerability, explainability, and reparability, and rated its multi-agent mode significantly better than its single-agent mode on all three design-space dimensions. If the claim holds, AI copilots for data analysis can be steered toward actionable insight instead of merely plausible output.

What carries the argument

The load-bearing mechanism is the combination of the three-dimensional design space with two operationalization strategies. The design space is the source of the quality criteria: semantic precision, rhetorical persuasion, and pragmatic relevance. To make these criteria usable by a language model, the authors do not hand the model abstract definitions; they distill each dimension into concrete behavioral instructions, such as always interpreting statistical results and visualizations, keeping the user informed of the analysis plan, and narrating the analytical strategies used. The second strategy is multi-agent architecture: an Initial Respondent drafts a response, a set of Critics (for EDA: analysis plan, code, visualization, and interpretation/summary; for storytelling: one per design-space dimension) evaluate it, and a Refiner revises it, with the cycle repeating until all critics approve or a maximum number of discussion rounds is reached. This design means every dimension is checked by multiple agents and the final output is the product of explicit, inspectable debate rather than a single pass.

What would settle it

A controlled crossover study would settle the effectiveness claims: expert analysts analyze the same private datasets with Jupybara and with a generic web LLM tool, with order randomized, reviewers blind to which system generated each response, and processing time or cost equalized between modes. If blinded reviewers no longer rate the multi-agent output higher on semantic, rhetorical, and pragmatic quality, the architecture's claimed advantage is not established. A separate falsifier for the design space itself would be a documented recurring analyst challenge that fits none of the three dimensions.

Watch

Extended reading notes

Core claim

The central claim is that actionable exploratory data analysis and storytelling can be understood through a design space with three dimensions—semantic, rhetorical, pragmatic—and that an LLM assistant which operationalizes these dimensions produces measurably better support for analysts. Semantic work means pinning down analytical objects and results and verbalizing them accurately; rhetorical work means selecting analytical strategies and narrative moves that build a persuasive case; pragmatic work means grounding data facts in domain knowledge and translating them into recommendations. The paper reports that Jupybara, which encodes these dimensions in its prompts and in its multi-agent critique-and-refine loop, was rated by nine expert analysts as more usable, steerable, explainable, and reparable than a generic web-based LLM data tool, and that its multi-agent mode outperformed its single-agent mode on all three dimensions with significance surviving correction.

Load-bearing premise

The load-bearing premise is that the three dimensions distilled from nine expert interviews—semantic precision, rhetorical persuasion, pragmatic relevance—really do cover what makes actionable EDA and storytelling effective; if a major ingredient is missing or misweighted, Jupybara optimizes the wrong objectives and the evaluation, which rates output along those same three dimensions, cannot demonstrate true effectiveness.

Editorial extensions

If this is right

  • LLM assistants for data analysis can be built against explicit quality criteria—semantic precision, rhetorical persuasion, pragmatic relevance—rather than generic helpfulness, and those criteria double as evaluation rubrics.
  • Complex analytical questions should be routed to the multi-agent mode when response quality matters more than speed, because the multi-agent mode takes roughly five times as long as the single-agent mode but earns significantly higher quality ratings.
  • Actionable EDA and storytelling can live in one notebook workflow: analysis plans, code, interpretations, insight summaries, and editable data stories are all produced and cross-referenced inside Jupyter rather than in separate tools.
  • The design space subsumes the four analyst challenges identified in the formative study (choosing analytical strategies, tracking insights and history, finding the right language and narrative, and leveraging domain knowledge), so meeting the three dimensions addresses those challenges simultaneously.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • Editorial extension: because the multi-agent mode also uses more time and tokens, the observed quality advantage might come from extra effort rather than from the critique architecture itself; a matched-cost comparison with equal latency and token budgets would separate those explanations.
  • Editorial extension: if the three-dimensional design space generalizes, it could serve as a shared rubric for auditing AI-generated insights in other venues, such as dashboards, business reports, and decision-support documents.
  • Editorial extension: the design space was derived from nine expert interviews, so its completeness is an open empirical question; domains with strong ethical, privacy, or fairness constraints may reveal additional dimensions beyond the pragmatic one.
Share X Bluesky LinkedIn Reddit HN

Signed reviews

No signed human review yet.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

4 major / 6 minor

Summary. The paper proposes a three-dimensional design space for actionable exploratory data analysis (EDA) and data storytelling, comprising semantic precision, rhetorical persuasion, and pragmatic relevance, and claims this space is grounded in theory and nine expert interviews. The authors instantiate the space in Jupybara, a Jupyter Notebook extension that uses two operationalization strategies: design-space-aware prompting and multi-agent critique-and-refine architectures. The paper reports a summative evaluation with nine expert analysts in which participants rated Jupybara against ChatGPT's data analysis plugin on usability-related dimensions and rated Jupybara's multi-agent mode against its single-agent mode on the three design-space dimensions. The central claim is that the expert evaluation supports Jupybara's usability, steerability, explainability, and reparability, and the effectiveness of the two strategies for operationalizing the design space.

Significance. If the causal claims were supported, the paper would make a useful contribution by showing that a design-space-derived prompting and multi-agent critique protocol improves actionable EDA and storytelling over single-agent LLM responses, and by providing a transferable architecture for such systems. The design space itself is a plausible synthesis of prior work and interview data, and the Jupybara implementation is broad and thoughtfully integrated with Jupyter workflows. The paper is also candid in Section 6.1 about several known limitations, which is a strength. However, the headline claims about strategy effectiveness rest on an evaluation design whose confounding factors prevent causal identification; the design space is also validated partly through rating instruments that reuse its own vocabulary. The result, as currently stated, is therefore not established, though the underlying system and framework remain potentially valuable.

major comments (4)
  1. [Section 5.2 and 5.3.1, Figure 12] The single-agent versus multi-agent comparison cannot support the claim that the multi-agent architecture is more effective. Every participant first used single-agent mode and then repeated the same analysis in multi-agent mode, for both EDA and storytelling. Mode is therefore confounded with practice, familiarity with the dataset, and carryover of earlier insights; moreover, the multi-agent pipeline produces longer, more elaborate outputs and has roughly five times the latency, a factor the authors themselves identify in Section 5.3.7 and Section 6.1 as a possible source of perceived thoroughness. The significant Wilcoxon results in Figure 12 are consistent with these alternative explanations. A counterbalanced or between-subjects design, or a condition that equalizes output length and presentation format, would be needed to attribute the ratings to the multi-agent architecture.
  2. [Section 5.2 and 5.3.1, Figure 11] The Jupybara-versus-ChatGPT comparison is not an in-session baseline: participants rated ChatGPT's data analysis plugin from prior experience and never used it during the study, as acknowledged in Section 6.1. The reported p-values are nonsignificant after Holm-Bonferroni correction, yet the Abstract states that the evaluation confirms Jupybara's superiority. The current text appropriately says 'the trend clearly indicates' within the body, but this more cautious language should also be reflected in the Abstract and the contributions list, unless a controlled comparison is conducted.
  3. [Section 4.3 and Abstract] The two strategies, design-space-aware prompting and multi-agent architectures, are never independently varied. In the evaluation, the multi-agent mode differs from the single-agent mode both in agent count and in the prompting/guidance structure, so any difference in ratings could be due to either factor or their interaction. The claimed effectiveness of 'our strategies' as a pair is therefore not separable, and the specific attribution to multi-agent collaboration in Section 5.3.7 is not identified.
  4. [Section 5.3.1, questionnaire wording] The Part 2 questionnaire asks participants to rate 'provides precise and contextually rich interpretation of results', 'generates coherent and persuasive narrative', and 'offers high-quality actionable insights', which are nearly verbatim restatements of the semantic, rhetorical, and pragmatic dimensions the system was designed to optimize. The evaluation therefore risks being circular as a validation of the design space: the outcome measures share their construct vocabulary with the intervention's design goals. A concrete test that would avoid this circularity is an independent rubric-based evaluation of the generated artifacts by blinded raters who did not see the design-space definitions, or an artifact-level analysis of whether the outputs actually satisfy the three dimensions.
minor comments (6)
  1. [Section 1, first sentence] The name 'Ben Schneiderman' should be spelled 'Ben Shneiderman'.
  2. [Section 4.4.3] The text 'Rae is able to quickly trace the the graphical representation' contains a duplicated article, which should be corrected.
  3. [Figures 11 and 12] The figures report p-values but not the corresponding Wilcoxon test statistics, sample sizes per item, or effect sizes; adding these would make the statistical claims more transparent.
  4. [Section 5.3.7] The sentence 'All but one participant preferred the multi-agent mode' would benefit from a precise count and from a direct reconciliation with the questionnaire results, especially since some participants expressed latency and verbosity concerns.
  5. [Section 6.1] The limitation paragraph is honest and welcome, but the Abstract and contributions currently state that the evaluation 'confirms' the effectiveness of the strategies; the language should be aligned so that the known confounds are not understated in the paper's front matter.
  6. [Section 3.1 and 5.1] The two participant pools both have nine experts and include two overlapping participants; it would be clearer to state explicitly that the summative evaluation is not fully independent of the formative interview sample.

Circularity Check

2 steps flagged · score 4.0 of 10

Evaluation confirms the framework by measuring the framework's own dimensions, and the framework itself is inherited from the authors' prior work.

  1. self definitional [Section 5.2 (Questionnaire), Section 4.3.2 (Multi-Agent Architectures), Abstract]
    "The second part of the questionnaire focused on evaluating the quality of responses across the three dimensions of our design space—the extent to which the systems 'provides precise and contextually rich interpretation of results,' 'generates coherent and persuasive analyses and narratives,' and 'offers high-quality actionable insights'—for the single- and multi-agent modes of Jupybara. Notably, each dimension of the design space is addressed by at least three agents, potentially enhancing the quality of the response."

    The Part 2 dependent variables are restatements of the semantic, rhetorical, and pragmatic dimensions that the system's design-space-aware prompts and dimension-specialized critics were explicitly built to optimize (Sections 4.3.1-4.3.2). The multi-agent architecture assigns at least three agents to each design-space dimension and then asks participants to rate outputs on those same three dimensions, so the reported multi-agent advantage is an internal consistency check of the architecture-to-questionnaire mapping. It cannot independently confirm the design space's claim to underpin effective EDA and storytelling; the only external comparison (ChatGPT) was non-significant after Holm-Bonferroni correction and lacked an in-session baseline.

  2. self citation load bearing [Section 2.1 (Related Work); cf. Section 3.2]
    "Their work outlined in a preliminary form a design space integrating semantics, rhetorics, and pragmatics to frame how language can better communicate actionable insights. Our current work considerably elaborates this design space and implements strategies that leverage LLMs for actionable EDA and storytelling."

    The three-dimensional design space that the whole paper operationalizes is explicitly inherited from an arXiv preprint by two of the three co-authors (Setlur and Birnbaum). The paper's own evaluation then uses those same three dimensions as the rating scales, so the framework's authority is imported from the authors' prior work rather than established by an independent benchmark. The expert interviews and the Jupybara implementation do supply independent content, which keeps the circularity partial rather than total.

full rationale

The claimed derivation chain is: prior framework plus expert interviews -> three-dimensional design space -> design-space-aware prompting and multi-agent critics -> Jupybara -> expert evaluation 'confirms' the strategies. The load-bearing circular element is at the last link: the evaluation's Part 2 instrument is built from the same three dimensions (semantic, rhetorical, pragmatic) that the prompts and critics were explicitly designed to optimize, so the significant multi-agent advantage on those scales is an internal consistency check, not an independent confirmation that the dimensions underpin effective EDA and storytelling. The design space itself also originates in the authors' own earlier preprint, making the framework's authority partially self-citational. The rest of the system (ReACT workflow, critique-refiner loop, insight DAGs, story editing, reparability features) is substantial and could in principle be tested against external benchmarks; the ChatGPT comparison was intended as an external anchor but was non-significant after correction and lacked an in-session baseline. Fixed order and latency confounds are methodological risks rather than circularity, so they do not further raise the score. Overall, the central claim retains independent content, but the evaluation's success measure is endogenous to the framework, giving a partial circularity score of 4.

Assumptions & free parameters 0 free parameters · 4 assumptions · 0 invented entities

The paper's central claims rest on the validity of the design space derived from a small interview sample, and on the assumption that subjective ratings reflect output quality. No free parameters are fitted; no new physical or conceptual entities are postulated beyond the design-space framing itself.

assumptions (4)
  • domain assumption The three-dimensional design space (semantic, rhetorical, pragmatic) captures the essential dimensions of effective actionable EDA and storytelling
    Derived from nine expert interviews and prior theory; assumed complete and generalizable. Stated in Sections 3.4 and 8.
  • domain assumption LLMs can generate coherent narratives and apply domain expertise to interpret analytical results
    Background premise for the entire system; stated in Introduction, Section 1.
  • domain assumption Expert ratings on Likert scales reflect actual quality of actionable EDA and storytelling outputs
    The evaluation relies on subjective participant ratings; assumed valid despite potential novelty and ordering biases. Sections 5.2, 6.1.
  • domain assumption ReACT prompting and multi-agent critique improve LLM response quality
    Borrowed from prior literature [112, 21, 54]; assumed to transfer to EDA and storytelling. Sections 4.2, 4.3.2.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Jupybara: Operationalizing a Design Space for Actionable Data Analysis and Storytelling with LLMs." pith.science (2026). https://pith.science/paper/PR7VIQEQ

@misc{pith2026250116661,
  author       = {Pith},
  title        = {Pith review of: Jupybara: Operationalizing a Design Space for Actionable Data Analysis and Storytelling with LLMs},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/PR7VIQEQ}},
  note         = {Machine review of arXiv:2501.16661}
}
read the original abstract

Mining and conveying actionable insights from complex data is a key challenge of exploratory data analysis (EDA) and storytelling. To address this challenge, we present a design space for actionable EDA and storytelling. Synthesizing theory and expert interviews, we highlight how semantic precision, rhetorical persuasion, and pragmatic relevance underpin effective EDA and storytelling. We also show how this design space subsumes common challenges in actionable EDA and storytelling, such as identifying appropriate analytical strategies and leveraging relevant domain knowledge. Building on the potential of LLMs to generate coherent narratives with commonsense reasoning, we contribute Jupybara, an AI-enabled assistant for actionable EDA and storytelling implemented as a Jupyter Notebook extension. Jupybara employs two strategies -- design-space-aware prompting and multi-agent architectures -- to operationalize our design space. An expert evaluation confirms Jupybara's usability, steerability, explainability, and reparability, as well as the effectiveness of our strategies in operationalizing the design space framework with LLMs.

Figures

Figures reproduced from arXiv: 2501.16661 by the authors.

Figure 1
Figure 1. The interface of Jupybara, an AI-enabled assistant for actionable EDA and data storytelling implemented as a Jupyter Notebook extension. Jupybara operationalizes our proposed design space consisting of the semantic, rhetorical, and pragmatic dimensions. (A) For a complex user query in EDA, Jupybara identifies and presents an analysis plan before producing code. (B) In the data story generated by Jupybara, the system… view at source ↗
Figure 2
Figure 2. The multi-agent architecture for EDA in Jupybara. Given a user query, an Initial Respondent provides an initial response, which is then critiqued by four Critics. Based on the critiques, the Refiner improves the response and sends the revised version back to the Critics for review. The discussion between the Critics and the Refiner continues until all Critics agree the response is ready or a defined maximum number o… view at source ↗
Figure 3
Figure 3. The multi-agent architecture for data storytelling in [PITH_FULL_IMAGE:figures/full_fig_p011_3.png] view at source ↗
Figures from the paper (9 more)
Figure 4
Figure 4. Figure 4: (A) Rae inputs her command in a Notebook cell and clicks the “Invoke AI” icon in the cell toolbar. [PITH_FULL_IMAGE:figures/full_fig_p012_4.png]
Figure 5
Figure 5. Figure 5: Rae tasks Jupybara with a complex query under the single-agent mode. Utilizing its agentic workflow, Jupybara produces code, executes it, and provides an interpretation. Nonetheless, this response is not immediately intuitive to Rae due to the lack of units, the limite…
Figure 6
Figure 6. Figure 6: (A) Rae switches to the multi-agent mode for the previous complex query. (See the video walkthrough in the [PITH_FULL_IMAGE:figures/full_fig_p014_6.png]
Figure 7
Figure 7. Figure 7: Rae wants to summarize the analysis history and insights gained so far. She navigates to the [PITH_FULL_IMAGE:figures/full_fig_p015_7.png]
Figure 8
Figure 8. Figure 8: Rae navigates to the Settings tab to activate the multi-agent mode for data storytelling (not shown here; please see video supplement). To generate a data story, Rae navigates to the Storytelling tab. She inputs her instructions and clicks “Generate Data Story.” Jupyba…
Figure 9

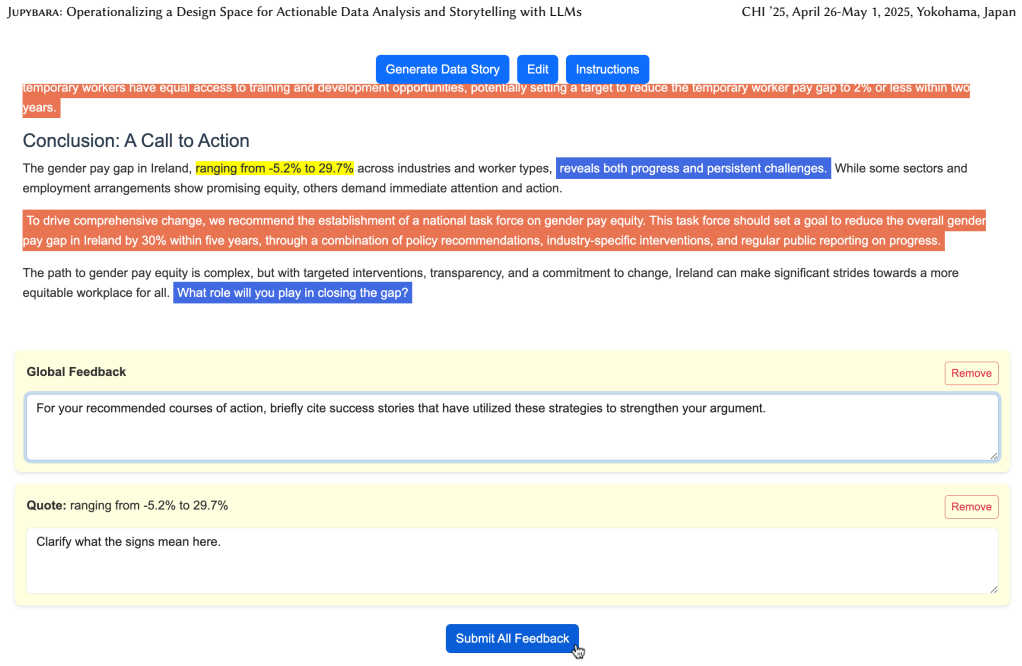

Figure 9. Figure 9: Rae can provide both global feedback on the entire AI-generated data story and local feedback focused on specific [PITH_FULL_IMAGE:figures/full_fig_p017_9.png]
Figure 10
Figure 10. Figure 10: Rae can also manually edit the data story by clicking “Edit,” which opens a side-by-side live HTML editor next to the [PITH_FULL_IMAGE:figures/full_fig_p018_10.png]
Figure 11
Figure 11. Figure 11: Participants separately rated ChatGPT’s data analysis plugin and [PITH_FULL_IMAGE:figures/full_fig_p018_11.png]
Figure 12
Figure 12. Figure 12: Participants separately rated the single- and multi-agent modes of [PITH_FULL_IMAGE:figures/full_fig_p019_12.png]
