Numerical modeling of isochoric heating experiments using the TROLL code in the warm dense matter regime

T0 review · 4 major / 5 minor · reviewed 2026-08-07 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗

Pith's one-line read The TROLL code, using the SESAME equation of state and SRIM stopping power for protons in aluminum, reproduces the rear-face temperatures measured in isochoric proton-heating experiments.

desk verdict Honest TROLL benchmark against two LULI shots, but the headline agreement is partly built by tuning the proton source, so read the validation claim with salt. read the letter →

arxiv 2506.08912 v1 pith:PS7EL6Q3 submitted 2025-06-10 physics.plasm-ph

Sébastien Rassou , Marie Bonneau , Christophe Rousseaux , Xavier Vaisseau , Witold Cayzac , Adrien Denoeud , Frédéric Perez , Tom Beaumont
show 2 more authors
Morris Demoulins Jean-Christophe Pain
This is my paper
classification physics.plasm-ph
keywords warmdensematterisochoricheatingprotonstoppingpowerTROLLcoderadiationhydrodynamicsSESAMEequationofstateSRIMstreakedopticalpyrometry
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

The paper tries to show that the TROLL radiation-hydrodynamics code can model isochoric heating of solid aluminum by a laser-accelerated proton beam well enough to reproduce the measured temperature at the rear face. In the experiments analyzed, protons accelerated by target normal sheath acceleration heat 3- and 6-micrometer aluminum foils to the warm dense matter regime, with rear-face temperatures between 1 and 5 eV. The authors reconstruct the proton source from Thomson-parabola measurements, extrapolating the low-energy part using a published reference spectrum and tuning a normalization factor to match the temperature. Simulated temperatures using the SESAME equation of state and cold-matter SRIM stopping power agree acceptably with the streaked-optical-pyrometry measurements, while the fully ionized stopping-power model agrees less well. This matters because proton-driven isochoric heating is a route to benchmark equations of state and stopping-power models in a regime where those models are otherwise extrapolated.

What carries the argument

The load-bearing object is the TROLL radiation-hydrodynamics code with its Monte-Carlo module for charged-particle transport, which tracks protons from a point source through a Lagrangian mesh and deposits energy via stopping-power formulas. The two stopping models compared are SRIM, for cold non-ionized matter, and Diane, for fully ionized plasma. The input proton source is reconstructed from Thomson-parabola data: the high-energy part is measured, the low-energy part below 0.6 MeV is extrapolated following a reference experiment, the beam divergence comes from that reference's fit, and a normalization factor is applied to match the measured temperature. SESAME provides the equation of state, and the comparison quantity is the rear-face temperature inferred from SOP radiance assuming black-body emission with emissivity 1.

What would settle it

Measure the proton spectrum below 0.6 MeV on the same shots with a diagnostic that reaches lower energies, such as a Thomson parabola with longer imaging plates or a radiochromic-film stack deconvolution, feed the measured spectrum into TROLL without the temperature-tuning normalization factor, and check whether the rear-face temperature still matches; if it does not, the reported agreement rests on the fitted source.

Watch

Extended reading notes

Core claim

The central claim is that the TROLL code, using the SESAME equation of state and SRIM stopping power for protons in aluminum, reproduces the rear-face temperature measured by streaked optical pyrometry on proton-heated foils. For both analyzed shots, the simulated time-dependent rear-face temperature is in acceptable agreement with the experiment, and the post-processed radiative emission using SRIM stopping is close to the SOP measurements. The Diane stopping power for fully ionized matter also falls within the experimental error bars but agrees less well. The paper further argues that the black-body assumption with emissivity close to 1 is reliable for aluminum in the 1 to 5 eV range and in the expansion plasma regime, and that TROLL's multidimensional Monte-Carlo proton transport captures the heating geometry.

Load-bearing premise

The argument depends on the reconstructed proton source being the actual beam that hit the foil: the low-energy part below 0.6 MeV, which deposits most of the energy, is taken from a different experiment and scaled by a factor fitted so that the simulated temperature matches the measured one. If that source is wrong, the agreement is produced by the fitting itself.

Editorial extensions

If this is right

  • TROLL, originally built for hohlraum and inertial-confinement simulations, can also be used to design and analyze isochoric proton-heating experiments in the warm dense matter regime.
  • For aluminum in the 1 to 5 eV range, the cold-matter SRIM stopping power gives better agreement with the measured rear-face temperature than the fully-ionized Diane model, although the measurement uncertainties prevent a definitive ranking.
  • The consistency between simulated and measured emission ratios for the 3-micrometer and 6-micrometer shots supports the use of black-body emission with emissivity near 1 for rear-face temperature inference in this regime.
  • The simulated temperature is averaged over the rear surface, so the comparison between simulation and experiment is meaningful at the roughly 100-micrometer spatial scale set by the SOP analysis.
  • The incident proton distribution is not significantly altered by energy deposition in the thin aluminum foils, so the modeled and measured transmitted distributions can be compared directly to check the transport calculation.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • Because the low-energy proton population that dominates heating is not measured on the analyzed shots but taken from a reference experiment and scaled to match the temperature, the comparison should be read as a validation of the coupled transport-and-equation-of-state model conditional on the source model, not as a source-free test.
  • A sharper test would use a second target material with the same reconstructed source, since the ratio of rear-face temperatures between materials is less sensitive to the overall normalization and would isolate stopping-power differences.
  • The same modeling chain could be used to benchmark partial-ionization stopping-power models by selecting shots where the SRIM and Diane predictions diverge most, which the paper notes is a possible future investigation.
  • The unexplained discrepancy between the calibration sensitivity obtained for this campaign and the value expected from a later calibration method suggests that absolute temperature values carry a systematic uncertainty that relative measurements between shots or between materials would help suppress.
Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

4 major / 5 minor

Summary. The manuscript reports simulations of proton-driven isochoric heating experiments performed at LULI, using the TROLL radiation-hydrodynamics code with a Monte-Carlo charged-particle module and two stopping-power models (SRIM and Diane), together with the SESAME equation of state. Two shots (19 and 40) on aluminum foils of 3 and 6 µm thickness are modeled in 2D cylindrical geometry. The simulated rear-face temperature, radiative emission, and transmitted proton spectra are compared with Thomson-parabola and streaked-optical-pyrometry measurements. The authors conclude that an acceptable agreement is obtained with the SRIM stopping power and SESAME EOS, and that the black-body assumption used to infer experimental temperatures is supported. The paper is transparent about the main difficulty: the measured Thomson-parabola spectra start at 0.6 MeV, while most heating is produced by protons below 0.5 MeV, so the low-energy part of the spectrum is taken from Mančić et al. and the absolute proton number for shot 19 is scaled by a factor f19=1.25 to match the measured temperature.

Significance. If the reported agreement were based on an independently constrained proton source, the work would constitute a valuable benchmark of TROLL, SRIM stopping, and SESAME EOS in the warm dense matter regime. The explicit tuning of the proton normalization f19 and the transplantation of the low-energy spectrum from a different experiment, however, mean that the central claim is currently a consistency check rather than a validation. The paper demonstrates a useful simulation workflow and is honest about its limitations, but the load-bearing comparisons in Figures 14 and 15 need to be reassessed with sensitivity analysis or reframed in terms of what can and cannot be concluded.

major comments (4)
  1. [§3.3, Figure 14] The proton number for shot 19 is explicitly multiplied by f19=1.25 'to match the temperature measurements' (stated in §3.3). Consequently, the simulated temperature for shot 19 in Figure 14 agrees with experiment partly by construction, and the abstract's claim of 'an acceptable agreement' using SESAME and SRIM is not an independent validation. The manuscript should either provide an independent constraint on the absolute proton number (e.g., from RCF or a calibrated part of the Thomson parabola) or reframe the comparison as a consistency check and state explicitly which physical quantities are not fitted.
  2. [§3.3, paragraph on low-energy extrapolation] The measured Thomson-parabola data only cover proton energies above 0.6 MeV, while the text notes that most of the energy deposition is due to protons with energies below 0.5 MeV. The low-energy spectrum is therefore taken from Mančić et al. [9] rather than measured on the analyzed shots. Since the simulated rear-face temperature is most sensitive to this unmeasured part of the spectrum, the apparent agreement in Figure 14 depends critically on the assumption that the TNSA spectrum shape is identical to that of Mančić et al. A quantitative sensitivity study (e.g., varying the low-energy spectral slope and normalization within plausible bounds) is needed to establish that the agreement is not accidental.
  3. [§3.3, shot 40 input] Shot 40 is not an independent check of the source modeling: its input distribution is derived from shot 19's distribution by a single scaling factor f40=0.75 chosen to fit the high-energy (>4 MeV) part of the shot 40 Thomson-parabola data. The low-energy shape, which dominates heating, is therefore the same assumed shape as for shot 19. The manuscript should explicitly list which aspects of the shot 40 comparison are truly independent and which are carried over from the shot 19 assumptions.
  4. [§2.3, temperature calibration] The SOP calibration is subject to unexplained systematic discrepancies: the estimated red-path sensitivity is 0.17 nW/lsb (-43%; +88%), while the value expected from the calibration of reference [19] is about 2.7 nW/lsb, 'a discrepancy that we cannot explain.' Combined with the stated [-50%; +100%] error bars on the emission, the inferred temperatures used for comparison in Figure 14 carry large, potentially asymmetric uncertainties that are not shown. The comparison should be presented with the full temperature uncertainty (including the calibration ambiguity) and the conclusion should be reevaluated in that light.
minor comments (5)
  1. [Abstract and §5] The wording 'an acceptable agreement' in the abstract and 'The good agreement' in the conclusions overstates the strength of the comparison given the explicit tuning of f19 and the large experimental uncertainties; a more cautious formulation such as 'consistent within the large uncertainties' would be more accurate.
  2. [Throughout] The code name is written inconsistently ('Troll', 'TROLL', 'theTrollcode'); please use the official capitalization throughout.
  3. [Figure 4 caption] The units of dN/dEdΩ are given as part.MeV^-1.sr^-1, but the caption does not define the symbol Ω or specify whether the distribution is at the source or at the target position; this should be clarified.
  4. [Figure 14] The experimental temperature curves in Figure 14 do not appear to include error bars; adding the estimated temperature uncertainty (derived from the [-50%; +100%] emission error bars) is essential for a meaningful comparison.
  5. [References] Reference [17] is cited as 'in preparation'; if possible, replace or supplement with a published or accessible version, or indicate that the results do not depend on that reference.

Circularity Check

1 steps flagged · score 6.0 of 10

Shot 19's proton-number scale f19=1.25 is explicitly tuned to match the temperature measurements, so the reported 'acceptable agreement' with SRIM/SESAME is partly a fitting result, not an independent prediction.

  1. fitted input called prediction [Section 3.3 (Modeling the input protons data from experiments), around Fig. 12]
    "In addition to the already described corrections applied on the measurements, the incident proton distribution might be tuned to match the temperature measurements. For shot 19, the proton number is multiplied by a factor f19=1.25 and the resulting energy distribution is called “t19s1”."

    The quantity being predicted—the rear-face temperature—is the same quantity used to fix the input proton-number scale. The Thomson-parabola measurement provides the spectral shape, but the absolute normalization f19 is chosen so that the simulated temperature matches the SOP-inferred temperature. Since the deposited energy, and therefore the simulated temperature, scales with the proton number, the 'acceptable agreement' in Fig. 14 for shot 19 is at least partly built in. It is a consistency check of a fitted parameter, not an independent prediction of temperature. This makes the headline claim 'An acceptable agreement between experiment and simulation is found... using SESAME equation of state and SRIM stopping power' partly a fitting artifact.

full rationale

The paper builds its central comparison from a proton source that combines Thomson-parabola data, a Mančić et al. low-energy shape for the dominant sub-0.6 MeV part, and Mančić et al. beam divergence. The circular step is explicit in Section 3.3: for shot 19 the absolute proton number is rescaled by f19=1.25, and the text states this is done 'to match the temperature measurements.' Because the simulated rear-face temperature is monotonically tied to deposited proton number, the shot-19 agreement in Fig. 14 is in part guaranteed by the fit and cannot independently validate SESAME+SRIM. Shot 40 is less directly circular: f40=0.75 is fitted to the >4 MeV proton spectrum rather than to temperature, so the temperature comparison retains some independent content, but it inherits the same borrowed low-energy source shape and the same shot-19 source assumption. The radiative-emission comparison shares the same source model and has very large error bars (-50%/+100%). The paper is candid about the remaining uncertainties ('It is difficult to determine the best stopping power model in our case...'), but candor does not remove the fitted-input circularity for shot 19. Overall score 6: one headline 'prediction' reduces by construction, while the second shot provides partial, source-dependent independent content.

Assumptions & free parameters 2 free parameters · 6 assumptions · 0 invented entities

The paper introduces no new physical entities. Its central validation, however, rests on two fitted normalization factors and on several assumptions about the proton source (low-energy shape and angular divergence) borrowed from prior work. These assumptions and fits are the main cost of the comparison and should be made explicit when interpreting the agreement.

free parameters (2)
  • f19 = 1.25
    Multiplicative scaling of the proton number for shot 19, tuned so that the simulated temperature matches the experimental measurement (Section 3.3).
  • f40 = 0.75
    Scaling factor applied to the shot 19-based proton distribution to fit the high-energy (>4 MeV) Thomson parabola data of shot 40 (Section 3.3).
assumptions (6)
  • domain assumption The low-energy proton distribution below 0.6 MeV follows the shape measured by Mančić et al.
    Used to extrapolate the measured Thomson parabola spectra, which miss protons below 0.6 MeV that dominate energy deposition (Section 3.3).
  • domain assumption The proton beam has a homogeneous angular distribution with a maximum divergence given by Mančić et al.'s experimental fit for a gold foil TNSA source.
    The angular spread of the source is not measured in these shots; it is taken from prior work (Section 3.3).
  • domain assumption The rear-surface emission follows the black-body formula with emissivity equal to 1.
    Used to convert SOP measurements to temperature, justified by Celliers and Ng's calculations (Section 2.3).
  • standard math The ionic contribution to the proton stopping power is negligible.
    Eq. (2) assumes the bound and free electron terms dominate the stopping power (Section 3.2).
  • domain assumption The SESAME equation of state accurately describes the aluminum response in the warm dense matter conditions of these experiments.
    The simulations use the SESAME EOS without a dedicated validation in this regime (Section 3.1).
  • domain assumption SRIM stopping power is appropriate for cold, weakly ionized matter, while the Diane model applies to fully ionized matter; the true regime is somewhere between.
    The paper compares these two limiting models and acknowledges that partial ionization models would be needed for a more precise treatment (Section 3.2).

how reviews work

0 comments
Cite this review

Pith. "Pith review of Numerical modeling of isochoric heating experiments using the TROLL code in the warm dense matter regime." pith.science (2026). https://pith.science/paper/PS7EL6Q3

@misc{pith2026250608912,
  author       = {Pith},
  title        = {Pith review of: Numerical modeling of isochoric heating experiments using the TROLL code in the warm dense matter regime},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/PS7EL6Q3}},
  note         = {Machine review of arXiv:2506.08912}
}
read the original abstract

Experiments of isochoric heating by protons of solid material were recently performed at LULI laser facilities. In these experiments, protons, produced from target normal sheath acceleration (TNSA) of Au foil with the PICO2000 laser, deposit their energy into an aluminum or copper foil initially at room temperature and solid density. The heated material reaches the warm dense matter regime with temperature in the rear face of the material between 1 and 5 eV. The temperature is inferred by streaked optical pyrometry and the proton beam is characterized by Thomson parabola. The high-energy protons produced by TNSA are modeled to deduce the initial proton distribution before the slowing down in the target. Hydrodynamic radiative simulations were next performed using the TROLL code in multidimensional geometry. In the TROLL code, the heating of protons is modeled with a Monte-Carlo transport module of charged particle and the calculation of the energy deposited by the protons in the matter is performed using stopping power formulas like SRIM functions. The results of simulations with the TROLL code are compared with the experimental results. An acceptable agreement between experiment and simulation is found for the temperature at the rear of the material using SESAME equation of state and SRIM stopping power for protons in aluminum.

Figures

Figures reproduced from arXiv: 2506.08912 by the authors.

Figure 1
Figure 1. Scheme of the experimental setup of isochoric heating with protons experiments and the [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2
Figure 2. View of the central part of the target holder with the aluminum sample in the foreground and [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3
Figure 3. Scheme of the streaked optical pyrometry setup for collecting the radiative emission at the rear [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figures from the paper (12 more)
Figure 4
Figure 4. Figure 4: Proton energy distribution dN dEdΩ (part.MeV−1 .sr−1 ) measurements by Thomson parabola for shots 19 (in solid red line) and 40 (in dotted green line). The two proton distributions are close for the high energy part of the distribution. For the low energy part, a signi…
Figure 5
Figure 5. Figure 5: Streak camera image obtained for the red path (left) and the blue path (right) for shot 19 with [PITH_FULL_IMAGE:figures/full_fig_p006_5.png]
Figure 6
Figure 6. Figure 6: Spectral transmission of the two SOP optical paths, between the first lens and the streak cameras [PITH_FULL_IMAGE:figures/full_fig_p007_6.png]
Figure 7
Figure 7. Figure 7: Integrated radiance W.cm−2 .sr−1  for the two SOP paths and with associated transmission as a function of the temperature (eV). models available. The scheme in [PITH_FULL_IMAGE:figures/full_fig_p008_7.png]
Figure 8

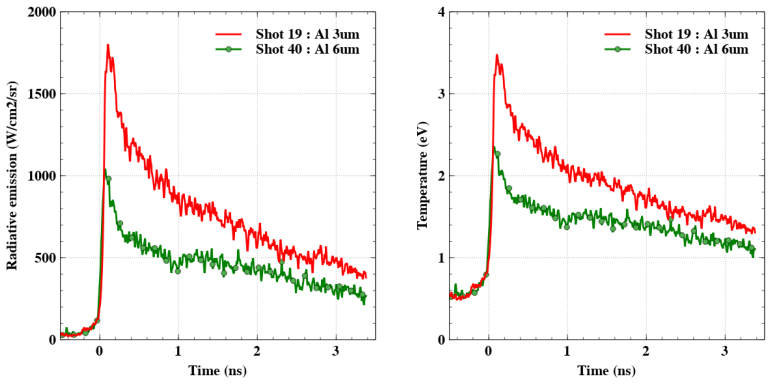

Figure 8. Figure 8: On the left, the radiative emission measurements by streaked optical pyrometry (“red” SOP [PITH_FULL_IMAGE:figures/full_fig_p009_8.png]
Figure 9
Figure 9. Figure 9: The different steps of modeling isochoric heating by proton experiments with [PITH_FULL_IMAGE:figures/full_fig_p009_9.png]
Figure 10
Figure 10. Figure 10: Schematic of the protons transport modeling in [PITH_FULL_IMAGE:figures/full_fig_p010_10.png]
Figure 11
Figure 11. Figure 11: Protons energy (MeV) as a function of the distance crossed in aluminum foil for [PITH_FULL_IMAGE:figures/full_fig_p010_11.png]
Figure 12
Figure 12. Figure 12: Proton distributions (in part/MeV/sr) used as input for the code to model the shot 19 (left, red [PITH_FULL_IMAGE:figures/full_fig_p011_12.png]
Figure 13
Figure 13. Figure 13: Proton distribution (in part/MeV) obtained by simulation for the two considered proton [PITH_FULL_IMAGE:figures/full_fig_p012_13.png]
Figure 14
Figure 14. Figure 14: Temperature obtained by simulation for the two considered proton stopping power models [PITH_FULL_IMAGE:figures/full_fig_p013_14.png]
Figure 15
Figure 15. Figure 15: Radiative emission obtained by simulation for the two considered proton stopping power [PITH_FULL_IMAGE:figures/full_fig_p013_15.png]
