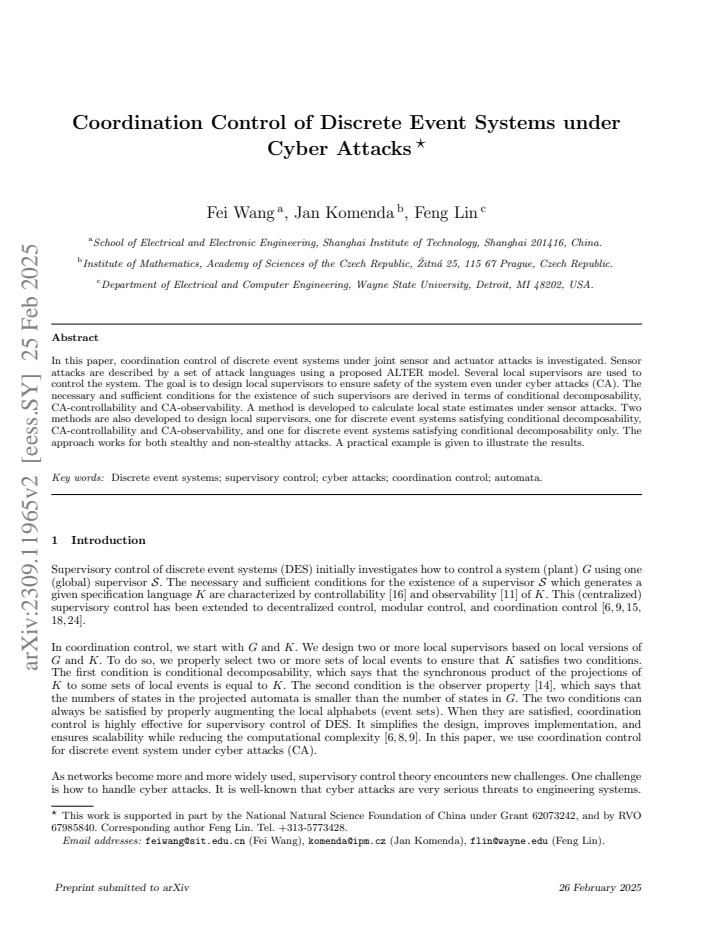

Coordination Control of Discrete Event Systems under Cyber Attacks

Fei Wang , Jan Komenda , Feng Lin This is my paper

Pith reviewed 2026-05-24 07:17 UTC · model grok-4.3

classification 📡 eess.SY cs.SY
keywords discrete event systemscoordination controlcyber attackssensor attacksactuator attackssupervisory controlconditional decomposabilityCA-controllability
0
0 comments X

The pith

Local supervisors for discrete event systems maintain safety under joint sensor and actuator attacks when conditional decomposability, CA-controllability, and CA-observability hold.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper develops coordination control for discrete event systems under joint sensor and actuator cyber attacks. It uses a proposed ALTER model to describe sensor attacks via attack languages. Necessary and sufficient conditions for local supervisors to ensure safety are derived using conditional decomposability, CA-controllability, and CA-observability. Methods for state estimation under attacks and supervisor design are also developed for systems satisfying these properties or only decomposability.

Core claim

The central claim is that local supervisors exist to enforce safety in discrete event systems under cyber attacks modeled by the ALTER attack languages if and only if the system and specification satisfy conditional decomposability, CA-controllability, and CA-observability. The paper provides methods to calculate local state estimates and to design the supervisors accordingly, working for stealthy and non-stealthy attacks.

What carries the argument

The ALTER model defining attack languages combined with the properties of conditional decomposability, CA-controllability, and CA-observability that determine supervisor existence.

If this is right

  • Local state estimates under sensor attacks can be computed.
  • Supervisors can be designed when all three conditions hold.
  • Supervisors can be designed when only conditional decomposability holds.
  • The method applies to both stealthy and non-stealthy attacks.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The conditions could be verified using existing discrete event system algorithms.
  • The framework may extend to systems with more complex attack models.
  • Results could apply to security in other cyber-physical discrete event models.

Load-bearing premise

The assumption that all sensor attacks fall within the attack languages defined by the ALTER model.

What would settle it

Finding a sensor attack not representable in the ALTER model that leads to unsafe behavior despite the conditions being satisfied.
