Effect Systems as Abstract Interpretations

Colin S. Gordon This is my paper

Pith reviewed 2026-06-26 15:37 UTC · model grok-4.3

classification 💻 cs.PL
keywords effect systemsabstract interpretationeffect quantalestype and effect systemsstatic analysisprogram semanticsabstract domains
0
0 comments X

The pith

Effect systems arise as abstract interpretations over event occurrences rather than states or values.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper establishes a formal connection between abstract interpretations and effect systems by embedding effect quantales into abstract domains. It further recovers the structure of an effect quantale itself as an abstract interpretation performed on event occurrences during program execution. This unifies two approaches to static reasoning about program behaviors that were previously connected only by loose hypotheses. A reader would care because it supplies a common semantic foundation for type-and-effect systems and abstract interpretation techniques. If the embedding holds, results and methods from one area transfer directly to the other.

Core claim

We develop a formal relationship between abstract interpretations and a general class of effect systems. First, we describe an embedding of effect quantales into abstract domains. Second, we recover the general form of an effect quantale as an abstract interpretation -- not on states or values, but on event occurrences.

What carries the argument

The embedding of effect quantales into abstract domains, which recovers effect systems as abstract interpretations performed on sequences of events.

If this is right

  • Properties proved for abstract interpretations transfer to the corresponding effect systems.
  • Effect systems inherit soundness and precision guarantees from the abstract interpretation framework.
  • The algebraic operations on effects correspond to the join and widening operations of the abstract domain.
  • Analyses based on effect systems can be re-expressed as event-sequence abstractions.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Tool builders could implement effect tracking by reusing existing abstract interpretation engines that operate on event traces.
  • The event-based view suggests that effect systems might be composed or refined by changing the interpretation of observable events.
  • Similar embeddings could connect other static analyses, such as those for information flow, to abstract interpretation.

Load-bearing premise

A general class of effect systems can be captured using effect quantales as the underlying algebraic structure.

What would settle it

An effect system whose behavior cannot be represented by any effect quantale or whose embedding into an abstract domain fails to preserve the intended effect ordering or composition.

Figures

Figures reproduced from arXiv: 2606.19686 by Colin S. Gordon.

Figure 1

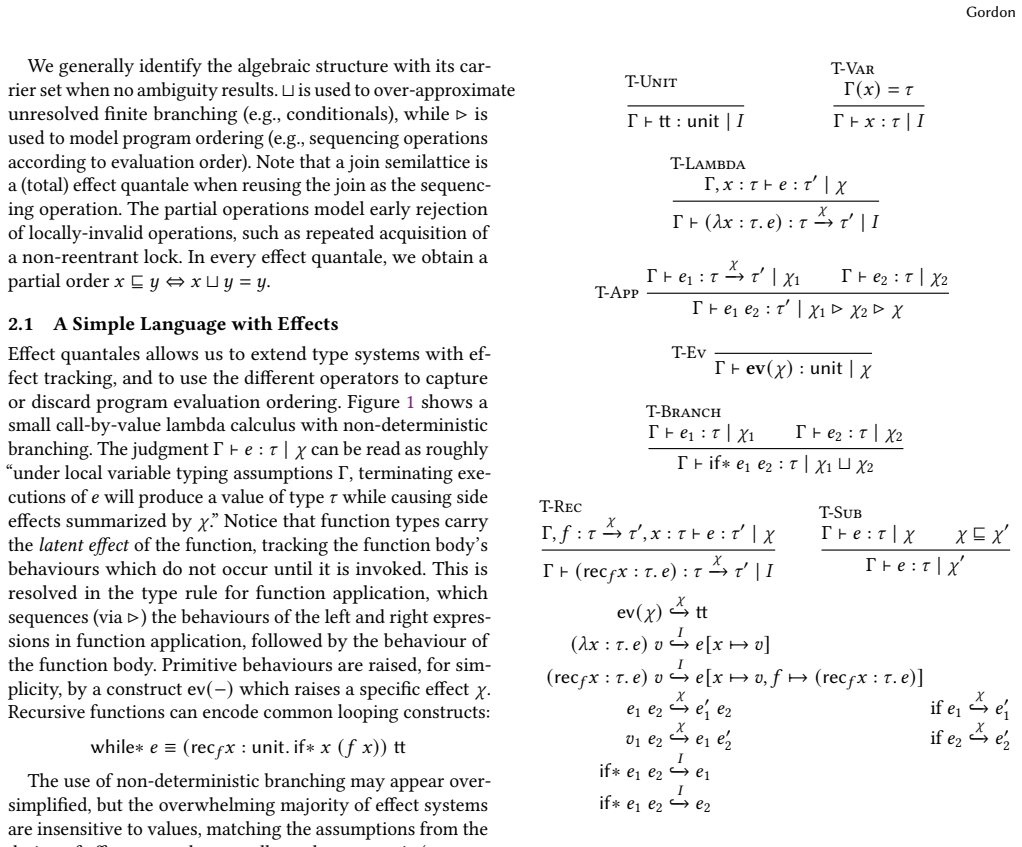

Figure 1. Figure 1: A simple effect language than repeating standard proofs, we will shortly develop type safety results using abstract interpretation. 2.2 Examples of Effect Systems Most readers are likely familiar with the most widely-used effect system: Java’s checked exceptions [27], where effects are the set of exceptions that may be thrown. Some are likely familiar with the modern twist of an effect system tracking whic… view at source ↗
Figure 2

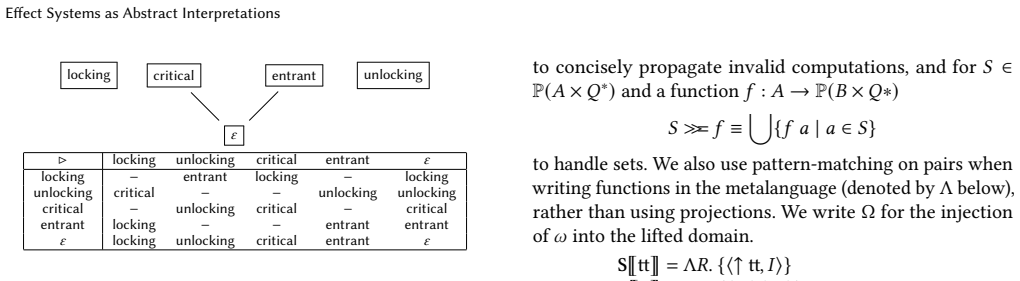

Figure 2. Figure 2: Tate’s critical section effects as an effect quantale Crit. − represents an undefined result for composition. or uses the mutually-exclusive resource); and code which is insensitive to the critical section (𝜀). Note that repeated locking or unlocking is undefined, as is the join of effects corresponding to different locking behaviour — as with reg￾ular type systems, effect systems perform both the analysis… view at source ↗
read the original abstract

Many forms of static reasoning about program behaviours are known in the literature, yet formal relationships are studied surprisingly infrequently. While most type systems are well-known to be captured by abstract interpretations, the situation for type-and-effect systems is, in the general case, unsettled despite strong hypotheses and occasional framing of effect systems as abstract interpretations. We develop a formal relationship between abstract interpretations and a general class of effect systems. First, we describe an embedding of effect quantales into abstract domains. Second, we recover the general form of an effect quantale as an abstract interpretation -- not on states or values, but on event occurrences.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

0 major / 1 minor

Summary. The paper claims to develop a formal relationship between abstract interpretations and a general class of effect systems. It first describes an embedding of effect quantales into abstract domains, then recovers the general form of an effect quantale as an abstract interpretation on event occurrences (rather than states or values). The approach is positioned as addressing the unsettled status of type-and-effect systems as abstract interpretations.

Significance. If the embedding and recovery hold with proper Galois connections, the result would provide a unifying perspective that could transfer soundness and precision results between the two formalisms. This is a potentially significant contribution to static analysis, as it targets an area where relationships are infrequently formalized despite existing hypotheses in the literature.

minor comments (1)
  1. The abstract is high-level; the manuscript should include explicit definitions of the embedding (e.g., how effect quantale operations map to abstract domain operations) and the recovery construction to allow verification of the claimed Galois connections.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for their summary of the manuscript and for noting its potential significance in unifying effect systems and abstract interpretations via Galois connections. The recommendation is listed as uncertain, but the report contains no specific major comments or points of criticism. We therefore have no individual referee comments to address point-by-point.

Circularity Check

0 steps flagged

No significant circularity: direct embedding between formalisms

full rationale

The paper presents an embedding of effect quantales into abstract domains followed by recovery of the quantale form as an abstract interpretation over event occurrences. This is a correspondence between two established structures (effect quantales and Galois connections) rather than a derivation that reduces to its own inputs. No self-definitional steps, fitted predictions, or load-bearing self-citations appear in the abstract or described claims. The relationship is constructed explicitly from the definitions of the two formalisms, making the result independent of any circular reduction.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The abstract relies on the standard algebraic properties of effect quantales and abstract domains; no free parameters, invented entities, or ad-hoc axioms are mentioned.

axioms (2)
  • domain assumption Effect quantales form an algebraic structure suitable for modeling effects in programs
    Invoked to enable the embedding into abstract domains
  • standard math Abstract domains can represent approximations of program behaviors
    Background assumption for the interpretation framework

pith-pipeline@v0.9.1-grok · 5612 in / 1206 out tokens · 20595 ms · 2026-06-26T15:37:40.459726+00:00 · methodology
