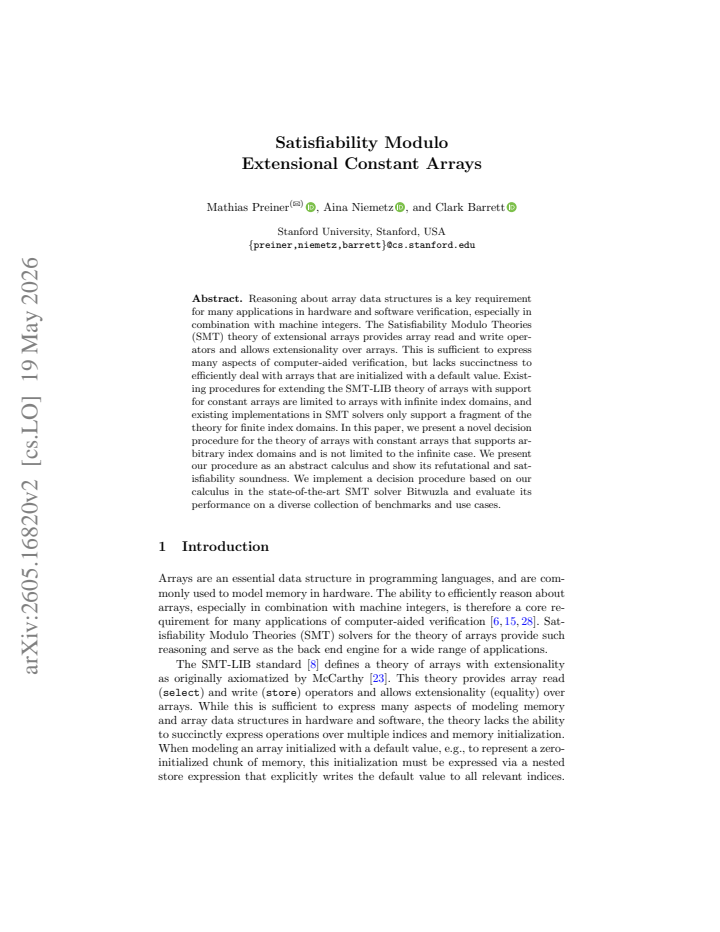

Satisfiability Modulo Extensional Constant Arrays (Extended Version)

Pith reviewed 2026-05-20 15:28 UTC · model grok-4.3

classification 💻 cs.LO
keywords satisfiability modulo theoriesarraysconstant arraysdecision procedureextensional arraysSMT solvingverificationabstract calculus
0
0 comments X

The pith

A decision procedure for arrays with constant values supports arbitrary index domains including finite ones.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper presents a novel decision procedure for the theory of extensional arrays augmented with constant arrays. This extension allows succinct representation of arrays initialized to a default value, which is common in verification tasks. The procedure works for any index domain, not just infinite ones, and is formalized as an abstract calculus shown to be sound for both refutation and satisfiability. It has been implemented in the Bitwuzla SMT solver and tested on various benchmarks.

Core claim

We present a novel decision procedure for the theory of arrays with constant arrays that supports arbitrary index domains and is not limited to the infinite case. We present our procedure as an abstract calculus and show its refutational and satisfiability soundness.

What carries the argument

An abstract calculus extending the extensional array theory with rules for constant arrays and their interactions with reads, writes, and extensionality.

If this is right

  • Verification tasks involving arrays with default values can be decided without restrictions on index domains.
  • The procedure enables complete handling of finite index domains such as those using machine integers.
  • Existing SMT solvers can be extended with this calculus to improve support for constant arrays.
  • Performance evaluations show benefits on diverse benchmarks from hardware and software verification.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • This approach might generalize to other SMT theories with default value constructs.
  • Combining it with bit-vector theories could enhance verification of low-level array operations.
  • Further optimizations could focus on efficient implementation for specific finite domains like 32-bit integers.

Load-bearing premise

The abstract calculus accurately models the semantics of constant arrays for finite index domains and can be implemented efficiently.

What would settle it

A formula with a constant array over a finite index domain that is satisfiable but the procedure declares unsatisfiable, or vice versa.

Figures

Figures reproduced from arXiv: 2605.16820 by Aina Niemetz, Clark Barrett, Mathias Preiner.

Figure 1
Figure 1. Figure 1: Visualization of the interpretation satisfying formula φ∧v ̸≈ w from Example 2. indices. In other words, interpretation I satisfies formula sv ≈ sw ∧v ̸≈ w if and only if σ I = {i I 1 , . . . , iI l , jI 1 , . . . , jI k }. For any number of array stores l + k < n, the equality does not hold since sv and sw differ on at least n − (l + k) indices. Thus, the main challenge of deciding the equality of two sto… view at source ↗
Figure 2
Figure 2. Figure 2: AEXT rules for non-extensional arrays. RowU I |= i ̸≈ j a⟨j ◁ u⟩ ∈ T(A) π(a, b[i]) ̸= () π(a⟨j ◁ u⟩, b[i]) = () π(a⟨j ◁ u⟩, b[i]) := (i ̸≈ j, a) EqR I |= a ≈ c a, c ∈ TA(A) a ≈ c ∈ T(A) π(a, b[i]) ̸= () π(c, b[i]) = () π(c, b[i]) := (a ≈ c, a) EqL I |= a ≈ c a, c ∈ TA(A) a ≈ c ∈ T(A) π(c, b[i]) ̸= () π(a, b[i]) = () π(a, b[i]) := (a ≈ c, c) DisEq I |= a ̸≈ c a, c ∈ TA(A) a ≈ c ∈ T(A) k{a,c} ̸∈ T(A) A := A,… view at source ↗

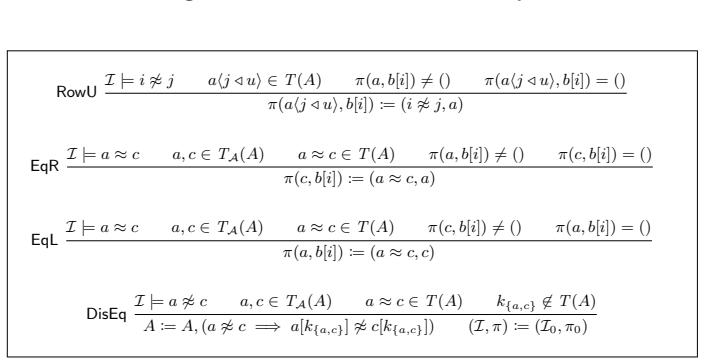

Figure 3
Figure 3. Figure 3: AEXT rules for extensional arrays [PITH_FULL_IMAGE:figures/full_fig_p010_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: CAEXT rule for non-extensional constant arrays. InitC ⟨v⟩ ∈ T(A) π(⟨v⟩,⟨v⟩) := (⊤,⟨v⟩) CowD π(a⟨j ◁ u⟩,⟨v⟩) ̸= () π(a,⟨v⟩) = () I |= ∃i : σ. ^ k∈I(a⟨j◁u⟩,⟨v⟩)∪{j} i ̸≈ k π(a,⟨v⟩) := (⊤, a⟨j ◁ u⟩) CowU π(a,⟨v⟩)̸= () π(a⟨j ◁ u⟩,⟨v⟩)= () a⟨j ◁ u⟩ ∈ T(A) I |= ∃i : σ. ^ k∈I(a,⟨v⟩)∪{j} i ̸≈ k π(a⟨j ◁ u⟩,⟨v⟩) := (⊤, a) CEqR I |= a ≈ c a, c ∈ TA(A) a ≈ c ∈ T(A) π(a,⟨v⟩) ̸= () π(c,⟨v⟩) = () π(c,⟨v⟩) := (a ≈ c, a) C… view at source ↗
Figure 5
Figure 5. Figure 5: CAEXT rules for extensional constant arrays. at the same index. Recall that with π(a, b[i]) ̸= () and π(a, c[k]) ̸= (), we have that b[i] is a representative of a[i] and c[k] is a representative of a[k] under the current interpretation I. However, if I |= i ≈ k ∧ b[i] ̸≈ c[k], the congruence axiom of TE is violated since i ≈ k ∧b[i] ≈ a[i]∧c[k] ≈ a[k] =⇒ b[i] ≈ c[k]. As a result, CongR adds a lemma to A to… view at source ↗
read the original abstract

Reasoning about array data structures is a key requirement for many applications in hardware and software verification, especially in combination with machine integers. The Satisfiability Modulo Theories (SMT) theory of extensional arrays provides array read and write operators and allows extensionality over arrays. This is sufficient to express many aspects of computer-aided verification, but lacks succinctness to efficiently deal with arrays that are initialized with a default value. Existing procedures for extending the SMT-LIB theory of arrays with support for constant arrays are limited to arrays with infinite index domains, and existing implementations in SMT solvers only support a fragment of the theory for finite index domains. In this paper, we present a novel decision procedure for the theory of arrays with constant arrays that supports arbitrary index domains and is not limited to the infinite case. We present our procedure as an abstract calculus and show its refutational and satisfiability soundness. We implement a decision procedure based on our calculus in the state-of-the-art SMT solver Bitwuzla and evaluate its performance on a diverse collection of benchmarks and use cases.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 2 minor

Summary. The paper presents a novel decision procedure for the SMT theory of extensional arrays extended with constant arrays. The procedure supports arbitrary index domains (including finite ones) and is given as an abstract calculus for which refutational and satisfiability soundness are claimed. An implementation in Bitwuzla is described together with benchmark evaluations on diverse use cases.

Significance. If the soundness claims hold, the work removes a long-standing restriction in array decision procedures to infinite index domains, enabling more succinct encodings for arrays initialized to a default value in hardware and software verification. The explicit abstract calculus, soundness arguments, and practical implementation in a state-of-the-art solver constitute clear strengths; the benchmark results further indicate that the approach is viable beyond the theoretical setting.

major comments (1)
  1. [§4] §4, Definition of the abstract calculus rules: the rules for handling constant arrays over finite index domains are stated without an explicit cardinality guard or reduction step; it is therefore unclear whether the rules remain complete when the index domain has size smaller than the number of distinct constants appearing in the formula (this is load-bearing for the central claim of support for arbitrary finite domains).
minor comments (2)
  1. [§2] The paper would benefit from an explicit statement of the SMT-LIB array theory signature used (including the exact sort declarations for constant arrays) in §2 to facilitate comparison with prior work.
  2. [Figure 3] Figure 3 (benchmark results) lacks error bars or variance information across the 10 runs; adding this would strengthen the performance claims.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the careful reading of our manuscript, the positive recommendation for minor revision, and the insightful comment on the abstract calculus. We address the major comment point by point below and will incorporate clarifications in the revised version.

read point-by-point responses
  1. Referee: [§4] §4, Definition of the abstract calculus rules: the rules for handling constant arrays over finite index domains are stated without an explicit cardinality guard or reduction step; it is therefore unclear whether the rules remain complete when the index domain has size smaller than the number of distinct constants appearing in the formula (this is load-bearing for the central claim of support for arbitrary finite domains).

    Authors: We thank the referee for identifying this point of potential unclarity. The abstract calculus in §4 is defined as a set of rules to be used in combination with a decision procedure for the index theory (which may be finite). When the index domain is finite, its cardinality constraints are enforced by the index theory solver itself; any attempt to introduce more distinct index elements or value distinctions than the domain permits leads to a conflict detected in the index theory, which is then propagated to derive unsatisfiability in the combined procedure. Thus the array rules do not require an additional explicit cardinality guard, as completeness follows from the modular combination. Nevertheless, we agree that the current presentation could be clearer on this interaction. In the revised manuscript we will add a short explanatory paragraph and a small illustrative example in §4 showing how finite-domain cardinality is handled via the index theory, thereby making the support for arbitrary finite domains fully explicit. revision: yes

Circularity Check

0 steps flagged

No significant circularity

full rationale

The paper presents a novel abstract calculus for deciding satisfiability in the theory of extensional arrays extended with constant arrays over arbitrary index domains (including finite ones). It supplies independent refutational and satisfiability soundness arguments for the calculus itself. No load-bearing step reduces by construction to a fitted parameter, a self-citation chain, or an ansatz imported from prior work by the same authors; the central claims rest on the explicit soundness proofs and the implementation/evaluation in Bitwuzla rather than on renaming or re-deriving inputs.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The paper relies on standard background from SMT array theory but introduces no new free parameters or invented entities; the contribution is the decision procedure itself.

axioms (1)
  • standard math The base SMT theory of extensional arrays with read and write operators is well-defined and decidable in the relevant fragments.
    Invoked as the foundation being extended with constant arrays.
