Sandbox-Enabled Digital Twin for Cyber-Physical Systems

Meet Udeshi , Md Raz , Prashanth Krishnamurthy , Ramesh Karri , Farshad Khorrami This is my paper

Pith reviewed 2026-06-27 02:58 UTC · model grok-4.3

classification 📡 eess.SY cs.SY
keywords digital twincyber-physical systemssandboxside-channel analysisvulnerability detectioncontroller firmwareplant simulatorobservability
0
0 comments X

The pith

A Linux sandbox digital twin runs unmodified CPS controller binaries while capturing time-synchronized side channels and plant states to correlate execution with physical events.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper presents a closed-loop digital twin framework that places unmodified controller binaries inside a Linux sandbox with I/O rerouted to an external plant simulator. Four side channels—hardware performance counters, system calls, disk activity, and network activity—are recorded in lockstep with plant state variables. Orchestration hooks support automated, repeatable, parameterized test runs. The resulting traces aim to link internal software behavior directly to plant dynamics. This addresses the gap where traditional digital twins model controllers as black boxes and side-channel studies often rely on synthetic inputs disconnected from real plant evolution.

Core claim

The framework hosts unmodified controller binaries in a Linux sandbox (SaMOSA) with its I/O rerouted to an external plant simulator. The framework captures four time-synchronized side channels (hardware performance counters, system calls, disk activity, network activity) alongside plant state and provides orchestration hooks for automated, repeatable, parameterized runs. The synchronized traces correlate internal controller execution with plant events, providing an observability foundation for online testing, coverage analysis, and vulnerability detection. The approach is shown on an OpenPLC runtime controlling a Modbus-connected IEEE 14-bus power system.

What carries the argument

SaMOSA, a sandbox that runs unmodified controller binaries with I/O rerouted to a plant simulator while recording four time-synchronized side channels together with plant state.

Load-bearing premise

Running the controller binary inside the Linux sandbox with I/O rerouting preserves the original timing and behavior sufficiently to avoid masking real vulnerabilities or introducing artifacts that invalidate side-channel correlations with plant state.

What would settle it

A demonstration that the same plant input sequence produces measurably different side-channel traces or fails to trigger a known plant-state-dependent vulnerability inside the sandbox compared with bare-metal execution on the real controller.

Figures

Figures reproduced from arXiv: 2606.17001 by Farshad Khorrami, Md Raz, Meet Udeshi, Prashanth Krishnamurthy, Ramesh Karri.

Figure 1

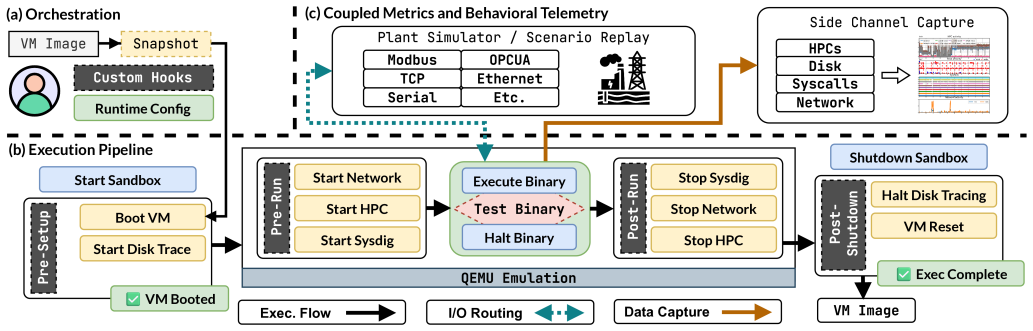

Figure 1. Figure 1: Orchestration and execution framework for the closed-loop digital twin sandbox, including flow, I/O routing, and hooks. [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2

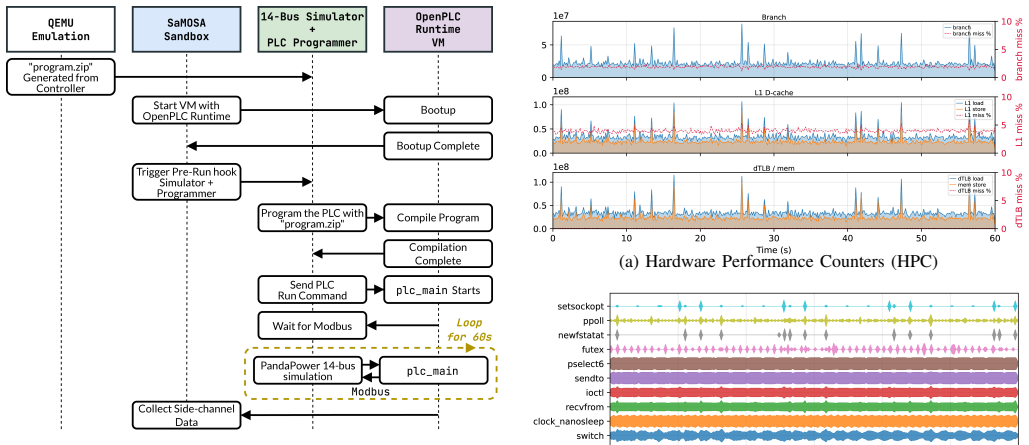

Figure 2. Figure 2: PLC programming and execution timeline in the case [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3

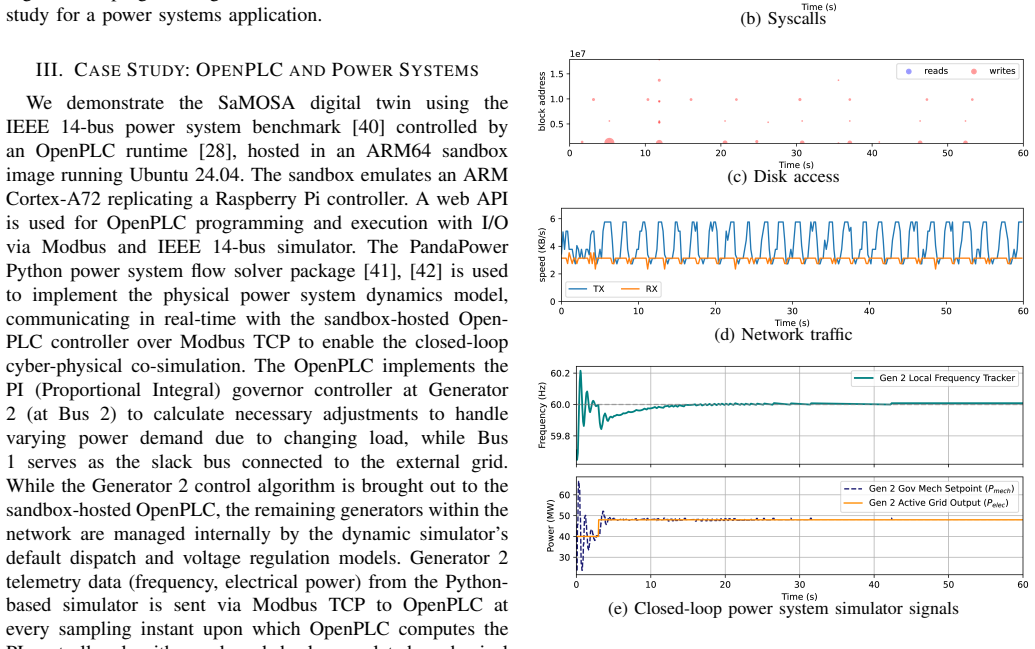

Figure 3. Figure 3: Side channels from SaMOSA sandbox + power system [PITH_FULL_IMAGE:figures/full_fig_p003_3.png] view at source ↗
Figure 4

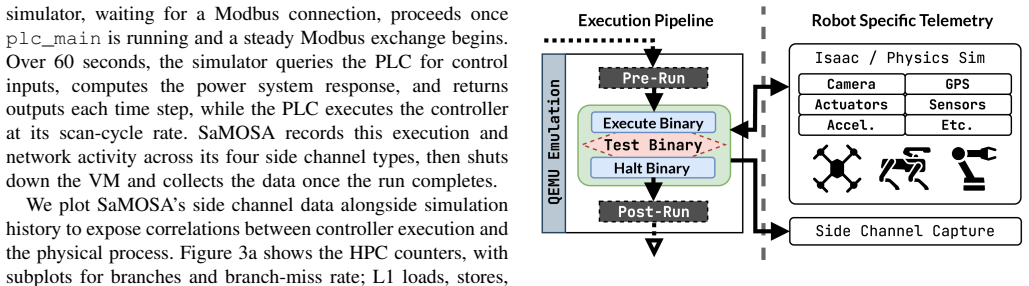

Figure 4. Figure 4: Adapting the digital twin framework and execution [PITH_FULL_IMAGE:figures/full_fig_p004_4.png] view at source ↗
read the original abstract

Firmware/software in cyber-physical system (CPS) embedded devices/controllers can have vulnerabilities stemming from multiple sources such as weak security practices, outdated libraries, or supply chain attacks that induce adversarial effects under plant state-based triggers. However, pre-deployment validation of CPS controllers typically relies on digital twins that model controller logic as a black box. On the other hand, side channel monitoring and anomaly detection of CPS controller firmware/software is complementary, but is typically exercised with synthetic inputs or under specific CPS operational profiles and does not simultaneously track software execution and CPS plant evolution. To bridge this gap, we present a closed-loop digital twin framework that hosts unmodified controller binaries in a Linux sandbox (SaMOSA) with its I/O rerouted to an external plant simulator. The framework captures four time-synchronized side channels (hardware performance counters, system calls, disk activity, network activity) alongside plant state and provides orchestration hooks for automated, repeatable, parameterized runs. We demonstrate the framework on an OpenPLC runtime controlling a Modbus-connected IEEE 14-bus power system, and also briefly discuss application to robotics systems. The synchronized traces correlate internal controller execution with plant events, providing an observability foundation for online testing, coverage analysis, and vulnerability detection.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper presents a closed-loop digital twin framework (SaMOSA) that executes unmodified CPS controller binaries inside a Linux sandbox with I/O rerouted to an external plant simulator. It captures four time-synchronized side channels (hardware performance counters, system calls, disk activity, network activity) together with plant state and provides orchestration for repeatable runs. The framework is demonstrated on an OpenPLC runtime controlling a Modbus-connected IEEE 14-bus power system, with the claim that the resulting traces enable observability for online testing, coverage analysis, and vulnerability detection.

Significance. If the sandboxed execution preserves timing and side-channel fidelity, the framework would offer a practical bridge between digital-twin plant simulation and low-level software observability that is currently missing from most CPS security toolchains. The approach is notable for targeting unmodified binaries and for explicitly synchronizing software-level traces with physical-state evolution.

major comments (2)
  1. [Abstract] Abstract: The central claim that the synchronized traces 'provide an observability foundation for ... vulnerability detection' is load-bearing on the assumption that Linux sandbox I/O rerouting and containerization preserve original controller timing and side-channel statistics; however, the manuscript supplies no quantitative comparison of execution timing, interrupt latency, or side-channel distributions between sandboxed and native runs on the target hardware.
  2. [Abstract] Abstract / Demonstration: The OpenPLC + IEEE 14-bus demonstration is described at the level of a working prototype without reported error metrics, timing jitter statistics, correlation coefficients between side channels and plant events, or any ablation showing that sandbox artifacts do not mask or fabricate plant-triggered behaviors.
minor comments (2)
  1. [Abstract] The abstract would benefit from an explicit enumeration of the four side channels and a one-sentence statement of how synchronization is achieved.
  2. A brief related-work paragraph contrasting SaMOSA with existing hardware-in-the-loop digital twins and with standalone side-channel monitors would help situate the contribution.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive feedback highlighting the need for quantitative validation of sandbox fidelity and demonstration metrics. We address each major comment below and will incorporate the requested analyses in the revised manuscript.

read point-by-point responses

  1. Referee: [Abstract] Abstract: The central claim that the synchronized traces 'provide an observability foundation for ... vulnerability detection' is load-bearing on the assumption that Linux sandbox I/O rerouting and containerization preserve original controller timing and side-channel statistics; however, the manuscript supplies no quantitative comparison of execution timing, interrupt latency, or side-channel distributions between sandboxed and native runs on the target hardware.

    Authors: We agree that direct quantitative comparisons are necessary to support the observability claims. The current manuscript focuses on framework design and integration but does not include benchmarks of timing preservation or side-channel fidelity. In revision, we will add measurements comparing execution timing, interrupt latency, and side-channel distributions (HPC, syscalls, disk, network) between sandboxed and native runs on equivalent hardware, including statistical tests for distribution similarity. revision: yes

  2. Referee: [Abstract] Abstract / Demonstration: The OpenPLC + IEEE 14-bus demonstration is described at the level of a working prototype without reported error metrics, timing jitter statistics, correlation coefficients between side channels and plant events, or any ablation showing that sandbox artifacts do not mask or fabricate plant-triggered behaviors.

    Authors: The demonstration currently illustrates the end-to-end workflow and trace synchronization but lacks the requested quantitative metrics. We will expand this section to report timing jitter statistics, error metrics for plant state synchronization, Pearson/Spearman correlations between side-channel events and plant state changes, and ablation experiments (e.g., comparing runs with/without specific sandbox features) to verify that no spurious plant-triggered behaviors are introduced or masked. revision: yes

Circularity Check

0 steps flagged

No circularity; framework description is self-contained

full rationale

The paper presents a systems engineering framework (SaMOSA sandbox with I/O rerouting, side-channel capture, and plant simulator integration) without any equations, fitted parameters, predictions, or mathematical derivations. The central claim—that synchronized traces provide an observability foundation—rests on the architectural description and a concrete demonstration (OpenPLC on IEEE 14-bus), not on any self-referential definitions, self-citation chains, or renamings that reduce to inputs. No load-bearing steps match the enumerated circularity patterns; the contribution is externally falsifiable via implementation and timing measurements.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

The paper is an engineering systems contribution that introduces no mathematical free parameters, domain axioms, or invented physical entities; all components build on existing Linux sandboxing, simulator, and monitoring technologies.

pith-pipeline@v0.9.1-grok · 5757 in / 1121 out tokens · 45452 ms · 2026-06-27T02:58:24.250174+00:00 · methodology
