arxiv: 2606.20395 · v1 · pith:QUPYGXQKnew · submitted 2026-06-18 · ⚛️ physics.med-ph

Efficient and Accurate Image Reconstruction for Geometric-Inconsistent Multispectral CT with Ray-Dependent Energy Spectra

Ziqiang Zhang , Chong Chen This is my paper

Pith reviewed 2026-06-26 14:36 UTC · model grok-4.3

classification ⚛️ physics.med-ph
keywords multispectral CTimage reconstructionJacobian approximationaggregated energy spectraray-dependent spectrageometric inconsistencynonlinear forward operatorconvergence theory
0
0 comments X

The pith

Aggregated energy spectra let the Jacobian of the nonlinear forward operator in multispectral CT factor as a block product of a diagonal projection matrix and a small matrix, supporting an efficient reconstruction algorithm with convergence

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

Multispectral CT scanners often use inconsistent geometries across energy spectra, and the spectra themselves can vary by ray. The paper shows that aggregated energy spectra make it possible to approximate the Jacobian of the nonlinear forward operator at special points, such as the zero point, as the product of a diagonal matrix of projection matrices and a very small-scale matrix. This block-product structure is then used to derive a specialized reconstruction algorithm. The algorithm comes with convergence guarantees under suitable conditions and is shown in experiments to run faster and produce more accurate images than previous methods on both noiseless and noisy data.

Core claim

Using the proposed aggregated energy spectra, we approximate the Jacobian matrix of the nonlinear forward operator at certain special points (e.g., the zero point) as a block product of a diagonal matrix composed of projection matrices and a very small-scale matrix, and then based on this matrix with a special structure, propose an efficient and accurate image reconstruction algorithm tailored for geometric-inconsistent MSCT with ray-dependent energy spectra. Under appropriate conditions, we establish the convergence theory for the proposed algorithm. Furthermore, numerical experiments using both noiseless and noisy projection data are conducted to verify the performance of the proposed algo

What carries the argument

Jacobian matrix of the nonlinear forward operator approximated via aggregated energy spectra as the block product of a diagonal matrix of projection matrices and a small-scale matrix

Load-bearing premise

The Jacobian approximation at special points such as the zero point stays accurate for the full nonlinear forward operator when aggregated energy spectra are used in the presence of geometric inconsistency and ray-dependent spectra.

What would settle it

A simulation in which the proposed algorithm fails to converge or produces large reconstruction errors once the true derivative of the forward operator at the zero point deviates markedly from the claimed block-product form.

Figures

Figures reproduced from arXiv: 2606.20395 by Chong Chen, Ziqiang Zhang.

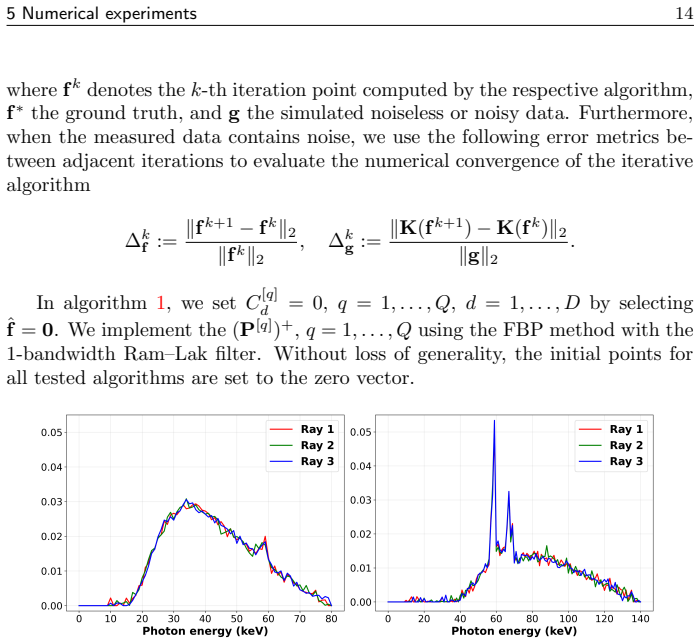

Figure 1
Figure 1. Figure 1: Part of the ray-dependent energy spectra used in the tests. The left figure shows the 80 kV spectra, and the right figure shows the 140 kV spectra. 5.2 Simulated noiseless data for the forbild phantom In this test, a forbild phantom is composed of the truth water and bone basis images which are both discretized as 128×128 pixels on the square area [−5, 5]× [−5, 5] cm2 and take gray values over [0, 1], as s… view at source ↗

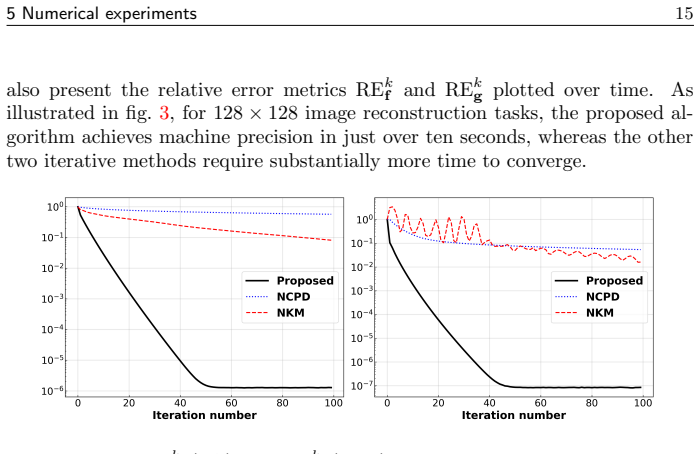

Figure 2
Figure 2. Figure 2: Metrics REk f (left) and REk g (right) are plotted in semi-log scale over iteration numbers for reconstructing basis images of the forbild phantom by the proposed algorithm, NCPD and NKM [PITH_FULL_IMAGE:figures/full_fig_p015_2.png] view at source ↗

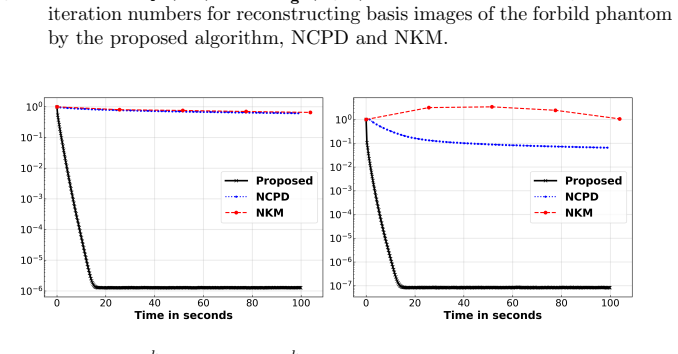

Figure 3
Figure 3. Figure 3: Metrics REk f (left) and REk g (right) are plotted in semi-log scale over time (in seconds) for reconstructing basis images of the forbild phantom by the proposed algorithm, NCPD and NKM. These results demonstrate that the proposed algorithm enables efficient and high-precision inversion for noiseless data. The reconstructed basis im￾ages yielded by all methods, together with the VMIs and their correspondi… view at source ↗

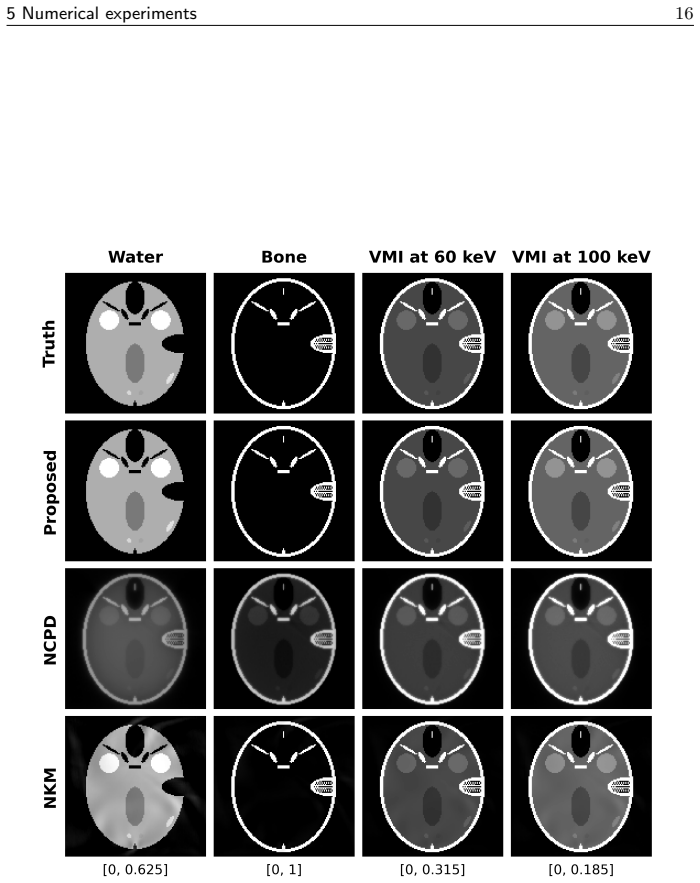

Figure 4
Figure 4. Figure 4: Reconstruction results in the noiseless case. From left to right: basis images of water and bone, VMIs at energies 60 keV and 100 keV of the forbild phantom. From top to bottom: the true images, the results after 100 iterations using the proposed algorithm, NCPD and NKM [PITH_FULL_IMAGE:figures/full_fig_p016_4.png] view at source ↗

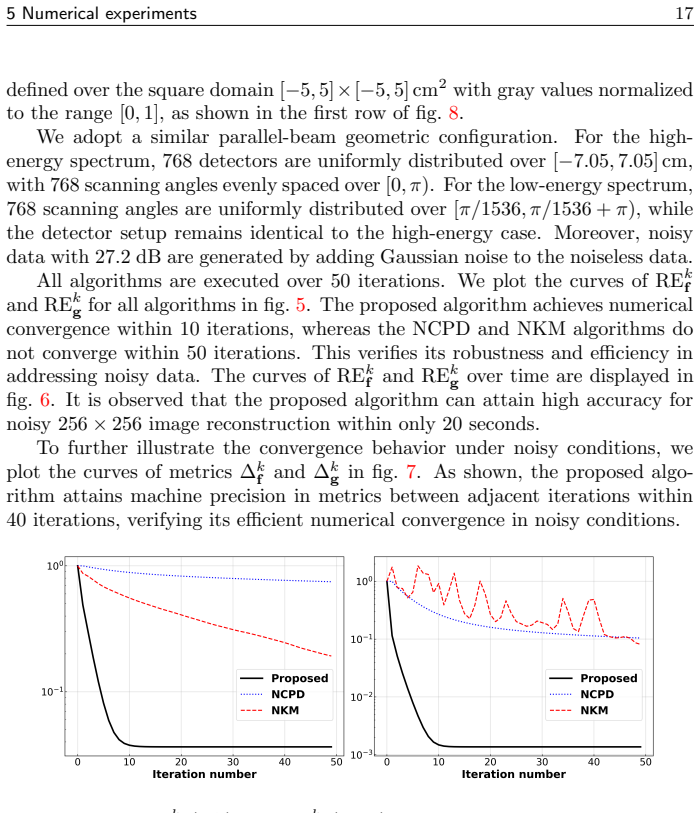

Figure 5
Figure 5. Figure 5: Metrics REk f (left) and REk g (right) are plotted in semi-log scale over iteration numbers for reconstructing basis images of the realistic torso image by the proposed algorithm, NCPD and NKM. The reconstructed basis images, VMIs and their corresponding ground truth references obtained by all methods are shown in fig. 8, while the absolute dif￾ference maps are displayed in fig. 9. From these difference ma… view at source ↗

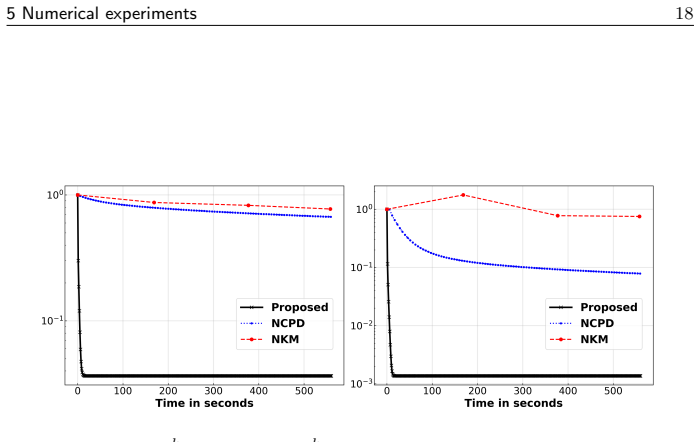

Figure 6
Figure 6. Figure 6: Metrics REk f (left) and REk g (right) are plotted in semi-log scale over time (in seconds) for reconstructing basis images of the realistic torso image by the proposed algorithm, NCPD and NKM [PITH_FULL_IMAGE:figures/full_fig_p018_6.png] view at source ↗

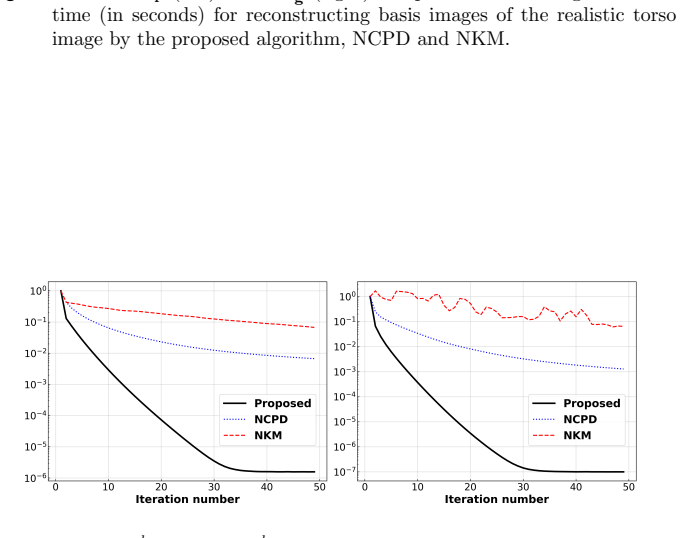

Figure 7
Figure 7. Figure 7: Metrics ∆k f (left) and ∆k g (right) are plotted in semi-log scale over itera￾tion numbers for reconstructing basis images of the realistic torso image by the proposed algorithm, NCPD and NKM [PITH_FULL_IMAGE:figures/full_fig_p018_7.png] view at source ↗

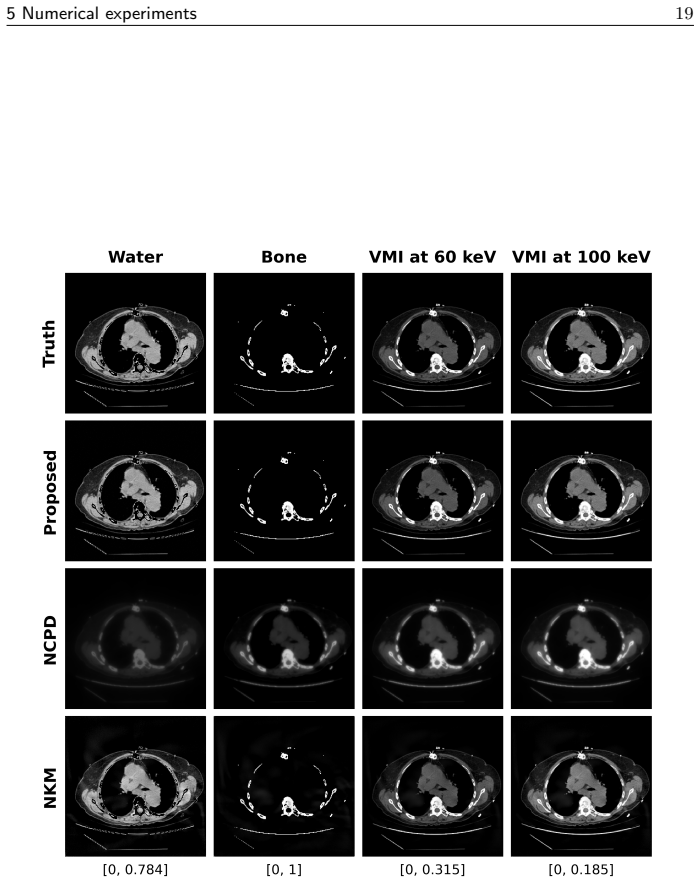

Figure 8
Figure 8. Figure 8: Reconstruction results in the noisy case. From left to right: basis images of water and bone, VMIs at energies 60 keV and 100 keV of the realistic torso image. From top to bottom: the true images, the results after 50 iterations using the proposed algorithm, NCPD and NKM [PITH_FULL_IMAGE:figures/full_fig_p019_8.png] view at source ↗

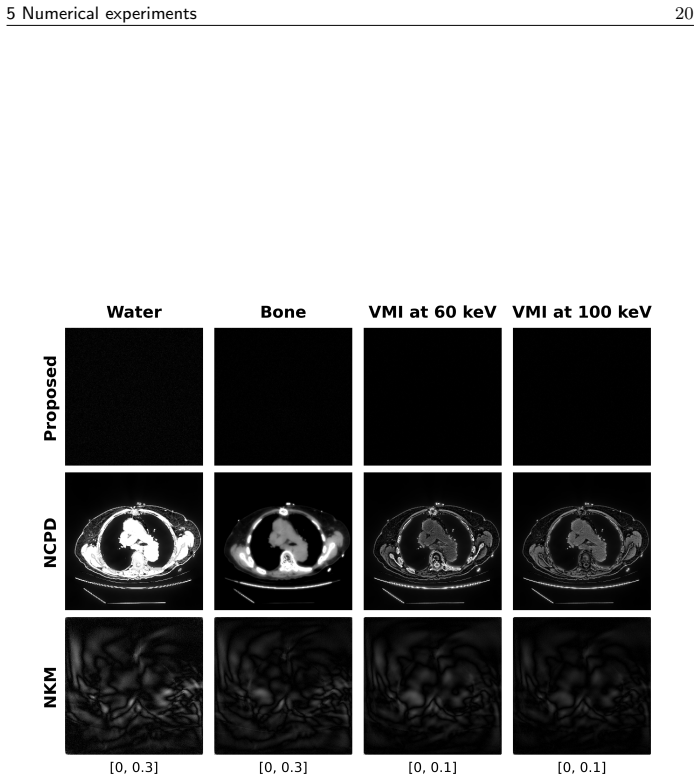

Figure 9
Figure 9. Figure 9: Absolute difference maps between the reconstructed results and the ground truths in the noisy case. Each column from left to right cor￾responds to the water basis image, bone basis image, VMI at 60 keV, and VMI at 100 keV, respectively. Each row from top to bottom shows the absolute difference maps for the proposed algorithm, NCPD, and NKM, rspectively [PITH_FULL_IMAGE:figures/full_fig_p020_9.png] view at source ↗

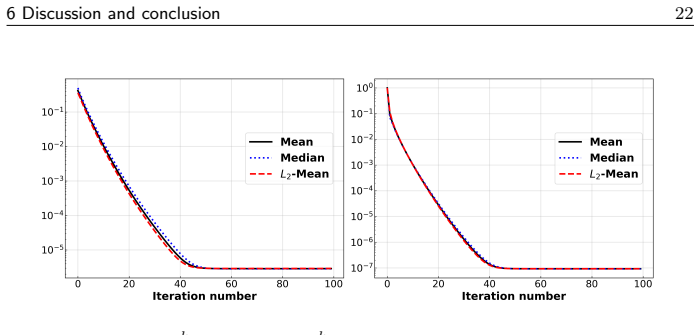

Figure 10
Figure 10. Figure 10: Metrics REk f (left) and REk g (right) are plotted in semi-log scale over iteration numbers for reconstructing basis images of from fig. 11 by the proposed algorithm with different aggregated energy spectra. from the ray indeces. With this ray-wise decoupling, we derived an approximate Jacobian matrix that can be expressed as a block product of a diagonal matrix of projection matrices and a very small-sca… view at source ↗

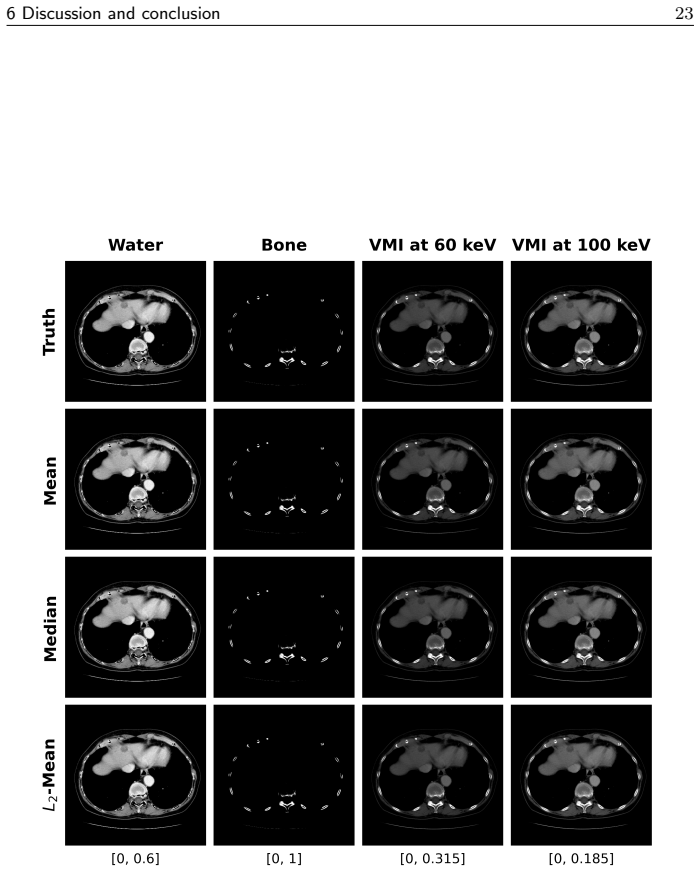

Figure 11
Figure 11. Figure 11: Reconstruction results in the noiseless case. From left to right: basis images of water and bone, VMIs at energies 60 keV and 100 keV of a clinical image. From top to bottom: the true images, the results after 100 iterations using the proposed algorithm with different aggregated energy spectra [PITH_FULL_IMAGE:figures/full_fig_p023_11.png] view at source ↗
read the original abstract

In practical multispectral computed tomography (MSCT), the scanning geometric parameters under different X-ray energy spectra are often inconsistent, and the distributions of the energy spectra are even ray-dependent. However, existing algorithms cannot effectively and accurately solve the associated image reconstruction problem. To address this limitation, using the proposed aggregated energy spectra, we approximate the Jacobian matrix of the nonlinear forward operator at certain special points (e.g., the zero point) as a block product of a diagonal matrix composed of projection matrices and a very small-scale matrix, and then based on this matrix with a special structure, propose an efficient and accurate image reconstruction algorithm tailored for geometric-inconsistent MSCT with ray-dependent energy spectra. Under appropriate conditions, we establish the convergence theory for the proposed algorithm. Furthermore, numerical experiments using both noiseless and noisy projection data are conducted to verify the performance of the proposed algorithm, which demonstrate that the efficiency and accuracy of this algorithm are much higher than existing algorithms, offering the flexibility and scalability to accommodate various MSCT imaging configurations.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 0 minor

Summary. The paper addresses image reconstruction in multispectral CT (MSCT) under geometric inconsistency across energy spectra and ray-dependent spectra. It introduces aggregated energy spectra to approximate the Jacobian of the nonlinear forward operator at special points (e.g., the zero vector) as a block product of a diagonal matrix of projection matrices and a small-scale matrix. This structure underpins an efficient reconstruction algorithm for which convergence theory is established under appropriate conditions. Numerical experiments on noiseless and noisy data are reported to show superior efficiency and accuracy relative to existing methods, with flexibility for various MSCT configurations.

Significance. If the Jacobian approximation remains accurate with controlled error away from the special points and the convergence theory applies to realistic iterates, the work would provide a scalable, theoretically supported solution for a practically relevant class of MSCT problems that current methods handle poorly. The explicit use of aggregated spectra to obtain a structured Jacobian, combined with convergence guarantees and numerical validation, would represent a meaningful advance in algorithmic efficiency for nonlinear inverse problems in medical imaging.

major comments (1)
  1. [Abstract] Abstract: The central algorithmic and theoretical claims rest on approximating the Jacobian at special points such as the zero vector and then using the resulting block structure for the full nonlinear reconstruction. No explicit error bound or analysis is indicated for how the approximation error grows when the current estimate moves to realistic attenuation values, which directly affects whether the efficiency claim and the established convergence theory remain valid throughout the iteration.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the thorough review and valuable feedback on our manuscript. The comment raises an important point regarding the Jacobian approximation, which we address directly below.

read point-by-point responses

  1. Referee: [Abstract] Abstract: The central algorithmic and theoretical claims rest on approximating the Jacobian at special points such as the zero vector and then using the resulting block structure for the full nonlinear reconstruction. No explicit error bound or analysis is indicated for how the approximation error grows when the current estimate moves to realistic attenuation values, which directly affects whether the efficiency claim and the established convergence theory remain valid throughout the iteration.

    Authors: We agree that the manuscript would benefit from an explicit discussion or bound on the approximation error as iterates move away from the special points (e.g., the zero vector). The convergence theory is established under conditions ensuring the approximated Jacobian preserves key structural properties (such as the block-diagonal form derived from aggregated spectra) that support the algorithm's efficiency and convergence. Numerical results on both noiseless and noisy data with realistic attenuation values demonstrate stable convergence and superior performance, indicating the approximation remains effective in practice. In the revised manuscript, we will add a dedicated subsection analyzing the error growth (theoretically where possible and empirically via additional plots of approximation error versus iterate distance) to clarify the range of validity. revision: yes

Circularity Check

0 steps flagged

No circularity: derivation introduces new approximation and convergence theory without reduction to fitted inputs or self-citations

full rationale

The paper proposes aggregated energy spectra to approximate the Jacobian of the nonlinear forward operator at special points (e.g., zero) as a block product structure, then derives an algorithm and convergence theory from this. No quoted step reduces by construction to a fitted parameter renamed as prediction, a self-defined quantity, or a load-bearing self-citation chain. The approximation is presented as novel, the theory is conditional on appropriate assumptions, and validation uses independent numerical experiments on noiseless/noisy data. The central claims remain self-contained against external benchmarks rather than tautological.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract-only review provides insufficient detail to enumerate specific free parameters or axioms; the approach implicitly relies on the validity of the forward operator approximation and choice of special points for Jacobian evaluation.
