Dynamic masking for boundary-aware velocity reconstruction in volumetric particle tracking with moving solids

Jibu Tom Jose , Arieh Jacobson , Dhanush Vittal Shenoy , Omri Ram This is my paper

Pith reviewed 2026-06-25 20:18 UTC · model grok-4.3

classification ⚛️ physics.flu-dyn
keywords dynamic maskingboundary-aware reconstructionvolumetric PTVmoving solidsvelocity reconstructionsigned-distance functionfluid-solid interaction
0
0 comments X

The pith

Dynamic masking with a time-dependent signed-distance function enforces prescribed surface velocities on moving solids during particle-track velocity reconstruction.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces LE-DM, a constrained reconstruction method that classifies grid nodes around moving solids using a time-dependent signed-distance function and assembles particle tracks, the incompressibility constraint, the prescribed surface velocity, and regularization terms into a single solve on the masked domain. This approach leaves the bulk fluid reconstruction unchanged away from the body while enforcing the solid's kinematics at the surface to solver tolerance. A sympathetic reader would care because conventional all-fluid reconstructions produce large errors near bodies and prevent reliable calculation of pressure or hydrodynamic forces from experimental tracks.

Core claim

By classifying grid nodes as open fluid, boundary shell, or solid interior with a time-dependent signed-distance function, the method solves for a divergence-free velocity field on the masked domain that incorporates the particle data, incompressibility, prescribed surface velocity, and regularization in one step; this enforces surface kinematics to solver tolerance while the bulk reconstruction remains unchanged where no body is present.

What carries the argument

The time-dependent signed-distance function that classifies grid nodes and enables assembly of all constraints and data on the masked domain within a single solve.

If this is right

  • Surface kinematics are enforced to solver tolerance.
  • In the analytical oscillating-sphere case the first-cell error drops from 14 percent to 3 percent of the body speed.
  • In the refractive-index-matched experiment the method recovers the independently measured surface velocity while an all-fluid reconstruction does not.
  • The same formulation represents stationary walls, translating bodies, rotating bodies, multiple bodies, and deforming bodies.
  • The output velocity field is divergence-free and boundary-consistent and can be used directly for pressure and force estimation.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The single-solve structure may allow the method to be inserted into existing PTV processing chains with minimal changes to downstream pressure or force calculations.
  • The masking approach could be tested on freely deforming bodies to determine whether shape changes require any additional terms beyond the signed-distance update.
  • Similar node-classification logic might apply to other reconstruction tasks that involve sharp interfaces, such as free-surface flows.

Load-bearing premise

A time-dependent signed-distance function can classify grid nodes as open fluid, boundary shell, or solid interior such that particle data, incompressibility, prescribed surface velocity, and regularization assemble on the masked domain in a single solve without artifacts or inconsistencies.

What would settle it

A controlled test on synthetic tracks from a CFD simulation of a known moving sphere in which the reconstructed velocity immediately outside the surface deviates by more than a few percent of the body speed rather than matching the prescribed value to solver tolerance.

Figures

Figures reproduced from arXiv: 2606.25748 by Arieh Jacobson, Dhanush Vittal Shenoy, Jibu Tom Jose, Omri Ram.

Figure 1

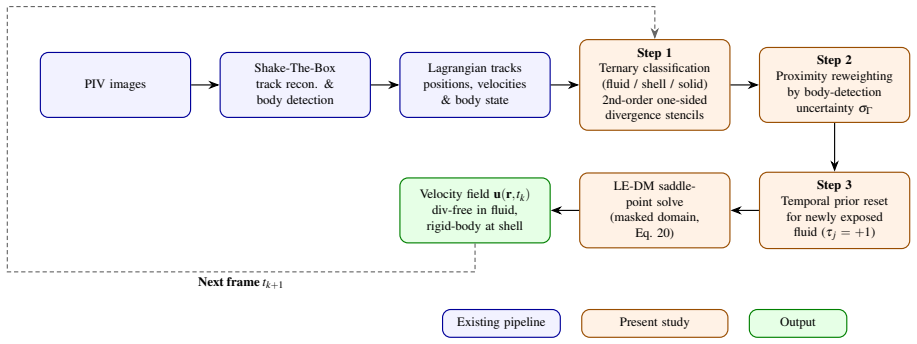

Figure 1. Figure 1: LE-DM processing pipeline for one time slab. The Lagrangian tracks and instantaneous body [PITH_FULL_IMAGE:figures/full_fig_p010_1.png] view at source ↗
Figure 2

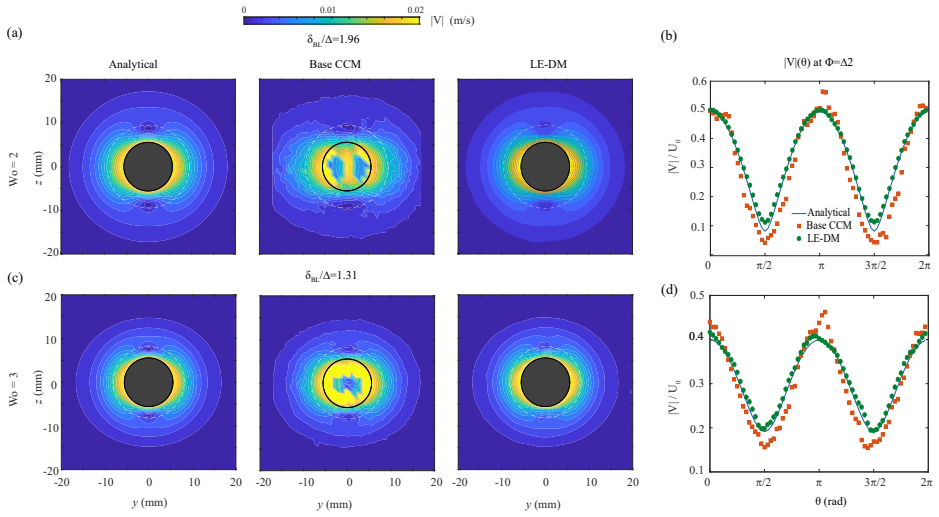

Figure 2. Figure 2: Velocity-field comparison on the meridional slice through the sphere center at the snapshot of peak [PITH_FULL_IMAGE:figures/full_fig_p014_2.png] view at source ↗
Figure 3

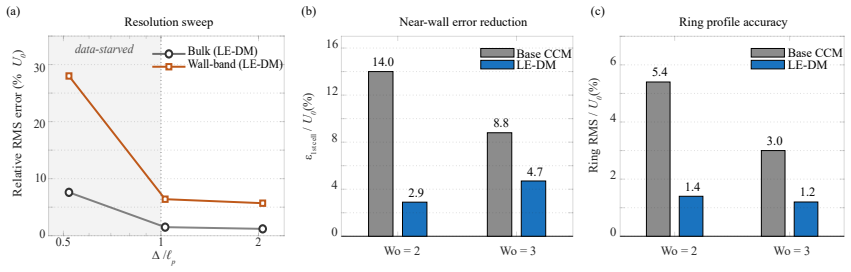

Figure 3. Figure 3: Resolution and near-interface sensitivity for the oscillating-sphere analytical assessment. [PITH_FULL_IMAGE:figures/full_fig_p015_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Reconstruction error versus tracer density for the CFD rising-sphere validation case. [PITH_FULL_IMAGE:figures/full_fig_p019_4.png] view at source ↗
Figure 5

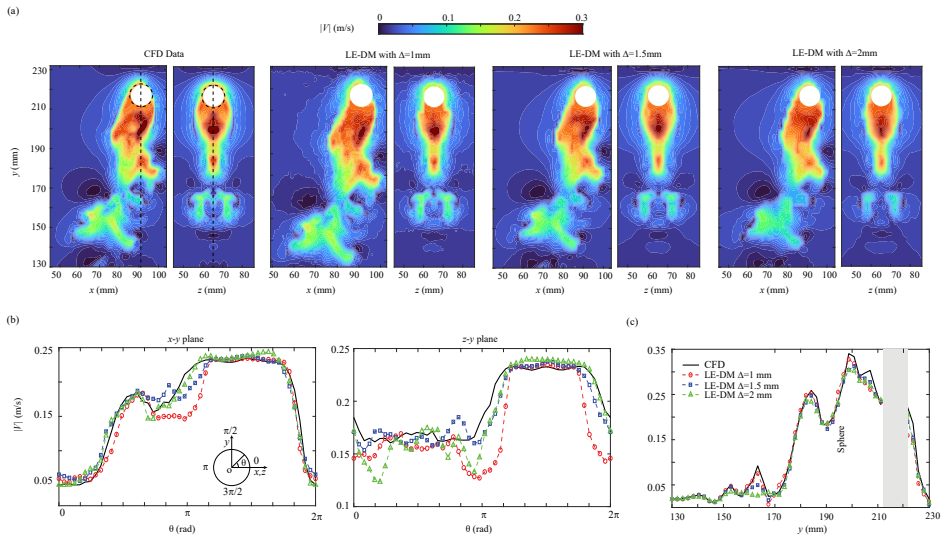

Figure 5. Figure 5: Reconstructed velocity field for the CFD synthetic-track validation case at the lowest tracer density, [PITH_FULL_IMAGE:figures/full_fig_p021_5.png] view at source ↗
Figure 6

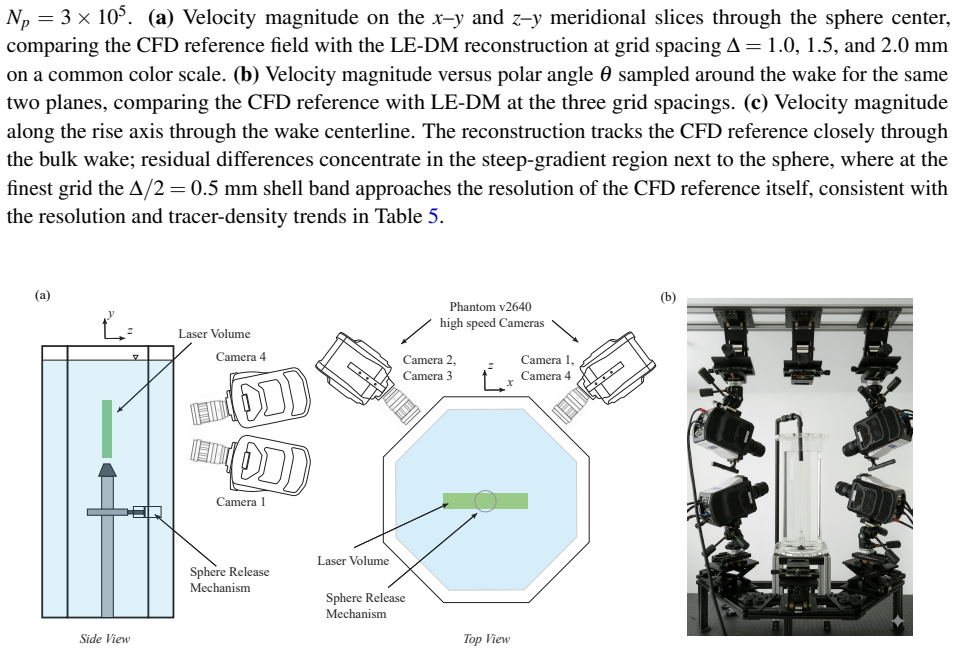

Figure 6. Figure 6: Experimental facility. (a) Side view and top view of the octagonal acrylic tank (110 mm side length, [PITH_FULL_IMAGE:figures/full_fig_p021_6.png] view at source ↗
Figure 7

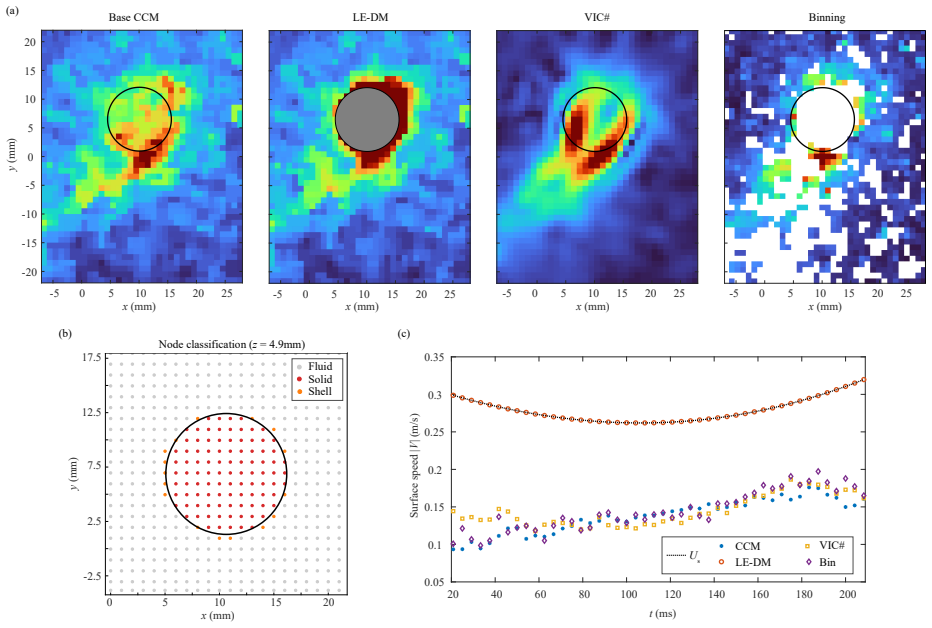

Figure 7. Figure 7: Experimental demonstration of LE-DM on a freely rising rigid sphere ( [PITH_FULL_IMAGE:figures/full_fig_p024_7.png] view at source ↗
read the original abstract

Volumetric particle tracking velocimetry (PTV) produces scattered Lagrangian tracks that must be reconstructed on an Eulerian grid before velocity gradients, pressure, or hydrodynamic loads can be evaluated. This step is usually performed on a domain treated as entirely fluid. When a solid body lies within the measurement volume, its surface kinematics are not imposed and the reconstruction is weakest in the steep-gradient region next to the body. We introduce LE-DM (Lagrangian-to-Eulerian reconstruction with Dynamic Masking), a constrained reconstruction framework for moving solid boundaries. A time-dependent signed-distance function classifies grid nodes as open fluid, boundary shell, or solid interior. The particle data, incompressibility constraint, prescribed surface velocity, and regularization terms are then assembled on the masked domain within a single solve. The method requires only a signed-distance field and a surface velocity, allowing stationary walls, translating, rotating, multiple, and deforming bodies to be represented in the same formulation. LE-DM is assessed using an analytical oscillating sphere, synthetic tracks from a CFD rising-sphere simulation, and a refractive-index-matched tomographic-PTV experiment on a freely rising sphere. The surface kinematics are enforced to solver tolerance, while the bulk reconstruction remains unchanged where no body is present. In the analytical case, the first-cell error is reduced from 14\% to 3\% of the body speed. In the experiment, LE-DM recovers the independently measured surface velocity, whereas an all-fluid reconstruction does not. The result is a divergence-free, boundary-consistent velocity field for pressure and force estimation.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

0 major / 2 minor

Summary. The manuscript introduces LE-DM, a constrained Lagrangian-to-Eulerian velocity reconstruction for volumetric PTV in domains containing moving solids. A time-dependent signed-distance function partitions grid nodes into open fluid, boundary shell, and solid interior; particle data, the incompressibility constraint, prescribed surface velocity, and regularization are then assembled on the masked domain in a single solve. The approach is claimed to enforce surface kinematics to solver tolerance while leaving the bulk field unchanged away from the body. Validation comprises an analytical oscillating sphere (first-cell error reduced from 14% to 3% of body speed), synthetic tracks from a CFD rising-sphere simulation, and a refractive-index-matched tomographic-PTV experiment on a freely rising sphere, where LE-DM recovers independently measured surface velocity unlike an all-fluid reconstruction.

Significance. If the central construction holds, the method supplies a practical, general-purpose route to divergence-free, boundary-consistent velocity fields for pressure and force estimation in fluid-structure interaction experiments. The reported quantitative improvement near the surface and the experimental confirmation of surface-velocity recovery are concrete strengths; the formulation's claimed independence from body-specific code (only SDF and surface velocity required) would also be a practical advantage.

minor comments (2)
  1. [Abstract] The abstract states that surface kinematics are enforced 'to solver tolerance,' but the manuscript does not specify the solver tolerance value, the precise form of the surface-velocity constraint, or how it is assembled with the divergence-free condition; a short methods subsection or equation block would clarify this.
  2. [Abstract] The claim that the bulk reconstruction 'remains unchanged where no body is present' is central but is only asserted; a direct side-by-side comparison (e.g., difference field or L2 norm away from the body) between LE-DM and the all-fluid solver on the same particle data would strengthen the statement.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for the positive assessment of LE-DM and for highlighting its practical advantages for boundary-consistent velocity reconstruction. The recommendation for minor revision is noted and will be followed. No major comments were listed in the report.

Circularity Check

0 steps flagged

No significant circularity; method assembles external constraints directly

full rationale

The paper presents LE-DM as a direct assembly of particle data, incompressibility, prescribed surface velocity, and regularization terms on a domain partitioned by an external time-dependent signed-distance function. No derivation step reduces a claimed result to a fitted parameter, self-citation, or input by construction; the surface enforcement and bulk preservation follow from standard constrained least-squares on the masked grid. The quantitative claims (error reduction, experimental recovery) are presented as outcomes of this assembly rather than inputs. The approach is self-contained against external benchmarks with no load-bearing self-referential steps.

Axiom & Free-Parameter Ledger

1 free parameters · 2 axioms · 0 invented entities

The approach rests on standard fluid assumptions plus the new masking classification; no invented entities or heavily fitted parameters are described.

free parameters (1)
  • regularization parameters
    Abstract mentions regularization terms in the single solve; their specific values or tuning are not detailed.
axioms (2)
  • domain assumption Incompressibility constraint holds throughout the open fluid domain.
    Invoked as part of the assembled constraints in the masked solve.
  • domain assumption Signed-distance function and surface velocity are available and accurate for the moving body.
    Required to classify nodes and enforce boundary conditions as stated in the method description.
