The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

This paper argues that when a cardiac cell model is fitted to a stable repeating electrical signal, the converged action potential can be treated as a stable limit cycle and moved through parameter space by continuation, rather than recomputed from scratch with long simulations for every candidate parameter set. In the authors' exemplar model this turns a 40,000-iteration MCMC calibration that took 12.41 hours into one taking 3.71 hours, a 70% reduction, with essentially the same posterior distributions. The paper presents the method as a general strategy for any fast-slow biological model calibrated to stable periodic data, while acknowledging limits: multiple stable limit cycles may exist, and the largest stiff cardiac models remain hard for continuation. The value, if it transfers, is that uncertainty quantification and multi-start optimization become affordable for cardiac electrophysiology models.

What carries the argument

The central object is the stable limit cycle: the converged, beat-to-beat identical action potential. The machinery is shooting-method continuation, which solves the periodic boundary-value problem $\Phi(y,T,\theta)-y=0$ together with a phase condition, using predictor-corrector steps to follow the cycle as parameters change. The key to the speedup is that MCMC and local optimizers propose small parameter steps, so the previously converged limit cycle is a good initial guess and continuation often reaches the new cycle in a single jump without simulating the long transient. Convergence is declared when the L1 norm of the change in all state variables across one orbit falls below $10^{-6}$, and the continuation solution must also satisfy the solver's own residual tolerance.

What would settle it

Run the same small- and large-perturbation benchmarks and the same MCMC calibration on a published stiff concentration-coupled ventricular action potential model with a pacing stimulus, using the identical convergence criterion. If continuation fails to converge, or the 4.7-6.5x perturbation speedups and the 70% MCMC reduction shrink materially, the claimed gain is specific to the slowly converging exemplar model rather than general to cardiac electrophysiology models.

Watch

Extended reading notes

Core claim

The paper's central claim is that the expensive stage in parameter inference—waiting for the ODE model to converge to a stable action potential—can often be skipped by following the branch of limit cycles from the previously accepted parameters to the newly proposed ones. In head-to-head benchmarks on a Noble-derived concentration model, continuation finds the converged action potential 6.5 times faster than the standard approach for a small parameter perturbation and 5.5 times faster after a large perturbation; for the large perturbation it is still 4.7 times faster than restarting from the previous converged cycle with an ODE solver. Embedded in an adaptive Metropolis-Hastings MCMC run of 40,000 iterations, continuation reduces total computation from 12.41 hours to 3.71 hours while leaving the posterior distribution visually and numerically unchanged. The authors position this as a demonstration on one exemplar model, not a blanket guarantee.

Load-bearing premise

The headline speedup rests on the exemplar model's hand-chosen slow convergence being representative of how real cardiac action potential models converge; the paper asserts this but tests it only on that one derived model.

Editorial extensions

If this is right

  • MCMC and multi-start optimization for cardiac action-potential models become several times cheaper, making uncertainty quantification and multi-modal posterior exploration computationally tractable.
  • The cost advantage grows when optimization proposes small parameter steps, as MCMC does, because continuation cost grows with parameter-space distance and cycle sensitivity.
  • Storing all previously computed limit cycles, rather than only the last accepted one, would let any optimizer start continuation from the nearest previously evaluated parameters, extending the benefit beyond MCMC.
  • When continuation is too difficult for the largest stiff models, restarting ODE integration from the previous converged cycle still yields a modest 7% speedup with little added complexity.
  • The same convergence-termination scheme that stops ODE simulations once the L1 norm drops below $10^{-6}$ avoids wasted computation and is cheap even when the period is not fixed.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • The same continuation-tracking recipe should transfer to other fast-slow biological models calibrated to stable cycles, such as circadian rhythms, calcium oscillations, and neural oscillations, since the only requirement is a stable periodic orbit as the object of comparison.
  • The reported divergence between the Standard and Continuation MCMC chains at iteration 30,275, triggered by likelihoods differing in the fourth decimal (-1113.1446 vs -1113.1460), suggests that a stricter orbit-convergence tolerance could eliminate even these rare accept-or-reject discrepancies.
  • A practical safeguard the paper mentions but does not test is a hybrid scheme: continue the limit cycle when tracking succeeds, and fall back to a full ODE solve whenever the branch loses stability or a conserved quantity changes, preserving the speedup without silently following an unstable branch.
Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

4 major / 5 minor

Summary. The paper proposes using numerical continuation methods (specifically shooting-method continuation in BifurcationKit.jl) to track the converged limit cycle of a cardiac action potential model as parameters change during optimization or MCMC, instead of repeatedly integrating the ODE system from scratch or from the previous cycle. The authors introduce an autonomous 'Noble concentration' toy model obtained by adding sodium and potassium concentration dynamics with forcing terms to the Noble 1962 model, with a rate parameter tau=2.5 chosen to mimic typical convergence times of cardiac AP models. They benchmark three approaches (Standard ODE integration, Tracking ODE integration, and Continuation) on small and large parameter perturbations, reporting 5.5-6.5x speedups. They then integrate the approaches into an adaptive Metropolis-Hastings MCMC scheme, reporting a 70% wall-clock reduction for 40,000 iterations (12.41 h vs 3.71 h) with visually indistinguishable posterior distributions. The paper also discusses theoretical caveats: multiple stable limit cycles, extinction of a followed branch, and practical difficulties for stiff, paced production models.

Significance. If the central claim holds, the work would provide a practically useful way to accelerate parameter inference for periodically forced biological models, where repeated convergence to a stable limit cycle is a major computational bottleneck. The manuscript has notable strengths: the comparison is carefully constructed to favor ODE baselines (which stop at an L1 change below 1e-6 while continuation must additionally satisfy BifurcationKit's tighter residual criterion below 1e-10); the MCMC comparison uses identical data, noise, and burn-in across methods; and the posterior distributions from all three approaches are shown to agree. The code and data are provided on GitHub and archived on Zenodo, supporting reproducibility. However, the demonstrated speedup is obtained on a single hand-parameterized, autonomous, unpaced toy model, and the paper itself concedes that applying continuation to the stiff, paced models that motivate the work 'can be challenging'. The transferability of the 70% figure to production cardiac AP models is therefore an open, load-bearing question rather than an established result.

major comments (4)
  1. [Section 2.3 and Eq. (A7)] The speedup is controlled by the hand-set relaxation rate tau=2.5, which is chosen to make the toy model converge in about 100 s. Because the Standard and Tracking approaches must resolve the entire slow transient while continuation solves a one-period boundary value problem, the measured speedup is largely a function of this arbitrary parameter. The paper provides no sensitivity analysis over tau or over the convergence tolerance (L1 < 1e-6), so the reader cannot tell how the 70% figure changes for faster or slower model equilibration, nor whether the method would remain beneficial for models that converge in a few seconds. This is a load-bearing gap for the generality of the practical claim.
  2. [Section 2 and Section 7] BifurcationKit.jl does not support non-autonomous ODEs, and the authors note that paced stiff models (e.g., Dutta et al. or Tomek et al.) would require an augmentation such as a harmonic oscillator, which is never implemented or benchmarked. Section 7 states that ensuring continuation convergence for these larger models 'can be challenging'. Since the motivating application is precisely those paced, stiff models, the central claim that continuation 'can more efficiently infer the converged action potential' is not yet demonstrated for the target setting; it remains an existence proof for a favorable autonomous toy model. The paper should either provide such a benchmark, or substantially temper the abstract and framing to clearly state that the benefit is shown only for the exemplar model.
  3. [Table 2 and Appendix B] The MCMC timing comparison is based on a single run per method. The paper reports 12.41 h, 11.59 h, and 3.71 h for Standard, Tracking, and Continuation, respectively, with no repeated runs or error bars. Given that wall-clock times on a shared HPC node can vary, and that the specific acceptance path can differ (as shown by the divergence at iteration 30275), a single run leaves uncertainty in the exact magnitude of the 70% reduction. At least a few repeated runs, or a sensitivity test with different random seeds, would strengthen the claim.
  4. [Section 4.1 and Figure 2] The caption states 'The 0th, 25th, 50th, and 75th percentiles overlap', which is unclear and appears inconsistent with standard boxplot summaries. More importantly, the text reports speedup factors as single numbers without reporting the distribution of timings across the repeated benchmark simulations. Since the benchmarks were repeated (whiskers are shown), reporting medians and ranges would give the reader a better sense of the stability of the speedup factors.
minor comments (5)
  1. [Section 2] The model is attributed to 'Nobel 1962' in the text; the surname should be 'Noble' as in the reference [40].
  2. [Section 2.2] There is a missing space in 'continuation methods inBifurcationKit.jl'.
  3. [Algorithm 1] The pseudocode uses 'converge' both to compute a limit cycle from initial conditions and to track from a previous limit cycle; it would be clearer to name these operations differently, e.g., 'converge_from_ic' and 'converge_from_cycle'.
  4. [Section 7] The sentence beginning 'The fact beat-to-beat variability decreases substantially in tissue...' is grammatically incomplete; it should be reworded.
  5. [General] The paper would benefit from a short table summarizing the model equations, initial conditions, and convergence tolerances in the main text, since readers of the appendix are forced to cross-reference Eq. (A7), Table A3, and Section 2.2 to reproduce the experiments.

Circularity Check

0 steps flagged · score 0.0 of 10

No circularity: the 70% speedup is an empirical timing benchmark on a hand-tuned toy model, not a derived prediction; scope limitations are acknowledged, not circular.

full rationale

The paper's central claim is an empirical timing comparison, not a derivation: the Continuation approach is benchmarked against Standard and Tracking ODE integration on the Noble concentration model, reporting wall-clock times (Fig. 2, Table 2). The hand-set values (tau = 2.5, L1 convergence tolerance 1e-6) parameterize the exemplar and define convergence; neither is fitted to data and then renamed as a prediction. The MCMC speedup (12.41 h vs 3.71 h for 40,000 iterations) is a direct measurement with identical synthetic data across all three methods, and Appendix B checks that the posterior distributions and MCMC chains agree between approaches, so the speedup is not bought by changing the inference target. No load-bearing self-citation appears: the adaptive Metropolis-Hastings sampler is attributed to Haario et al. and Johnstone et al., but the comparison uses the same sampler with different limit-cycle solvers; the Chaste convergence criterion is cited for motivation only. Section 7's concession that ensuring continuation convergence for larger AP models such as Dutta et al. or Tomek et al. 'can be challenging' is an explicit scope limitation, not a circular step. Therefore no claimed result reduces by construction to its inputs.

Assumptions & free parameters 4 free parameters · 5 assumptions · 0 invented entities

The central speedup claim rests on: standard numerical continuation theory; an exemplar model whose convergence rate is set by hand (tau = 2.5 and a 20 ms relaxation denominator); a chosen convergence tolerance (1e-6 L1); and the domain assumption that the relaxed-limit-cycle behavior represents real AP model calibration. No new physical entity is introduced.

free parameters (4)
  • tau (concentration relaxation rate) = 2.5
    Hand-chosen in Section 2.3 so the exemplar model converges in about 100 s, matching reported convergence timescales of real cardiac AP models; the speedup comparison depends on this value.
  • L1 convergence tolerance = 1e-6
    Defines a 'converged limit cycle' for ODE approaches (Section 2.2); continuation must also satisfy BifurcationKit residual < 1e-10. The chosen threshold affects measured simulated convergence times.
  • Target reversal potentials for concentration relaxation = E_Na = 40 mV, E_K = -100 mV
    In Eq. A7 the concentrations relax toward fixed targets reproducing the original Nobel 1962 reversal potentials; these values are inherited from the baseline model, not fitted to data.
  • Relaxation time constant (20 ms denominator) = 20
    In the d[Na]_i/dt and d[K]_i/dt equations (Eq. A7), the time constant 20 (with tau scaling) is chosen by hand to give slow concentration-driven convergence; it is not fitted.
assumptions (5)
  • standard math Shooting method continuation with predictor-corrector steps follows branches of stable and unstable periodic orbits (Eqs. 3-4 hold throughout).
    Invoked in Section 1.2 as background; the corrector's Newton solve must converge for the method to locate the next limit cycle.
  • domain assumption For the parameters explored, the Nobel concentration model has a stable limit cycle representing the converged action potential, and starting the ODE from the Table A3 non-converged initial conditions approaches it.
    Relied on by all three convergence approaches; Section 2.2 defines the convergence test, and Section 7 discusses cases where multiple limit cycles or chaotic behavior arise.
  • domain assumption The synthetic AP data generated from the converged limit cycle of the same model (Appendix B.1) are a sufficient proxy for experimental data when assessing accuracy and speed of the inference.
    Standard for methods papers but unstated in the main text; the likelihood comparisons all use this single synthetic trace.
  • ad hoc to paper Concentration relaxation toward fixed target reversal potentials with time constant 20 ms reproduces the slow convergence behavior of real cardiac models (Eq. A7).
    Section 2.1 introduces these forcing terms explicitly to avoid modeling the NaK pump and other currents, so the exemplar is an artificial construction.
  • domain assumption The convergence rate tau = 2.5 is representative of 'typical cardiac AP model' convergence (Section 2.3).
    The 70% speedup and the relative timings are only shown for this single convergence regime.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Continuation methods as a tool for parameter inference in electrophysiology modeling." pith.science (2026). https://pith.science/paper/S3LGRL2E

@misc{pith2026250108355,
  author       = {Pith},
  title        = {Pith review of: Continuation methods as a tool for parameter inference in electrophysiology modeling},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/S3LGRL2E}},
  note         = {Machine review of arXiv:2501.08355}
}
read the original abstract

Parameterizing mathematical models of biological systems often requires fitting to stable periodic data. In cardiac electrophysiology this typically requires converging to a stable action potential through long simulations. We explore this problem through the theory of dynamical systems, bifurcation analysis and continuation methods; under which a converged action potential is a stable limit cycle. Various attempts have been made to improve the efficiency of identifying these limit cycles, with limited success. We demonstrate that continuation methods can more efficiently infer the converged action potential as proposed model parameter sets change during optimization or inference routines. In an example electrophysiology model this reduces parameter inference computation time by 70%. We also discuss theoretical considerations and limitations of continuation method use in place of time-consuming model simulations. The application of continuation methods allows more robust optimization by making extra runs from multiple starting locations computationally tractable, and facilitates the application of inference methods such as Markov Chain Monte Carlo to gain more information on the plausible parameter space.

Figures

Figures reproduced from arXiv: 2501.08355 by the authors.

Figure 1
Figure 1. Convergence to a limit cycle or ‘stable action potential’. Simulations [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2

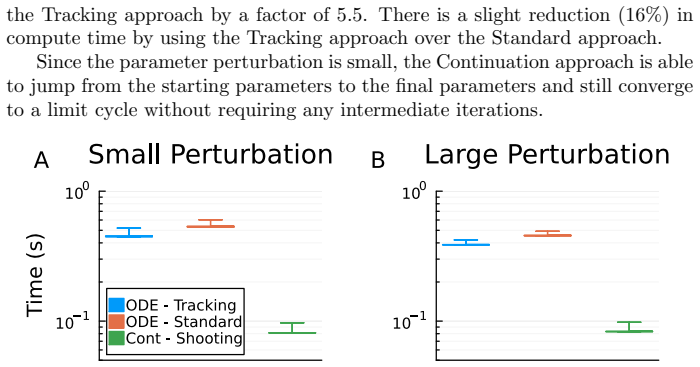

Figure 2. Benchmarking computation times for differently sized parameter per [PITH_FULL_IMAGE:figures/full_fig_p009_2.png] view at source ↗
Figure 3
Figure 3. APs for the Standard and Tracking approaches, aligned on the first [PITH_FULL_IMAGE:figures/full_fig_p010_3.png] view at source ↗
Figures from the paper (2 more)
Figure 4
Figure 4. Figure 4: MCMC estimated posterior. The Noble concentration model, Eq. A7, [PITH_FULL_IMAGE:figures/full_fig_p013_4.png]
Figure 5
Figure 5. Figure 5: Examples of possible problems with using continuation methods when [PITH_FULL_IMAGE:figures/full_fig_p014_5.png]
