The effect of bubble induced turbulent structures on the mass transfer of non-spherical bubbles

Veerle Dijke , Ruben Meijer , Maike Baltussen This is my paper

Pith reviewed 2026-06-28 20:53 UTC · model grok-4.3

classification ⚛️ physics.flu-dyn
keywords bubble mass transfervortical structurestransport barriersFinite Time Lyapunov Exponentsfront trackingwobbling bubblewake dynamicsmultiphase flow
0
0 comments X

The pith

Vortical structures from wobbling bubbles form transport barriers that limit convective mass transfer from wake to bulk liquid.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper performs fifteen front-tracking simulations of a wobbling bubble with given Eotvos and Morton numbers to examine how bubble-induced vortical structures influence mass transfer. These structures vary with chosen liquid and gas properties and create barriers identified by high-value Finite Time Lyapunov Exponents. The barriers block convective mass transfer from the bubble wake into the surrounding liquid. Accurate reactor mass-transfer predictions must therefore treat gas-to-liquid interface transfer and wake-to-bulk transfer as separate steps.

Core claim

The vortical structures created by the bubble are influenced by the exact physical properties chosen for the liquid and gas. These changes in the vortical structures also resulted in changes in mass transfer. In addition, the vortical structures created transport barriers between the wake and the bulk of liquid, which were identified by the high-value Finite Time Lyapunov Exponents. These barriers prevent convective mass transfer from the bubble wake to the bulk of the liquid. Therefore, mass transfer from the gas phase to the bulk liquid should take into account both the mass transfer from the gas to the liquid and the transfer from the wake to the bulk of the liquid.

What carries the argument

Finite Time Lyapunov Exponents identifying transport barriers created by bubble-induced vortical structures

If this is right

  • Mass transfer models for bubble reactors must separately account for wake-to-bulk transfer in addition to interface transfer.
  • Changes in liquid and gas properties alter the vortical structures and therefore change the observed mass transfer rates.
  • High-value Finite Time Lyapunov Exponents mark regions where convective mixing from the wake is suppressed.
  • Sub-grid scale mass transfer models combined with front tracking can capture these barrier effects.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Reactor design calculations could improve by adding explicit wake-to-bulk transfer resistances.
  • Similar FTLE barriers may appear in other multiphase systems with wakes, such as drops or solid particles.
  • Varying fluid properties in targeted experiments would test the reported dependence of vortical structure on physical parameters.
  • Extending the simulations to a wider range of Eotvos numbers could show whether the barrier effect persists for more deformed bubbles.

Load-bearing premise

The sub-grid scale model for mass transfer near the interface reliably quantifies the effect of the vortical structures on overall mass transfer without full boundary-layer resolution or experimental checks.

What would settle it

An experiment that tracks solute concentration leaving the bubble wake and measures whether it reaches the bulk liquid at the rate predicted when the FTLE-identified barriers are present.

Figures

Figures reproduced from arXiv: 2605.31285 by Maike Baltussen, Ruben Meijer, Veerle Dijke.

Figure 1

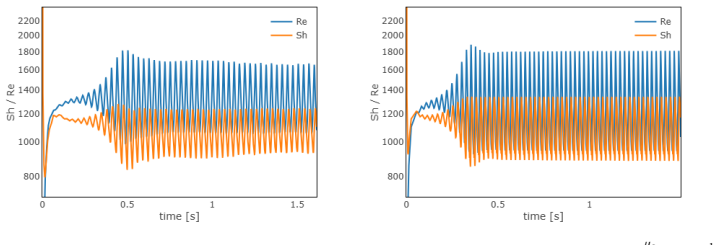

Figure 1. Figure 1: The time dependent behavior of the Reynolds and the Sherwood number for case 5 ( [PITH_FULL_IMAGE:figures/full_fig_p007_1.png] view at source ↗
Figure 2

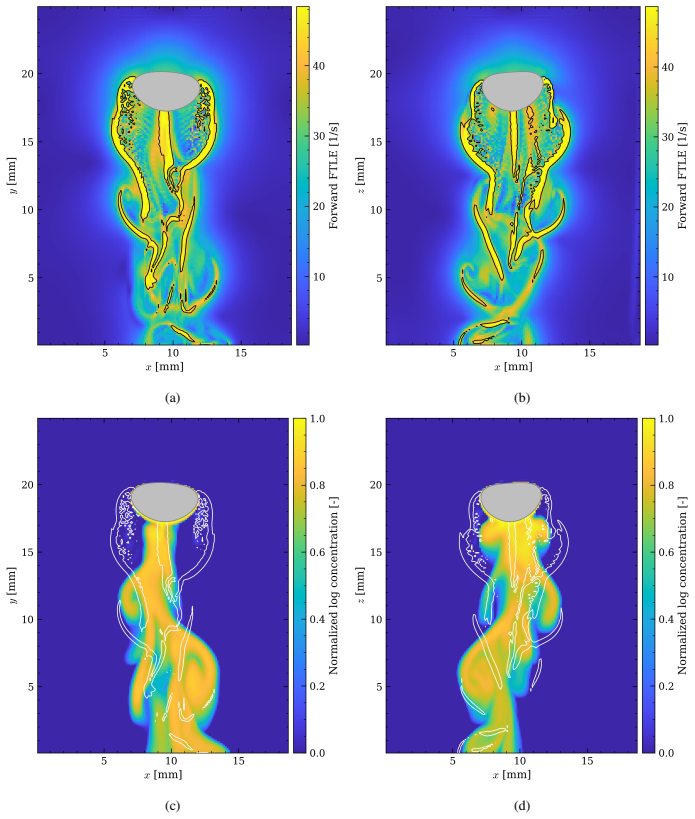

Figure 2. Figure 2: The forward Finite-Time Lyapunov Exponent (FTLE) field (top row) and the concentration profiles (bottom [PITH_FULL_IMAGE:figures/full_fig_p009_2.png] view at source ↗
Figure 3

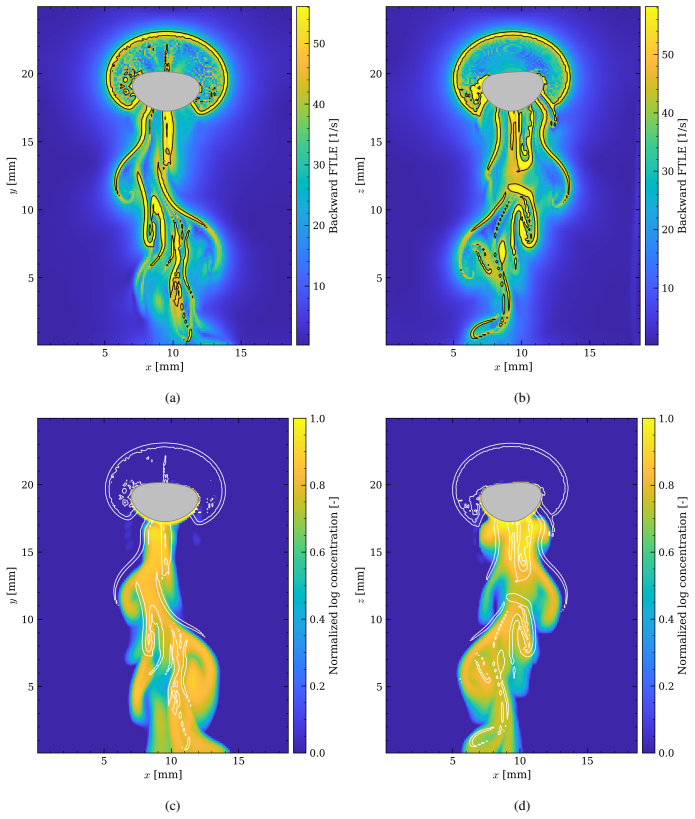

Figure 3. Figure 3: The backward Finite-Time Lyapunov Exponent (FTLE) field (top row) and the concentration profiles (bottom [PITH_FULL_IMAGE:figures/full_fig_p010_3.png] view at source ↗
Figure 4

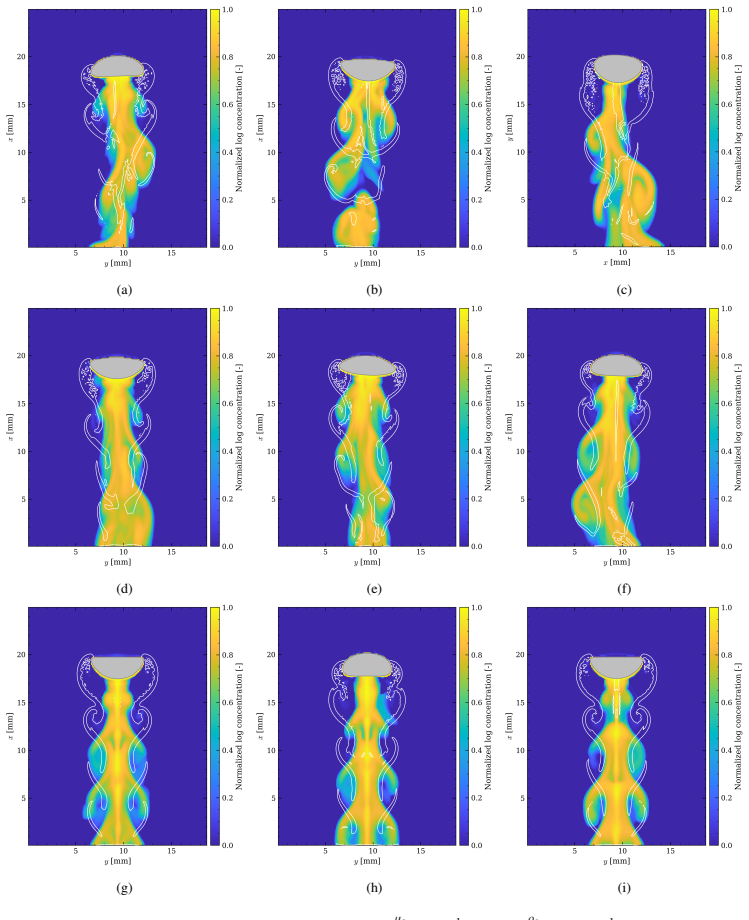

Figure 4. Figure 4: The concentration profiles for case 5 (top row, [PITH_FULL_IMAGE:figures/full_fig_p012_4.png] view at source ↗
read the original abstract

Although mass transfer from bubbles to liquid is essential for the prediction of the efficiency of reactors, the mass transfer from bubbles is not fully understood. To determine the effect of the local velocity profile on the mass transfer for a wobbling bubble with an E\"otv\"os number of 2 and a Morton number of 10-11, 15 simulations were performed with a Front Tracking method using a sub-grid scale model for the mass transfer in the vicinity of the interface. The vortical structures created by the bubble are influenced by the exact physical properties chosen for the liquid and gas. These changes in the vortical structures also resulted in changes in mass transfer. In addition, the vortical structures created transport barriers between the wake and the bulk of liquid, which were identified by the high-value Finite Time Lyapunov Exponents. These barriers prevent convective mass transfer from the bubble wake to the bulk of the liquid. Therefore, mass transfer from the gas phase to the bulk liquid should take into account both the mass transfer from the gas to the liquid and the transfer from the wake to the bulk of the liquid.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 0 minor

Summary. The manuscript reports results from 15 front-tracking simulations of a wobbling bubble at Eötvös number 2 and Morton number 10^{-11}, employing a sub-grid scale model for near-interface mass transfer. It claims that fluid-property variations alter the vortical structures generated by the bubble, thereby changing mass-transfer rates, and that high-value Finite Time Lyapunov Exponent (FTLE) ridges form transport barriers between the bubble wake and the bulk liquid that prevent convective mass transfer from the wake to the bulk.

Significance. If the reported link between FTLE ridges and inhibited wake-to-bulk scalar transport is confirmed by direct flux analysis, the work would provide a mechanistic basis for separating interface transfer from wake dispersion in bubble-mass-transfer models. The use of multiple property variations to connect vortical changes to mass transfer is a positive step toward falsifiable predictions, though the absence of validation data currently limits the strength of this contribution.

major comments (3)
  1. [Abstract] The central assertion (abstract) that high-value FTLE ridges 'prevent convective mass transfer from the bubble wake to the bulk of the liquid' is not accompanied by any reported scalar-flux integrals, concentration time series, or crossing statistics across the identified ridges; the barrier effect is therefore inferred from kinematics alone rather than demonstrated on the transported scalar.
  2. No grid-convergence study, error bars on mass-transfer rates, or benchmark comparison against known experimental mass-transfer coefficients for the chosen Eo/Mo pair is presented to establish that the sub-grid model and resolved vortical structures produce quantitatively reliable mass-transfer changes.
  3. The statement that 'changes in the vortical structures also resulted in changes in mass transfer' is not supported by quantitative metrics (e.g., wake-volume-averaged concentration, integrated flux through wake boundaries, or correlation coefficients between FTLE ridge strength and transfer rate) across the 15 simulations.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for the constructive feedback. The comments correctly identify areas where additional quantitative analysis would strengthen the claims. We will revise the manuscript to incorporate direct scalar transport metrics, limited convergence checks, and correlation statistics while noting computational constraints on exhaustive studies.

read point-by-point responses

  1. Referee: [Abstract] The central assertion (abstract) that high-value FTLE ridges 'prevent convective mass transfer from the bubble wake to the bulk of the liquid' is not accompanied by any reported scalar-flux integrals, concentration time series, or crossing statistics across the identified ridges; the barrier effect is therefore inferred from kinematics alone rather than demonstrated on the transported scalar.

    Authors: We agree that the barrier claim in the abstract is currently supported only by FTLE kinematics. In revision we will add explicit scalar-flux integrals across the high-FTLE ridges together with wake concentration time series to demonstrate the inhibited convective transport directly on the scalar field. revision: yes

  2. Referee: No grid-convergence study, error bars on mass-transfer rates, or benchmark comparison against known experimental mass-transfer coefficients for the chosen Eo/Mo pair is presented to establish that the sub-grid model and resolved vortical structures produce quantitatively reliable mass-transfer changes.

    Authors: We acknowledge the absence of these validation elements. A complete grid-convergence study across all 15 cases is computationally prohibitive, but we will include a representative grid-convergence test, temporal error bars on the reported mass-transfer rates, and comparisons to available experimental Sherwood numbers for similar Eo/Mo conditions. revision: partial

  3. Referee: The statement that 'changes in the vortical structures also resulted in changes in mass transfer' is not supported by quantitative metrics (e.g., wake-volume-averaged concentration, integrated flux through wake boundaries, or correlation coefficients between FTLE ridge strength and transfer rate) across the 15 simulations.

    Authors: The present manuscript links vortical changes to mass transfer through visual and qualitative comparison. We will add wake-volume-averaged concentrations, integrated fluxes at wake boundaries, and correlation coefficients between FTLE ridge strength and mass-transfer rate across the full set of 15 simulations to provide the requested quantitative support. revision: yes

Circularity Check

0 steps flagged

No significant circularity; results are direct simulation outputs.

full rationale

The paper reports Front Tracking simulations with a sub-grid mass transfer model, identifying vortical structures and high-FTLE ridges from resolved velocity fields. The central claim that these ridges act as transport barriers follows from the simulated kinematics and scalar transport, without reduction to fitted parameters, self-definitional equations, or load-bearing self-citations. No quoted step equates a prediction to its input by construction. The derivation remains self-contained against the simulation data.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim depends on the accuracy of the front-tracking method plus sub-grid mass-transfer model and on the interpretation of high FTLE values as physical transport barriers; no free parameters or invented entities are stated in the abstract.

axioms (1)
  • domain assumption The Front Tracking method combined with the sub-grid scale model for mass transfer accurately captures near-interface dynamics and the resulting vortical structures for Eo=2 and Mo=10^-11 without requiring full resolution of the concentration boundary layer.
    Invoked by the choice to perform the 15 simulations with this method as described in the abstract.
