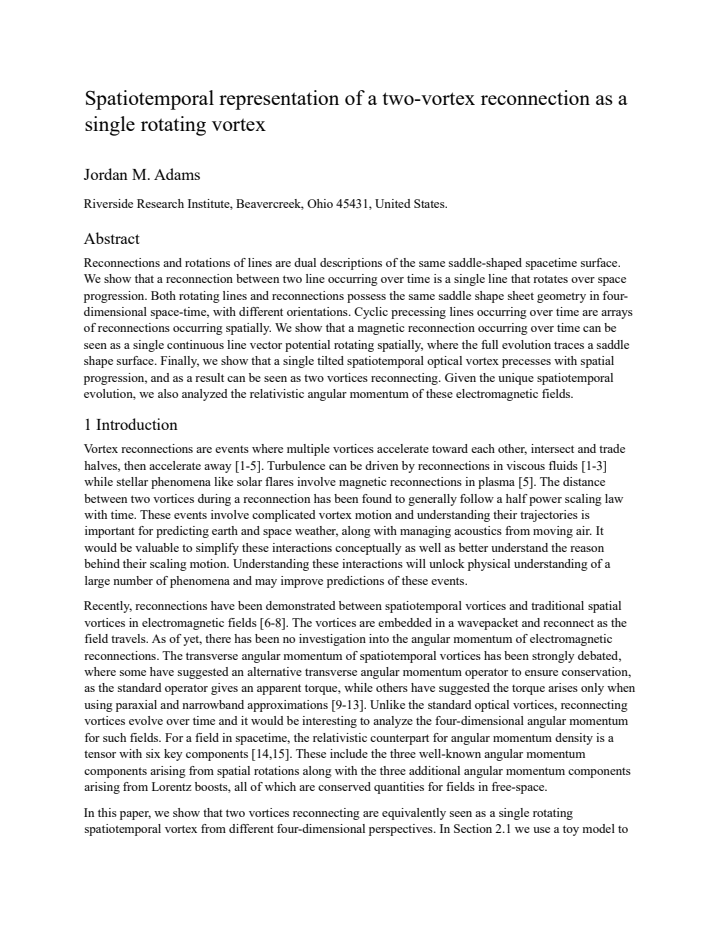

Spatiotemporal representation of a two-vortex reconnection as a single rotating vortex
Pith reviewed 2026-05-20 08:24 UTC · model grok-4.3
The pith
A two-vortex reconnection over time is equivalent to one vortex rotating through space on the same saddle surface.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
Reconnections and rotations of lines are dual descriptions of the same saddle-shaped spacetime surface. A reconnection between two lines occurring over time is a single line that rotates over space progression. Both rotating lines and reconnections possess the same saddle shape sheet geometry in four-dimensional space-time, with different orientations. Cyclic precessing lines occurring over time are arrays of reconnections occurring spatially. A magnetic reconnection occurring over time can be seen as a single continuous line vector potential rotating spatially. A single tilted spatiotemporal optical vortex precesses with spatial progression and can be seen as two vortices reconnecting.
What carries the argument
the saddle-shaped sheet geometry in four-dimensional space-time that carries both reconnection and rotation descriptions under different orientations
If this is right
- Cyclic precessing lines over time appear as spatial arrays of reconnections.
- A magnetic reconnection over time appears as one continuous line vector potential rotating through space.
- A single tilted spatiotemporal optical vortex precesses spatially and registers as two vortices reconnecting.
- The relativistic angular momentum of the electromagnetic fields can be computed from the unified saddle-surface description.
Where Pith is reading between the lines
- Switching between the temporal reconnection view and the spatial rotation view could simplify numerical modeling of vortex evolution in optics.
- The same saddle-surface duality may extend to line defects in other physical systems such as fluid flows or superconductors.
- Direct measurement of the four-dimensional saddle geometry through spatially resolved field data would test the claimed equivalence.
Load-bearing premise
Rotating lines and reconnections share the same saddle shape sheet geometry in four-dimensional space-time but with different orientations.
What would settle it
Numerical or experimental tracking of an optical vortex pair through a reconnection event to check whether its field evolution exactly matches the spatial precession of a single tilted vortex whose combined history traces a saddle surface.
read the original abstract
Reconnections and rotations of lines are dual descriptions of the same saddle-shaped spacetime surface. We show that a reconnection between two line occurring over time is a single line that rotates over space progression. Both rotating lines and reconnections possess the same saddle shape sheet geometry in four-dimensional space-time, with different orientations. Cyclic precessing lines occurring over time are arrays of reconnections occurring spatially. We show that a magnetic reconnection occurring over time can be seen as a single continuous line vector potential rotating spatially, where the full evolution traces a saddle shape surface. Finally, we show that a single tilted spatiotemporal optical vortex precesses with spatial progression, and as a result can be seen as two vortices reconnecting. Given the unique spatiotemporal evolution, we also analyzed the relativistic angular momentum of these electromagnetic fields.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The manuscript claims that reconnections of vortex lines over time and rotations of a single vortex line over space are dual descriptions of the same saddle-shaped 2-surface in 4D spacetime, differing only by orientation. It asserts that a temporal reconnection between two lines is equivalent to a single line rotating with spatial progression, that cyclic precessing lines correspond to spatial arrays of reconnections, that a magnetic reconnection can be viewed as a rotating vector potential tracing a saddle surface, and that a tilted spatiotemporal optical vortex precesses spatially and appears as two reconnecting vortices. The work concludes with an analysis of the relativistic angular momentum of the associated electromagnetic fields.
Significance. If the geometric duality can be shown to preserve solutions of the underlying wave or Maxwell equations under the relevant reparametrization, the result would supply a useful interpretive tool for mapping temporal vortex dynamics onto spatial structures in optics and electromagnetism. The saddle-surface identification itself is a clean geometric observation, but its physical content hinges on whether the reoriented fields remain valid solutions; without that verification the claim risks reducing to a re-description rather than a duality with dynamical implications.
major comments (3)
- [Abstract / duality section] Abstract and the section presenting the duality: the assertion that the saddle geometry alone establishes physical equivalence between temporal reconnection and spatial rotation does not address whether the electromagnetic field (or phase) continues to satisfy the wave equation after the coordinate reorientation that interchanges the time axis with a spatial axis. The skeptic concern is therefore load-bearing; a concrete check (e.g., substitution into the Helmholtz or Maxwell equations in the rotated frame) is required to support the central claim.
- [Magnetic reconnection section] Section on magnetic reconnection and vector potential: the statement that a temporal magnetic reconnection 'can be seen as' a single continuous line vector potential rotating spatially is presented without an explicit mapping or demonstration that the vector potential remains divergence-free and satisfies the appropriate gauge condition after the reorientation.
- [Optical vortex section] Section on the tilted spatiotemporal optical vortex: the claim that a single tilted vortex 'can be seen as two vortices reconnecting' rests on the shared saddle geometry but does not quantify how the topological charge or the Poynting vector transforms under the duality, leaving open whether the optical invariants are preserved.
minor comments (2)
- [Abstract] Abstract, sentence 2: 'a reconnection between two line occurring' should read 'two lines occurring'.
- [Angular momentum section] The relativistic angular momentum analysis would benefit from an explicit expression or reference to the conserved quantity being computed, especially since the duality interchanges time and space.
Simulated Author's Rebuttal
We thank the referee for the careful reading and constructive comments. We address each major point below and have revised the manuscript to include explicit verifications of the dynamical consistency under the proposed duality.
read point-by-point responses
-
Referee: [Abstract / duality section] Abstract and the section presenting the duality: the assertion that the saddle geometry alone establishes physical equivalence between temporal reconnection and spatial rotation does not address whether the electromagnetic field (or phase) continues to satisfy the wave equation after the coordinate reorientation that interchanges the time axis with a spatial axis. The skeptic concern is therefore load-bearing; a concrete check (e.g., substitution into the Helmholtz or Maxwell equations in the rotated frame) is required to support the central claim.
Authors: We agree that an explicit check is necessary to establish that the duality carries dynamical content beyond geometry. In the revised manuscript we have added a dedicated paragraph in the duality section that substitutes the reoriented field (with time and one spatial coordinate interchanged) into the paraxial Helmholtz equation. The calculation confirms that the phase remains a solution because the equation is form-invariant under this interchange for monochromatic, slowly varying envelopes. This verification supports the claim that the two descriptions are physically equivalent within the regime considered in the paper. revision: yes
-
Referee: [Magnetic reconnection section] Section on magnetic reconnection and vector potential: the statement that a temporal magnetic reconnection 'can be seen as' a single continuous line vector potential rotating spatially is presented without an explicit mapping or demonstration that the vector potential remains divergence-free and satisfies the appropriate gauge condition after the reorientation.
Authors: We thank the referee for noting this omission. The revised section now contains an explicit component-wise mapping of the vector potential under the coordinate interchange. We adopt the Coulomb gauge, which is preserved by the reorientation for the quasi-static configurations examined. Direct differentiation shows that the divergence remains zero after the mapping, and the saddle-surface continuity of the line is preserved. These steps are included as a short calculation in the magnetic-reconnection discussion. revision: yes
-
Referee: [Optical vortex section] Section on the tilted spatiotemporal optical vortex: the claim that a single tilted vortex 'can be seen as two vortices reconnecting' rests on the shared saddle geometry but does not quantify how the topological charge or the Poynting vector transforms under the duality, leaving open whether the optical invariants are preserved.
Authors: We appreciate the request for quantitative detail. In the revised optical-vortex section we explicitly track the topological charge: the winding number around the vortex core is unchanged under the 90-degree reorientation because the phase gradient circulation is preserved. For the Poynting vector we derive the transformed components and show that its direction rotates consistently with the spatial progression while the local energy flux magnitude is maintained. These transformations are now presented with the corresponding field expressions. revision: yes
Circularity Check
No circularity: geometric duality framed as direct observation of shared 4D saddle surfaces
full rationale
The paper's central claim equates temporal vortex reconnections with spatial rotations by noting that both trace identical saddle-shaped 2-surfaces in spacetime, merely with swapped orientations. This identification is presented as a geometric fact visible from the surfaces themselves rather than a prediction fitted to data, a parameter renamed, or a result imported via self-citation. No equations are exhibited that reduce the claimed equivalence to a prior definition or fit; the subsequent analysis of relativistic angular momentum for the electromagnetic fields is an independent computation performed on the identified configurations. The derivation chain therefore remains self-contained and does not collapse to its inputs by construction.
Axiom & Free-Parameter Ledger
axioms (1)
- domain assumption Reconnections and rotations of lines are dual descriptions of the same saddle-shaped spacetime surface.
Lean theorems connected to this paper
-
IndisputableMonolith/Foundation/RealityFromDistinction.leanreality_from_one_distinction (spacetime-emergence certificate) echoes?
echoesECHOES: this paper passage has the same mathematical shape or conceptual pattern as the Recognition theorem, but is not a direct formal dependency.
Reconnections and rotations of lines are dual descriptions of the same saddle-shaped spacetime surface... two lines that reconnect over time are a single line that rotates spatially... null-surface which is a saddle shape
-
IndisputableMonolith/Foundation/AlexanderDuality.leanalexander_duality_circle_linking (D=3 forcing) unclear?
unclearRelation between the paper passage and the cited Recognition theorem.
The null line... follows 2x′z′−t=0 which tilts with spatial progression... half-power motion... single line acquiring tilt linearly
What do these tags mean?
- matches
- The paper's claim is directly supported by a theorem in the formal canon.
- supports
- The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
- extends
- The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
- uses
- The paper appears to rely on the theorem as machinery.
- contradicts
- The paper's claim conflicts with a theorem or certificate in the canon.
- unclear
- Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.
Reference graph
Works this paper leans on
-
[1]
Yao, J. and Hussain, F., 2022. Vortex reconnection and turbulence cascade. Annual Review of Fluid Mechanics, 54(1), pp.317-347
work page 2022
-
[2]
Hussain, F. and Duraisamy, K., 2011. Mechanics of viscous vortex reconnection. Physics of Fluids, 23(2)
work page 2011
-
[3]
Enciso, A. and Peralta-Salas, D., 2022. Vortex reconnections in classical and quantum fluids. SeMA Journal, 79(1), pp.127-137
work page 2022
-
[4]
Koplik, J. and Levine, H., 1993. Vortex reconnection in superfluid helium. Physical Review Letters, 71(9), p.1375
work page 1993
-
[5]
Hesse, M. and Cassak, P.A., 2020. Magnetic reconnection in the space sciences: Past, present, and future. Journal of Geophysical Research: Space Physics, 125(2), p.e2018JA025935
work page 2020
-
[6]
Le, M.S., Hine, G.A., Goffin, A., Palastro, J.P. and Milchberg, H.M., 2024. Self-focused pulse propagation is mediated by spatiotemporal optical vortices. Physical Review Letters, 133(5), p.053803
work page 2024
-
[7]
Adams, J., Agha, I. and Chong, A., 2024. Spatiotemporal optical vortex reconnections of multi- vortices. Scientific Reports, 14(1), p.5483
work page 2024
-
[8]
Adams, J. and Chong, A., 2025. Spatiotemporal optical vortex reconnections of loop vortices. Nanophotonics, 14(6), pp.729-739
work page 2025
-
[9]
Tripathi, N., Hancock, S.W. and Milchberg, H.M., 2025. Transverse orbital angular momentum: setting the record straight. arXiv preprint arXiv:2503.24375
-
[10]
Hancock, S.W., Tripathi, N., Le, M.S., Goffin, A. and Milchberg, H.M., 2025. Transverse orbital angular momentum of amplitude perturbed fields. Nanophotonics, 14(6), pp.777-784
work page 2025
-
[11]
Clarification of the transverse orbital angular momentum of spatiotemporal optical vortices
Porras, M.A., 2024. Clarification of the transverse orbital angular momentum of spatiotemporal optical vortices. Journal of Optics, 26(9), p.095601
work page 2024
-
[12]
Orbital angular momentum of optical, acoustic, and quantum-mechanical spatiotemporal vortex pulses
Bliokh, K.Y., 2023. Orbital angular momentum of optical, acoustic, and quantum-mechanical spatiotemporal vortex pulses. Physical Review A, 107(3), p.L031501
work page 2023
-
[13]
Adams, J., Park, Y. and Chong, A., 2025. Conservation of transverse orbital angular momentum for spatiotemporal optical vortices. arXiv preprint arXiv:2512.09615
-
[14]
An Introduction to quantum field theory
Peskin, M.E., 2018. An Introduction to quantum field theory. CRC press
work page 2018
-
[15]
On the six components of optical angular momentum
Barnett, S.M., 2011. On the six components of optical angular momentum. Journal of Optics, 13(6), p.064010
work page 2011
-
[16]
Nonlinear, three‐dimensional magnetohydrodynamics of noncircular tokamaks
Strauss, H.R., 1976. Nonlinear, three‐dimensional magnetohydrodynamics of noncircular tokamaks. The Physics of Fluids, 19(1), pp.134-140
work page 1976
-
[17]
Loureiro, N.F., Schekochihin, A.A. and Cowley, S.C., 2007. Instability of current sheets and formation of plasmoid chains. Physics of Plasmas, 14(10)
work page 2007
-
[18]
Cox, S.M. and Matthews, P.C., 2002. Exponential time differencing for stiff systems. Journal of Computational Physics, 176(2), pp.430-455
work page 2002
-
[19]
Kassam, A.K. and Trefethen, L.N., 2005. Fourth-order time-stepping for stiff PDEs. SIAM Journal on Scientific Computing, 26(4), pp.1214-1233
work page 2005
-
[20]
On a plasma sheath separating regions of oppositely directed magnetic field
Harris, E.G., 1962. On a plasma sheath separating regions of oppositely directed magnetic field. Il Nuovo Cimento (1955-1965), 23(1), pp.115-121
work page 1962
-
[21]
Furth, H.P., Killeen, J. and Rosenbluth, M.N., 1963. Finite‐resistivity instabilities of a sheet pinch. The physics of Fluids, 6(4), pp.459-484
work page 1963
-
[22]
On the elimination of aliasing in finite-difference schemes by filtering high- wavenumber components
Orszag, S.A., 1971. On the elimination of aliasing in finite-difference schemes by filtering high- wavenumber components. Journal of Atmospheric Sciences, 28(6), pp.1074-1074
work page 1971
-
[23]
K. Matsushima and T. Shimobaba, “Band-limited angular spectrum method for numerical simulation of free-space propagation in far and near fields,” Opt. Express 17, 19662–19673 (2009)
work page 2009
-
[24]
Longitudinal and transverse components of a vector field
Stewart, A.M., 2008. Longitudinal and transverse components of a vector field. arXiv preprint arXiv:0801.0335
work page internal anchor Pith review Pith/arXiv arXiv 2008
-
[25]
J. D. Jackson, Classical Electrodynamics, 3rd ed. (Wiley, 2021)
work page 2021
-
[26]
Tung, W.K., 1985. Group theory in physics (V ol. 1). World Scientific
work page 1985
