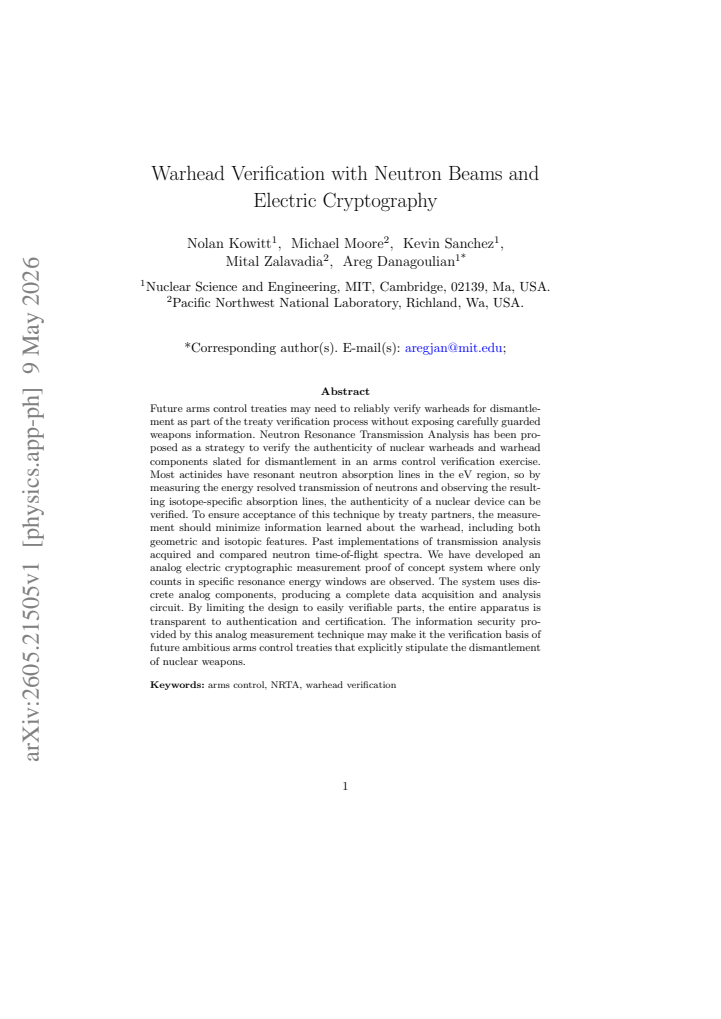

Warhead Verification with Neutron Beams and Electric Cryptography
Pith reviewed 2026-05-22 02:09 UTC · model grok-4.3
The pith
An analog circuit counts neutrons in selected energy windows to verify warheads without exposing design details.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
Replacing time-of-flight spectra with counts inside pre-selected resonance energy windows and handling the data through a fully analog, discrete-component circuit allows authentication while keeping both geometric and isotopic features hidden from observers.
What carries the argument
The analog electric cryptographic circuit that integrates detector pulses only within chosen resonance energy windows using standard, verifiable discrete parts.
If this is right
- Treaty inspectors can certify the measurement hardware without needing to trust software or proprietary electronics.
- Only the agreed-upon count values leave the apparatus, limiting what information about the warhead becomes known.
- Verification could extend to actual dismantlement rather than just inventory accounting.
- Information security rests on physical restrictions on data collection instead of cryptographic software.
Where Pith is reading between the lines
- The same window-limiting principle might be adapted to other verification tasks that must protect sensitive material properties.
- Experimental tests with real or surrogate warheads are required to confirm that the chosen windows retain sufficient distinguishing power.
- Selecting the exact energy windows involves a trade-off between authentication strength and information leakage that must be validated empirically.
Load-bearing premise
That the counts collected in a small number of pre-chosen resonance windows still contain enough information to distinguish a real warhead from a fake one while the entire analog circuit remains open to inspection.
What would settle it
Showing that a deliberately altered warhead or surrogate produces the same count totals in the selected windows as an authentic device would demonstrate that the limited data cannot reliably authenticate.
read the original abstract
Future arms control treaties may need to reliably verify warheads for dismantlement as part of the treaty verification process without exposing carefully guarded weapons information. Neutron Resonance Transmission Analysis has been proposed as a strategy to verify the authenticity of nuclear warheads and warhead components slated for dismantlement in an arms control verification exercise. Most actinides have resonant neutron absorption lines in the eV region, so by measuring the energy resolved transmission of neutrons and observing the resulting isotope-specific absorption lines, the authenticity of a nuclear device can be verified. To ensure acceptance of this technique by treaty partners, the measurement should minimize information learned about the warhead, including both geometric and isotopic features. Past implementations of transmission analysis acquired and compared neutron time-of-flight spectra. We have developed an analog electric cryptographic measurement proof of concept system where only counts in specific resonance energy windows are observed. The system uses discrete analog components, producing a complete data acquisition and analysis circuit. By limiting the design to easily verifiable parts, the entire apparatus is transparent to authentication and certification. The information security provided by this analog measurement technique may make it the verification basis of future ambitious arms control treaties that explicitly stipulate the dismantlement of nuclear weapons.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The manuscript proposes a proof-of-concept analog electric cryptographic system for neutron resonance transmission analysis to verify nuclear warheads slated for dismantlement. Rather than acquiring full time-of-flight spectra, the design uses discrete analog components to produce only scalar neutron counts in a small number of pre-selected resonance energy windows, with the goal of authenticating warheads while keeping the hardware fully transparent and inspectable to minimize leakage of geometric or isotopic information.
Significance. If the central claim holds, the approach could provide a verifiable, information-minimizing technique suitable as a basis for future arms-control treaties that require dismantlement verification. The explicit use of discrete, certifiable analog circuitry for transparency is a concrete strength that directly addresses a recurring practical barrier in treaty instrumentation.
major comments (3)
- [system description / circuit topology section] The description of the analog measurement system states that only integrated counts in fixed resonance windows are produced, yet supplies neither expected count rates nor any statistical measure of separation between the distributions expected for authentic warheads versus plausible spoofs. This leaves the claim that the reduced observable suffices for reliable authentication at treaty-relevant confidence levels without quantitative support.
- [results / proof-of-concept section] Although the manuscript reports that a complete data-acquisition and analysis circuit was constructed, no measured spectra, count statistics, error bars, or discrimination performance metrics are presented. The central performance claim therefore rests on an unverified assertion rather than demonstrated results.
- [information-security discussion] No information-theoretic argument or simulation is given showing that the particular choice of energy windows does not inadvertently leak additional isotopic or geometric detail through analog imperfections or through the window selection itself, while still preserving the claimed transparency of the front-end.
minor comments (2)
- [abstract] The abstract would be clearer if it explicitly named the resonance energy windows employed and the number of windows used.
- [circuit description] A short table summarizing the analog components and their verifiability criteria would improve readability of the hardware description.
Simulated Author's Rebuttal
We thank the referee for the careful and constructive review of our manuscript. The comments identify key areas where additional quantitative detail would strengthen the presentation of the analog cryptographic approach. We respond to each major comment below and indicate planned revisions to the manuscript.
read point-by-point responses
-
Referee: [system description / circuit topology section] The description of the analog measurement system states that only integrated counts in fixed resonance windows are produced, yet supplies neither expected count rates nor any statistical measure of separation between the distributions expected for authentic warheads versus plausible spoofs. This leaves the claim that the reduced observable suffices for reliable authentication at treaty-relevant confidence levels without quantitative support.
Authors: We agree that explicit quantitative support is needed to substantiate the authentication capability. In the revised manuscript we will add calculated expected count rates derived from representative neutron beam fluxes and warhead models, together with statistical separation metrics (e.g., overlap integrals or required measurement times for a chosen confidence level) between authentic and plausible spoof distributions under Poisson counting statistics. revision: yes
-
Referee: [results / proof-of-concept section] Although the manuscript reports that a complete data-acquisition and analysis circuit was constructed, no measured spectra, count statistics, error bars, or discrimination performance metrics are presented. The central performance claim therefore rests on an unverified assertion rather than demonstrated results.
Authors: The manuscript presents the successful construction and basic operation of the discrete analog circuit as the primary proof-of-concept result. We acknowledge that measured performance data are not shown. The revised text will clarify that the performance claims rest on circuit design calculations and Monte-Carlo simulations of the counting process; we will include those quantitative results and note that full experimental validation with a neutron beam remains future work. revision: partial
-
Referee: [information-security discussion] No information-theoretic argument or simulation is given showing that the particular choice of energy windows does not inadvertently leak additional isotopic or geometric detail through analog imperfections or through the window selection itself, while still preserving the claimed transparency of the front-end.
Authors: We will expand the information-security section to include a qualitative information-theoretic argument addressing potential leakage channels. The revision will discuss how the fixed, inspectable analog windowing and the absence of digital storage or processing limit unintended information release, while also noting residual risks from component non-idealities and how they are mitigated by the transparent hardware design. revision: yes
Circularity Check
No circularity in derivation chain
full rationale
The manuscript proposes a hardware-based neutron resonance transmission verification system that restricts observables to scalar counts in fixed resonance energy windows using discrete analog circuitry. All load-bearing elements rest on external physical facts (actinide resonance lines in the eV range) and the inspectability of analog components; no equations, fitted parameters, or self-citations reduce the claimed information-security property to a quantity defined by the authors' own choices. The central security argument is therefore independent of any internal redefinition or prediction-by-construction.
Axiom & Free-Parameter Ledger
axioms (2)
- domain assumption Most actinides possess resonant neutron absorption lines in the eV region that are isotope-specific.
- domain assumption Discrete analog components produce a measurement circuit whose internal state can be fully authenticated by visual inspection and simple tests.
