Magnetic phases in the J₁-J₂ antiferromagnetic XY model on the honeycomb lattice

I. V. Lukin , M. O. Luhanko , Yu. V. Slyusarenko , A. G. Sotnikov This is my paper

Pith reviewed 2026-05-20 08:10 UTC · model grok-4.3

classification ❄️ cond-mat.str-el
keywords J1-J2 XY modelhoneycomb latticeantiferromagnetphase diagramNéel orderspiral phasecorner transfer matrixiPEPS
0
0 comments X

The pith

The J1-J2 XY antiferromagnet on the honeycomb lattice supports Néel, Ising, collinear, and incommensurate spiral phases with transitions set by the frustration ratio J2/J1.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper maps the ground-state phase diagram of the antiferromagnetic XY model with nearest-neighbor J1 and next-nearest-neighbor J2 couplings on the honeycomb lattice. It employs numerical tensor-network methods to track how magnetic order changes with increasing J2/J1 and to compare energies of different candidate states. The work finds that a collinear phase is stable over dimerized alternatives in the frustrated regime and that this collinear phase ends in a continuous transition to an incommensurate spiral.

Core claim

The authors establish that the model realizes Néel order at small J2/J1, an Ising phase, then a collinear phase whose energy lies below that of dimerized states; the collinear phase undergoes a second-order transition to an incommensurate spiral phase at larger J2/J1.

What carries the argument

Corner transfer matrix renormalization group algorithm with a two-site unit cell together with the infinite spiral projected entangled pair states ansatz used to compute variational energies and order parameters.

If this is right

  • The located phase boundaries supply reference points for comparing with other frustrated two-dimensional magnets.
  • The continuous nature of the collinear-to-spiral transition implies that the spiral wave vector evolves without an abrupt jump.
  • Dimerization is energetically disfavored relative to collinear order throughout the regime of competing interactions.
  • The same computational framework can be reused to study related models with altered spin anisotropy or lattice geometry.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The phase sequence may help interpret magnetic ordering in layered van der Waals materials whose spins approximate the XY limit on honeycomb lattices.
  • Increasing the bond dimension in the same ansatz would provide a direct numerical test of whether the transition remains continuous.
  • The suppression of dimer order relative to Heisenberg versions of the model points to the role of XY anisotropy in stabilizing collinear over valence-bond states.

Load-bearing premise

The numerical renormalization procedure and the chosen ansatz converge to the true ground state without significant truncation or unit-cell bias across the full range of J2/J1.

What would settle it

Exact diagonalization or density-matrix renormalization group on cylinders showing either a dimerized state lower in energy than the collinear state or a discontinuous jump in the ordering wave vector at the putative second-order transition.

Figures

Figures reproduced from arXiv: 2605.18982 by A. G. Sotnikov, I. V. Lukin, M. O. Luhanko, Yu. V. Slyusarenko.

Figure 1

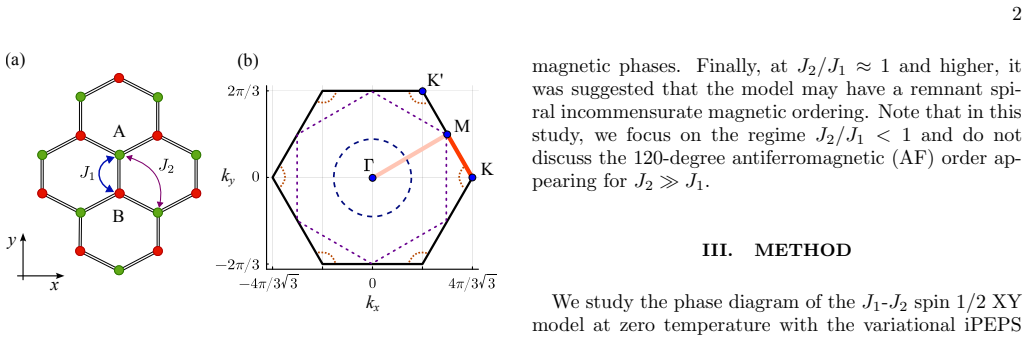

Figure 1. Figure 1: FIG. 1. (a) Honeycomb lattice with the two-site unit cell in [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: FIG. 2. (a) Honeycomb PEPS state with the two-site unit cell [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: FIG. 3. Definitions of different boundary tensors appearing [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: FIG. 4. Illustration of one step of the CTMRG update: (a) [PITH_FULL_IMAGE:figures/full_fig_p004_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: FIG. 5. Computation of correlation function with CTM ten [PITH_FULL_IMAGE:figures/full_fig_p005_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: FIG. 6. Ground-state energy (a) and staggered magnetiza [PITH_FULL_IMAGE:figures/full_fig_p006_6.png] view at source ↗
Figure 8
Figure 8. Figure 8: FIG. 8. The behavior of the energy (a) and position [PITH_FULL_IMAGE:figures/full_fig_p007_8.png] view at source ↗
Figure 9
Figure 9. Figure 9: FIG. 9. Phase diagram of the [PITH_FULL_IMAGE:figures/full_fig_p007_9.png] view at source ↗
read the original abstract

We study ground-state properties and phase diagram of the $J_{1}$-$J_{2}$ antiferromagnetic XY model on the honeycomb lattice by means of the developed corner transfer matrix renormalization group algorithm with the two-site unit cell and the infinite spiral projected entangled pair states ansatz. We identify the main phases: N\'{e}el, Ising, collinear, and incommensurate spiral phases, as well as the transitions between them, as functions of the ratio $J_{2}/J_{1}$. In the regime of competing types of ordering, we show that the energies of the dimerized states are systematically higher than the energies in the collinear phase. This collinear phase transforms to the incommensurate spiral phase through the second-order phase transition upon a further increase of $J_2/J_1$.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 0 minor

Summary. The manuscript investigates the ground-state phase diagram of the J₁-J₂ antiferromagnetic XY model on the honeycomb lattice. Employing a corner transfer matrix renormalization group (CTMRG) algorithm with a two-site unit cell together with an infinite spiral projected entangled pair states (iPEPS) ansatz, the authors identify Néel, Ising, collinear, and incommensurate spiral phases, map the transitions as functions of J₂/J₁, demonstrate that dimerized states lie higher in energy than the collinear phase in competing-order regimes, and characterize the collinear-to-incommensurate-spiral transition as second-order.

Significance. If the numerical results prove robust, the work supplies a detailed phase diagram for a frustrated XY antiferromagnet on the honeycomb lattice, clarifying the stability of collinear order relative to dimerized states and the order of the transition into spiral order. The direct minimization via tensor-network methods on infinite systems, with no free parameters or fitted quantities, constitutes a methodological strength that supports the reported phase boundaries and transition characters.

major comments (1)
  1. The central claims—phase boundaries, the systematic energy advantage of the collinear phase over dimerized states, and the second-order character of the collinear-to-spiral transition—rest on the convergence of the two-site CTMRG and infinite spiral iPEPS ansatz to the true ground state for all J₂/J₁. The manuscript provides no bond-dimension extrapolations, truncation-error bounds, or comparisons against larger unit cells or exact diagonalization benchmarks, leaving open the possibility of ansatz bias or truncation artifacts in the frustrated regime where Néel, collinear, spiral, and dimerized tendencies compete.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the careful reading of our manuscript and the constructive feedback. We address the single major comment below and have prepared revisions to strengthen the presentation of numerical convergence.

read point-by-point responses

  1. Referee: The central claims—phase boundaries, the systematic energy advantage of the collinear phase over dimerized states, and the second-order character of the collinear-to-spiral transition—rest on the convergence of the two-site CTMRG and infinite spiral iPEPS ansatz to the true ground state for all J₂/J₁. The manuscript provides no bond-dimension extrapolations, truncation-error bounds, or comparisons against larger unit cells or exact diagonalization benchmarks, leaving open the possibility of ansatz bias or truncation artifacts in the frustrated regime where Néel, collinear, spiral, and dimerized tendencies compete.

    Authors: We agree that explicit documentation of convergence is essential for claims in the frustrated regime. In the revised manuscript we will add (i) bond-dimension extrapolations of the energy and order parameters for representative values of J₂/J₁ in each phase, (ii) truncation-error estimates obtained from the CTMRG and iPEPS algorithms, and (iii) a direct comparison of our infinite-system results with exact-diagonalization data on finite clusters up to 24 sites. These additions will quantify the residual truncation error and demonstrate that the reported phase boundaries and transition order remain stable within the stated precision. We note that the two-site unit cell is the natural choice for the honeycomb lattice and that the spiral iPEPS ansatz is constructed to accommodate incommensurate wave vectors; we will nevertheless clarify why larger supercells are not required for the phases studied. revision: yes

Circularity Check

0 steps flagged

Numerical tensor-network minimization of Hamiltonian yields self-contained phase diagram

full rationale

The work computes ground-state energies and order parameters directly via CTMRG (two-site cell) and infinite spiral iPEPS variational optimization of the J1-J2 XY Hamiltonian for varying J2/J1. Phase boundaries, dimer vs. collinear energy comparisons, and the collinear-to-spiral transition order are outputs of this minimization; no parameter is fitted to a target observable and then re-used as a prediction, no self-citation supplies a uniqueness theorem that forces the ansatz, and no quantity is defined in terms of itself. The derivation chain therefore remains independent of its own results.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The claim rests on the domain assumption that the honeycomb lattice with nearest-neighbor J1 and next-nearest-neighbor J2 antiferromagnetic XY couplings is the correct microscopic model, plus the technical assumption that the chosen tensor-network ansatzes faithfully represent the ground state. No free parameters or new entities are introduced.

axioms (1)
  • domain assumption The honeycomb lattice with nearest-neighbor J1 and next-nearest-neighbor J2 antiferromagnetic XY interactions defines the Hamiltonian under study.
    This is the standard microscopic model stated in the abstract.
