Universal Transient Stability Analysis: A Pre-trained Generative Transformer-Enabled Power System Dynamics Prediction Framework

Chao Shen , Ke Zuo , Mingyang Sun This is my paper

Pith reviewed 2026-05-22 12:23 UTC · model grok-4.3

classification 📡 eess.SY cs.SY
keywords transient stability analysisgenerative transformerpower system dynamicszero-shot generalizationfine-tuning strategyuniversal frameworkdynamics predictionpre-trained model
0
0 comments X

The pith

A pre-trained generative Transformer predicts power system transient dynamics across different grids with zero-shot transfer and minimal fine-tuning.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper seeks a single pre-trained architecture that can forecast transient stability dynamics in power systems under diverse operating conditions, unseen faults, and entirely different network sizes. Existing approaches lack this universality because they require custom models or separate pipelines for each scenario and grid. Uni-TSA reframes the multivariate prediction task as univariate generation through a data pipeline of channel-independent decomposition, sample-wise normalization, and temporal patching, then applies a freeze-and-finetune strategy on a generative Transformer backbone with a two-stage training schedule that combines teacher forcing and scheduled sampling. When trained only on the New England 39-bus system, the model generalizes zero-shot to mixed stability cases and novel faults while reaching expert-level accuracy on the Iceland 189-bus system using just 5 percent of the target data. This removes the need for repeated system-specific retraining and enables data-efficient adaptation to new networks.

Core claim

Uni-TSA is a pre-trained generative Transformer framework that models multivariate transient dynamics prediction as a univariate generative task. It employs channel independence decomposition, sample-wise normalization, and temporal patching to handle dimensional heterogeneity and long sequences, combined with a parameter-efficient freeze-and-finetune strategy and a two-stage scheme using teacher forcing followed by scheduled sampling. Trained solely on the New England 39-bus system, it achieves zero-shot generalization to mixed stability conditions and unseen faults, matches expert performance on the Iceland 189-bus system with only 5 percent fine-tuning data, and demonstrates strong cross-

What carries the argument

The generative Transformer backbone with parameter-efficient freeze-and-finetune, driven by a data processing pipeline that converts multivariate time series into independent univariate generative sequences via channel decomposition and temporal patching.

If this is right

  • Zero-shot generalization to mixed stability conditions and unseen faults when trained only on the New England 39-bus system.
  • Matching expert performance on the Iceland 189-bus system using only 5 percent fine-tuning data.
  • Strong zero-shot transferability shown on IEEE 68-bus and IEEE 118-bus systems.
  • Elimination of separate modeling pipelines for stable versus unstable scenarios through sample-wise normalization.
  • Reduced cumulative error in long-horizon predictions via the shift from teacher forcing to scheduled sampling.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The method could allow grid operators to deploy a single predictive model across multiple regional networks instead of maintaining system-specific simulators.
  • If extended to real-time streaming data, the approach might support online stability monitoring in grids with variable renewable generation.
  • Combining the generative predictions with physics-based constraints could improve reliability on rare edge-case faults not seen in training.
  • Validation against operational logs from actual utilities rather than simulated data would test whether the observed transfer holds outside controlled test cases.

Load-bearing premise

The data processing pipeline of channel independence decomposition, sample-wise normalization, and temporal patching successfully resolves dimensional heterogeneity and removes the need for separate stable/unstable modeling pipelines across heterogeneous power systems and fault scenarios.

What would settle it

A demonstration that Uni-TSA requires substantially more than 5 percent fine-tuning data to match expert accuracy on the Iceland 189-bus system or exhibits large prediction errors in zero-shot tests on mixed stability conditions and unseen faults on the New England 39-bus system would falsify the universality claim.

Figures

Figures reproduced from arXiv: 2512.20970 by Chao Shen, Ke Zuo, Mingyang Sun.

Figure 1
Figure 1. Figure 1: Comparison of attention mechanisms and iterative prediction in TSA-LLM. [PITH_FULL_IMAGE:figures/full_fig_p007_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Model structure and pipeline of TSA-LLM. [PITH_FULL_IMAGE:figures/full_fig_p009_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: New England 39-bus system: The evaluation of rotor angle under the stable and [PITH_FULL_IMAGE:figures/full_fig_p021_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: The t-SNE visualization of stable/unstable sample feature maps for the proposed [PITH_FULL_IMAGE:figures/full_fig_p022_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: Furthermore, when fine-tuned on the complete 189-bus dataset, [PITH_FULL_IMAGE:figures/full_fig_p024_5.png] view at source ↗

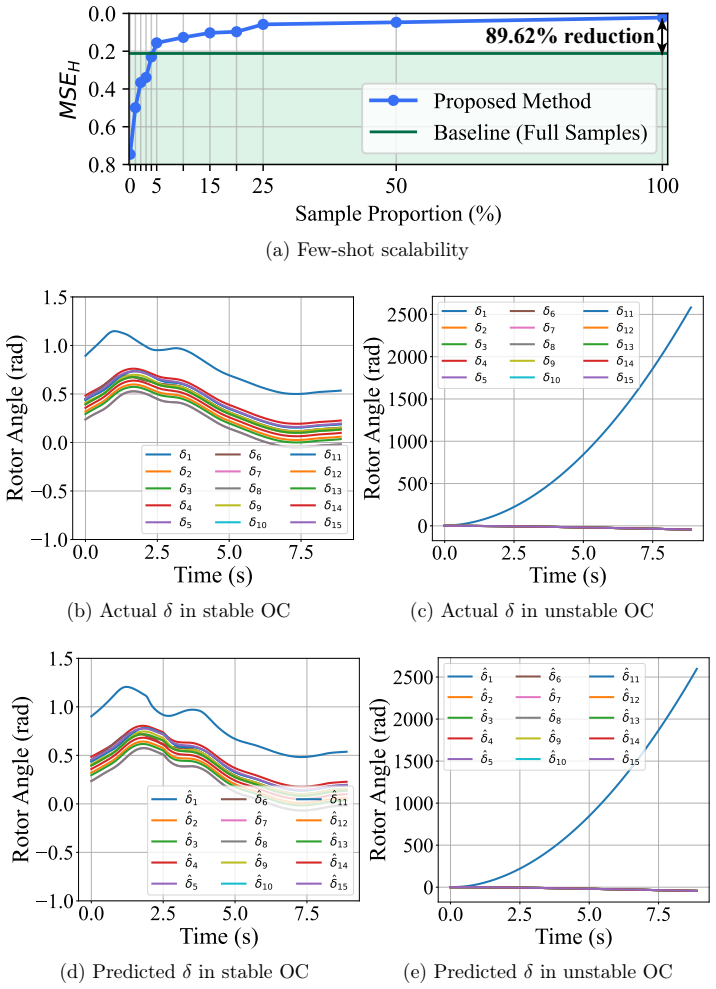

Figure 5
Figure 5. Figure 5: Iceland 189-bus system: few shot scalability. To facilitate presentation, prediction [PITH_FULL_IMAGE:figures/full_fig_p025_5.png] view at source ↗
read the original abstract

Existing dynamics prediction frameworks for transient stability analysis (TSA) fail to achieve multi-scenario "universality": the inherent ability of a single, pre-trained architecture to generalize across diverse operating conditions, unseen faults, and heterogeneous systems. To address this, this paper proposes Uni-TSA, a pre-trained generative Transformer-enabled universal framework that models multivariate transient dynamics prediction as a univariate generative task with three key innovations: First, a novel data processing pipeline featuring channel independence decomposition to resolve dimensional heterogeneity, sample-wise normalization to eliminate separate stable/unstable pipelines, and temporal patching for efficient long-sequence modeling; Second, a parameter-efficient freeze-and-finetune strategy that augments the pre-trained generative Transformer backbone with dedicated input embedding and output projection layers while freezing core transformer blocks to preserve generic feature extraction capabilities; Third, a two-stage fine-tuning scheme that combines teacher forcing, which feeds the model ground-truth data during initial training, with scheduled sampling, which gradually shifts to leveraging model-generated predictions, to mitigate cumulative errors in long-horizon iterative prediction. Comprehensive testing demonstrates the framework's universality, as Uni-TSA trained solely on the New England 39-bus system achieves zero-shot generalization to mixed stability conditions and unseen faults, and matches expert performance on the Iceland 189-bus system with only 5% fine-tuning data. Additional cross-system experiments on the IEEE 68-bus and IEEE 118-bus systems, together with stability metrics and PEBS comparison, further confirm Uni-TSA's strong zero-shot transferability and data-efficient adaptation.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper proposes Uni-TSA, a pre-trained generative Transformer framework for universal transient stability analysis (TSA) in power systems. It models multivariate dynamics prediction as a univariate generative task via a data processing pipeline (channel independence decomposition, sample-wise normalization, temporal patching), a parameter-efficient freeze-and-finetune strategy on a Transformer backbone, and a two-stage fine-tuning scheme (teacher forcing followed by scheduled sampling). The central claim is that a model pre-trained solely on the New England 39-bus system achieves zero-shot generalization to mixed stability conditions, unseen faults, and other systems (IEEE 68-bus, 118-bus), while matching expert performance on the Iceland 189-bus system using only 5% fine-tuning data, with supporting stability metrics and PEBS comparisons.

Significance. If the empirical results and generalization claims hold under rigorous validation, this would be a notable contribution to power system dynamics modeling by offering a single pre-trained architecture that reduces reliance on system-specific pipelines and enables data-efficient adaptation across heterogeneous networks and fault scenarios.

major comments (2)
  1. [Data Processing Pipeline] Data Processing Pipeline (as described in the abstract and the methods section detailing channel independence decomposition): Transient stability is governed by the coupled swing equations and the network admittance matrix, where perturbations propagate across buses. Treating channels independently risks discarding these topology-dependent interactions; the zero-shot transfer from the 39-bus New England system to the 189-bus Iceland system (different inertia distribution and inter-area modes) therefore rests on an untested premise that sample-wise normalization and temporal patching suffice without explicit cross-channel modeling.
  2. [Experimental Results] Experimental Results (abstract and the section reporting cross-system experiments): The universality and 'matches expert performance' claims are presented without quantitative metrics, error bars, or full details on how zero-shot generalization and PEBS comparisons were quantified across stability conditions. This makes it impossible to assess whether the data support the load-bearing claim of strong transferability with only 5% fine-tuning data.
minor comments (2)
  1. [Methods] Clarify the exact definition and implementation of 'channel independence decomposition' with a small illustrative example or pseudocode to aid reproducibility.
  2. Add missing references to prior work on generative models for time-series in power systems and on PEBS methods for transient stability.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive and insightful comments, which have helped us strengthen the manuscript. We address each major comment point by point below, providing clarifications and indicating revisions where appropriate to improve rigor and transparency.

read point-by-point responses

  1. Referee: [Data Processing Pipeline] Data Processing Pipeline (as described in the abstract and the methods section detailing channel independence decomposition): Transient stability is governed by the coupled swing equations and the network admittance matrix, where perturbations propagate across buses. Treating channels independently risks discarding these topology-dependent interactions; the zero-shot transfer from the 39-bus New England system to the 189-bus Iceland system (different inertia distribution and inter-area modes) therefore rests on an untested premise that sample-wise normalization and temporal patching suffice without explicit cross-channel modeling.

    Authors: We appreciate the referee's emphasis on the coupled nature of swing dynamics. Our channel-independence decomposition is specifically motivated by the need to accommodate dimensional heterogeneity across systems of different sizes, allowing a single pre-trained model to process univariate series per bus while preserving the ability to handle varying numbers of channels. Sample-wise normalization and temporal patching focus the model on learning transferable temporal patterns from the pre-training data, with system-specific interactions implicitly encoded via initial conditions and the fine-tuning stage on target systems. To address the concern directly, we have revised Section III-B to include an expanded discussion of this implicit capture mechanism and have added a limitations paragraph noting that explicit topology-aware extensions (e.g., graph neural components) represent a promising direction for future work. This revision clarifies the design rationale without altering the core claims. revision: partial

  2. Referee: [Experimental Results] Experimental Results (abstract and the section reporting cross-system experiments): The universality and 'matches expert performance' claims are presented without quantitative metrics, error bars, or full details on how zero-shot generalization and PEBS comparisons were quantified across stability conditions. This makes it impossible to assess whether the data support the load-bearing claim of strong transferability with only 5% fine-tuning data.

    Authors: We agree that additional quantitative details and statistical rigor are necessary to fully substantiate the generalization claims. In the revised manuscript, we have expanded the experimental results section with detailed tables reporting MSE, stability classification accuracy, and PEBS deviation metrics for zero-shot and fine-tuned scenarios across all systems and stability conditions. We now include error bars (standard deviation over 10 independent runs with varied random seeds) and a step-by-step description of the evaluation protocol, including how the 5% fine-tuning data was selected and how PEBS comparisons were performed. These additions directly support the transferability claims with transparent metrics. revision: yes

Circularity Check

0 steps flagged

No circularity: empirical ML framework with experimental validation

full rationale

The paper proposes an empirical pre-trained Transformer framework for power system dynamics prediction, relying on data processing innovations (channel independence, normalization, patching), freeze-and-finetune strategy, and two-stage training with teacher forcing/scheduled sampling. Claims of universality and zero-shot generalization are supported by experiments across New England 39-bus, Iceland 189-bus, and other systems, not by any mathematical derivation or first-principles result. No equations reduce to self-defined quantities, fitted parameters renamed as predictions, or load-bearing self-citations. The approach is self-contained through pre-training on one system and empirical testing on others, with no reduction of outputs to inputs by construction.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The framework rests on the assumption that a pre-trained generative Transformer extracts transferable features for multivariate dynamics and that the proposed data transformations handle heterogeneity without introducing bias. No new physical entities are postulated.

axioms (1)
  • domain assumption Pre-trained Transformer blocks preserve generic feature extraction capabilities when frozen and augmented only with task-specific embedding and projection layers.
    This underpins the parameter-efficient freeze-and-finetune strategy described in the abstract.

pith-pipeline@v0.9.0 · 5810 in / 1350 out tokens · 56607 ms · 2026-05-22T12:23:19.129349+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Lean theorems connected to this paper

Citations machine-checked in the Pith Canon. Every link opens the source theorem in the public Lean library.

What do these tags mean?
matches
The paper's claim is directly supported by a theorem in the formal canon.
supports
The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
extends
The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
uses
The paper appears to rely on the theorem as machinery.
contradicts
The paper's claim conflicts with a theorem or certificate in the canon.
unclear
Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.

Reference graph

Works this paper leans on

27 extracted references · 27 canonical work pages · 1 internal anchor

  1. [1]

    C. Shen, K. Zuo, M. Sun, Physics-following neural network for online dynamic security assessment, IEEE Transactions on Power Systems (2025)

    work page 2025

  2. [2]

    X. Ye, A. Radovanovic, J. V. Milanovic, The use of machine learning for prediction of post-fault rotor angle trajectories, IEEE Transactions on Power Systems 39 (5) (2024) 6496–6507

    work page 2024

  3. [3]

    T. Zhao, M. Yue, J. Wang, Structure-informed graph learning of net- worked dependencies for online prediction of power system transient dynamics, IEEE Transactions on Power Systems 37 (6) (2022) 4885– 4895

    work page 2022

  4. [4]

    Z. Qiu, C. Duan, W. Yao, P. Zeng, L. Jiang, Adaptive lyapunov function method for power system transient stability analysis, IEEE Transactions on Power Systems 38 (4) (2022) 3331–3344

    work page 2022

  5. [5]

    S. K. Azman, Y. J. Isbeih, M. S. El Moursi, K. Elbassioni, A unified online deep learning prediction model for small signal and transient stability, IEEE transactions on power systems 35 (6) (2020) 4585–4598

    work page 2020

  6. [6]

    Q. Zhou, J. Davidson, A. Fouad, Application of artificial neural networks inpowersystemsecurityandvulnerabilityassessment, IEEETransactions on Power Systems 9 (1) (1994) 525–532

    work page 1994

  7. [7]

    F. R. Gomez, A. D. Rajapakse, U. D. Annakkage, I. T. Fernando, Support vector machine-based algorithm for post-fault transient stability status prediction using synchronized measurements, IEEE Transactions on Power systems 26 (3) (2010) 1474–1483

    work page 2010

  8. [8]

    K. Sun, S. Likhate, V. Vittal, V. S. Kolluri, S. Mandal, An online dynamic security assessment scheme using phasor measurements and decision trees, IEEE Transactions on Power Systems 22 (4) (2007) 1935– 1943.doi:10.1109/TPWRS.2007.908476

    work page doi:10.1109/tpwrs.2007.908476 2007

  9. [9]

    Q. Chen, N. Lin, S. Bu, H. Wang, B. Zhang, Interpretable time-adaptive transient stability assessment based on dual-stage attention mechanism, IEEE Transactions on Power Systems 38 (3) (2022) 2776–2790. 31

    work page 2022

  10. [10]

    C. Ren, Y. Xu, R. Zhang, An interpretable deep learning method for power system transient stability assessment via tree regularization, IEEE Transactions on Power Systems 37 (5) (2021) 3359–3369

    work page 2021

  11. [11]

    L. Zhu, W. Wen, J. Li, Y. Hu, Integrated data-driven power system transient stability monitoring and enhancement, IEEE Transactions on Power Systems 39 (1) (2023) 1797–1809

    work page 2023

  12. [12]

    Su, C.-C

    H.-Y. Su, C.-C. Lai, Online transient stability margin estimation using improved deep learning ensemble model, IEEE Transactions on Power Systems 39 (6) (2023) 7421–7424

    work page 2023

  13. [13]

    L. Zhu, D. J. Hill, C. Lu, Hierarchical deep learning machine for power system online transient stability prediction, IEEE Transactions on Power Systems 35 (3) (2019) 2399–2411

    work page 2019

  14. [14]

    L. Zhu, D. J. Hill, Networked time series shapelet learning for power sys- tem transient stability assessment, IEEE Transactions on Power Systems 37 (1) (2021) 416–428

    work page 2021

  15. [15]

    G. S. Misyris, A. Venzke, S. Chatzivasileiadis, Physics-informed neural networks for power systems, in: 2020 IEEE power & energy society general meeting (PESGM), IEEE, 2020, pp. 1–5

    work page 2020

  16. [16]

    W. Cui, W. Yang, B. Zhang, A frequency domain approach to predict power system transients, IEEE Transactions on Power Systems 39 (1) (2023) 465–477

    work page 2023

  17. [17]

    B. Tan, J. Zhao, Bayesian post-fault power system dynamic trajectory prediction, IEEE Transactions on Power Systems (2025)

    work page 2025

  18. [18]

    GPT-4 Technical Report

    J. Achiam, S. Adler, S. Agarwal, L. Ahmad, I. Akkaya, F. L. Aleman, D. Almeida, J. Altenschmidt, S. Altman, S. Anadkat, et al., Gpt-4 technical report, arXiv preprint arXiv:2303.08774 (2023)

    work page internal anchor Pith review Pith/arXiv arXiv 2023

  19. [19]

    S. Tu, Y. Zhang, J. Zhang, Z. Fu, Y. Zhang, Y. Yang, Powerpm: Founda- tion model for power systems, Advances in Neural Information Processing Systems 37 (2024) 115233–115260

    work page 2024

  20. [20]

    Y. Liu, H. Zhang, C. Li, X. Huang, J. Wang, M. Long, Timer: generative pre-trained transformers are large time series models, in: Proceedings 32 of the 41st International Conference on Machine Learning, 2024, pp. 32369–32399

    work page 2024

  21. [21]

    Vaswani, N

    A. Vaswani, N. Shazeer, N. Parmar, J. Uszkoreit, L. Jones, A. N. Gomez, Ł. Kaiser, I. Polosukhin, Attention is all you need, Advances in neural information processing systems 30 (2017)

    work page 2017

  22. [22]

    Radford, J

    A. Radford, J. Wu, R. Child, D. Luan, D. Amodei, I. Sutskever, et al., Language models are unsupervised multitask learners, OpenAI blog 1 (8) (2019) 9

    work page 2019

  23. [23]

    A. M. Lamb, A. G. ALIAS PARTH GOYAL, Y. Zhang, S. Zhang, A. C. Courville, Y. Bengio, Professor forcing: A new algorithm for training recurrent networks, Advances in neural information processing systems 29 (2016)

    work page 2016

  24. [24]

    H. Cai, H. Ma, D. J. Hill, A data-based learning and control method for long-term voltage stability, IEEE Transactions on Power Systems 35 (4) (2020) 3203–3212

    work page 2020

  25. [25]

    G. Lu, S. Bu, Advanced probabilistic transient stability assessment for operational planning: A physics-informed graphical learning approach, IEEE Transactions on Power Systems (2024)

    work page 2024

  26. [26]

    T. Zhou, P. Niu, L. Sun, R. Jin, et al., One fits all: Power general time series analysis by pretrained lm, Advances in neural information processing systems 36 (2023) 43322–43355

    work page 2023

  27. [27]

    H. Kim, G. Papamakarios, A. Mnih, The lipschitz constant of self- attention, in: International Conference on Machine Learning, PMLR, 2021, pp. 5562–5571. 33

    work page 2021
