arxiv: 2601.02537 · v5 · pith:U4PRVX3Tnew · submitted 2026-01-05 · 💻 cs.NI · cs.DC

Optimal Oblivious Load-Balancing for Sparse Traffic in Large-Scale Satellite Networks

Rudrapatna Vallabh Ramakanth , Eytan Modiano This is my paper

Pith reviewed 2026-05-16 17:09 UTC · model grok-4.3

classification 💻 cs.NI cs.DC
keywords oblivious routingload balancingtorus networkLEO satellite networkssparse trafficworst-case analysisValiant load balancing
0
0 comments X

The pith

No oblivious routing scheme can achieve worst-case load lower than approximately √(2k)/4 on an N×N torus with at most k active pairs.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper establishes fundamental limits on oblivious load-balancing for sparse unknown traffic on torus networks that model large-scale LEO satellite constellations. It proves a lower bound of roughly √(2k)/4 on the maximum link load for small k and N/4 when k grows larger, then constructs a routing scheme that meets this bound exactly. The work also shows that the classic Valiant Load Balancing method exceeds this optimum under sparse conditions and identifies a √2 multiplicative gap between the best oblivious and non-oblivious performance. These results matter because satellite networks experience localized sparse traffic whose source-destination pairs cannot be known in advance, so any improvement in predetermined routing directly reduces congestion.

Core claim

In an N×N torus with uniform link capacities and at most k active source-destination pairs whose locations are unknown, no oblivious routing scheme can guarantee a worst-case load below approximately √(2k)/4 when 1 < k ≤ N²/2 or N/4 when N²/2 ≤ k ≤ N²; moreover an explicit oblivious scheme achieves this bound while Valiant Load Balancing does not.

What carries the argument

A linear program that minimizes the maximum load over every possible set of k source-destination pairs, together with a matching constructive oblivious routing scheme that partitions the torus to meet the bound.

If this is right

  • Valiant Load Balancing is strictly suboptimal for sparse traffic.
  • The worst-case load of any oblivious scheme is at least √2 times that of the best non-oblivious scheme.
  • The same bounds and construction extend to rectangular N×M tori with unequal vertical and horizontal capacities.
  • An optimal oblivious scheme can be precomputed once and used for any unknown set of at most k pairs.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Satellite operators could pre-install the optimal routes to handle moving hotspots without real-time traffic measurement.
  • The √2 gap implies that even modest traffic detection could halve peak congestion in very sparse regimes.
  • Similar lower-bound techniques may apply to other regular topologies such as meshes or hypercubes under localized traffic.

Load-bearing premise

The network is exactly an N x N torus with uniform capacities and traffic consists of at most k active source-destination pairs whose locations are unknown in advance.

What would settle it

A specific collection of k source-destination pairs on the N×N torus for which every oblivious routing scheme produces a maximum link load strictly below √(2k)/4 would falsify the lower bound.

Figures

Figures reproduced from arXiv: 2601.02537 by Eytan Modiano, Rudrapatna Vallabh Ramakanth.

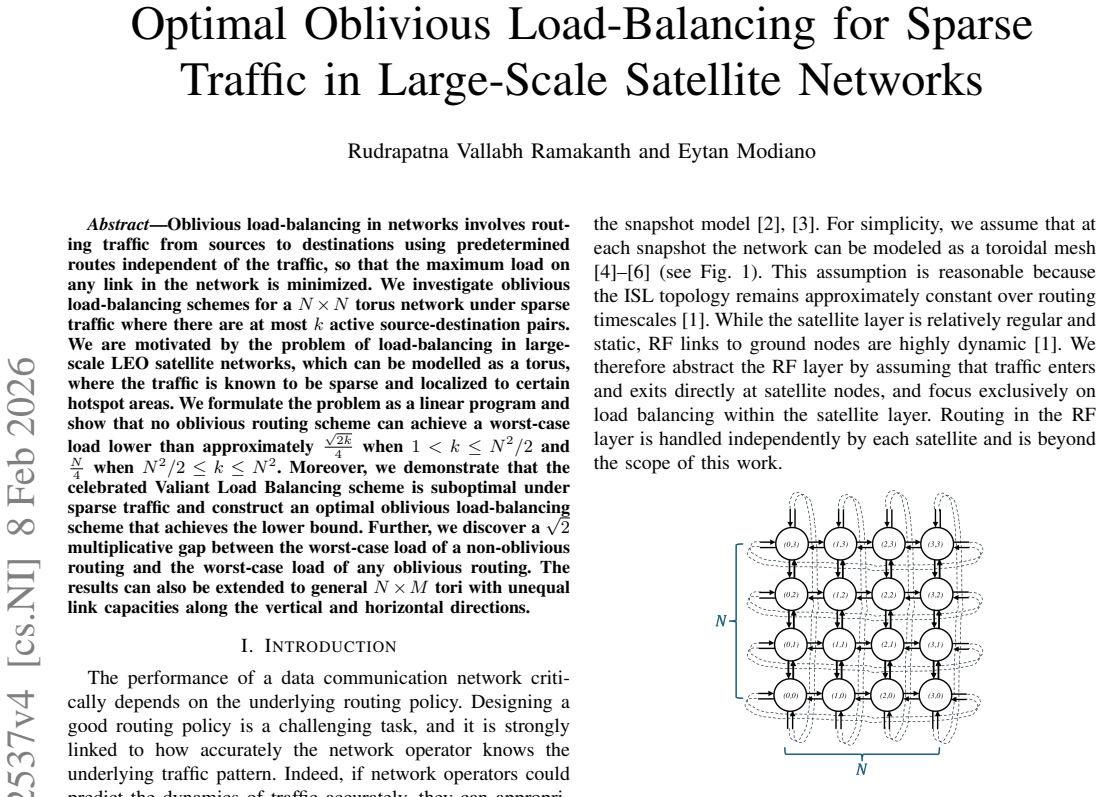

Figure 1
Figure 1. Figure 1: N × N torus with N = 4. While there have been multiple works studying load￾balancing in satellite networks [3], [4], [6]–[10], they mostly do so with restrictive assumptions on traffic or using queue￾based estimates of traffic. Our focus is on developing pre￾determined routing strategies that guarantee optimal worst￾case load for sparse traffic, with only minimal assumptions on the underlying traffic patte… view at source ↗
Figure 2
Figure 2. Figure 2: World traffic heatmap at particular time of day, overlaid [PITH_FULL_IMAGE:figures/full_fig_p002_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: The minimum cut set for k = 4. The set of vertices S is highlighted. The edges to be cut are marked with a cross. in T. For the constructed traffic matrix to be in Dk, we require the total number of sources |S| ≤ k. For any routing policy f, the load must be at least max d∈Dk MAXLOAD(f, d) ≥ k min|S|=k |C(S, T)| . From the result in [4] on minimum sized cuts in a torus, for k ≤ N2/4, the minimum cut of a v… view at source ↗
Figure 4
Figure 4. Figure 4: Set of source nodes S is shaded with red vertical lines. Set of sink nodes T is shaded with blue horizontal lines. The dark edges in the figure lie in the cut-set of both S and T. These edges would see a load of at least 2 √ k 4 (1−k/N2 ) under the VLB scheme. shown in [PITH_FULL_IMAGE:figures/full_fig_p005_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: Symmetries of Routing Policies Furthermore, without loss of generality, it suffices to only check the maximum load on the (0, e1) edge because of the symmetry of the network. This in turn reduces the number of constraints in problem (8). We repose the optimization prob￾lem in (8) with reduced number of variables and constraints. Lemma 3. The optimal oblivious routing problem for k−limited traffic in (8) is… view at source ↗
Figure 6
Figure 6. Figure 6: Split-Diamond traffic with r = 3 for an 8 × 8 torus network. The origin 0 and node t ∗ are marked by boxes. Here, t ∗ = (4, 4). The source nodes of traffic are shaded with red horizontal lines and the destinations are shaded with blue vertical lines. Few of the source-destination pairs are marked with dark arrow lines. Every source node s has traffic to destination s + t ∗ . There is a total of 2r 2 = 18 u… view at source ↗
Figure 8
Figure 8. Figure 8: N × M torus with N = 4 and M = 5. Observe that N × M torus, exhibits translation symmetry and symmetry under reflection about the origin. However, unlike the N × N torus, the N × M torus does not exhibit symmetry under reflection about the x = y axis. This is the only major difference between the analysis in the previous sections and in this section. Using the automorphisms of the general N × M torus, we c… view at source ↗
Figure 7
Figure 7. Figure 7: Example of Local Load Balancing Routing Scheme [PITH_FULL_IMAGE:figures/full_fig_p009_7.png] view at source ↗
Figure 9
Figure 9. Figure 9: Based on this observation, if we select a traffic matrix d ∈ Dk such that the cost of using edge (i, i + e) is constant, i.e., λ(d, i, t, e) = λ for a particular choice of t and ∀i ∈ Br(0), ∀e directed away from 0 and ∀i ∈ Br(t), ∀e directed toward t, then we see that any path from 0 to t would incur a cost of at least 2rλ. The split diamond traffic matrix of size r does exactly this. It selects t to be th… view at source ↗
Figure 9
Figure 9. Figure 9: The ball around 0 is highlighted in red. The ball around t is highlighted in blue. Here, r = 3. Observe that any path from 0 to t must traverse through at least r edges emanating from nodes in Br(0) that are directed away from the origin, and traverse through at least r edges emanating from nodes in Br(t) that are directed toward t. which is (N/2, N/2), only when k ≤ N2/2. The sources and destinations of t… view at source ↗
Figure 10
Figure 10. Figure 10: LLB Routing Scheme with parameter r = 2 with destination t = (0, 3) in a 7 × 7 torus. Observe that the final flow from source to destination can have loops or redundant edges. These loops or redundant edges can be removed by revising the net flow in the forward direction. Menger’s Theorem states that the maximum number of edge￾disjoint paths from S to T is equal to MINCUT(S, T) [PITH_FULL_IMAGE:figures/f… view at source ↗
Figure 11
Figure 11. Figure 11: LLB Routing Scheme with parameter r = 2 with destination t = (2, 1) in a 7 × 7 torus. Observe that the final flow from source to destination can have loops or redundant edges. These loops or redundant edges can be removed by revising the net flow in the forward direction. Therefore, to prove Lemma 4, we need to show that the MINCUT(Sr(0), Sr(t)) is at least 8r. When r < N/2, it is easy to see that MINCUT(… view at source ↗
Figure 12
Figure 12. Figure 12: The ball around 0 is highlighted in red. The ball around t is highlighted in blue. Here, N = 4, M = 10, r = 2, λ1 = 1, and λ2 = 1 2 . Observe that any path from 0 to t must traverse through at least r edges emanating from nodes in B (λ1,λ2) r (0) that are directed away from the origin, and traverse through at least r edges emanating from nodes in B (λ1,λ2) r (t) that are directed toward t. from nodes in B… view at source ↗
Figure 14
Figure 14. Figure 14: Example of Generalized Local Load Balancing Rout [PITH_FULL_IMAGE:figures/full_fig_p019_14.png] view at source ↗
Figure 15
Figure 15. Figure 15: Example of Generalized Local Load Balancing Rout [PITH_FULL_IMAGE:figures/full_fig_p020_15.png] view at source ↗
Figure 16
Figure 16. Figure 16: Ring Load Balancing for when k ≥ L 2/2. Based on this routing policy, the load on any vertical link is at most N/4c1. This is because the load due uniformly distributing unit traffic from each node in a ring of size N with link capacity c1 is N/8c1 [11], [14]. This load appears twice, once due to distribution phase and once due to the aggregation phase. Since traffic is uniformly distributed among the nod… view at source ↗
read the original abstract

Oblivious load-balancing in networks involves routing traffic from sources to destinations using predetermined routes independent of the traffic, so that the maximum load on any link in the network is minimized. We investigate oblivious load-balancing schemes for a $N\times N$ torus network under sparse traffic where there are at most $k$ active source-destination pairs. We are motivated by the problem of load-balancing in large-scale LEO satellite networks, which can be modelled as a torus, where the traffic is known to be sparse and localized to certain hotspot areas. We formulate the problem as a linear program and show that no oblivious routing scheme can achieve a worst-case load lower than approximately $\frac{\sqrt{2k}}{4}$ when $1<k \leq N^2/2$ and $\frac{N}{4}$ when $N^2/2\leq k\leq N^2$. Moreover, we demonstrate that the celebrated Valiant Load Balancing scheme is suboptimal under sparse traffic and construct an optimal oblivious load-balancing scheme that achieves the lower bound. Further, we discover a $\sqrt{2}$ multiplicative gap between the worst-case load of a non-oblivious routing and the worst-case load of any oblivious routing. The results can also be extended to general $N\times M$ tori with unequal link capacities along the vertical and horizontal directions.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

0 major / 2 minor

Summary. The paper formulates oblivious load-balancing for at most k unknown source-destination pairs on an N×N torus as a linear program. It derives a lower bound on worst-case link load of approximately √(2k)/4 when 1<k≤N²/2 and N/4 when N²/2≤k≤N², proves that Valiant Load Balancing is suboptimal for sparse traffic, gives an explicit construction achieving the bound, and identifies a √2 multiplicative gap between any oblivious scheme and non-oblivious routing. The results extend to N×M tori with unequal horizontal and vertical capacities.

Significance. If the LP lower bound and matching construction hold, the work supplies the first tight characterization of optimal oblivious routing under sparse traffic in torus networks, directly relevant to load-balancing in large-scale LEO satellite constellations with localized hotspots. The explicit suboptimality of VLB and the √2 separation from adaptive routing are concrete, usable insights; the parameter-free nature of the bound and the constructive scheme are particular strengths.

minor comments (2)
  1. [Abstract] Abstract: the bound is stated as 'approximately √(2k)/4'; the main text should give the exact expression obtained from the LP (including any floor/ceiling or additive terms) so readers can verify the constant without approximation.
  2. [Conclusion] The extension to general N×M tori with unequal capacities is asserted but not derived; a short theorem statement or paragraph in the final section would make the claim self-contained.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for the positive review and the recommendation to accept the manuscript. The referee's summary accurately reflects the paper's contributions on the LP formulation, the lower bound of approximately √(2k)/4 for sparse traffic, the suboptimality of Valiant load balancing, the explicit optimal construction, and the √2 gap to non-oblivious routing, as well as the extension to N×M tori.

Circularity Check

0 steps flagged

No significant circularity detected

full rationale

The paper formulates oblivious routing on the N×N torus as an LP whose optimum directly supplies the lower bound on worst-case load (approximately √(2k)/4 or N/4). An explicit construction is then exhibited that matches this bound, establishing tightness without any fitted parameters or self-referential definitions. The suboptimality of Valiant Load Balancing and the √2 gap versus non-oblivious routing are immediate consequences of the same LP. No load-bearing step reduces to a self-citation, ansatz smuggled via prior work, or renaming of a known result; the derivation is self-contained under the uniform-capacity torus model with unknown pair locations.

Axiom & Free-Parameter Ledger

0 free parameters · 3 axioms · 0 invented entities

The central claim rests on modeling the satellite network as a torus and assuming traffic sparsity with fixed k pairs and oblivious (predetermined) routing; these are standard domain assumptions but specific to the application.

axioms (3)
  • domain assumption The network is modeled as an N x N torus graph with uniform link capacities.
    Explicitly motivated by LEO satellite networks in the abstract.
  • domain assumption Traffic is sparse, consisting of at most k active source-destination pairs.
    Core modeling choice enabling the sparse-traffic analysis.
  • domain assumption Routing must be oblivious: routes are predetermined and independent of the realized traffic.
    Definition of the oblivious load-balancing problem studied.

pith-pipeline@v0.9.0 · 5552 in / 1520 out tokens · 47067 ms · 2026-05-16T17:09:48.478334+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Lean theorems connected to this paper

Citations machine-checked in the Pith Canon. Every link opens the source theorem in the public Lean library.

What do these tags mean?
matches
The paper's claim is directly supported by a theorem in the formal canon.
supports
The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
extends
The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
uses
The paper appears to rely on the theorem as machinery.
contradicts
The paper's claim conflicts with a theorem or certificate in the canon.
unclear
Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.

Forward citations

Cited by 1 Pith paper

Reviewed papers in the Pith corpus that reference this work. Sorted by Pith novelty score.

  1. Capacity Scalability of LEO Constellations With Dynamic Link Failures

    cs.IT 2026-05 unverdicted novelty 5.0

    Capacity scalability of LEO constellations with Markov-modeled link failures is O(1/n) and reaches a maximum at an optimal deployment scale before declining to zero.

Reference graph

Works this paper leans on

28 extracted references · 28 canonical work pages · cited by 1 Pith paper

  1. [1]

    Delay is Not an Option: Low Latency Routing in Space,

    M. Handley, “Delay is Not an Option: Low Latency Routing in Space,” inProceedings of the 17th ACM Workshop on Hot Topics in Networks. Redmond W A USA: ACM, Nov. 2018, pp. 85–91

    work page 2018

  2. [2]

    A dynamic routing concept for ATM-based satellite per- sonal communication networks,

    M. Werner, “A dynamic routing concept for ATM-based satellite per- sonal communication networks,”IEEE Journal on Selected Areas in Communications, vol. 15, no. 8, Oct. 1997

    work page 1997

  3. [3]

    A distributed routing algorithm for datagram traffic in LEO satellite networks,

    E. Ekici, I. Akyildiz, and M. Bender, “A distributed routing algorithm for datagram traffic in LEO satellite networks,”IEEE/ACM Transactions on Networking, vol. 9, no. 2, pp. 137–147, Apr. 2001

    work page 2001

  4. [4]

    Capacity provisioning and failure recovery for Low Earth Orbit satellite constellation,

    J. Sun and E. Modiano, “Capacity provisioning and failure recovery for Low Earth Orbit satellite constellation,”International Journal of Satellite Communications and Networking, vol. 21, pp. 259–284, May 2003

    work page 2003

  5. [5]

    Routing strategies for maximizing throughput in LEO satellite networks,

    ——, “Routing strategies for maximizing throughput in LEO satellite networks,”IEEE Journal on Selected Areas in Communications, vol. 22, no. 2, Feb. 2004

    work page 2004

  6. [6]

    Centralized versus distributed routing for large-scale satellite networks,

    R. V . Ramakanth and E. Modiano, “Centralized versus distributed routing for large-scale satellite networks,” in2025 23rd International Symposium on Modeling and Optimization in Mobile, Ad Hoc, and Wireless Networks (WiOpt), 2025, pp. 1–8

    work page 2025

  7. [7]

    Traffic load balancing in low Earth orbit satellite networks,

    Y . S. Kim, Y .-H. Bae, Y . Kim, and C. H. Park, “Traffic load balancing in low Earth orbit satellite networks,” inProceedings 7th Interna- tional Conference on Computer Communications and Networks (Cat. No.98EX226), Oct. 1998, pp. 191–195, iSSN: 1095-2055

    work page 1998

  8. [8]

    Dynamic power allocation and routing for satellite and wireless networks with time varying channels,

    M. J. Neely, “Dynamic power allocation and routing for satellite and wireless networks with time varying channels,” Thesis, Massachusetts Institute of Technology, 2003

    work page 2003

  9. [9]

    A Low-Complexity Rout- ing Algorithm Based on Load Balancing for LEO Satellite Networks,

    X. Liu, X. Yan, Z. Jiang, C. Li, and Y . Yang, “A Low-Complexity Rout- ing Algorithm Based on Load Balancing for LEO Satellite Networks,” in2015 IEEE 82nd Vehicular Technology Conference (VTC2015-Fall), Sep. 2015, pp. 1–5

    work page 2015

  10. [10]

    Distance-Based Back- Pressure Routing for Load-Balancing LEO Satellite Networks,

    X. Deng, L. Chang, S. Zeng, L. Cai, and J. Pan, “Distance-Based Back- Pressure Routing for Load-Balancing LEO Satellite Networks,”IEEE Transactions on Vehicular Technology, vol. 72, no. 1, pp. 1240–1253, Jan. 2023

    work page 2023

  11. [11]

    Making Routing Robust to Changing Traffic Demands: Algorithms and Evaluation,

    D. Applegate and E. Cohen, “Making Routing Robust to Changing Traffic Demands: Algorithms and Evaluation,”IEEE/ACM Transactions on Networking, vol. 14, no. 6, pp. 1193–1206, Dec. 2006

    work page 2006

  12. [12]

    Optimal Oblivious Routing With Concave Objectives for Structured Networks,

    K. Chitavisutthivong, S. Supittayapornpong, P. Namyar, M. Zhang, M. Yu, and R. Govindan, “Optimal Oblivious Routing With Concave Objectives for Structured Networks,”IEEE/ACM Transactions on Net- working, vol. 31, no. 6, pp. 2669–2681, Dec. 2023

    work page 2023

  13. [13]

    Throughput-centric routing algo- rithm design,

    B. Towles, W. J. Dally, and S. Boyd, “Throughput-centric routing algo- rithm design,” inProceedings of the fifteenth annual ACM symposium on Parallel algorithms and architectures. San Diego California USA: ACM, Jun. 2003, pp. 200–209

    work page 2003

  14. [14]

    W. J. Dally and B. P. Towles,Principles and Practices of Interconnection Networks. Morgan Kaufmann Publishers Inc., Feb. 2004

    work page 2004

  15. [15]

    Randomized Throughput-Optimal Obliv- ious Routing for Torus Networks,

    R. S. Ramanujam and B. Lin, “Randomized Throughput-Optimal Obliv- ious Routing for Torus Networks,”IEEE Transactions on Computers, vol. 62, no. 3, pp. 561–574, Mar. 2013

    work page 2013

  16. [16]

    A flexible model for resource management in virtual private networks,

    N. G. Duffield, P. Goyal, A. Greenberg, P. Mishra, K. K. Ramakrishnan, and J. E. van der Merive, “A flexible model for resource management in virtual private networks,”SIGCOMM Comput. Commun. Rev., vol. 29, no. 4, pp. 95–108, Aug. 1999

    work page 1999

  17. [17]

    A Scheme for Fast Parallel Communication,

    L. G. Valiant, “A Scheme for Fast Parallel Communication,”SIAM Journal on Computing, vol. 11, no. 2, pp. 350–361, May 1982

    work page 1982

  18. [18]

    Designing a Predictable Internet Backbone with Valiant Load-Balancing,

    R. Zhang-Shen and N. McKeown, “Designing a Predictable Internet Backbone with Valiant Load-Balancing,” inProceedings of the 13th international conference on Quality of Service. Springer-Verlag, Jun. 2005, pp. 178–192

    work page 2005

  19. [19]

    Maximum Throughput Routing of Traffic in the Hose Model,

    M. Kodialam, T. V . Lakshman, and S. Sengupta, “Maximum Throughput Routing of Traffic in the Hose Model,” inProceedings IEEE INFOCOM

    work page

  20. [20]

    2006, pp

    25TH IEEE International Conference on Computer Communica- tions, Apr. 2006, pp. 1–11, iSSN: 0743-166X

    work page 2006

  21. [21]

    Zur Theorie der Gesellschaftsspiele,

    J. v. Neumann, “Zur Theorie der Gesellschaftsspiele,”Mathematische Annalen, vol. 100, no. 1, pp. 295–320, Dec. 1928

    work page 1928

  22. [22]

    Lawler,Combinatorial Optimization: Networks and Matroids

    E. Lawler,Combinatorial Optimization: Networks and Matroids. Rine- hart and Winston, New York, 1976

    work page 1976

  23. [23]

    Bertsimas and J

    D. Bertsimas and J. N. Tsitsiklis,An Introdction to Linear Optimization. Athena Scientific, 1997, ch. 2. APPENDIXA MAXLOADEQUIVALENCE OFD k ANDD ′ k Proof of Lemma 1.As discussed, it is easy to see that D′ k ⊆ D k, which gives usmax d∈D′ k MAXLOAD(f, d)≤ maxd∈Dk MAXLOAD(f, d)for any arbitrary routingf. We are required to also prove thatmax d∈Dk MAXLOAD(f,...

    work page 1997

  24. [24]

    In problem (21), we interpretλ(d, t, i, e) as the cost of using edge(i, i+e)in a route totunder traffic matrixd

    for more details on how to formulate the equivalent max- imization problem. In problem (21), we interpretλ(d, t, i, e) as the cost of using edge(i, i+e)in a route totunder traffic matrixd. Due to the telescopic nature of constraint (21), we can conclude that for any path from0tot(denoted asP t), νt t ≤ X (i,i+e)∈Pt λ(d, t, i, e) This has to be true for th...

    work page

  25. [25]

    generalized

    We maximize this sum cost under the constraint 2r2 ≤k, r∈N. When2kis a perfect square, the best choice ofrwould be p k/2and the value of the objective is √ 2k/4. Sinced SD(r) is a feasible solution, we arrive atθ ∗ ≥ √ 2k/4 when2kis a perfect square. The proof for part (b) of Theorem 1 follows immediately from the result of part (a). When2kis not a perfec...

    work page

  26. [26]

    from nodes inB (λ1,λ2) r (t)that are directed towardt

    Observe that any path from0tot must traverse through at leastredges emanating from nodes inB (λ1,λ2) r (0)that are directed away from the origin, and traverse through at leastredges emanating from nodes in B(λ1,λ2) r (t)that are directed towardt. from nodes inB (λ1,λ2) r (t)that are directed towardt. This idea is visualized in Figure 12. Based on this obs...

    work page

  27. [27]

    In this example, there is no overlap between the stems and the MINCUTcondition is satisfied. B.Case 2 – No overlap betweenS r1,r2(0)andS r1,r2(t), and, MINCUT(S r1,r2(0), Sr1,r2(t))<4r 1 + 4r2 In this case, the no overlap condition is again equivalent to r2 < t x andr 1 < t y. The MINCUTcondition tells us that the minimal cut between the stems is strictly...

    work page

  28. [28]

    1/2(r1 +r 2)fraction of traffic needs to be aggregated from each node inS r1,r2(t)

    Sinceλ 2 > λ 1, the thinner lines show links carrying a maximum ofλ 1 of the traffic and the thicker lines show links carrying a maximum ofλ 2 of the traffic. 1/2(r1 +r 2)fraction of traffic needs to be aggregated from each node inS r1,r2(t). Due to overlaps in the stem sets, there could be loopy paths that could formed. There could also be edges used in ...

    work page
