Adaptive Predictive Power Management for Mobile LTE Devices

Peter Brand , Joachim Falk , Jonathan Ah Sue , Johannes Brendel , Ralph Hasholzner , J\"urgen Teich This is my paper

Pith reviewed 2026-05-25 01:52 UTC · model grok-4.3

classification 💻 cs.NI
keywords energy efficiencyLTEpower managementmachine learningsupervised learningreinforcement learningmobile devicessleep states
0
0 comments X

The pith

Machine learning models predict LTE transmission inactivity to let mobile devices enter sleep states more often, for net energy savings up to 17 percent after overhead.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper proposes two lightweight proactive methods, one using supervised learning and one using reinforcement learning, to forecast the control information that determines when an LTE mobile device can safely power down. These predictions target time slots of transmission inactivity so the device can enter sleep states more frequently than purely reactive power management allows. The authors measure both prediction accuracy and the resulting energy impact while explicitly including the compute and energy cost of running the models on the device itself. A reader would care because battery life in cellular devices is constrained by both hardware efficiency and how often components can be turned off without missing scheduled traffic.

Core claim

The central claim is that supervised and reinforcement learning predictors can supply the control information needed for proactive sleep decisions in LTE, and that the resulting increase in sleep time produces net energy savings of up to 17 percent once the models' own overhead is subtracted.

What carries the argument

Lightweight supervised-learning and reinforcement-learning predictors that forecast the control information required to decide when the device can enter sleep states during inactivity slots.

If this is right

  • Both the supervised and reinforcement learning predictors must be evaluated jointly on accuracy and net energy, not accuracy alone.
  • Purely reactive power management is outperformed once the predictors reliably identify safe sleep windows.
  • The 17 percent figure already incorporates model overhead, so any deployment must keep that overhead below the savings threshold.
  • The same prediction targets can be used for 5G if the control information patterns remain comparable.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • If the models prove stable across varying cell loads, operators could distribute updated predictors over the air without hardware changes.
  • The approach could be combined with existing discontinuous reception timers to further reduce wake-up frequency.
  • Hardware vendors might expose a low-power co-processor interface specifically for these predictors to keep overhead minimal.

Load-bearing premise

The energy and compute overhead of running the supervised or reinforcement learning models on the device is low enough that the reported net savings remain positive under real LTE traffic and hardware constraints.

What would settle it

An on-device measurement under representative LTE traffic patterns that shows the models' own power draw exceeds the energy saved by the additional sleep intervals they enable.

Figures

Figures reproduced from arXiv: 1907.02774 by Joachim Falk, Johannes Brendel, Jonathan Ah Sue, J\"urgen Teich, Peter Brand, Ralph Hasholzner.

Figure 2

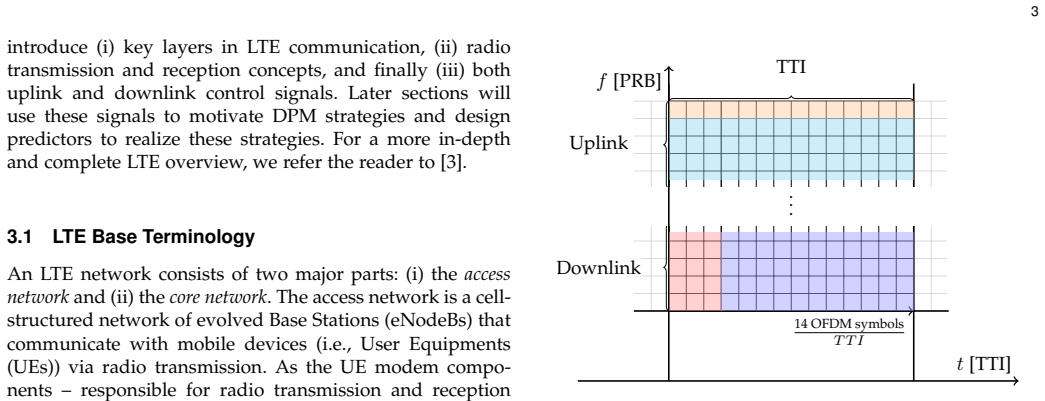

Figure 2. Figure 2: LTE communication. Depicted is one Transmission [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 1

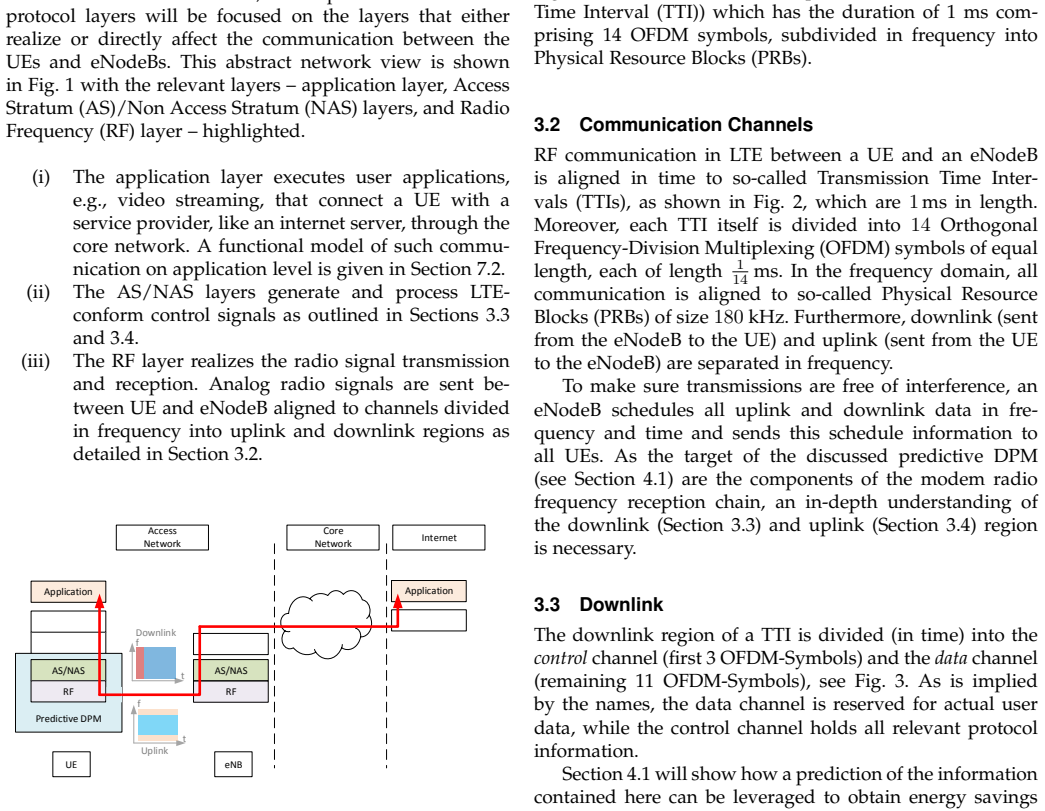

Figure 1. Figure 1: Overview of an LTE network with the functional [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 3

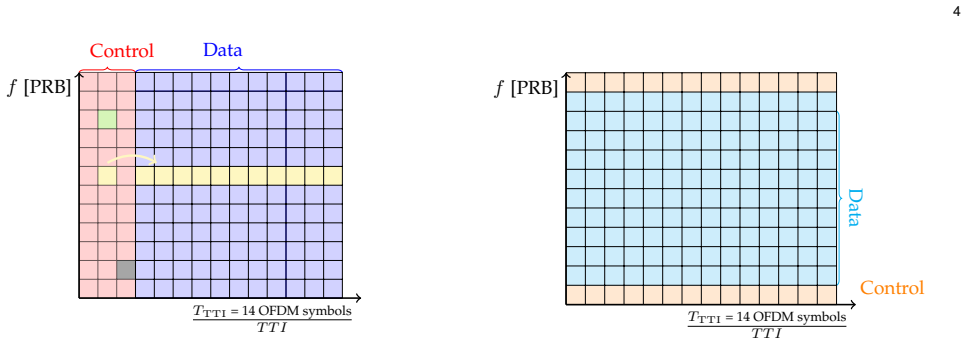

Figure 3. Figure 3: Visualization of the downlink region divided into (i) [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figure 5

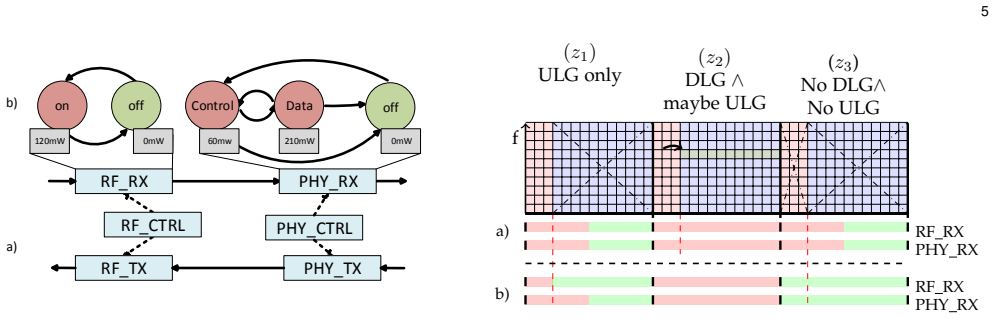

Figure 5. Figure 5: a) Abstract hardware model of an LTE modem. b) [PITH_FULL_IMAGE:figures/full_fig_p005_5.png] view at source ↗
Figure 7

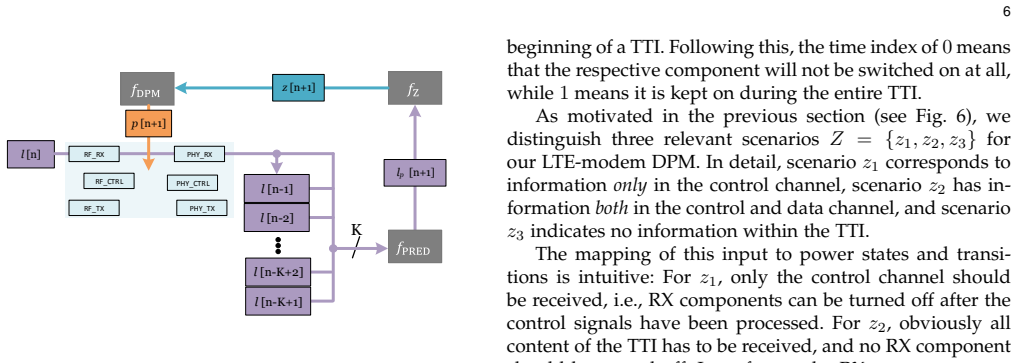

Figure 7. Figure 7: Predictive LTE-modem DPM system. It consists of [PITH_FULL_IMAGE:figures/full_fig_p006_7.png] view at source ↗
Figure 8

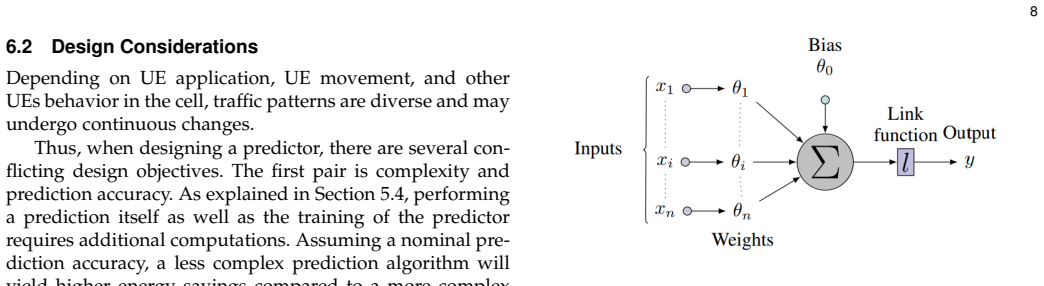

Figure 8. Figure 8: Process in one neuron as depicted in Eq. (10). [PITH_FULL_IMAGE:figures/full_fig_p008_8.png] view at source ↗
Figure 9

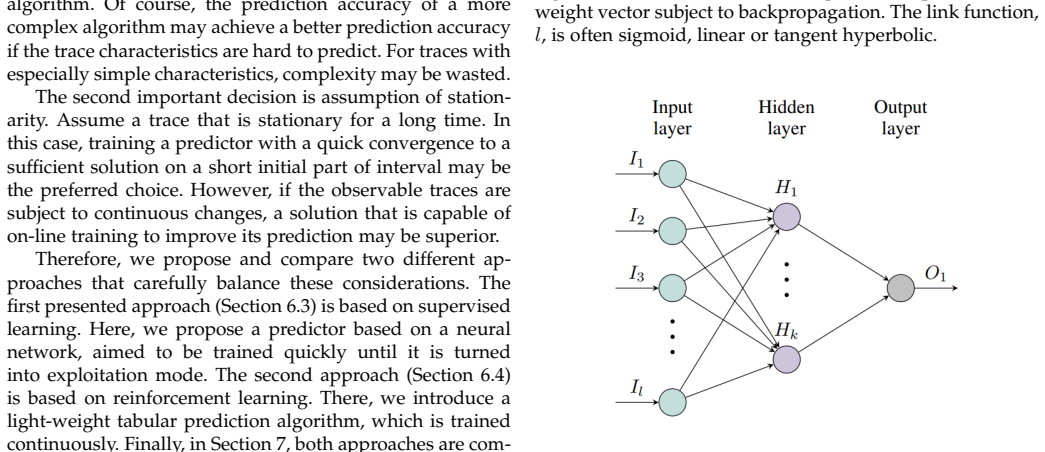

Figure 9. Figure 9: Example of a FFNN with one hidden layer. The [PITH_FULL_IMAGE:figures/full_fig_p008_9.png] view at source ↗
Figure 10

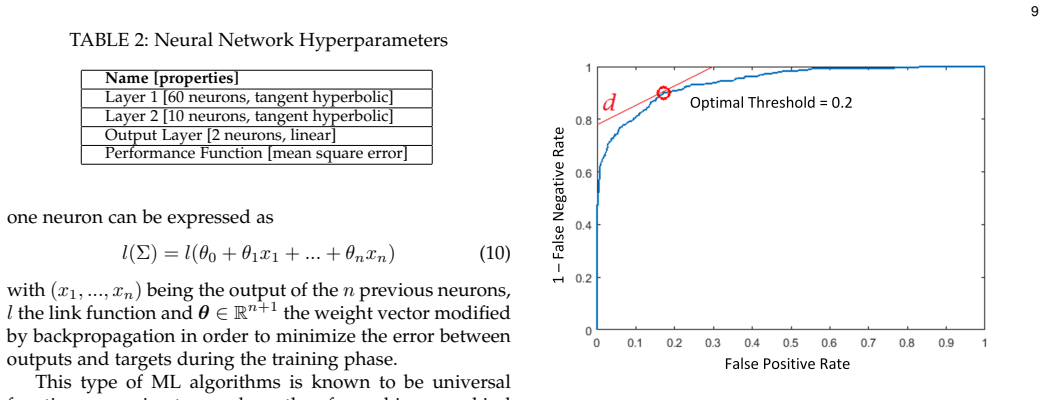

Figure 10. Figure 10: A receiver operating characteristic (ROC) represen [PITH_FULL_IMAGE:figures/full_fig_p009_10.png] view at source ↗
Figure 11

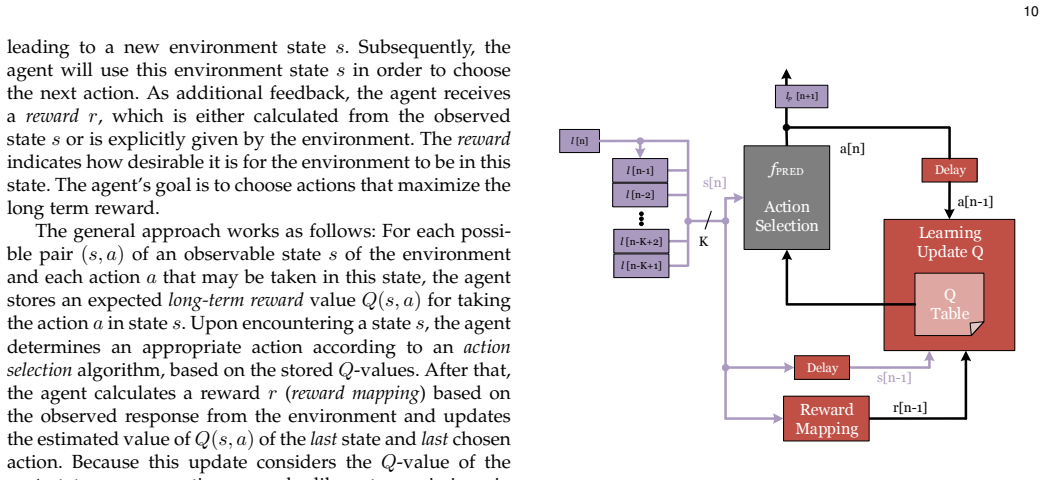

Figure 11. Figure 11: Reinforcement Learning-based prediction: For each [PITH_FULL_IMAGE:figures/full_fig_p010_11.png] view at source ↗
Figure 12

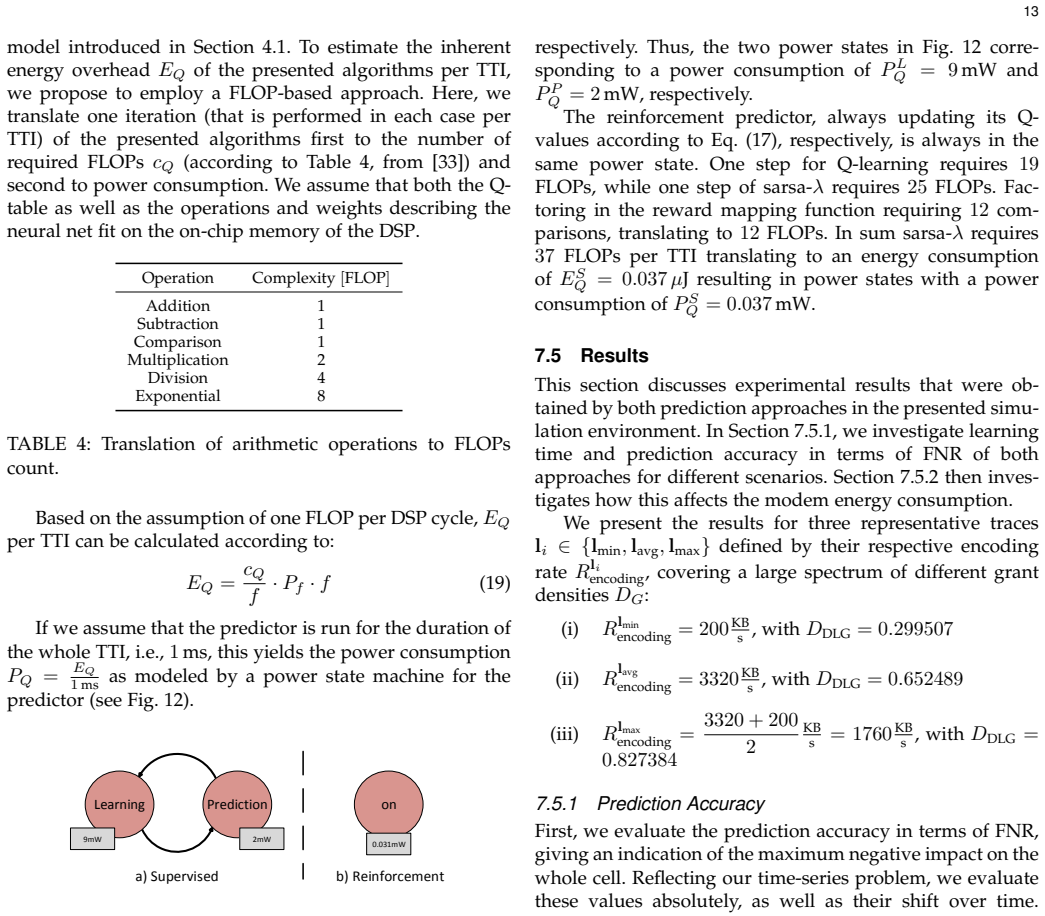

Figure 12. Figure 12: Power State Machines of both the a) supervised [PITH_FULL_IMAGE:figures/full_fig_p013_12.png] view at source ↗
Figure 13

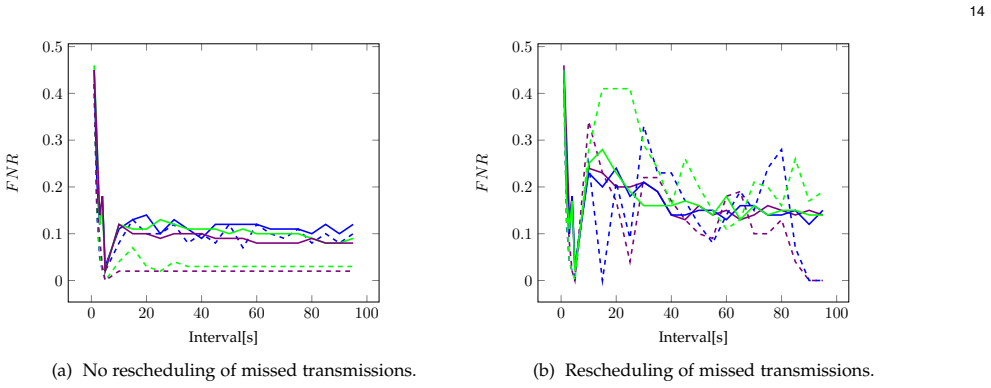

Figure 13. Figure 13: Depicted is the FNR calculated as moving average over a window of the last 3,000 ms for 3 representative traces. [PITH_FULL_IMAGE:figures/full_fig_p014_13.png] view at source ↗
Figure 14

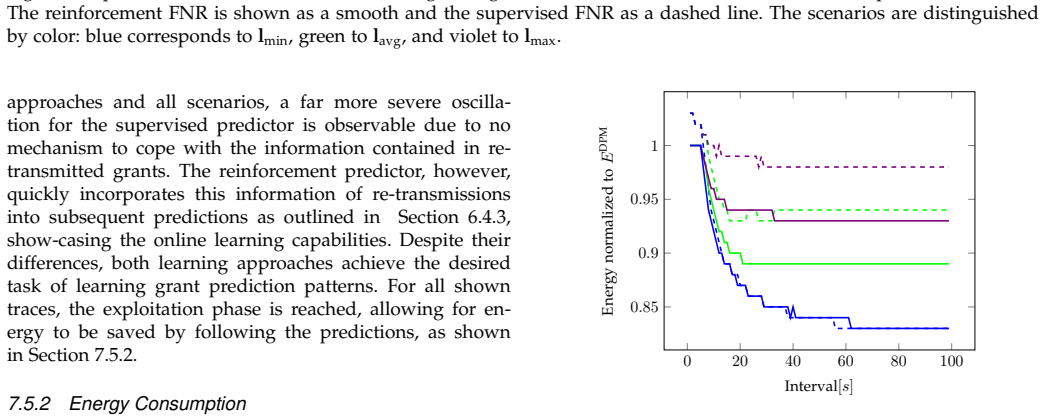

Figure 14. Figure 14: Accumulated energy consumption of both proposed [PITH_FULL_IMAGE:figures/full_fig_p014_14.png] view at source ↗
read the original abstract

Reducing the energy consumption of mobile phones is a crucial design goal for cellular modem solutions for LTE and 5G standards. In addition to improving the power efficiency of components through structural and technological advances, optimizing the energy efficiency through improved dynamic power management is an integral part in contemporary hardware design. Most techniques targeting mobile devices proposed so far, however, are purely reactive in powering down and up system components. Promising approaches extend this, by predicting and using information from the environment and the communication protocol to take proactive decisions. In this paper, we propose and compare two proactive algorithmic approaches for light-weight machine learning to predict the control information needed to allow a mobile device to go to sleep states more often, e.g., in time slots of transmission inactivity in a cell. The first approach is based on supervised learning, the second one based on reinforcement learning. As the implementation of learning techniques also creates energy and resource costs, both approaches are carefully evaluated not only in terms of prediction accuracy, but also overall energy savings. Using the presented technique, we observe achievable energy savings of up to 17%.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

0 major / 2 minor

Summary. The paper proposes two proactive machine learning approaches—supervised learning and reinforcement learning—for predicting LTE control information to enable mobile devices to enter sleep states more frequently during transmission inactivity. Both are evaluated not only on prediction accuracy but also on net energy savings after accounting for implementation overhead, with the central empirical claim of up to 17% achievable energy savings.

Significance. If the net-savings result holds under realistic LTE traffic and hardware constraints, the work is significant because it demonstrates a practical shift from purely reactive to predictive dynamic power management for cellular modems using lightweight ML. The explicit inclusion of overhead accounting in the evaluation is a methodological strength that directly addresses a common limitation in on-device ML proposals.

minor comments (2)
  1. [Abstract] Abstract: the claim of 'up to 17%' savings is presented without any indication of the traffic traces, device models, or baseline reactive schemes used; adding one sentence summarizing the experimental conditions would strengthen the abstract.
  2. The manuscript would benefit from an explicit statement of the hardware platform or simulation parameters used to measure the energy and compute overhead of the ML models themselves.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for the positive summary, recognition of the methodological strength in accounting for implementation overhead, and recommendation of minor revision. No specific major comments were raised in the report.

Circularity Check

0 steps flagged

No significant circularity

full rationale

The paper proposes and empirically evaluates two machine-learning approaches (supervised and reinforcement learning) for predicting LTE control information to enable more frequent sleep states. Energy savings up to 17% are reported as measured outcomes after subtracting implementation overhead, with no equations, derivations, or self-citation chains that reduce the savings figure to fitted parameters or prior results by construction. The central claim remains an external, falsifiable observation on real traffic and hardware rather than a self-referential renaming or fit.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on the domain assumption that predictor overhead can be kept below the savings it produces; no free parameters or invented entities are identifiable from the abstract.

axioms (1)
  • domain assumption Machine learning predictors can be implemented with sufficiently low energy overhead that net savings are positive under realistic LTE traffic.
    Stated explicitly when the authors note they evaluate overall energy savings after accounting for implementation costs.
