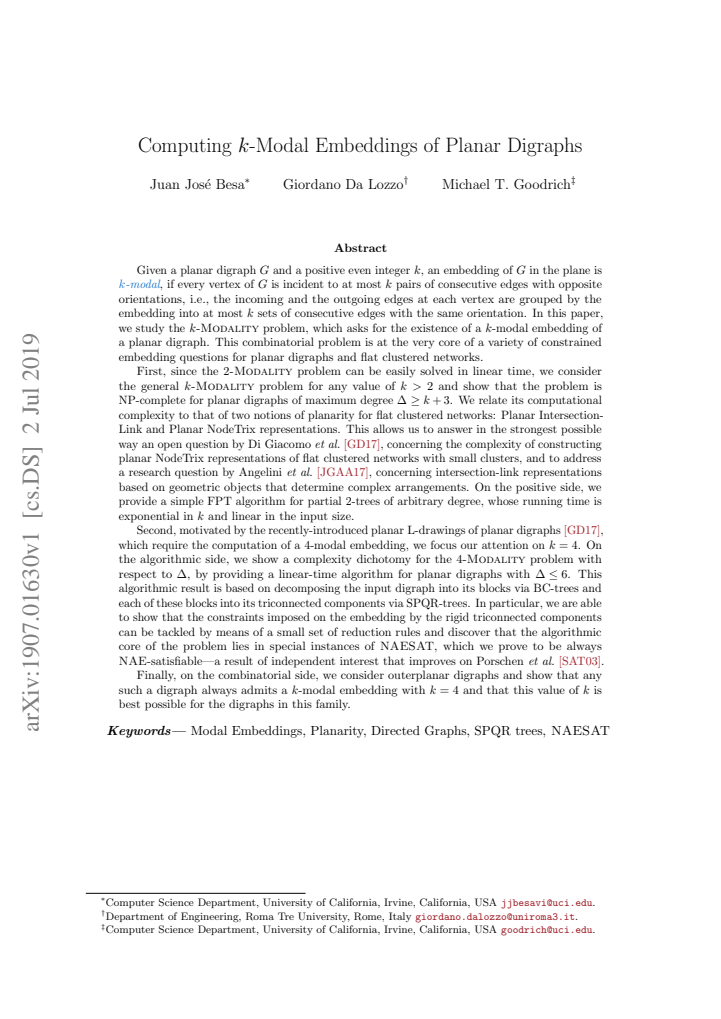

Computing k-Modal Embeddings of Planar Digraphs

Juan Jose Besa , Giordano Da Lozzo , Michael T. Goodrich This is my paper

Pith reviewed 2026-05-25 10:24 UTC · model grok-4.3

classification 💻 cs.DS cs.CG
keywords k-modal embeddingplanar digraphgraph embeddingorientation constraintcombinatorial embeddingclustered network
0
0 comments X

The pith

A planar digraph admits a k-modal embedding when its edges at each vertex can be grouped into at most k consecutive runs of the same orientation.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper defines a k-modal embedding of a planar digraph as one in which every vertex is incident to at most k pairs of consecutive edges whose orientations are opposite. It introduces the k-Modality decision problem that asks whether such an embedding exists for a given planar digraph and even integer k. The authors state that this problem sits at the core of multiple constrained embedding tasks for planar digraphs and flat clustered networks. A reader would care because an efficient solution to k-Modality would supply a combinatorial handle on orientation-aware layout problems that arise in network visualization.

Core claim

The k-Modality problem asks for the existence of a k-modal embedding of a planar digraph, where an embedding is k-modal if every vertex is incident to at most k pairs of consecutive edges with opposite orientations, i.e., the incoming and outgoing edges at each vertex are grouped by the embedding into at most k sets of consecutive edges with the same orientation. This combinatorial problem is at the very core of a variety of constrained embedding questions for planar digraphs and flat clustered networks.

What carries the argument

k-modal embedding: a plane embedding of a digraph in which the alternation between incoming and outgoing edges around each vertex is bounded by k.

If this is right

  • An algorithm for k-Modality immediately yields algorithms for the constrained embedding problems that reduce to it.
  • The same combinatorial condition applies uniformly to both planar digraphs and flat clustered networks.
  • The evenness requirement on k is necessary for the grouping of same-orientation edges to be feasible around a vertex.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • If the reduction from application constraints to k-Modality is tight, then hardness results for k-Modality would transfer directly to those applications.
  • The problem may admit a linear-time solution via planarity-testing techniques augmented with local rotation constraints at each vertex.

Load-bearing premise

The combinatorial definition of k-modal embedding directly encodes the orientation constraints that appear in the embedding applications the paper references.

What would settle it

A concrete planar digraph together with an application-specific embedding constraint that cannot be expressed as a bound of k on consecutive opposite-orientation pairs at any vertex.

Figures

Figures reproduced from arXiv: 1907.01630 by Giordano Da Lozzo, Juan Jose Besa, Michael T. Goodrich.

Figure 1

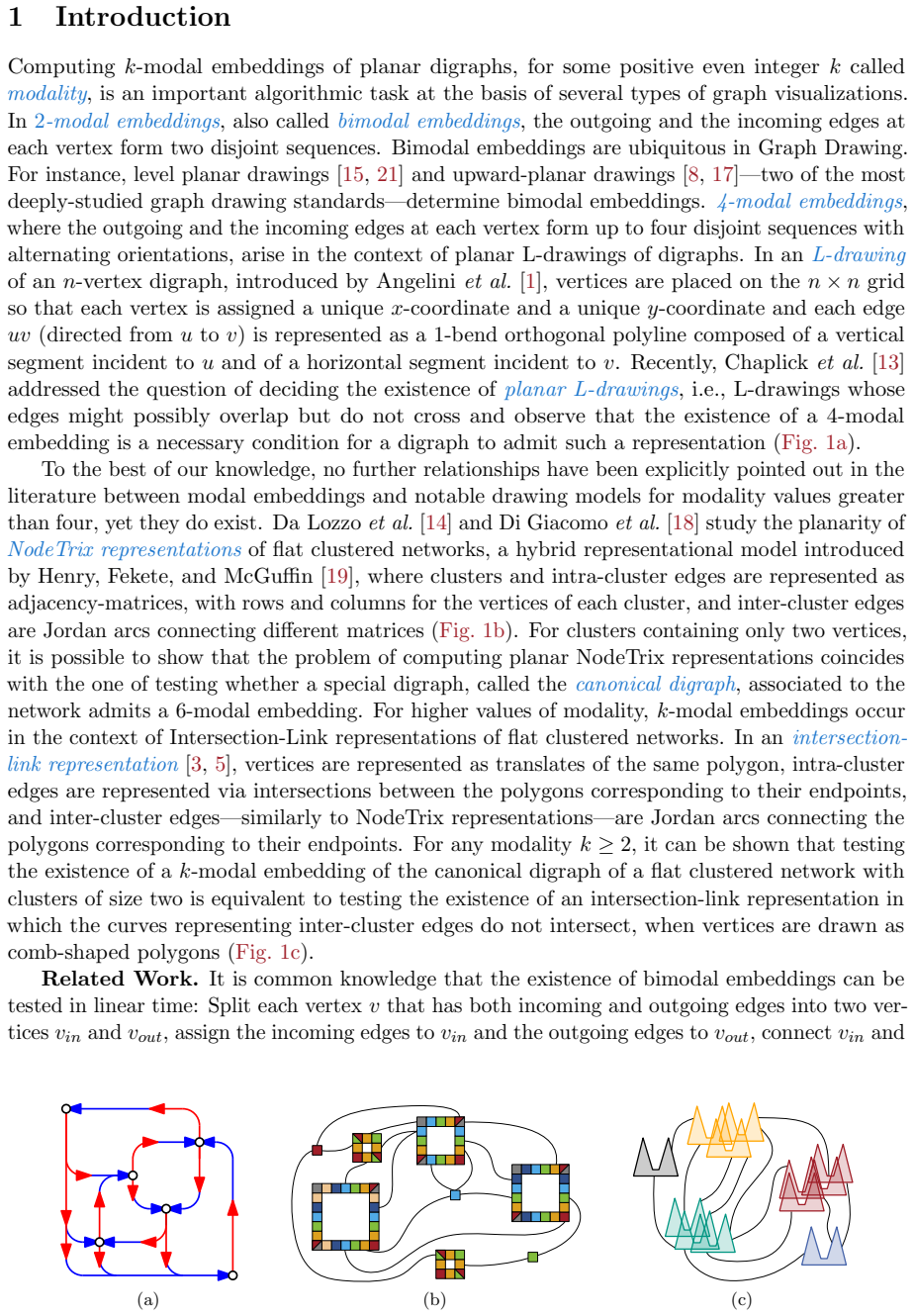

Figure 1. Figure 1: (a) A planar L-drawing, which determines a 4-modal embedding. (b) A planar NodeTrix [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2

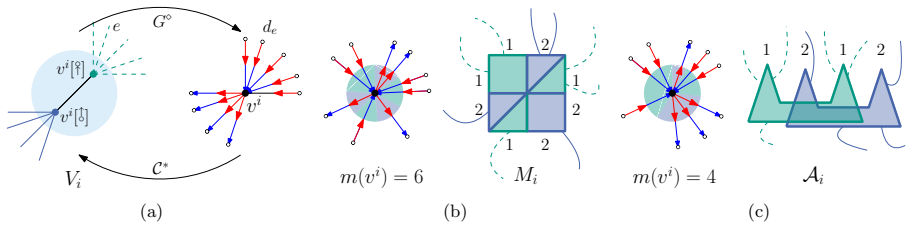

Figure 2. Figure 2: (a) Illustrations for the duality between the canonical digraph and the canonical c-graph. [PITH_FULL_IMAGE:figures/full_fig_p005_2.png] view at source ↗
Figure 3

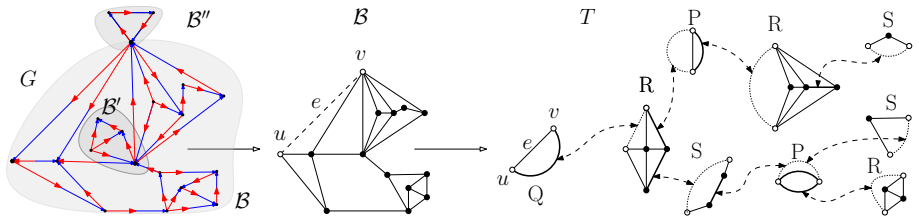

Figure 3. Figure 3: (left) A 4-modal embedding of a simply-connected planar digraph [PITH_FULL_IMAGE:figures/full_fig_p008_3.png] view at source ↗
Figure 4

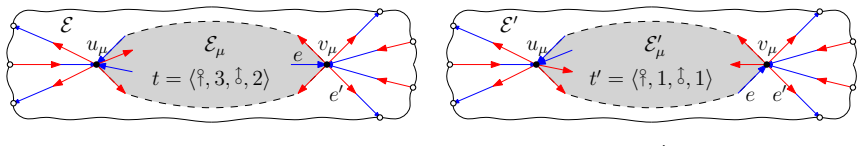

Figure 4. Figure 4: Illustration for the proof of Lemma 5. The parity of t and t 0 is the same at uµ and different at vµ; in particular, even if a new alternation is introduced between the pair (e, e0 ) at vµ, the different parity guarantees that the modality at vµ does not increase from E to E 0 . t ∈ S such that t  t 0 . Also, S reduces S 0 if S  S 0 and S ⊆ S 0 . Finally, S is a gist of S 0 , if S is succinct and reduces… view at source ↗
read the original abstract

Given a planar digraph $G$ and a positive even integer $k$, an embedding of $G$ in the plane is k-modal, if every vertex of $G$ is incident to at most $k$ pairs of consecutive edges with opposite orientations, i.e., the incoming and the outgoing edges at each vertex are grouped by the embedding into at most k sets of consecutive edges with the same orientation. In this paper, we study the $k$-Modality problem, which asks for the existence of a $k$-modal embedding of a planar digraph. This combinatorial problem is at the very core of a variety of constrained embedding questions for planar digraphs and flat clustered networks.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 0 minor

Summary. The paper defines a k-modal embedding of a planar digraph G (for even positive integer k) as one in which every vertex has at most k pairs of consecutive edges with opposite orientations, i.e., incoming and outgoing edges are grouped into at most k consecutive same-orientation blocks. It studies the k-Modality decision problem of whether such an embedding exists and asserts that this combinatorial problem is at the very core of a variety of constrained embedding questions for planar digraphs and flat clustered networks.

Significance. If the centrality claim holds via explicit reductions and the manuscript supplies a correct polynomial-time algorithm or characterization for k-Modality, the work would contribute to the theory of orientation-constrained planar embeddings. The current manuscript, however, provides no such reductions or algorithmic details in support of the core claim.

major comments (1)
  1. [Abstract] Abstract: The claim that k-Modality 'is at the very core of a variety of constrained embedding questions for planar digraphs and flat clustered networks' is unsupported; no reduction, derivation, or example is given showing that the combinatorial condition (at most k opposite-orientation pairs per vertex) arises directly from the cited target problems. This is load-bearing for the paper's motivation.
