arxiv: 2606.16797 · v3 · pith:ULU4NWJKnew · submitted 2026-06-15 · 💻 cs.GR

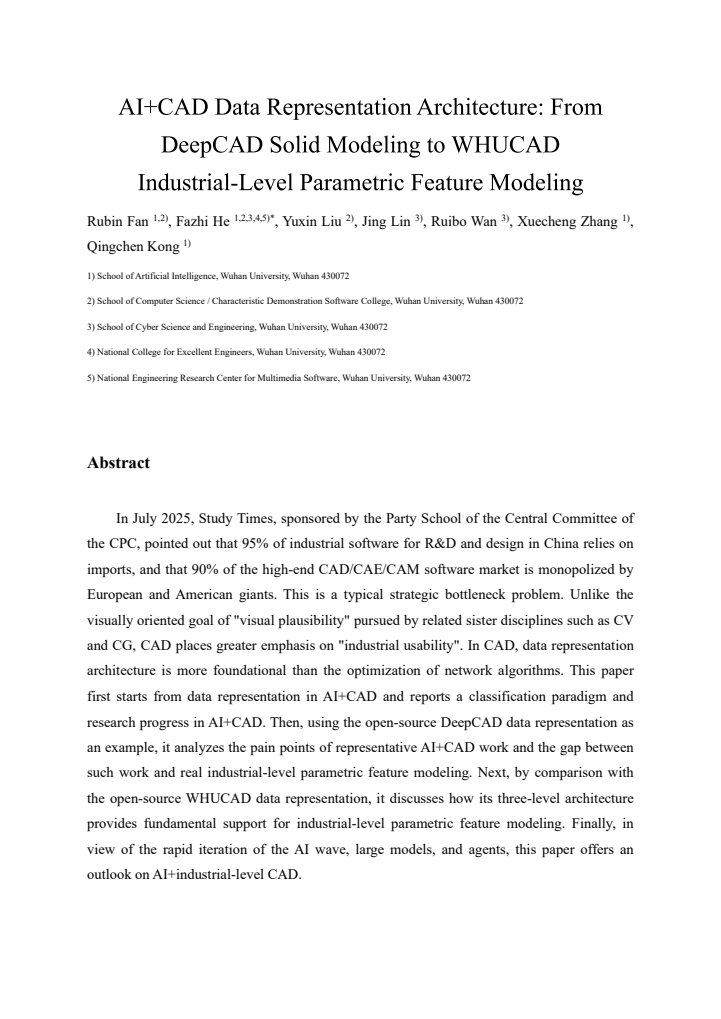

AI+CAD Data Representation Architecture: From DeepCAD Solid Modeling to WHUCAD Industrial-Level Parametric Feature Modeling

Rubin Fan , Fazhi He , Yuxin Liu , Jing Lin , Ruibo Wan , Xuecheng Zhang , Qingchen Kong This is my paper

Pith reviewed 2026-06-27 02:10 UTC · model grok-4.3

classification 💻 cs.GR
keywords AI+CADdata representation architectureparametric feature modelingDeepCADWHUCADindustrial CADsolid modelingCAD data structures
0
0 comments X

The pith

WHUCAD's three-level data representation supports industrial-grade parametric feature modeling in AI+CAD.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper reviews data representation in AI+CAD and argues that this foundational layer matters more than algorithm tweaks because CAD requires industrial usability rather than visual appeal alone. It uses DeepCAD as a case study to identify specific pain points that prevent current AI+CAD systems from reaching real manufacturing requirements. The work then contrasts this with WHUCAD to show how a three-level architecture supplies the necessary structure for parametric feature modeling. A reader would care because the paper frames data architecture as the key to reducing reliance on imported industrial software. It ends by considering how such representations could interact with emerging large models and agents.

Core claim

The paper claims that by comparison with the open-source WHUCAD data representation, its three-level architecture provides fundamental support for industrial-grade parametric feature modeling, addressing the gap between representative AI+CAD work such as DeepCAD and practical industrial needs.

What carries the argument

The three-level architecture of the WHUCAD data representation, which organizes data to enable parametric feature modeling suitable for industrial CAD applications.

If this is right

  • Data representation architecture is positioned as more foundational than the optimization of network algorithms for CAD systems.
  • WHUCAD's structure directly enables the shift from solid modeling to parametric feature modeling required for industrial use.
  • Proper data architectures can support domestic development of high-end CAD software to address market monopolization.
  • Future AI+CAD systems can incorporate large models and agents more effectively when built on suitable data representations.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Open-source CAD efforts could adopt similar layered architectures to create viable alternatives for manufacturing workflows.
  • Testing the architecture in actual production environments would provide direct evidence of its industrial usability.
  • The emphasis on exact parametric data may limit direct transfer of techniques from visually oriented fields like computer vision.

Load-bearing premise

The pain points identified in DeepCAD accurately capture the main barriers to industrial-level parametric feature modeling, and WHUCAD's three-level architecture resolves those barriers at the data foundation.

What would settle it

An implemented AI+CAD system using DeepCAD that successfully performs industrial parametric feature modeling at production scale, or a test showing that WHUCAD's architecture fails to support such modeling in real manufacturing scenarios.

read the original abstract

In July 2025, Study Times, sponsored by the Party School of the Central Committee of the CPC, pointed out that 95% of industrial software for R&D and design in China relies on imports, and that 90% of the high-end CAD/CAE/CAM software market is monopolized by European and American giants. This is a typical strategic bottleneck problem. Unlike the visually oriented goal of "visual plausibility" pursued by related sister disciplines such as CV and CG, CAD places greater emphasis on "industrial usability". In CAD, data representation architecture is more foundational than the optimization of network algorithms. This paper first starts from data representation in AI+CAD and reports a classification paradigm and research progress in AI+CAD. Then, using the open-source DeepCAD data representation as an example, it analyzes the pain points of representative AI+CAD work and the gap between such work and real industrial-level parametric feature modeling. Next, by comparison with the open-source WHUCAD data representation, it discusses how its three-level architecture provides fundamental support for industrial-grade parametric feature modeling. Finally, in view of the rapid iteration of the AI wave, large models, and agents, this paper offers an outlook on AI+industrial-grade CAD.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 0 minor

Summary. This paper provides a classification paradigm for AI+CAD data representation research. It uses the open-source DeepCAD as an example to analyze pain points in current AI+CAD approaches and the gap to industrial-level parametric feature modeling. By comparing with the open-source WHUCAD data representation, it discusses how a three-level architecture can provide fundamental support for industrial-grade parametric feature modeling. The paper concludes with an outlook on the role of AI, large models, and agents in industrial CAD.

Significance. If the analysis is accurate, the paper could be significant in shifting focus in the AI+CAD community from algorithmic improvements to foundational data representation architectures that better support industrial usability. It explicitly credits the open-source nature of both DeepCAD and WHUCAD. However, the absence of quantitative evidence or detailed technical comparisons limits the strength of its conclusions as a standalone contribution.

major comments (1)
  1. [Abstract] Abstract: The statements regarding the pain points of DeepCAD and how WHUCAD's three-level architecture resolves them for industrial parametric modeling are made without supporting data, derivations, or detailed evidence, which undermines the ability to evaluate the central comparison claim.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the detailed review and constructive feedback on our manuscript. We address the major comment point by point below.

read point-by-point responses

  1. Referee: [Abstract] Abstract: The statements regarding the pain points of DeepCAD and how WHUCAD's three-level architecture resolves them for industrial parametric modeling are made without supporting data, derivations, or detailed evidence, which undermines the ability to evaluate the central comparison claim.

    Authors: The abstract is intended as a concise summary of the paper's structure and contributions. The classification paradigm for AI+CAD data representations, the specific analysis of DeepCAD's limitations (such as its focus on visual plausibility over industrial usability and its constraints in parametric feature modeling), and the discussion of how WHUCAD's three-level architecture addresses these gaps are developed with examples and reasoning in the main body of the manuscript. That said, we acknowledge that the abstract could better signal the location of this supporting analysis. We will revise the abstract to include brief cross-references to the relevant sections and more measured phrasing of the comparison claims. revision: yes

Circularity Check

0 steps flagged

No significant circularity

full rationale

The paper is explicitly a classification, discussion, and outlook piece with no equations, derivations, fitted parameters, or quantitative predictions. Its central claim—that WHUCAD's three-level architecture addresses DeepCAD pain points to support industrial parametric modeling—is presented as an analytical comparison rather than a result obtained from any chain of self-referential steps, self-citations, or ansatzes. No load-bearing self-citation, self-definitional construction, or renaming of known results occurs; the manuscript contains no verifiable technical claims that could reduce to their own inputs by construction.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claims rest on domain assumptions about the primacy of data representation and the definition of industrial usability in CAD, without new free parameters or invented entities.

axioms (1)
  • domain assumption Data representation architecture is more foundational than the optimization of network algorithms in CAD.
    Explicitly stated in the abstract as distinguishing CAD from related fields like CV and CG.
