Time-domain anode-decoupling co-design for a floating microchannel plate detector readout

Andr\'e Galli; Lorenzo Obersnel; Martin Rubin; Peter Wurz; Rico G. Fausch; Robin F. Bonny

arxiv: 2512.19495 · v3 · pith:VDDGPFV7new · submitted 2025-12-22 · ⚛️ physics.ins-det

Time-domain anode-decoupling co-design for a floating microchannel plate detector readout

Robin F. Bonny , Lorenzo Obersnel , Martin Rubin , Andr\'e Galli , Peter Wurz , Rico G. Fausch This is my paper

Pith reviewed 2026-05-21 16:54 UTC · model grok-4.3

classification ⚛️ physics.ins-det

keywords microchannel plate detectoranode decouplingtime-of-flight mass spectrometrybaseline recoveryfloating readoutpulse fidelityplanar anodehigh-voltage decoupling

0 comments

The pith

Co-design of planar anode and decoupling network minimizes baseline wander in floating MCP detectors

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper establishes a joint optimization of anode geometry and high-voltage AC-decoupling network for electrically floating microchannel plate detectors in compact time-of-flight mass spectrometers. Undershoot-driven baseline artifacts and pulse broadening are reduced by confining fields and setting an effective high-pass corner through the decoupling capacitance. The resulting planar circular patch anode with proximal decoupling preserves peak amplitude, suppresses post-pulse energy, speeds settling, and limits baseline wander. Validation via simulations, network measurements, circuit models, and mass spectra shows waveguide-level pulse fidelity at lower mass and volume than heritage designs, with ripples traced to downstream terminations. This supports improved mass resolution and dynamic range in miniaturized space instruments.

Core claim

The resulting planar circular patch anode with anode-proximal decoupling confines fields, preserves peak amplitude, and suppresses post-pulse energy, leading to fast settling and minimal baseline wander. The effective high-pass corner set by the decoupling capacitance directly governs undershoot decay and baseline recovery. The design is validated through full-wave electromagnetic simulations, vector network analyzer measurements, circuit-level transient models, and end-to-end mass spectra, achieving waveguide-level pulse fidelity at a fraction of the mass and volume of heritage detectors.

What carries the argument

Time-domain co-design of planar circular patch anode geometry with anode-proximal high-voltage AC-decoupling network

If this is right

The design supports high mass resolution and dynamic range in miniaturized TOF-MS architectures.
Waveguide-level pulse fidelity is achieved at a fraction of the mass and volume of heritage waveguide-based detectors.
Variants of this planar flight-ready architecture are being implemented in next-generation spaceborne TOF-MS instruments.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The co-design method could be tested on other floating high-voltage detectors to improve signal integrity in size-constrained systems.
Tuning the decoupling capacitance for specific pulse widths might optimize performance across different mass spectrometer configurations.
Integration into full instruments could reveal needs for additional shielding or termination adjustments beyond the current validation.

Load-bearing premise

The representative TOF-MS test setup and downstream cable/digitizer terminations accurately represent the electromagnetic environment and termination conditions that will exist in actual spaceborne flight hardware.

What would settle it

Measuring pulse settling time and baseline wander with the detector integrated into complete spaceborne flight hardware using its actual cabling and digitizer, and finding large deviations from lab results, would show the test setup does not capture real electromagnetic conditions.

Figures

Figures reproduced from arXiv: 2512.19495 by Andr\'e Galli, Lorenzo Obersnel, Martin Rubin, Peter Wurz, Rico G. Fausch, Robin F. Bonny.

**Figure 1.** Figure 1: FIG. 1. Schematic MCP detector overview: floating anode with proximal AC-decoupling feeding a 50 Ω readout. [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗

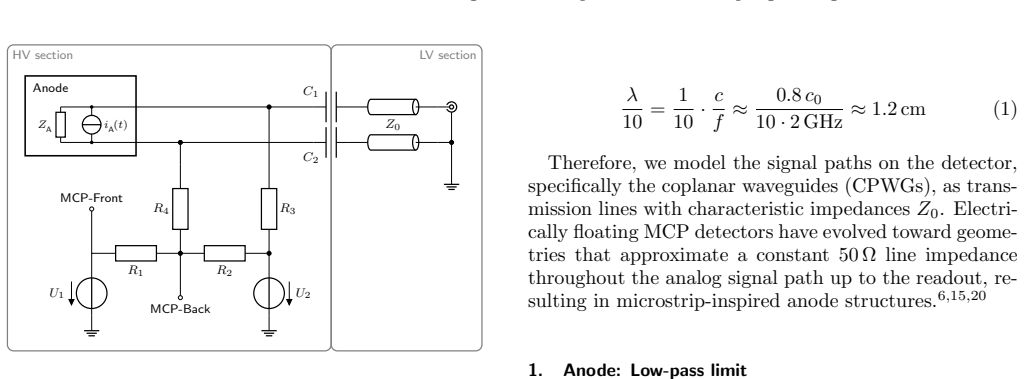

**Figure 2.** Figure 2: FIG. 2. Readout circuit lumped-element schematic divided [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗

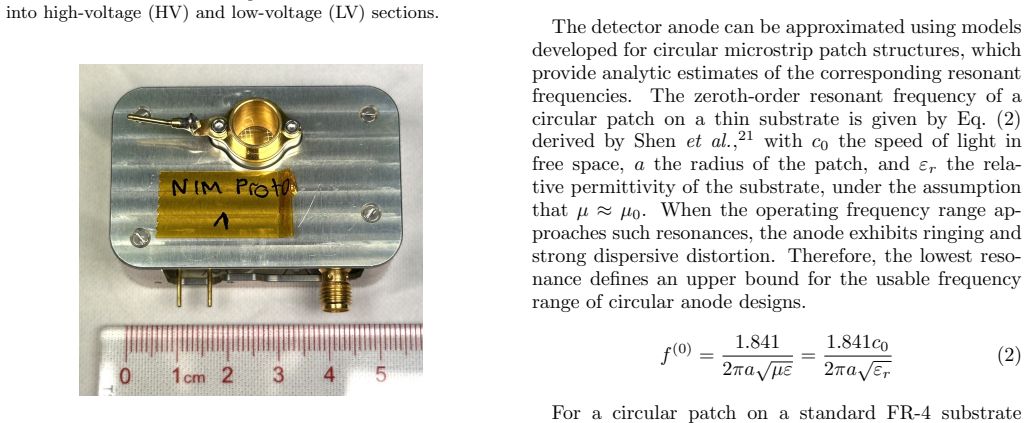

**Figure 3.** Figure 3: FIG. 3. Encased NIM prototype detector with visible ion [PITH_FULL_IMAGE:figures/full_fig_p003_3.png] view at source ↗

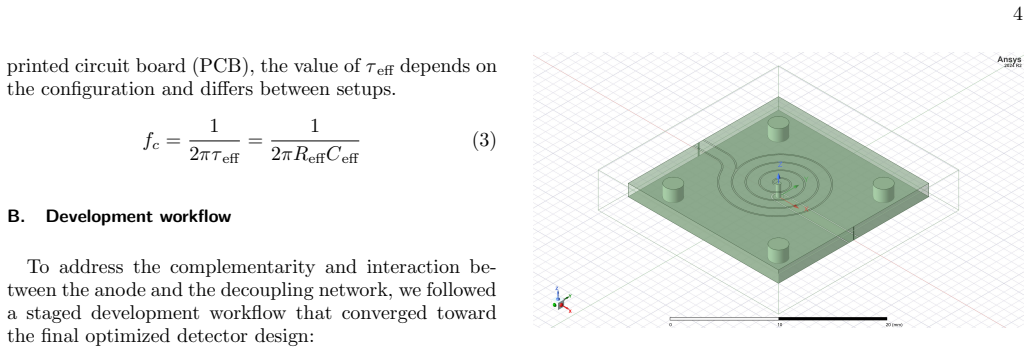

**Figure 4.** Figure 4: FIG. 4. HFSS two-port spiral anode model for transient [PITH_FULL_IMAGE:figures/full_fig_p004_4.png] view at source ↗

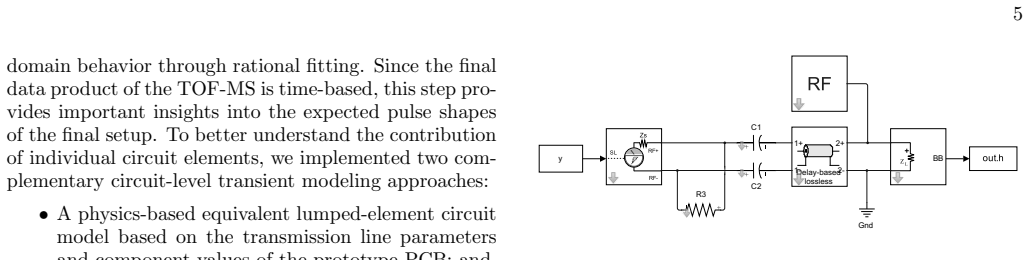

**Figure 5.** Figure 5: FIG. 5. Simulink time-domain model with synthesized [PITH_FULL_IMAGE:figures/full_fig_p005_5.png] view at source ↗

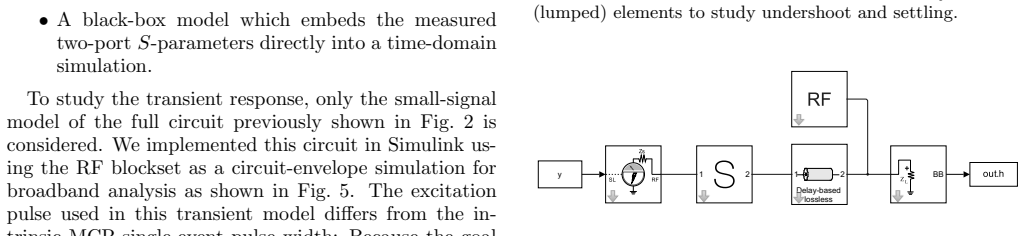

**Figure 6.** Figure 6: FIG. 6. Simulink time-domain model with embedded VNA [PITH_FULL_IMAGE:figures/full_fig_p005_6.png] view at source ↗

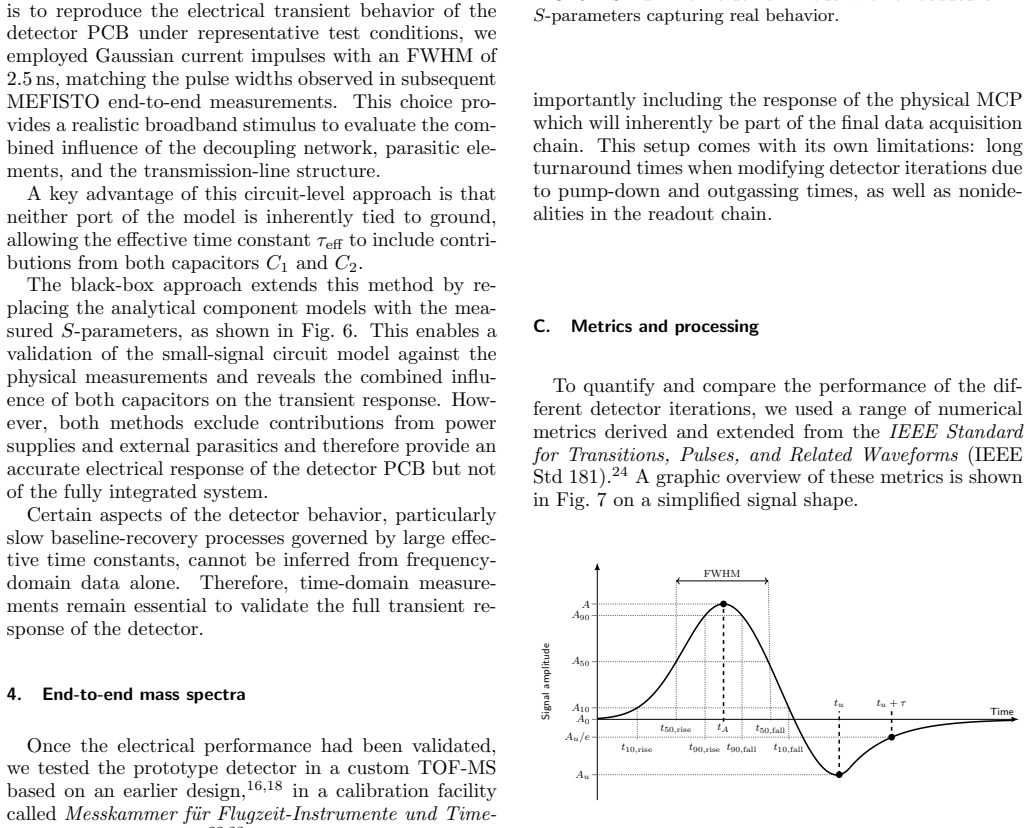

**Figure 7.** Figure 7: FIG. 7. Pulse metrics derived from IEEE 181 on a represen [PITH_FULL_IMAGE:figures/full_fig_p005_7.png] view at source ↗

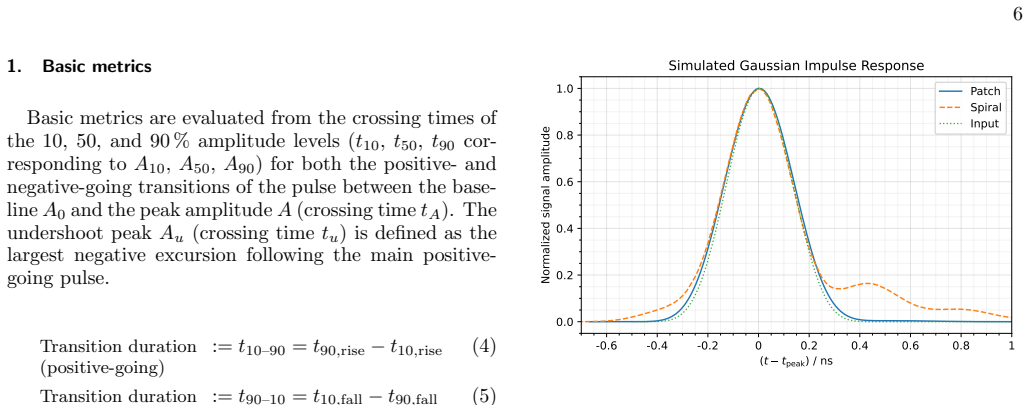

**Figure 8.** Figure 8: FIG. 8. Gaussian impulse responses from HFSS transient [PITH_FULL_IMAGE:figures/full_fig_p006_8.png] view at source ↗

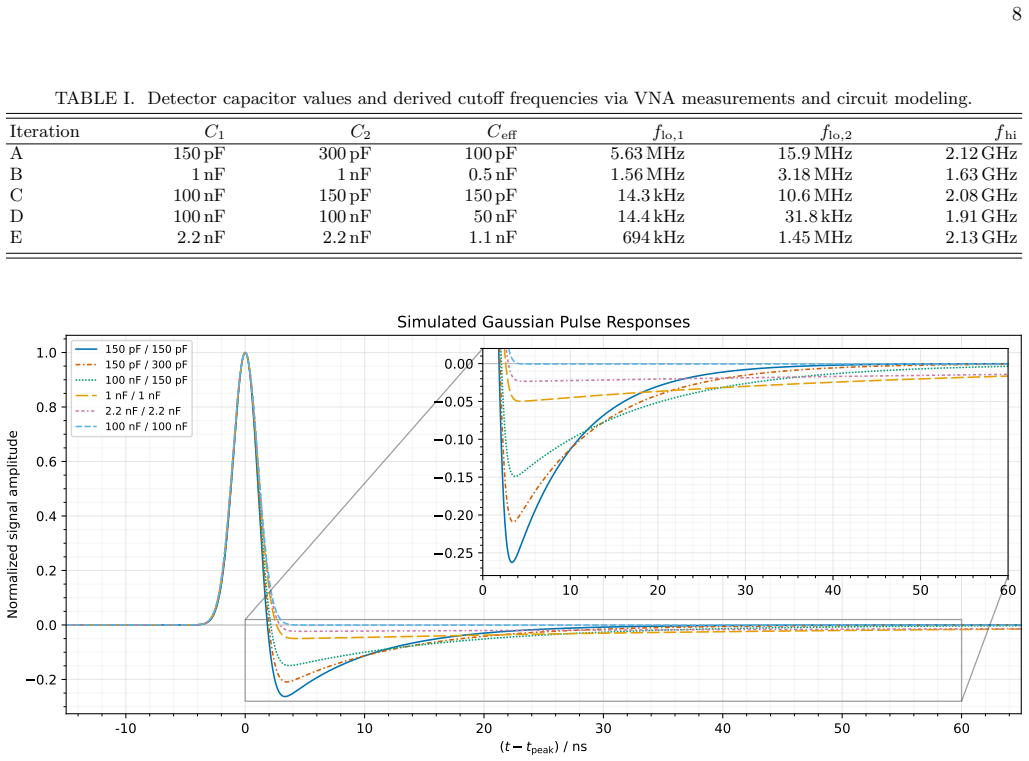

**Figure 9.** Figure 9: FIG. 9. Time-domain Gaussian pulse responses for different capacitor values; legend entries denote the capacitor pair ( [PITH_FULL_IMAGE:figures/full_fig_p008_9.png] view at source ↗

**Figure 10.** Figure 10: FIG. 10. Comparison of different detector end-to-end time responses. [PITH_FULL_IMAGE:figures/full_fig_p008_10.png] view at source ↗

read the original abstract

We present a microchannel plate (MCP) detector for compact time-of-flight mass spectrometers (TOF-MS) that jointly optimizes the anode geometry and high-voltage AC-decoupling network for electrically floating operation. Undershoot-driven baseline artifacts and pulse broadening are addressed by a time-domain co-design of the anode geometry and decoupling network. The design is validated through a staged workflow that combines full-wave electromagnetic simulations, vector network analyzer measurements, circuit-level transient models, and end-to-end mass spectra. The resulting planar circular patch anode with anode-proximal decoupling confines fields, preserves peak amplitude, and suppresses post-pulse energy, leading to fast settling and minimal baseline wander. We show that the effective high-pass corner set by the decoupling capacitance directly governs undershoot decay and baseline recovery. Measurements in a representative TOF-MS test setup demonstrate waveguide-level pulse fidelity at a fraction of the mass and volume of heritage waveguide-based detectors, with residual ripples in the measured response originating from downstream cable and digitizer terminations rather than the detector itself. By limiting detector-induced temporal broadening and inter-peak baseline coupling, the design supports high mass resolution and dynamic range in miniaturized TOF-MS architectures. Variants of this planar flight-ready architecture are being implemented in several next-generation spaceborne TOF-MS instruments currently under development at the University of Bern.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

This paper gives a concrete co-design for anode geometry and proximal decoupling that lets floating MCPs deliver cleaner pulses in compact TOF-MS, with decent multi-stage validation but limited direct evidence on flight-like terminations.

read the letter

Hi, the main point here is a practical engineering solution for running MCP detectors electrically floating in small TOF-MS systems. By jointly shaping a planar circular patch anode and placing the decoupling network right at the anode, they reduce undershoot, speed up baseline recovery, and keep peak amplitude without needing bulky waveguides. That directly tackles a size and mass constraint for space instruments. The work shows the effective high-pass corner set by the decoupling capacitance controls the decay, which is a useful design handle. They back this with a clear staged workflow: full-wave EM simulations, VNA measurements, transient circuit models, and actual mass spectra from a representative TOF-MS setup. The lab results look solid enough to claim waveguide-level fidelity at lower mass and volume, and they note that any remaining ripples trace to downstream cables and digitizers rather than the detector itself. Variants are already heading into next-generation instruments at Bern, which adds some credibility. The softer spot is the one the stress-test raises. The measurements come from a ground test setup, and while that is representative, there is no side-by-side comparison of how flight harness impedance, spacecraft chassis reference, or vacuum feed-through parasitics would shift the termination and therefore the high-pass behavior. Because the decoupling time constant interacts with whatever is downstream, a mismatch could reintroduce baseline wander or slow settling in actual space conditions. It is not a load-bearing flaw for the lab demonstration, but it does limit how confidently we can extrapolate to flight hardware. This paper is aimed at detector and instrument teams working on miniaturized TOF-MS for planetary missions or similar high-speed compact systems. Readers who build or test such detectors would pick up usable design choices and a validation template. It deserves a serious referee because the core claim rests on independent simulations and measurements rather than fitting or circular arguments, and the problem it solves is real for ongoing space instrument work. I would send it to review with a request for more explicit checks on flight boundary conditions.

Referee Report

1 major / 1 minor

Summary. The manuscript presents a time-domain co-design of a planar circular patch anode and anode-proximal AC-decoupling network for electrically floating microchannel plate detectors intended for compact TOF mass spectrometers. It reports a staged validation workflow combining full-wave electromagnetic simulations, vector network analyzer measurements, transient circuit models, and end-to-end mass spectra acquired in a representative laboratory TOF-MS test setup. The central claims are that the co-design confines fields, preserves peak amplitude, suppresses post-pulse energy, yields fast settling with minimal baseline wander, and that the effective high-pass corner set by the decoupling capacitance directly controls undershoot decay and baseline recovery. Residual ripples are attributed to downstream cable and digitizer terminations rather than the detector itself, and the architecture is positioned as a low-mass, high-fidelity alternative to heritage waveguide-based readouts for spaceborne instruments.

Significance. If the performance claims hold under flight boundary conditions, the work would enable substantial reductions in mass and volume for MCP readouts while supporting high mass resolution and dynamic range in miniaturized TOF-MS systems. The multi-stage validation (EM simulation through to mass spectra) provides direct empirical grounding for the laboratory results and the parameter-free aspects of the high-pass corner dependence.

major comments (1)

[End-to-end measurements and test setup description] The central claims for fast settling, minimal baseline wander, and preserved peak amplitude rest on measurements performed in a representative ground-based TOF-MS test setup. No side-by-side simulation or measurement is presented that quantifies how flight harness impedance, spacecraft chassis reference, or vacuum feed-through parasitics would shift the effective high-pass corner or re-introduce undershoot. Because the decoupling time constant is set by the interaction of the anode-proximal capacitance with the termination impedance, any mismatch directly affects the claimed undershoot decay and baseline recovery; this is load-bearing for the applicability to spaceborne hardware.

minor comments (1)

[Results and discussion] Clarify the exact quantitative criteria used to attribute residual ripples exclusively to downstream terminations rather than the detector (e.g., any exclusion thresholds or error bars on the mass spectra).

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the constructive review and the opportunity to clarify the scope and applicability of our results. We address the single major comment below with a direct response and commit to revisions that strengthen the discussion of flight relevance without overstating the current data.

read point-by-point responses

Referee: [End-to-end measurements and test setup description] The central claims for fast settling, minimal baseline wander, and preserved peak amplitude rest on measurements performed in a representative ground-based TOF-MS test setup. No side-by-side simulation or measurement is presented that quantifies how flight harness impedance, spacecraft chassis reference, or vacuum feed-through parasitics would shift the effective high-pass corner or re-introduce undershoot. Because the decoupling time constant is set by the interaction of the anode-proximal capacitance with the termination impedance, any mismatch directly affects the claimed undershoot decay and baseline recovery; this is load-bearing for the applicability to spaceborne hardware.

Authors: We agree that explicit quantification of flight-specific parasitics would improve the case for spaceborne use. The manuscript validates the co-design principle in a representative laboratory setup that already incorporates cabling, terminations, and digitizer impedances comparable to flight configurations; measurements explicitly attribute residual ripples to these downstream elements rather than the detector. Our full-wave EM and circuit transient models are parameter-free with respect to the high-pass corner set by the local decoupling capacitance, allowing direct prediction of behavior under altered loads. We have added a new discussion subsection that applies the validated transient model to representative flight boundary conditions, including harness impedances of 50–150 Ω and vacuum feed-through parasitic capacitances of 1–5 pF. The analysis shows that baseline recovery remains fast provided the decoupling capacitance is chosen to set the corner frequency above the expected signal bandwidth, and that the planar anode’s field confinement limits additional coupling to a spacecraft chassis reference. This addition supplies the requested sensitivity quantification using existing models without requiring new hardware. We have also updated the abstract and conclusions to note that full flight-hardware verification remains future work. revision: yes

Circularity Check

0 steps flagged

No circularity; claims rest on independent simulations and measurements

full rationale

The manuscript derives its performance claims through a staged workflow of full-wave EM simulations, VNA measurements, circuit transient models, and end-to-end TOF-MS spectra. These steps are externally validated against laboratory data rather than reducing to self-definition, fitted inputs renamed as predictions, or load-bearing self-citations. The effective high-pass corner and settling behavior are shown to follow from the decoupling capacitance interacting with measured terminations; no equation or result is constructed to equal its own input by definition. The representative test setup is presented as a proxy, but the derivation chain itself remains independent of that assumption.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 0 invented entities

The central claim rests on standard electromagnetic modeling assumptions and circuit theory without introducing new physical entities or many fitted parameters beyond design choices such as anode radius and decoupling capacitance value.

free parameters (1)

decoupling capacitance
Sets the high-pass corner frequency that governs undershoot decay; chosen during co-design to achieve desired settling time.

axioms (1)

domain assumption Full-wave electromagnetic simulations accurately predict field confinement and post-pulse energy suppression for the chosen anode geometry
Invoked in the staged validation workflow to justify the planar circular patch design.
