Disk warping and black hole X-ray binaries I. Tentative unification of low-frequency quasi-periodic oscillations

Gregoire Marcel , Samuel Turner , Benjamin Ricketts , Vanessa Lopez-Barquero , Douglas Buisson , Federico Vincentelli , Matthew Middleton , Christopher Reynolds
show 1 more author
Mark Avara
This is my paper

Pith reviewed 2026-05-21 18:35 UTC · model grok-4.3

classification 🌌 astro-ph.HE
keywords black hole X-ray binariesquasi-periodic oscillationsaccretion disk warpLense-Thirring precessionstate transitionsspectral-timing propertiesbroad-band noise
0
0 comments X

The pith

A geometric warp in the inner accretion disk explains transitions between QPO types in black hole X-ray binaries.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper investigates how frame-dragging effects from a spinning black hole can create a warp in the inner parts of the accretion disk. This warp is shown to alter the spectral and timing properties of the emission in ways that match the observed changes in quasi-periodic oscillations as the binary system moves through different outburst states. By linking the warp to both the broad-band noise and the QPO behaviors, the authors provide a single mechanism that accounts for the evolution of variability during state transitions. This approach offers a tentative unification of the low-frequency variability patterns seen in these systems. The discussion includes the special case of Cyg X-1 and suggests the warp itself may drive the hard-to-soft transition.

Core claim

We make analytical estimates to assess the potential presence of a geometric warp in the inner accretion disk during state transitions. We show that the presence of a warp can modify the spectral-timing properties in a way that matches the observed transition between QPO types during outbursts. The (expected) emergence of a warp provides a consistent explanation for the evolution of both the BBN and the QPO properties during state transitions. This offers a first path toward unifying the variability of black hole X-ray binary.

What carries the argument

The geometric warp in the inner accretion disk induced by Lense-Thirring torques, which modifies the observed variability and QPO characteristics.

If this is right

  • The transition between different QPO types during outbursts is driven by the development and presence of the disk warp.
  • The broad-band noise components evolve together with the QPOs due to the shared influence of the warp.
  • The hard-to-soft state transition could be triggered by the emergence of the warp itself.
  • Particular variability patterns in sources like Cyg X-1 can be accounted for by the effects of the warp.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • If the warp model holds, it could be tested through multi-wavelength observations that track disk geometry changes.
  • This unification might extend to explain similar variability in other accreting systems beyond black holes.
  • Future numerical simulations incorporating the warp could refine the analytical estimates presented.
  • The model suggests geometric effects play a larger role in QPO generation than previously considered in some frameworks.

Load-bearing premise

Simple analytical estimates are sufficient to determine the presence and impact of a geometric warp in the inner accretion disk during state transitions.

What would settle it

Direct observations or detailed simulations showing that no warp forms during the relevant state transitions, or that the predicted modifications to spectral-timing properties do not occur.

Figures

Figures reproduced from arXiv: 2511.10474 by Benjamin Ricketts, Christopher Reynolds, Douglas Buisson, Federico Vincentelli, Gregoire Marcel, Mark Avara, Matthew Middleton, Samuel Turner, Vanessa Lopez-Barquero.

Figure 1
Figure 1. Figure 1: Schematic illustration of the cold disk – hot flow system envisioned in this section. The black hole is depicted as a black circle, with its spin axis ˆk shown by the black arrow, and the oblique dotted line indicating its normal. The horizontal dotted￾line represents the orbital plane of the binary, normal to ˆI. The disk (light blue) and the hot flow (orange) are separated at the transition radius Rt . T… view at source ↗

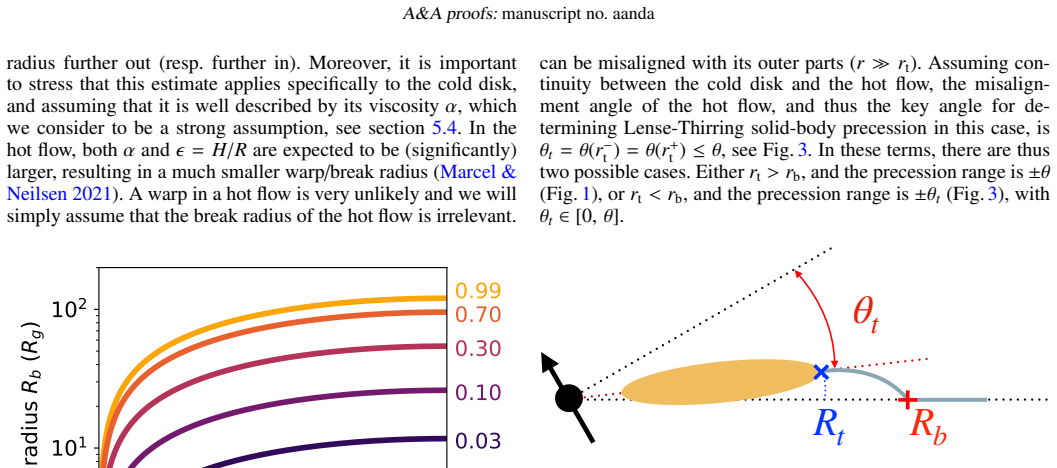

Figure 3
Figure 3. Figure 3: Schematic illustration of the system configuration envi [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗

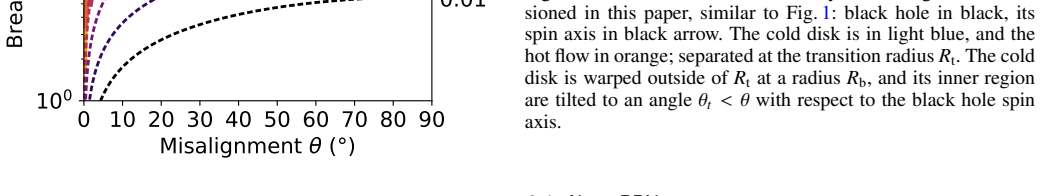

Figure 2
Figure 2. Figure 2: Break radius evolution as function of the misalignment [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗

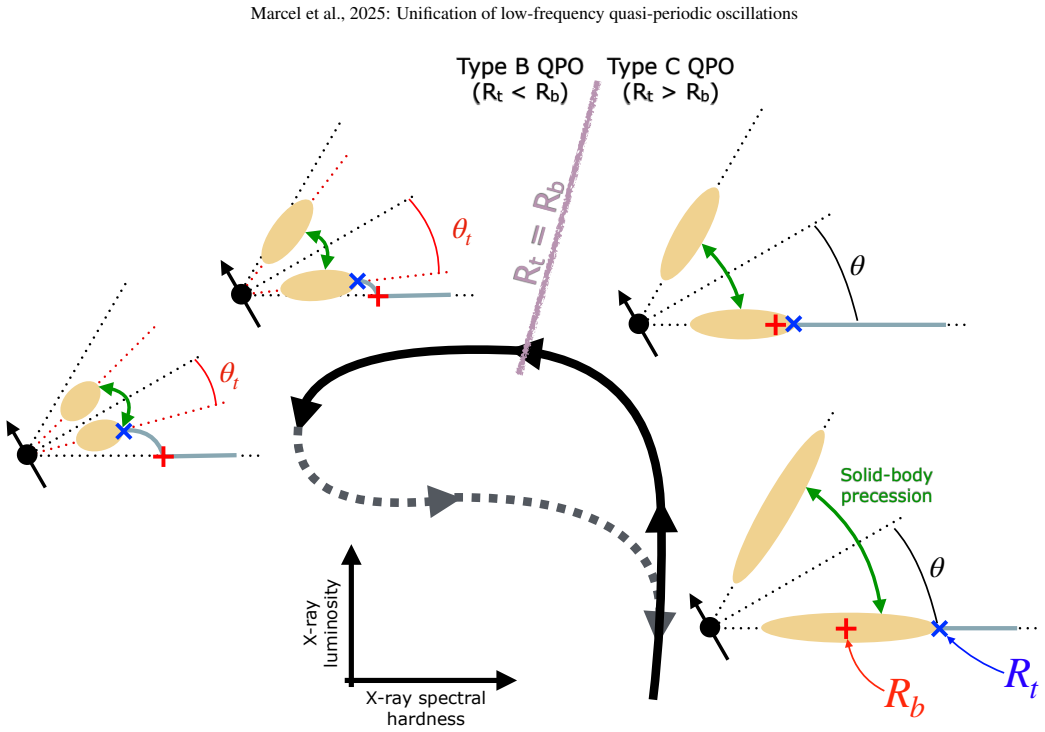

Figure 4
Figure 4. Figure 4: Schematic representation of the proposed evolution from the type C to the type B QPO during the rise and hard-to-soft [PITH_FULL_IMAGE:figures/full_fig_p005_4.png] view at source ↗
read the original abstract

X-ray binaries exhibit complex variability patterns studied in the power-spectrum. These include the broad-band noise (BBN) components and various types of narrow components called quasi-periodic oscillations (QPOs). There is currently no consensus about either what determines the presence/absence of the BBN or what generates the QPOs. Many believe the latter is due to frame-dragging effects caused by Lense-Thirring torques. We wish to investigate the potential impact of those frame-dragging effects on the accretion disk itself. In particular, we focus on its impact on the observed variability and the presence (and types) of QPOs associated. We make analytical estimates to assess the potential presence of a geometric warp in the inner accretion disk during state transitions. We show that the presence of a warp can modify the spectral-timing properties in a way that matches the observed transition between QPO types during outbursts. We also discuss the peculiar case of Cyg X-1, as well as how the hard-to-soft transition could be driven by the warp itself. The (expected) emergence of a warp provides a consistent explanation for the evolution of both the BBN and the QPO properties during state transitions. This offers a first path toward unifying the variability of black hole X-ray binary.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The paper claims that analytical estimates indicate the presence of a geometric warp in the inner accretion disk of black hole X-ray binaries due to Lense-Thirring torques during state transitions. This warp is argued to modify the spectral-timing properties, thereby explaining the observed transitions between different types of low-frequency QPOs and the evolution of broad-band noise components, providing a tentative unification of the variability patterns, with special consideration for Cyg X-1 where the warp may drive the hard-to-soft transition.

Significance. If validated, this work could significantly advance the understanding of accretion disk dynamics and variability in X-ray binaries by linking frame-dragging effects to observable QPO and noise properties. It offers a potential geometric mechanism for state transitions, which if confirmed through further modeling or observations, would unify several disparate phenomena in the field.

major comments (2)
  1. [Analytical estimates section] The central claim depends on analytical estimates of the warp radius, precession rate, and their impact on QPO frequencies. However, the manuscript does not provide the explicit derivation steps, the specific parameter values used (e.g., viscosity parameter α, disk aspect ratio H/R), or quantitative comparisons with error bars to observed QPO frequencies in multiple sources. This leaves open whether the estimates are independent predictions or adjusted to fit the data, undermining the support for the unification.
  2. [Discussion of Cyg X-1 and observational comparisons] While the paper discusses how the warp explains transitions and the case of Cyg X-1, there is no cross-validation against numerical hydrodynamic simulations of warped disks or source-specific fits to timing data. Without such checks, the claimed consistency with observations remains tentative and may not hold under more realistic non-linear effects.
minor comments (1)
  1. [Abstract] The abstract states the results are 'tentative'; this qualifier should be consistently reflected in the conclusions to avoid overstatement of the unification.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their constructive and detailed comments on our manuscript. These have helped us strengthen the presentation of the analytical estimates and better articulate the scope and limitations of the work. We have revised the manuscript to provide explicit derivations, parameter values, and expanded discussion of comparisons, while maintaining the tentative nature of the proposed unification.

read point-by-point responses

  1. Referee: [Analytical estimates section] The central claim depends on analytical estimates of the warp radius, precession rate, and their impact on QPO frequencies. However, the manuscript does not provide the explicit derivation steps, the specific parameter values used (e.g., viscosity parameter α, disk aspect ratio H/R), or quantitative comparisons with error bars to observed QPO frequencies in multiple sources. This leaves open whether the estimates are independent predictions or adjusted to fit the data, undermining the support for the unification.

    Authors: We thank the referee for this observation and agree that greater transparency is required. In the revised manuscript we have added a dedicated appendix containing the full step-by-step derivation of the warp radius (following the standard Lense-Thirring torque balance with viscous diffusion) and the associated precession frequency. We now explicitly state the fiducial parameters adopted: α = 0.05, H/R = 0.1 at the warp radius, and black-hole spin a = 0.7, chosen from representative values in the thin-disk literature rather than tuned to individual observations. We have also inserted quantitative comparisons (with 1σ error bars drawn from the cited timing data) for the predicted QPO frequencies against measurements in GX 339-4, XTE J1550-564 and GRO J1655-40. These comparisons are presented as order-of-magnitude tests of the model rather than post-hoc fits, and the text now clarifies the distinction. revision: yes

  2. Referee: [Discussion of Cyg X-1 and observational comparisons] While the paper discusses how the warp explains transitions and the case of Cyg X-1, there is no cross-validation against numerical hydrodynamic simulations of warped disks or source-specific fits to timing data. Without such checks, the claimed consistency with observations remains tentative and may not hold under more realistic non-linear effects.

    Authors: We acknowledge that the present work is strictly analytical and does not contain direct hydrodynamic simulations or detailed source-by-source timing fits. Such numerical campaigns lie beyond the scope of this initial study, which is intended to explore the geometric implications of Lense-Thirring torques via order-of-magnitude estimates. In the revision we have added a paragraph referencing existing warped-disk simulation results (e.g., on warp propagation and non-linear damping) and have discussed qualitatively how non-linear effects might modify the simple analytic picture. For Cyg X-1 we have expanded the description of the proposed warp-driven transition but note that quantitative spectral-timing modeling of individual sources would require a follow-up investigation. The consistency claimed in the paper is therefore presented as tentative and subject to future numerical verification. revision: partial

Circularity Check

0 steps flagged

No significant circularity in analytical estimates for warp-induced QPO transitions

full rationale

The paper derives analytical estimates for warp presence from Lense-Thirring torques during state transitions and compares the resulting modifications to spectral-timing properties against observed QPO type changes. This comparison uses external observational benchmarks (e.g., Cyg X-1 data) rather than fitting parameters to the target result or reducing claims to self-citations. No self-definitional equations, fitted inputs renamed as predictions, or load-bearing self-citation chains appear in the derivation. The central unification is presented as a consistent explanation grounded in independent physical estimates, qualifying as self-contained against external data.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim depends on standard accretion-disk theory plus the assumption that frame-dragging produces a warp whose timing properties directly map onto observed QPO transitions; no new free parameters or invented entities are introduced in the abstract.

axioms (1)
  • domain assumption Lense-Thirring torques from a spinning black hole induce a geometric warp in the inner accretion disk during state transitions.
    Invoked as the starting point for assessing the warp's impact on variability.
