Battery-Assisted Operation of Hyperscale AI Data Centers under Connect-and-Manage Interconnection Practices

Xin Lu , Jing Qiu , Jiafeng Lin , Sihai An , Mingyang Sun , Junhua Zhao This is my paper

Pith reviewed 2026-05-15 02:26 UTC · model grok-4.3

classification 📡 eess.SY cs.SY
keywords battery energy storageAI data centersconnect-and-manageworkload commitmenttransmission congestioncontinuity-aware modelPCC power limits
0
0 comments X

The pith

Battery storage lets hyperscale AI data centers commit more workload day-ahead while staying robust to grid power limits.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

Hyperscale AI data centers often face rapid internal power swings from training jobs that conflict with the grid's real-time limits at their connection point. The paper shows how on-site batteries can act as a buffer, paired with a model that tracks checkpointed workloads along with computing power and cooling needs. A two-stage approach commits to workloads a day ahead using scenarios and then adjusts in real time to enforce all constraints. Case studies on a test grid with real data indicate that batteries raise the credible amount of work that can be promised ahead and improve reliability when the network is congested. The battery's role changes from mainly enabling feasible operation to providing cost flexibility once grid limits loosen.

Core claim

On-site battery energy storage systems serve as a physical buffering interface to reconcile fast internal computing-cooling dynamics with time-varying admissible power exchange limits at the point of common coupling. A continuity-aware energy-computation model jointly captures checkpoint-constrained AI training workloads, IT power-throughput characteristics, and IT-cooling thermal dynamics. A two-stage decision framework consisting of scenario-based day-ahead workload commitment and a real-time receding-horizon delivery assurance controller enforces battery, thermal, and grid-interaction constraints, yielding substantially higher credible day-ahead commitments and improved real-time delivery

What carries the argument

The continuity-aware energy-computation model that links checkpoint-constrained training workloads to IT power-throughput and thermal dynamics, embedded inside a two-stage optimization framework of day-ahead scenario-based commitment and real-time receding-horizon control with battery storage.

If this is right

  • BESS substantially increases credible day-ahead workload commitment.
  • BESS improves real-time delivery robustness under transmission congestion.
  • BESS role transitions from feasibility-oriented continuity support when PCC limits are binding to economy-driven flexibility provision as transmission constraints relax.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same buffering logic could apply to other large continuous loads such as semiconductor fabs or hydrogen electrolyzers facing similar connection limits.
  • Widespread adoption might reduce the need for immediate grid upgrades by shifting some flexibility to the load side.
  • Testing the framework on grids with higher renewable penetration would reveal whether BESS also helps absorb variable generation.

Load-bearing premise

The continuity-aware energy-computation model accurately captures checkpoint-constrained AI training workloads, IT power-throughput characteristics, and IT-cooling thermal dynamics under the imposed PCC envelopes.

What would settle it

A real-world deployment in which measured power exchange at the PCC deviates substantially from the model's predictions during periods of high transmission congestion, or in which workload continuity is lost due to unmodeled thermal or checkpoint effects, would falsify the claimed operational benefits.

Figures

Figures reproduced from arXiv: 2605.14105 by Jiafeng Lin, Jing Qiu, Junhua Zhao, Mingyang Sun, Sihai An, Xin Lu.

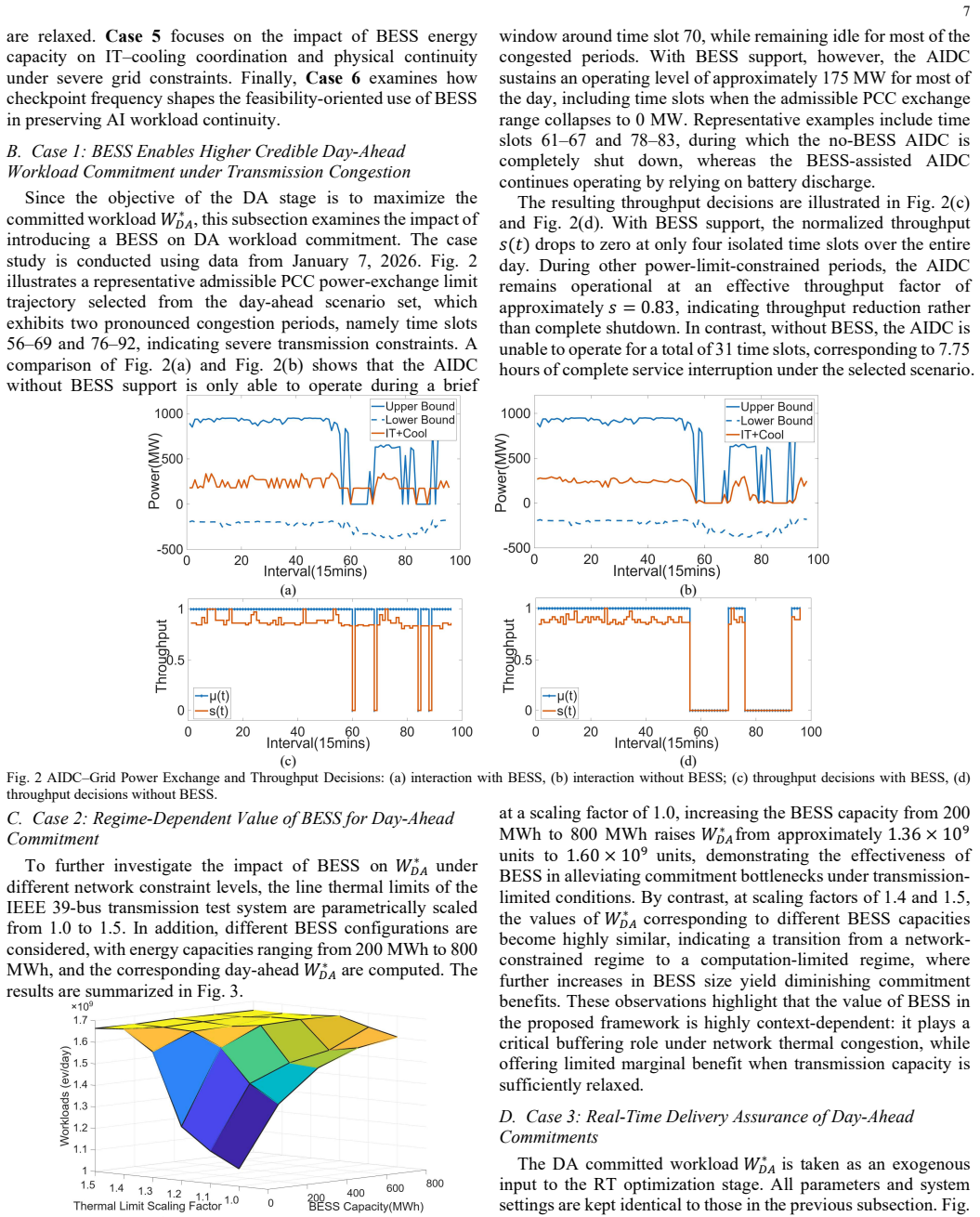

Figure 3
Figure 3. Figure 3: Enhancement of 𝑊஽஺ ∗ by BESS under Different Transmission Constraints The results indicate that when transmission constraints are relatively tight (scaling factors of 1.0–1.2), the contribution of BESS to enhancing 𝑊஽஺ ∗ is particularly pronounced. For example, at a scaling factor of 1.0, increasing the BESS capacity from 200 MWh to 800 MWh raises 𝑊஽஺ ∗ from approximately 1.36 × 10ଽ units to 1.60 × 10ଽ uni… view at source ↗
Figure 4
Figure 4. Figure 4: RT Delivery Performance with and without BESS [PITH_FULL_IMAGE:figures/full_fig_p008_4.png] view at source ↗
read the original abstract

Emerging connect-and-manage practices allow new transmission-connected mega-loads to connect while enforcing time-varying admissible power exchange limits at the point of common coupling (PCC) in real time. Hyperscale artificial intelligence data centers (AIDCs), whose demand can reach hundreds of megawatts and whose internal computing-cooling dynamics evolve rapidly, can therefore face frequent conflicts between workload continuity requirements and externally imposed PCC envelopes. This paper proposes a battery-assisted operational framework in which on-site battery energy storage (BESS) serves as a physical buffering interface to reconcile fast internal dynamics with time-varying interconnection limits. A continuity-aware energy-computation model is developed to jointly capture checkpoint-constrained AI training workloads, information technology (IT) computing power-throughput characteristics, and IT-cooling thermal dynamics. A two-stage decision framework is then formulated, consisting of scenario-based day-ahead workload commitment and a real-time receding-horizon delivery assurance controller that enforces battery, thermal, and grid-interaction constraints. Case studies on the IEEE 39-bus system with Australian real data demonstrate that BESS substantially increases credible day-ahead workload commitment and improves real-time delivery robustness under transmission congestion. Sensitivity analyses further reveal a regime-dependent role transition of BESS -- from feasibility-oriented continuity support when PCC limits are binding to economy-driven flexibility provision as transmission constraints are relaxed.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 2 minor

Summary. The paper proposes a battery-assisted operational framework for hyperscale AI data centers under connect-and-manage interconnection practices with time-varying PCC limits. It introduces a continuity-aware energy-computation model jointly capturing checkpoint-constrained AI training workloads, IT power-throughput characteristics, and IT-cooling thermal dynamics. A two-stage decision framework is formulated consisting of scenario-based day-ahead workload commitment and a real-time receding-horizon delivery assurance controller enforcing battery, thermal, and grid constraints. Case studies on the IEEE 39-bus system with Australian real data are used to demonstrate that BESS substantially increases credible day-ahead workload commitment and improves real-time delivery robustness under transmission congestion, with sensitivity analyses showing a regime-dependent transition in BESS role from continuity support to flexibility provision.

Significance. If the continuity-aware model is shown to be faithful to physical dynamics, the work could meaningfully advance practical integration of large dynamic loads such as AIDCs into grids adopting flexible interconnection rules by demonstrating how on-site BESS can buffer internal computing-cooling transients against external PCC envelopes. The use of a standard test system together with real Australian data provides a concrete basis for evaluating operational benefits.

major comments (3)
  1. [§3] §3 (continuity-aware energy-computation model): the model is stated to jointly capture checkpoint-constrained training dynamics, IT power-throughput curves, and coupled cooling transients, yet no calibration against measured AIDC hardware traces or out-of-sample validation is described; parameters appear selected to satisfy the imposed PCC envelopes, which directly undermines the claim that reported commitment and robustness gains are physical effects rather than modeling artifacts.
  2. [§5] §5 (case studies): the IEEE 39-bus results with Australian data are presented as supporting evidence for substantial increases in day-ahead commitment and real-time robustness, but the section provides no quantitative validation metrics, error bars, or explicit sensitivity ranges for key model parameters (e.g., checkpoint intervals, thermal time constants, or PCC envelope tightness), leaving the central claim only moderately supported.
  3. [§4] §4 (two-stage framework): the real-time receding-horizon controller relies on the continuity-aware model to enforce thermal and battery constraints inside time-varying PCC limits; because the model fidelity under realistic PCC envelopes is not externally validated, the robustness improvements cannot be considered load-bearing without additional evidence that the assumed dynamics match observed AIDC behavior.
minor comments (2)
  1. [Abstract] Abstract: the sensitivity analyses are mentioned but the ranges of PCC limit variations, BESS energy/power ratings, and workload checkpoint frequencies tested are not stated, reducing reproducibility.
  2. [Notation] Notation: ensure that symbols for PCC admissible power exchange limits (P_PCC(t)) and BESS state-of-charge are defined consistently when first introduced and used uniformly in the optimization formulations.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for the detailed and constructive comments on our manuscript. We agree that additional clarification on the model development and case study metrics would strengthen the paper. We address each major comment below and outline the revisions planned for the next version.

read point-by-point responses

  1. Referee: [§3] §3 (continuity-aware energy-computation model): the model is stated to jointly capture checkpoint-constrained training dynamics, IT power-throughput curves, and coupled cooling transients, yet no calibration against measured AIDC hardware traces or out-of-sample validation is described; parameters appear selected to satisfy the imposed PCC envelopes, which directly undermines the claim that reported commitment and robustness gains are physical effects rather than modeling artifacts.

    Authors: We thank the referee for highlighting this important point. The continuity-aware model is derived from established physical principles and literature values for AI training (checkpoint intervals typically 10-60 minutes based on common practices in large-scale ML training), IT power-throughput relations from published benchmarks, and thermal dynamics from standard HVAC models for data centers. The parameters were not tuned to fit the PCC envelopes; rather, the PCC limits are treated as hard constraints from the grid side, and the model parameters reflect realistic AIDC characteristics independent of the specific interconnection limits. To address the concern, we will expand §3 with explicit references to the sources of each parameter and include a table of nominal values with ranges used in sensitivity analysis. revision: partial

  2. Referee: [§5] §5 (case studies): the IEEE 39-bus results with Australian data are presented as supporting evidence for substantial increases in day-ahead commitment and real-time robustness, but the section provides no quantitative validation metrics, error bars, or explicit sensitivity ranges for key model parameters (e.g., checkpoint intervals, thermal time constants, or PCC envelope tightness), leaving the central claim only moderately supported.

    Authors: We agree that the presentation of results can be improved with more quantitative details. In the revised manuscript, we will augment §5 with quantitative metrics such as the percentage increase in committed workload (with standard deviations from 100 Monte Carlo scenarios), error bars on all key figures, and dedicated sensitivity analyses showing how results vary with checkpoint interval (5-30 min), thermal time constant (15-90 min), and different levels of PCC envelope tightness. This will provide a clearer assessment of the robustness of the reported gains. revision: yes

  3. Referee: [§4] §4 (two-stage framework): the real-time receding-horizon controller relies on the continuity-aware model to enforce thermal and battery constraints inside time-varying PCC limits; because the model fidelity under realistic PCC envelopes is not externally validated, the robustness improvements cannot be considered load-bearing without additional evidence that the assumed dynamics match observed AIDC behavior.

    Authors: The two-stage framework uses the continuity-aware model as an internal representation for optimization and control. The demonstrated improvements are conditional on the model accurately capturing the dominant dynamics, which we believe it does based on its construction from physical laws. However, we acknowledge that without direct hardware validation, the results should be interpreted as indicative of potential benefits rather than definitive. In the revision, we will add a limitations subsection discussing the model assumptions and their potential impact on the results, along with suggestions for future empirical validation. revision: partial

Circularity Check

0 steps flagged

No significant circularity detected in derivation chain

full rationale

The paper develops a continuity-aware energy-computation model to capture workload, IT power, and thermal dynamics, then embeds it in a standard two-stage optimization framework (day-ahead commitment plus receding-horizon control) whose outputs are evaluated on the external IEEE 39-bus test system with Australian grid data. No equation or step reduces the claimed BESS benefits to parameters fitted from the same case-study outcomes, nor does any load-bearing premise collapse to a self-citation, self-definition, or renamed known result. The framework therefore remains self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The paper builds on standard power-system and optimization assumptions plus domain models for data-center workloads and thermal dynamics; no new physical entities are postulated.

axioms (2)
  • standard math Standard DC or AC power flow equations and convex optimization relaxations remain valid for the 39-bus test system under the imposed time-varying PCC limits.
    Invoked when formulating the real-time receding-horizon controller and day-ahead scenario planning.
  • domain assumption AI training workloads can be represented by checkpoint intervals and power-throughput curves that are known in advance or accurately forecastable.
    Central to the continuity-aware energy-computation model.

pith-pipeline@v0.9.0 · 5553 in / 1443 out tokens · 184815 ms · 2026-05-15T02:26:22.309732+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Lean theorems connected to this paper

Citations machine-checked in the Pith Canon. Every link opens the source theorem in the public Lean library.

What do these tags mean?
matches
The paper's claim is directly supported by a theorem in the formal canon.
supports
The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
extends
The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
uses
The paper appears to rely on the theorem as machinery.
contradicts
The paper's claim conflicts with a theorem or certificate in the canon.
unclear
Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.
