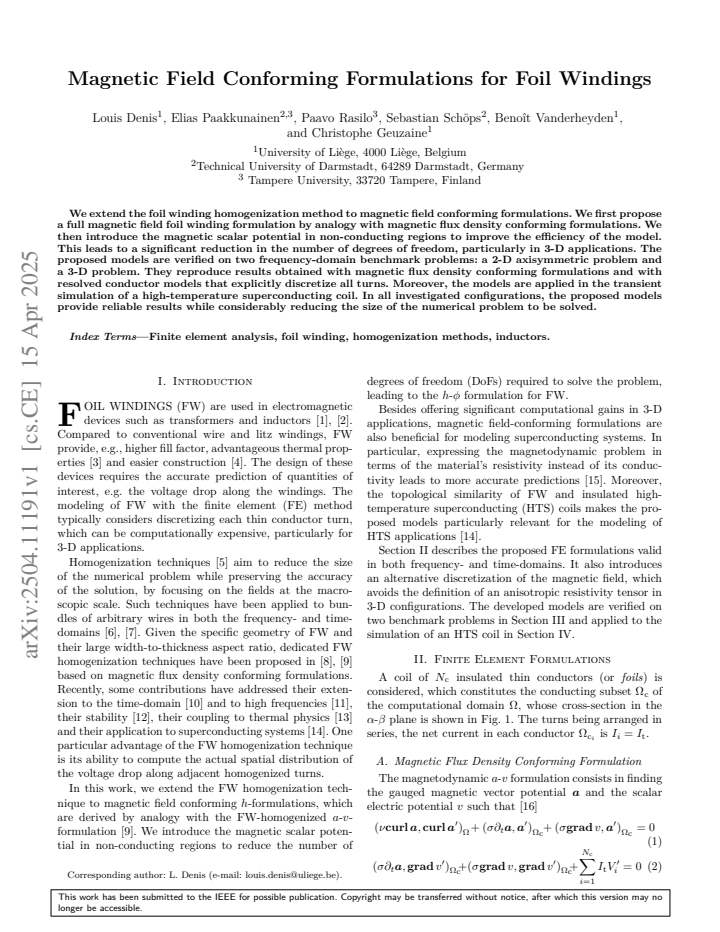

Magnetic Field Conforming Formulations for Foil Windings

Louis Denis , Elias Paakkunainen , Paavo Rasilo , Sebastian Sch\"ops , Beno\^it Vanderheyden , Christophe Geuzaine This is my paper

Pith reviewed 2026-05-22 20:49 UTC · model grok-4.3

classification 💻 cs.CE
keywords foil windinghomogenizationmagnetic field formulationscalar potentialfinite element methodnumerical modelingeddy currents
0
0 comments X

The pith

Magnetic field conforming models for foil windings match detailed conductor simulations while reducing the number of degrees of freedom.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper extends existing foil-winding homogenization techniques from magnetic-flux-density formulations to magnetic-field (H-conforming) formulations. It first writes a full H-based model by direct analogy, then introduces the magnetic scalar potential in non-conducting regions to shrink the discrete system, especially in three dimensions. Verification on two frequency-domain benchmarks and a transient high-temperature-superconducting coil shows that the reduced models reproduce the results of both B-conforming homogenized models and fully resolved turn-by-turn meshes.

Core claim

The homogenization relations previously derived for B-conforming formulations transfer directly to H-conforming formulations by simple analogy, and the addition of the magnetic scalar potential in non-conducting regions yields reliable results with a considerably smaller numerical problem.

What carries the argument

H-conforming foil-winding homogenization augmented by the magnetic scalar potential in non-conducting regions, obtained by direct analogy with prior B-conforming relations.

If this is right

  • The same reduction in degrees of freedom applies to both frequency-domain and transient simulations of foil-wound devices.
  • Three-dimensional problems become feasible that were previously limited by the size of the discrete system.
  • The method supplies reliable loss and field predictions for high-temperature superconducting coils without explicit discretization of every turn.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The analogy approach may allow similar transfers to other vector-potential or mixed formulations used in eddy-current modeling.
  • The reduced models open the possibility of embedding foil-winding subdomains inside larger system-level simulations without prohibitive cost.
  • If the scalar-potential region can be extended to include thin insulating layers, the method could further simplify multi-turn coil geometries.

Load-bearing premise

The homogenization relations derived for magnetic flux density formulations carry over to magnetic field formulations by simple analogy without extra correction terms.

What would settle it

A new benchmark in which the foil winding experiences strong skin effect or highly nonuniform current distribution; if the H-based homogenized solution diverges from the resolved-conductor reference while the B-based version does not, the direct-transfer claim fails.

Figures

Figures reproduced from arXiv: 2504.11191 by Beno\^it Vanderheyden, Christophe Geuzaine, Elias Paakkunainen, Louis Denis, Paavo Rasilo, Sebastian Sch\"ops.

Figure 1
Figure 1. Figure 1: FW homogenization: Nc resolved conductors (left) replaced by a single homogenized bulk of thickness Lα (right). holds ∀a ′ , v′ , V ′ i , with ν the magnetic reluctivity and σ the electrical conductivity. Here, grad v = PNc i=1 Vi grad vs,i and the grad vs,i denote global basis functions [16], or winding functions [17]. Test functions are denoted · ′ , whereas (·, ·)Ω represents the volume integral over Ω … view at source ↗
Figure 2

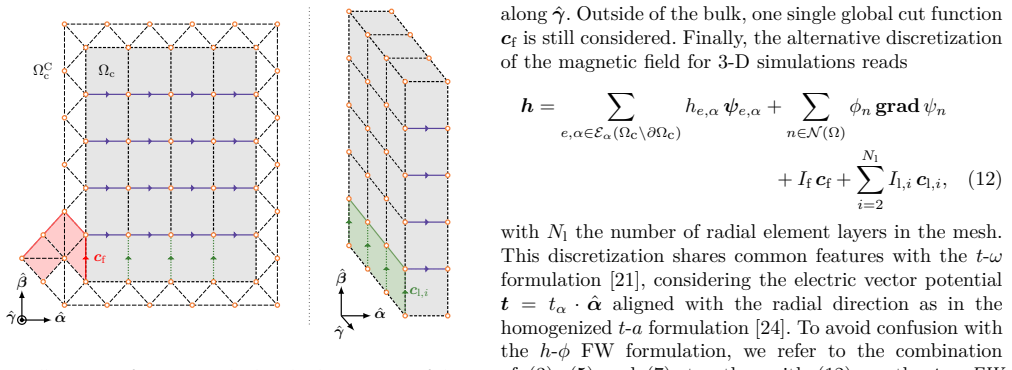

Figure 2. Figure 2: Illustration of entities involved in the discretization of the [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3

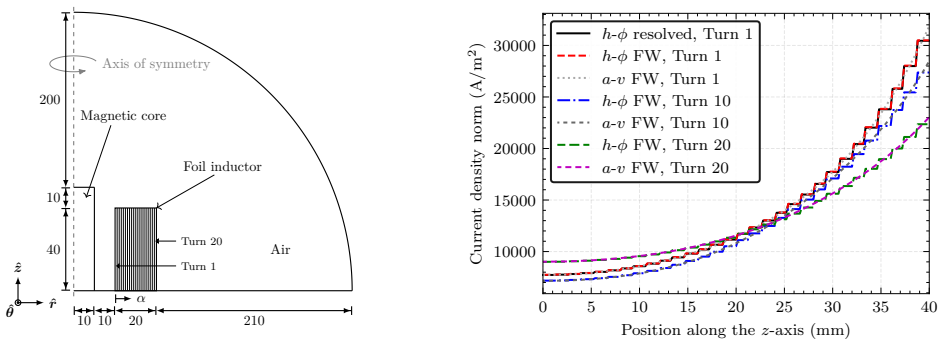

Figure 3. Figure 3: Geometry (not to scale) of the 2-D axisymmetric verification [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
