A novel zero-frequency seismic metamaterial
Pith reviewed 2026-05-24 21:16 UTC · model grok-4.3
The pith
A three-component seismic metamaterial plate on a half-space creates a zero-frequency band gap that deflects Rayleigh waves into bulk waves.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
The band structure of the seismic metamaterial is almost equal to the band structure of the seismic metamaterial plate plus the sound cone, yielding a wide band gap and a zero-frequency band gap. Rayleigh waves in the ZFSM are deflected and converted into bulk waves, and with sufficient unit cells the transmission distance and deflection angle are constant at the same frequency.
What carries the argument
The zero-frequency band gap arising from the combination of the three-component seismic metamaterial plate's dispersion relation with the sound cone in the half-space, which causes deflection of surface waves into the bulk.
If this is right
- Rayleigh waves are deflected and converted into bulk waves by the ZFSM.
- With enough unit cells, transmission distance and deflection angle of the waves become constant at a fixed frequency.
- The design attenuates ultra-low frequency seismic surface waves.
- The approach opens possibilities for protecting large structures from seismic activity.
Where Pith is reading between the lines
- The constant deflection angle suggests the possibility of designing fixed shielding regions around protected areas without needing active control.
- Extending the three-component design to real-scale structures would require verifying that material properties scale without introducing unwanted resonances.
- Similar band-gap mechanisms might apply to other wave types, such as acoustic or electromagnetic waves in layered media.
Load-bearing premise
The design concept and models verified by lab-scale experiments on the two-component seismic metamaterial plate and half space will hold for the three-component version proposed for the ZFSM.
What would settle it
An experiment measuring the transmission of Rayleigh waves through a fabricated three-component ZFSM at ultra-low frequencies showing no conversion to bulk waves or no zero-frequency gap would disprove the central claim.
read the original abstract

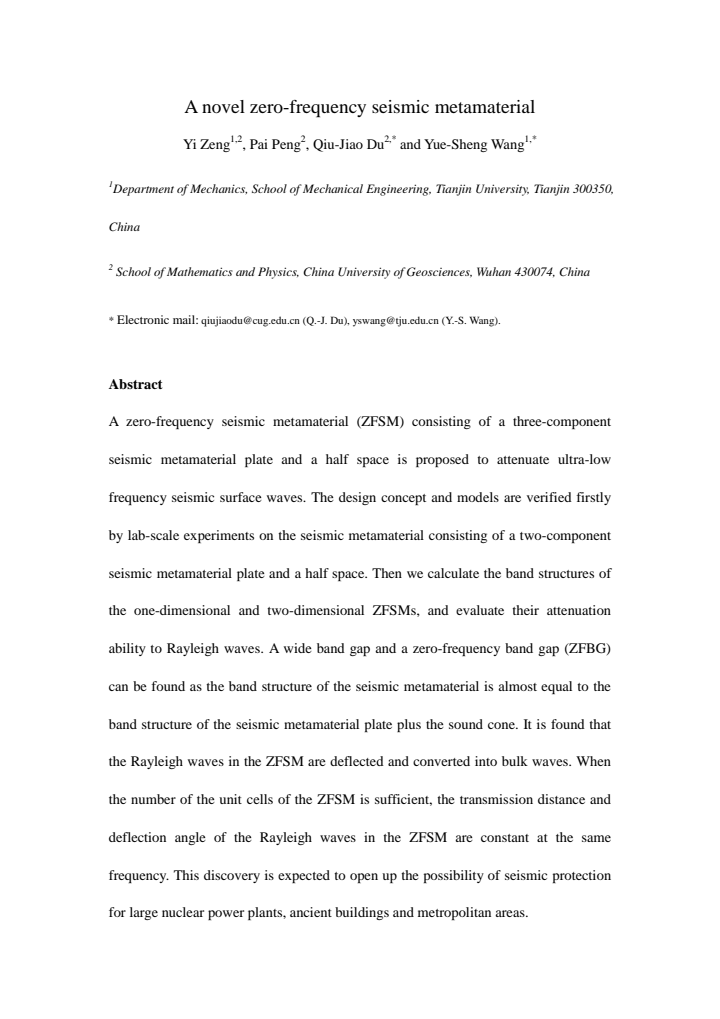

A zero-frequency seismic metamaterial (ZFSM) consisting of a three-component seismic metamaterial plate and a half space is proposed to attenuate ultra-low frequency seismic surface waves. The design concept and models are verified firstly by lab-scale experiments on the seismic metamaterial consisting of a two-component seismic metamaterial plate and a half space. Then we calculate the band structures of the one-dimensional and two-dimensional ZFSMs, and evaluate their attenuation ability to Rayleigh waves. A wide band gap and a zero-frequency band gap (ZFBG) can be found as the band structure of the seismic metamaterial is almost equal to the band structure of the seismic metamaterial plate plus the sound cone. It is found that the Rayleigh waves in the ZFSM are deflected and converted into bulk waves. When the number of the unit cells of the ZFSM is sufficient, the transmission distance and deflection angle of the Rayleigh waves in the ZFSM are constant at the same frequency. This discovery is expected to open up the possibility of seismic protection for large nuclear power plants, ancient buildings and metropolitan areas.
