Magnetic and Mechanical Analysis of Bi-2212 Rutherford Cable in a Cos-Theta Sub-Scale Dipole Coil

T0 review · reviewed 2026-08-16 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read A strand-level finite-element model of Fermilab's Bi-2212 cos-theta insert shows a maximum Von Mises stress of 68 MPa in the superconductor at 10 kA, below the 120 MPa design limit.

arxiv 2504.12028 v1 pith:WFJLT7SD submitted 2025-04-16 physics.acc-ph

A. D'Agliano , A. V. Zlobin , I. Novitski , D. Turrioni , E. Barzi , S. Donati , V. Giusti This is my paper · ORCID
classification physics.acc-ph
keywords bi-2212magneticanalysismechanicalcoilexternalinsertlarge
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

Fermilab is designing a superconducting dipole magnet that combines low-temperature Nb3Sn coils on the outside with high-temperature Bi-2212 coils on the inside. Bi-2212 can carry high current in strong magnetic fields, but it is sensitive to mechanical stress, so engineers need to know exactly how much stress the conductor will feel when the magnet is turned on. The authors built two computer models of the coil cross-section: a simple one where the cable is a uniform rectangle, and a detailed one where each strand is resolved into its silver matrix, Bi-2212 superconducting area, Mullite insulation, and epoxy filler. They used the finite-element program ANSYS to apply three loads in sequence: a pre-stress from a 100 micrometer interference fit, cooling from room temperature to 4.2 kelvin, and energization at 10 kiloamps. The detailed model predicts a maximum Von Mises stress of 68 MPa inside the Bi-2212, below the 120 MPa limit from the literature. The simple model gives 141 MPa at the cable edge, but only 50 MPa if you look only at the region where the Bi-2212 sits. A sensitivity study varied the strand shape between fully elliptical and fully packed and found Bi-2212 stress ranging from 68 to 96 MPa, so the design margin holds across those shapes. The main caveats are that the model assumes no residual stress after the reaction heat treatment and uses a yield strength measured on a single best sample.
Extended reading notes

Core claim

With the heterogeneous model, the maximum stress in the Bi-2212 areas is 68 MPa, which respects the threshold of 120 MPa [17] (Conclusion). If correct, the Bi-2212 insert remains below the conductor stress limit at 10 kA, supporting the mechanical feasibility of the design.

Load-bearing premise

The analysis assumes no residual stress remains in the coil after the reaction heat-treatment cool-down, because the mandrel pieces are free to slide axially and the grooves allow the insulated cable to move (Sect. III.C). If the reacted coil retains differential-thermal-contraction stresses, the Bi-2212 stress at energization would shift from the modeled value and could reduce the margin below 120 MPa.

Share X Bluesky LinkedIn Reddit HN

Signed reviews

No signed human review yet.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Assumptions & free parameters 3 free parameters · 4 assumptions · 0 invented entities

The central stress estimate depends on one tuned preload, one chosen strand shape, and a single-sample yield strength, plus the neglect of reaction residual stress. No new physical entities are introduced.

free parameters (3)
  • Pre-stress interference = 100 µm
    Chosen to minimize coil displacements due to Lorentz forces (Sect. III.C); the stress results depend on this assembly preload, which may vary in practice.
  • Strand shape parameter SP = 0.7
    Chosen because it 'better matches the actual Bi-2212 strand geometry,' but noted as the least conservative SP value; Bi-2212 stress ranges from 68 to 96 MPa across SP (Sect. III.C).
  • Bi-2212 yield strength in model = 140 MPa
    Taken from the best heat-treated tensile sample; the paper states more data would be needed because reacted strands broke unevenly during plastic transition (Sect. III.B).
assumptions (4)
  • domain assumption No residual stress exists in the coil after reaction heat-treatment cool-down.
    Stated in Sect. III.C: mandrel pieces are free to slide axially and grooves allow the insulated cable to move, so residual stresses are neglected. If false, the computed stress state in Bi-2212 changes.
  • domain assumption A 2D generalized plane strain quarter-symmetry model represents the 3D coil cross-section.
    Used in Sect. III.C with PLANE 183 elements; end effects, the layer jump, and axial bending are not captured.
  • domain assumption The Bi-2212 material in the heterogeneous model uses the measured composite strand modulus and yield strength as isotropic properties.
    Sect. III.B/III.C: E_HT = 21.3 GPa (measured on the full strand) is applied to the Bi-2212 region while silver is modeled separately, which may not represent the pure filament/matrix composite correctly.
  • domain assumption The iron yoke is modeled with a relative permeability of 1000 and a simplified user-defined B-H curve.
    Sect. III.A: needed for the ROXIE and ANSYS magnetic comparison; actual yoke saturation is not reported.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Magnetic and Mechanical Analysis of Bi-2212 Rutherford Cable in a Cos-Theta Sub-Scale Dipole Coil." pith.science (2026). https://pith.science/paper/WFJLT7SD

@misc{pith2026250412028,
  author       = {Pith},
  title        = {Pith review of: Magnetic and Mechanical Analysis of Bi-2212 Rutherford Cable in a Cos-Theta Sub-Scale Dipole Coil},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/WFJLT7SD}},
  note         = {Machine review of arXiv:2504.12028}
}
abstract

The U.S. Magnet Development Program (US-MDP) explores high-field accelerator magnets compatible with operational conditions beyond the limits of Nb$_3$Sn technology. The ongoing R\&D High-Temperature Superconductors (HTS) suggests using Bi$_2$Sr$_2$CaCu$_2$O$_{8-x}$ (Bi-2212) as superconducting element. Bi-2212 Rutherford cables maintain a high critical current (I$_C$) when exposed to a large external magnetic field. However, Bi-2212 exhibits an oversensitive stress-strain response when subject to large Lorentz forces. This paper reports on the magnetic and mechanical analysis of the Bi-2212 cosine-theta insert being developed at Fermilab for a hybrid magnet composed of two external layers of Nb$_3$Sn and two internal layers of Bi-2212. We performed a FEM analysis of the insert to estimate the HTS stress state in the coil's strands under magnetic and mechanical loads.

Figures

Figures reproduced from arXiv: 2504.12028 by the authors.

Figure 1
Figure 1. Schematic representation of the dipole insert and Bi-2212 [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗
Figure 2
Figure 2. Schematic representation of the insert transverse cross [PITH_FULL_IMAGE:figures/full_fig_p002_2.png] view at source ↗
Figure 3

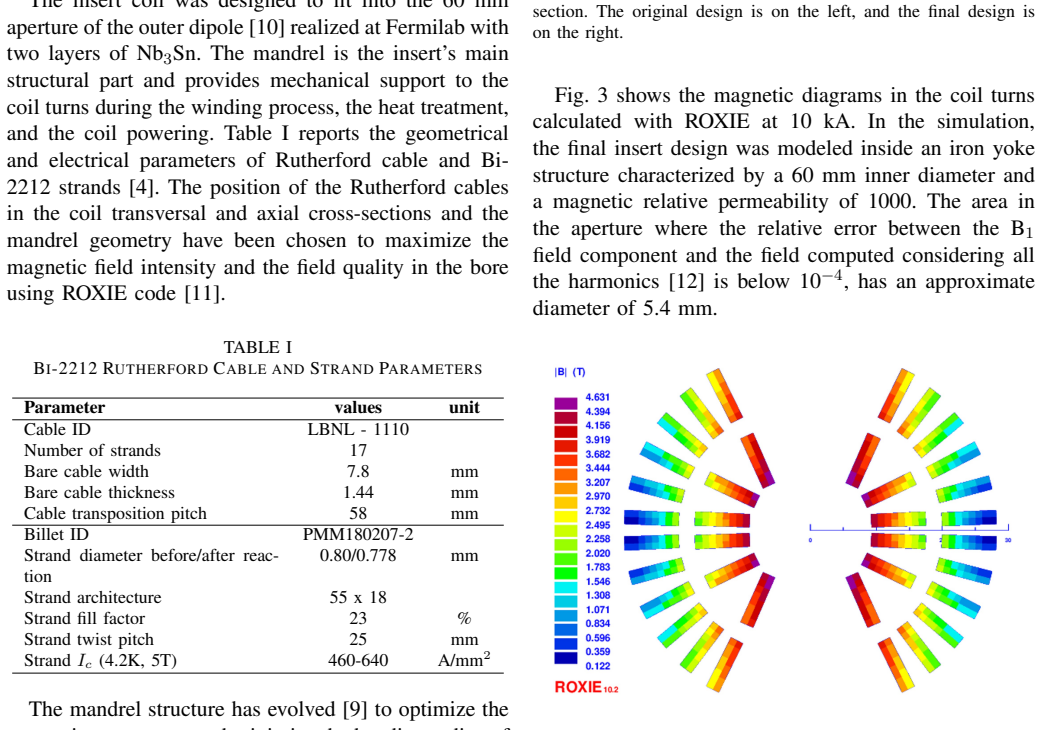

Figure 3. Magnetic field intensity for the HTS insert dipole at 10 kA [PITH_FULL_IMAGE:figures/full_fig_p002_3.png] view at source ↗
Figures from the paper (7 more)
Figure 4
Figure 4. Figure 4: 3D-printed 2-layer mandrel used to test the winding feasibility [PITH_FULL_IMAGE:figures/full_fig_p003_4.png]
Figure 6

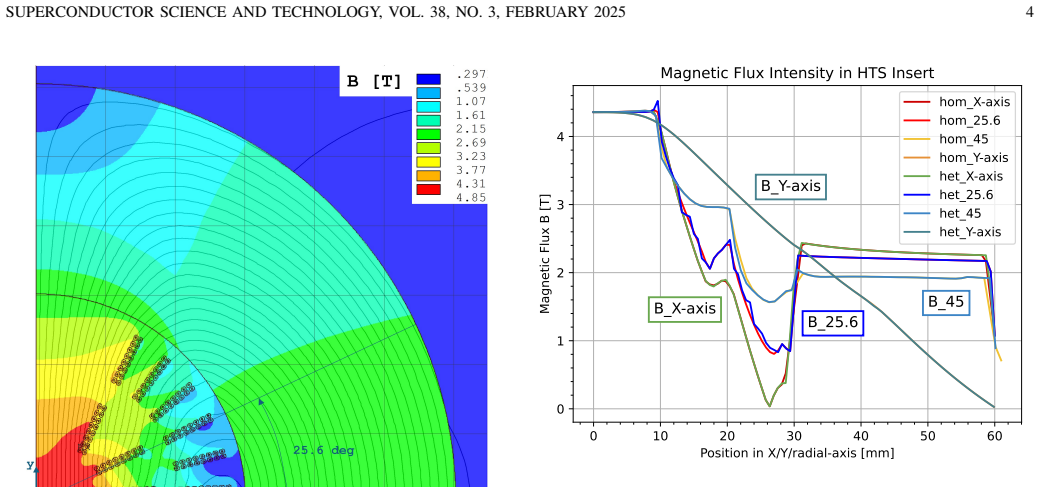

Figure 6. Figure 6: Magnetic field intensity for the HTS insert dipole as [PITH_FULL_IMAGE:figures/full_fig_p004_6.png]
Figure 5
Figure 5. Figure 5: Magnetic field intensity in the aperture, coils, and iron yoke [PITH_FULL_IMAGE:figures/full_fig_p004_5.png]
Figure 8
Figure 8. Figure 8: Stress-strain curves of heat-treated (Top) and non-heat-treated [PITH_FULL_IMAGE:figures/full_fig_p005_8.png]
Figure 9
Figure 9. Figure 9: Maximum equivalent Von Mises stress (MPa) for the [PITH_FULL_IMAGE:figures/full_fig_p006_9.png]
Figure 10
Figure 10. Figure 10: Equivalent Von Mises stress distribution at EN load [PITH_FULL_IMAGE:figures/full_fig_p006_10.png]
Figure 11

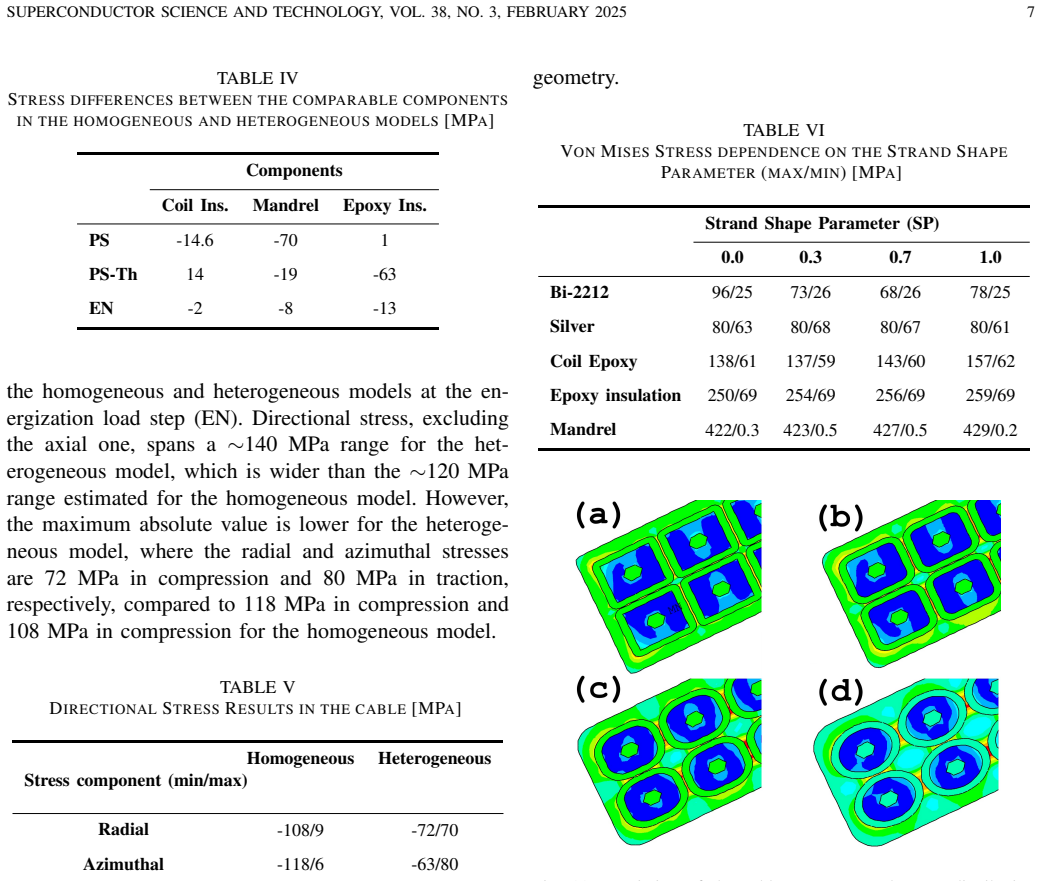

Figure 11. Figure 11: Variation of the cable geometry and stress distribution [PITH_FULL_IMAGE:figures/full_fig_p007_11.png]
