Drone-Based Antenna Measurement System with Optimized Positioning and ASPIRE-Based NF-FF Transformation

T0 review · 3 major / 5 minor · reviewed 2026-07-13 · grok-4.5

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗

Pith's one-line read A drone plus sparse recovery reconstructs antenna far-field patterns to 1.94% residual and 0.4° beamwidth error.

desk verdict Solid engineering integration of RTK hexacopter design and a named sparse IEC pipeline (ASPIRE) that hits 1.94% residual / 0.4° HPBW against a facility cut, but the headline numbers come from a synthetic grid with injected position noise rather than outdoor telemetry. read the letter →

arxiv 2607.09361 v1 pith:WIWBT2CP submitted 2026-07-10 eess.SP

Simranjit Singh , Abha Nilesh Jadav , Aarish Dharmesh Patel , Jaswant , Jigar M. Pandya This is my paper · ORCID
classification eess.SP
keywords UAVantennameasurementnear-fieldtofar-fieldtransformationASPIREsparserecoveryRTKpositioningequivalentcurrentsRWGbasisMLFMM
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

Conventional antenna ranges are expensive and hard to use for large or already-installed antennas. This paper shows that a carefully built hexacopter with centimetre-level RTK positioning, flown for roughly twenty minutes, can collect near-field samples that are good enough for accurate pattern reconstruction. The key is the ASPIRE pipeline: it models the antenna as sparse equivalent surface currents, uses randomised linear algebra and fast multipole acceleration, then recovers a sparse current map by iterative soft-thresholding and exact debiasing. At 6.7125 GHz the recovered pattern matches a facility reference inside the main beam to 1.94% residual and 0.4° half-power beamwidth, while using only a quarter of the mesh coefficients. The practical claim is that portable, in-situ antenna characterisation becomes feasible once positioning hardware and sparse reconstruction are engineered together.

What carries the argument

ASPIRE: an end-to-end inverse pipeline that expands equivalent electric and magnetic currents on a closed Huygens surface in RWG basis functions, accelerates matrix-vector products with a hybrid MLFMM/dense strategy, extracts dominant modes by randomised SVD under the Picard condition, solves the ℓ1-regularised problem with FISTA, and recovers unbiased amplitudes by least-squares on the active support.

What would settle it

Fly the same hexacopter over a known antenna at 6.7125 GHz, feed the real RTK-logged positions and measured fields into ASPIRE, and check whether residual and beamwidth error remain near 2% and 0.4° against the facility reference.

Watch

Extended reading notes

Core claim

When near-field samples collected by an RTK-equipped hexacopter are inverted with the ASPIRE sparse-recovery pipeline, the reconstructed co-polar far-field cut at 6.7125 GHz agrees with a calibrated facility measurement to a normalised residual of 1.94% and a beamwidth error of 0.4°, using only 24% of the 17 298 RWG basis functions as active support.

Load-bearing premise

The quantitative accuracy figures rest on near-field data that contain only simulated centimetre-level positioning noise, not on telemetry from an actual outdoor flight campaign.

Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

3 major / 5 minor

Summary. The manuscript presents a dual-contribution UAV antenna-measurement system: (i) a purpose-built 960 mm hexacopter with dual-frequency RTK GNSS, mass/propulsion/thermal/endurance budgets sized for 41 °C field operation and ≤1 cm positioning, and (ii) the ASPIRE NF–FF pipeline that combines RWG equivalent-current modelling on a closed Huygens surface, hybrid dense/MLFMM operators, randomized SVD with Picard rank control, FISTA ℓ1 recovery with empirical λ=10, exact support debiasing, and Hutchinson UQ. On a C-band CP feed at 6.7125 GHz the pipeline reports a 1.94 % residual and 0.4° HPBW error versus a facility reference inside |θ|≤20°, using 24 % of the 17 298 RWG degrees of freedom, with hybrid wall-clock under 8 min on a laptop-class device.

Significance. If the transfer from the reported synthetic error model to real outdoor telemetry holds, the work would be a useful systems-level contribution: a carefully engineered RTK hexacopter plus a production-oriented sparse inverse-current pipeline that is both accurate enough for engineering use and fast enough for field laptops. Explicit strengths include the transparent AUW/propulsion/thermal margins (Table I, Eqs. 1–2), the hybrid MLFMM strategy with measured stage-wise timings (Table III), and the external facility comparison of residual and HPBW (Table IV, Fig. 2). The combination of physics-based IEC modelling, compressed sensing, and stochastic UQ in one end-to-end package is of practical interest to the antenna-measurement community.

major comments (3)
  1. [§IV-A, Table II, Abstract, §VII] §IV-A and Table II state that the quantitative ASPIRE results are obtained from a planar grid with only simulated RTK perturbations (±0.5 cm lateral, ±1.0 cm axial). No outdoor flight telemetry—residual multipath, attitude/probe-orientation jitter, UAV-body scattering, or truly irregular sampling—is inverted and compared with the facility reference. The abstract, introduction, and conclusion nevertheless present the 1.94 % residual / 0.4° HPBW figures as evidence that the combination of the optimised drone and ASPIRE improves UAV-based measurements. This transfer assumption is load-bearing for the dual-contribution claim and is currently untested; either real flight data must be shown or the claims must be reframed as performance under a controlled synthetic error model.
  2. [§V-C, §VI-A] The FISTA regularisation parameter is fixed at the empirically chosen value λ=10.0 on the same 6.7125 GHz dataset used for the residual and HPBW metrics (§V-C, §VI-A). Related-work text notes the absence of an automated noise-matching criterion. Because residual and sparsity both depend on λ, a sensitivity study (or leave-one-out / noise-floor-matched selection) is needed to show that the headline 1.94 % / 0.4° numbers are not artefacts of a single tuned λ.
  3. [§VI-A, §VI-I, Table IV] Facility validation is restricted to |θ|≤20° (§VI-A, VI-I). Outside that window the paper reports only ASPIRE extrapolation (Figs. 3–5). The dual claim of “close agreement with conventional antenna test range measurements” should be limited to the validated angular sector, or additional facility cuts should be supplied.
minor comments (5)
  1. [Table I vs §IV-A] Table I lists an RF payload of “5.4 GHz source” while all ASPIRE results are at 6.7125 GHz. Clarify whether the payload description is generic or whether a different source was used for the reported campaign.
  2. [§VI-E, Table IV] Boresight XPD of 6.7 dB is correctly flagged as system-limited (§VI-E), yet it still appears in Table IV. Consider moving it to a separate “system indicators” row so it is not read as an AUT polarisation metric.
  3. [Table II] Notation: the same symbol a is used for Huygens half-side and for WR137 broad-wall dimension (Table II). Distinct symbols would avoid confusion.
  4. [Fig. 1] Fig. 1 pipeline diagram is helpful; ensure the published version renders the dashed auxiliary paths and the Picard/Hutchinson boxes at readable resolution.
  5. [Throughout] Minor typographical inconsistencies appear (e.g., “UA V” with space, “FIST A”, “17 298” vs “17,298”). A uniform style pass would improve polish.

Circularity Check

1 steps flagged · score 2.0 of 10

Mild circularity only from empirical λ selection on the same dataset used for residual/beamwidth reporting; primary metrics remain externally benchmarked against facility data and are not forced by construction.

  1. fitted input called prediction [§V-C (regularisation) + Abstract / §VI-A / Table IV (reported metrics)]
    "The regularisation parameter is fixed at λ= 10.0 , a value empirically selected to balance sparsity enforcement and data fidelity on the measured dataset at 6.7125 GHz. … At 6.7125 GHz, ASPIRE achieves a residual of 1.94% and a beamwidth error of 0.4° relative to a conventional facility measurement while using only 24% of the 17 298-element RWG mesh as active support."

    λ is chosen by hand on the same synthetic NF dataset that is later inverted; the residual, beamwidth error and active-support fraction that appear as the paper’s headline performance numbers are therefore the values obtained after that data-dependent choice. While the comparison target (facility co-polar cut) is external, the reported figures are not fully out-of-sample with respect to the free parameter that controls sparsity versus data fidelity.

full rationale

The paper’s load-bearing accuracy claims (1.94 % residual, 0.4° HPBW error, 24 % active RWG support) are obtained by comparing the ASPIRE-reconstructed far-field pattern against an independent conventional-facility reference measurement. That comparison is external and not tautological. The forward model, MLFMM operator, rSVD, FISTA BPDN, exact debiasing and Hutchinson UQ are standard inverse-problem machinery applied to a synthetic NF dataset; none of the equations reduce the reported residual or beamwidth to an input by definition. The sole mild circularity is the empirical fixing of the regularisation parameter λ = 10.0 on the identical dataset whose reconstruction metrics are then advertised. No self-citation chain, uniqueness theorem imported from the authors, or self-definitional identity is present. Score 2 therefore reflects only the ordinary regularisation-tuning issue, not a forced derivation.

Assumptions & free parameters 4 free parameters · 6 assumptions · 1 invented entities

The central accuracy claim rests on standard EM integral-equation machinery, a set of empirically chosen numerical parameters (λ, rank k, mesh density), and the modelling assumption that the simulated RTK error model plus the closed-box Huygens surface adequately capture real drone measurements. No new physical entities are postulated; free parameters are the regularisation and rank choices that directly affect the reported residual.

free parameters (4)
  • FISTA regularisation parameter λ = 10.0
    Fixed at λ=10.0 by empirical selection on the 6.7125 GHz dataset to balance sparsity and data fidelity; directly controls the active-support size and residual.
  • rSVD retained rank k = 1000
    Set to k=1000 with Picard-condition monitoring; determines the subspace in which sparse recovery operates.
  • Huygens-surface dimensions and standoff = 224.6×224.6×100 mm, λ/2 standoff
    Closed box 224.6×224.6×100 mm placed exactly λ/2 from the AUT aperture edge; choice affects conditioning of G and the equivalent-current support.
  • Simulated RTK position-error amplitudes = ±0.5 cm lat., ±1.0 cm ax.
    ±0.5 cm lateral / ±1.0 cm axial injected into the synthetic grid; used to claim realism of the dataset.
assumptions (6)
  • domain assumption Huygens’ equivalence principle: radiation outside a closed surface is identically reproduced by equivalent electric and magnetic surface currents on that surface.
    Invoked in §IV-B to justify the RWG expansion of equivalent currents on the closed box S.
  • standard math RWG basis functions on a closed triangulated surface yield N = (3/2) Nt interior edges.
    Used in §IV-B to obtain N=17 298 from Nt=11 532 triangles.
  • standard math Discrete Picard Condition: a meaningful regularised solution exists only when data-projection coefficients decay faster than the singular values.
    Cited from Hansen and used in §V-B to restrict the retained rSVD rank.
  • domain assumption Additive measurement noise is circularly-symmetric complex Gaussian η ~ CN(0,σ²I).
    Stated in the forward model (Eq. 3) and used for residual and UQ analysis.
  • domain assumption Probe can be modelled as an ideal short electric dipole for coupling-matrix entries.
    §IV-A; simplifies Gmn evaluation via 7-point Gaussian quadrature.
  • ad hoc to paper Empirical λ=10.0 adequately balances sparsity and fidelity for the reported residual.
    §V-C; no automated noise-matching criterion is used.
invented entities (1)
  • ASPIRE algorithm (named pipeline)
    purpose: Unifies RWG inverse-current modelling, hybrid MLFMM/rSVD, FISTA sparse recovery, exact debiasing and Hutchinson UQ into a single production NF-FF pipeline.
    The name and the specific hybrid operator schedule are introduced by the paper; the underlying mathematical components are previously published.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Drone-Based Antenna Measurement System with Optimized Positioning and ASPIRE-Based NF-FF Transformation." pith.science (2026). https://pith.science/paper/WIWBT2CP

@misc{pith2026260709361,
  author       = {Pith},
  title        = {Pith review of: Drone-Based Antenna Measurement System with Optimized Positioning and ASPIRE-Based NF-FF Transformation},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/WIWBT2CP}},
  note         = {Machine review of arXiv:2607.09361}
}
read the original abstract

Unmanned Aerial Vehicle (UAV)-based antenna measurement systems provide a flexible and cost-effective alternative to conventional antenna test ranges for characterizing large and installed antennas. However, their accuracy depends on precise UAV positioning and efficient flight-time utilization, both of which are strongly influenced by the selection of drone assemblies, including the airframe, flight controller, propulsion system, positioning modules, and onboard instrumentation. This paper presents a comprehensive study of UAV-based antenna measurements with emphasis on improving positioning accuracy and optimizing flight endurance through systematic drone assembly selection. The acquired near-field measurement data are susceptible to positioning errors, amplitude and phase inconsistencies, and irregular sampling, which degrade the reconstructed far-field pattern. To address these challenges, the recorded near-field data are processed using the Adaptive Sparse Inverse Radiation Estimation (ASPIRE) algorithm. ASPIRE compensates for positioning inaccuracies and reconstructs the far-field pattern from irregularly sampled near-field data using sparse signal recovery, enabling accurate Near-Field to Far-Field (NF-FF) transformation. At 6.7125 GHz, ASPIRE achieves a residual of 1.94% and a beamwidth error of 0.4 degrees relative to a conventional facility measurement while using only 24% of the 17,298-element RWG mesh as active support. The results demonstrate that the combination of optimized drone assembly selection and ASPIRE-based NF-FF transformation significantly improves the accuracy of UAV-based antenna measurements and produces far-field patterns that closely agree with conventional antenna test range measurements.

Figures

Figures reproduced from arXiv: 2607.09361 by the authors.

Figure 1
Figure 1. ASPIRE processing pipeline. Solid arrows: primary data path; dashed arrows: auxiliary paths. MLFMM reduces each MVP from [PITH_FULL_IMAGE:figures/full_fig_p004_1.png] view at source ↗
Figure 2
Figure 2. Reconstructed co-polar far-field pattern ( [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 3

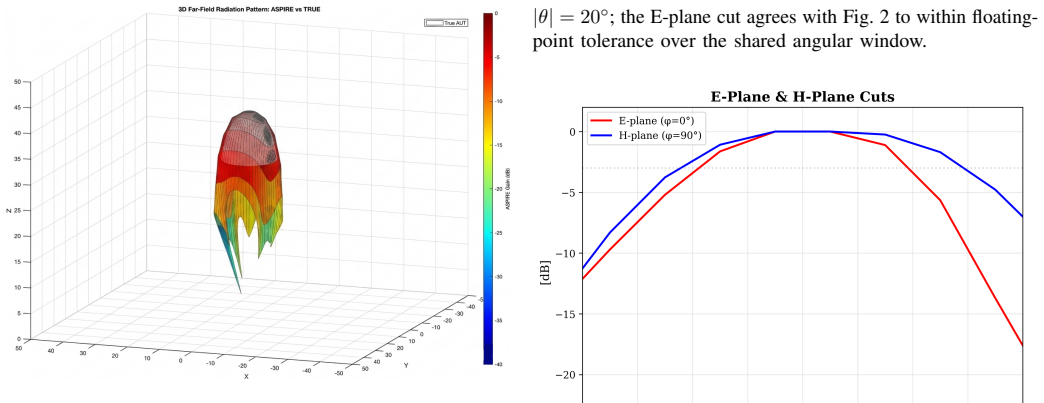

Figure 3. ASPIRE-reconstructed 3D far-field pattern at [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗
Figures from the paper (1 more)
Figure 4
Figure 4. Figure 4: presents the reconstructed gain distribution as a function of θ and φ (colour scale: 0 dB to −30 dB). Colour uniformity within the facility-validated band (|θ| ≤ 20◦ ) across all φ confirms stable reconstruction. The main beam is concentrated within θ ∈ [0◦ , 30◦ ], co…

Discussion (0). Continue with ORCID to comment.
