arxiv: 1907.07550 · v1 · pith:WZK73FLSnew · submitted 2019-07-17 · 🧮 math.NA · cs.NA

Geometric subdivision and multiscale transforms

Johannes Wallner This is my paper

Pith reviewed 2026-05-24 20:13 UTC · model grok-4.3

classification 🧮 math.NA cs.NA
keywords geometric subdivisionmultiscale transformsRiemannian manifoldspositive definite matricessymmetry preservationrefinement proceduresconvergencesmoothness
0
0 comments X

The pith

Any procedure on data must respect the symmetries and geometric structure of that data.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper establishes an axiom that every operation applied to data, including averages, refinement, and multiscale transforms, must preserve the intrinsic nature and symmetries of the data. It examines how this requirement can be met by working directly with geometric structures such as metric spaces, Riemannian manifolds, and groups rather than forcing data into Euclidean coordinates. A concrete case is the natural Riemannian metric on the space of positive definite matrices, which yields intrinsic averages and operations. The discussion then turns to subdivision schemes and multiresolution transforms defined on these structures, summarizing existing results on their convergence and smoothness. A reader would care because procedures that ignore geometry can distort properties that the data are meant to carry.

Core claim

The author claims that refinement procedures and multiresolution transforms must be constructed from intrinsic operations on geometric structures (metric spaces, Riemannian manifolds, groups) so that they respect data symmetries, illustrates the principle with the Riemannian metric on positive definite matrices, and reviews the current state of knowledge concerning convergence and smoothness of the resulting subdivision schemes.

What carries the argument

Intrinsic operations derived from geometric structures such as the Riemannian metric on positive definite matrices, used to define averages and refinement rules that preserve symmetries.

If this is right

  • Averages and subdivisions defined via the Riemannian metric on positive definite matrices preserve positive definiteness and other matrix properties.
  • Subdivision schemes on manifolds converge when the refinement rules are constructed from the intrinsic geometry.
  • Multiscale transforms built this way maintain the symmetries of the original data space.
  • Smoothness of the limit surface or curve depends on the choice of geometrically consistent averaging.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same symmetry requirement would apply to data-driven methods such as interpolation on Lie groups used in robotics or animation.
  • One could test whether Euclidean approximations systematically introduce artifacts on spheres or hyperbolic spaces that intrinsic methods avoid.
  • The approach suggests examining whether current multiresolution tools in scientific computing already satisfy or violate the axiom on specific manifolds.

Load-bearing premise

That metric spaces, Riemannian manifolds, and groups supply the right setting in which to define operations that respect the nature of the data.

What would settle it

A concrete subdivision scheme or average defined without reference to the manifold structure that nonetheless produces limits with the expected convergence rate and smoothness on a Riemannian manifold or group.

Figures

Figures reproduced from arXiv: 1907.07550 by Johannes Wallner.

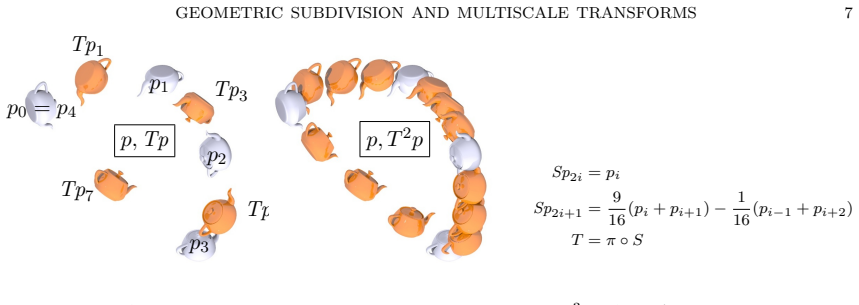

Figure 1
Figure 1. Figure 1: Subdivision by projection in the motion group R 3 o O3. A 4-periodic sequence pi = (ci , ui) of positions of a rigid body is defined by the center of mass ci , and an orientation ui ∈ O3. Both components undergo subdivision w.r.t. the interpolatory four-point rule S, where the matrix part is subsequently projected back onto O3 in an invariant manner. • Subdivision using projections. If M is a surface embed… view at source ↗

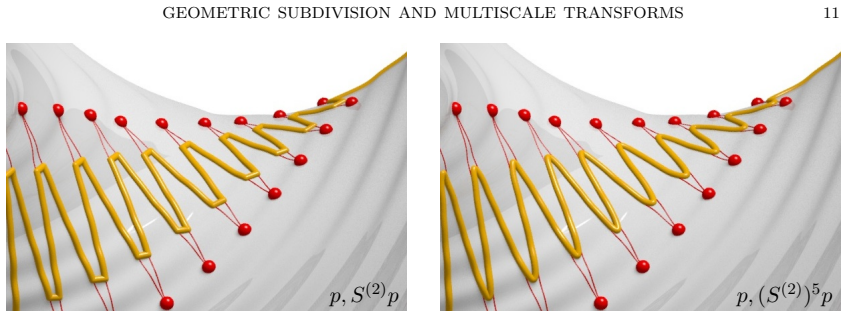

Figure 2
Figure 2. Figure 2: Geodesic corner-cutting rules are among those where convergence is not difficult to show. These images show Chaikin’s rule S (2), with the original data in red, and the result of subdivision as a yellow geodesic polygon. Sp2i = pi and Sp2i+1 = −ωpi−1 + ( 1 2 + ω)pi + ( 1 2 + ω)pi+1 − ωpi+2 = pi + pi+1 2 − ω  pi−1 − pi + pi+1 2  − ω  pi+2 − pi + pi+1 2  . In the special case ω = 1 16 , the point Sp2i+1 … view at source ↗

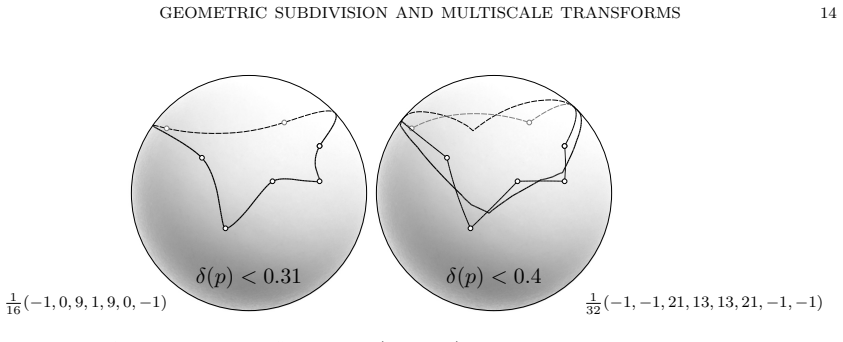

Figure 3
Figure 3. Figure 3: Subdivision rules Spj = avgF (aj−2i ; pi) based on the Fr´echet mean operating on sequences on the unit sphere. The images visualize the interpolatory 4-point rule (left) and a rule without any special properties. We show the coefficient sequence aj and the bound on δ(p) which ensures convergence. This result is satisfying because it allows us to infer convergence from a condition which is well known in th… view at source ↗

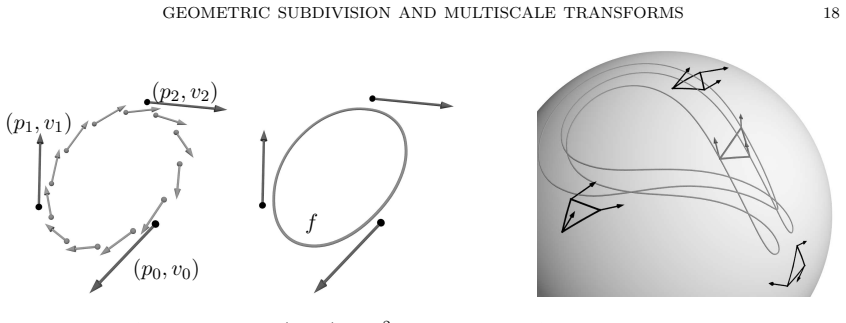

Figure 4
Figure 4. Figure 4: Left: Hermite data (pi , vi) in R 2 and the result of one round subdivision by a linear Hermite rule S. Center: Limit curve f (f 0 is not shown). Right: Hermite data (pi , vi) in the group SO3, and the limit curve generated by a group version of S. Points pi ∈ SO3 and tangent vectors vi ∈ TpiSO3 are visualized by means of their action on a spherical triangle. These figures appeared in [42] (reprinted with … view at source ↗

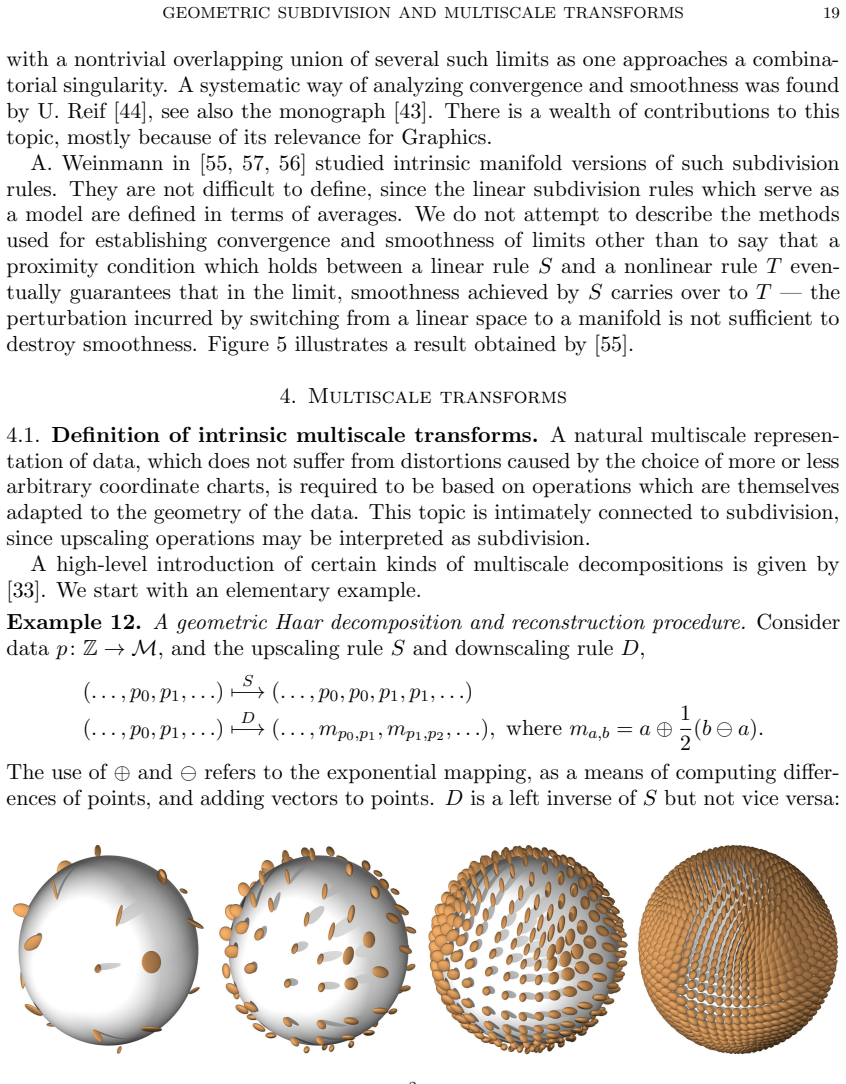

Figure 5
Figure 5. Figure 5: Here data pi in the unit sphere Σ2 and Pos3-valued data qi are visualized by plac￾ing the ellipsoid with equation x T qix = 1 in the point pi ∈ Σ 2 . Both data undergo iterative refinement by means of a Riemannian version S of the Doo-Sabin subdivision rule. For given initial data p, q which have the combinatorics of a cube, the four images show S jp and S j q, for q = 1, 2, 3, 4 (from left). The correspon… view at source ↗
Figure 6
Figure 6. Figure 6: The decomposition and re￾construction chains of operations in a geometric multiscale decomposition based on upscaling and downscaling S, D for points, and upscaling and downscaling R, Q for detail vectors [PITH_FULL_IMAGE:figures/full_fig_p020_6.png] view at source ↗
read the original abstract

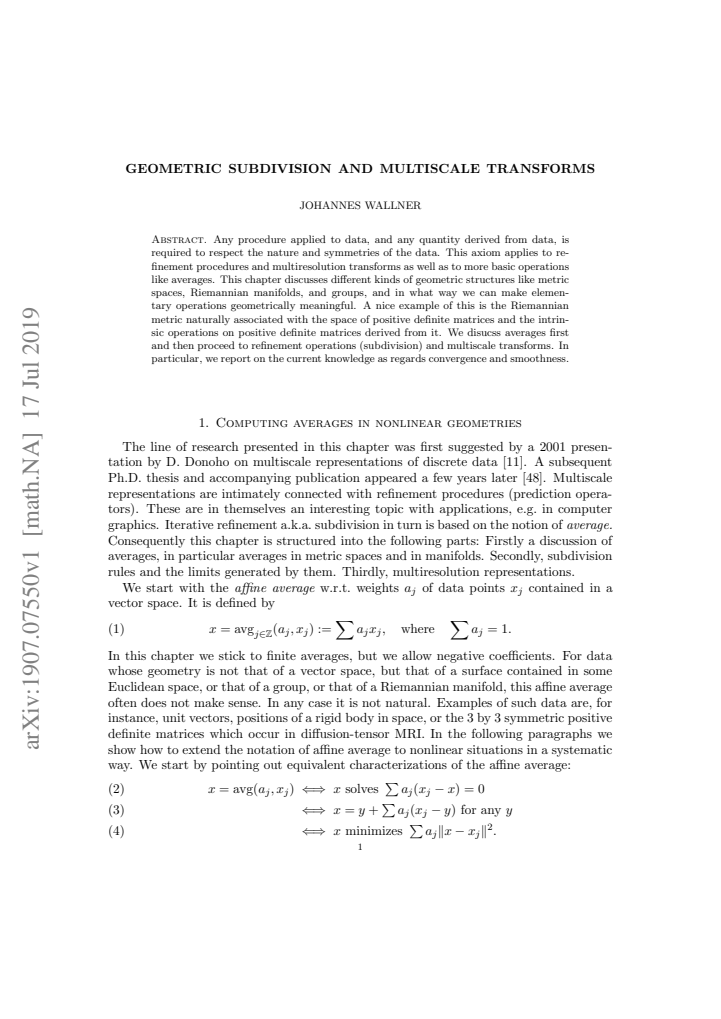

Any procedure applied to data, and any quantity derived from data, is required to respect the nature and symmetries of the data. This axiom applies to refinement procedures and multiresolution transforms as well as to more basic operations like averages. This chapter discusses different kinds of geometric structures like metric spaces, Riemannian manifolds, and groups, and in what way we can make elementary operations geometrically meaningful. A nice example of this is the Riemannian metric naturally associated with the space of positive definite matrices and the intrinsic operations on positive definite matrices derived from it. We disucss averages first and then proceed to refinement operations (subdivision) and multiscale transforms. In particular, we report on the current knowledge as regards convergence and smoothness.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

0 major / 1 minor

Summary. The manuscript is an expository survey chapter that states an axiom requiring any data-processing procedure (including averages, refinement schemes, and multiresolution transforms) to respect the symmetries and intrinsic geometry of the underlying data. It reviews standard geometric settings—metric spaces, Riemannian manifolds, and groups—and shows how to equip them with intrinsic operations, using the Riemannian metric on the manifold of positive definite matrices as a running example. The chapter then surveys known constructions of geometric subdivision schemes and multiscale transforms, reporting existing results on their convergence and smoothness without presenting new theorems.

Significance. As a survey, the chapter offers a coherent framing of geometric subdivision and multiresolution methods under a single symmetry-respecting principle. Its value lies in collecting and organizing known convergence and smoothness results from the literature into one narrative, which may serve as a useful reference for researchers in numerical analysis and geometric modeling. No new derivations, proofs, or empirical validations are provided, so the significance is that of synthesis rather than original contribution.

minor comments (1)
  1. [Abstract] Abstract: 'disucss' is a typographical error for 'discuss'.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for the positive assessment of the manuscript as an expository survey chapter and for the recommendation of minor revision. The report accurately characterizes the work as a synthesis of existing results on symmetry-respecting geometric operations, subdivision schemes, and multiscale transforms, without new theorems.

Circularity Check

0 steps flagged

No significant circularity; expository survey with external citations

full rationale

The paper is a survey chapter presenting an axiom about respecting data symmetries and then surveying known constructions on standard geometric structures (metric spaces, Riemannian manifolds, groups). It reports existing results on convergence and smoothness without offering new derivations, predictions, or theorems. No load-bearing steps reduce to self-citation chains or fitted inputs by construction; all technical content is attributed to external literature. This matches the default expectation of a self-contained expository text.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

This is a survey chapter; the ledger records background assumptions from differential geometry and analysis that the discussion relies upon rather than new postulates introduced by the author.

axioms (2)
  • domain assumption Data possesses symmetries that any derived quantity must respect.
    Opening sentence of the abstract; treated as an axiom for the entire discussion.
  • domain assumption Riemannian metrics on manifolds such as the space of positive definite matrices induce intrinsic, geometrically meaningful operations.
    Presented as the motivating example for making averages and refinement intrinsic.
