arxiv: 1907.03905 · v1 · pith:X4WNGDNHnew · submitted 2019-07-08 · ⚛️ physics.app-ph

Temperature Dependence of a Width of DeltaH = DeltaB Region in 5 wt.\% (Fe, Ti) Paticle-Doped MgB₂ Superconductor

H. B. Lee , G. C , Kim , Y. C. Kim This is my paper

Pith reviewed 2026-05-25 00:22 UTC · model grok-4.3

classification ⚛️ physics.app-ph
keywords MgB2 superconductorflux pinningupper critical fieldtemperature dependenceparticle dopingmagnetic field regionBean model
0
0 comments X

The pith

Widths of the ΔH = ΔB region in 5 wt.% (Fe, Ti)-doped MgB2 increase linearly with temperature.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper measures the temperature dependence of the width of the ΔH = ΔB region in a magnesium diboride superconductor doped with five weight percent iron-titanium particles. The widths vary linearly as temperature changes. This linear dependence is presented as support for an earlier theory that the region's width equals the upper critical field spacing at which pinned magnetic fluxes at volume defects begin to move. The authors examine the relationship between the region width and the upper critical field across temperatures and discuss related topics including the role of iron in the particles and application of the Bean model.

Core claim

Widths of the ΔH = ΔB region are linear along temperature in 5 wt.% (Fe, Ti) particle-doped MgB2 superconductor. This proportionality supplies justification for the theory that the width equals the upper critical field spacing where pinned fluxes move when their distance matches that spacing.

What carries the argument

The ΔH = ΔB region, the magnetic-field interval where change in H equals change in B, defined as the spacing at which pinned fluxes at volume defects move because their separation equals the upper critical field spacing.

If this is right

  • The prior theory that the region's width equals the upper critical field spacing receives additional support from the observed linearity.
  • The proportionality between region width and upper critical field holds across the measured temperature range for this doped sample.
  • The result allows discussion of volume dependence of the region and application of the Bean model within the same framework.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • If the linear relation holds in other type-II superconductors with volume pinning centers, width measurements could estimate upper critical field temperature dependence without separate experiments.
  • The finding constrains models of how particle defects pin flux lines by requiring the effective spacing to track the upper critical field.
  • Testing the same temperature sweep on undoped MgB2 or different particle concentrations would isolate the contribution of the (Fe, Ti) particles.

Load-bearing premise

The ΔH = ΔB region is physically set by the distance between pinned fluxes equaling the upper critical field spacing.

What would settle it

A direct measurement on the same 5 wt.% (Fe, Ti)-doped MgB2 sample showing that the width of the ΔH = ΔB region does not increase linearly with temperature would falsify the claimed proportionality.

Figures

Figures reproduced from arXiv: 1907.03905 by G. C, H. B. Lee, Kim, Y. C. Kim.

Figure 1

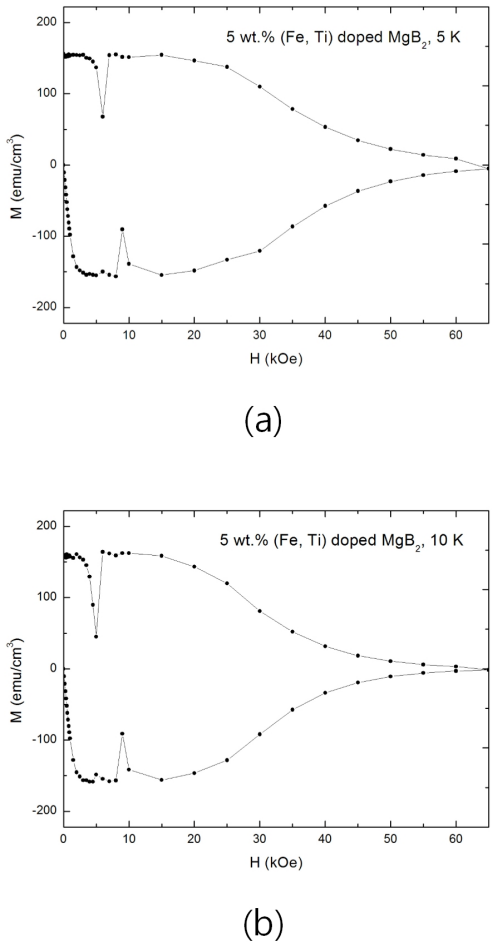

Figure 1. Figure 1: FIG. 1: Field dependence of magnetizations (M-H curves) of 5 wt.% (Fe, Ti) particle-doped MgB [PITH_FULL_IMAGE:figures/full_fig_p010_1.png] view at source ↗
Figure 2

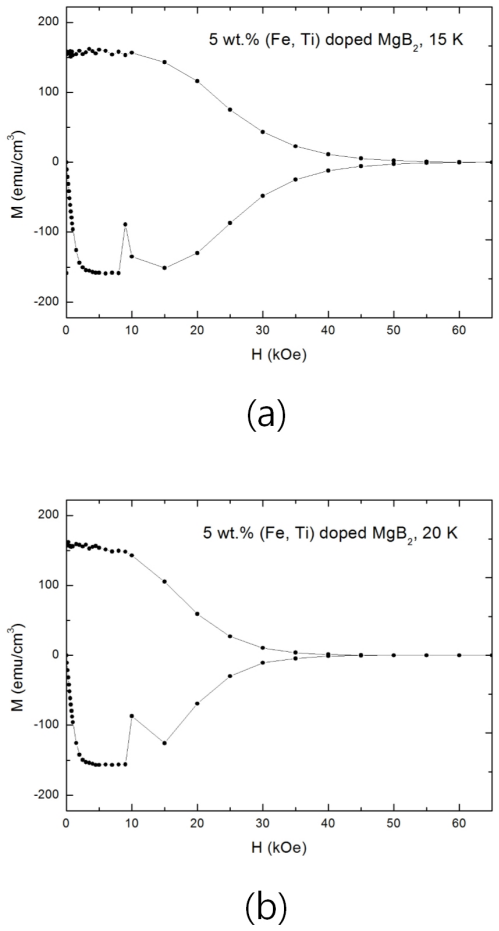

Figure 2. Figure 2: FIG. 2: Field dependence of magnetizations (M-H curves) of 5 wt.% (Fe, Ti) particle-doped MgB [PITH_FULL_IMAGE:figures/full_fig_p011_2.png] view at source ↗
Figure 3

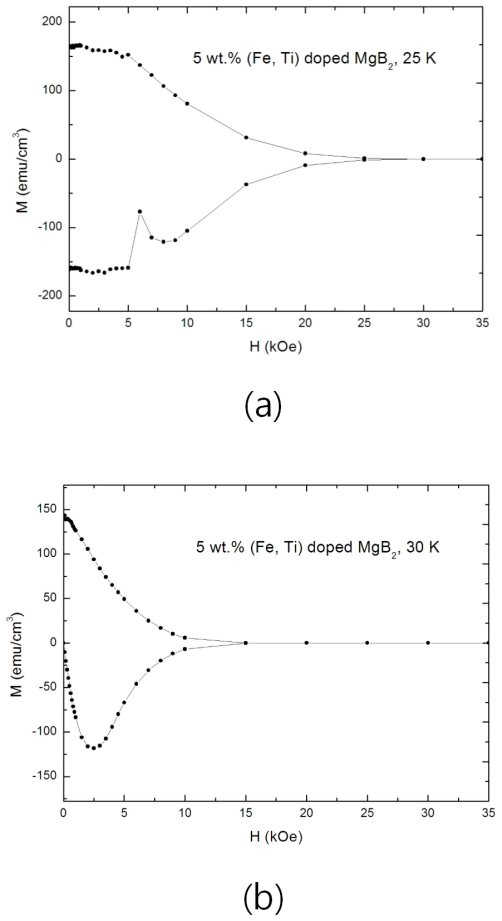

Figure 3. Figure 3: FIG. 3: Field dependence of magnetizations (M-H curves) of 5 wt.% (Fe, Ti) particle-doped MgB [PITH_FULL_IMAGE:figures/full_fig_p012_3.png] view at source ↗
Figure 4

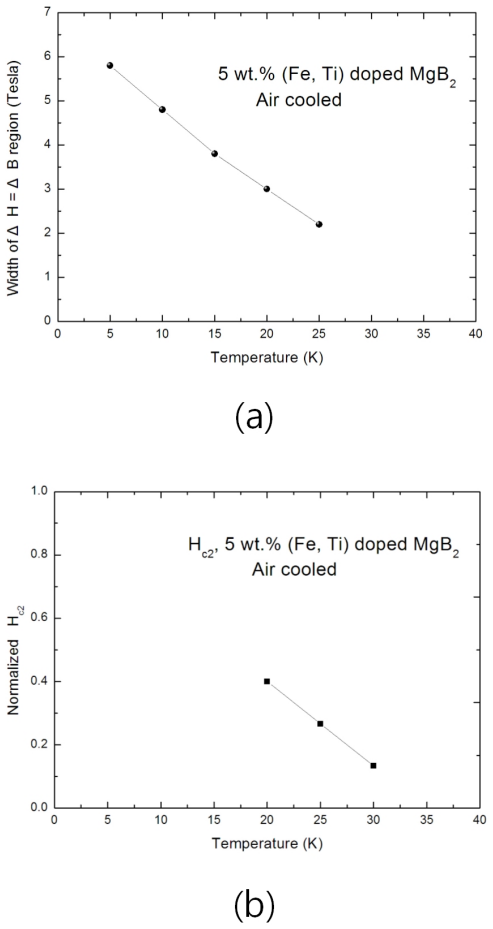

Figure 4. Figure 4: FIG. 4: (a): Temperature dependence of a width of ∆H =∆B region for 5 wt.% (Fe, Ti) particle [PITH_FULL_IMAGE:figures/full_fig_p013_4.png] view at source ↗
Figure 5

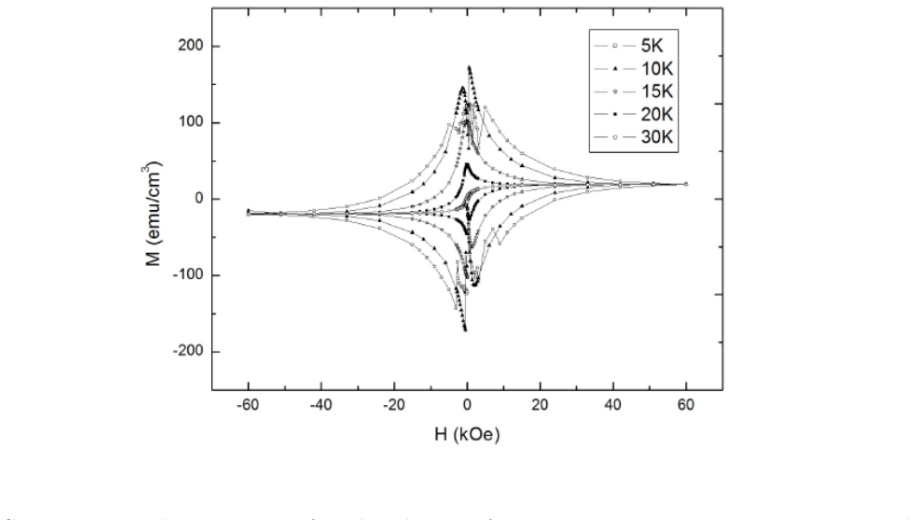

Figure 5. Figure 5: FIG. 5: Distorted M-H curves of Fe-doped MgB [PITH_FULL_IMAGE:figures/full_fig_p014_5.png] view at source ↗
read the original abstract

A temperature dependence of a width of $\Delta$H = $\Delta$B region has been studied for 5 wt.\% (Fe, Ti) particle-doped MgB$_2$ superconductor. The result revealed that widths of the region are linear along temperature. Here we show the meaning of the result and details of the calculation. In previous report, we represented a theory that a width of $\Delta$H = $\Delta$B region is related with upper critical field of the superconductor, which is that pinned fluxes at volume defect are picked out and move in $\Delta$H = $\Delta$B region when a distance between them is the same as that of upper critical field. Thus, we inspected the relationship between a width of the region and upper critical field along temperature. The theory would gain another justification if temperature dependence of a width of the region is proportional to that of upper critical field. We discussed several topics for $\Delta$H = $\Delta$B region of 5 wt.\% (Fe, Ti) particle-doped MgB$_2$ superconductor, which are Fe of (Fe, Ti) particle, Bean model, volume dependence of the region, etc..

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 2 minor

Summary. The manuscript studies the temperature dependence of the width of the ΔH = ΔB region in 5 wt.% (Fe, Ti) particle-doped MgB2 superconductor. It reports that these widths are linear with temperature and states that this proportionality supports the authors' prior theory linking the region to the upper critical field spacing at which pinned fluxes at volume defects begin to move.

Significance. If the linearity holds with full supporting data and the flux-spacing interpretation receives an independent check, the result could add justification for the pinning model in particle-doped MgB2 and related critical-state behavior. The discussion of Fe in (Fe,Ti) particles, Bean-model applicability, and volume dependence provides additional context for the doped system.

major comments (3)
  1. [Abstract] Abstract: the claim that widths of the ΔH = ΔB region 'are linear along temperature' is asserted without data points, error bars, measurement protocol, or statistical test, so the central empirical result cannot be evaluated against the paper's own evidence.
  2. [Abstract] Abstract (theory paragraph): the justification that linearity supports the theory rests entirely on the authors' previous report; the temperature dependence is interpreted through that same prior definition of the ΔH = ΔB region as the Hc2 spacing for pinned-flux motion, without re-derivation or direct verification of the distance condition in this work.
  3. [Abstract] Abstract: linearity with T is the expected behavior of Hc2(T) near Tc in standard theory, therefore the observed linearity alone does not test whether the width is specifically set by the proposed flux-spacing criterion rather than by other temperature-dependent pinning or critical-state effects.
minor comments (2)
  1. The abstract refers to 'details of the calculation' but these are not shown; a methods or results section should supply the explicit relation used to extract the width from magnetization data.
  2. Notation: the symbol ΔH = ΔB is used without an equation or figure defining how the equality is identified experimentally.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for the constructive comments. We address each major point below, indicating revisions where appropriate to strengthen the manuscript while preserving its focus on the temperature-dependent measurements.

read point-by-point responses

  1. Referee: [Abstract] Abstract: the claim that widths of the ΔH = ΔB region 'are linear along temperature' is asserted without data points, error bars, measurement protocol, or statistical test, so the central empirical result cannot be evaluated against the paper's own evidence.

    Authors: The abstract summarizes the key finding, while the full manuscript presents the supporting data in the results section, including plots of width versus temperature that display the data points and linear fits. Measurement protocols (magnetization measurements under varying temperature) are described in the methods. We agree the abstract would benefit from a brief reference to the experimental figures and will revise it accordingly to improve clarity without exceeding length limits. Error bars and any statistical details from the fits can be noted if space permits. revision: partial

  2. Referee: [Abstract] Abstract (theory paragraph): the justification that linearity supports the theory rests entirely on the authors' previous report; the temperature dependence is interpreted through that same prior definition of the ΔH = ΔB region as the Hc2 spacing for pinned-flux motion, without re-derivation or direct verification of the distance condition in this work.

    Authors: This work is an experimental test of the implication from our prior theory rather than a re-derivation. The prior report established the flux-spacing criterion linking the ΔH = ΔB width to Hc2; here we examine whether the measured widths follow the temperature dependence of Hc2 as predicted. To make the manuscript more self-contained, we will add a concise restatement of the distance condition from the earlier derivation in the introduction or discussion. revision: yes

  3. Referee: [Abstract] Abstract: linearity with T is the expected behavior of Hc2(T) near Tc in standard theory, therefore the observed linearity alone does not test whether the width is specifically set by the proposed flux-spacing criterion rather than by other temperature-dependent pinning or critical-state effects.

    Authors: We acknowledge that Hc2(T) is linear near Tc in standard Ginzburg-Landau theory, so linearity of the width is consistent with a link to Hc2 but does not by itself exclude other mechanisms. The support for the specific flux-spacing model arises from the quantitative match between the measured widths and the Hc2 values (as calculated from the prior definition) together with the discussion of volume-defect pinning and Bean-model applicability in the doped system. The manuscript already includes context on these points; we will expand the discussion section slightly to contrast the expected behavior under alternative pinning scenarios. revision: partial

Circularity Check

1 steps flagged

Central justification for ΔH=ΔB physical meaning rests on self-citation to authors' prior report without re-derivation

specific steps
  1. self citation load bearing [Abstract]
    "In previous report, we represented a theory that a width of ΔH = ΔB region is related with upper critical field of the superconductor, which is that pinned fluxes at volume defect are picked out and move in ΔH = ΔB region when a distance between them is the same as that of upper critical field. Thus, we inspected the relationship between a width of the region and upper critical field along temperature. The theory would gain another justification if temperature dependence of a width of the region is proportional to that of upper critical field."

    The physical definition and meaning of the ΔH=ΔB region (pinned fluxes move when their spacing matches the upper critical field spacing) is imported wholesale from the authors' own prior report and is not re-derived or independently tested in this work. The new temperature-dependence result is then offered as justification for that same imported theory, so the central interpretive claim reduces directly to the self-citation.

full rationale

The paper's interpretation of the observed linear temperature dependence as supporting the theory that ΔH=ΔB width equals the Hc2 spacing for pinned-flux motion is explicitly tied to the definition and theory presented only in the authors' previous report. The abstract states that the proportionality would 'gain another justification' for that prior theory, but provides no independent derivation or external check of the flux-spacing criterion here; the result is therefore evaluated solely against the self-cited assumption. This matches the self_citation_load_bearing pattern at the core of the claimed justification.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on the unverified definition of the ΔH = ΔB region from the authors' prior work and the assumption that linearity with temperature confirms a physical link to upper critical field; no free parameters, axioms, or invented entities are explicitly introduced in the abstract.

axioms (1)
  • domain assumption The ΔH = ΔB region width equals the upper critical field spacing at which pinned fluxes move (invoked via reference to previous report).
    This premise is required for the linearity result to justify the theory; it is stated as background from prior work.

pith-pipeline@v0.9.0 · 5767 in / 1397 out tokens · 27691 ms · 2026-05-25T00:22:59.716026+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

15 extracted references · 15 canonical work pages · 2 internal anchors

  1. [1]

    H. B. Lee, G. C. Kim, H. J. Park, D. Ahmad, and Y. C. Kim, ∆H = ∆B region in volume defect-dominating superconductors. https://arxiv.org/abs/1805.04683 (2018)

    work page internal anchor Pith review Pith/arXiv arXiv 2018

  2. [2]

    D. J. Van Ooljkn and G. J. Van Gurp, Measurement of noise in the resistive state of type II superconductor. Phys. Lett. 17 230 (1965)

    work page 1965

  3. [3]

    J. E. Bonevich et al. Electron Holography Observation of Vortex Lattices in a Superconductor. Phys. Rev. Lett. 70 2952 (1993)

    work page 1993

  4. [4]

    Poole, Jr., Horacio A

    Charles P. Poole, Jr., Horacio A. Farach, Richard J. Creswick, SUPERCONDUCTIVITY 1st 270, Academic Press (1995)

    work page 1995

  5. [5]

    H. B. Lee, G. C. Kim, Y. C. Kim, R. K. Ko, and D. Y. Jeong, Equation of motion for pinned fluxes at volume defects and increases of a diamagnetic property by flux pinning in superconductors, https://arxiv.org/abs/1904.06434 (2019)

    work page arXiv 1904

  6. [6]

    S. W. Hsu, K. Chen and W. H. Lee, Temperature and Field-Sweeping Rate Dependence of Flux Jumps in A Melt-Textured YBa2Cu3O7−x Superconductor. Solid State Communications 75 799 (1990). 8

    work page 1990

  7. [7]

    K. H. M¨uller and C. Andrikidis, Flux jumps in melt-textured Y-Ba-Cu-O, Phys. Rev. B 49, 1294-1307 (2003)

    work page 2003

  8. [8]

    Michael Tinkham, INTRODUCTION TO SUPERCONDUCTIVITY second edition, Dover Publication, New York 118 (2004)

    work page 2004

  9. [9]

    Cristina Buzea and Tsutomu Yamashita, Review of the superconducting properties of MgB 2 Supercond. Sci. Technol. 14 R115 (2001)

    work page 2001

  10. [10]

    Supercond

    M Eisterer, Magnetic properties and critical currents of MgB 2. Supercond. Sci. Technol. 20 R47R73 (2007)

    work page 2007

  11. [11]

    H. B. Lee, G. C. Kim, B. J. Kim, and Y. C. Kim, Upper Critical Field Based on the Width of ∆H = ∆B region in a Superconductor. https://arxiv.org/abs/1905.08559 (2019)

    work page internal anchor Pith review Pith/arXiv arXiv 1905

  12. [12]

    H. B. Lee, G. C. Kim, Y. C. Kim and D. Ahmad, Flux jump behaviors and mechanism of FeTi doped MgB2 at 5 K, Physica C 515 31 (2015)

    work page 2015

  13. [13]

    Bean, Magnetization of High-Field Superconductors

    Charles P. Bean, Magnetization of High-Field Superconductors. Rev. of Mor. Phy. Jan. 31 (1964)

    work page 1964

  14. [14]

    R Fl¨ukiger, P Lezza, C Beneduce, N Musolino and H L Suo, Improved transport critical current and irreversibility fields in mono- and multifilamentary Fe/MgB 2 tapes and wires using fine powders, Supercond. Sci. Technol. 16 264-270 (2003)

    work page 2003

  15. [15]

    H. B. Lee, Y. C. Kim and D. Y. Jeong, Non-special atmosphere synthesis for MgB 2. J. Kor. Phys. Soc. 48 279-282 (2006). 9 FIG. 1: Field dependence of magnetizations (M-H curves) of 5 wt.% (Fe, Ti) particle-doped MgB 2, which was air-cooled. (a): M-H curve at 5 K. (b): M-H curve at 10 K. 10 FIG. 2: Field dependence of magnetizations (M-H curves) of 5 wt.% ...

    work page 2006
