ECHO-PPI: Trustworthy AI for Evidence-Bundled Detection of Overlapping Protein Modules in Protein-Protein Interaction Networks

Sima Soltani , Mehrdad Jalali , Yahya Forghani This is my paper

Pith reviewed 2026-05-21 01:17 UTC · model grok-4.3

classification 💻 cs.SI
keywords protein-protein interaction networksoverlapping modulescommunity detectionGene Ontologyinterpretabilityevidence integrationprotein complexestrustworthy AI
0
0 comments X

The pith

ECHO-PPI attaches topology, semantic, and Gene Ontology scores plus hierarchical labels to each overlapping protein-module assignment.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

Protein-protein interaction networks map cellular organization but produce overlapping and noisy modules that are hard to trust from assignments alone. ECHO-PPI builds candidate modules by first locating evidence-potential nuclei and then folds in weighted topology, protein semantic profiles, and Gene Ontology terms to generate per-assignment evidence scores. These scores feed a hierarchical confidence label that marks assignments as core, peripheral, or uncertain. The result keeps the module recovery performance of existing overlap-aware methods on yeast data while turning each prediction into an auditable record that biologists can inspect and rank. If the bundling works as intended, curators gain a practical way to triage results for downstream use instead of treating all assignments as equally reliable.

Core claim

ECHO-PPI integrates weighted network topology, semantic protein profiles, and Gene Ontology evidence to identify evidence-potential nuclei, construct candidate modules, perform overlap-aware assignment, and export hierarchical confidence labels. Each protein-module assignment carries separate topology, semantic, and Gene Ontology evidence scores together with a hierarchical confidence label. This produces assignment-level interpretability that lets curators inspect, rank, and triage overlapping predictions while the underlying detection behavior matches strong baselines on yeast protein-interaction data.

What carries the argument

evidence-bundled assignment process that converts topology, semantic profiles, and Gene Ontology data into per-assignment scores and hierarchical confidence labels

If this is right

  • Each protein-module assignment becomes inspectable at the individual level rather than only at the module level.
  • Curators can rank and triage predictions using the hierarchical confidence labels.
  • The framework maintains the module recovery performance of strong overlap-aware baselines on yeast data.
  • Predictions gain reproducibility for downstream biological interpretation through explicit evidence trails.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same evidence-bundling pattern could be tested on human PPI networks to check whether the labels improve prioritization of disease-related modules.
  • If the confidence labels align with independent functional coherence measures, they might serve as a signal to refine Gene Ontology annotations themselves.
  • The approach suggests a template for adding auditability to other overlapping community detection tasks outside biology, such as social or citation networks.

Load-bearing premise

Bundling topology, semantic, and Gene Ontology evidence into per-assignment scores and hierarchical labels will produce trustworthy, actionable interpretability for biologists while preserving detection behavior of strong overlap-aware baselines.

What would settle it

A controlled test on new yeast or human PPI data in which biologists triage and validate module assignments using only the raw clusters versus the same clusters with ECHO-PPI evidence scores and labels would falsify the claim if the added labels show no measurable gain in triage speed, agreement with known complexes, or experimental follow-up success.

Figures

Figures reproduced from arXiv: 2605.21216 by Mehrdad Jalali, Sima Soltani, Yahya Forghani.

Figure 1
Figure 1. Figure 1: ECHO-PPI four-layer workflow. A weighted PPI input network is transformed into evidence-potential nucleus selection using topology, [PITH_FULL_IMAGE:figures/full_fig_p005_1.png] view at source ↗
Figure 3

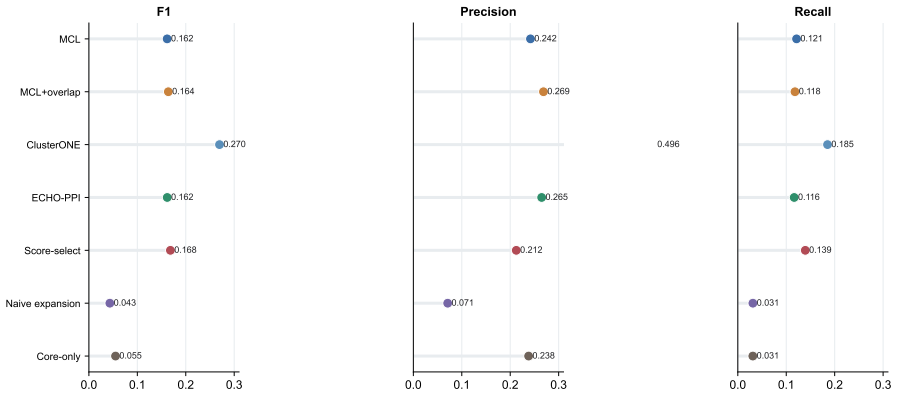

Figure 3. Figure 3: Gavin benchmark comparison across F1, precision, and recall. [PITH_FULL_IMAGE:figures/full_fig_p007_3.png] view at source ↗
Figure 2

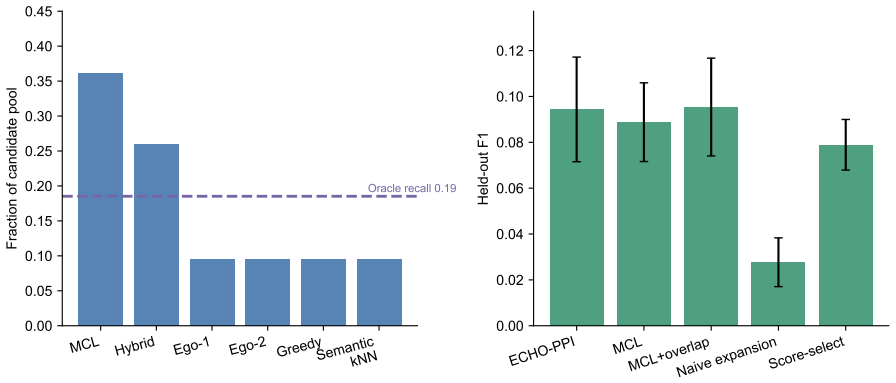

Figure 2. Figure 2: Candidate-source composition and held-out benchmark sum [PITH_FULL_IMAGE:figures/full_fig_p007_2.png] view at source ↗
Figure 4
Figure 4. Figure 4: Required-field evidence-bundle completeness. ECHO-PPI ex [PITH_FULL_IMAGE:figures/full_fig_p007_4.png] view at source ↗
Figure 6
Figure 6. Figure 6: Failure-mode ablation summary on full gold. [PITH_FULL_IMAGE:figures/full_fig_p008_6.png] view at source ↗
Figure 9
Figure 9. Figure 9: Hierarchical confidence labels. Left: rule regions in topology– [PITH_FULL_IMAGE:figures/full_fig_p009_9.png] view at source ↗
Figure 10

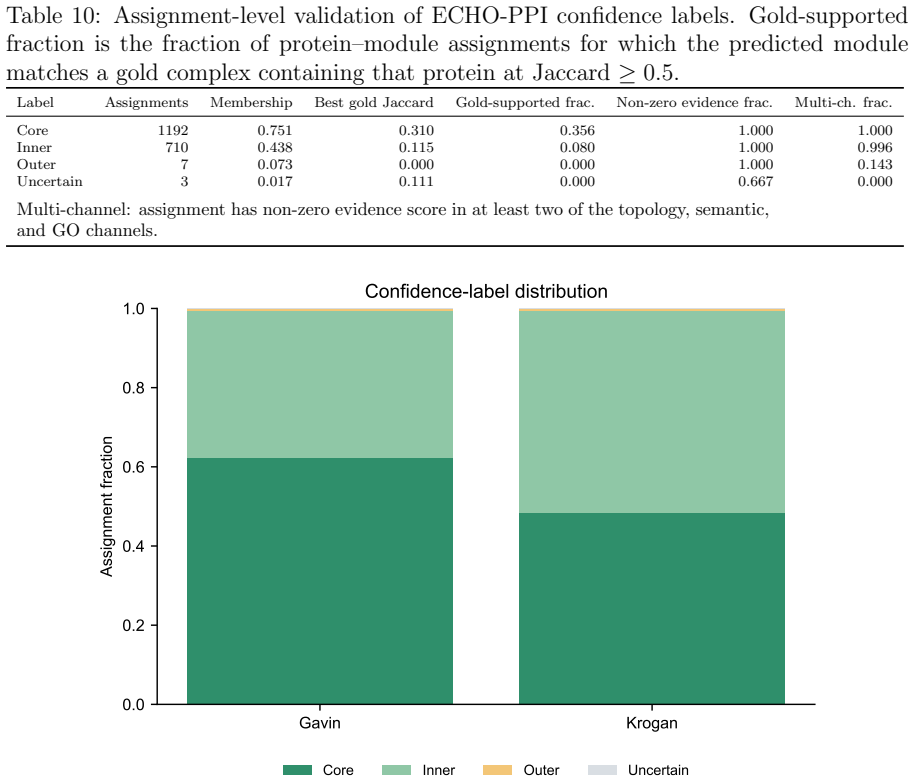

Figure 10. Figure 10: Confidence-label distribution across Gavin and Krogan. Label [PITH_FULL_IMAGE:figures/full_fig_p009_10.png] view at source ↗
Figure 11
Figure 11. Figure 11: Cached and uncached runtime comparison. Cached times as [PITH_FULL_IMAGE:figures/full_fig_p010_11.png] view at source ↗
Figure 12

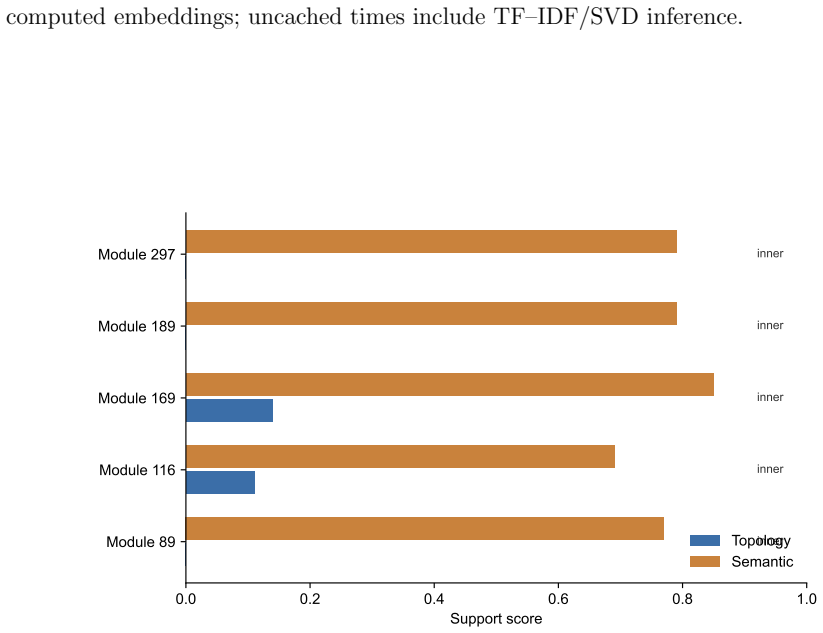

Figure 12. Figure 12: Case study YKR018C: topology and semantic support across [PITH_FULL_IMAGE:figures/full_fig_p010_12.png] view at source ↗
Figure 13

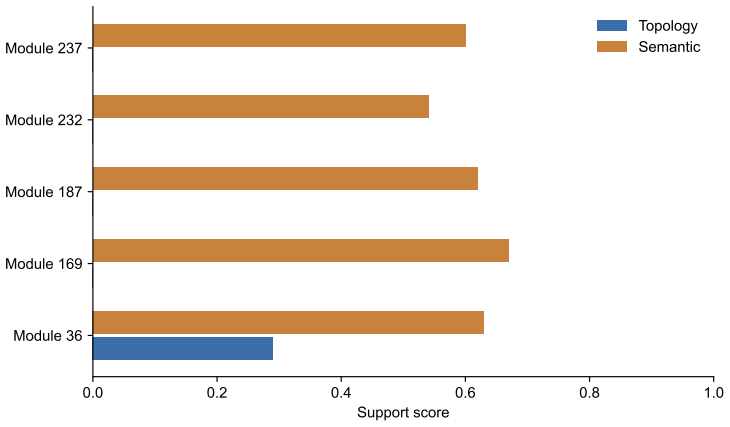

Figure 13. Figure 13: Case study YIL161W: five modules with cytoplasmic GO sup [PITH_FULL_IMAGE:figures/full_fig_p011_13.png] view at source ↗
Figure 14

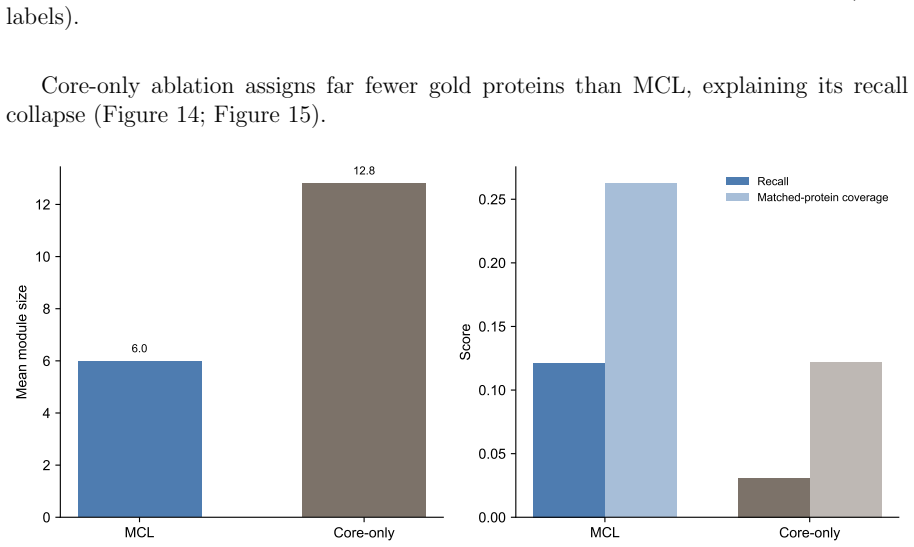

Figure 14. Figure 14: Diagnostic comparison of module sizes and gold-protein cover [PITH_FULL_IMAGE:figures/full_fig_p011_14.png] view at source ↗
read the original abstract

Protein-protein interaction networks provide a graph-level view of cellular organization, yet their functional modules are overlapping, noisy, and difficult to interpret from cluster assignments alone. Existing community-detection methods can recover candidate protein complexes, but they rarely explain why an individual protein is assigned to a specific module or whether that assignment should be treated as core, peripheral, or uncertain. Here we introduce ECHO-PPI, an evidence-bundled framework for interpretable overlapping protein-module detection in protein-protein interaction networks. ECHO-PPI integrates weighted network topology, semantic protein profiles, and Gene Ontology evidence to identify evidence-potential nuclei, construct candidate modules, perform overlap-aware assignment, and export hierarchical confidence labels. The framework supports trustworthy computational decision support through assignment-level interpretability: each protein-module assignment is accompanied by topology, semantic, and Gene Ontology evidence scores and a hierarchical confidence label, enabling curators to inspect, rank, and triage overlapping module predictions. Evaluation on yeast protein-interaction data shows that ECHO-PPI preserves the behaviour of strong overlap-aware baselines while adding evidence-bundled auditability. Rather than claiming universal predictive superiority, ECHO-PPI addresses a complementary need: making overlapping protein-module predictions inspectable, confidence-aware, and reproducible for downstream biological interpretation.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper introduces ECHO-PPI, an evidence-bundled framework for interpretable overlapping protein-module detection in PPI networks. It integrates weighted network topology, semantic protein profiles, and Gene Ontology evidence to identify evidence-potential nuclei, construct candidate modules, perform overlap-aware assignment, and export hierarchical confidence labels for each protein-module assignment. The central claim is that this approach preserves the detection behavior of strong overlap-aware baselines on yeast protein-interaction data while adding assignment-level interpretability, evidence scores, and auditability for curators and biologists.

Significance. If the preservation of baseline behavior is quantitatively verified, the work could meaningfully advance trustworthy AI applications in computational biology by addressing the need for inspectable, confidence-aware predictions rather than opaque cluster assignments. The bundling of multiple evidence types into per-assignment scores and hierarchical labels targets a practical gap in existing overlapping module detection methods. However, the current lack of reported metrics makes it difficult to gauge whether the framework delivers on its no-tradeoff promise or represents a substantive methodological advance.

major comments (2)
  1. [Abstract / Evaluation section] Abstract and evaluation description: the claim that 'evaluation on yeast protein-interaction data shows that ECHO-PPI preserves the behaviour of strong overlap-aware baselines' is presented without any quantitative metrics (e.g., module overlap Jaccard, NMI, or per-protein assignment agreement), baseline identities, or comparison tables. This directly undermines the central value proposition that interpretability is added without altering detection behavior.
  2. [Method / Evaluation] Framework description: the overlap-aware assignment step and hierarchical confidence labeling are described as preserving baseline outputs, yet no explicit verification (such as before/after module sets or agreement statistics) is supplied to confirm that these post-processing stages do not silently modify the recovered modules.
minor comments (2)
  1. [Abstract] The abstract would benefit from naming the specific strong overlap-aware baselines used and the key quantitative metrics employed to support the preservation claim.
  2. [Method] Notation for evidence scores (topology, semantic, GO) and hierarchical labels should be defined more explicitly with an example assignment to improve reproducibility.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their constructive comments, which highlight the need for stronger quantitative support of our central claims. We address each major comment below and will revise the manuscript to incorporate the requested metrics and verifications.

read point-by-point responses

  1. Referee: [Abstract / Evaluation section] Abstract and evaluation description: the claim that 'evaluation on yeast protein-interaction data shows that ECHO-PPI preserves the behaviour of strong overlap-aware baselines' is presented without any quantitative metrics (e.g., module overlap Jaccard, NMI, or per-protein assignment agreement), baseline identities, or comparison tables. This directly undermines the central value proposition that interpretability is added without altering detection behavior.

    Authors: We agree that the current abstract and evaluation description would be strengthened by explicit quantitative metrics. In the revised manuscript we will expand the Evaluation section to include a comparison table reporting module overlap Jaccard indices, normalized mutual information (NMI), and per-protein assignment agreement rates between ECHO-PPI and the strong overlap-aware baselines used. The table will also identify the specific baseline methods. These additions will directly substantiate that the evidence-bundled post-processing preserves the core detection behavior while adding interpretability. revision: yes

  2. Referee: [Method / Evaluation] Framework description: the overlap-aware assignment step and hierarchical confidence labeling are described as preserving baseline outputs, yet no explicit verification (such as before/after module sets or agreement statistics) is supplied to confirm that these post-processing stages do not silently modify the recovered modules.

    Authors: We acknowledge the absence of explicit verification for the overlap-aware assignment and hierarchical labeling steps. In the revision we will add a new subsection (or supplementary material) that reports agreement statistics, such as the percentage of proteins retaining identical module assignments before and after these stages, together with illustrative before/after module-set examples on a subset of the yeast data. This will confirm that the post-processing layers do not alter the recovered modules. revision: yes

Circularity Check

0 steps flagged

No circularity: constructive framework with independent evidence integration

full rationale

The ECHO-PPI framework is presented as a constructive pipeline that combines weighted topology, semantic profiles, and Gene Ontology evidence to identify nuclei, build candidate modules, perform overlap-aware assignment, and attach hierarchical confidence labels. No equations, parameter fits, or derivation steps are shown that reduce outputs to inputs by construction, rename fitted quantities as predictions, or rely on self-citations for load-bearing uniqueness claims. The evaluation statement that the method preserves baseline behavior is a qualitative assertion rather than a mathematical reduction, and the overall method remains self-contained against external benchmarks without circular re-derivation.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract-only review provides no explicit free parameters, axioms, or invented entities. The framework implicitly assumes that the three evidence sources can be meaningfully combined and scored without introducing new unstated modeling choices that would require independent validation.
