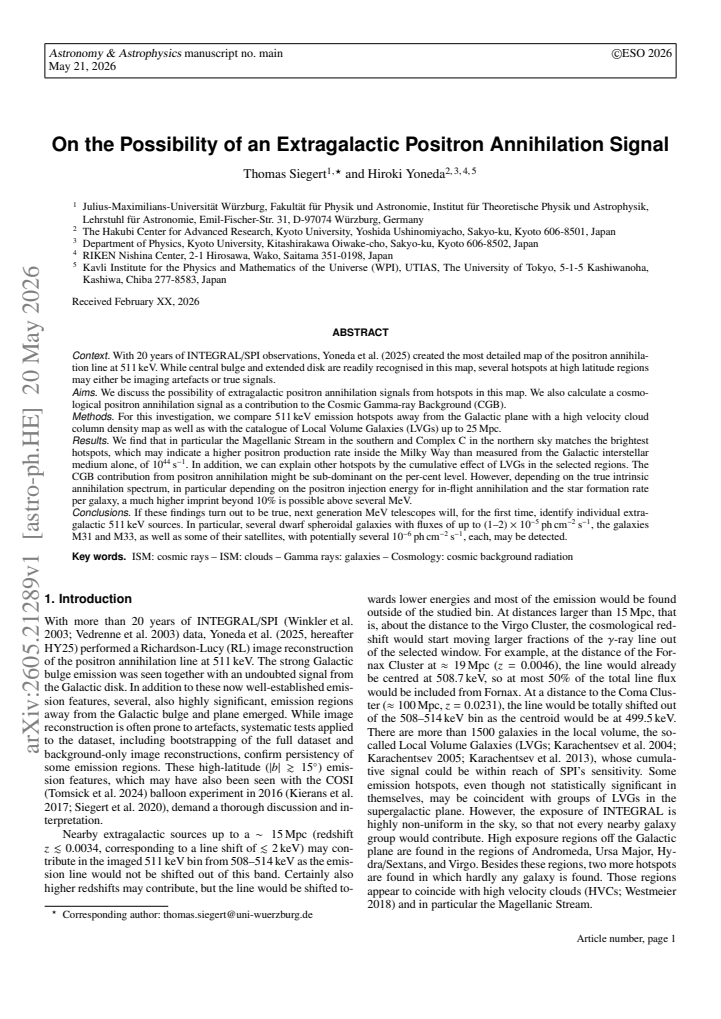

On the Possibility of an Extragalactic Positron Annihilation Signal

Thomas Siegert , Hiroki Yoneda This is my paper

Pith reviewed 2026-05-21 04:01 UTC · model grok-4.3

classification 🌌 astro-ph.HE astro-ph.COastro-ph.GA
keywords positron annihilation511 keV lineMagellanic Streamhigh velocity cloudsextragalactic sourcesLocal Volume Galaxiescosmic gamma-ray backgroundINTEGRAL SPI
0
0 comments X

The pith

511 keV hotspots outside the Galactic plane align with the Magellanic Stream and Complex C, pointing to either enhanced Milky Way positron production or extragalactic signals from nearby galaxies.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper investigates whether bright spots in the 511 keV gamma-ray map from two decades of INTEGRAL/SPI data represent real positron annihilation beyond the Milky Way's plane or artifacts. By overlaying these hotspots on high-velocity cloud maps and the catalog of Local Volume Galaxies within 25 Mpc, the authors note strong spatial matches with the southern Magellanic Stream and northern Complex C. These alignments suggest the Milky Way's total positron production rate reaches 10^44 per second, exceeding estimates based solely on the interstellar medium. Remaining hotspots can be accounted for by the summed output of multiple Local Volume galaxies. The overall contribution to the cosmic gamma-ray background stays low at the percent level but could exceed 10 percent above several MeV if positrons are injected at higher energies or if star formation rates per galaxy are larger than assumed.

Core claim

The most detailed 511 keV map reveals high-latitude hotspots whose positions coincide with the Magellanic Stream and Complex C in high-velocity cloud column density maps as well as with concentrations of Local Volume Galaxies; these coincidences imply a galactic positron production rate of 10^44 s^{-1} or cumulative extragalactic emission, while the cosmic gamma-ray background receives only a sub-dominant percent-level contribution from positron annihilation unless the intrinsic spectrum includes significant in-flight annihilation at higher energies.

What carries the argument

Direct positional comparison between 511 keV emission hotspots and high-velocity cloud column density maps together with the Local Volume Galaxy catalogue up to 25 Mpc.

If this is right

  • The Milky Way positron production rate may reach 10^{44} s^{-1}, higher than measured from the Galactic interstellar medium alone.
  • Other hotspots can be explained by the cumulative positron annihilation from Local Volume Galaxies in the observed directions.
  • The contribution of positron annihilation to the cosmic gamma-ray background is typically at the percent level but can exceed 10 percent above several MeV for higher positron injection energies or elevated star formation rates per galaxy.
  • Next-generation MeV telescopes could resolve individual extragalactic 511 keV sources, including dwarf spheroidals at fluxes up to (1-2) x 10^{-5} ph cm^{-2} s^{-1} and M31, M33 plus satellites at several 10^{-6} ph cm^{-2} s^{-1}.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Confirmation would link positron production to high-velocity cloud environments or galactic interactions not previously emphasized in standard models.
  • It opens the possibility that some fraction of the Galactic 511 keV emission originates from material stripped from satellite galaxies rather than from the disk or bulge alone.
  • Spectral measurements of the hotspots could distinguish in-flight annihilation from thermal positronium decay and thereby constrain the typical energy at which positrons are injected in these regions.

Load-bearing premise

That the high-latitude hotspots are genuine signals from positron annihilation rather than imaging artifacts and that their spatial overlaps with the Magellanic Stream, Complex C, and nearby galaxies are physical associations rather than random coincidences.

What would settle it

High-resolution follow-up observations that either confirm or refute precise spatial correlation between the brightest hotspots and the gas distribution in the Magellanic Stream, or that measure whether individual dwarf spheroidal galaxies reach the predicted fluxes of (1-2) times 10^{-5} photons per square centimeter per second.

Figures

Figures reproduced from arXiv: 2605.21289 by Hiroki Yoneda, Thomas Siegert.

Figure 1
Figure 1. Figure 1: RL 511 keV map from HY25 in Mollweide projection [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2

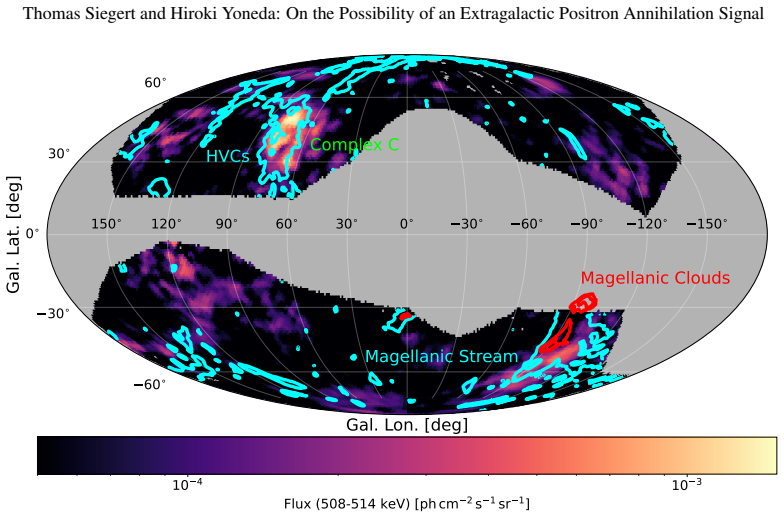

Figure 2. Figure 2: RL 511 keV map from HY25 with the bright bulge and disk regions masked out (gray) to emphasise on the low surface [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Selected regions in this study (ellipses) on top of the [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Same as Figs. 2 and 3, now combined in orthographic projection to emphasise on the Galactic poles. The Galactic North is [PITH_FULL_IMAGE:figures/full_fig_p005_4.png] view at source ↗
Figure 5

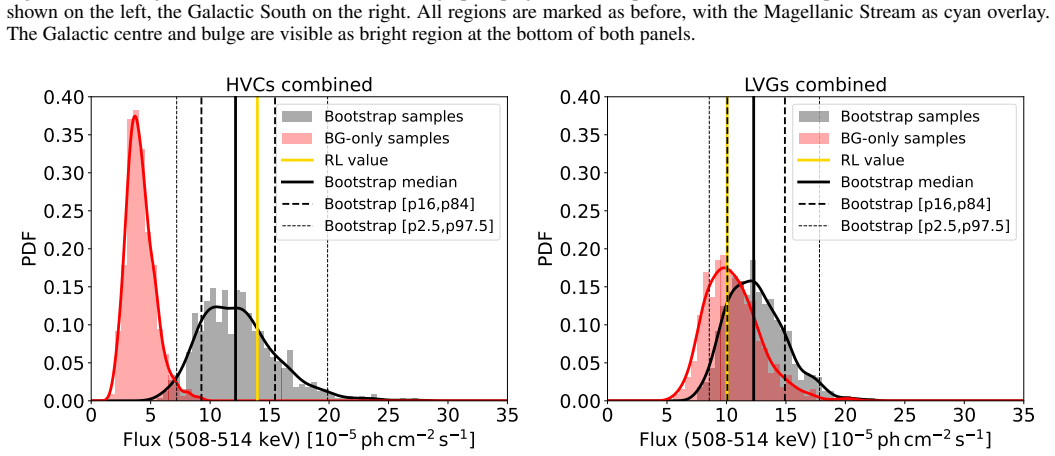

Figure 5. Figure 5: Bootstrapping samples for the combined regions of HVCs (Complex C & Magellanic Stream; left) and selected LVGs [PITH_FULL_IMAGE:figures/full_fig_p005_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: Expected 511 keV fluxes from individual sources within [PITH_FULL_IMAGE:figures/full_fig_p006_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: Cosmological positron annihilation signal assuming Eq. (2) for di [PITH_FULL_IMAGE:figures/full_fig_p007_7.png] view at source ↗
read the original abstract

With 20 years of INTEGRAL/SPI observations, Yoneda et al. (2025) created the most detailed map of the positron annihilation line at 511keV. While central bulge and extended disk are readily recognised in this map, several hotspots at high latitude regions may either be imaging artefacts or true signals. We discuss the possibility of extragalactic positron annihilation signals from hotspots in this map. We also calculate a cosmological positron annihilation signal as a contribution to the Cosmic Gamma-ray Background (CGB). For this investigation, we compare 511 keV emission hotspots away from the Galactic plane with a high velocity cloud column density map as well as with the catalogue of Local Volume Galaxies (LVGs) up to 25 Mpc. We find that in particular the Magellanic Stream in the southern and Complex C in the northern sky matches the brightest hotspots, which may indicate a higher positron production rate inside the Milky Way than measured from the Galactic interstellar medium alone, of $10^{44}\,\mathrm{s^{-1}}$. In addition, we can explain other hotspots by the cumulative effect of LVGs in the selected regions. The CGB contribution from positron annihilation might be sub-dominant on the per-cent level. However, depending on the true intrinsic annihilation spectrum, in particular depending on the positron injection energy for in-flight annihilation and the star formation rate per galaxy, a much higher imprint beyond 10% is possible above several MeV. If these findings turn out to be true, next generation MeV telescopes will, for the first time, identify individual extragalactic 511 keV sources. In particular, several dwarf spheroidal galaxies with fluxes of up to $(1$-$2) \times 10^{-5}\,\mathrm{ph\,cm^{-2}\,s^{-1}}$, the galaxies M31 and M33, as well as some of their satellites, with potentially several $10^{-6}\,\mathrm{ph\,cm^{-2}\,s^{-1}}$, each, may be detected.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 2 minor

Summary. The manuscript analyzes the 511 keV positron annihilation map derived from 20 years of INTEGRAL/SPI data. It identifies high-latitude hotspots and compares their positions to a high-velocity cloud column density map and the catalogue of Local Volume Galaxies (LVGs) within 25 Mpc. The authors report spatial matches with the Magellanic Stream and Complex C, inferring a Milky Way positron production rate of 10^{44} s^{-1}, and attribute additional hotspots to the cumulative contribution of LVGs. They also estimate the contribution of positron annihilation to the Cosmic Gamma-ray Background (CGB), finding it sub-dominant at the percent level but potentially larger depending on injection energy and star-formation assumptions, and discuss prospects for detection with future MeV telescopes.

Significance. If the reported spatial associations are physically meaningful, the work would revise upward the inferred positron production rate in the Milky Way relative to ISM-only estimates and provide a framework for assessing extragalactic contributions to the 511 keV sky and CGB. The quantitative CGB calculation and the flux predictions for specific LVGs (e.g., dwarf spheroidals at (1-2)×10^{-5} ph cm^{-2} s^{-1}) constitute falsifiable predictions that could be tested with next-generation instruments. The manuscript builds directly on the Yoneda et al. (2025) map and offers a clear observational motivation for deeper MeV observations.

major comments (1)
  1. [Abstract] Abstract and comparison section: The inference of a Milky Way positron production rate of 10^{44} s^{-1} and the extragalactic interpretation of other hotspots both rest on the reported spatial coincidences with the Magellanic Stream, Complex C, and LVG catalogue. No correlation statistic, overlap significance, or Monte-Carlo test against random alignments (accounting for the finite number of hotspots, high-latitude selection, and look-elsewhere effects) is provided. Without such a test the step from visual match to physical association remains under-constrained and directly affects the central claim.
minor comments (2)
  1. [Abstract] The abstract states that the CGB contribution 'might be sub-dominant on the per-cent level' but does not specify the exact integration limits, assumed spectrum, or how the star-formation rate per galaxy enters the calculation; a brief equation or table summarizing the adopted parameters would improve clarity.
  2. The flux values quoted for dwarf spheroidals and M31/M33 ((1-2)×10^{-5} and several 10^{-6} ph cm^{-2} s^{-1}) should be accompanied by a short statement of the distance and luminosity assumptions used to derive them.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for their thoughtful review and for highlighting the need for quantitative assessment of the reported spatial associations. We address the major comment below and will incorporate a statistical test in the revised manuscript.

read point-by-point responses

  1. Referee: [Abstract] Abstract and comparison section: The inference of a Milky Way positron production rate of 10^{44} s^{-1} and the extragalactic interpretation of other hotspots both rest on the reported spatial coincidences with the Magellanic Stream, Complex C, and LVG catalogue. No correlation statistic, overlap significance, or Monte-Carlo test against random alignments (accounting for the finite number of hotspots, high-latitude selection, and look-elsewhere effects) is provided. Without such a test the step from visual match to physical association remains under-constrained and directly affects the central claim.

    Authors: We agree that the absence of a formal statistical test leaves the physical associations under-constrained. The current analysis is based on direct positional overlap between the brightest high-latitude hotspots in the Yoneda et al. (2025) map and well-known structures (Magellanic Stream, Complex C) whose column-density distributions are independently mapped, together with positional matches to the LVG catalogue within the selected high-latitude fields. To strengthen the manuscript we will add a Monte-Carlo test that randomizes the hotspot positions within the high-latitude mask, accounts for the finite number of hotspots and the look-elsewhere effect, and computes the probability of chance alignments with both the HVC column-density map and the LVG positions. The results of this test, together with any necessary qualifications to the inferred positron production rate, will be included in the revised version. revision: yes

Circularity Check

0 steps flagged

No significant circularity; claims rest on external catalogue comparisons

full rationale

The paper derives its central inferences by direct positional comparison of 511 keV hotspots (from the cited Yoneda et al. 2025 map) against independent high-velocity cloud column-density maps and the LVG catalogue. The quoted production rate of 10^{44} s^{-1} is obtained by scaling the observed hotspot fluxes under the assumption of physical association; this is a straightforward flux-to-rate conversion from external data rather than a parameter fitted to a subset and then relabeled as a prediction. No equations, ansatzes, or uniqueness theorems are introduced that reduce the result to the inputs by construction. The single self-citation supplies the input map and is externally verifiable observational data, satisfying the criteria for non-circular support. The derivation chain therefore remains self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

1 free parameters · 2 axioms · 0 invented entities

The central claims rest on the interpretation of existing observational data and standard astrophysical assumptions about positron annihilation.

free parameters (1)
  • positron production rate = 10^{44} s^{-1}
    Estimated from matching hotspots to suggest higher rate than from Galactic ISM alone.
axioms (2)
  • domain assumption The 511 keV map accurately represents true emission without significant artefacts in the high-latitude regions.
    Invoked when discussing hotspots as possible true signals.
  • domain assumption The high velocity cloud column density map and LVG catalogue are complete and accurate for comparison.
    Used for matching to hotspots.
