Learning Multi-Stage Pick-and-Place with a Legged Mobile Manipulator

T0 review · 2 major / 4 minor · reviewed 2026-08-05 · deepseek-v4-flash

Pith's one-line read A fully simulation-trained policy solves real-world legged pick-and-place in 78% of episodes, beating human teleoperation.

desk verdict A well-executed sim-to-real systems paper with an honest empirical core; the absolute ~78% success claim holds up, but the claim of beating human teleoperation is within sampling noise and should be toned down. read the letter →

arxiv 2509.03859 v3 pith:XNN2TJRD submitted 2025-09-04 cs.RO

classification cs.RO
keywords leggedmobilemanipulationsim-to-realtransferlong-horizontasklearningreinforcementvisuomotorpolicyexpansionpick-and-placeteacher-studentdistillation
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

The paper sets out to show that a legged mobile manipulator can learn a long-horizon pick-and-place task—search for an object, walk to it, grasp it, find a target container while holding the object, carry it over, and drop it in—entirely from simulation, with no real-world fine-tuning, and deploy that policy zero-shot on hardware. On a standardized indoor layout it reports a full-task success rate of 78.3 percent, above every ablation baseline and above human teleoperation on the same setup, and roughly 1.5 times faster than the teleoperator. The central wager is that long-horizon visual control under partial observability becomes tractable if the problem is decomposed into per-stage teacher policies that are progressively added during training, then distilled into a single visuomotor student policy that sees only a wrist camera image, proprioception, and a language instruction. A sympathetic reader would care because the result suggests task-level mobile manipulation skills can be grown in simulation and transferred broadly—across indoor and outdoor scenes, novel object shapes, interruptions, and repeated executions—without per-environment engineering.

What carries the argument

Progressive Policy Expansion: the teacher network is not one network but a growing set of per-subtask policies, one per stage of the task, with a new network added when a new stage is encountered and gated by a privileged subtask id, so previously learned skills are preserved in their own parameters and exploration capacity is reset for each new stage. The other load-bearing mechanism is distillation-guided RL: the student soft actor-critic agent replaces the entropy term with a KL divergence to a fixed-dispersion version of the teacher, encouraging imitation of the teacher's action mode while still allowing exploration—this is what lets pixel-and-language input learn the long-horizon policy

What would settle it

Deploy the same SLIM policy in a scene where the target cube has the same color as the floor under strong shadows and record the full-task success rate. If the segmentation/depth estimates fail and the success rate drops well below the reported 78.3%, with failures concentrated in search and approach stages, the bottleneck is the load-bearing fragility.

Watch

Extended reading notes

Core claim

On the paper's own terms, the discovery is that a fully simulation-trained high-level visuomotor policy can solve the entire multi-stage mobile pick-and-place task in the real world with 78.3% ± 5.8% success, the highest among all compared methods, including a human teleoperator at 75.0% ± 5.0%, while completing episodes in 43.8 seconds on average versus 65.5 seconds for teleoperation. The policy relies only on ego-centric RGB from a wrist-mounted camera, proprioceptive state, and a natural-language instruction; it is the student in a teacher–student pipeline. The teacher, trained with privileged object states, is structured as a set of per-subtask policies activated progressively to avoid c

Load-bearing premise

The visual information bottleneck—segmentation and depth maps estimated from the wrist camera—must be reliable enough in diverse real-world scenes to preserve task-relevant information for the downstream policy, even though the vision module is trained only in simulation.

Editorial extensions

If this is right

  • Long-horizon mobile manipulation with only onboard sensing can be trained without real-world demonstrations or fine-tuning.
  • Progressive policy expansion is a workable answer to catastrophic forgetting and lost plasticity in long-horizon RL, and could be reused whenever a task has identifiable stage boundaries.
  • The identified sim-to-real techniques—object, arm, and mount perturbation, color and visual augmentation, and the segmentation/depth bottleneck—transfer to novel scenes zero-shot.
  • On this task, an autonomous visuomotor policy can outperform a human teleoperator who shares the same camera view, in both success and speed.
  • Emergent re-grasping and task chaining indicate that the learned components compose into robust, repeated full-task behavior under disturbance.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • Because the success claim passes through a segmentation-and-depth bottleneck trained only in simulation, the approach should be stress-tested on scene distributions that attack that module specifically—low-contrast objects, strong shadows, or unseen colors. If the vision module degrades while the downstream policy is unchanged, the bottleneck, not the policy, is the transfer limit.
  • The progressive expansion idea should extend to other long-horizon manipulation or navigation tasks with clear milestones, but likely needs modification for tasks where stages are not sequentially ordered or overlap in time.
  • The comparison to human teleoperation is specific to this setup: a single wrist camera, one hour of practice, and joystick control. It does not imply general superiority over teleoperation, only that on this task the learned policy exploits the available view more consistently.
Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

2 major / 4 minor

Summary. The paper presents SLIM, a system for training a visuo-motor policy for legged mobile manipulation entirely in simulation and deploying it zero-shot in the real world. The task is a multi-stage mobile pick-and-place: search for a colored cube, approach, grasp, search for the correct basket, transport, and drop the cube, using only a wrist-mounted camera and a language instruction. The method has three training stages: a frozen low-level locomotion policy, a teacher policy trained with privileged state information and a progressive policy-expansion scheme that allocates a separate policy per subtask, and a student policy trained by distillation-guided RL from ego-centric images, proprioception, and language. Real-world experiments cover 400 episodes across multiple scenes and ablations, reporting a full-task success rate of 78.3% ± 5.8% for SLIM, which is higher than the reported baselines, and also faster than a human teleoperation baseline. The paper additionally reports generalization to novel scenes, novel object shapes, re-grasping, and task chaining, and provides an honest failure-mode analysis.

Significance. If the results are taken at face value, this is a strong systems contribution to long-horizon mobile manipulation with legged robots. The main strengths are the scale and honesty of the real-world evaluation (400 episodes, multiple seeds, ablations, reported failure modes), the use of onboard sensing without global cameras or external APIs, and the identification of practical sim-to-real ingredients (perturbations, visual augmentation, arm-retract shaping, distillation-guided RL). The progressive policy expansion idea is a sensible mechanism for addressing capacity loss and catastrophic forgetting in long-horizon RL. However, the paper contains a statistically unsupported comparative claim against human teleoperation, and an internal inconsistency about whether the deployed student policy consumes raw RGB images or segmentation/depth maps. These issues affect the precision of the central claims and need to be resolved before the paper is fully convincing.

major comments (2)
  1. [Section V-A, Table I] The statement that SLIM 'achieves the highest subtask and full task success rates among all the methods including Human Teleop' is not statistically supported. From Table I, the full-task success rates are 78.3% ± 5.8% (SLIM) and 75.0% ± 5.0% (Human Teleop), each based on 60 episodes (3 seeds × 20). Treating these as binomial proportions, a two-proportion z-test gives z ≈ 0.43, p ≈ 0.67, and the 95% Wilson intervals substantially overlap. The observed 3.3-point gap is well within sampling noise. The absolute success rate of ~78% is credible, but the comparative superiority over human teleoperation should either be supported with a proper significance test or the claim should be softened to 'comparable to human teleoperation.'
  2. [Section IV-B, Eq. (2) and Section IV-C.2] There is an inconsistency in the description of the student policy input. In Section IV-B, Eq. (2) defines s_stu = [o, s_r, l] with o denoting 'the (stacked) ego-centric RGB images' and the text states the policy perceives 'the single RGB stream.' However, Section IV-C.2 lists as the first visual-gap reduction technique 'a visual information bottleneck (a pair of segmentation and depth maps) between the perception module and the policy.' These two descriptions cannot both be true of the same policy. If the deployed policy actually consumes segmentation/depth estimates rather than raw RGB, the term 'RGB images' is misleading and the method should be described accordingly; if it consumes raw RGB, the role of the bottleneck in the deployed architecture is unclear. This is essential for reproducibility and for understanding the sim-to-real transfer mechanism.
minor comments (4)
  1. [Section V, Baselines] The 'No Distillation' baseline is excluded with the assertion that it cannot learn the task at all in simulation. This is plausible, but the claim would be more convincing if supported by at least a simulation training curve or a short description of the observed failure (e.g., no improvement over random). As written, an entire ablation is omitted without direct evidence.
  2. [Section IV-A.2] Typo: 'Seciton' should be 'Section.' Also in Section V, 'we used used 4 GPUs' contains a duplicated word.
  3. [Section IV-B, Eq. (2)] The teacher policy π_tea is described as a set of policies gated by subtask id k, but Eq. (2) writes π_tea(a_hi | s_r, s_p) without making the gating explicit. Clarify how s_p (including the subtask id) selects the active teacher policy, and how the fixed modal dispersion σ is used to form the teacher action distribution for the KL term.
  4. [Section V-C, Fig. 8] The generalization results in Fig. 8 are based on only 10 episodes per scene. Reporting success rates without confidence intervals makes it hard to judge whether the ~78% performance in new scenes is meaningfully different from the main result. Consider adding Wilson intervals or additional trials for at least one novel scene.

Circularity Check

0 steps flagged · score 0.0 of 10

No circular derivation; self-citations are not load-bearing.

full rationale

The paper's central claim—a sim-trained visuo-motor policy achieving 78.3% real-world full-task success—is an empirically measured outcome, not a quantity derived from a fitted parameter or an input definition. The teacher-student pipeline, progressive PEX, distillation-guided RL, and sim-to-real augmentations are all implemented and evaluated in-paper: Table I reports real deployments across seeds, Fig. 6 compares standard vs progressive PEX in simulation, and Fig. 9 compares sim/real success across ablations. The authors cite their own prior PEX [20] and entropy-reward [24] works, but these citations supply technique names and design choices, not the measured success numbers; the load-bearing evidence is the new experiments. No equation in the paper defines the reported success in terms of an input fit, no predicted quantity is equivalent by construction to a training signal, and no uniqueness theorem is imported from the authors' prior work. The only notable concern is statistical: the claimed superiority over Human Teleop (78.3% vs 75.0%, 60 episodes each) has overlapping confidence intervals, but that is a power/uncertainty issue, not circular reasoning. Therefore no significant circularity.

Assumptions & free parameters 3 free parameters · 3 assumptions · 0 invented entities

The central claim is empirical and depends on engineering assumptions rather than new physics or fitted constants. Free parameters are hand-set training choices, not derived from the target result.

free parameters (3)
  • Subtask decomposition (K=7) = 7
    The long-horizon task is manually split into seven subtasks in Section IV-A.1, which is central to the progressive PEX teacher and reward design.
  • Distillation weight alpha
    Fixes the KL distillation loss weight in Eq. (2); chosen by hand, not tuned to real-world success.
  • Teacher action dispersion sigma
    Sets the fixed modal dispersion for the teacher policy when computing distillation loss (Section IV-B); chosen to encourage exploration.
assumptions (3)
  • domain assumption The low-level locomotion policy, trained following [16], reliably tracks high-level velocity commands in the real world when carrying the arm and object.
    The high-level policy sends velocity commands to a frozen low-level policy; if tracking is poor, all downstream stages fail (Section IV).
  • domain assumption The simulation environment is an adequate proxy for the real robot and objects, given the domain randomization techniques used.
    The entire training is in simulation; the paper relies on perturbations and visual bottleneck to close the gap (Section IV-C).
  • domain assumption The teacher-student distillation framework with privileged state can produce a student policy that retains teacher performance from images and language alone.
    The student is trained with distillation-guided RL; this assumes the privileged teacher is a good target and the student can learn to imitate it (Section IV-B).

how reviews work

0 comments
Cite this review

Pith. "Pith review of Learning Multi-Stage Pick-and-Place with a Legged Mobile Manipulator." pith.science (2026). https://pith.science/paper/XNN2TJRD

@misc{pith2026250903859,
  author       = {Pith},
  title        = {Pith review of: Learning Multi-Stage Pick-and-Place with a Legged Mobile Manipulator},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/XNN2TJRD}},
  note         = {Machine review of arXiv:2509.03859}
}
read the original abstract

Quadruped-based mobile manipulation presents significant challenges in robotics due to the diversity of required skills, the extended task horizon, and partial observability. After presenting a multi-stage pick-and-place task as a succinct yet sufficiently rich setup that captures key desiderata for quadruped-based mobile manipulation, we propose an approach that can train a visuo-motor policy entirely in simulation, and achieve nearly 80\% success in the real world. The policy efficiently performs search, approach, grasp, transport, and drop into actions, with emerged behaviors such as re-grasping and task chaining. We conduct an extensive set of real-world experiments with ablation studies highlighting key techniques for efficient training and effective sim-to-real transfer. Additional experiments demonstrate deployment across a variety of indoor and outdoor environments. Demo videos and additional resources are available on the project page: https://horizonrobotics.github.io/gail/SLIM.

Figures

Figures reproduced from arXiv: 2509.03859 by the authors.

Figure 1
Figure 1. Multi-Stage Pick-and-Place in Real. Snapshots of the same visuo-motor policy deployed in diverse real-world scenes, featuring significant variations in terrain, background, distractors, and other environmental factors. The mobile pick-and-place task involves multiple stages as annotated at the bottom of the figure. Note that these annotations are added for understanding task progress and are not part of the input to… view at source ↗
Figure 2

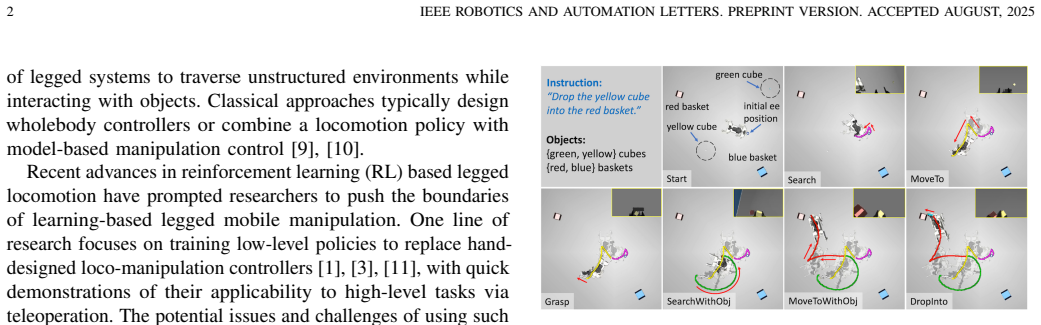

Figure 2. [PITH_FULL_IMAGE:figures/full_fig_p002_2.png] view at source ↗
Figure 3
Figure 3. Robot and Scene Spatial Layouts for Multi-Stage Pick-and-Place. Standard: we put the robot in the center of a 2m×2m square space and objects including objects to be grasped and containers to drop the graspable objects into on the four corners. During training, the spatial layout used for the objects are randomize based on the Standard setting, with each position sampled from a circular region centered around each co… view at source ↗
Figures from the paper (6 more)
Figure 4

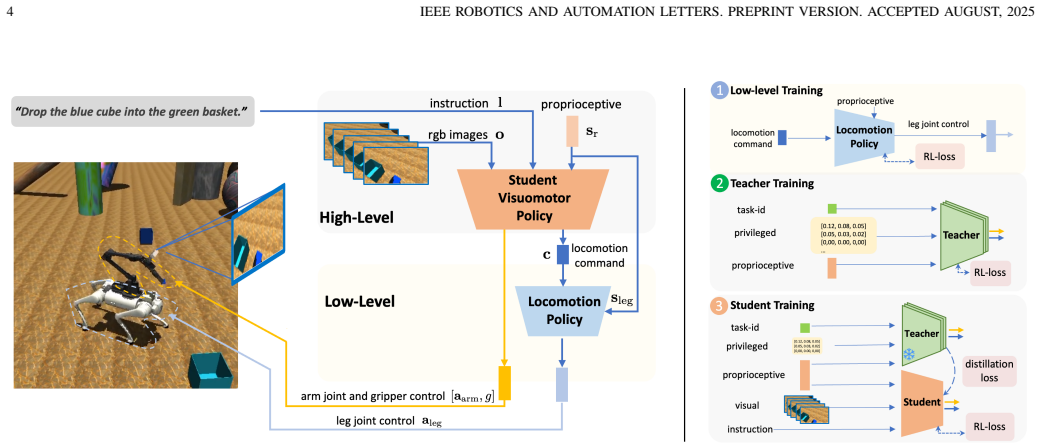

Figure 4. Figure 4: Hierarchical Framework and Visuomotor Policy Pipeline (Left). Given language instruction and sensor inputs, the high-level policy generates a set of two control signals: 1) the arm and gripper control signals, and 2) the locomotion command. The arm control signals are …
Figure 5
Figure 5. Figure 5: Teacher Policy Network Structure. The full teacher network Π is a set of structurally identical networks {π k} K k=1 gated by the subtask id k. On the left, each individual teacher policy π k takes a set of privileged and proprioceptive input, flattening and concatenat…
Figure 7
Figure 7. Figure 7: Example Training Scene with Randomized Objects. Left: third-person view; Right: bird’s-eye view. the locomotion command (representing the target forward and angular velocities for the quadruped), the arm delta joint position and the gripper control signal. To ensure th…
Figure 8
Figure 8. Figure 8: The same SLIM Policy across Scene Variations. Left: images showing the differences for evaluation. Right: the average full task success rate across 10 real-world deployment episodes for each of the scenes shown on the left. limits of the shoulder motors responsible for…
Figure 9
Figure 9. Figure 9: Full Task Sim and Real Success Rate Comparison. The averaged success rate across three random seeds is used. C. Generalization to Different Real-world Scenes In addition to the standard scene used in Table I, we further run real-world evaluations of SLIM under more sce…
Figure 10
Figure 10. Figure 10: Generalization Behaviors of SLIM Policy. Novel Object: grasping an object with a novel shape that is out of the training distribution. Re-Grasping: a human interrupts the task progress by removing the cube from the gripper and tossing it to the ground. The SLIM policy…
