arxiv: 2606.26985 · v1 · pith:XOX5HXUYnew · submitted 2026-06-25 · 💻 cs.GR

Vis4GS: A Visual Analytic Tool for 3D Gaussian Splatting Reconstruction

Kai-Yuan Lin , Aryabima Mandala Putra , Jui-Chi Lee , Shih-Hsuan Hung This is my paper

Pith reviewed 2026-06-26 01:33 UTC · model grok-4.3

classification 💻 cs.GR
keywords 3D Gaussian Splattingvisual analyticsreconstruction artifactsprimitive-level diagnosisdensification treeproperty timelineview coverageGaussian genealogy
0
0 comments X

The pith

Vis4GS links scene artifacts in 3D Gaussian Splatting to individual primitive properties and training events through four coordinated views.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces Vis4GS as a visual analytics system built on the standard 3DGS training and viewer code. It adds interactive tools that let users select Gaussians, score visible problems such as blur or needle artifacts, examine property changes over time, trace densification events like clones and splits, and review view coverage. The central argument is that these links turn reconstruction failures from opaque final images into traceable sequences of primitive decisions. A user study is presented to show that the system improves artifact understanding compared with the unmodified viewer. If correct, the work shifts diagnosis from global metrics to per-primitive evidence.

Core claim

Vis4GS supplies four linked views—an interactive Gaussian analysis view, a property timeline view, a Gaussian densification tree view, and a log and control panel—that connect rendered artifacts directly to Gaussian properties, View Coverage, training progress, and genealogy of clone, split, prune, and clone-split events, thereby supporting a structured workflow for diagnosing reconstruction failures beyond final-image inspection and global metrics.

What carries the argument

Four linked views that map scene-level artifacts to primitive-level evidence and optimization history, including Gaussian selection, artifact scoring, View Coverage analysis, and multiscale genealogy exploration.

If this is right

  • Users can select individual Gaussians and obtain blur or needle-like artifact scores tied to their current properties.
  • Property timelines reveal how attributes evolve across training iterations for any chosen primitive.
  • The densification tree exposes the sequence of clone, split, prune, and clone-split operations that produced each Gaussian.
  • View Coverage analysis shows which training views contributed to a given Gaussian's optimization.
  • The user study indicates stronger usability and artifact understanding than the baseline 3DGS viewer.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Similar linked-view designs could be adapted to other primitive-based reconstruction pipelines to expose optimization decisions.
  • The genealogy and timeline structures might support automated suggestion of corrective training steps when artifacts are flagged.
  • Extending the same selection and scoring mechanisms to real-time rendering sessions could allow on-the-fly inspection during live capture.

Load-bearing premise

That the four linked views together with the reported user study produce measurable gains in users' ability to diagnose and correct artifacts.

What would settle it

A controlled test in which multiple users are given identical sets of failed 3DGS reconstructions and asked to identify root causes, once with the original viewer and once with Vis4GS, measuring identification accuracy and time required.

Figures

Figures reproduced from arXiv: 2606.26985 by Aryabima Mandala Putra, Jui-Chi Lee, Kai-Yuan Lin, Shih-Hsuan Hung.

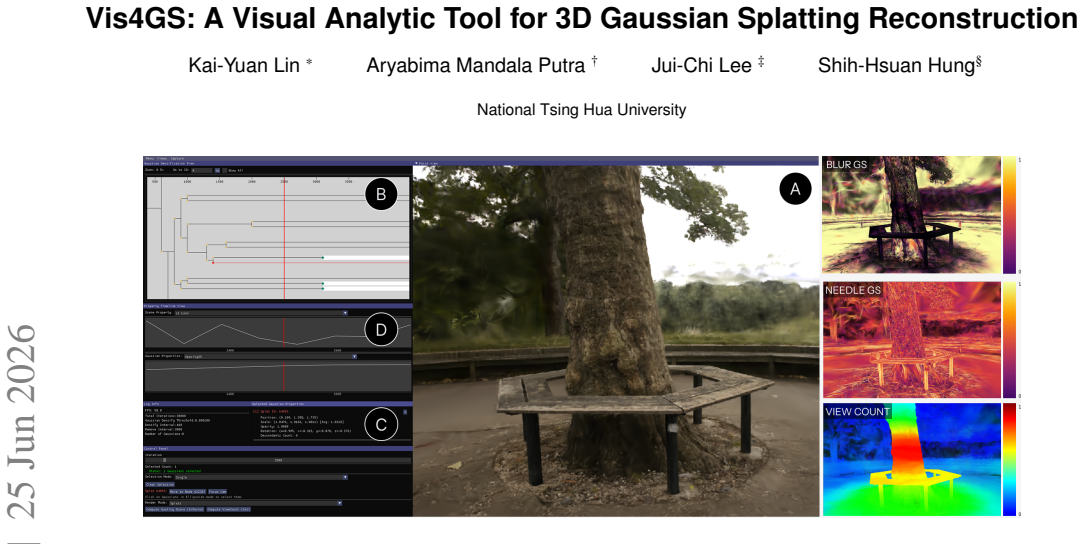

Figure 1
Figure 1. Figure 1: Vis4GS, our multi-view visual analytics tool for primitive-level 3DGS diagnosis. The Interactive Gaussian Analysis View (A) [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗

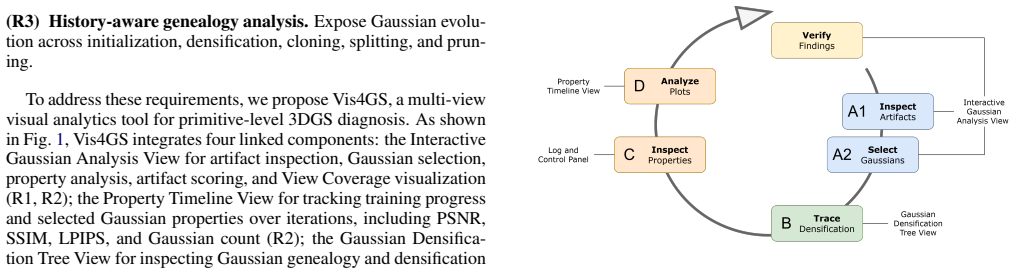

Figure 2
Figure 2. Figure 2: User-centered diagnosis workflow of Vis4GS. Users in [PITH_FULL_IMAGE:figures/full_fig_p002_2.png] view at source ↗

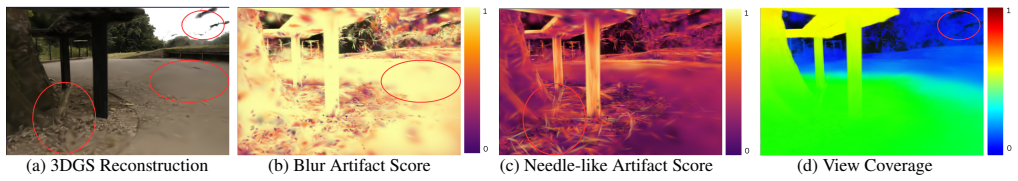

Figure 3
Figure 3. Figure 3: Artifact-to-Gaussian analysis visualizations in the Interactive Gaussian Analysis View. The reconstruction highlights visible artifacts [PITH_FULL_IMAGE:figures/full_fig_p003_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Anatomy of the Gaussian Densification Tree View using [PITH_FULL_IMAGE:figures/full_fig_p003_4.png] view at source ↗

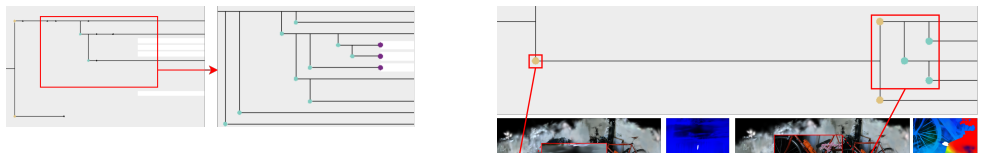

Figure 5
Figure 5. Figure 5: Multiscale visualization of the Gaussian Densification Tree [PITH_FULL_IMAGE:figures/full_fig_p004_5.png] view at source ↗

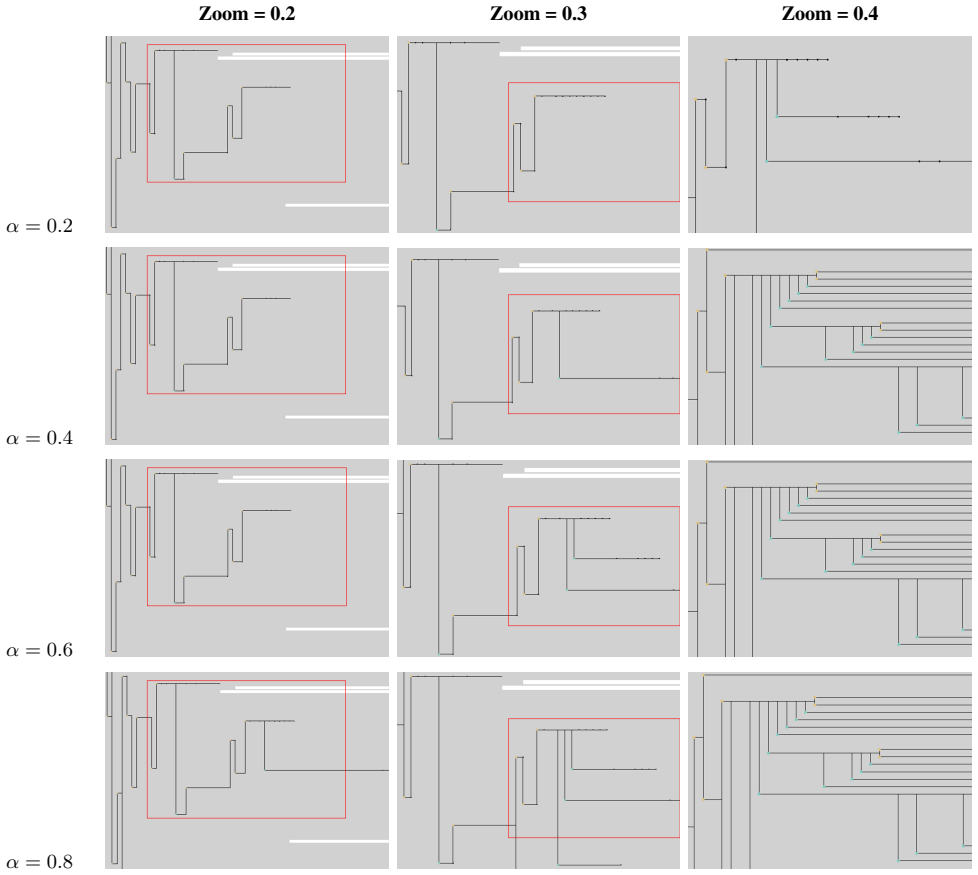

Figure 7
Figure 7. Figure 7: Qualitative Level-of-Detail (LoD) tree structure sensitivity across α variations and zoom scales (fixed k = 1.2). Rows corre￾spond to different multi-criteria weighting factors α, while columns show tree expansion behavior across increasing zoom levels [PITH_FULL_IMAGE:figures/full_fig_p007_7.png] view at source ↗
read the original abstract

3D Gaussian Splatting (3DGS) supports fast training and real-time rendering, but its optimization process remains difficult to interpret. Existing viewers mainly expose the final reconstructed scene and offer limited support for explaining how Gaussian properties contribute to visible artifacts or evolve during training. We present Vis4GS, a multi-view visual analytics tool for primitive-level diagnosis of 3DGS reconstruction artifacts. Built on the original 3DGS viewer and training framework, Vis4GS links rendered artifacts to Gaussian properties, View Coverage, training progress, and Gaussian genealogy through four linked views: an interactive Gaussian analysis view, a property timeline view, a Gaussian densification tree view, and a log and control panel. The system supports Gaussian selection, blur and needle-like artifact scoring, View Coverage analysis, and multiscale genealogy exploration of clone, split, prune, and clone-split events. By connecting scene-level artifacts with primitive-level evidence and optimization history, Vis4GS enables a structured workflow for diagnosing reconstruction failures beyond final-image inspection and global metrics. A user study also shows that Vis4GS provides stronger support for usability and artifact understanding than the original 3DGS viewer.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 1 minor

Summary. The manuscript presents Vis4GS, a visual analytics tool extending the original 3D Gaussian Splatting (3DGS) viewer and training framework. It introduces four linked views—an interactive Gaussian analysis view, a property timeline view, a Gaussian densification tree view, and a log/control panel—that connect scene-level artifacts to primitive-level Gaussian properties, View Coverage, training progress, and multiscale genealogy (clone/split/prune events). The central claim is that this enables a structured diagnostic workflow beyond final-image inspection and global metrics, with a user study purportedly demonstrating stronger usability and artifact understanding than the baseline 3DGS viewer.

Significance. If the user-study evidence holds, the work could provide a practical advance for the 3DGS community by supporting primitive-level debugging of optimization artifacts, which is relevant for improving reconstruction quality in real-time rendering pipelines.

major comments (1)
  1. [Abstract] Abstract: The central claim that the four linked views produce measurable improvements in diagnosing reconstruction failures rests on the user study, yet the abstract (and manuscript) provides no participant count, task design, quantitative metrics (accuracy, time, error rates), statistical tests, or control conditions. Without these, it is impossible to attribute any benefit specifically to the Gaussian analysis view, property timeline, densification tree, or control panel rather than interface familiarity or other factors.
minor comments (1)
  1. The term 'View Coverage' is capitalized inconsistently; standardize notation and provide a brief definition on first use.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the detailed review and for identifying the need for greater transparency around the user study. We address the concern point-by-point below and will revise the manuscript to incorporate the requested information.

read point-by-point responses

  1. Referee: [Abstract] Abstract: The central claim that the four linked views produce measurable improvements in diagnosing reconstruction failures rests on the user study, yet the abstract (and manuscript) provides no participant count, task design, quantitative metrics (accuracy, time, error rates), statistical tests, or control conditions. Without these, it is impossible to attribute any benefit specifically to the Gaussian analysis view, property timeline, densification tree, or control panel rather than interface familiarity or other factors.

    Authors: We agree that the current abstract is too concise and that the manuscript does not report the specific user-study parameters the referee requests. In the revised version we will (1) expand the abstract to summarize participant count, task design, quantitative metrics, and statistical results, and (2) augment the existing user-study section with explicit details on the number of participants, the controlled tasks, accuracy/time/error-rate measurements, the statistical tests performed, and the baseline 3DGS-viewer control condition. These additions will allow readers to evaluate whether the observed benefits can be attributed to the four linked views. revision: yes

Circularity Check

0 steps flagged

No mathematical derivations or predictions; circularity analysis does not apply

full rationale

The paper is a systems description of a visual analytics tool with four linked views for diagnosing 3DGS artifacts. No equations, fitted parameters, predictions, or derivation chains appear in the abstract or described content. Claims rest on interface design and an (undetailed) user study rather than any self-referential mathematical steps. No load-bearing self-citations, ansatzes, or renamings of results are present, so the circularity burden does not apply and the work is self-contained as a tool-building contribution.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

This is a systems and interface paper; it introduces no free parameters, mathematical axioms, or invented scientific entities.
