A novel all-dielectric optical micromixing device for lab-on-a-chip platforms

Adri\`a Can\'os Valero , Denis Kislov , Dmitrii Redka , Alexander S. Shalin This is my paper

Pith reviewed 2026-05-25 14:20 UTC · model grok-4.3

classification ⚛️ physics.optics physics.app-ph
keywords all-dielectric micromixingMie resonancesscattering forcesPoynting vectorangular momentumlab-on-a-chipoptical manipulationnanoparticles
0
0 comments X

The pith

High index dielectric cubes transfer angular momentum from circularly polarized light to drive orbital motion of nearby absorbing nanoparticles for all-dielectric micromixing.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper investigates how a high index dielectric cube scatters a circularly polarized plane wave, transferring angular momentum to the scattered field. This creates tangential Poynting vector components that produce scattering forces capable of inducing orbital motion in absorbing nanoparticles nearby. The authors show this can be used to mix small gold nanoparticles in water by accounting for Brownian motion and drag forces. Such a device could enable active mixing in lab-on-a-chip platforms without any moving parts, using only light and dielectric materials.

Core claim

The tangential components of the Poynting vector enable predominant scattering forces in the near-field of a high index cube and induce orbital motion of absorbing nanoparticles in the vicinity of the scatterer. These scattering forces can be utilized to realize a simple all-dielectric micromixing scheme for small dipolar spherical Au nanoparticles in an aqueous medium, accounting for the presence of Brownian and drag forces.

What carries the argument

Angular momentum transfer from a circularly polarized plane wave to the transversely scattered field generated by a high index cube, via tangential Poynting vector components.

If this is right

  • The induced orbital motion of nanoparticles produces net mixing in the presence of Brownian and viscous drag forces.
  • The scheme provides a moving-part free active mixing device for microfluidics applications.
  • It applies to lab-on-a-chip platforms for fast chemical synthesis and analysis, preparation of emulsions, or generation of chemical gradients.
  • Only all-dielectric materials and light are required, avoiding metallic components.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • This approach might be scalable by arranging multiple dielectric cubes to mix larger volumes.
  • Changing the polarization or wavelength of the incident light could allow tunable mixing rates.
  • Similar angular momentum transfer effects could be explored in other high-index dielectric shapes for different force patterns.

Load-bearing premise

The models of electromagnetic scattering and resulting forces remain valid when Brownian motion and viscous drag are included so that the orbital motion leads to net mixing rather than being overwhelmed by random diffusion.

What would settle it

Direct observation or simulation showing whether nanoparticles follow sustained orbital paths around the cube under circularly polarized illumination, or if their motion remains dominated by diffusion.

Figures

Figures reproduced from arXiv: 1906.11773 by Adri\`a Can\'os Valero, Alexander S. Shalin, Denis Kislov, Dmitrii Redka.

Figure 1

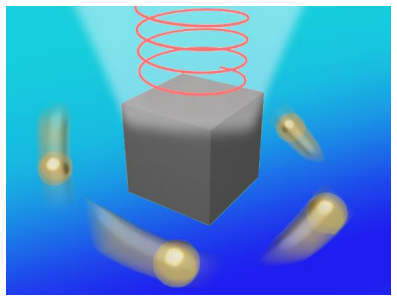

Figure 1. Figure 1: Artistic view of the proposed active micromixing scheme. A silicon nanocube submerged in a water solution is illuminated by a circularly polarized light beam. The scattered Poynting vector induces the spiral motion of absorbing Au nanoparticles in the vicinity of the scatterer. Simultaneously, transfer of mechanical OAM takes place between the Au nanoparticles and the fluid, resulting in enhanced convectiv… view at source ↗
read the original abstract

The exciting properties of high index dielectric nanoparticles exhibiting both electric and magnetic Mie resonances are nowadays paving the way towards efficient light manipulation at the nanoscale. A commonly disregarded peculiarity of light scattering by Mie particles is their ability to extract angular momentum from the incident electromagnetic field. In this work, we have investigated numerically and analytically the angular momentum transfer from a circularly polarized plane wave to the transversely scattered field generated by a high index cube. Therefore, the tangential components of the Poynting vector enable predominant scattering forces in the near-field and induce orbital motion of absorbing nanoparticles in the vicinity of the scatterer. We then illustrate how these scattering forces can be utilized to realize a simple all-dielectric micromixing scheme for small dipolar spherical Au nanoparticles in an aqueous medium, accounting for the presence of Brownian and drag forces. The novel method we propose represents a step forward towards the practical implementation of efficient, all-dielectric, moving-part free, active mixing devices for a variety of microfluidics applications such as, e.g., lab-on-a-chip platforms for fast chemical synthesis and analysis, preparation of emulsions, or generation of chemical gradients.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 1 minor

Summary. The manuscript investigates angular momentum transfer from a circularly polarized plane wave to the transversely scattered field of a high-index dielectric cube. It claims that the resulting tangential Poynting-vector components produce predominant scattering forces that induce orbital motion of absorbing Au nanoparticles, enabling a simple all-dielectric micromixing scheme in aqueous medium while accounting for Brownian motion and viscous drag.

Significance. If the force magnitudes and resulting trajectories are shown to yield net mixing beyond diffusion, the work would provide a moving-part-free active mixing approach relevant to lab-on-a-chip platforms. The use of Mie resonances in high-index dielectrics for angular-momentum extraction is timely, though the manuscript supplies no experimental validation or parameter-free derivations.

major comments (1)
  1. [Abstract] Abstract: the central claim that scattering forces induce orbital motion producing net mixing 'accounting for' Brownian and drag forces is load-bearing, yet the transition from the time-harmonic EM solution to stochastic particle dynamics is not shown to preserve orbital coherence against random kicks of magnitude comparable to sqrt(2 kT gamma / Delta t).
minor comments (1)
  1. Notation for the scattered Poynting vector components and the force calculation on the tracer particles should be introduced with explicit definitions to avoid ambiguity between the fixed-scatterer EM solution and the subsequent particle motion.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for their detailed review and for highlighting the need for clearer linkage between the electromagnetic calculations and the stochastic particle dynamics. We address the single major comment below and will revise the manuscript accordingly.

read point-by-point responses

  1. Referee: [Abstract] Abstract: the central claim that scattering forces induce orbital motion producing net mixing 'accounting for' Brownian and drag forces is load-bearing, yet the transition from the time-harmonic EM solution to stochastic particle dynamics is not shown to preserve orbital coherence against random kicks of magnitude comparable to sqrt(2 kT gamma / Delta t).

    Authors: We agree that an explicit demonstration of orbital coherence under stochastic forcing is required to support the central claim. The original manuscript calculated time-averaged scattering forces from the Poynting vector of the scattered field and inserted them into the deterministic equation of motion that already included Stokes drag; Brownian motion was incorporated only through an effective diffusion coefficient when estimating net mixing. To address the referee's point directly, the revised manuscript will add a dedicated subsection that integrates the full Langevin equation numerically for representative Au nanoparticle sizes and force magnitudes. Sample trajectories will be shown both with and without the random term of strength sqrt(2 kT gamma / Delta t), demonstrating that the tangential force component maintains coherent orbital motion over multiple periods for the parameters considered. The abstract will be updated to reflect this added analysis. revision: yes

Circularity Check

0 steps flagged

No circularity: derivation uses standard EM scattering and force calculations

full rationale

The paper derives angular momentum transfer and Poynting-vector forces from numerical/analytical solutions of Maxwell's equations applied to a high-index cube under circularly polarized illumination, then applies the resulting near-field forces to nanoparticle trajectories while including Brownian and drag terms. These steps rest on established Mie theory and Langevin dynamics without any self-definitional loops, fitted inputs renamed as predictions, or load-bearing self-citations. The micromixing illustration is presented as a direct consequence of the computed forces rather than a tautological restatement of inputs.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The work relies on established electromagnetic theory for scattering and known fluid dynamics effects; no new free parameters, ad-hoc axioms, or invented entities are introduced in the abstract description.

axioms (2)
  • standard math Maxwell's equations and Mie scattering theory describe the interaction of light with high-index dielectric particles
    Invoked implicitly for the numerical and analytical investigation of angular momentum transfer.
  • domain assumption Brownian motion and Stokes drag govern nanoparticle dynamics in aqueous medium
    Stated as accounted for in the mixing scheme model.
