The pith

Symmetry-aware projection and blockwise Jacobian decomposition certify microgrid stability without locating any equilibrium point.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops an equilibrium-free contraction stability method for renewable microgrids dominated by grid-forming converters that experience constant power fluctuations. It removes the rotational symmetry from uniform angle shifts by reformulating the dynamics in a projected state space. A blockwise decomposition of the Jacobian then isolates the coupled active and reactive power flows to produce a computable regional contraction condition. This condition converts directly into forward-invariant certificates that guarantee trajectory behavior for both undisturbed operation and cases with disturbances. Readers care because conventional stability tests require knowing the operating point in advance, which is rarely feasible when injections vary continuously.

Core claim

By formulating the system in a symmetry-aware projected state space that removes the intrinsic rotational mode induced by uniform angle shifts, the paper introduces a blockwise Jacobian decomposition to characterize coupled active and reactive power dynamics. This yields a computable regional contraction condition that is converted into forward-invariant stability certificates. For autonomous operation without disturbances the method provides an equilibrium-free nonlinear stability characterization together with an estimation of the region of attraction. For non-autonomous operation under disturbances it derives explicit bounds for quasi-steady tracking under slowly varying injections andfor

What carries the argument

Blockwise Jacobian decomposition applied inside the symmetry-aware projected state space, which isolates coupled active-reactive dynamics and produces a regional contraction condition convertible to forward-invariant certificates.

If this is right

  • Equilibrium-free nonlinear stability characterization for autonomous microgrid operation.
  • Estimation of the region of attraction for the undisturbed case.
  • Explicit bounds on quasi-steady tracking under slowly varying power injections.
  • Robustness bounds under fast or composite disturbances.
  • Validation on a 9-bus test system.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same projection-plus-decomposition pattern could scale to larger converter-dominated networks by treating subsystems as blocks.
  • Control design that enlarges the certified region of attraction becomes directly testable against the contraction metric.
  • The approach may transfer to other rotationally symmetric systems such as multi-machine swing dynamics.
  • Comparing the size of the certified region against numerically computed basins under step-load changes would quantify conservatism.

Load-bearing premise

The system dynamics admit a symmetry-aware projected state-space formulation that removes the intrinsic rotational mode induced by uniform angle shifts while preserving the coupled active-reactive power behavior.

What would settle it

A simulation on the 9-bus system in which a trajectory leaves the forward-invariant set defined by the computed contraction condition, or remains inside the set when the regional condition is violated, would show whether the contraction condition truly implies the claimed stability certificates.

Figures

Figures reproduced from arXiv: 2605.22171 by Hua Geng, Shijie Peng, Xi Ru, Xiuqiang He.

Figure 1
Figure 1. Figure 1: Schematic of the droop-controlled islanded microgrid. [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Semi-contraction and convergence in the R-projected space. The gray dashed balls indicate a distance bound that decays over time. C. Semi-Contraction Preliminaries Contraction theory offers an equilibrium-free view of stabil￾ity by studying convergence between neighboring trajectories rather than toward a fixed equilibrium. Such convergence can be certified through the matrix measure of the system Jacobian… view at source ↗
Figure 3

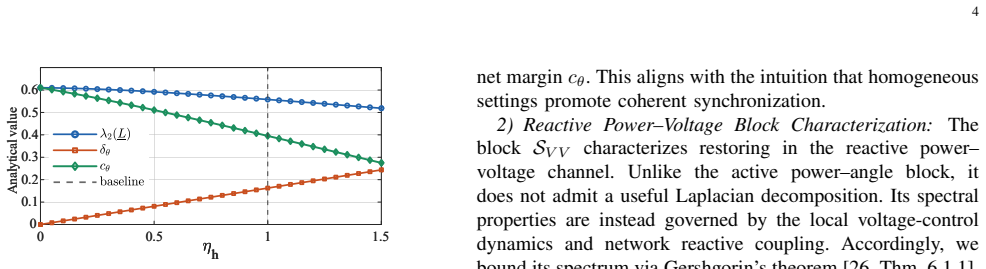

Figure 3. Figure 3: Impact of heterogeneity on cθ. The droop gains are parameterized as mp(ηh) = ¯mp1 + ηh(m0 p − m¯ p1), where m¯ p := 1 N 1⊤m0 p is the mean droop gain. The baseline case is ηh = 1 (dashed line), and ηh = 0 gives the uniform-droop case. 1) Active Power–Angle Block Characterization: The block Sθθ characterizes the synchronizing action in the active power– angle channel. Although Jθθ(x, t) has zero row sums, i… view at source ↗
Figure 2

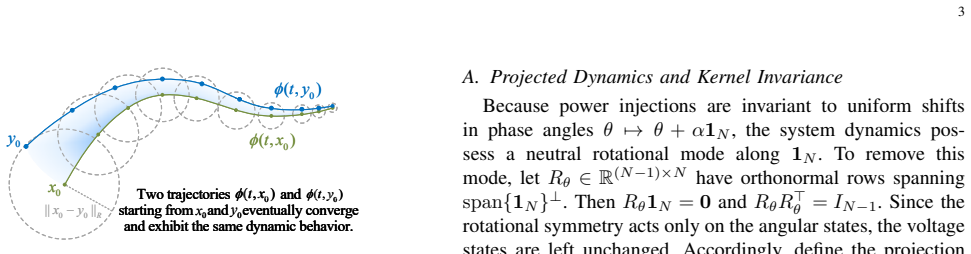

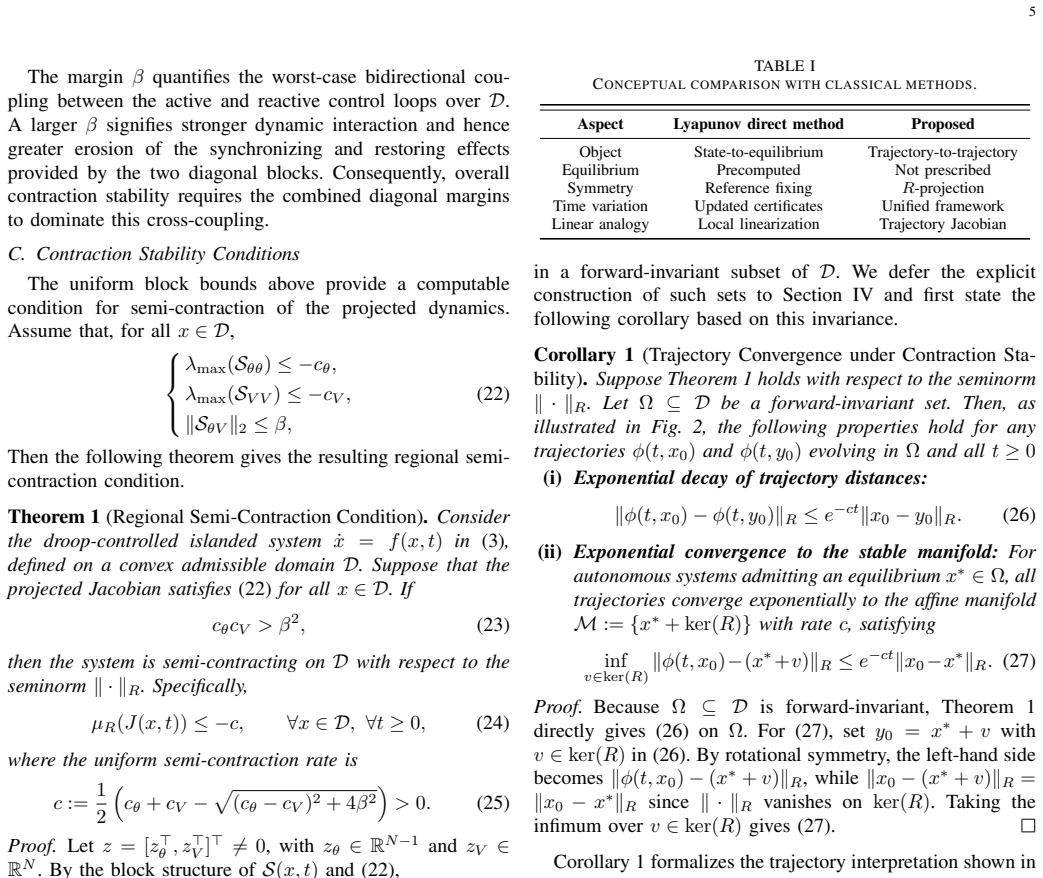

Figure 2. Figure 2: within a forward-invariant set, projected distances be [PITH_FULL_IMAGE:figures/full_fig_p005_2.png] view at source ↗
Figure 4

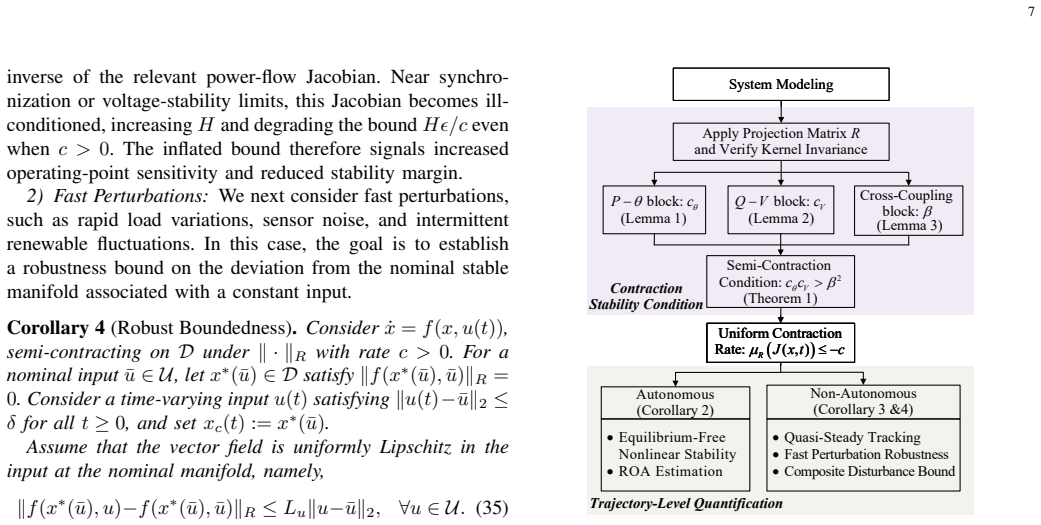

Figure 4. Figure 4: Unified framework for contraction stability analysis. [PITH_FULL_IMAGE:figures/full_fig_p007_4.png] view at source ↗
Figure 5

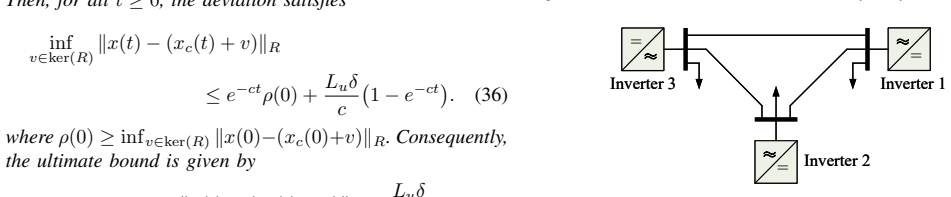

Figure 5. Figure 5: Reduced 3-bus converter network derived from the modified IEEE [PITH_FULL_IMAGE:figures/full_fig_p007_5.png] view at source ↗
Figure 7

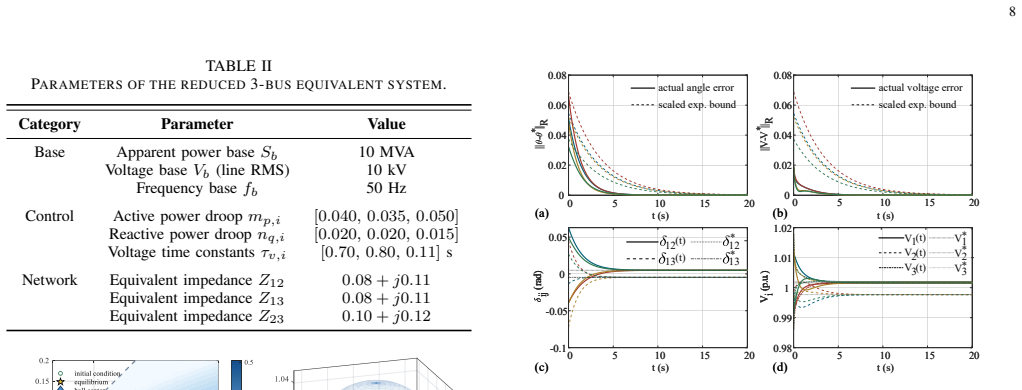

Figure 7. Figure 7: Time-domain verification for the autonomous case. (a), (b) Projected [PITH_FULL_IMAGE:figures/full_fig_p008_7.png] view at source ↗
Figure 6
Figure 6. Figure 6: Invariant-set verification for the autonomous case. (a) Invariant ball in [PITH_FULL_IMAGE:figures/full_fig_p008_6.png] view at source ↗
Figure 8
Figure 8. Figure 8: Time-domain verification under slowly varying disturbances, with [PITH_FULL_IMAGE:figures/full_fig_p008_8.png] view at source ↗
Figure 9

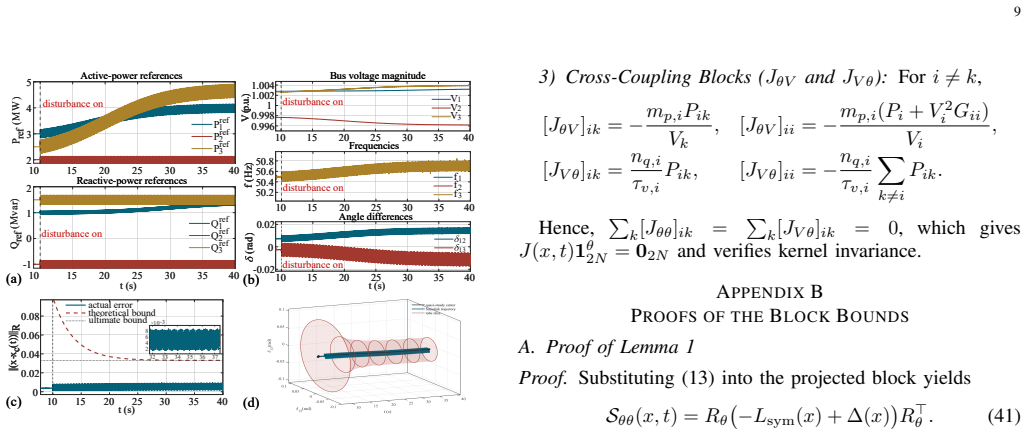

Figure 9. Figure 9: Time-domain verification under composite disturbances, with [PITH_FULL_IMAGE:figures/full_fig_p009_9.png] view at source ↗
