Performance Analysis in Parallel Programming Education: A Comparative Usability Study

Anna-Lena Roth , David James , Jonas Posner , Michael Kuhn This is my paper

Pith reviewed 2026-07-01 03:13 UTC · model grok-4.3

classification 💻 cs.DC
keywords EduMPIMPIperformance analysisparallel programmingusability studyeducationHPCvisualization
0
0 comments X

The pith

EduMPI lowers entry barriers for students learning MPI performance analysis compared to professional tools.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper tries to establish that a custom tool called EduMPI, built with an intuitive GUI for automating MPI program runs on clusters and showing near-real-time communication visualizations, helps students grasp performance issues more readily than existing professional analyzers. It supports this with a usability study that measures how easily participants identify problems like load imbalances. A sympathetic reader would care because parallel programming courses need to teach efficiency and optimization, yet standard tools require too much prior knowledge of clusters and MPI internals to be practical in class. If the finding holds, tailored educational interfaces could make hands-on HPC experience feasible without overwhelming beginners.

Core claim

The paper's central claim is that EduMPI, through its automated cluster execution and visualizations of MPI communication mapped to physical process placement, lowers entry barriers and fosters intuitive understanding of parallel program performance, as shown by a comparative user study against established professional performance analysis tools.

What carries the argument

EduMPI, the learning support tool with an intuitive GUI that automates program execution on clusters and delivers near-real-time visualizations of MPI communication.

Load-bearing premise

The user study participants and experimental conditions represent typical parallel programming students and real classroom settings.

What would settle it

A follow-up study with a broader set of students from multiple institutions that finds no usability advantage or even lower performance for EduMPI on the same tasks.

Figures

Figures reproduced from arXiv: 2606.31458 by Anna-Lena Roth, David James, Jonas Posner, Michael Kuhn.

Figure 1

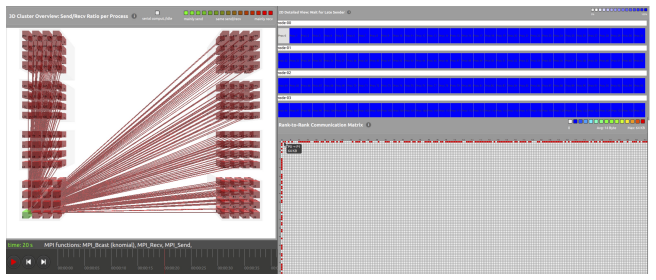

Figure 1. Figure 1: EduMPI: 3D view (left) and communication matrix (bottom right) showing the second program [PITH_FULL_IMAGE:figures/full_fig_p006_1.png] view at source ↗
Figure 2

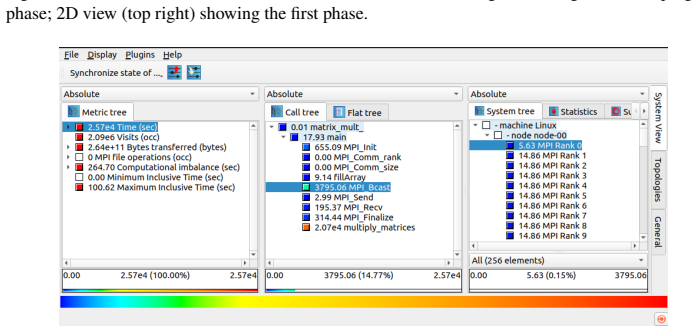

Figure 2. Figure 2: CUBE: Three-pane interface with metric tree, call tree, and system tree [PITH_FULL_IMAGE:figures/full_fig_p006_2.png] view at source ↗
Figure 3

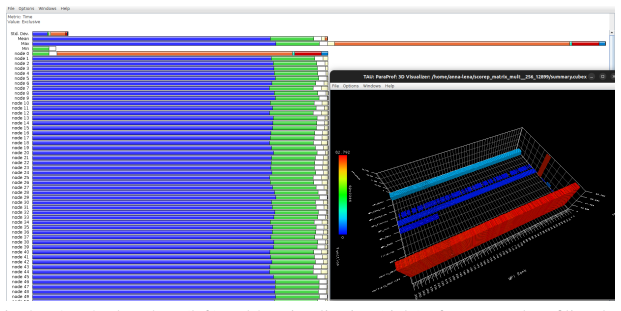

Figure 3. Figure 3: TAU: 2D bar chart (left) and 3D visualization (right) of aggregated profiling data [PITH_FULL_IMAGE:figures/full_fig_p006_3.png] view at source ↗
Figure 4

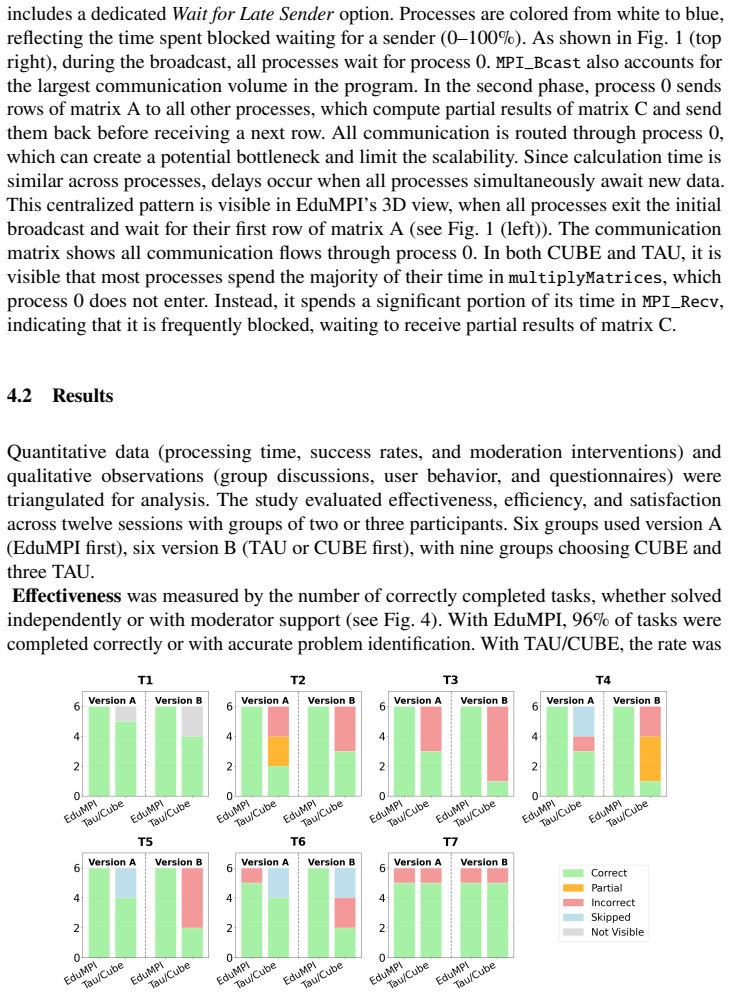

Figure 4. Figure 4: Comparison of task correctness between versions and tools [PITH_FULL_IMAGE:figures/full_fig_p007_4.png] view at source ↗
Figure 5

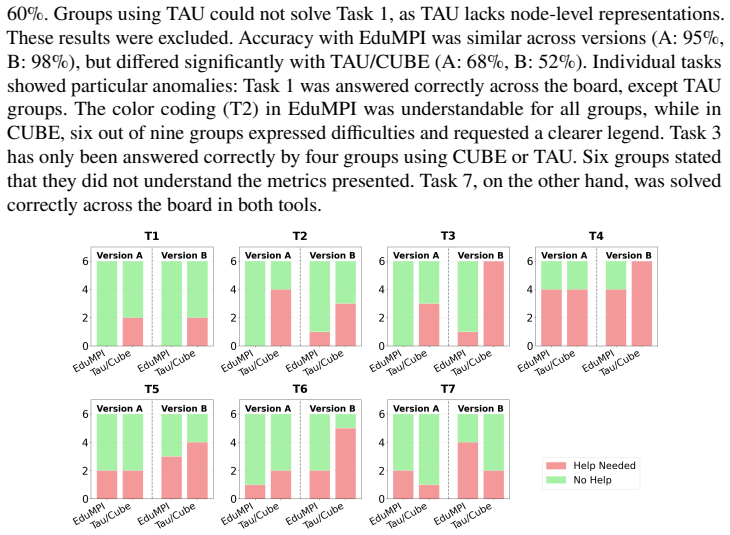

Figure 5. Figure 5: Frequency of moderator assistance during task execution, compared across versions and tools [PITH_FULL_IMAGE:figures/full_fig_p008_5.png] view at source ↗
Figure 6

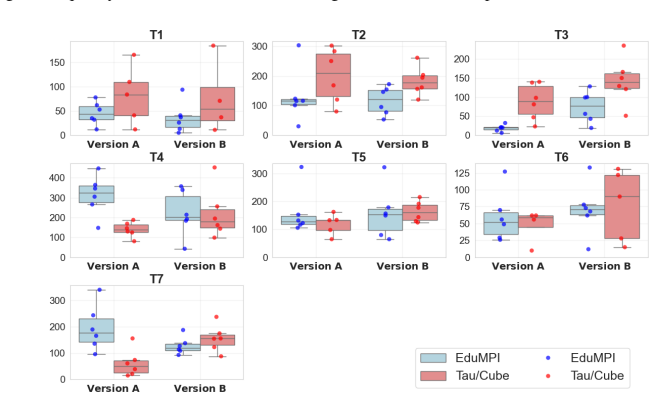

Figure 6. Figure 6: Time spent per task compared across versions and tools [PITH_FULL_IMAGE:figures/full_fig_p008_6.png] view at source ↗
Figure 7

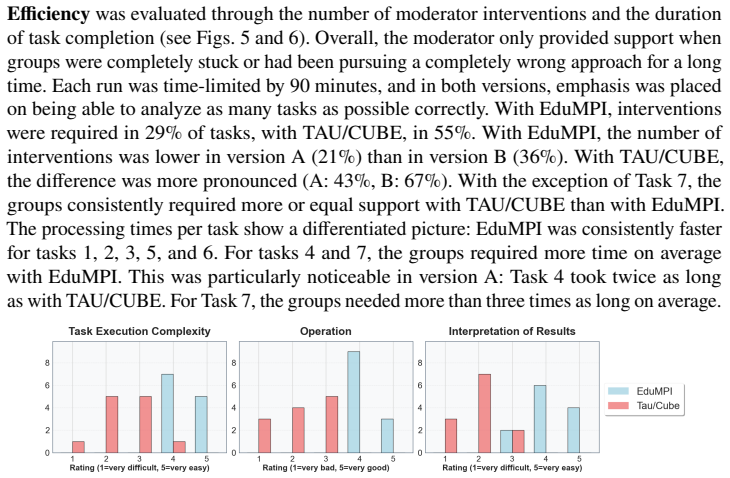

Figure 7. Figure 7: Ratings based on group-averaged Likert responses regarding the tools [PITH_FULL_IMAGE:figures/full_fig_p009_7.png] view at source ↗
read the original abstract

Parallel programming curricula encompass not only the development of parallel code and algorithm design but also emphasize efficiency, optimization, and performance analysis. To equip students with the skills necessary for writing efficient parallel code using message passing with MPI, practical experience on HPC environments is essential. Performance analysis tools assist in identifying issues such as load imbalances or bottlenecks. Despite their use by experienced developers, these tools' complexity and required knowledge of cluster architectures, resource management, MPI, and common parallel issues hinder their educational integration. To address these barriers, we developed EduMPI, a learning support tool designed to simplify cluster usage and performance analysis for students. EduMPI offers an intuitive GUI that automates program execution on clusters and delivers near-real-time visualizations of MPI communication. This enables students to track process communication according to their physical placement within the cluster and detect performance problems interactively. This paper presents a user study comparing EduMPI with established professional performance analysis tools, demonstrating that EduMPI lowers entry barriers and fosters an intuitive understanding of parallel program performance, thereby enhancing its educational value.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 0 minor

Summary. The paper introduces EduMPI, a GUI-based learning support tool that automates MPI program execution on clusters and provides near-real-time visualizations of communication patterns to simplify performance analysis for students. It reports results from a comparative user study against established professional performance analysis tools, claiming that EduMPI lowers entry barriers, fosters intuitive understanding of parallel program performance, and thereby enhances educational value in parallel programming curricula.

Significance. If the empirical claims hold after proper documentation, the work could address a recognized gap in HPC education by demonstrating how simplified tools can integrate performance analysis into teaching without requiring deep prior knowledge of cluster architectures or professional tooling. This would be a modest but useful contribution to usability studies in parallel programming education, provided the study design supports generalization.

major comments (1)
  1. [User study description (post-tool-presentation section)] The user study (described in the section following the tool presentation, based on the abstract's claim of a comparative study) supplies no information on participant count, recruitment method, prior MPI/HPC experience, institutional or demographic diversity, task design, quantitative metrics (completion time, error rates), subjective scales used, control conditions, or statistical tests performed. Without these details the reported positive outcomes cannot be evaluated for significance, bias, or generalizability, rendering the central educational-value claim unsupported.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the careful reading and for identifying the need for greater transparency in the user study section. We agree that the current description is insufficient to allow evaluation of the reported outcomes and will substantially expand that section in revision.

read point-by-point responses

  1. Referee: The user study (described in the section following the tool presentation, based on the abstract's claim of a comparative study) supplies no information on participant count, recruitment method, prior MPI/HPC experience, institutional or demographic diversity, task design, quantitative metrics (completion time, error rates), subjective scales used, control conditions, or statistical tests performed. Without these details the reported positive outcomes cannot be evaluated for significance, bias, or generalizability, rendering the central educational-value claim unsupported.

    Authors: We fully agree that the manuscript as submitted omits these methodological details. The study was conducted with 24 undergraduate and graduate students recruited from two parallel-programming courses at our institution; participants had limited prior MPI experience (self-reported via a pre-study questionnaire). Tasks consisted of analyzing two provided MPI programs for communication bottlenecks using either EduMPI or a professional tool (VTune), with completion time, error rate in identifying issues, and NASA-TLX workload scores as primary metrics. A within-subjects design with counterbalanced tool order was used, and results were analyzed with paired t-tests. In the revised manuscript we will insert a dedicated subsection (approximately 1.5 pages) containing all of the above information plus the raw summary statistics and p-values, thereby allowing readers to assess significance, bias, and scope of generalization. revision: yes

Circularity Check

0 steps flagged

No circularity in empirical usability study

full rationale

The paper is a comparative user study reporting observed differences in usability between EduMPI and professional tools. It contains no derivations, equations, fitted parameters, predictions, or first-principles claims that could reduce to inputs by construction. No self-citation chains, ansatzes, or renamings of known results are present. The central claim rests directly on the empirical data collected in the study itself, making the work self-contained against external benchmarks with no load-bearing circular steps.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

This is an empirical software-development and usability paper; it introduces no mathematical free parameters, background axioms, or postulated physical entities.

pith-pipeline@v0.9.1-grok · 5711 in / 1081 out tokens · 57045 ms · 2026-07-01T03:13:23.875160+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

16 extracted references · 3 canonical work pages

  1. [1]

    In: Proceedings of the 15th NSF/TCPP Workshop on Parallel and Distributed Computing Education (EduPar 2025)

    [AMB25] Atala, C.; Morrison, M.; Ballard, G.: Visualizing MPI Collective Communication. In: Proceedings of the 15th NSF/TCPP Workshop on Parallel and Distributed Computing Education (EduPar 2025). IEEE, 2025, https://tcpp.cs.gsu.edu/curriculum/sites/default/ files/EduPar108.pdf. [Be05] Bernreuther, M. et al.: Teaching High-Performance Computing on a High-...

    2025

  2. [2]

    In: 14th Panhellenic Conference on Informatics, PCI 2010, Tripoli, Greece, Sept

    [DM10] Delistavrou, C.T.; Margaritis, K.G.: Survey of Software Environments for Parallel Dis- tributed Processing: Parallel Programming Education on Real Life Target Systems Using Production Oriented Software Tools. In: 14th Panhellenic Conference on Informatics, PCI 2010, Tripoli, Greece, Sept. 10-12,

    2010

  3. [3]

    [Fu20] Fulda, University of Applied Sciences: Parallel Programming (AI5085), Examination Regulations, M. Sc. Global Software Development, https://www.hs-fulda.de/fileadmin/ user_upload/Unsere_Hochschule/Hochschulrecht/Pruefungsordnungen/Angewandte_ Informatik/MSc_GSD_2020_Ae2022-23_LF.pdf, accessed: 2024-06-19,

    2024

  4. [4]

    [Jo06] Joiner, D.A. et al.: Teaching parallel computing to science faculty: best practices and commonpitfalls.In(Torrellas,J.;Chatterjee,S.,eds.):ProceedingsoftheACMSIGPLAN Symposium on Principles and Practice of Parallel Programming, PPOPP 2006, New York, USA, March 29-31,

    2006

  5. [5]

    In (Jannesari, A

    [KWT15] Kiefer, M.A.; Warzel, D.; Tichy, W.F.: An empirical study on parallelism in modern open-source projects. In (Jannesari, A. et al., eds.): Proceedings of the 2nd International Workshop on Software Engineering for Parallel Systems, SEPS@SPLASH 2015, Pitts- burgh, PA, USA, October 27,

    2015

  6. [6]

    35–44, 2015, https://doi.org/10.1145/ 2837476.2837481

    ACM, pp. 35–44, 2015, https://doi.org/10.1145/ 2837476.2837481. [Ma19] Malakar, P.: Experiences of Teaching Parallel Computing to Undergraduates and Post- Graduates.In:26thInternationalConferenceonHighPerformanceComputing,Dataand Analytics Workshop, HiPCW 2019, Hyderabad, India, December 17-20,

    work page arXiv 2015

  7. [7]

    In: IEEE International Parallel and Distributed Processing Symposium, IPDPS 2024 - Workshop, San Francisco, CA, USA, May 27-31,

    [ONB24] Oden, L.; Nölp, K.; Brauner, P.: Integrating Interactive Performance Analysis in Jupyter Notebooks for Parallel Programming Education. In: IEEE International Parallel and Distributed Processing Symposium, IPDPS 2024 - Workshop, San Francisco, CA, USA, May 27-31,

    2024

  8. [8]

    [Pr20] Prasad, S.K. et al.: NSF/IEEE-TCPP Curriculum Initiative on Parallel and Distributed Computing - Core Topics for Undergraduates (Version 2.0-beta), https://tcpp.cs.gsu.edu/ curriculum/?q=home, Accessed: 2025-08-09,

    2025

  9. [9]

    In: Proceedings of the Working Group Reports on ITiCSE

    [Ra20] Raj,R.K.etal.:HighPerformanceComputingEducation:CurrentChallengesandFuture Directions.In:ProceedingsoftheWorkingGroupReportsonInnovationandTechnology in Computer Science Education. Association for Computing Machinery, Trondheim, Norway, pp. 51–74, 2020, https://doi.org/10.1145/3437800.3439203. [RJK25] Roth, A.-L.; James, D.; Kuhn, M.: EduMPI - Simp...

    work page doi:10.1145/3437800.3439203 2020

  10. [10]

    et al.: Enhancing Parallel Programming Education with High-Performance Clusters Utilizing Performance Analysis

    [Ro24] Roth, A.-L. et al.: Enhancing Parallel Programming Education with High-Performance Clusters Utilizing Performance Analysis. In (Schulz, S.; Kiesler, N., eds.): DELFI 2024 - Die

    2024

  11. [11]

    Fachtagung Bildungstechnologien der Gesellschaft für Informatik e.V., DELFI 2024, Fulda, Germany, September 9-11,

    2024

  12. [12]

    https://doi.org/10.5281/zenodo

    [Ro25a] Roth, A.-L.: Usability Evaluation EduMPI 2025, https://doi.org/10.5281/zenodo. 16798981,

    work page doi:10.5281/zenodo 2025

  13. [13]

    [Ro25b] Roth,A.-L.etal.:MakingMPICollectiveOperationsVisible:UnderstandingTheirUtility and Algorithmic Insights. In (Nagel, W.E.; Goehringer, D.; Diniz, P.C., eds.): Euro- Par 2025: Parallel Processing - 31st European Conference on Parallel and Distributed Processing, Dresden, Germany, August 25-29, 2025, Proceedings, Part I. Vol. 15900. Lecture Notes in ...

    2025

  14. [14]

    [YJG03] Yoo, A.B.; Jette, M.A.; Grondona, M.: SLURM: Simple Linux Utility for Resource Management.In(Feitelson,D.G.;Rudolph,L.;Schwiegelshohn,U.,eds.):JobScheduling Strategies for Parallel Processing, 9th International Workshop, JSSPP 2003, Seattle, WA, USA, June 24, 2003, Revised Papers. Vol

    2003

  15. [15]

    et al.: Improving Student Skills on Parallel Programming via Code Evaluation and Feedback Debugging

    [Zh18] Zhang, Y. et al.: Improving Student Skills on Parallel Programming via Code Evaluation and Feedback Debugging. In: IEEE International Conference on Teaching, Assessment, and Learning for Engineering, TALE 2018, Wollongong, Australia, December 4-7,

    2018

  16. [16]

    1069–1073, 2018

    IEEE, pp. 1069–1073, 2018

    2018
