Learning Generalisable Coupling Terms for Obstacle Avoidance via Low-dimensional Geometric Descriptors

\`Eric Pairet , Paola Ard\'on , Michael Mistry , Yvan Petillot This is my paper

Pith reviewed 2026-05-25 17:23 UTC · model grok-4.3

classification 💻 cs.RO
keywords obstacle avoidancedynamic movement primitivesgeometric descriptorsrobotic manipulationgeneralisationhierarchical frameworkreactive behaviourscoupling terms
0
0 comments X

The pith

Low-dimensional geometric descriptors enable learning of generalisable coupling terms for robot obstacle avoidance.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper presents a hierarchical framework that uses low-dimensional geometric descriptors to learn coupling terms for dynamic movement primitives. This unifies perception, decision making, and action to produce reactive yet bounded obstacle avoidance. A sympathetic reader would care because robots in real environments often face unforeseen obstacles and need fast replanning without losing safety bounds. The authors test the approach on synthetic environments and a real anthropomorphic manipulator to show robustness and generalisation across scenarios. If correct, the method allows obstacle avoidance policies that transfer without retraining for each new setting.

Core claim

The central claim is that low-dimensional geometric descriptors of the environment suffice to learn coupling terms that make dynamic movement primitives produce generalisable, reactive obstacle avoidance behaviours, unifying the perception-decision-action pipeline in a multi-layered hierarchy that remains bounded and suitable for real-world robotic systems.

What carries the argument

low-dimensional geometric descriptors of the environment, which carry the argument by supplying the features that allow learning of generalisable coupling terms for dynamic movement primitives

If this is right

  • The framework generates reactive yet bounded avoidance without requiring full policy replanning on every unforeseen event.
  • Perception, decision, and action levels become unified through the same low-dimensional descriptors.
  • The learned behaviours transfer across different obstacle avoidance scenarios without scenario-specific retraining.
  • The approach applies directly to anthropomorphic manipulators in real-world settings.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • If the descriptors prove sufficient, similar low-dimensional encodings could support generalisation in related tasks such as grasping or navigation.
  • The reliance on human-inspired route selection suggests the descriptors might be tuned by observing human avoidance data in the same environments.
  • A direct test would measure how performance degrades when the dimensionality of the descriptors is reduced further.

Load-bearing premise

Low-dimensional geometric descriptors capture all relevant features needed to generalise across arbitrary obstacle avoidance scenarios.

What would settle it

An experiment in which an obstacle configuration whose key geometric features fall outside the chosen low-dimensional descriptors causes the learned coupling terms to produce a collision or unbounded behaviour.

Figures

Figures reproduced from arXiv: 1906.09941 by \`Eric Pairet, Michael Mistry, Paola Ard\'on, Yvan Petillot.

Figure 1

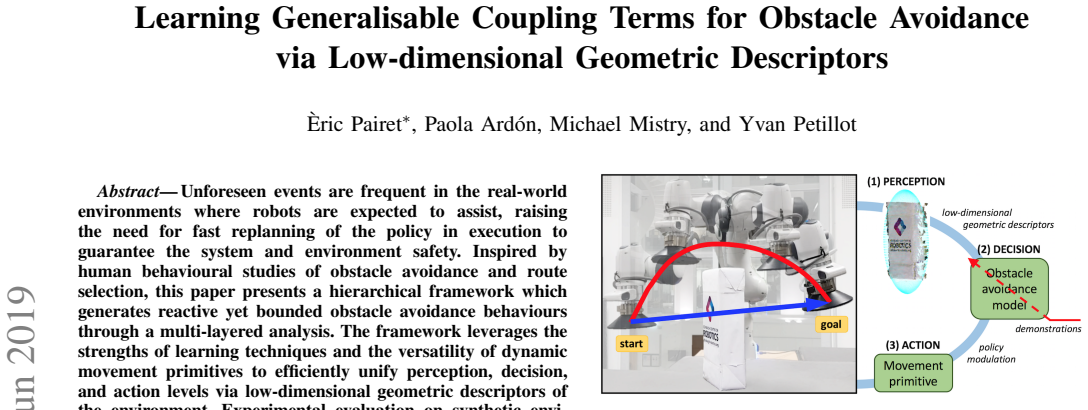

Figure 1. Figure 1: Proposed hierarchical framework for learning and [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗

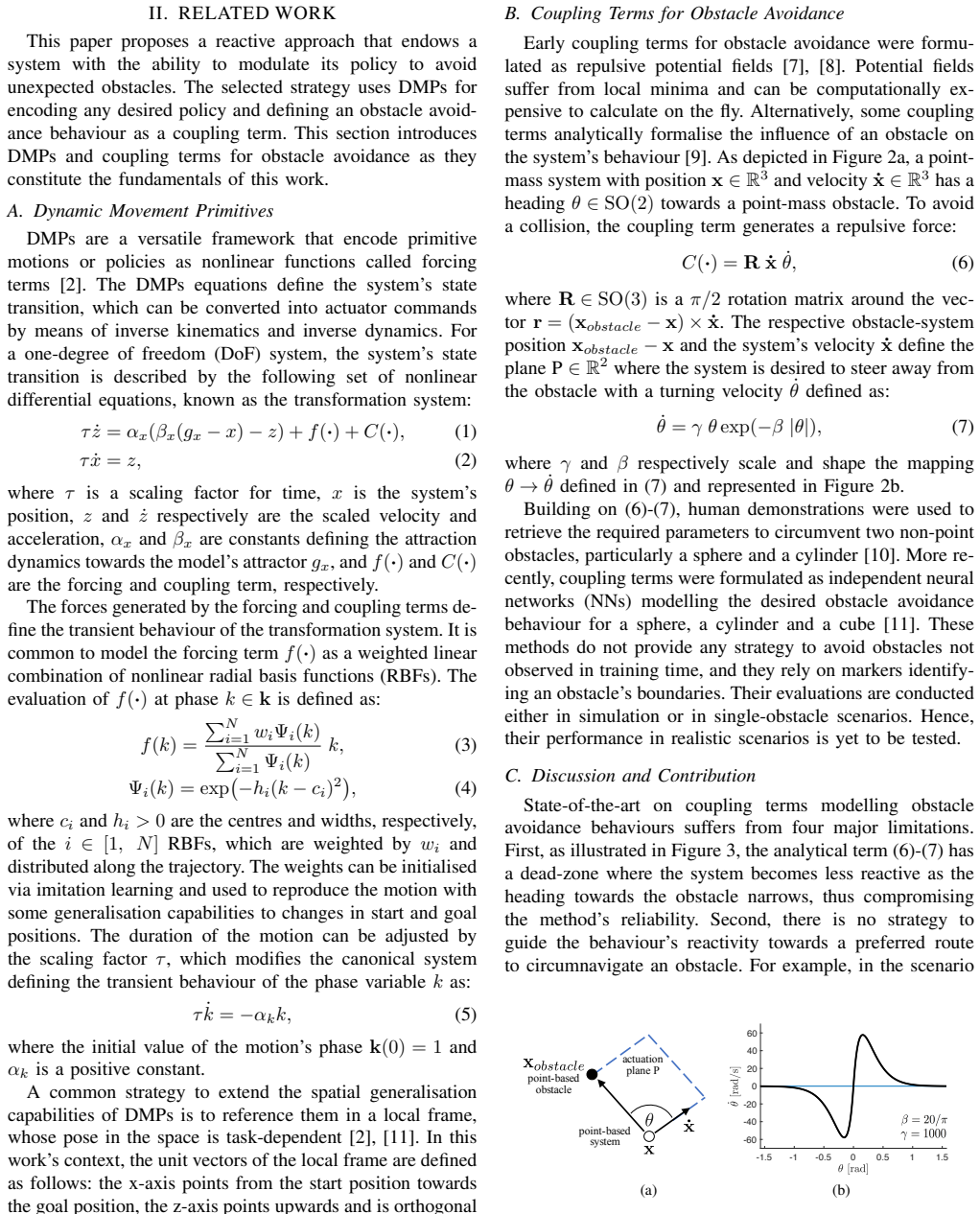

Figure 2
Figure 2. Figure 2: Original coupling terms for obstacle avoidance [9]. [PITH_FULL_IMAGE:figures/full_fig_p002_2.png] view at source ↗
Figure 3

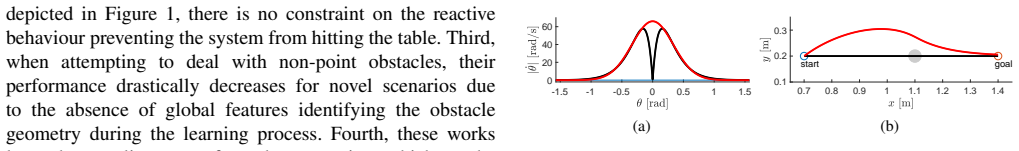

Figure 3. Figure 3: Dead-zone issue in the original (6)-(7) (black) and [PITH_FULL_IMAGE:figures/full_fig_p003_3.png] view at source ↗

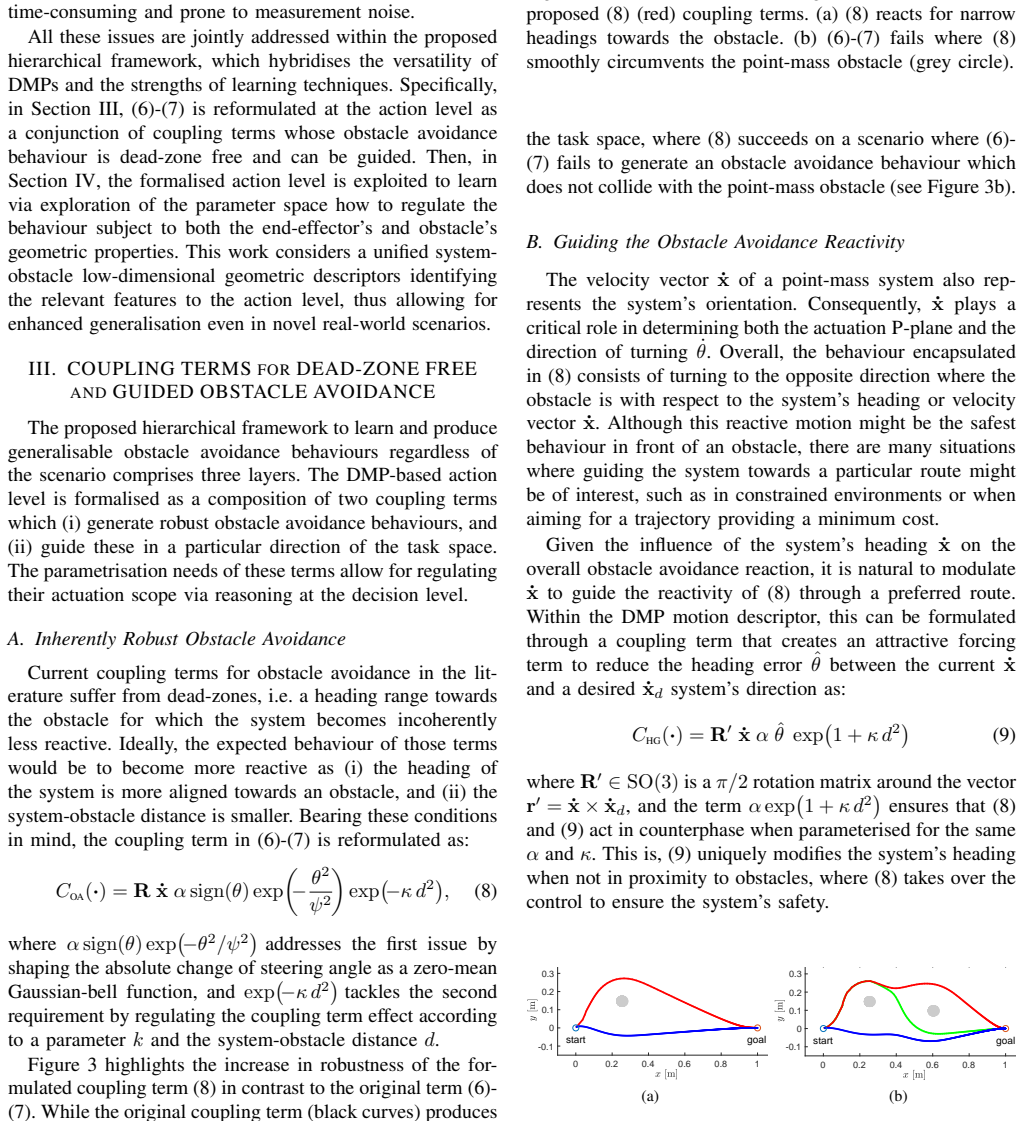

Figure 4
Figure 4. Figure 4: Route selection for obstacle avoidance in (a) single [PITH_FULL_IMAGE:figures/full_fig_p003_4.png] view at source ↗

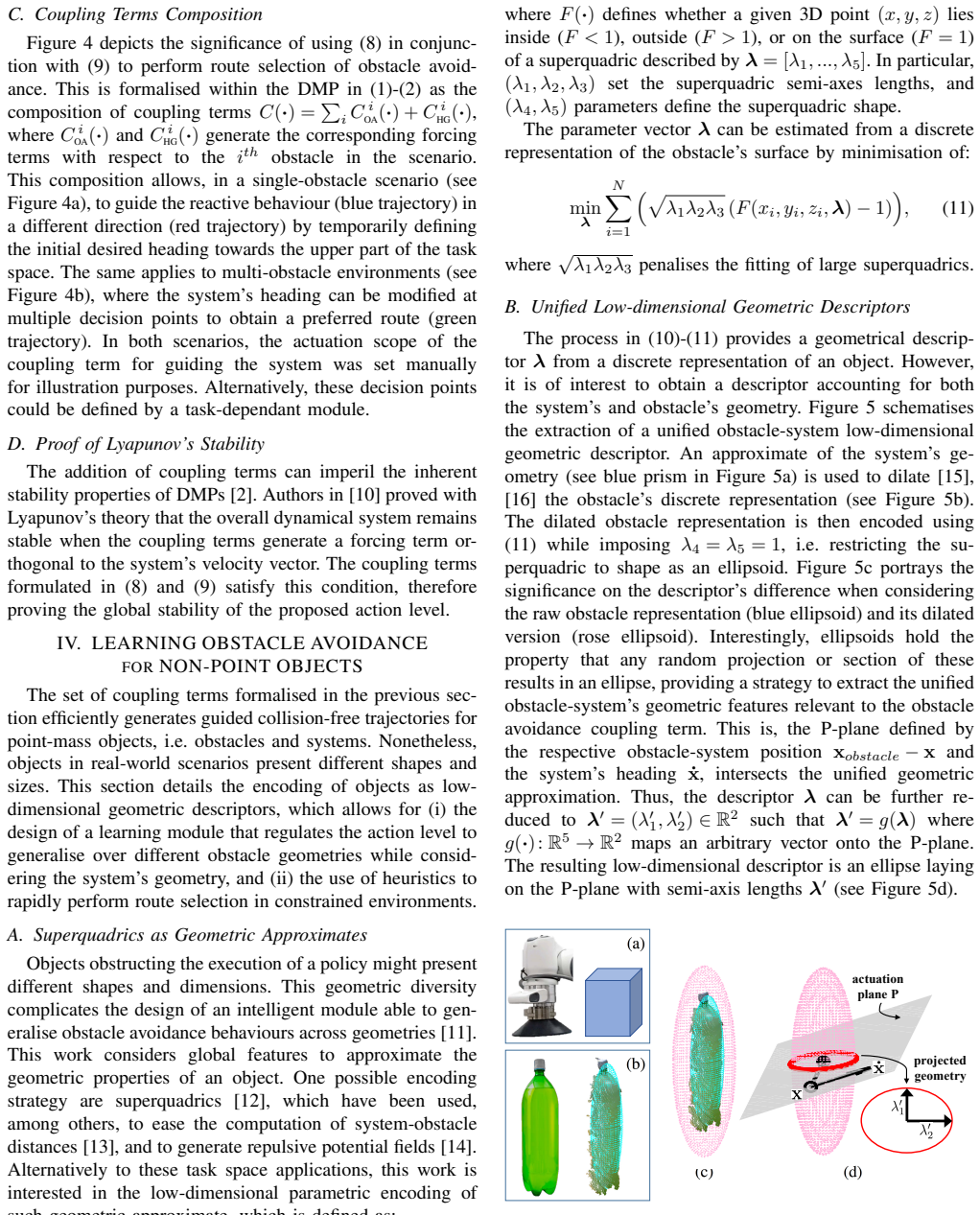

Figure 5
Figure 5. Figure 5: Extraction of unified low-dimensional descriptors [PITH_FULL_IMAGE:figures/full_fig_p004_5.png] view at source ↗

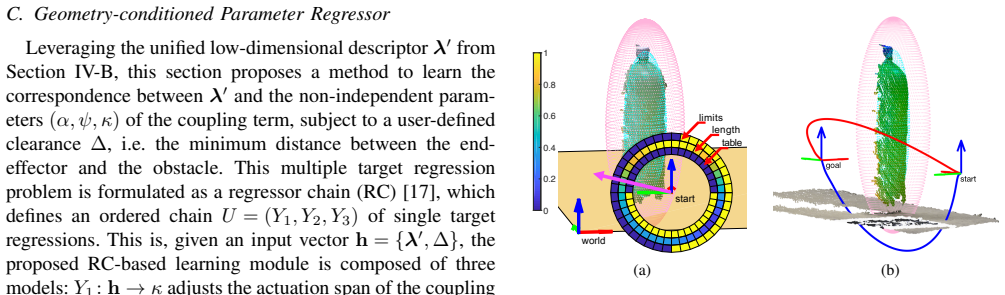

Figure 6
Figure 6. Figure 6: Route selection via heuristic rings. (a) Cost evaluation [PITH_FULL_IMAGE:figures/full_fig_p005_6.png] view at source ↗

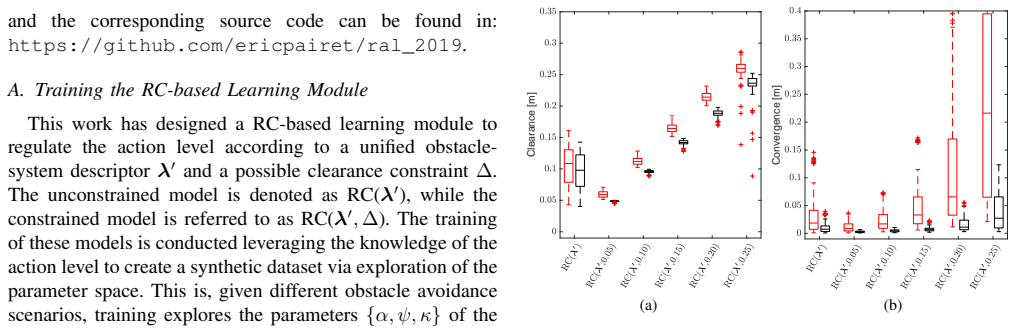

Figure 7
Figure 7. Figure 7: (a) Clearance and (b) convergence of the avoidance [PITH_FULL_IMAGE:figures/full_fig_p006_7.png] view at source ↗

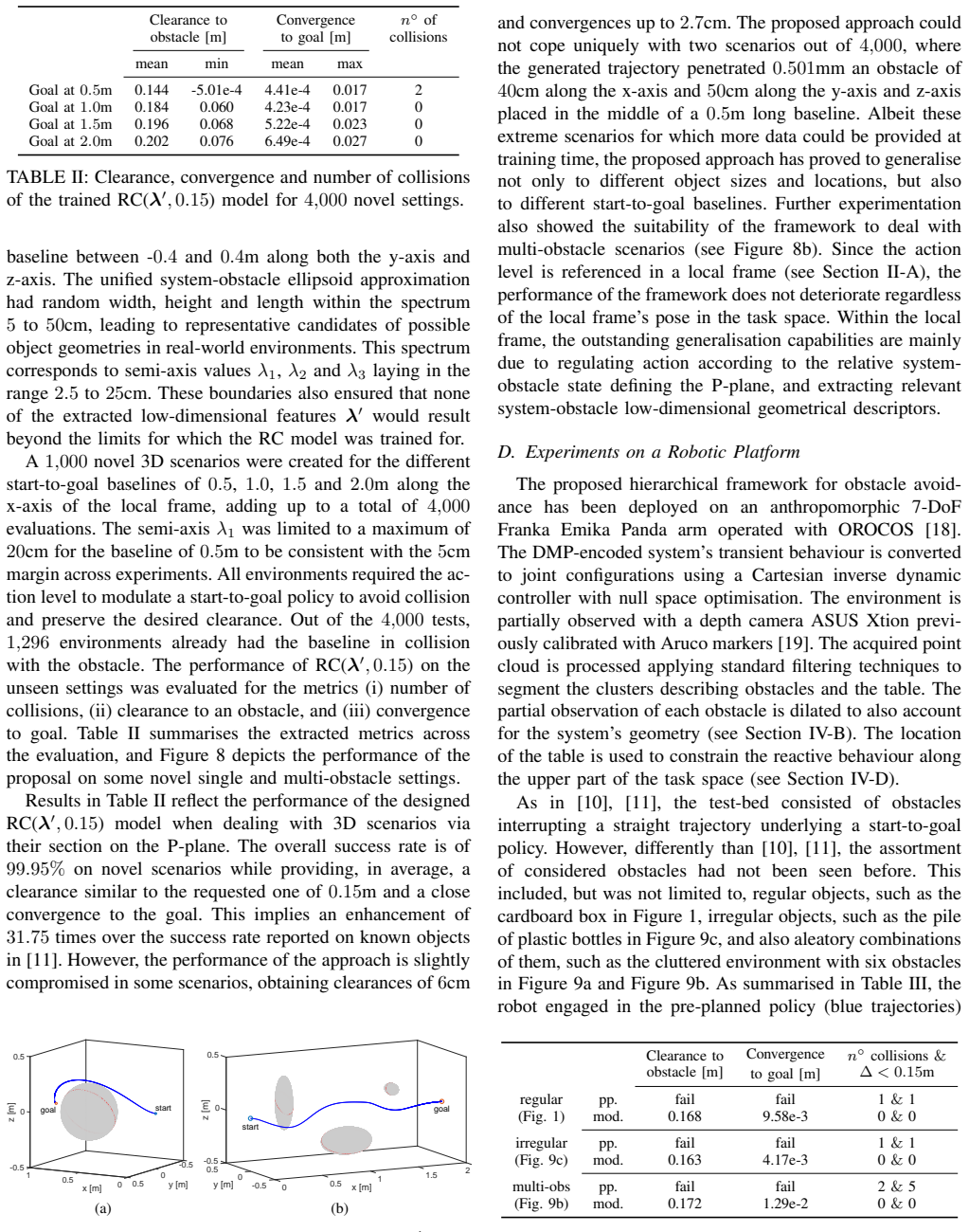

Figure 8
Figure 8. Figure 8: Generalisation capabilities of the trained RC( [PITH_FULL_IMAGE:figures/full_fig_p007_8.png] view at source ↗

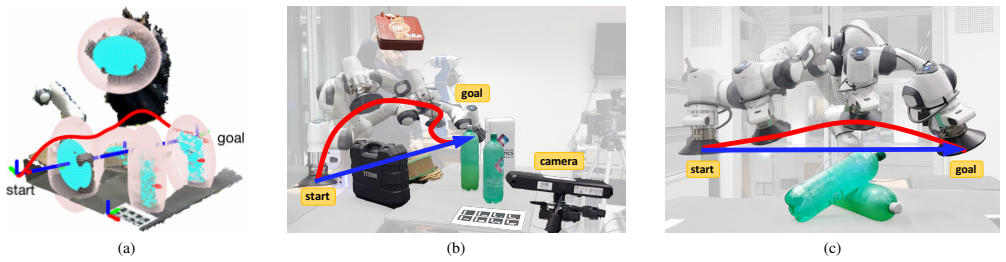

Figure 9
Figure 9. Figure 9: Panda arm engaged in a start-to-goal policy (blue trajectories) while modulating its behaviour (red trajectories). [PITH_FULL_IMAGE:figures/full_fig_p008_9.png] view at source ↗
read the original abstract

Unforeseen events are frequent in the real-world environments where robots are expected to assist, raising the need for fast replanning of the policy in execution to guarantee the system and environment safety. Inspired by human behavioural studies of obstacle avoidance and route selection, this paper presents a hierarchical framework which generates reactive yet bounded obstacle avoidance behaviours through a multi-layered analysis. The framework leverages the strengths of learning techniques and the versatility of dynamic movement primitives to efficiently unify perception, decision, and action levels via low-dimensional geometric descriptors of the environment. Experimental evaluation on synthetic environments and a real anthropomorphic manipulator proves that the robustness and generalisation capabilities of the proposed approach regardless of the obstacle avoidance scenario makes it suitable for robotic systems in real-world environments.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The paper presents a hierarchical framework for reactive yet bounded obstacle avoidance in robots, inspired by human behavioral studies. It unifies perception, decision, and action levels by learning coupling terms for dynamic movement primitives using low-dimensional geometric descriptors of the environment. The central claim is that experimental evaluation on synthetic environments and a real anthropomorphic manipulator demonstrates robustness and generalisation capabilities regardless of the obstacle avoidance scenario, making the approach suitable for real-world robotic systems.

Significance. If the low-dimensional descriptors prove sufficient for generalisation and the experimental support holds, the work could provide an efficient method to combine learning with DMPs for safe, reactive robot behaviors in dynamic settings, addressing the need for fast replanning under unforeseen events.

major comments (2)
  1. [Abstract] Abstract, paragraph 2: the claim that experiments 'prove' robustness and generalisation 'regardless of the obstacle avoidance scenario' is load-bearing for the paper's contribution, yet the provided abstract supplies no quantitative results, error bars, exclusion criteria, or derivation steps, preventing assessment of whether the evidence supports the claim.
  2. [Abstract] Abstract, paragraph 2 (and implied experimental section): the evaluation is restricted to synthetic environments and one anthropomorphic manipulator setup; this does not address the skeptic concern that generalisation requires the descriptors to capture all relevant features (e.g., moving obstacles, non-convexity, or out-of-distribution shapes), so the 'regardless' claim lacks a concrete test or proof.
minor comments (1)
  1. [Abstract] The abstract could clarify the specific low-dimensional geometric descriptors employed and how they are extracted from perception.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their constructive feedback. We address each major comment point by point below, indicating where revisions will be made to the manuscript.

read point-by-point responses

  1. Referee: [Abstract] Abstract, paragraph 2: the claim that experiments 'prove' robustness and generalisation 'regardless of the obstacle avoidance scenario' is load-bearing for the paper's contribution, yet the provided abstract supplies no quantitative results, error bars, exclusion criteria, or derivation steps, preventing assessment of whether the evidence supports the claim.

    Authors: We agree that the abstract should better substantiate the claims with concrete evidence. In the revised manuscript, we will update the abstract to include key quantitative results from the experiments, such as avoidance success rates and generalization metrics across tested scenarios, to allow readers to assess the supporting evidence directly. revision: yes

  2. Referee: [Abstract] Abstract, paragraph 2 (and implied experimental section): the evaluation is restricted to synthetic environments and one anthropomorphic manipulator setup; this does not address the skeptic concern that generalisation requires the descriptors to capture all relevant features (e.g., moving obstacles, non-convexity, or out-of-distribution shapes), so the 'regardless' claim lacks a concrete test or proof.

    Authors: The experiments evaluate generalization to a variety of static obstacle shapes and configurations in both synthetic environments and on a real 7-DoF manipulator arm, using low-dimensional geometric descriptors. We acknowledge that the absolute phrasing 'regardless of the obstacle avoidance scenario' overstates the tested scope, particularly for unexamined cases such as moving obstacles. We will revise the abstract and related sections to specify the evaluated conditions (static obstacles) and moderate the generalization claim accordingly, while noting limitations and potential extensions for dynamic settings. revision: partial

Circularity Check

0 steps flagged

No circularity detected; claims rest on experimental evaluation without self-referential derivations

full rationale

The abstract and provided text describe a hierarchical framework combining learning techniques with dynamic movement primitives and low-dimensional geometric descriptors for obstacle avoidance. No equations, fitted parameters, predictions, or derivation chains are presented that reduce to inputs by construction. No self-citations, uniqueness theorems, or ansatzes are invoked in a load-bearing manner. The generalization claim is supported by experimental evaluation on synthetic environments and a manipulator, which is independent of any internal fitting loop. This is a standard non-finding for a methods paper whose core contribution is empirical rather than a closed-form derivation.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract supplies no information on free parameters, background axioms or new postulated entities.

pith-pipeline@v0.9.0 · 5657 in / 1005 out tokens · 28453 ms · 2026-05-25T17:23:29.103931+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

19 extracted references · 19 canonical work pages

  1. [1]

    Behavioral dynamics of steering, obstable avoidance, and route selection,

    B. R. Fajen and W. H. Warren, “Behavioral dynamics of steering, obstable avoidance, and route selection,” Journal of Experimental Psychology: Human Perception and Performance , vol. 29, no. 2, p. 343, 2003

    work page 2003

  2. [2]

    Dynamical movement primitives: learning attractor models for motor behaviors,

    A. J. Ijspeert, J. Nakanishi, H. Hoffmann, P. Pastor, and S. Schaal, “Dynamical movement primitives: learning attractor models for motor behaviors,” Neural computation, vol. 25, no. 2, pp. 328–373, 2013

    work page 2013

  3. [3]

    On-line learning and modulation of periodic movements with nonlinear dynamical systems,

    A. Gams, A. J. Ijspeert, S. Schaal, and J. Lenar ˇciˇc, “On-line learning and modulation of periodic movements with nonlinear dynamical systems,” Autonomous robots, vol. 27, no. 1, pp. 3–23, 2009

    work page 2009

  4. [4]

    Coupling movement primitives: Interaction with the environment and bimanual tasks,

    A. Gams, B. Nemec, A. J. Ijspeert, and A. Ude, “Coupling movement primitives: Interaction with the environment and bimanual tasks,” IEEE Transactions on Robotics , vol. 30, no. 4, pp. 816–830, 2014

    work page 2014

  5. [5]

    Learning sensor feedback models from demonstrations via phase-modulated neural networks,

    G. Sutanto, Z. Su, S. Schaal, and F. Meier, “Learning sensor feedback models from demonstrations via phase-modulated neural networks,” in IEEE International Conference on Robotics and Automation , pp. 1142–1149, 2018

    work page 2018

  6. [6]

    Learning and generalisation of primitives skills towards robust dual-arm ma- nipulation,

    È. Pairet, P. Ardón, F. Broz, M. Mistry, and Y . Petillot, “Learning and generalisation of primitives skills towards robust dual-arm ma- nipulation,” in AAAI Fall Symposium on Reasoning and Learning in Real-World Systems for Long-Term Autonomy , pp. 62–69, 2018

    work page 2018

  7. [7]

    Movement reproduction and obstacle avoidance with dynamic movement primi- tives and potential fields,

    D.-H. Park, H. Hoffmann, P. Pastor, and S. Schaal, “Movement reproduction and obstacle avoidance with dynamic movement primi- tives and potential fields,” in IEEE-RAS International Conference on Humanoid Robots, pp. 91–98, 2008

    work page 2008

  8. [8]

    A dynamical system approach to realtime obstacle avoidance,

    S. M. Khansari-Zadeh and A. Billard, “A dynamical system approach to realtime obstacle avoidance,” Autonomous Robots , vol. 32, no. 4, pp. 433–454, 2012

    work page 2012

  9. [9]

    Biologically- inspired dynamical systems for movement generation: automatic real- time goal adaptation and obstacle avoidance,

    H. Hoffmann, P. Pastor, D.-H. Park, and S. Schaal, “Biologically- inspired dynamical systems for movement generation: automatic real- time goal adaptation and obstacle avoidance,” in IEEE International Conference on Robotics and Automation , pp. 2587–2592, 2009

    work page 2009

  10. [10]

    Learning coupling terms for obstacle avoidance,

    A. Rai, F. Meier, A. Ijspeert, and S. Schaal, “Learning coupling terms for obstacle avoidance,” in IEEE-RAS International Conference on Humanoid Robots, pp. 512–518, 2014

    work page 2014

  11. [11]

    Learning feedback terms for reactive planning and control,

    A. Rai, G. Sutanto, S. Schaal, and F. Meier, “Learning feedback terms for reactive planning and control,” in IEEE International Conference on Robotics and Automation , pp. 2184–2191, 2017

    work page 2017

  12. [12]

    Superquadrics and angle-preserving transformations,

    A. Barr, “Superquadrics and angle-preserving transformations,” IEEE Computer graphics and Applications , vol. 1, no. 1, pp. 11–23, 1981

    work page 1981

  13. [13]

    Real-time control of redundant robotic manipulators for mobile obstacle avoidance,

    V . Perdereau, C. Passi, and M. Drouin, “Real-time control of redundant robotic manipulators for mobile obstacle avoidance,” Robotics and Autonomous Systems, vol. 41, no. 1, pp. 41–59, 2002

    work page 2002

  14. [14]

    Real-time obstacle avoidance for manipulators and mobile robots,

    O. Khatib, “Real-time obstacle avoidance for manipulators and mobile robots,” in Autonomous robot vehicles , pp. 396–404, Springer, 1986

    work page 1986

  15. [15]

    Spatial planning: A configuration space approach,

    T. Lozano-Perez, “Spatial planning: A configuration space approach,” in Autonomous robot vehicles , pp. 259–271, Springer, 1990

    work page 1990

  16. [16]

    Avoidance of convex and concave obstacles with convergence ensured through contraction,

    L. Huber, A. Billard, and J.-J. Slotine, “Avoidance of convex and concave obstacles with convergence ensured through contraction,” Robotics and Automation Letters , vol. 4, no. 2, pp. 1462–1469, 2019

    work page 2019

  17. [17]

    Multi-target regression via input space expansion: treating targets as inputs,

    E. Spyromitros-Xioufis, G. Tsoumakas, W. Groves, and I. Vlahavas, “Multi-target regression via input space expansion: treating targets as inputs,” Machine Learning, vol. 104, no. 1, pp. 55–98, 2016

    work page 2016

  18. [18]

    Open robot control software: the orocos project,

    H. Bruyninckx, “Open robot control software: the orocos project,” in IEEE International Conference on Robotics and Automation , vol. 3, pp. 2523–2528, 2001

    work page 2001

  19. [19]

    Automatic generation and detection of highly reliable fiducial markers under occlusion,

    S. Garrido-Jurado, R. Muñoz-Salinas, F. J. Madrid-Cuevas, and M. J. Marín-Jiménez, “Automatic generation and detection of highly reliable fiducial markers under occlusion,” Pattern Recognition, vol. 47, no. 6, pp. 2280–2292, 2014

    work page 2014
