arxiv: 2606.24895 · v1 · pith:YH55HT7Unew · submitted 2026-06-04 · 💻 cs.DL

Hybrid Metadata Extraction from League of Nations Index Cards: From Feasibility Study to Archival System Integration

Florian Cafiero (ENC , LRE) , Gr\'egoire Mallard This is my paper

Pith reviewed 2026-06-27 22:42 UTC · model grok-4.3

classification 💻 cs.DL
keywords metadata extractionLeague of Nations archivesvision-language modelsOCRarchival index cardshybrid AI workflow
0
0 comments X

The pith

A hybrid AI workflow extracts usable metadata from League of Nations index cards by combining a vision-language model with targeted OCR.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper describes a project to pull file, series, and description metadata from index cards that point into the League of Nations archives. The workflow began with separate tools for layout detection, text recognition, and correction, then shifted to a single fine-tuned vision-language model for most fields while keeping a specialized OCR step for the most critical identifiers. The goal is to link the cards directly to digital objects without running full optical character recognition on every page in the underlying collections. A reader would care because the cards act as the main entry points to the archives, so better metadata extraction makes the whole collection more searchable and usable.

Core claim

The hybrid architecture using a fine-tuned vision-language model for broad extraction while retaining specialized OCR for file and series identifiers provides an effective workflow for metadata extraction from archival index cards.

What carries the argument

The hybrid architecture that routes most metadata fields through a fine-tuned vision-language model and routes only file and series identifiers through specialized OCR.

If this is right

  • Metadata from the cards can be reintegrated into the LONTAD archival system without full OCR of every document.
  • The cards become usable access points to files, series, descriptions, and digital objects.
  • The workflow can scale to other index-card collections that share similar structure.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same hybrid split could be tested on other historical card catalogs where only a few fields need high precision.
  • If the vision-language model improves on new data, the specialized OCR step might eventually be dropped.
  • Success here suggests index cards can serve as a cheaper alternative to full-text digitization for large archives.

Load-bearing premise

The index cards have consistent enough layout and content that the models can pull out accurate metadata without full scanning of the collections they describe.

What would settle it

Running the workflow on a new batch of index cards whose layout or wording differs from the training set and finding that the extracted metadata is too inaccurate or incomplete for archival use would show the claim does not hold.

Figures

Figures reproduced from arXiv: 2606.24895 by Florian Cafiero (ENC, Gr\'egoire Mallard, LRE).

Figure 1

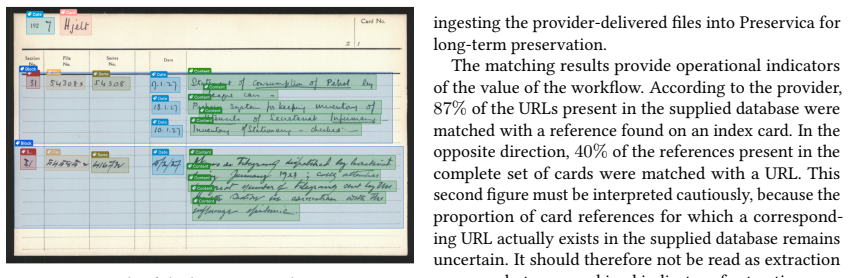

Figure 1. Figure 1: Example of the layout-aware detection stage on a League of Nations index card. Colored bounding boxes identify semantic fields such as date, card heading, block, section, file number, series number, and content. These detec￾tions supported block grouping, reading-order reconstruction, and field-level transcription in the first phase of the project. Source: League of Nations Archives, United Nations Library… view at source ↗
read the original abstract

This project report presents a hybrid AI-assisted workflow for extracting and reintegrating archival metadata from League of Nations index cards. The project is situated in the broader context of the Total Digital Access to the League of Nations Archives project (LONTAD). Rather than attempting full OCR of the underlying archival collections, the workflow targets the index cards themselves as documentary access points to files, series, archival descriptions, and digital objects. The project evolved from a layout-aware pipeline combining YOLO, TrOCR, and local LLM post-correction to a hybrid architecture using a fine-tuned vision-language model for broad extraction while retaining specialized OCR for file and series identifiers.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 1 minor

Summary. The manuscript is a project report describing the evolution of a hybrid AI-assisted metadata extraction workflow for League of Nations index cards within the LONTAD project. It details the shift from an initial layout-aware pipeline (YOLO for detection, TrOCR for OCR, and local LLM for post-correction) to a hybrid architecture that employs a fine-tuned vision-language model for broad extraction while retaining specialized OCR for file and series identifiers, positioning index cards as key access points to archival files and digital objects.

Significance. If substantiated, the hybrid approach could offer a pragmatic alternative to full-collection OCR in large-scale archival digitization efforts by focusing computational resources on structured index cards. The work provides a concrete case study of iterative workflow refinement and system integration in digital libraries, highlighting practical trade-offs between generalist VLMs and domain-specific OCR tools.

major comments (1)
  1. Abstract: the claim that the hybrid architecture 'provides an effective workflow' is not supported by any quantitative results, error rates, validation data, or baseline comparisons, which is load-bearing for the central assertion of effectiveness.
minor comments (1)
  1. The transition between the feasibility study phase and archival system integration phase would benefit from explicit section headings or a timeline figure to improve readability.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for their review and for highlighting the need to align claims with the manuscript's scope as a project report on workflow development. We address the single major comment below.

read point-by-point responses

  1. Referee: Abstract: the claim that the hybrid architecture 'provides an effective workflow' is not supported by any quantitative results, error rates, validation data, or baseline comparisons, which is load-bearing for the central assertion of effectiveness.

    Authors: We agree that the abstract's wording asserts effectiveness without supporting quantitative evidence, which is not provided in the manuscript. This is a project report focused on the iterative evolution from an initial layout-aware pipeline to a hybrid VLM-plus-specialized-OCR architecture within the LONTAD context, rather than a benchmarked evaluation study. We will revise the abstract (and any parallel claims in the introduction) to describe the hybrid approach as a 'pragmatic workflow developed through iterative refinement' without claiming overall effectiveness. No new quantitative results will be added, as none were collected for this report. revision: yes

Circularity Check

0 steps flagged

No significant circularity

full rationale

The manuscript is a descriptive project report on an applied AI workflow for metadata extraction from League of Nations index cards. It contains no equations, derivations, fitted parameters, or mathematical claims of any kind. The description of the hybrid VLM-plus-OCR architecture is presented as an empirical evolution of practical pipelines without any reduction to self-defined inputs, self-citations that bear the load of a derivation, or renaming of known results. The work is self-contained as a feasibility study and system integration report with no load-bearing steps that could exhibit circularity.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

No mathematical models, free parameters, axioms, or invented entities; the contribution is an applied engineering workflow.

pith-pipeline@v0.9.1-grok · 5641 in / 982 out tokens · 21943 ms · 2026-06-27T22:42:10.898377+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

8 extracted references · 3 canonical work pages · 1 internal anchor

  1. [1]

    Cafiero, Datafying diplomacy: How to enable the computational analysis and support of interna- tional negotiations, Journal of Computational Sci- ence 71 (2023) 102056

    F. Cafiero, Datafying diplomacy: How to enable the computational analysis and support of interna- tional negotiations, Journal of Computational Sci- ence 71 (2023) 102056. doi:10.1016/j.jocs.2023. 102056

    work page doi:10.1016/j.jocs.2023 2023

  2. [2]

    Cafiero, J.-P

    F. Cafiero, J.-P. Cointet, G. Mallard, Digital account- ability can re-legitimate multilateralism, Working paper, 2025. HAL: hal-05396546

    2025

  3. [3]

    C. M. Wells, Total digital access to the league of nations archives: Digitization, digitalization, and analog concerns, in: Archiving Conference, volume 2019, Society for Imaging Science and Technology, 2019, pp. 12–16. doi: 10.2352/issn.2168-3204. 2019.1.0.4

    work page doi:10.2352/issn.2168-3204 2019

  4. [4]

    Leskinen, E

    P. Leskinen, E. Hyvönen, A. Lionnet, B. Blukacz- Louisfert, P.-É. Bourneuf, D. Rodogno, G. Mallard, F. Cafiero, A linked open data service and semantic portal to study the assembly minutes and prosopog- raphy of the league of nations (1920–1946), in: Euro- pean Semantic Web Conference, Springer, 2026, pp. 3–20

    1920

  5. [5]

    Hyvönen, P

    E. Hyvönen, P. Leskinen, G. Mallard, P.-E. Bourneuf, A. Lionnet, B. Blukacz-Louisfert, D. Rodogno, F. Cafiero, Minutes of multilateralism on the se- mantic web – league of nations sampo (1920–1946) portal for digital humanities research, in: The Se- mantic Web: ESWC 2026 Satellite Events, Lecture Notes in Computer Science, Springer, Dubrovnik, Croatia, 20...

    1920

  6. [6]

    Jocher, A

    G. Jocher, A. Chaurasia, J. Qiu, Ultralytics yolov8, Computer software, 2023. URL: https://github.com/ ultralytics/ultralytics

    2023

  7. [7]

    M. Li, T. Lv, J. Chen, L. Cui, Y. Lu, D. Florêncio, C. Zhang, Z. Li, F. Wei, Trocr: Transformer-based op- tical character recognition with pre-trained models, Proceedings of the AAAI Conference on Artificial Intelligence 37 (2023) 13094–13102. doi: 10.1609/ aaai.v37i11.26538

    2023

  8. [8]

    A. Q. Jiang, A. Sablayrolles, A. Mensch, C. Bamford, D. S. Chaplot, D. de las Casas, F. Bressand, G. Lengyel, G. Lample, L. Saulnier, L. R. Lavaud, M.-A. Lachaux, P. Stock, T. Le Scao, T. Lavril, T. Wang, T. Lacroix, W. El Sayed, Mistral 7b, 2023. doi:10.48550/arXiv. 2310.06825. arXiv:2310.06825

    work page internal anchor Pith review Pith/arXiv arXiv doi:10.48550/arxiv 2023
