Non-Contact Vibration-Based Damage Detection of Civil Structures Using a Cost-Effective Autonomous UAV

Javier Becerril , Maximiliano Vargas , Jennifer Herrera , Joanna Gutierrez , Jorge Rios , Mohsen Amjadian , Constantine Tarawneh , Jinghao Yang
show 1 more author
Qi Lu
This is my paper

Pith reviewed 2026-05-22 06:01 UTC · model grok-4.3

classification 💻 cs.RO
keywords non-contact damage detectionUAV structural monitoringvision-based vibration trackingfrequency shift detectioncivil structure healthautonomous drone inspectionlow-cost UAV
0
0 comments X

The pith

A custom low-cost UAV detects structural damage by extracting natural frequency shifts from video of vibrations.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper establishes that an autonomous, customized low-cost UAV equipped with an onboard camera can perform non-contact vibration-based damage detection on civil structures. It does this by using vision-based motion tracking on video recordings to measure displacement time histories, then identifying shifts in the fundamental frequency that signal degradation. Tests on a laboratory-scale frame compare the UAV results to contact accelerometers and a finite element model, showing reliable detection of frequency changes despite some added error from the platform itself. A sympathetic reader would care because this removes the need for physical sensors or scaffolding on hard-to-access structures while keeping costs far below commercial drone systems.

Core claim

The authors demonstrate that vibration signals extracted via vision-based motion tracking from a low-cost UAV's camera footage successfully capture the fundamental frequency of a lab frame structure and its shift under simulated damage conditions. All tested platforms, including the UAV, identify these changes, with the UAV showing errors up to 5.7 percent attributable to flight dynamics yet still confirming damage-induced shifts in line with accelerometer and finite element references. The system includes an autonomous alignment feature for GPS-denied operation and achieves comparable inspection results to higher-cost commercial UAVs.

What carries the argument

Vision-based motion tracking on UAV camera video to produce displacement time histories whose frequency content reveals natural frequencies and damage shifts.

If this is right

  • The UAV platform reliably detects damage-induced frequency changes even with platform-induced disturbances.
  • Low-cost autonomous UAVs deliver inspection performance comparable to commercial systems at much lower cost.
  • The approach works in GPS-denied environments thanks to the custom autonomous alignment system.
  • Multiple cooperative UAVs could be deployed to increase inspection coverage and robustness.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The method could support routine monitoring of bridges or high-rise buildings where attaching sensors is unsafe or expensive.
  • Onboard processing of the video could turn the UAV into a real-time damage alert system during flight.
  • The same video tracking might be combined with other camera data to estimate damage location in addition to detecting its presence.

Load-bearing premise

The motion tracked in the UAV video footage comes from the structure's own vibrations rather than being overwhelmed by the drone's flight motion or camera shake.

What would settle it

In a side-by-side test on the same damaged frame, the frequency shift measured from UAV video differs by more than the reported error margin from the shift measured by attached contact accelerometers.

Figures

Figures reproduced from arXiv: 2605.21914 by Constantine Tarawneh, Javier Becerril, Jennifer Herrera, Jinghao Yang, Joanna Gutierrez, Jorge Rios, Maximiliano Vargas, Mohsen Amjadian, Qi Lu.

Figure 1
Figure 1. Figure 1: Prototype of the scaled one-story frame building [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗

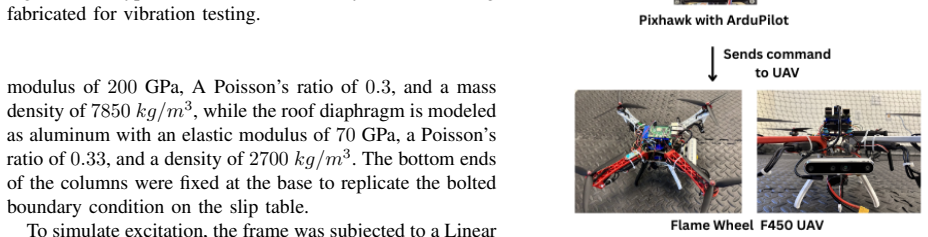

Figure 2
Figure 2. Figure 2: System architecture and workflow. When operating in GPS-denied mode, these optical flow data help onboard controls reduce horizontal drift (see [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗

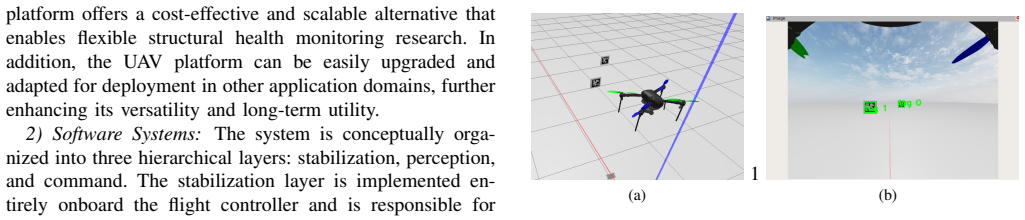

Figure 3
Figure 3. Figure 3: The simulation of the UAV. (a) Developed UAV and [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗

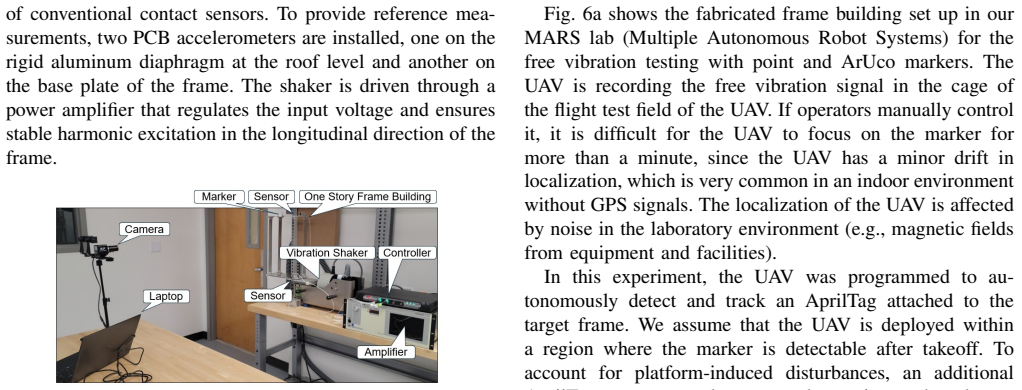

Figure 4
Figure 4. Figure 4: Forced-Vibration experimental setup for testing the [PITH_FULL_IMAGE:figures/full_fig_p005_4.png] view at source ↗

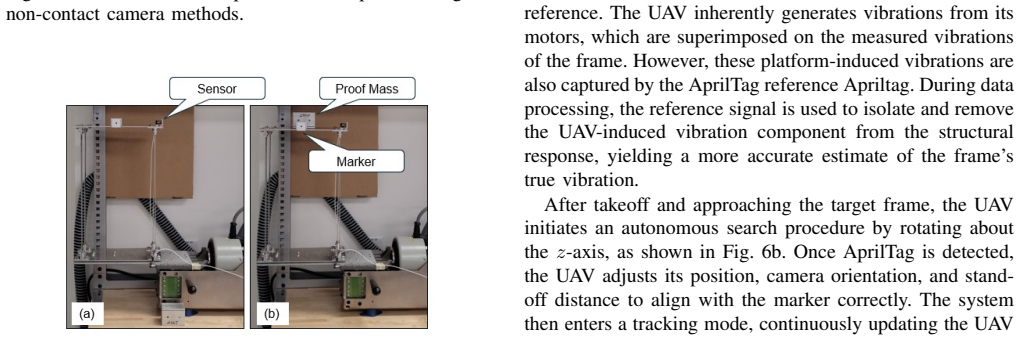

Figure 5
Figure 5. Figure 5: Frame building testing: (a) healthy and (b) damaged. [PITH_FULL_IMAGE:figures/full_fig_p005_5.png] view at source ↗

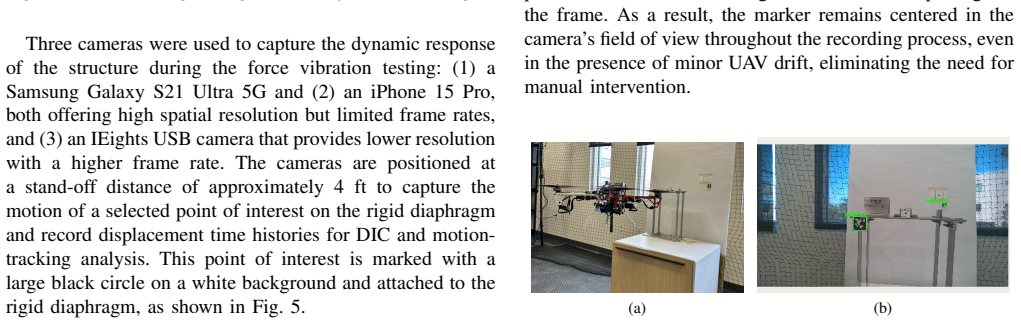

Figure 6
Figure 6. Figure 6: Experimental setup. (a) The UAV is collecting data; [PITH_FULL_IMAGE:figures/full_fig_p005_6.png] view at source ↗

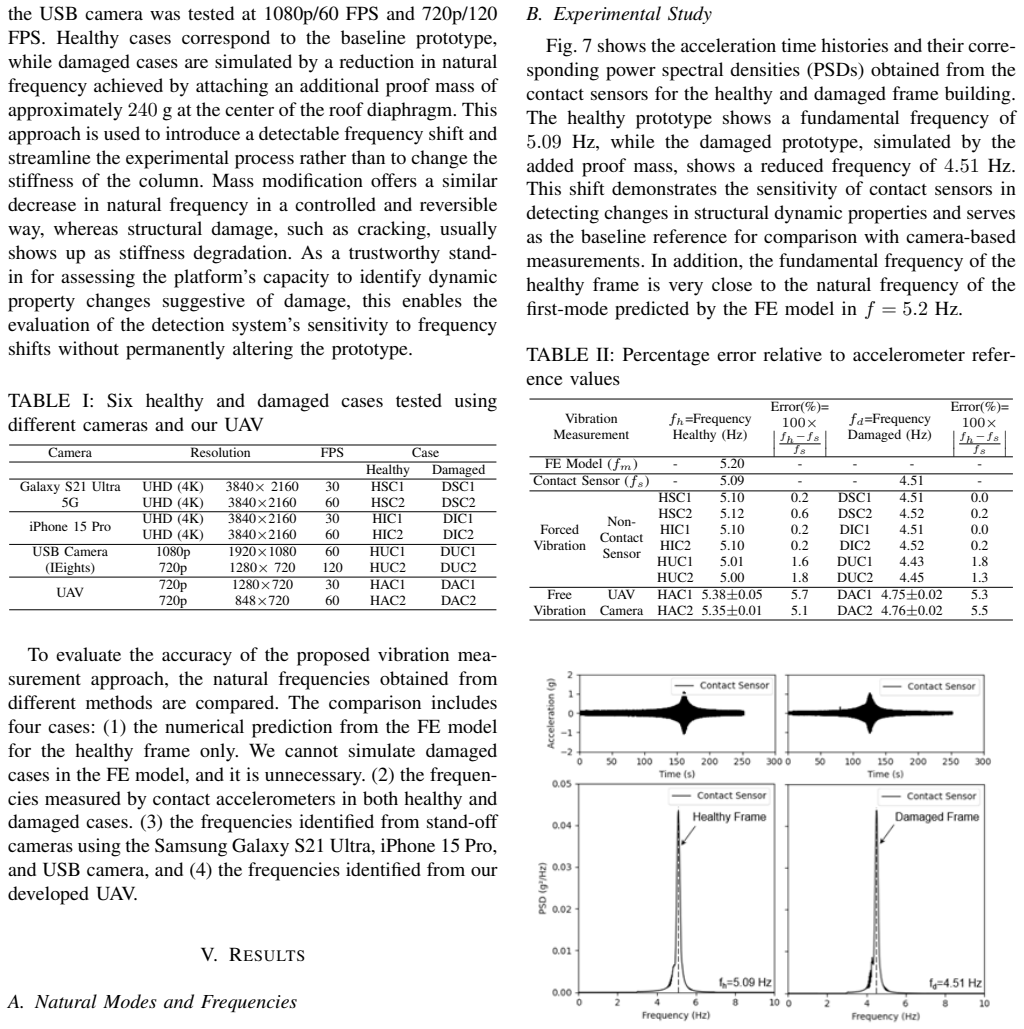

Figure 7
Figure 7. Figure 7: Time history of roof accelerations and the correspond [PITH_FULL_IMAGE:figures/full_fig_p006_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: Time history of roof accelerations and the correspond [PITH_FULL_IMAGE:figures/full_fig_p007_8.png] view at source ↗
read the original abstract

This paper presents a non-contact approach for vibration-based structural damage detection using an autonomous and customized cost-effective unmanned aerial vehicle (UAV). Vibration signals are extracted from video recordings through vision-based motion tracking to identify shifts in natural frequencies indicative of structural degradation. A laboratory-scale frame structure is evaluated under healthy and simulated-damage conditions. The proposed system is validated through an experimental study involving two smartphones, a USB camera, and a custom-built low-cost UAV equipped with an onboard camera and an autonomous alignment system for operation in GPS-denied environments. The displacement time is extracted and analyzed in the frequency domain and compared to reference measurements from contact accelerometers and a finite element model. Experimental results show that all platforms successfully capture the fundamental frequency and its shift due to damage. Although the UAV exhibits slightly higher errors (up to 5.7%) due to platform-induced disturbances and sensing limitations, it reliably detects damage-induced frequency changes. Compared to commercial UAV systems, the proposed platform achieves comparable inspection performance at significantly lower cost. These results demonstrate that low-cost autonomous UAVs provide a practical, flexible, and scalable solution for structural health monitoring, particularly in scenarios where contact-based sensing is impractical. The findings also support the potential for the deployment of multiple cooperative UAVs to further enhance inspection coverage and robustness.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 2 minor

Summary. The manuscript presents a non-contact approach to vibration-based structural damage detection using a custom low-cost autonomous UAV with onboard camera and autonomous alignment system for GPS-denied operation. Vibration signals are extracted from video via vision-based motion tracking on a laboratory-scale frame structure under healthy and simulated-damage conditions. Results are compared across two smartphones, a USB camera, contact accelerometers, and a finite element model, showing that all platforms capture the fundamental frequency and its damage-induced shift, with the UAV achieving reliable detection despite errors up to 5.7% attributed to platform-induced disturbances.

Significance. If the vision-based displacement extraction is shown to be free of dominant platform-motion contamination, the work would establish a practical, low-cost UAV platform for structural health monitoring where contact sensors are infeasible. The multi-platform experimental comparison with quantitative error bounds and FEM validation is a clear strength that supports the feasibility claim and could enable scalable, cooperative UAV deployments for inspection.

major comments (1)
  1. [Experimental results section] Experimental results section (comparison of UAV to contact accelerometers): The claim that the UAV reliably detects damage-induced frequency changes with errors up to 5.7% rests on the assumption that vision-based motion tracking produces displacement time histories whose frequency content matches the structure's true vibrations. The manuscript attributes residual error to 'platform-induced disturbances' but provides no explicit ego-motion compensation, spectral separation of UAV dynamics, or coherence metrics between UAV and reference signals. Without these, the observed shifts could partly reflect uncompensated platform translation/rotation rather than structural damage, which directly affects the central non-contact detection result.
minor comments (2)
  1. The abstract and methods would benefit from a brief description of the autonomous alignment system's sensors and control loop to clarify operation in GPS-denied settings.
  2. Figure captions comparing frequency spectra across platforms should explicitly state the windowing and averaging parameters used in the FFT analysis for reproducibility.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the thorough review and positive assessment of the manuscript's significance. The feedback on the experimental validation is particularly helpful. We address the major comment below and will incorporate clarifications and additional analysis in the revised manuscript.

read point-by-point responses

  1. Referee: [Experimental results section] Experimental results section (comparison of UAV to contact accelerometers): The claim that the UAV reliably detects damage-induced frequency changes with errors up to 5.7% rests on the assumption that vision-based motion tracking produces displacement time histories whose frequency content matches the structure's true vibrations. The manuscript attributes residual error to 'platform-induced disturbances' but provides no explicit ego-motion compensation, spectral separation of UAV dynamics, or coherence metrics between UAV and reference signals. Without these, the observed shifts could partly reflect uncompensated platform translation/rotation rather than structural damage, which directly affects the central non-contact detection result.

    Authors: We agree that stronger evidence is needed to rule out platform-motion contamination as a contributor to the observed frequency shifts. The current manuscript reports direct spectral comparisons showing that the UAV-derived fundamental frequencies and damage-induced shifts align with accelerometer references (within the stated 5.7% error) and with the other non-contact platforms (smartphones and USB camera). The autonomous alignment system was intended to stabilize the UAV during hovering and data capture, but we did not include explicit ego-motion compensation, spectral separation of UAV dynamics, or coherence analysis in the submitted version. We will revise the experimental results section to add (i) coherence metrics between the UAV vision-based displacement signals and the reference accelerometer signals for both healthy and damaged cases, (ii) a brief description of any implicit stabilization provided by the alignment controller, and (iii) a short discussion of why residual platform effects do not alter the detected frequency shifts. These additions will directly address the concern and strengthen the central claim. revision: yes

Circularity Check

0 steps flagged

No circularity: results are direct experimental observations compared to independent references

full rationale

The paper's central claims rest on laboratory experiments that extract displacement time histories from UAV video via vision-based tracking, compute frequency spectra, and directly compare observed fundamental frequencies and damage-induced shifts against contact accelerometers and a finite-element model. No derivation, ansatz, or parameter fit is presented that reduces by construction to the same inputs; the frequency shifts are measured quantities, not outputs defined from the measurement process itself. External benchmarks (accelerometers, FEM) provide independent validation, satisfying the criteria for a self-contained empirical result.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The work rests on standard assumptions about linear structural dynamics and the accuracy of vision-based displacement extraction; no free parameters are fitted to produce the central frequency-shift result, and no new entities are postulated.

axioms (2)
  • domain assumption Natural frequency shifts reliably indicate structural damage in the tested frame under the simulated conditions.
    Invoked when interpreting frequency changes as damage indicators in the experimental comparison.
  • domain assumption Vision-based motion tracking from video yields displacement time series whose FFT accurately represents the structure's vibration modes.
    Central to the non-contact measurement pipeline described in the abstract.
