Achieving Material Robustness via Symmetric Stress Finite Element Discretizations

Pablo Brubeck , Charles Parker , Umberto Zerbinati This is my paper

Pith reviewed 2026-05-21 03:11 UTC · model grok-4.3

classification 🧮 math.NA cs.NA
keywords finite element methodsstress symmetryHellinger-Reissner elasticitymaterial robustnessangular momentum conservationanisotropic constitutive lawsH(div) elementsincompressible flow
0
0 comments X

The pith

Strongly enforcing pointwise symmetry on discrete stress tensors delivers accurate approximations independent of the constitutive law.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

In H(div)-conforming finite element discretizations for Hellinger-Reissner elasticity and velocity-stress incompressible flow, symmetry of the Cauchy stress tensor is linked to angular momentum conservation. Schemes that require the discrete tensors to be pointwise symmetric produce stress fields whose accuracy does not degrade when the material law becomes anisotropic. In contrast, schemes that enforce symmetry only weakly through a Lagrange multiplier can produce arbitrarily large stress errors, even when the exact solution has zero stress. The paper supplies a unifying theory that accounts for the difference and supports it with benchmark calculations on fiber-reinforced solids, liquid-crystal polymers, and polar fluids. Readers care because the choice of symmetry enforcement now has a concrete, observable consequence for reliability in material modeling.

Core claim

For H(div)-conforming finite element discretizations of Hellinger-Reissner elasticity and velocity-stress formulations of incompressible flow, where symmetry of the Cauchy stress tensor is tied to the conservation of angular momentum, schemes enforcing symmetry strongly deliver accurate stress approximations independently of the constitutive law, a property we term material robustness. Schemes enforcing symmetry weakly can yield arbitrarily poor stress approximations even for zero-stress configurations. A unifying theory rigorously explains this behavior.

What carries the argument

Strong pointwise symmetry constraint on the discrete stress tensor inside H(div)-conforming spaces, as opposed to weak enforcement via Lagrange multiplier.

If this is right

  • Stress accuracy remains high for any constitutive law, including strongly anisotropic models from fiber-reinforced materials and liquid-crystal networks.
  • Weak symmetry enforcement produces non-convergent stress errors on zero-stress problems once the constitutive law loses isotropy.
  • The material-robustness property holds uniformly for both Hellinger-Reissner elasticity and velocity-stress incompressible flow.
  • The unifying theory predicts the same symmetry dependence across these two classes of variational problems.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Finite-element library developers should expose a strongly symmetric stress option when users may encounter directional materials.
  • The same robustness argument may apply to other tensor problems in which symmetry encodes a conservation law.
  • Three-dimensional extensions and tests on curved geometries would provide immediate practical verification of the theory.
  • Error estimates that separate symmetry enforcement from constitutive assumptions could now be derived systematically.

Load-bearing premise

Symmetry of the Cauchy stress tensor remains directly tied to angular momentum conservation inside the chosen H(div)-conforming discretizations.

What would settle it

A zero-stress equilibrium problem with an anisotropic constitutive law in which the weakly symmetric scheme produces stress errors that remain large under successive mesh refinement while the strongly symmetric scheme converges to zero.

Figures

Figures reproduced from arXiv: 2605.21425 by Charles Parker, Pablo Brubeck, Umberto Zerbinati.

Figure 1
Figure 1. Figure 1: Numerical results for the 2D linear isotropic solid example in section 3.1 for [PITH_FULL_IMAGE:figures/full_fig_p011_1.png] view at source ↗
Figure 2

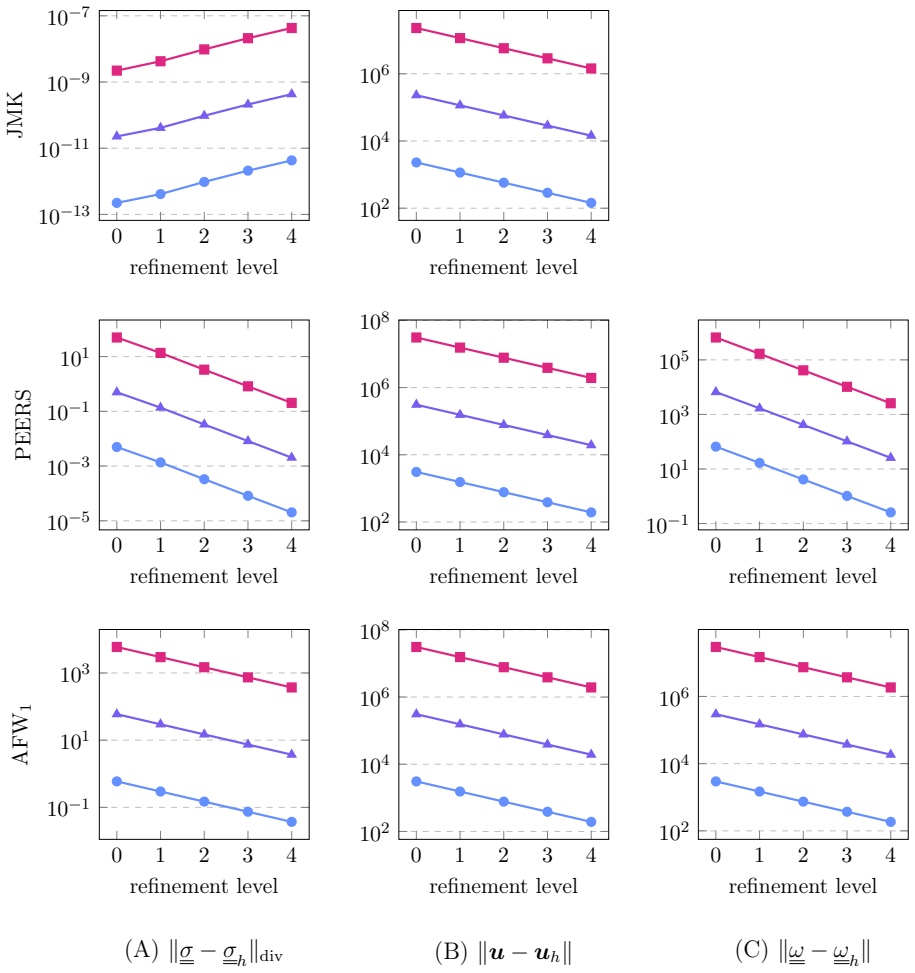

Figure 2. Figure 2: Numerical results for the 2D transversely isotropic example in section 3.2 for [PITH_FULL_IMAGE:figures/full_fig_p013_2.png] view at source ↗
Figure 3

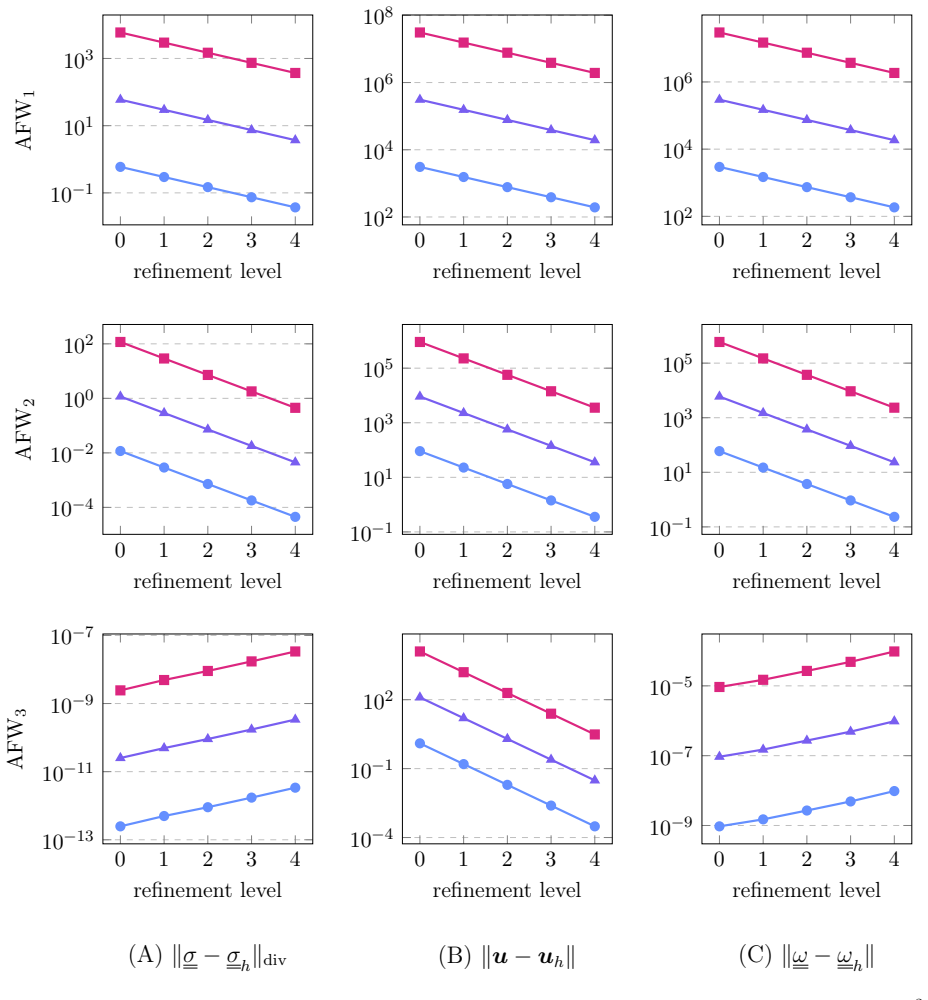

Figure 3. Figure 3: Numerical results for the 2D transversely isotropic example in section 3.2 for [PITH_FULL_IMAGE:figures/full_fig_p014_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Numerical results for the 2D polar fluid example in section 3.3.1 for [PITH_FULL_IMAGE:figures/full_fig_p016_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: Numerical results for the 3D polar fluid example in section 3.3.2 for [PITH_FULL_IMAGE:figures/full_fig_p017_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: Numerical results for the 2D polar fluid example with a stressed configuration as presented in [PITH_FULL_IMAGE:figures/full_fig_p019_6.png] view at source ↗
Figure 7

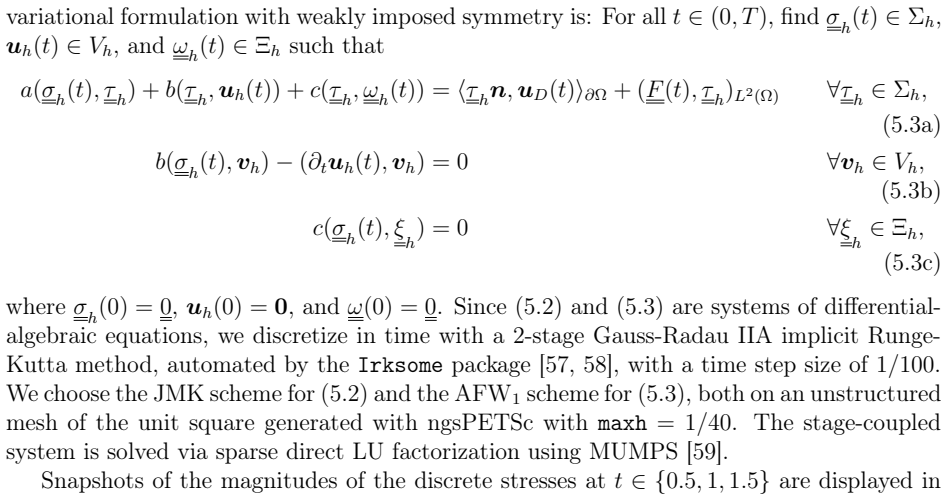

Figure 7. Figure 7: The discrete stress solutions for t > 1.5, not shown, are nearly identical to the ones at t = 1.5. Until t = 1, both solutions are visually identical. After t = 1, the material robust scheme JMK relaxes to a zero stress state, the exact steady-state stress, while the scheme AFW1 lacking material robustness relaxes to a solution that is far from a zero-stress state. Thus, one should also exercise caution wh… view at source ↗
Figure 7
Figure 7. Figure 7: Magnitudes of the stresses for discretizations of a transient 2D polar fluid (5.1). First row: the [PITH_FULL_IMAGE:figures/full_fig_p034_7.png] view at source ↗
read the original abstract

When discretizing symmetric stress tensors in variational problems arising in continuum mechanics, one has to choose how to enforce the symmetry of the stress tensor: (i) strongly by requiring the discrete tensors to be pointwise symmetric or (ii) weakly by introducing a Lagrange multiplier. For $H(\mathrm{div})$-conforming finite element discretizations of Hellinger--Reissner elasticity and velocity--stress formulations of incompressible flow, where symmetry of the Cauchy stress tensor is tied to the conservation of angular momentum, we show that this choice may substantially impact the accuracy of the numerical scheme. Through a series of benchmark problems featuring anisotropic constitutive laws inspired by fiber reinforced material, liquid crystal polymer networks, and polar fluids, we show that schemes enforcing symmetry weakly can yield arbitrarily poor stress approximations -- even for zero-stress configurations. However, schemes enforcing symmetry strongly deliver accurate stress approximations independently of the constitutive law, a property we term material robustness. We present a unifying theory that rigorously explains this behavior.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 2 minor

Summary. The manuscript examines the choice between strong (pointwise) and weak (Lagrange-multiplier) enforcement of Cauchy-stress symmetry in H(div)-conforming finite-element discretizations of Hellinger-Reissner elasticity and velocity-stress incompressible flow. It asserts that strong enforcement yields accurate stress fields independently of the constitutive law (a property termed material robustness), while weak enforcement produces arbitrarily poor stress approximations—even for zero-stress states—when the material is anisotropic. The claim is supported by benchmark computations using fiber-reinforced, liquid-crystal, and polar-fluid constitutive laws together with a unifying theoretical explanation linking discrete symmetry to exact angular-momentum balance.

Significance. If the central equivalence between pointwise symmetry and exact discrete angular-momentum conservation holds independently of the constitutive response, the work supplies a concrete, actionable criterion for selecting stress spaces in computational mechanics. The reported benchmarks with genuinely anisotropic laws and the explicit demonstration of failure modes for weak enforcement would be useful to practitioners and could influence the design of mixed finite-element libraries.

major comments (3)
  1. [§3.2, Eq. (3.7)] §3.2, Eq. (3.7): the discrete angular-momentum identity is stated to close exactly once the stress is pointwise symmetric, yet the subsequent argument that this identity remains valid for arbitrary constitutive laws appears to insert the stress-strain relation before the balance is verified. Clarify whether the identity is purely kinematic or requires the constitutive law to close.
  2. [§5.1, Theorem 5.3] §5.1, Theorem 5.3: the proof that weak enforcement via the multiplier space fails to control the skew part uniformly for any anisotropic law relies on a specific inf-sup condition between the multiplier space and the skew-symmetric test functions. The statement does not indicate whether this condition is satisfied by standard H(div) elements (e.g., Raviart-Thomas or Brezzi-Douglas-Marini) or only for specially constructed spaces.
  3. [Table 4] Table 4, zero-stress row for the polar-fluid law: the reported L2 stress error for the weakly symmetric scheme grows with the anisotropy parameter, but the table does not show the corresponding error for the strongly symmetric scheme on the same sequence of meshes. Without this direct comparison the claim of material robustness remains only partially quantified.
minor comments (2)
  1. Notation: the symbol σ_h is used both for the discrete stress and for its symmetric part in several places; a consistent subscript or superscript would improve readability.
  2. Figure 3 caption: the color scale for the skew-stress component is not stated; readers cannot judge the magnitude of the pollution shown.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for the careful reading and constructive comments on our manuscript. We address each major comment in turn below, indicating the revisions we will incorporate.

read point-by-point responses

  1. Referee: [§3.2, Eq. (3.7)]: the discrete angular-momentum identity is stated to close exactly once the stress is pointwise symmetric, yet the subsequent argument that this identity remains valid for arbitrary constitutive laws appears to insert the stress-strain relation before the balance is verified. Clarify whether the identity is purely kinematic or requires the constitutive law to close.

    Authors: The discrete angular-momentum identity in Eq. (3.7) is purely kinematic. It is obtained by testing the discrete momentum balance against a skew-symmetric test function and exploiting the pointwise symmetry of the discrete stress together with the exact integration-by-parts property of H(div) elements; no constitutive relation is used at this stage. The constitutive law appears only later when the formulation is specialized to a particular problem. We will add an explicit clarifying sentence in §3.2 stating that the identity holds independently of the material model. revision: yes

  2. Referee: [§5.1, Theorem 5.3]: the proof that weak enforcement via the multiplier space fails to control the skew part uniformly for any anisotropic law relies on a specific inf-sup condition between the multiplier space and the skew-symmetric test functions. The statement does not indicate whether this condition is satisfied by standard H(div) elements (e.g., Raviart-Thomas or Brezzi-Douglas-Marini) or only for specially constructed spaces.

    Authors: Theorem 5.3 assumes the inf-sup condition between the multiplier space and the skew-symmetric test functions. In our computations we employ standard Raviart-Thomas elements of degree k for the stress, paired with a discontinuous polynomial multiplier space of degree k-1 that satisfies the required inf-sup condition. We will insert a short remark in §5.1 noting that the result applies to standard H(div) elements (Raviart-Thomas and Brezzi-Douglas-Marini) when the multiplier space is chosen to meet the inf-sup condition, which is the usual construction in the weakly symmetric literature. revision: yes

  3. Referee: Table 4, zero-stress row for the polar-fluid law: the reported L2 stress error for the weakly symmetric scheme grows with the anisotropy parameter, but the table does not show the corresponding error for the strongly symmetric scheme on the same sequence of meshes. Without this direct comparison the claim of material robustness remains only partially quantified.

    Authors: We agree that a direct comparison strengthens the presentation. We will augment Table 4 with an additional column (or set of rows) reporting the L2 stress errors obtained with the strongly symmetric scheme on the identical mesh sequence and for the same range of anisotropy parameters. This will demonstrate that the errors remain small and essentially independent of the anisotropy parameter. revision: yes

Circularity Check

0 steps flagged

No circularity; derivation self-contained via independent FE theory and benchmarks

full rationale

The paper derives material robustness from the distinction between strong pointwise symmetry enforcement and weak Lagrange-multiplier enforcement in H(div)-conforming spaces for Hellinger-Reissner and velocity-stress problems. This rests on the established tie between Cauchy-stress symmetry and angular-momentum conservation, demonstrated through explicit benchmark problems with anisotropic constitutive laws (fiber-reinforced materials, liquid-crystal polymers, polar fluids) and a unifying theory that explains why weak enforcement can pollute stresses even at zero-stress states. No step reduces a prediction to a fitted parameter, renames a known result, or loads the central claim on a self-citation chain; the argument is externally falsifiable via the reported numerical experiments and standard properties of the discrete spaces.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on the domain assumption linking stress symmetry to angular momentum conservation and on the representativeness of the chosen anisotropic benchmark problems; no free parameters or invented entities are mentioned.

axioms (1)
  • domain assumption symmetry of the Cauchy stress tensor is tied to the conservation of angular momentum
    Invoked when discussing H(div)-conforming discretizations for elasticity and incompressible flow.
