FIRM3D: Fast ion reduced models in 3D

Elizabeth Paul , Alexey Knyazev , Michael Czekanski , Alexandra Lachmann , Abdullah Hyder , Christopher Albert , Matt Landreman This is my paper

Pith reviewed 2026-05-19 20:08 UTC · model grok-4.3

classification ⚛️ physics.plasm-ph
keywords energetic particlesguiding-center orbits3D magnetic fieldsfusion plasmasstellaratorsorbit integrationMHD wavesopen-source software
0
0 comments X

The pith

FIRM3D supplies an open-source suite that integrates guiding-center orbits of energetic particles through three-dimensional magnetic fields while linking to MHD equilibrium and wave codes.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces FIRM3D as a standalone Python/C++/CUDA framework for following the collisionless motion of energetic particles in fusion devices. Particles born from fusion or heating follow orbits that the code computes efficiently by solving the guiding-center equations in prescribed electromagnetic fields. The software adds parallel CPU and GPU integrators, symplectic and Runge-Kutta options, and direct interfaces to external tools that supply equilibrium fields and wave perturbations. These features let researchers run focused studies of particle transport and losses without the overhead of full-device simulation packages.

Core claim

FIRM3D performs parallelized integration of the guiding-center orbit equation for Monte Carlo samples drawn from energetic-particle distributions, supplies orbit visualization and transport diagnostics such as Poincaré maps and weighted Birkhoff averages, and includes ready interfaces to BOOZ_XFORM for MHD equilibria and to AE3D and FAR3D for wave stability data.

What carries the argument

The extended guiding-center orbit integrator, grown from SIMSOPT routines, that advances particle trajectories in 3D fields with optional symplectic or Runge-Kutta steps and feeds results into classification and averaging diagnostics.

If this is right

  • Monte Carlo ensembles of energetic-particle orbits can be integrated at scale on both CPUs and GPUs.
  • Resonant transport driven by MHD waves can be quantified by coupling the orbit solver directly to wave-stability outputs.
  • Poincaré maps and orbit-classification routines become available for rapid identification of confined versus lost particles.
  • New physics modules for particle-wave interactions or additional diagnostics can be added with few external dependencies.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Stellarator design teams could insert FIRM3D into optimization loops to penalize configurations that produce large fast-ion losses.
  • GPU scaling would permit statistical sampling of rare loss events across thousands of particles in a single run.
  • The same orbit infrastructure might later incorporate finite-Larmor-radius corrections or self-consistent wave evolution without rewriting the core integrator.

Load-bearing premise

The guiding-center approximation remains valid for the energetic particles of interest and external codes supply accurate, compatible field and wave data without large numerical artifacts.

What would settle it

A side-by-side comparison of FIRM3D guiding-center trajectories against full-orbit Lorentz integrations for a test particle whose gyroradius becomes comparable to the magnetic-field scale length.

Figures

Figures reproduced from arXiv: 2605.16734 by Abdullah Hyder, Alexandra Lachmann, Alexey Knyazev, Christopher Albert, Elizabeth Paul, Matt Landreman, Michael Czekanski.

Figure 1
Figure 1. Figure 1: Left: Energy as a function of time for an alpha particle in the 𝛽 = 2.5% Landreman QH configuration. The Dormand-Prince algorithm exhibits a net energy drift over time, while the symplectic algorithm exhibits a stable moving time average of the energy (over 10−4 seconds). Right: Relative error in canonical momentum 𝑃𝜂 conservation for a perfectly quasisymmetric field. 10 particles are traced in the same co… view at source ↗
Figure 2

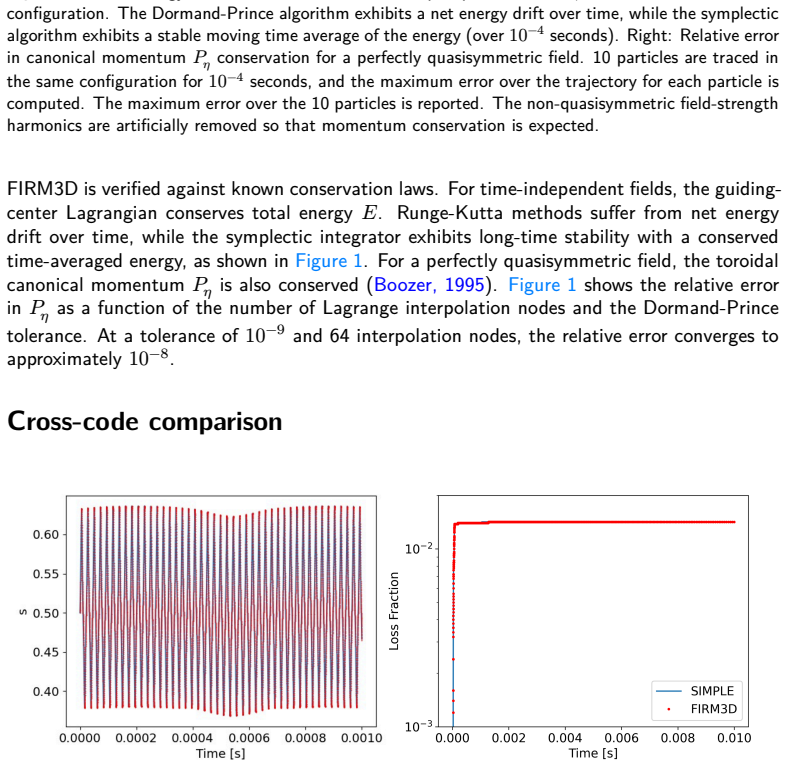

Figure 2. Figure 2: Left: Comparison of a trapped 3.5 MeV alpha particle orbit in the precise QH equilibrium. The difference in the 𝑠 coordinate between the trajectories at 10−3 seconds is 7.8× 10−3. Right: Comparison of loss fraction for the precise QA equilibrium. 5000 3.5 MeV alpha particles are sampled from a fusion birth distribution function and traced for 10−2 seconds. The two codes report identical loss fractions at t… view at source ↗
Figure 3
Figure 3. Figure 3: Scaling of tracing a fusion birth distribution in the Wistell-A equilibrium on 1 Perlmutter CPU node (128 CPU threads) and 1 NVIDIA A100, as a function of number of Monte Carlo samples [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figure 4

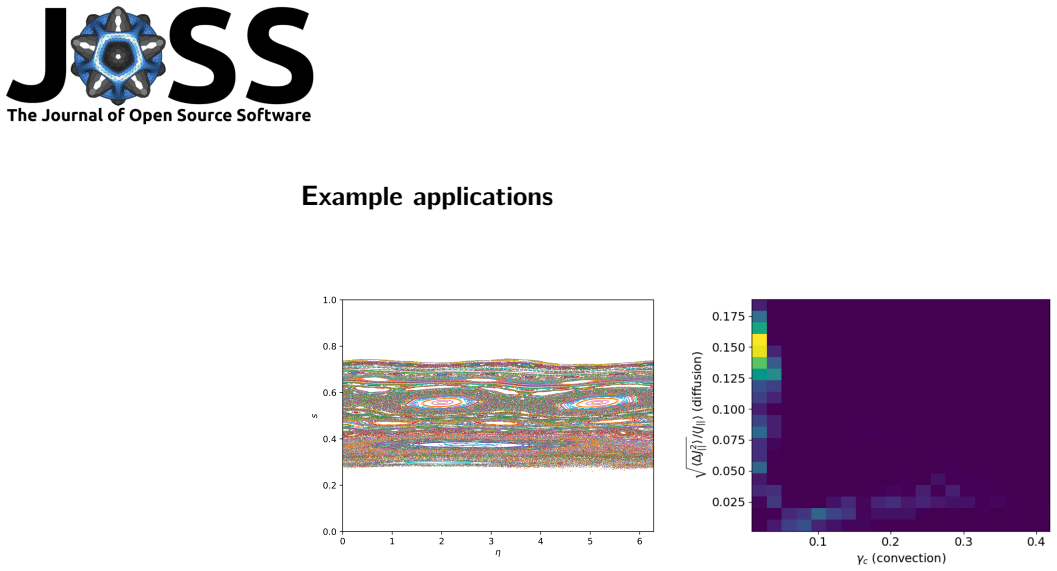

Figure 4. Figure 4: Left: Trapped particle Poincaré map showing chaotic layers responsible for banana-drift diffusion. Right: Measures of convective and diffusive transport indicate banana-trapped orbits undergo banana diffusion [PITH_FULL_IMAGE:figures/full_fig_p005_4.png] view at source ↗
Figure 5

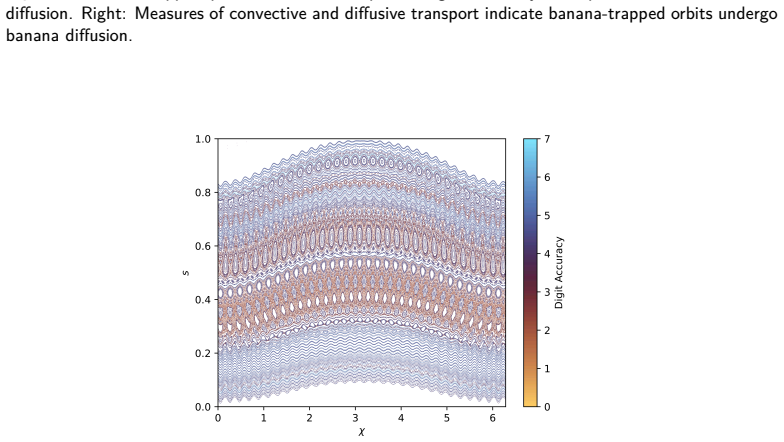

Figure 5. Figure 5: A kinetic Poincaré plot colored by the digit accuracy of the weighted Birkhoff average, an indicator of chaos. FIRM3D’s orbit classification, transport diagnostics, and AE-induced transport capabilities are illustrated in [PITH_FULL_IMAGE:figures/full_fig_p005_5.png] view at source ↗
read the original abstract

The dynamics of energetic particle (EP) species, born from fusion reactions or plasma heating schemes, are critical for predicting the behavior of magnetic confinement fusion experiments and future fusion reactors. Because energetic particles are largely collisionless, the orbits of Monte Carlo samples drawn from a given distribution function can be efficiently integrated in prescribed electromagnetic fields. In addition to the static magneto-hydrodynamic (MHD) equilibrium fields produced by the electromagnetic coils of a fusion device, MHD waves can be excited by -- and resonantly transport -- energetic particle populations. FIRM3D is an open-source Python/C++/CUDA software suite for modeling energetic particle dynamics in 3D magnetic fields, available at https://github.com/ColumbiaStellaratorTheory/firm3d. The core guiding-center integration routines grew out of SIMSOPT (Landreman et al., 2021), but have been extended to include additional physics and diagnostics not typically required in the stellarator optimization context. This standalone framework enables focused development of energetic particle physics capabilities with minimal dependencies, making it accessible to the broader stellarator and plasma physics community. Components of FIRM3D include interfaces with MHD equilibrium and wave stability software (BOOZ_XFORM, AE3D, FAR3D); CPU and GPU parallelized integration of the guiding center orbit equation, with symplectic and Runge-Kutta integrator options; and orbit visualization and transport diagnostics, including Poincare maps, orbit classification, and weighted Birkhoff averaging.
