Quantity-Dependent Bulk-to-Wall Observability of Surface Loading in Rarefied Hypersonic Flow over Triangular Protrusions

Elyas Lekzian , Ehsan Roohi This is my paper

Pith reviewed 2026-06-25 20:10 UTC · model grok-4.3

classification ⚛️ physics.flu-dyn
keywords rarefied hypersonic flowDSMCsurface loadingtriangular protrusionsbulk-to-wall dependenceinformation lengthpressure coefficientheat transfer coefficient
0
0 comments X

The pith

Rarefied wall loads on triangular protrusions draw from bulk gas at quantity-specific distances rather than any fixed neighborhood size.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper tests whether wall pressure, heat transfer, and shear on triangular protrusions in rarefied hypersonic flow can be predicted from local circular neighborhoods of increasing radius in the bulk flow. It trains surrogates on DSMC data across Mach 4-8 and Knudsen 0.1-0.8 and measures how much error remains when only partial neighborhoods are used. Full-domain information cuts Cp error from 45.5% to 13.8% and Cq error from 72.6% to 12.9%, while shear error falls only from 49.1% to 31.9%. R95, the smallest radius that nearly matches full-domain performance, varies by load type, with heat transfer showing the clearest dependence on distances of order the protrusion base length. The result indicates that no universal information length exists for rarefied surface loading.

Core claim

Rarefied surface loading has no single information length. Full-domain descriptors reduce errors from 45.5% to 13.8% for Cp and from 72.6% to 12.9% for Cq, whereas shear improves only from 49.1% to 31.9%. Heat transfer exhibits the clearest order-hs nonlocal support, pressure is frequently right-censored beyond 3hs, and shear saturates at shorter radii but remains least identifiable.

What carries the argument

R95, the smallest tested radius whose complete wall-profile error lies within 5% of the full-domain descriptor error, applied to circular neighborhoods summarized by weighted statistics, extrema, nearest-point values, and tangent-normal gradients.

If this is right

  • Pressure loading can often be approximated from neighborhoods no larger than 3hs while heat transfer requires neighborhoods at least hs in radius.
  • Shear stress remains the least predictable quantity even when the entire domain is included.
  • Coordinate-conditioned surrogates preserve the same quantity-dependent hierarchy of information lengths.
  • Closed-loop audit of the surrogates shows the largest preservation loss occurs for forward-facing heat transfer and shear.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Modeling codes that assume a single cutoff distance for all surface quantities will under-resolve heat transfer on protrusions.
  • Sensor placement strategies on hypersonic surfaces may need separate spacing rules for pressure versus heat-flux gauges.
  • The observed saturation of shear error suggests that local wall gradients alone are insufficient even at short range.

Load-bearing premise

Circular neighborhoods summarized by those particular statistics and gradients of velocity, temperature, and pressure capture the relevant bulk information needed to predict wall loads.

What would settle it

Re-running the error curves with a different neighborhood shape or with an entirely different set of bulk summary statistics and checking whether the hierarchy of R95 values across Cp, Cq, and shear disappears.

Figures

Figures reproduced from arXiv: 2606.25752 by Ehsan Roohi, Elyas Lekzian.

Figure 1

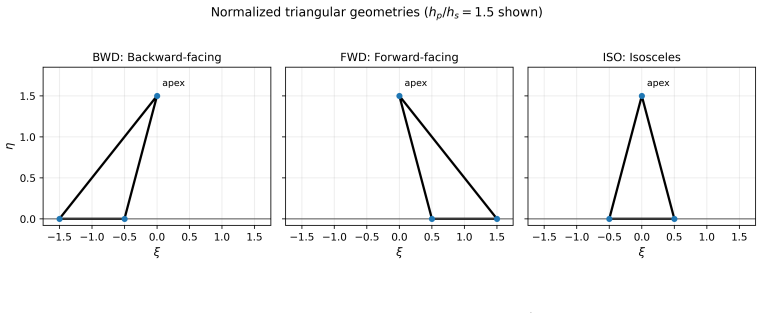

Figure 1. Figure 1: FIG. 1. Normalized triangular geometries used in this work; [PITH_FULL_IMAGE:figures/full_fig_p006_1.png] view at source ↗
Figure 2

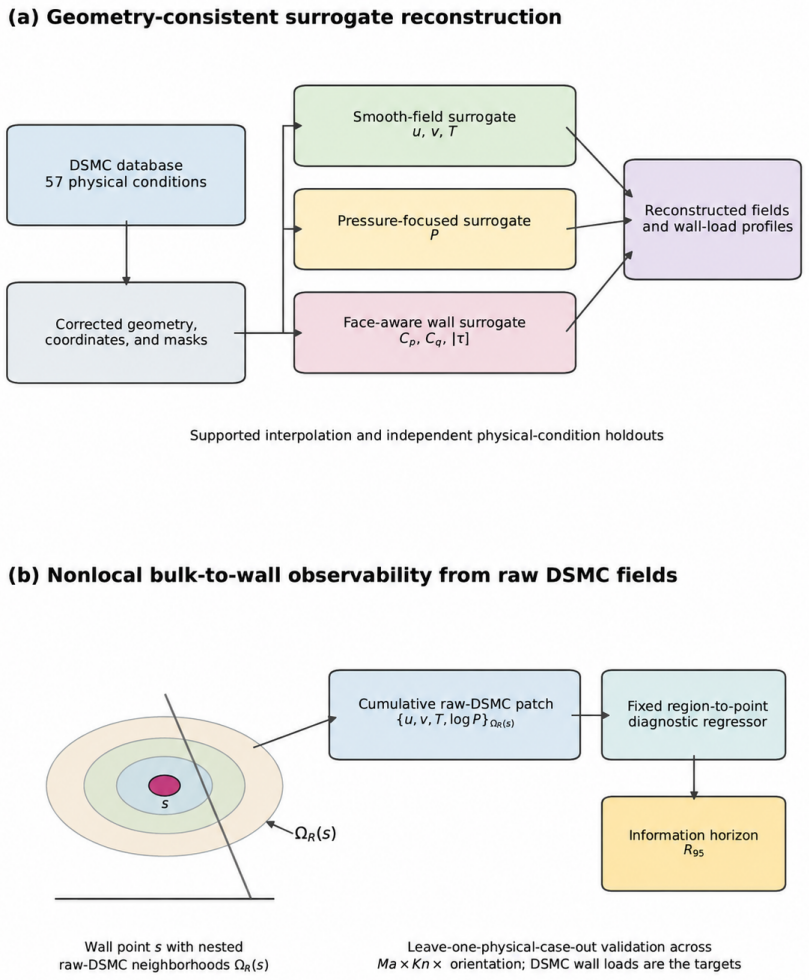

Figure 2. Figure 2: FIG. 2. Separation of the two computational roles in this study. Panel (a) summarizes the [PITH_FULL_IMAGE:figures/full_fig_p010_2.png] view at source ↗
Figure 3

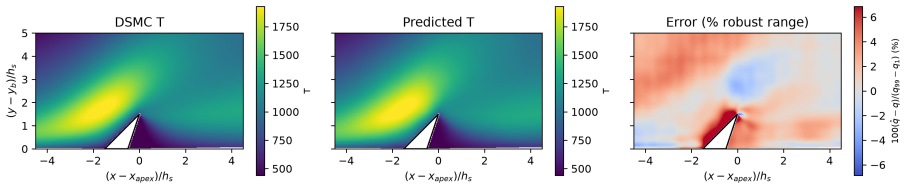

Figure 3. Figure 3: FIG. 3. Temperature validation for the Mach–rarefaction–orientation holdout: BWD protrusion, [PITH_FULL_IMAGE:figures/full_fig_p016_3.png] view at source ↗
Figure 4

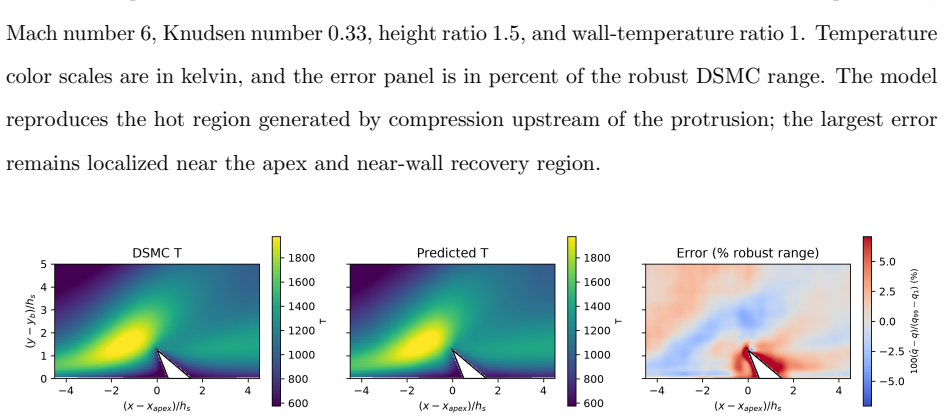

Figure 4. Figure 4: FIG. 4. Temperature validation for the height-interpolation holdout: FWD protrusion with [PITH_FULL_IMAGE:figures/full_fig_p016_4.png] view at source ↗
Figure 5

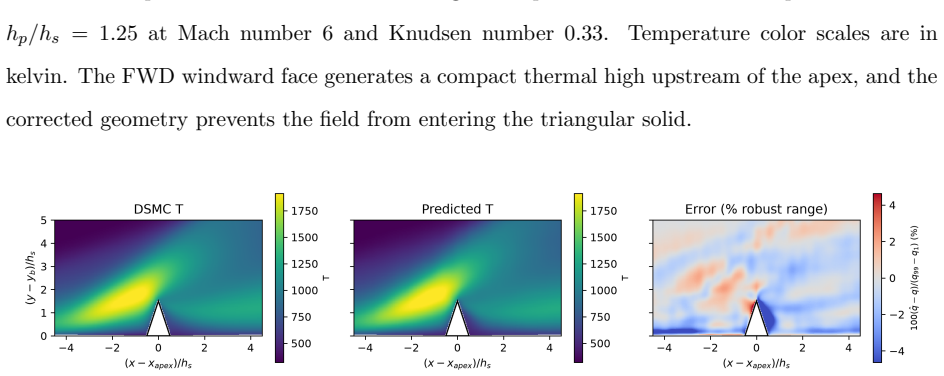

Figure 5. Figure 5: FIG. 5. Temperature validation for the wall-temperature interpolation holdout: ISO protrusion [PITH_FULL_IMAGE:figures/full_fig_p016_5.png] view at source ↗
Figure 6

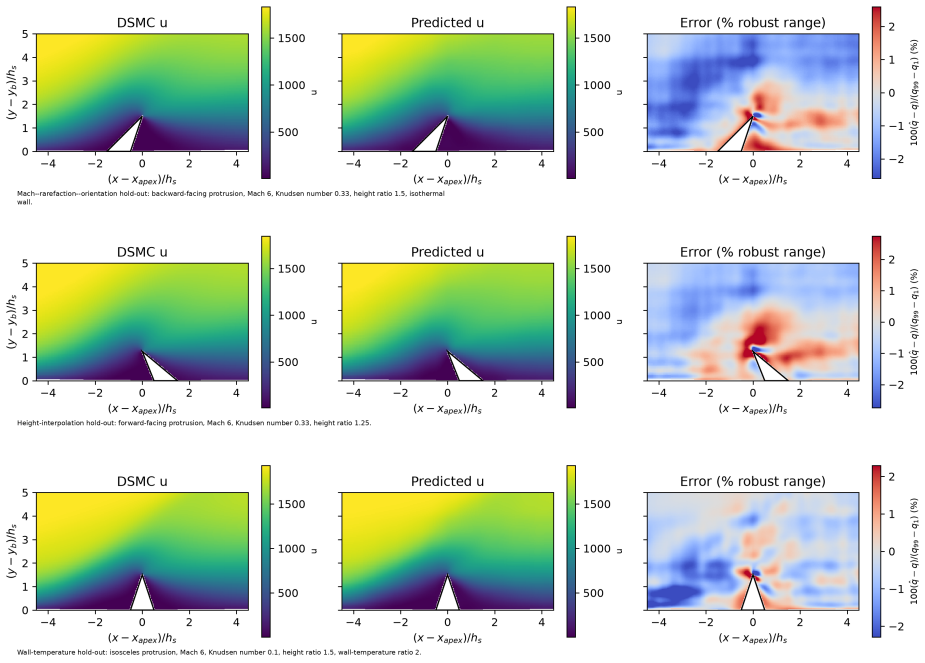

Figure 6. Figure 6: FIG. 6. Streamwise-velocity validation for the three representative holdout cases. Row captions [PITH_FULL_IMAGE:figures/full_fig_p017_6.png] view at source ↗
Figure 7

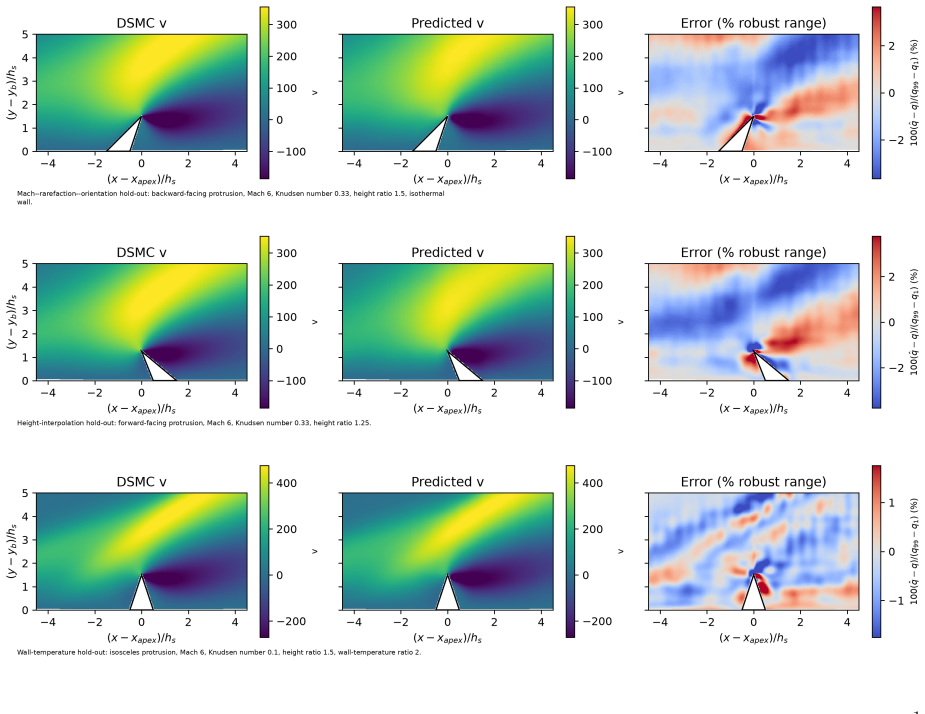

Figure 7. Figure 7: FIG. 7. Transverse-velocity validation for the same holdout cases. Velocity color scales are in m s [PITH_FULL_IMAGE:figures/full_fig_p018_7.png] view at source ↗
Figure 8

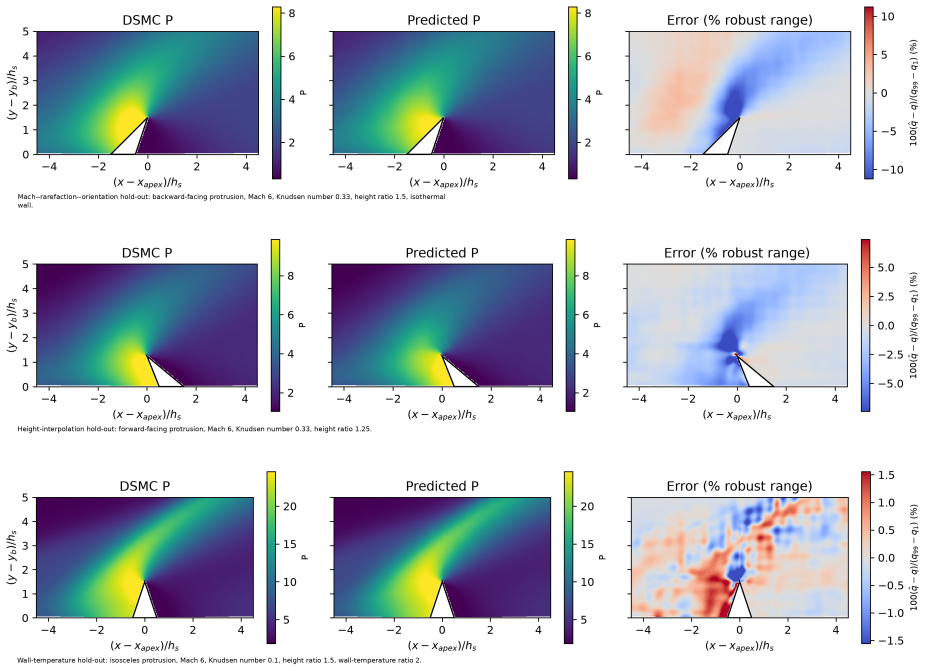

Figure 8. Figure 8: FIG. 8. Pressure validation using the pressure-focused surrogate. Pressure color scales are in [PITH_FULL_IMAGE:figures/full_fig_p019_8.png] view at source ↗
Figure 9

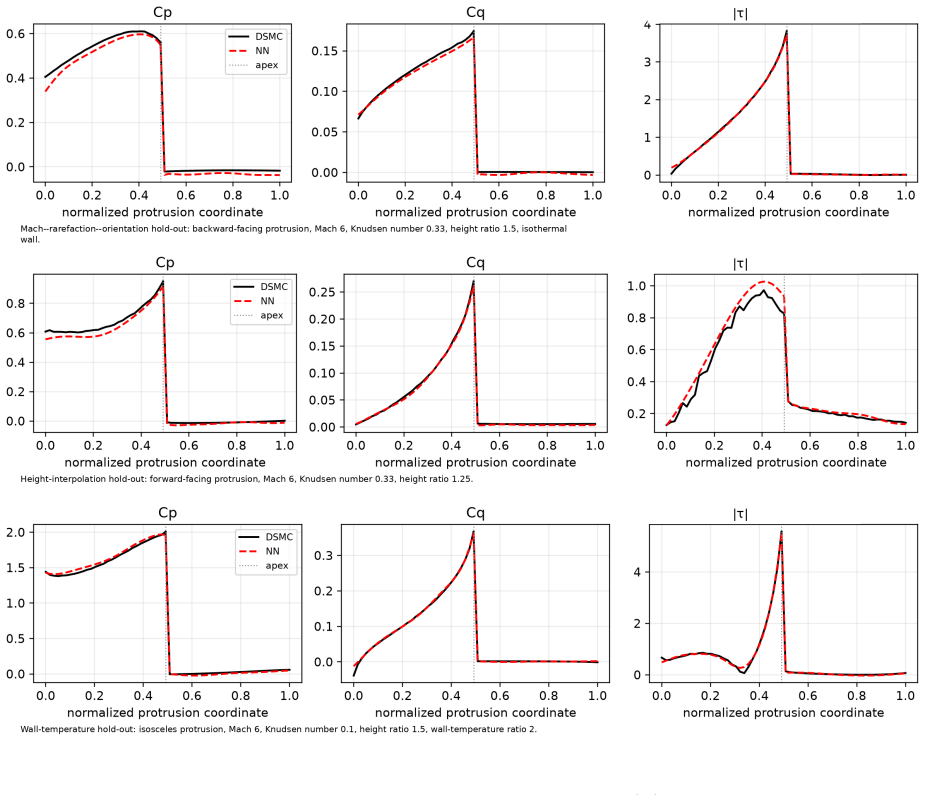

Figure 9. Figure 9: FIG. 9. Surface-only validation of protrusion-wall [PITH_FULL_IMAGE:figures/full_fig_p021_9.png] view at source ↗
Figure 10

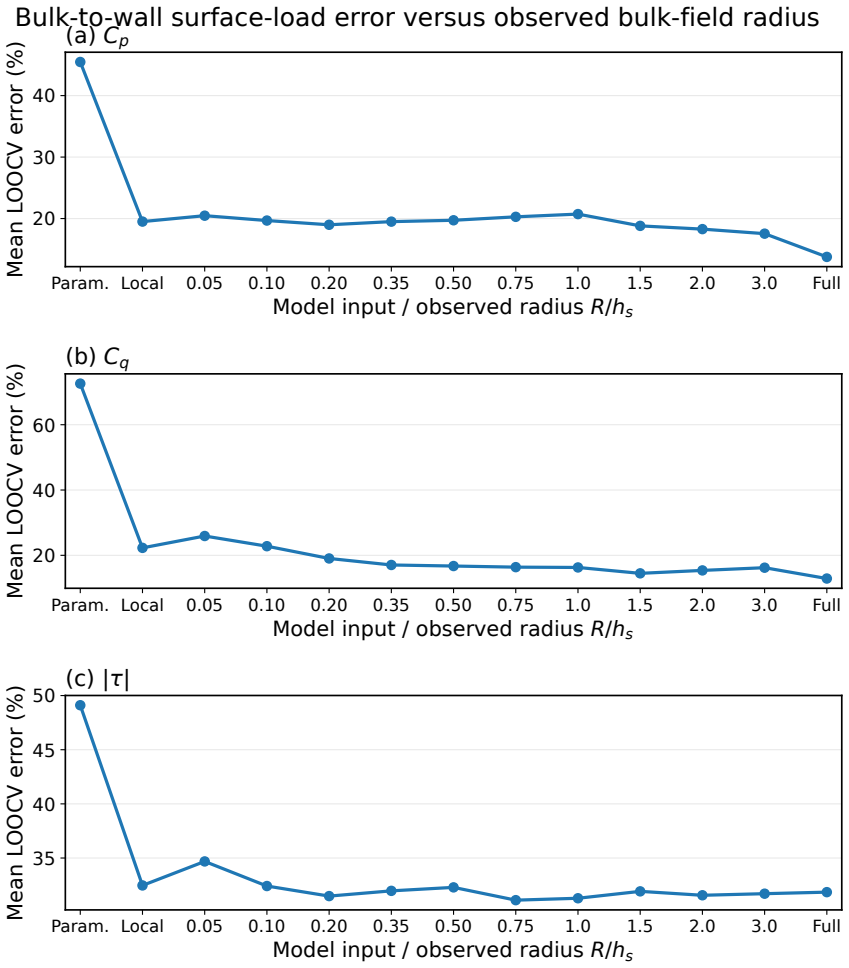

Figure 10. Figure 10: FIG. 10. Mean leave-one-physical-case-out (LOOCV) relative wall-profile error versus model input [PITH_FULL_IMAGE:figures/full_fig_p023_10.png] view at source ↗
Figure 12

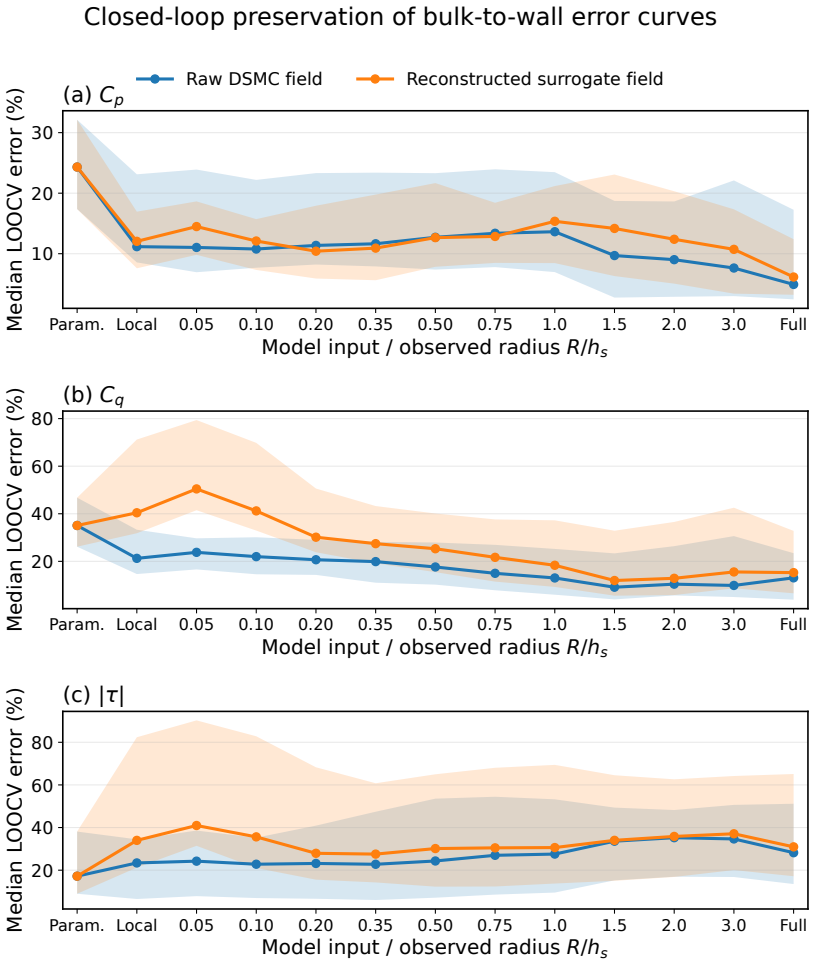

Figure 12. Figure 12: FIG. 12. Closed-loop preservation of radius-dependent wall-load error. The vertically stacked [PITH_FULL_IMAGE:figures/full_fig_p028_12.png] view at source ↗
Figure 13

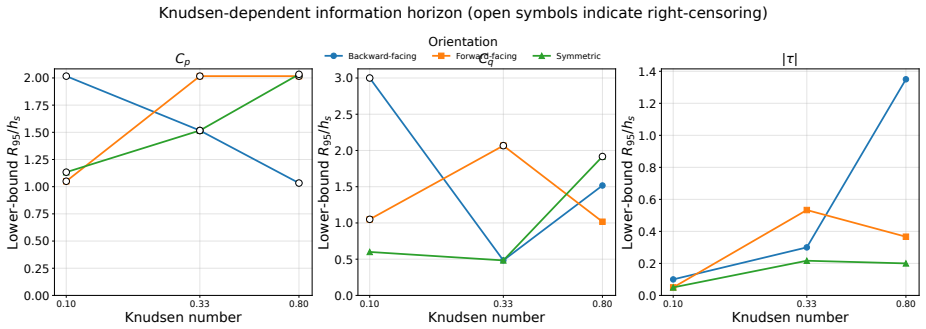

Figure 13. Figure 13: FIG. 13. Knudsen-number dependence of the lower-bound information horizon. Filled symbols [PITH_FULL_IMAGE:figures/full_fig_p030_13.png] view at source ↗
Figure 14

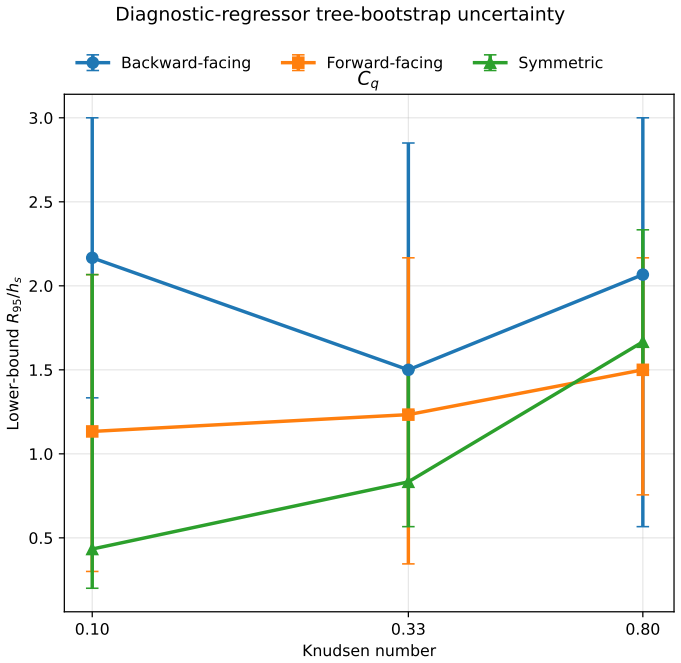

Figure 14. Figure 14: FIG. 14. Tree-bootstrap sensitivity of the lower-bound heat-transfer information horizon. Points [PITH_FULL_IMAGE:figures/full_fig_p033_14.png] view at source ↗
Figure 15

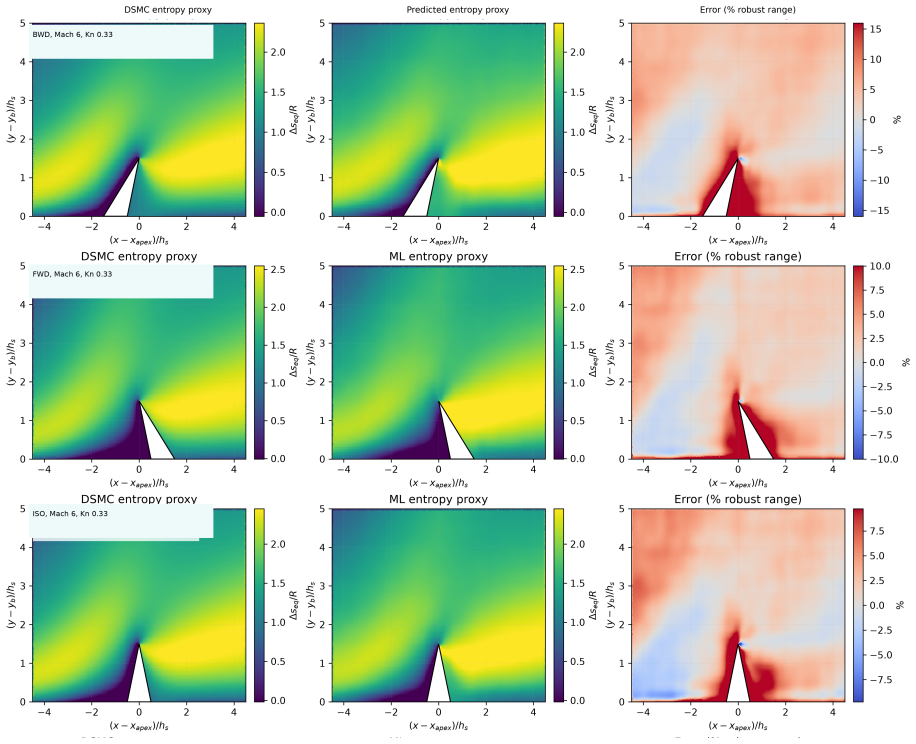

Figure 15. Figure 15: FIG. 15. Local-equilibrium entropy-rise proxy for the Mach–rarefaction–orientation validation [PITH_FULL_IMAGE:figures/full_fig_p035_15.png] view at source ↗
Figure 16

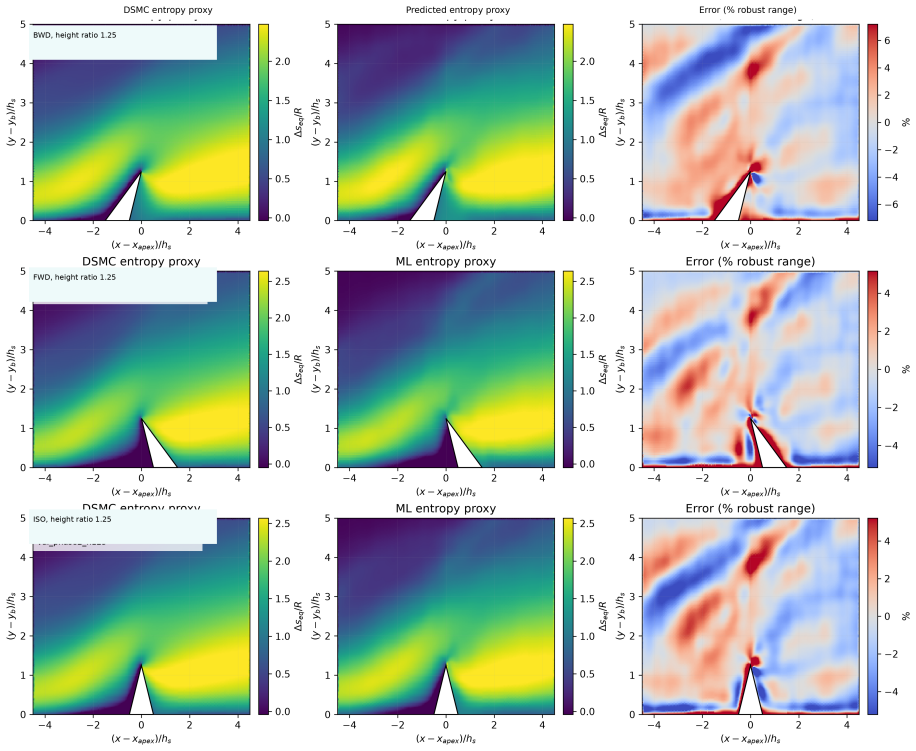

Figure 16. Figure 16: FIG. 16. Local-equilibrium entropy-rise proxy for height-interpolation validation cases. The com [PITH_FULL_IMAGE:figures/full_fig_p036_16.png] view at source ↗
read the original abstract

Localized protrusions on hypersonic vehicles generate pressure, heat-transfer, and shear loads whose rarefied response can depend on gas beyond the immediate wall neighborhood. This work quantifies that bulk-to-wall dependence for triangular protrusions and tests whether coordinate-conditioned surrogates preserve it. Geometry-consistent surrogates are trained for direct simulation Monte Carlo (DSMC) velocity, temperature, pressure, and wall-load profiles over Mach numbers 4--8, Knudsen numbers (Kn) 0.1--0.8, and three protrusion orientations. The central analysis is performed on raw DSMC fields. Around each wall point, circular neighborhoods of increasing radius are summarized by weighted statistics, extrema, nearest-point values, and tangent-normal gradients of velocity, temperature, and pressure. A fixed region-to-point diagnostic predicts the pressure coefficient ($C_p$), heat-transfer coefficient ($C_q$), and shear-stress magnitude ($|\tau|$). We define $R_{95}$ as the smallest tested radius whose complete wall-profile error lies within 5\% of the full-domain descriptor error. The principal physical result is that rarefied surface loading has no single information length. Full-domain descriptors reduce errors from 45.5\% to 13.8\% for $C_p$ and from 72.6\% to 12.9\% for $C_q$, whereas shear improves only from 49.1\% to 31.9\%. Heat transfer exhibits the clearest order-$h_s$ nonlocal support, where $h_s$ is the protrusion-base length. Pressure is frequently right-censored beyond $3h_s$, and shear saturates at shorter radii but remains least identifiable. Ridge-regression and threshold controls preserve this hierarchy, while a closed-loop audit shows partial surrogate preservation, with the largest degradation in forward-facing heat transfer and shear.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 0 minor

Summary. The manuscript analyzes bulk-to-wall information transfer for surface loads (Cp, Cq, and shear) on triangular protrusions in rarefied hypersonic flows (Mach 4-8, Kn 0.1-0.8) using raw DSMC fields. Circular neighborhoods of increasing radius around wall points are summarized via weighted statistics, extrema, nearest-point values, and tangent-normal gradients of velocity, temperature, and pressure; these descriptors are used to predict wall loads via a fixed region-to-point diagnostic. The central result is that rarefied surface loading has no single information length, quantified by R95 (the smallest radius where wall-profile error is within 5% of full-domain error), with full-domain descriptors yielding error reductions from 45.5% to 13.8% for Cp, 72.6% to 12.9% for Cq, and 49.1% to 31.9% for shear; heat transfer shows clearest order-hs nonlocal support while shear saturates earlier.

Significance. If the result holds, the quantity-specific nonlocal support demonstrated here would be a useful constraint for constructing reduced-order models or surrogates in rarefied hypersonic aerodynamics, showing that pressure and heat transfer require longer-range bulk information than shear. The direct use of raw DSMC fields, the explicit R95 metric, and the closed-loop surrogate audit provide concrete, reproducible diagnostics that could be extended to other geometries.

major comments (1)
  1. [Abstract (paragraph beginning 'Around each wall point, circular neighborhoods...')] Abstract (paragraph beginning 'Around each wall point, circular neighborhoods...'): The isotropic circular neighborhoods weight all azimuths equally when summarizing velocity, temperature, and pressure fields. At Mach 4-8 the molecular velocity distribution is strongly anisotropic, with molecules incident on a wall point originating predominantly from upstream; the reported hierarchy of error reductions (larger gains for Cp/Cq than for shear) and the claim of no single information length could therefore be an artifact of mixing irrelevant downstream data into the descriptors rather than a property of the underlying physics. A directional (e.g., upstream-weighted) neighborhood test is needed to confirm that the observed R95 values and differential improvements are robust.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the constructive comment on potential effects of flow anisotropy. We respond point-by-point below.

read point-by-point responses

  1. Referee: The isotropic circular neighborhoods weight all azimuths equally when summarizing velocity, temperature, and pressure fields. At Mach 4-8 the molecular velocity distribution is strongly anisotropic, with molecules incident on a wall point originating predominantly from upstream; the reported hierarchy of error reductions (larger gains for Cp/Cq than for shear) and the claim of no single information length could therefore be an artifact of mixing irrelevant downstream data into the descriptors rather than a property of the underlying physics. A directional (e.g., upstream-weighted) neighborhood test is needed to confirm that the observed R95 values and differential improvements are robust.

    Authors: The DSMC fields already incorporate the strong upstream bias of the molecular velocity distribution at Mach 4-8. Circular neighborhoods aggregate weighted statistics, extrema, and gradients over these inherently anisotropic fields without presupposing isotropy or a preferred direction; this choice identifies the minimal radius R95 while remaining geometry- and orientation-agnostic. The observed quantity-specific hierarchy (heat transfer requiring longest support, shear saturating earliest) is consistent with the distinct moments of the distribution function that govern each load. We agree that an explicit upstream-weighted test would provide additional confirmation. In revision we will add a supplementary directional-neighborhood analysis on representative cases to verify robustness of the R95 values and error reductions. revision: partial

Circularity Check

0 steps flagged

No circularity: empirical error analysis on raw DSMC fields

full rationale

The paper's central result—that rarefied surface loading has no single information length—is obtained by directly computing weighted statistics, extrema, nearest-point values, and gradients from raw DSMC velocity/temperature/pressure fields inside circular neighborhoods of increasing radius, then measuring prediction error for Cp, Cq, and |τ| against the actual DSMC wall loads. R95 is defined as the radius at which the wall-profile error reaches within 5% of the full-domain error; this reduction is measured, not fitted by construction. No self-definitional steps, no fitted parameters renamed as predictions, and no load-bearing self-citations appear in the derivation. The analysis remains self-contained against the external DSMC benchmark.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

Review performed on abstract only; no explicit free parameters, axioms, or invented entities are stated in the provided text.

axioms (1)
  • domain assumption DSMC simulations accurately represent the rarefied gas dynamics for the stated Mach and Knudsen ranges
    The entire analysis rests on DSMC-generated velocity, temperature, and pressure fields.
