Exploiting Multiple Abstract Call Patterns for Optimizing Run-Time Checks

Daniela Ferreiro , Daniel Jurjo-Rivas , Marco Ciccal\`e , Jose F. Morales , Pedro L\'opez-Garc\'ia , Manuel Hermenegildo This is my paper

Pith reviewed 2026-06-28 16:12 UTC · model grok-4.3

classification 💻 cs.PL
keywords abstract interpretationruntime checksassertionscalling patternsdynamic languagesPrologoptimizationmultivariant analysis
0
0 comments X

The pith

Multiple inferred calling patterns reduce the number of properties that must be checked at run-time.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper studies how to extend a multivariant abstract interpretation algorithm so that it selectively accounts for the run-time meaning of assertion properties. Once that extension is in place, the multiple calling patterns inferred for each predicate can be used to decide which checks are actually required during execution. This keeps the safety guarantees of the original assertions while lowering the dynamic overhead they would otherwise impose. The technique is realized inside the Ciao implementation and is shown to outperform earlier single-pattern approaches.

Core claim

A multivariant, top-down, goal-directed abstract interpretation algorithm can be extended to integrate the run-time semantics of assertion properties while preserving soundness; the resulting multiple calling patterns are then exploited to reduce the number of properties that must be checked at run-time, thereby minimizing overhead.

What carries the argument

Multivariant top-down goal-directed abstract interpretation extended to incorporate run-time semantics of assertion properties, enabling selective use of multiple calling patterns for check minimization.

If this is right

  • Fewer assertion properties need to be tested during execution for any given call.
  • Overall run-time overhead from dynamic checks decreases while soundness is retained.
  • Unverified properties continue to be reported for use in testing or further static analysis.
  • The Ciao implementation achieves better performance numbers than the single-pattern baseline.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same pattern-exploitation idea could be tried in other dynamic languages that support rich assertion languages.
  • The reported unverified properties might be fed directly into a test-case generator to focus effort on the remaining checks.
  • If the extension preserves precision, the approach could be combined with just-in-time compilation to drop checks even later in the pipeline.

Load-bearing premise

The abstract interpretation algorithm can be extended to account for run-time assertion semantics without losing soundness or the ability to produce multiple useful calling patterns.

What would settle it

A program in which the multi-pattern analysis either reports the same set of checks as the single-pattern version or produces an unsound result that lets a failing assertion go undetected at run time.

Figures

Figures reproduced from arXiv: 2606.01076 by Daniela Ferreiro, Daniel Jurjo-Rivas, Jose F. Morales, Manuel Hermenegildo, Marco Ciccal\`e, Pedro L\'opez-Garc\'ia.

Figure 1
Figure 1. Figure 1: Reduction rules for the operational semantics of (C)LP programs. [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: An example Prolog program with an assertion capturing its behavior. [PITH_FULL_IMAGE:figures/full_fig_p005_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Reduction rules for the operational semantics of (C)LP programs with assertions. [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗
Figure 4

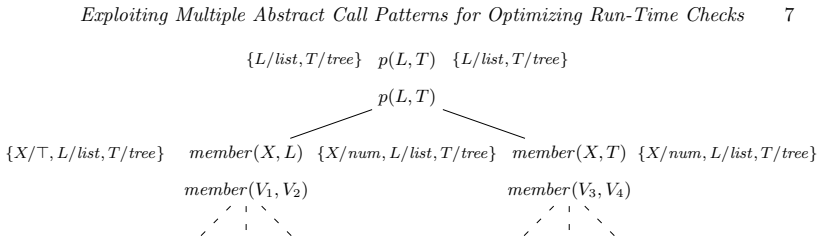

Figure 4. Figure 4: Analysis graph of the p/2 predicate in [PITH_FULL_IMAGE:figures/full_fig_p007_4.png] view at source ↗
read the original abstract

In strongly-typed languages, types are verified at compile time, while dynamically typed languages, such as Prolog, perform type consistency checks entirely at run-time. Extending dynamic languages with assertions allows expressing both classical types and more general properties, providing high expressiveness, but at the cost of run-time overhead. Abstract interpretation allows safely approximating such program properties at compile time, which has been used to reduce the number of properties that require run-time checks, while still reporting unverified properties that can guide further static analyses, testing, or domain refinement. In this work, we first study how to selectively integrate the run-time semantics of assertion properties into a multivariant, top-down, goal-directed abstract interpretation algorithm. We then show how multiple inferred calling patterns can be exploited to reduce the number of properties that must be checked at run-time, thus minimizing the overhead. Finally, we report on an implementation of our approach in the Ciao system and provide performance results supporting that better results can be obtained than with the previously reported techniques.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 0 minor

Summary. The paper studies the selective integration of run-time semantics of assertion properties into a multivariant top-down goal-directed abstract interpretation algorithm. It then exploits multiple inferred calling patterns to reduce the number of properties requiring run-time checks in dynamically typed languages such as Prolog, with an implementation in the Ciao system reporting performance improvements over prior techniques.

Significance. If the integration preserves soundness and the optimization via multiple call patterns is effective, the approach could meaningfully reduce assertion-checking overhead while retaining the benefits of static analysis for guiding further verification. The work builds on established abstract-interpretation machinery and supplies an implementation with empirical results, which is a positive aspect.

major comments (1)
  1. [Abstract] Abstract: the central claim that multiple calling patterns can be exploited to reduce run-time checks is stated, but the abstract supplies neither the algorithmic details of the integration step nor any concrete derivation, pseudocode, or data that would allow verification of soundness preservation or the optimization effect.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the detailed review and constructive feedback. We address the single major comment below.

read point-by-point responses

  1. Referee: [Abstract] Abstract: the central claim that multiple calling patterns can be exploited to reduce run-time checks is stated, but the abstract supplies neither the algorithmic details of the integration step nor any concrete derivation, pseudocode, or data that would allow verification of soundness preservation or the optimization effect.

    Authors: We agree that the abstract is intentionally high-level and does not include algorithmic details, derivations, pseudocode, or data. These elements appear in the body: the selective integration of run-time semantics into the multivariant top-down abstract interpreter is described in Section 3 (with the enhanced algorithm), soundness is established in Section 4, and the optimization via multiple call patterns together with empirical results is reported in Section 6. To address the concern we will expand the abstract with a concise reference to the integration approach and the performance gains. revision: yes

Circularity Check

0 steps flagged

No significant circularity

full rationale

The paper describes an algorithmic extension of established multivariant top-down abstract interpretation to incorporate run-time assertion semantics and then exploit multiple calling patterns for check minimization. No equations, fitted parameters, or self-referential definitions appear in the provided text. The central steps (selective integration of run-time semantics while preserving soundness, followed by pattern-based optimization) are presented as a direct methodological contribution rather than a reduction to prior fitted results or self-citations. Performance claims rest on reported implementation measurements in Ciao, which are externally falsifiable. Self-citation of prior techniques is mentioned only for comparison and is not load-bearing for the derivation itself. The approach is therefore self-contained against external benchmarks in abstract interpretation.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract supplies no information on free parameters, axioms, or invented entities.

pith-pipeline@v0.9.1-grok · 5727 in / 955 out tokens · 32551 ms · 2026-06-28T16:12:03.103695+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

22 extracted references

  1. [1]

    A Practical Framework for the Abstract Interpretation of Logic Pro- grams.Journal of Logic Programming,10, 91–124

    Bruynooghe, M.1991. A Practical Framework for the Abstract Interpretation of Logic Pro- grams.Journal of Logic Programming,10, 91–124

    1991

  2. [2]

    In14th European Symposium on Programming, ESOP 20052005, pp

    Cousot, P.,Cousot, R.,Feret, J.,Mauborgne, L.,Min ´e, A.,Monniaux, D.,and Rival, X.The ASTRE ´E analyzer. In14th European Symposium on Programming, ESOP 20052005, pp. 21–30. De Angelis, E.,Fioravanti, F.,Gallagher, J. P.,Hermenegildo, M. V.,Pettorossi, A.,and Proietti, M.2021. Analysis and Transformation of Constrained Horn Clauses for Program Verificatio...

    2021

  3. [3]

    and Felleisen, M.2011

    Dimoulas, C. and Felleisen, M.2011. On Contract Satisfaction in a Higher-Order World. ACM Transactions on Programming Languages and Systems (TOPLAS),33, 5, 1–29

    2011

  4. [4]

    Findler, R. B. and Felleisen, M.Contracts for Higher-Order Functions. InInt’l. Conf. on Functional Programming (ICFP)2002, pp. 48–59. ACM. Garc´ıa de la Banda, M.,Hermenegildo, M.,Bruynooghe, M.,Dumortier, V.,

    2002

  5. [5]

    Global Analysis of Constraint Logic Programs.ACM Trans

    Janssens, G.,and Simoens, W.1996. Global Analysis of Constraint Logic Programs.ACM Trans. on Programming Languages and Systems,18, 5, 564–615. 16D. Ferreiro et al

    1996

  6. [6]

    and Morales, J.2011

    Hermenegildo, M. and Morales, J.2011. The LPdoc Documentation Generator. Ref. Man- ual (v3.0). Technical report, UPM. Available at https://ciao-lang.org

    2011

  7. [7]

    Hermenegildo, M.,Puebla, G.,Bueno, F.,and Garcia, P. L.2005. Integrated Program

    2005

  8. [8]

    The semantics of constraint logic programs.Journal of Logic Programming,37, 1, 1–46

    Jaffar, J.,Maher, M.,Marriott, K.,and Stuckey, P.1998. The semantics of constraint logic programs.Journal of Logic Programming,37, 1, 1–46

    1998

  9. [9]

    A Practical Object- Oriented Analysis Engine for CLP.Software: Practice and Experience,28, 2, 188–224

    Kelly, A.,Marriott, K.,Søndergaard, H.,and Stuckey, P.1998. A Practical Object- Oriented Analysis Engine for CLP.Software: Practice and Experience,28, 2, 188–224

    1998

  10. [10]

    Frama-c: A software analysis perspective.Form

    Kirchner, F.,Kosmatov, N.,Prevosto, V.,Signoles, J.,and Yakobowski, B.2015. Frama-c: A software analysis perspective.Form. Asp. Comput.,27, 3, 573–609

    2015

  11. [11]

    and Paulson, L

    Lamport, L. and Paulson, L. C.1999. Should Your Specification Language be Typed?ACM Transactions on Programming Languages and Systems,21, 3, 502–526. Le Charlier, B. and Van Hentenryck, P.1994. Experimental Evaluation of a Generic Abstract Interpretation Algorithm for Prolog.ACM TOPLAS,16, 1, 35–101

    1999

  12. [12]

    T.,Leino, K

    Leavens, G. T.,Leino, K. R. M.,and M ¨uller, P.2007. Specification and verification chal- lenges for sequential object-oriented programs.Formal Asp. Comput.,19, 2, 159–189

    2007

  13. [13]

    and Hermenegildo, M.1990

    Muthukumar, K. and Hermenegildo, M.1990. Deriving A Fixpoint Computation Algorithm for Top-down Abstract Interpretation of Logic Programs. Technical Report ACT-DC-153-90, Microelectronics and Comp. Tech. Corp. (MCC)

    1990

  14. [14]

    and Hermenegildo, M.1992

    Muthukumar, K. and Hermenegildo, M.1992. Compile-time Derivation of Variable Depen- dency Using Abstract Interpretation.JLP,13, 2/3, 315–347. Exploiting Multiple Abstract Call Patterns for Optimizing Run-Time Checks17

    1992

  15. [15]

    C.,Gilray, T.,Tobin-Hochstadt, S.,and Van Horn, D.2017

    Nguyen, P. C.,Gilray, T.,Tobin-Hochstadt, S.,and Van Horn, D.2017. Soft contract verification for higher-order stateful programs.Proc. ACM Program. Lang.,2, POPL

    2017

  16. [16]

    C.,Tobin-Hochstadt, S.,and Van Horn, D.Soft contract verification

    Nguyen, P. C.,Tobin-Hochstadt, S.,and Van Horn, D.Soft contract verification. In Proceedings of the 19th ACM SIGPLAN International Conference on Functional Programming 2014, ICFP ’14, 139–152, New York, NY, USA. Association for Computing Machinery

    2014

  17. [17]

    and Vogler, R.2021

    Seidl, H. and Vogler, R.2021. Three improvements to the top-down solver.Math. Struct. Comput. Sci.,31, 9, 1090–1134

    2021

  18. [18]

    F.,and Hermenegildo, M.2015

    Stulova, N.,Morales, J. F.,and Hermenegildo, M.2015. Practical Run-time Checking via Unobtrusive Property Caching.Theory and Practice of Logic Programming,15, 04-05, 726–741

    2015

  19. [19]

    F.,and Hermenegildo, M.2018

    Stulova, N.,Morales, J. F.,and Hermenegildo, M.2018. Some Trade-offs in Reducing the Overhead of Assertion Run-time Checks via Static Analysis.Science of Computer Pro- gramming,155, 3–26

    2018

  20. [20]

    InProceedings of the 43rd Annual ACM SIGPLAN-SIGACT Symposium on Principles of Programming Languages 2016, POPL ’16, 256–270, New York, NY, USA

    Bhargavan, K.,Fournet, C.,Strub, P.-Y.,Kohlweiss, M.,Zinzindohoue, J.-K.,and Zanella-B´eguelin, S.Dependent types and multi-monadic effects in f*. InProceedings of the 43rd Annual ACM SIGPLAN-SIGACT Symposium on Principles of Programming Languages 2016, POPL ’16, 256–270, New York, NY, USA. Association for Computing Machinery

    2016

  21. [21]

    and Bueno, F.More Precise yet Efficient Type Inference for Logic Programs

    Vaucheret, C. and Bueno, F.More Precise yet Efficient Type Inference for Logic Programs. In9th International Static Analysis Symposium (SAS’02)2002, volume 2477 ofLecture Notes in Computer Science, pp. 102–116. Springer-Verlag

    2002

  22. [22]

    Vazou, N.,Tanter, ´E.,and Horn, D. V.2018. Gradual liquid type inference.Proc. ACM Program. Lang.,2, OOPSLA, 132:1–132:25

    2018
