The Dirac nodal line network in non-symmorphic rutile semimetal RuO$_2$

T0 review · 3 major / 3 minor · reviewed 2026-08-14 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read A photoemission study of the rutile semimetal RuO2 finds a third Dirac nodal line near the Fermi level that survives strong spin-orbit coupling and anchors a flat-band surface state responsive to doping.

desk verdict Solid ARPES work undermined by an overclaimed third nodal line: the authors' own DFT+SOC gaps it, and the central claim needs major revision before this is citable. read the letter →

arxiv 1908.02621 v1 pith:4YWPNBEQ submitted 2019-08-06 cond-mat.mes-hall

Vedran Jovic , Roland J. Koch , Swarup K. Panda , Helmuth Berger , Philippe Bugnon , Arnaud Magrez , Ronny Thomale , Kevin E. Smith
show 6 more authors
Silke Biermann Chris Jozwiak Aaron Bostwick Eli Rotenberg Domenico Di Sante Simon Moser
This is my paper · ORCID
classification cond-mat.mes-hall
keywords Diracnodallineflat-bandsurfacestateRuO2angle-resolvedphotoemissionspectroscopyspin-orbitcouplingrutilesemimetalnon-symmorphicsymmetrypotassiumdoping
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

Dirac nodal lines are lines in momentum space where the conduction and valence bands touch, and they are usually erased by spin-orbit coupling. This paper reports angle-resolved photoemission measurements of the rutile semimetal RuO2 showing that, alongside the two nodal lines theory predicted, a third line runs along the XR direction just below the Fermi level and stays intact even though ruthenium 4d spin-orbit coupling is strong. That third line, DNL3, anchors a nearly flat, non-dispersive surface state on the (110) surface, a topologically trivial stand-in for the drumhead surface states of topological nodal-line semimetals. The flat state has a van Hove-like density of states near the Fermi level and shifts markedly when potassium is deposited on the surface, so it can be tuned by doping. Since RuO2 is a functional oxide used in catalysis and energy applications, a tunable flat band at the Fermi level is a plausible hub for surface chemistry and correlation effects.

What carries the argument

The load-bearing object is the non-symmorphic glide-mirror symmetry of the rutile lattice, a reflection combined with a half-unit-cell translation that back-folds the electronic bands and forces symmetry-protected crossings along lines in momentum space. The argument is carried by DNL3, the crossing along XR: it is the anchor line for the FBSS, and the flat dispersion of the FBSS together with its sharp downward bend at the zone boundary are the fingerprints of a saddle-point van Hove singularity. The experimental machinery is photon-energy-dependent micro-ARPES, which selects the (110) planes of the three-dimensional Brillouin zone, curvature analysis to sharpen weak spectral features, and LDA-DFT, DFT+SOC, and surface slab calculations that together identify the orbital character and surface termination responsible for the state.

What would settle it

Measure the band structure along XR with an energy resolution better than the predicted SOC splitting (below roughly 20 meV), or use spin-resolved ARPES at the same momenta: resolving a gap or separated spin components would show that DNL3 is an anti-crossing rather than a true nodal line.

Watch

Extended reading notes

Core claim

The paper's central claim is that RuO2 hosts a third Dirac nodal line, DNL3, along the XR direction of the Brillouin zone, formed by a continuous crossing of conduction and valence bands with dominant $d_{x^2-y^2}$ orbital character. At the X point the crossing sits about 100 meV below the Fermi level and rises through it near R, and it remains effectively gapless in the ARPES data even though calculations including spin-orbit coupling lift the degeneracy everywhere except exactly at X. The same measurement plane shows a surface-localized flat band, the FBSS, that spans between adjacent DNL3 projections, stays flat near -30 meV, and bends down sharply to merge with the crossing at the zone boundary. The surface character of the FBSS is demonstrated by its absence in bulk DFT and its reproduction in slab calculations for the oxygen-rich (110) termination, and by its strong response to potassium doping, which moves it to about -0.43 eV while leaving the bulk Dirac states intact.

Load-bearing premise

The nodal-line claim rests on the assumption that the spin-orbit-induced gap along XR is smaller than the ARPES energy resolution of about 20 meV, because the paper's own DFT+SOC calculation lifts the degeneracy everywhere except exactly at X.

Editorial extensions

If this is right

  • If DNL3 is a genuine crossing, RuO2 behaves as a de facto Dirac semimetal despite strong spin-orbit coupling, with protected line crossings near the chemical potential.
  • The FBSS, with its van Hove-like density of states, is a candidate venue for surface magnetism, unconventional surface superconductivity, or graphene-like Landau levels under magnetic field.
  • Because the FBSS responds strongly to electron doping, catalytic reactions that donate or accept surface electrons on RuO2(110) should populate or deplete this state, connecting the nodal line to surface chemistry.
  • The nested hot-spot bands observed in the same data support the proposed antiferromagnetic and Pomeranchuk instabilities in RuO2 and tie the nodal-line network to the predicted crystal Hall effect.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • The same glide-symmetry and chain-like surface termination arguments should apply to the sister rutiles IrO2 and OsO2, so a similar DNL3 plus flat-band surface state should be observable there; this is a direct test of the mechanism.
  • The authors call the trivial FBSS coincidental, but the pattern suggests a design rule: a non-symmorphic nodal line whose surface presents well-separated metal chains will generically produce such a flat surface state, which would make RuO2 a template rather than a special case.
  • If the FBSS participates in catalysis, adsorbate-covered surfaces in operando conditions should show a Fermi-level electronic structure different from the clean surface, so dosing experiments with H2, NO, or CO while measuring ARPES would reveal whether this state is the active channel.
Share X Bluesky LinkedIn Reddit HN

Signed reviews

No signed human review yet.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

3 major / 3 minor

Summary. This manuscript presents a micro-ARPES and DFT study of the rutile semimetal RuO2(110). The authors confirm the previously predicted Dirac nodal lines DNL1 and DNL2, and report evidence for a third nodal line (DNL3) along the XR direction that they claim remains robust under spin-orbit coupling. They further show that DNL3 anchors a non-dispersive flat-band surface state (FBSS) at the (110) surface, whose energy can be tuned by potassium deposition, and they identify hot-spot Fermi surface features associated with predicted antiferromagnetic instabilities. The central novelty is the discovery of DNL3 and its associated FBSS.

Significance. If the central claim were correct, the paper would be a significant experimental advance: a direct observation of a Dirac nodal line network in a catalytically important oxide, plus a tunable flat surface band with interesting correlation and surface-chemistry consequences. The ARPES data are of high quality, the slab calculations are carefully executed, and the potassium-doping response of the FBSS is an original and plausible observation. However, the headline claim that DNL3 is a SOC-robust Dirac nodal line is explicitly contradicted by the paper's own DFT+SOC calculation (Fig. 6g), which gaps the line; the claimed robustness rests on experimental resolution rather than on symmetry protection.

major comments (3)
  1. [Section VIII / Fig. 6(g) / Abstract] The central claim of the paper — a third Dirac nodal line DNL3 along XR that remains 'remarkably robust despite considerable SOC' (Abstract and Section XI) — is contradicted by the authors' own calculation. The caption of Fig. 6(g) states that 'SOC gaps DNL3 and the DP', and Section VIII concedes that 'This degeneracy however is lifted by SOC as seen in Fig. 6 (g).' The only degeneracy that is strictly symmetry protected is the isolated X point and the XM line, not the XR segment. By the definition given in Section II (a nodal line is a 'symmetry protected crossing of the conduction and valence band along continuous lines'), DNL3 is therefore not a Dirac nodal line; it is a near-degenerate anti-crossing whose splitting is too small to be resolved at the stated 20 meV resolution. The 'de facto Dirac semi-metal' analogy to graphene in Section XI is a resolution-based argument, not a symmetry argument, and the statement that the SOC effect is 'beyond the resolution of our experiment' does not establish robustness. Because the discovery of DNL3 is the manuscript's principal novelty, this overstatement is load-bearing and cannot be fixed by local editing; it requires either a symmetry-based proof of protection (which the paper's own data contradict) or a substantial reframing of the result as a near-degenerate line rather than a Dirac nodal line.
  2. [Section X / Fig. 8 / Figs. 5-6] The claimed agreement between ARPES and DFT relies on per-feature rigid energy shifts of very different magnitudes: 0.79 eV for the hexatruple point HP, 0.56 eV for the onset of DNL3 at X, and 0.15 eV for the DP crossing (Section VIII and Section X). Because these offsets are not a single chemical-potential alignment but three independent fitting parameters, the 'excellent agreement' asserted for the comparisons in Figs. 5(f,i2,l2), 6(e,h,j), and 8 is partly a fitting exercise. This is particularly consequential for the DNL3 claim: the 'surprising' crossing is identified using a shifted version of the authors' own bulk DFT, so the experimental identification of DNL3 is not independent of the model, and the model itself (DFT without SOC, Fig. 6f) is contradicted by the DFT+SOC result (Fig. 6g).
  3. [Section III and Section X] Two ad hoc assumptions connect the experiment to the calculations. First, the 7% Ir doping is asserted to 'slightly raise the Fermi level, but leave the overall electronic band structure unaffected' (Section III), with no comparative measurement between doped and undoped samples; since all quantitative comparisons are made to pure-RuO2 DFT, this assumption directly affects the magnitude of the required energy shifts. Second, the surface slab calculation that 'matches' the ARPES data assumes the oxygen-rich (110) termination (Section X), while the Laue and LEED data confirm only the surface orientation, not the termination. The authors are transparent about the latter, and the oxygen-deficiency interpretation of the potassium-doping results is plausible, but both assumptions are checkable and should be verified or clearly presented as assumptions in the interpretation of the FBSS and DNL3 energetics.
minor comments (3)
  1. [Section XI] There are several typos in the Discussion section: 'APRES data' should be 'ARPES data', 'theorectical' should be 'theoretical', and 'future sutdies' should be 'future studies'.
  2. [Section VI] The inner potential V0 = 15 eV is used to map photon energies to kz and to assign the BZ planes probed at hν = 69, 87, and 131 eV; the uncertainty in this fitted parameter and its impact on the plane assignment should be stated, since the identification of the XRX plane underpins the DNL3 analysis.
  3. [References] Reference 50 (Ahn et al.) is cited with incomplete bibliographic information ('2 (2019), arXiv:1902.04436'); a complete citation is needed, and several arXiv-only references (e.g., Refs. 51, 64, 71, 78, 79, 88) would benefit from journal publication data where available.

Circularity Check

0 steps flagged · score 2.0 of 10

No construction-level circularity: ARPES data are independent external evidence and no predicted quantity reduces to a fitted parameter; the disclosed shifted-DFT comparison and the resolution-limited SOC claim are correctness concerns, not circular reductions.

full rationale

Walking the derivation chain, the load-bearing experimental claims (the Fermi-surface crossings, DNL3/FBSS band structure, K-doping evolution, hot spots) are direct ARPES observations; DFT and TB are used for comparison/identification rather than as the source of the data. The SOC parameter is openly fitted ('The on-site SOC contribution ... was modeled by a single parameter λ = 120 meV fitted to the DFT+SOC bandstructure'), but it is used for a low-energy TB model and not to generate the headline DNL3 result. The rigid bulk-DFT shifts ('Shifted (see text) DFT (black dotted) and DFT+SOC (red solid) calculations') are transparently disclosed comparison tools, not renamed predictions. Self-citations to ref. 101 and ref. 116 are contextual and non-load-bearing; the DNL3 argument does not reduce to them. The one serious weakness is an overstatement, not a circular step: the abstract calls DNL3 'robust despite the presence of significant spin orbit coupling,' while the paper's own Fig. 6(g) caption states 'SOC gaps DNL3 and the DP,' and the text concedes 'This degeneracy however is lifted by SOC as seen in Fig. 6 (g)' and that the splitting 'remains unresolved by our ARPES experiment.' That is a resolution-limited inference and the standard symmetry-protected-nodal-line definition is not satisfied along XR, but no output is constructed from its own input; hence no circularity steps, with a low score reflecting only the minor non-load-bearing self-citation.

Assumptions & free parameters 7 free parameters · 5 assumptions · 0 invented entities

The main model parameters are the SOC lambda, the inner potential, and the energy shifts used to align DFT to ARPES. The key assumption is that DFT-LDA and the prior symmetry classification correctly describe RuO2. The paper introduces no new physical entities, but the energy shifts are ad hoc adjustments that make the comparison succeed.

free parameters (7)
  • lambda_SOC = 120 meV
    On-site SOC parameter for Ru 4d in the tight-binding model, fitted to the DFT+SOC band structure (Section V).
  • slab_rigid_shift = ~130 meV
    Rigid energy shift applied to slab DFT to match ARPES (Section X, Fig. 9).
  • slab_renormalization_factor = not specified
    Small renormalization factor applied to slab bands to match ARPES (Section X, Fig. 9).
  • V0_inner_potential = 15 eV
    Inner potential used to map photon energy to k_z in ARPES (Section VI).
  • bulk_DFT_energy_shift_HP = 0.79 eV
    Shift applied to bulk DFT to align the HP crossing with ARPES (Section X, Fig. 8).
  • bulk_DFT_energy_shift_DNL3 = 0.56 eV
    Shift applied to bulk DFT to align the DNL3 crossing with ARPES (Section VIII, Fig. 6e).
  • bulk_DFT_energy_shift_DP = 0.15 eV
    Shift applied to bulk DFT to align the DP crossing with ARPES (Section VIII, Fig. 6h).
assumptions (5)
  • domain assumption DFT-LDA is a valid approximation for the electronic structure of RuO2
    Used throughout Section V for bulk and surface calculations; no comparison to beyond-LDA methods is given.
  • domain assumption The symmetry analysis of Sun et al. (2017) predicting DNL1 and DNL2 is correct
    The paper relies on this for the interpretation of the data (Section II).
  • ad hoc to paper 7% Ir doping only raises the Fermi level and does not alter the band structure
    Stated in Section III without direct evidence; the ARPES measurements are on doped crystals.
  • ad hoc to paper The (110) surface is oxygen-rich as in the matching slab calculation
    Section X infers the termination by matching slab DFT to ARPES; no direct structural determination of the termination is given.
  • domain assumption The crossing at X is 4-fold degenerate and symmetry-protected even with SOC
    Taken from Ref. 52; used to argue the SOC gap is weak near X (Section VIII).

how reviews work

0 comments
Cite this review

Pith. "Pith review of The Dirac nodal line network in non-symmorphic rutile semimetal RuO$_2$." pith.science (2026). https://pith.science/paper/4YWPNBEQ

@misc{pith2026190802621,
  author       = {Pith},
  title        = {Pith review of: The Dirac nodal line network in non-symmorphic rutile semimetal RuO$_2$},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/4YWPNBEQ}},
  note         = {Machine review of arXiv:1908.02621}
}
abstract

We employ angle resolved photoemission spectroscopy (ARPES) to investigate the Fermi surface of RuO$_2$. We find a network of two Dirac nodal lines (DNL) as previously predicted in theory, where the valence- and conduction bands touch along continuous lines in momentum space. In addition, we find evidence for a third DNL close to the Fermi level which appears robust despite the presence of significant spin orbit coupling. We demonstrate that the third DNL gives rise to a topologically trivial flat-band surface state (FBSS) at the (110) surface. This FBSS can be tuned by surface doping and presents an interesting playground for the study of surface chemistry and exotic correlation phenomena.

Figures

Figures reproduced from arXiv: 1908.02621 by the authors.

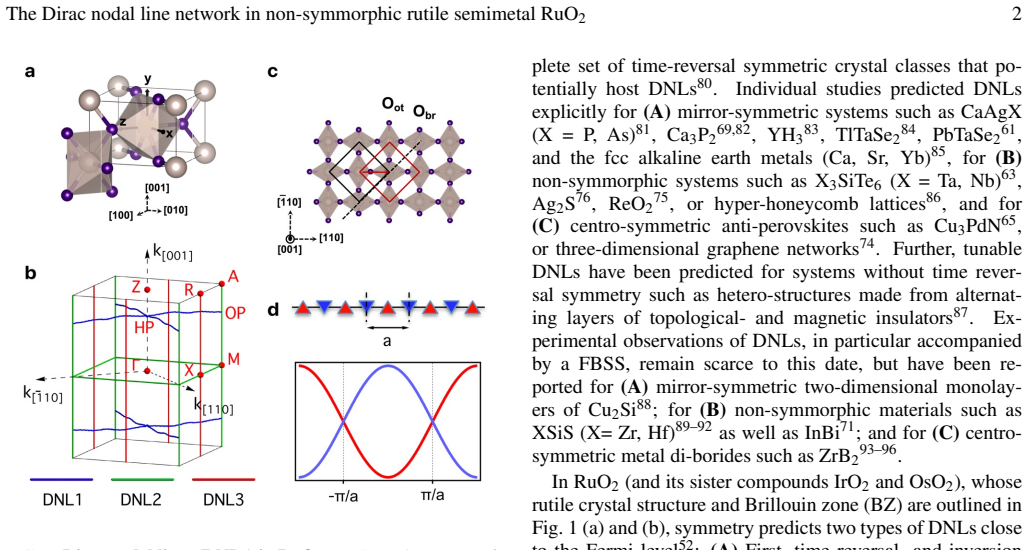

Figure 1
Figure 1. (a) and (b), symmetry predicts two types of DNLs close to the Fermi level52: (A) First, time reversal- and inversion symmetry in unison with a mirror symmetry protect a band crossing within the (110) and (110) planes. This produces a network of 4-fold degenerate (2 × spin and 2 × orbital) and topologically nontrivial DNLs (DNL1), outlined by blue lines in the Brillouin zone (BZ) of [PITH_FULL_IMAGE:figures/full_fig… view at source ↗

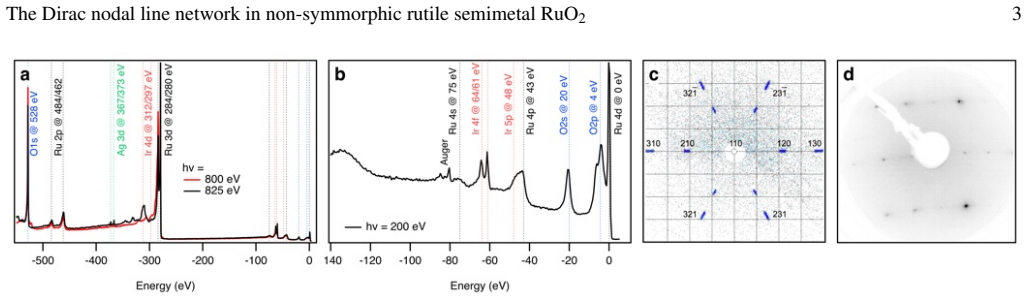

Figure 2
Figure 2. FIG. 2 [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗

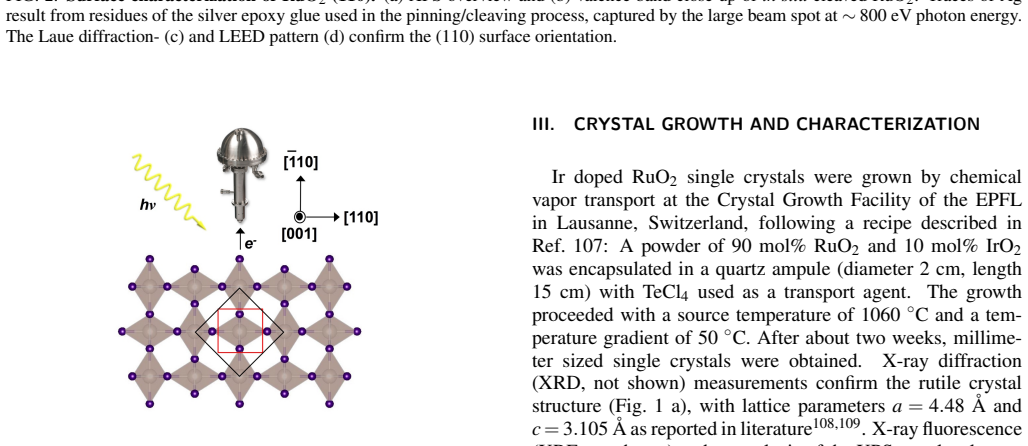

Figure 3
Figure 3. FIG. 3 [PITH_FULL_IMAGE:figures/full_fig_p003_3.png] view at source ↗
Figures from the paper (6 more)

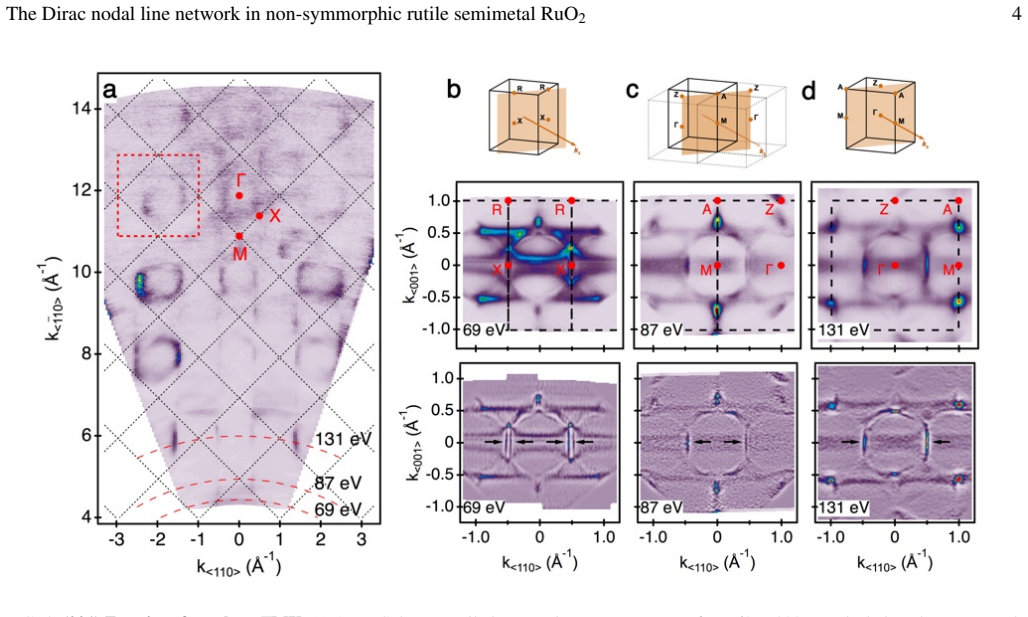

Figure 4
Figure 4. Figure 4: FIG. 4 [PITH_FULL_IMAGE:figures/full_fig_p004_4.png]

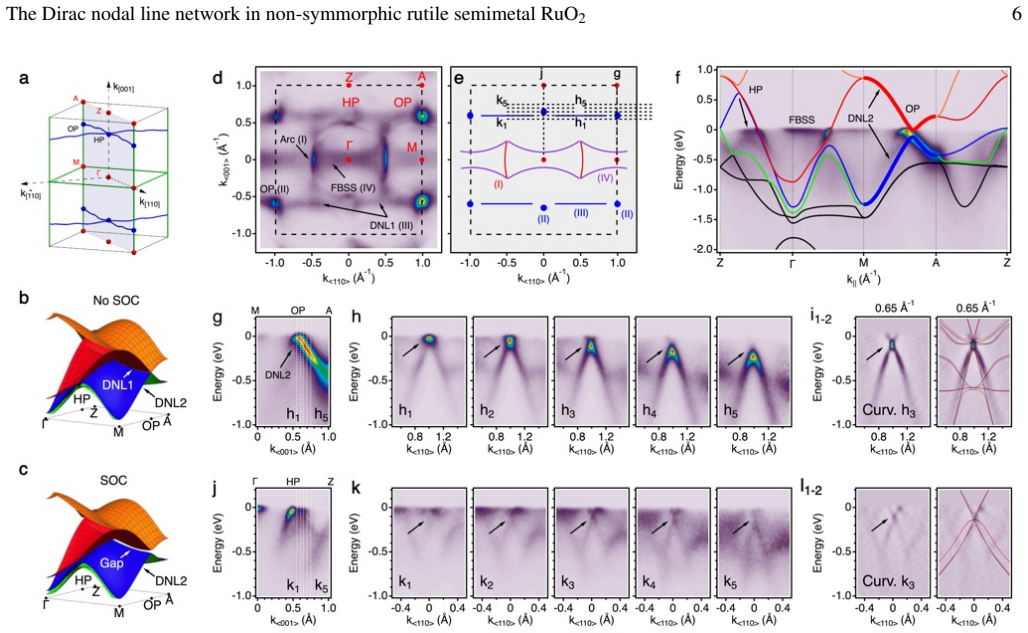

Figure 5
Figure 5. Figure 5: FIG. 5 [PITH_FULL_IMAGE:figures/full_fig_p006_5.png]

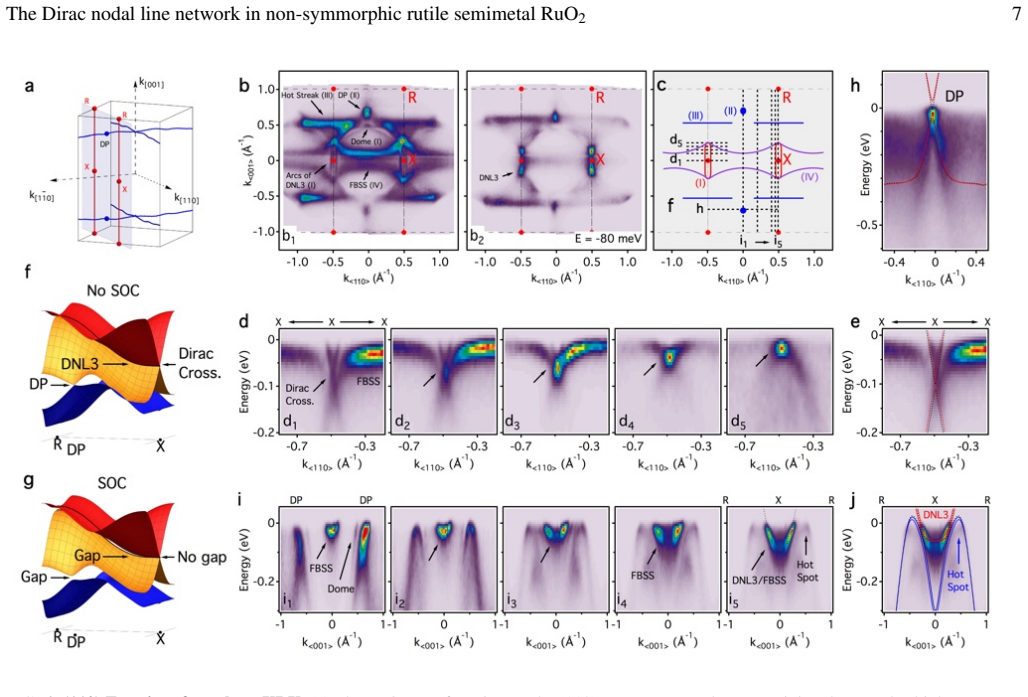

Figure 6
Figure 6. Figure 6: (b). These are the intersection points of DNL1 with the XRX momentum plane, as outlined in panel (a). Both ARPES and DFT reveal the corresponding Dirac crossing in panel (h), but the SOC induced gap remains again unresolved, and bulk DFT locates the crossing point agai…
Figure 7
Figure 7. Figure 7: FIG. 7 [PITH_FULL_IMAGE:figures/full_fig_p008_7.png]

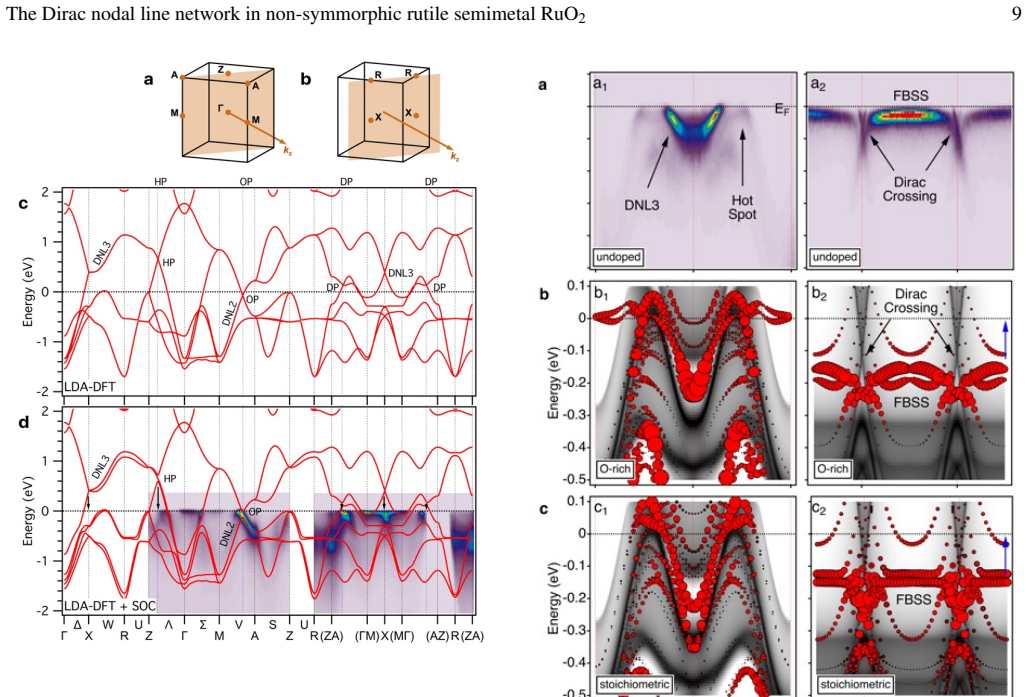

Figure 8
Figure 8. Figure 8: FIG. 8 [PITH_FULL_IMAGE:figures/full_fig_p009_8.png]
Figure 9
Figure 9. Figure 9: FIG. 9 [PITH_FULL_IMAGE:figures/full_fig_p009_9.png]
