An efficient evolutionary structural optimization method for multi-resolution designs

Hongxin Wang , Jie Liu , Guilin Wen This is my paper

Pith reviewed 2026-05-24 16:11 UTC · model grok-4.3

classification ⚛️ physics.app-ph physics.comp-ph
keywords topology optimizationBESOXFEMmulti-resolutionlarge-scale optimizationevolutionary structural optimizationadjoint sensitivity analysis
0
0 comments X

The pith

A modified BESO algorithm paired with XFEM solves topology optimization problems with millions of design variables by calculating material properties on fine sub-regions while solving equilibrium only on coarse elements.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops an algorithm that combines modified bi-directional evolutionary structural optimization with the extended finite element method to address large-scale topology optimization. Enriched nodes partition each finite element into uniform sub-regions such as sub-triangles or sub-tetrahedrons, where material grids and shape functions are defined for accuracy. The equilibrium equation remains at the coarse finite element level to maintain efficiency, and all standard and enriched nodes act as design variables under a modified material interpolation model. An enrichment function models the transition between solid and void material, with sensitivities obtained via the adjoint method to support the BESO process. Numerical examples with millions of variables confirm that the approach produces optimized designs.

Core claim

The proposed method efficiently solves topology optimization problems involving millions of design variables using a modified BESO combined with XFEM. Within XFEM, a set of enriched nodes are defined to divide the finite element into several uniform sub-regions. The material grid and shape functions are defined on each sub-region to improve the computational accuracy, whereas the equilibrium equation is established on the level of coarse finite elements to increase the computational efficiency. All standard FE nodes and the enriched nodes serve as design variables under a modified material interpolation model, with an enrichment function characterizing the discontinuity between solid andvoid

What carries the argument

XFEM sub-region partitioning via enriched nodes, which computes material properties and interpolation on fine sub-elements while restricting equilibrium solution and global solve to the original coarse mesh, integrated into modified BESO with adjoint sensitivities.

If this is right

  • The algorithm can optimize structures containing millions of design variables without solving the full fine-mesh equilibrium at every iteration.
  • Both two- and three-dimensional problems are handled through the same sub-region construction using sub-triangles and sub-tetrahedrons.
  • Adjoint-based sensitivity analysis supplies the gradients required for the evolutionary BESO update at the scale of the enriched design variables.
  • Typical benchmark problems demonstrate convergence to designs comparable to those obtained by conventional methods but at reduced computational cost.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same coarse-mesh equilibrium plus fine-sub-region material model could be inserted into other gradient-based topology optimizers besides BESO.
  • Engineering fields that already use XFEM for crack or interface problems could reuse the enrichment function to add topology optimization at little extra implementation cost.
  • Parallel solvers for the coarse equilibrium step would further increase the maximum number of design variables that remain tractable.

Load-bearing premise

The material properties and design sensitivities computed from the sub-region interpolation and enrichment function remain accurate enough for the optimization to converge to correct designs even though equilibrium is solved only on the coarse mesh.

What would settle it

A side-by-side run on an identical problem where the final topology from the proposed coarse-equilibrium method differs in load-bearing members or compliance value from a reference optimization performed entirely on a uniformly fine mesh.

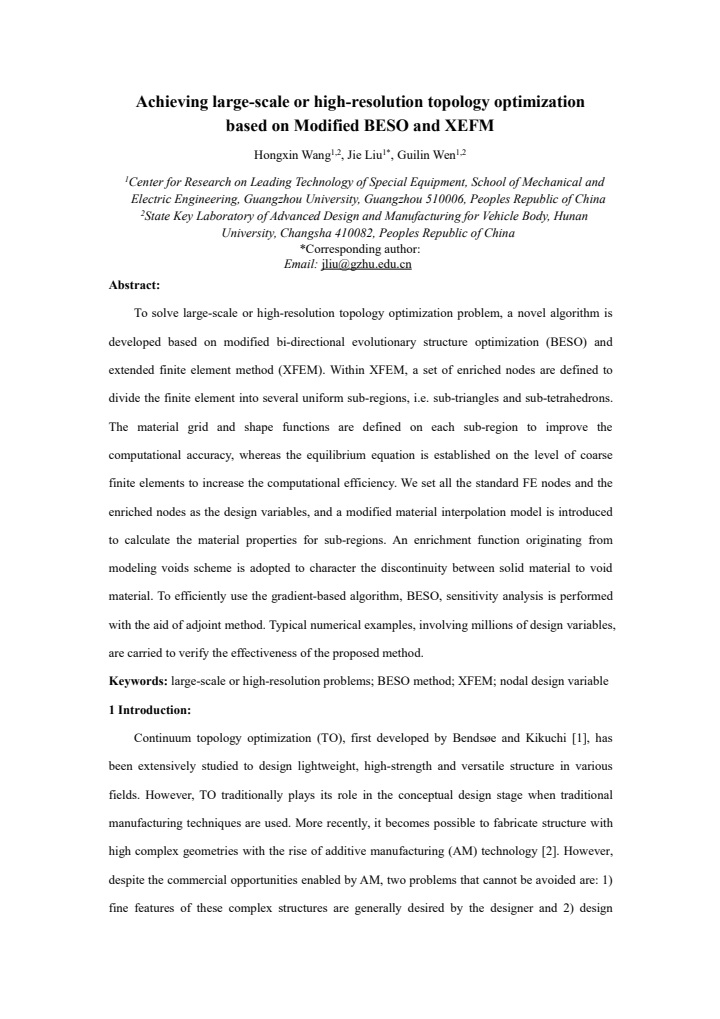

read the original abstract

To solve large-scale or high-resolution topology optimization problem, a novel algorithm is developed based on modified bi-directional evolutionary structure optimization (BESO) and extended finite element method (XFEM). Within XFEM, a set of enriched nodes are defined to divide the finite element into several uniform sub-regions, i.e. sub-triangles and sub-tetrahedrons. The material grid and shape functions are defined on each sub-region to improve the computational accuracy, whereas the equilibrium equation is established on the level of coarse finite elements to increase the computational efficiency. We set all the standard FE nodes and the enriched nodes as the design variables, and a modified material interpolation model is introduced to calculate the material properties for sub-regions. An enrichment function originating from modeling voids scheme is adopted to character the discontinuity between solid material to void material. To efficiently use the gradient-based algorithm, BESO, sensitivity analysis is performed with the aid of adjoint method. Typical numerical examples, involving millions of design variables, are carried to verify the effectiveness of the proposed method.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper claims to develop a novel algorithm based on modified bi-directional evolutionary structural optimization (BESO) combined with the extended finite element method (XFEM) to solve large-scale topology optimization problems involving millions of design variables. Enriched nodes divide coarse finite elements into uniform sub-regions (sub-triangles/tetrahedra) where material grids and shape functions are defined; equilibrium is solved only at the coarse-element level while a modified material interpolation model and an enrichment function (from a voids-modeling scheme) characterize solid-void discontinuities. All standard and enriched nodes serve as design variables, adjoint sensitivities are computed for the gradient-based BESO updates, and effectiveness is asserted via typical numerical examples.

Significance. If the accuracy of the coarse-mesh adjoint sensitivities holds, the approach could enable practical multi-resolution topology optimization at scales previously limited by computational cost, by trading fine-mesh equilibrium solves for sub-region enrichment while retaining BESO's evolutionary update rule. The method extends established BESO/XFEM frameworks with concrete modifications for efficiency, and successful validation would directly address scalability in evolutionary structural optimization.

major comments (2)
  1. [Abstract] Abstract: the claim that 'typical numerical examples' verify effectiveness supplies no quantitative results, convergence histories, compliance values, or error metrics. This leaves the central assumption—that material properties and adjoint sensitivities derived from the enrichment function plus modified interpolation on sub-regions remain accurate when equilibrium is solved only on the coarse mesh—unverified against high-fidelity fine-mesh references.
  2. [XFEM formulation and adjoint sensitivity analysis] The description of the XFEM enrichment and sensitivity analysis: the assumption that the enrichment function and modified material interpolation model on sub-triangles/tetrahedra produce sufficiently accurate material properties and sensitivities (when global equilibrium is solved only on coarse elements) is load-bearing for the claim that BESO updates converge to correct designs. No mesh-convergence studies, sensitivity error norms, or benchmark comparisons to standard fine-mesh BESO are reported, so O(1) errors in the adjoint derivatives cannot be ruled out.
minor comments (2)
  1. The parameters of the modified material interpolation model and the coefficients of the enrichment function are introduced as free quantities but are not explicitly listed or subjected to sensitivity analysis; their values should be stated for reproducibility.
  2. [Introduction] Standard references to the foundational BESO algorithm and XFEM enrichment schemes should be added in the introduction to clarify the precise modifications introduced here.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive feedback highlighting the need for stronger quantitative verification of the method's accuracy. We address the major comments below and will revise the manuscript accordingly.

read point-by-point responses

  1. Referee: [Abstract] Abstract: the claim that 'typical numerical examples' verify effectiveness supplies no quantitative results, convergence histories, compliance values, or error metrics. This leaves the central assumption—that material properties and adjoint sensitivities derived from the enrichment function plus modified interpolation on sub-regions remain accurate when equilibrium is solved only on the coarse mesh—unverified against high-fidelity fine-mesh references.

    Authors: We agree that the abstract and results section would be strengthened by explicit quantitative metrics. The manuscript's examples demonstrate handling of millions of design variables, but direct compliance values, convergence histories, and error metrics versus fine-mesh references are not reported. In revision we will add these, including comparisons to high-fidelity solutions where feasible to verify the coarse-mesh adjoint sensitivities. revision: yes

  2. Referee: [XFEM formulation and adjoint sensitivity analysis] The description of the XFEM enrichment and sensitivity analysis: the assumption that the enrichment function and modified material interpolation model on sub-triangles/tetrahedra produce sufficiently accurate material properties and sensitivities (when global equilibrium is solved only on coarse elements) is load-bearing for the claim that BESO updates converge to correct designs. No mesh-convergence studies, sensitivity error norms, or benchmark comparisons to standard fine-mesh BESO are reported, so O(1) errors in the adjoint derivatives cannot be ruled out.

    Authors: The current validation relies on the obtained topologies in the numerical examples. We acknowledge the absence of explicit mesh-convergence studies, sensitivity error norms, or fine-mesh BESO benchmarks. To address the concern about possible O(1) errors in adjoint derivatives, the revised manuscript will include such studies and direct comparisons to quantify accuracy of the sub-region enrichment and modified interpolation. revision: yes

Circularity Check

0 steps flagged

No circularity; standard extension of BESO/XFEM with independent verification

full rationale

The derivation chain consists of adapting established BESO evolutionary updates and XFEM enrichment to a coarse-mesh equilibrium plus sub-region interpolation. Adjoint sensitivities are computed from the standard variational form; no parameter is fitted to the target performance metric and then re-used as a 'prediction.' No self-citations are invoked as uniqueness theorems or load-bearing premises. Numerical examples serve as external checks rather than tautological confirmation. The central claim therefore remains independent of its own outputs.

Axiom & Free-Parameter Ledger

2 free parameters · 1 axioms · 0 invented entities

The central claim rests on the domain assumption that coarse-mesh equilibrium combined with sub-region material properties yields usable optimization sensitivities; the modified interpolation model and enrichment function are introduced without independent evidence of their accuracy beyond the method description itself.

free parameters (2)
  • parameters of the modified material interpolation model
    The abstract states a modified interpolation model is introduced but does not specify whether its coefficients are chosen by hand or fitted.
  • enrichment function coefficients
    An enrichment function is adopted from a voids modeling scheme; any tunable parameters are not detailed.
axioms (1)
  • domain assumption Equilibrium equations solved on coarse elements with sub-region material properties produce accurate adjoint sensitivities for the BESO update.
    This assumption underpins the sensitivity analysis step described in the abstract.
