VASPKIT: A User-friendly Interface Facilitating High-throughput Computing and Analysis Using VASP Code

T0 review · 3 major / 8 minor · reviewed 2026-08-14 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read VASPKIT is a command-line toolkit that turns VASP's raw output into ready-to-use material properties for high-throughput screening.

desk verdict Honest, useful software paper for the widely used VASPKIT toolkit, but Eq. (15) has a wrong coefficient in the Voigt shear modulus and the benchmarks omit computational detail that a revision must supply. read the letter →

arxiv 1908.08269 v6 pith:ACJU2QSV submitted 2019-08-22 cond-mat.mtrl-sci

Vei Wang , Nan Xu , Jin Cheng Liu , Gang Tang , Wen-Tong Geng This is my paper · ORCID
classification cond-mat.mtrl-sci
keywords high-throughputcomputingVASPdensityfunctionaltheorypost-processingelasticconstantsbandstructureunfoldingopticalpropertiesmoleculardynamics
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

VASPKIT is a command-line program that claims to make high-throughput density functional theory (DFT) calculations with the VASP code practical for researchers. It prepares VASP input files from a single structure file, and it extracts a wide range of properties from VASP's raw output, including elastic constants, band structures, effective masses, optical spectra, and free-energy corrections. The paper demonstrates the pipeline on benchmark systems, reporting a diamond bulk modulus in the range 440 to 442 GPa against an experimental 443 GPa, and an O2 free-energy correction of -0.4467 eV against -0.4468 eV. If the program works as claimed, researchers can script large batches of calculations in bash without writing bespoke parsing code for each property.

What carries the argument

The central object is VASPKIT itself, a command-line program with two modules: a pre-processing module that turns a POSCAR file into complete VASP input sets, standard cells, supercells, and k-paths, and a post-processing module that parses VASP's raw outputs into derived properties. The main analytical engines are the energy-strain method for second-order elastic constants, which fits quadratic energy-strain curves from distorted cells; the standard averaging schemes that turn single-crystal elastic constants into polycrystalline bulk and shear moduli; the effective band-structure unfolding spectral weight formula; the standard transform linking the real and imaginary parts of the dielectric function; and the partition-function formulas behind Gibbs free-energy corrections. The design choice that carries the high-throughput claim is exposing every operation as a numbered command-line task, so looping over tasks in a shell script constitutes a screening workflow.

What would settle it

Run VASPKIT on a recent VASP version that changed an output-file format and check whether the WAVECAR-based band unfolding and the OUTCAR-based elastic constants still match independent direct calculations, such as a direct Fourier transform of the same plane-wave coefficients or a separate elastic fit from the same distorted cells. A mismatch on a small benchmark system like diamond would refute the post-processing claim.

Watch

Extended reading notes

Core claim

The paper's central claim is that a single integrated Fortran-based toolkit, VASPKIT, can serve as a complete front end and back end for VASP: it reads a structure from POSCAR, generates the INCAR, POTCAR, and KPOINTS files, builds supercells and k-paths, and then parses OUTCAR, WAVECAR, LOCPOT, DOSCAR, and PROCAR to deliver human-readable results. The post-processing side covers elastic mechanics via the energy-strain method, equations of state, band structure and density of states, effective masses, charge and spin densities, electrostatic potentials, Fermi surfaces, real-space wave functions, band unfolding, linear optical properties, joint density of states, transition dipole moments, d-band centers, thermochemistry, and molecular-dynamics correlation functions. The paper validates several pieces with benchmarks, such as a diamond bulk modulus of 440 to 442 GPa versus an experimental 443 GPa and an O2 free-energy correction of -0.4467 eV versus -0.4468 eV. The intended message is that the toolkit lowers the barrier to large-scale DFT screening while producing results consistent with established codes and experiment.

Load-bearing premise

The central assumption is that VASPKIT's routines read the raw output files that VASP writes exactly as VASP writes them, and across the VASP versions users actually run; the paper does not state a version-compatibility range, and any format drift would break the post-processing claims.

Editorial extensions

If this is right

  • From a single structure file, a user can generate the full VASP input set and a crystallographically recommended k-path, so band-structure calculations need no manual k-point setup.
  • The elastic utility produces the independent second-order elastic constants plus derived bulk, shear, and Young moduli and Poisson's ratio for any crystal system, with benchmark values in close agreement with experiment and prior calculations.
  • Supercell calculations for defects, alloys, and disordered systems can be unfolded back into the primitive Brillouin zone, making defect levels and spectral weights directly comparable with the pristine band structure.
  • Scripting the numbered tasks in bash turns the toolkit into a high-throughput screening engine, a mode the authors used to screen hundreds of two-dimensional semiconductors.
  • The thermochemistry and optical utilities output quantitative corrections and spectra, such as an O2 free-energy correction within 0.0001 eV of experiment and 2D optical conductivities for graphene and phosphorene, that can be plugged directly into catalysis and device models.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • Beyond the paper, the same task-based design could serve as a reproducibility harness: because input generation and property extraction are recorded as shell commands, a full DFT workflow becomes auditable and rerunnable without GUI steps.
  • If the parser layer were made format-agnostic, the pre- and post-processing workflow could attach to other plane-wave DFT codes; the paper lists this as future work, but the modular structure suggests the main barrier is in the parsers.
  • The benchmark agreements imply a testable extension: combining VASPKIT's elastic-constant, stability-criterion, and batch-mode outputs should reproduce published high-throughput elastic screening of two-dimensional monolayers without custom scripting.
Share X Bluesky LinkedIn Reddit HN

Signed reviews

No signed human review yet.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

3 major / 8 minor

Summary. The manuscript presents VASPKIT, a Fortran/Python command-line toolkit that provides pre- and post-processing interfaces for VASP calculations. The pre-processing module generates input files, builds supercells, determines symmetry, and supplies Brillouin-zone k-paths; the post-processing module extracts and computes elastic constants, equations of state, band structures, effective masses, charge densities, Fermi surfaces, wave functions, band unfolding, optical properties, joint density of states, transition dipole moments, d-band centers, thermochemical corrections, and molecular-dynamics correlation functions. The paper illustrates each utility with example outputs and benchmarks several quantities against literature or experimental values, including the diamond bulk modulus (440–442 GPa versus 443 GPa experimental), the O2 free-energy correction (−0.4467 eV versus −0.4468 eV), and effective masses for several semiconductors. The authors emphasize the program's high-throughput capability through bash scripting.

Significance. If the described implementations are correct, VASPKIT is a genuinely useful open-source tool that lowers the barrier to high-throughput VASP analysis, and its cross-platform availability and GPLv3 license are concrete strengths. The validation strategy is a notable positive: the benchmark comparisons are made against external literature and experimental values rather than the authors' own fitted parameters, and several matches are quantitative to within a few percent (diamond elastic constants, O2 thermochemical correction, effective masses). The paper also provides reproducible example workflows for many of the utilities. However, the manuscript contains at least one load-bearing formula error in the elastic module (Eq. (15)), and the benchmark section omits the computational parameters needed to reproduce or independently assess the claimed agreement, so the central reliability claim requires revision before the paper can be recommended for publication.

major comments (3)
  1. [Section 3.1, Eq. (15)] The Voigt shear modulus formula in Eq. (15) has an incorrect coefficient: it reads 15G_V = (C11+C22+C33) - (C12+C23+C31) + 4(C44+C55+C66), whereas the standard Voigt average uses the coefficient 3 for the shear terms. For a cubic crystal, the printed formula would give G_V = (C11-C12+4C44)/5 instead of the correct (C11-C12+3C44)/5, systematically overestimating the Voigt bound and consequently the Hill average, Young's modulus, and Poisson ratio. Since Tables 3 and 4 validate only the single-crystal elastic constants Cij and never report polycrystalline moduli, this error would not be detected by the paper's stated benchmarks. The authors should either correct Eq. (15) to use the coefficient 3 or explicitly state that the implementation uses the standard formula if the printed equation is not what the code computes.
  2. [Section 3.1, Tables 3 and 4] The benchmark elastic constants are labeled as PBE calculations, but the manuscript does not report any computational parameters: no plane-wave cutoff, k-point sampling density, PAW potential set, or smearing parameters are given. Without these settings, the agreement with literature values (for example, diamond C11 = 1051 GPa versus 1052 GPa) cannot be reproduced or independently assessed, which weakens the central validation claim that the results produced with different DFT codes are in good agreement. Please add a benchmark subsection that lists the full calculation parameters for all systems in Tables 3 and 4.
  3. [Sections 3.1–3.14 and Program Summary] The post-processing utilities parse VASP output files including OUTCAR, WAVECAR, DOSCAR, PROCAR, and LOCPOT, and the program's usefulness depends on reliably reading these files. The manuscript nowhere states which VASP versions are supported or how the parsers accommodate format differences between VASP releases, leaving the central reliability claim incomplete. Please add a compatibility statement in Section 5 (Limitations) or in the Program Summary indicating the VASP versions tested and any known version-related limitations.
minor comments (8)
  1. [Section 2.2, Figure 3(a)] The workflow caption in Figure 3(a) refers to 'Eqs. (11)-(12)', but the applicable equations in the text are Eqs. (4)-(5); please correct the cross-reference.
  2. [Table 5] The analytic EOS formulas in Table 5 are garbled by typesetting (for example, 'BV0C−BVoν' in the Birch (Lagrange) row), making several formulas unreadable; please regenerate the table cleanly because these formulas are essential to the EOS utility description.
  3. [Section 3.13] The sentence 'VASPKIT neglects the smallest 5 (6) frequencies' is ambiguous and should be clarified; it presumably means that the five or six near-zero translational and rotational modes are excluded from the vibrational partition function, rather than that actual vibrational modes are discarded.
  4. [Section 3.6] The text refers to the 'FermiSurfser' program, but Ref. [72] gives the name 'FermiSurfer'; please correct the typo and ensure consistency.
  5. [Section 1] The Introduction contains the typo 'high-throughout' in the description of high-throughput calculations; please replace it with 'high-throughput'.
  6. [Section 3.5] The text contains the typo 'VAPSKIT' in the sentence about extracting charge-density and potential data; it should read 'VASPKIT'.
  7. [Table 4, SnO row] The layout of the SnO row in Table 4 is difficult to parse, and the value 48.14 N/m versus a cited literature value of 38.9 N/m represents a roughly 24% difference that the text nonetheless describes as 'good agreement'; please clarify which values are being compared and give the literature source for this entry.
  8. [Section 3.9, Eq. (35)] Equation (35) uses δ(Ec-Ev-ω) in the imaginary part of the dielectric function; to be dimensionally consistent with an angular frequency ω, the argument should be δ(Ec-Ev-ℏω), and the authors should double-check the units used in the optical utility.

Circularity Check

0 steps flagged · score 0.0 of 10

No significant circularity: VASPKIT's claimed outputs are benchmarked against external literature and experimental values, not against its own fitted parameters or self-cited results.

full rationale

The paper's central claim is that VASPKIT reliably pre- and post-processes VASP data. The derivation chain for each utility is standard and independently checkable: elastic constants are extracted from energy-strain fits (Eqs. 7-14) and validated against literature values in Tables 3-4; the EOS utility fits standard formulas and reproduces diamond's experimental bulk modulus (440-442 GPa vs 443 GPa, Sec. 3.2); effective masses are compared with literature (Table 6); the O2 free-energy correction matches the experimental NIST value (-0.4467 vs -0.4468 eV, Sec. 3.13). None of these quantities is defined in terms of a fitted VASPKIT parameter, and none of the benchmark values is taken from the authors' own prior work. The only self-citation, Ref. [29], is used to point to a prior high-throughput screening application and is not load-bearing for any algorithm or prediction in this paper. The skeptical observation about Eq. (15), where the Voigt shear modulus is printed with coefficient 4 instead of the standard 3, is a potential correctness/typo issue in the manuscript's formula; it is not a circularity, because the formula is not derived from, nor validated by, the paper's own outputs. Under the review rule that correctness concerns belong outside circularity scoring, this does not raise the circularity score.

Assumptions & free parameters 3 free parameters · 4 assumptions · 0 invented entities

The central claim of software correctness rests on standard DFT machinery (provided by VASP) and on standard post-processing formulas from the cited literature. The paper introduces no new physical entities and fits no free parameters to force agreement; benchmark values are compared with independent literature. The main unstated assumptions are that VASP output formats are parsed correctly and that DFT results used as inputs are accurate.

free parameters (3)
  • Strain amplitude range delta for elastic constants = -2% to +2% with 0.5% increments
    User-specified computational setting in the elastic utility; not fitted to data, but affects the curvature fit.
  • Gaussian broadening sigma for joint density of states = Not specified in text
    Used to approximate the Dirac delta in Eq. (48); user-specified and affects smoothness of JDOS plots, not the core physics.
  • k-point spacing for Fermi surface k-mesh = User-defined (kspacing)
    Determines the uniform k-mesh density; user-controlled setting, not fitted.
assumptions (4)
  • domain assumption VASP's DFT calculations produce reliable Kohn-Sham eigenvalues, wavefunctions, charges, and energies that are meaningful for post-processing.
    Entire post-processing module operates on VASP output; if the underlying DFT results are poor, extracted properties inherit the error.
  • domain assumption VASP output file formats (OUTCAR, WAVECAR, LOCPOT, DOSCAR, PROCAR) are stable and parsed correctly by VASPKIT.
    The code reads these files directly; the paper does not document version-specific behavior, so compatibility is assumed.
  • domain assumption Harmonic approximation and linear elasticity (Eq. 7) are valid for the small strains (-2% to +2%) used for elastic constants.
    The energy-strain method fits a quadratic to small deformations; anharmonic contributions beyond the strain range are ignored.
  • domain assumption For optical properties, the one-electron independent-particle picture applies to dielectric functions unless a many-body GW-BSE calculation is performed.
    Eq. (35) is derived within the independent-particle picture; the paper acknowledges this by also showing GW-BSE for silicon.

how reviews work

0 comments
Cite this review

Pith. "Pith review of VASPKIT: A User-friendly Interface Facilitating High-throughput Computing and Analysis Using VASP Code." pith.science (2026). https://pith.science/paper/ACJU2QSV

@misc{pith2026190808269,
  author       = {Pith},
  title        = {Pith review of: VASPKIT: A User-friendly Interface Facilitating High-throughput Computing and Analysis Using VASP Code},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/ACJU2QSV}},
  note         = {Machine review of arXiv:1908.08269}
}
read the original abstract

We present the VASPKIT, a command-line program that aims at providing a powerful and user-friendly interface to perform high-throughput analysis of a variety of material properties from the raw data produced by the VASP code. It consists of mainly the pre- and post-processing modules. The former module is designed to prepare and manipulate input files such as the necessary input files generation, symmetry analysis, supercell transformation, k-path generation for a given crystal structure. The latter module is designed to extract and analyze the raw data about elastic mechanics, electronic structure, charge density, electrostatic potential, linear optical coefficients, wave function plots in real space, and etc. This program can run conveniently in either interactive user interface or command line mode. The command-line options allow the user to perform high-throughput calculations together with bash scripts. This article gives an overview of the program structure and presents illustrative examples for some of its usages. The program can run on Linux, MacOS, and Windows platforms. The executable versions of VASPKIT and the related examples, together with the tutorials, are available in its official website vaspkit.com.

Figures

Figures reproduced from arXiv: 1908.08269 by the authors.

Figure 1
Figure 1. (Color online) A structural overview of VASPKIT package. [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2
Figure 2. (Color online) Schematic illustration of how to build a supercell from the lattice vectors of primitive cell (PC) and the specified transformation matrix. The supercell and primitive cell are indicated by the yellow and red rhombuses. 3 [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3
Figure 3. (Color online) (a) Workflow of the algorithm used in the [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figures from the paper (16 more)
Figure 4
Figure 4. Figure 4: (Color online) A structural overview of the post-processing module implemented into the VASPKIT package. [PITH_FULL_IMAGE:figures/full_fig_p005_4.png]
Figure 5
Figure 5. Figure 5: (Color online) Workflow of the algorithm to determine the second-order elastic constants based on energy-strain method used in [PITH_FULL_IMAGE:figures/full_fig_p007_5.png]
Figure 6
Figure 6. Figure 6: (Color online) The equations of states of diamond using different EOS models as listed in Table [PITH_FULL_IMAGE:figures/full_fig_p010_6.png]
Figure 7
Figure 7. Figure 7: (Color online) Projected band structure (left panel) and density of states (right panel) of (a) BiClO ( [PITH_FULL_IMAGE:figures/full_fig_p010_7.png]
Figure 8

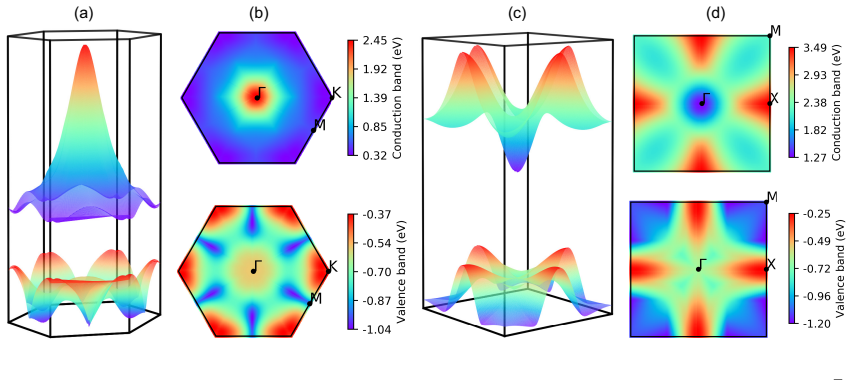

Figure 8. Figure 8: (Color online) The global band structures of the highest valence and lowest conduction bands for (a) MoTe [PITH_FULL_IMAGE:figures/full_fig_p011_8.png]
Figure 9
Figure 9. Figure 9: (Color online) (a) Schematic illustration of the determination of effective masses based on second-order polynomial fitting around [PITH_FULL_IMAGE:figures/full_fig_p012_9.png]
Figure 10
Figure 10. Figure 10: (Color online) Calculated (a) charge density difference, planar- (blue line) and macroscopic averages (red line) of (b) charge [PITH_FULL_IMAGE:figures/full_fig_p013_10.png]
Figure 11
Figure 11. Figure 11: (Color online) (a) Plain Fermi surface of Cu. Orbital-resolved fermi surface of (b) Cu- [PITH_FULL_IMAGE:figures/full_fig_p013_11.png]
Figure 12

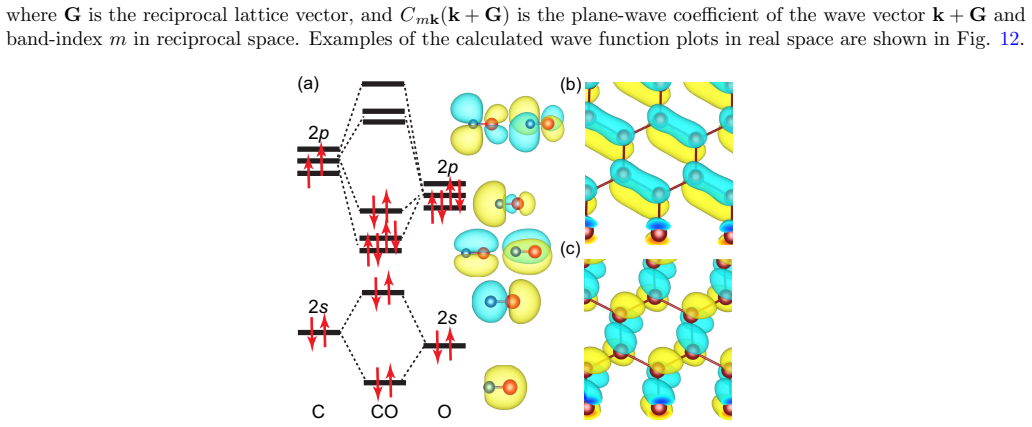

Figure 12. Figure 12: (Color online) Calculated isosurfaces of wave functions in real space for (a) CO molecule, (b) VBM and (c) CBM for graphene [PITH_FULL_IMAGE:figures/full_fig_p014_12.png]
Figure 13
Figure 13. Figure 13: (Color online) (a) Workflow of the algorithm used in the band unfolding utility. (b) Band structure of 3 [PITH_FULL_IMAGE:figures/full_fig_p015_13.png]
Figure 14
Figure 14. Figure 14: (Color online) Effective band structure of 4 [PITH_FULL_IMAGE:figures/full_fig_p016_14.png]
Figure 15
Figure 15. Figure 15: (Color online) G0W0-BSE calculated (a) absorption coefficient, (b) refractive index, (c) reflectivity and (d) extinction coefficient of silicon. The visible light region is highlighted by vertical color lines. electron eigenvalues obtained from DFT within a many-body …
Figure 16
Figure 16. Figure 16: (Color online) Real (blue line) and imaginary (red line) parts of frequency-dependent optical conductivity [PITH_FULL_IMAGE:figures/full_fig_p018_16.png]
Figure 17
Figure 17. Figure 17: (Color online) Calculated joint density of states for (a) CH [PITH_FULL_IMAGE:figures/full_fig_p019_17.png]
Figure 18
Figure 18. Figure 18: (Color online) Calculated band structure (top panel) and transition dipole moment (bottom panel) for (a) Cs [PITH_FULL_IMAGE:figures/full_fig_p019_18.png]
Figure 19
Figure 19. Figure 19: (Color online) Calculated (a) MSD, (b) VACF, (c) VDOS and (d) PCF of liquid water at 400 K obtained from MD simulations. [PITH_FULL_IMAGE:figures/full_fig_p022_19.png]
