AirLift: A Fast and Comprehensive Technique for Remapping Alignments between Reference Genomes

Jeremie S. Kim , Can Firtina , Meryem Banu Cavlak , Damla Senol Cali , Mohammed Alser , Nastaran Hajinazar , Can Alkan , Onur Mutlu This is my paper

Pith reviewed 2026-05-24 14:55 UTC · model grok-4.3

classification 🧬 q-bio.GN cs.CE
keywords read remappingreference genomesalignmentsvariant callingSNPINDELgenome analysisbioinformatics
0
0 comments X

The pith

AirLift remaps read sets to new reference genomes up to 27.4 times faster than complete remapping while preserving variant accuracy.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper presents AirLift as a technique to remap alignments of reads from one reference genome to a similar newer one. This approach avoids the need for full re-alignment from scratch each time a reference is updated. A sympathetic reader would care because frequent reference updates make re-analysis costly in time and compute. If the method works, researchers can update their variant calls and other analyses on the latest genome versions much more quickly. The validation shows it maintains accuracy for identifying SNPs and INDELs.

Core claim

AirLift is the first read remapping tool that enables users to quickly and comprehensively map a read set, that had been previously mapped to one reference genome, to another similar reference. Compared to the state-of-the-art method for remapping reads (i.e., full mapping), AirLift reduces the overall execution time to remap read sets between two reference genome versions by up to 27.4x. We validate our remapping results with GATK and find that AirLift provides high accuracy in identifying ground truth SNP/INDEL variants.

What carries the argument

The remapping technique that adjusts alignments only in regions where the two reference genomes differ, rather than re-aligning all reads from scratch.

If this is right

  • Users can quickly run downstream analysis of read sets for each latest reference release.
  • Remapping execution time is reduced by up to 27.4x compared to full mapping.
  • High accuracy is maintained in identifying ground truth SNP/INDEL variants as validated by GATK.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Analyses on large genomic datasets could become more iterative, allowing frequent incorporation of updated references without prohibitive costs.
  • Similar adjustment strategies might extend to remapping in other sequencing technologies or between assemblies if similarity holds.
  • Laboratories with limited compute resources could perform more variant calling studies on updated genomes.

Load-bearing premise

The two reference genomes must be similar enough that most alignments can be adjusted by handling only the differing regions without missing or incorrectly remapping a substantial fraction of reads.

What would settle it

Running AirLift and full remapping on read sets between two dissimilar reference genomes and observing a large drop in variant calling accuracy or many unmapped reads in the AirLift output.

Figures

Figures reproduced from arXiv: 1912.08735 by Can Alkan, Can Firtina, Damla Senol Cali, Jeremie S. Kim, Meryem Banu Cavlak, Mohammed Alser, Nastaran Hajinazar, Onur Mutlu.

Figure 1
Figure 1. Figure 1: Limitations of Existing Remapping Tools. Existing remapping tools [PITH_FULL_IMAGE:figures/full_fig_p004_1.png] view at source ↗
Figure 2

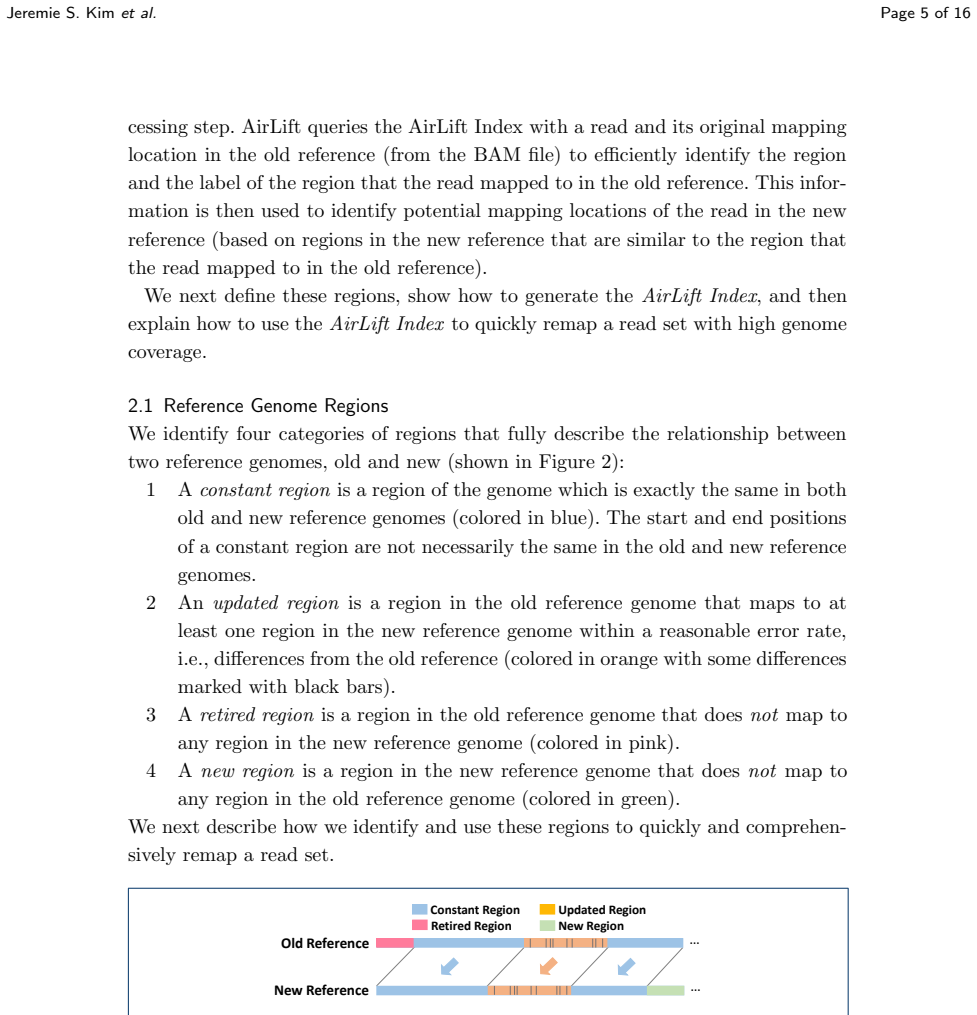

Figure 2. Figure 2: An example pair of reference genomes (old and new) with regions [PITH_FULL_IMAGE:figures/full_fig_p005_2.png] view at source ↗
Figure 3

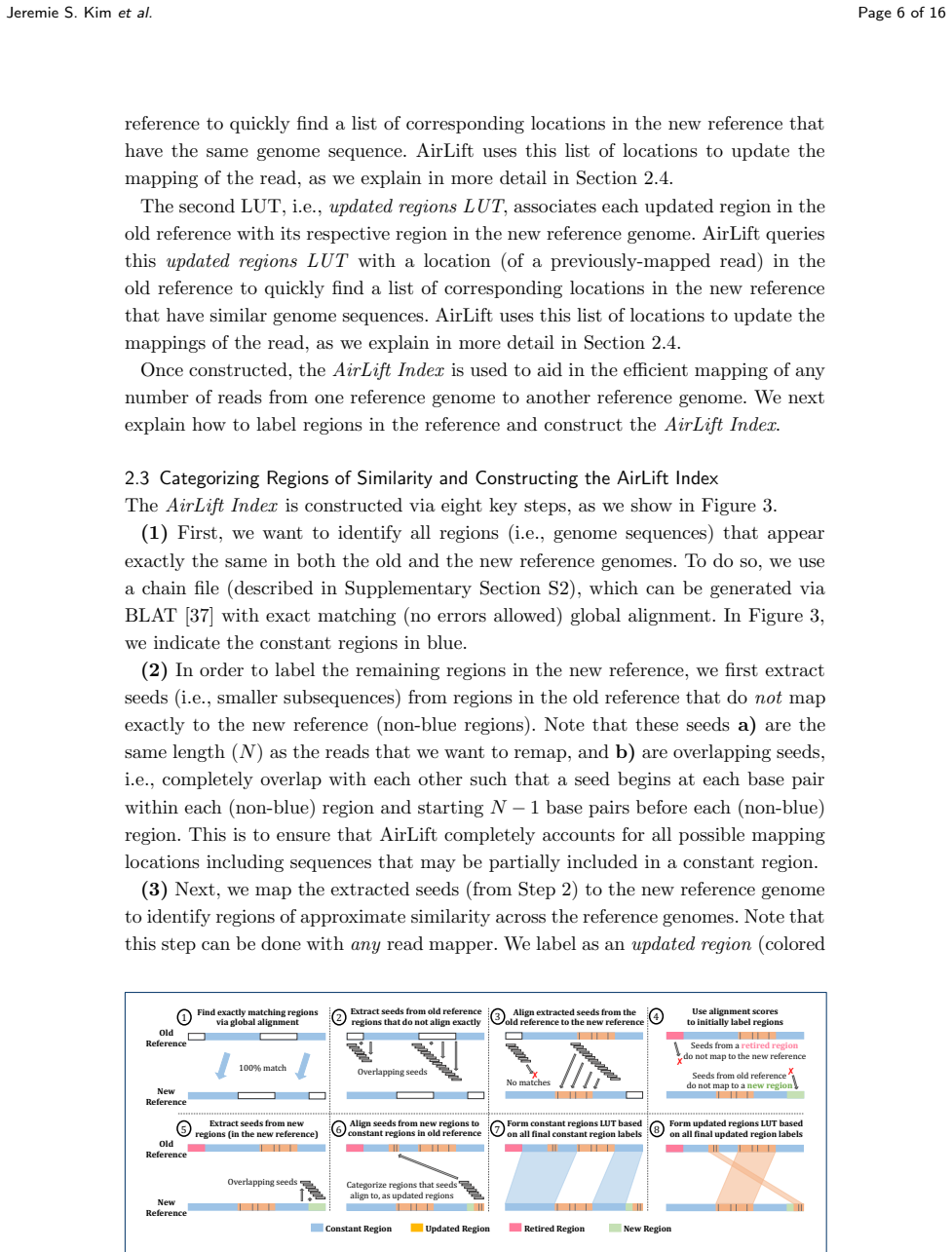

Figure 3. Figure 3: AirLift uses eight key steps to identify and label regions in the old and [PITH_FULL_IMAGE:figures/full_fig_p006_3.png] view at source ↗
Figure 4

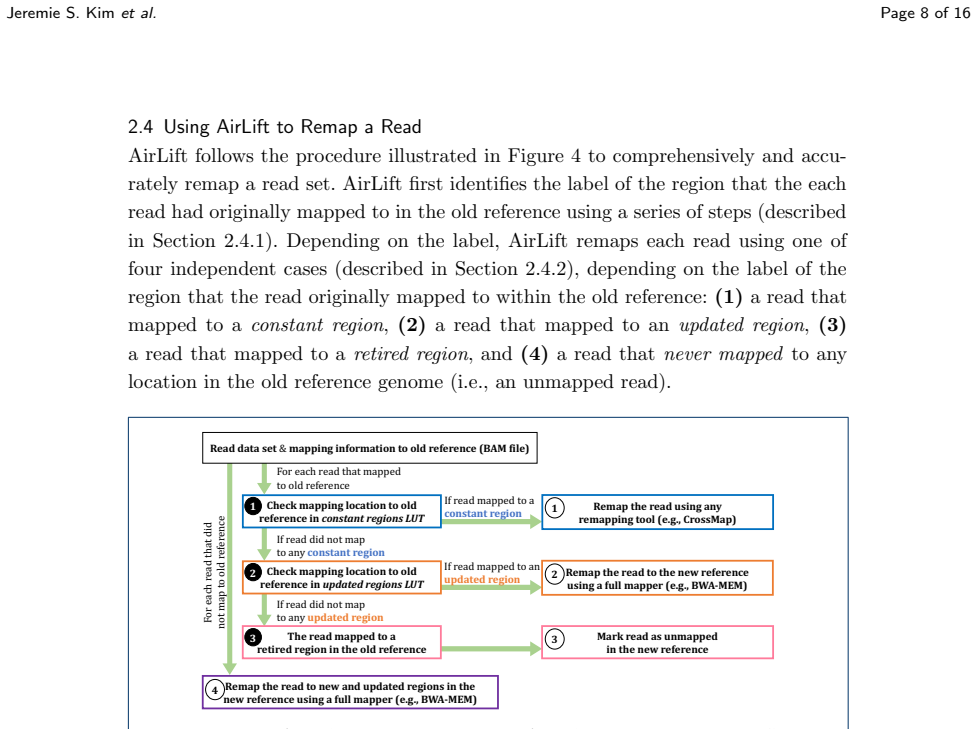

Figure 4. Figure 4: Using AirLift to remap a read set. AirLift remaps each read differently [PITH_FULL_IMAGE:figures/full_fig_p008_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: AirLift execution time results. We show the execution time (log￾scale y-axis) of running three remapping tools, CrossMap (blue), AirLift (or￾ange), and LiftOver (green) on a read set to a new reference genome against the baseline (red) of fully mapping a read set to the new reference genome. We plot the execution times of each tool for various pairs of reference genomes (x￾axis; where the old reference is … view at source ↗
Figure 6

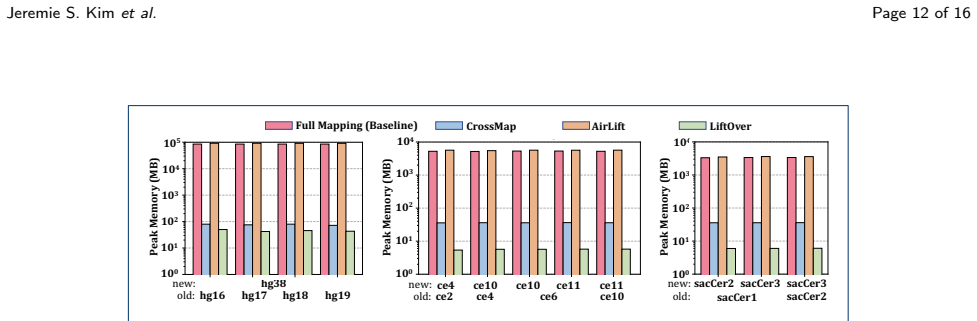

Figure 6. Figure 6: AirLift memory usage results. Peak memory usage results for each of the remapping tools during remapping [PITH_FULL_IMAGE:figures/full_fig_p012_6.png] view at source ↗
read the original abstract

AirLift is the first read remapping tool that enables users to quickly and comprehensively map a read set, that had been previously mapped to one reference genome, to another similar reference. Users can then quickly run a downstream analysis of read sets for each latest reference release. Compared to the state-of-the-art method for remapping reads (i.e., full mapping), AirLift reduces the overall execution time to remap read sets between two reference genome versions by up to 27.4x. We validate our remapping results with GATK and find that AirLift provides high accuracy in identifying ground truth SNP/INDEL variants AirLift source code and readme describing how to reproduce our results are available at https://github.com/CMU-SAFARI/AirLift.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript presents AirLift, a read remapping tool that adjusts existing alignments between two similar reference genomes by focusing on differing intervals rather than performing full re-alignment. It claims up to 27.4x reduction in wall-clock time versus full mapping on human references (hg19↔hg38) and high accuracy in recovering ground-truth SNP/INDEL calls when downstream analysis is performed with GATK.

Significance. If the performance and accuracy results hold, the work would be useful for genomics pipelines that must periodically re-analyze large read sets against updated references; the open-source release and reproduction instructions are a concrete strength that supports reproducibility.

major comments (2)
  1. [Abstract and method description] The central speedup (up to 27.4×) and GATK concordance claims rest on the unquantified assumption that reference differences are localized and small enough that the fraction of reads requiring de-novo placement or crossing unhandled structural events remains negligible. The manuscript reports results only on hg19↔hg38 pairs whose differences are mostly small indels/SNVs but supplies no bound on tolerable inversion size or structural variation fraction; this directly affects both the reported execution-time reduction and variant-calling fidelity.
  2. [Results / validation section] Validation experiments cite GATK concordance but do not report the precise read-set sizes, coverage depths, or the handling of reads whose correct placement spans difference boundaries; without these details the claim that accuracy remains “high” cannot be assessed for generalizability beyond the tested human pairs.
minor comments (2)
  1. [Introduction] Define the term “similar reference” quantitatively (e.g., maximum allowed structural-event size) in the introduction.
  2. [Methods] Add a short algorithmic outline or pseudocode for the interval-adjustment procedure to improve clarity.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive comments. We respond point-by-point to the major comments below.

read point-by-point responses

  1. Referee: [Abstract and method description] The central speedup (up to 27.4×) and GATK concordance claims rest on the unquantified assumption that reference differences are localized and small enough that the fraction of reads requiring de-novo placement or crossing unhandled structural events remains negligible. The manuscript reports results only on hg19↔hg38 pairs whose differences are mostly small indels/SNVs but supplies no bound on tolerable inversion size or structural variation fraction; this directly affects both the reported execution-time reduction and variant-calling fidelity.

    Authors: AirLift targets similar reference genomes whose differences are localized (primarily small indels and SNVs), as exemplified by the hg19–hg38 pair. The algorithm identifies differing intervals and only remaps reads overlapping those intervals or their immediate vicinity; reads outside differing intervals retain their original placements. We do not provide a quantitative bound on inversion size or SV fraction because the manuscript evaluates the specific case of human reference updates. We will add an explicit limitations paragraph stating the assumption of localized differences and noting that large structural events would require separate handling or full re-mapping, thereby clarifying the scope of the reported speedup and accuracy. revision: partial

  2. Referee: [Results / validation section] Validation experiments cite GATK concordance but do not report the precise read-set sizes, coverage depths, or the handling of reads whose correct placement spans difference boundaries; without these details the claim that accuracy remains “high” cannot be assessed for generalizability beyond the tested human pairs.

    Authors: We will revise the results and methods sections to report the exact read-set sizes, sequencing coverage depths, and the precise rule used when a read’s correct placement spans a difference boundary (such reads are extracted and re-mapped de novo by the underlying aligner). These additions will make the experimental conditions fully reproducible and allow readers to judge generalizability. revision: yes

Circularity Check

0 steps flagged

No circularity: empirical performance claims rest on direct measurements, not self-referential derivations

full rationale

The paper presents an engineering tool whose central claims (up to 27.4× wall-clock reduction versus full mapping, high GATK concordance) are obtained by running the implemented remapper on real read sets and comparing outputs to a baseline full-mapping run on identical hardware. No equations, fitted parameters, or predictions derived from the same data appear; the method description relies on explicit region detection and adjustment rather than any self-definitional or fitted-input construction. External validation via GATK supplies an independent benchmark. No self-citations are invoked as load-bearing uniqueness theorems. The similarity assumption noted by the skeptic is a scope limitation on applicability, not a circular reduction of the reported results to their inputs.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The approach rests on the premise that reference genomes differ only locally and that these differences can be used to adjust alignments comprehensively.

axioms (1)
  • domain assumption Reference genomes are sufficiently similar that remapping alignments is feasible without full re-alignment for the majority of reads.
    This premise is required for the speedup claim to hold and is implicit in the design of a remapping rather than re-mapping tool.
