arxiv: 2012.03875 · v1 · submitted 2020-12-07 · ❄️ cond-mat.mes-hall

Graphene plasmon-phonon coupled modes at the exceptional point

Sang Hyun Park , Shengxuan Xia , Sang-Hyun Oh , Phaedon Avouris , Tony Low This is my paper

Pith reviewed 2026-05-24 14:40 UTC · model grok-4.3

classification ❄️ cond-mat.mes-hall
keywords grapheneplasmonsphononsexceptional pointnon-Hermitianstrong couplingweak couplingFermi level
0
0 comments X

The pith

The transition from strong to weak coupling in graphene plasmon-phonon modes occurs at an exceptional point.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper shows that the point where graphene plasmons and phonons switch from strong to weak coupling is an exceptional point in a non-Hermitian model. At this point the system becomes unusually sensitive to small changes in coupling strength or the graphene's electron density. A reader would care because this links everyday spectroscopy observations to a special mathematical feature that could be used for detection. The transition can also be seen by tilting the incoming light.

Core claim

Using a non-Hermitian framework for the coupled plasmon-phonon system, the authors identify the transition between strong and weak coupling as the exceptional point. They demonstrate enhanced sensitivity to perturbations at this point by adjusting the coupling strength and by gating the graphene to change its Fermi level. The transition is also visible when the angle of incident radiation is varied.

What carries the argument

The exceptional point of the non-Hermitian effective model for plasmon-phonon coupling, where eigenvalues and eigenvectors coalesce.

If this is right

  • Enhanced sensitivity is observed near the exceptional point when coupling strength is varied.
  • Gate modulation of the graphene Fermi level also reveals the sensitivity.
  • The strong-to-weak transition appears when the incident angle of radiation changes.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • This approach may apply to other phonon-coupled plasmon systems in two-dimensional materials.
  • Near the exceptional point, small changes in material properties could produce large shifts in optical response.
  • Experiments could test the sensitivity by precise control of gate voltage around the calculated point.

Load-bearing premise

The coupled plasmon-phonon system in graphene is well described by a non-Hermitian effective model whose exceptional point matches the strong-weak coupling transition.

What would settle it

Observation of the strong-to-weak transition at a point where the modes do not coalesce or show no extra sensitivity would falsify the claim.

Figures

Figures reproduced from arXiv: 2012.03875 by Phaedon Avouris, Sang-Hyun Oh, Sang Hyun Park, Shengxuan Xia, Tony Low.

Figure 1

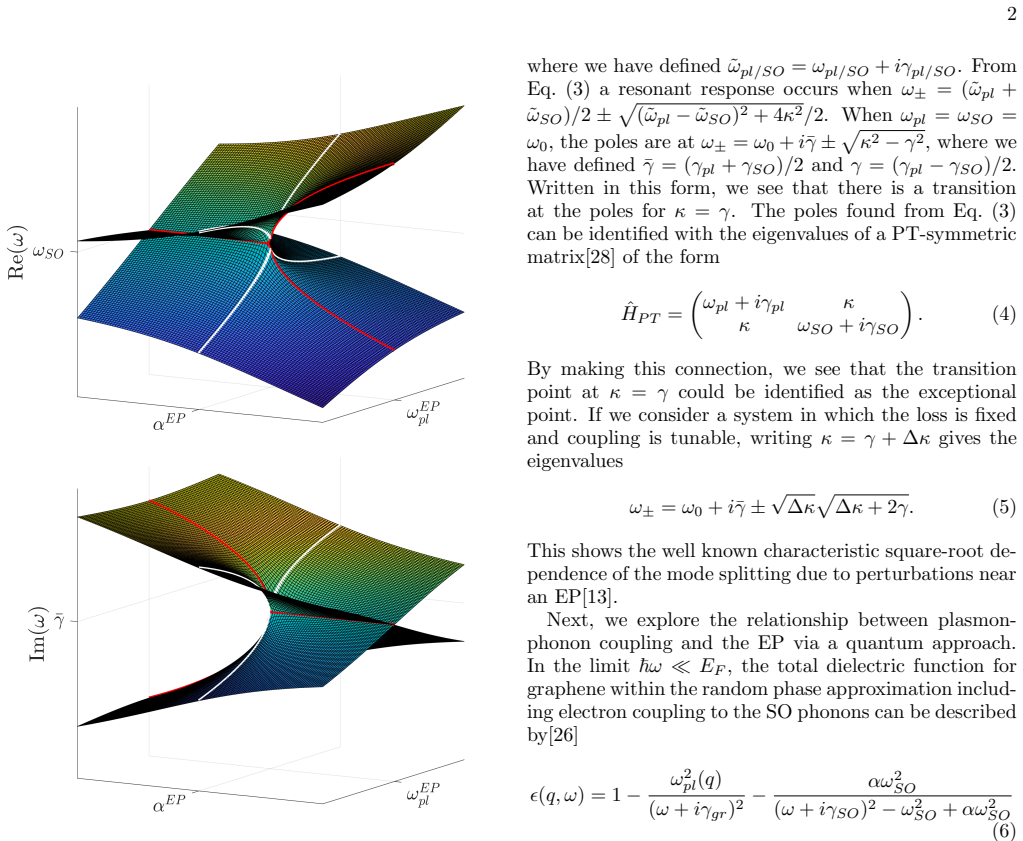

Figure 1. Figure 1: FIG. 1. Eigenvalue surfaces calculated from Eq. (6) in the [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2

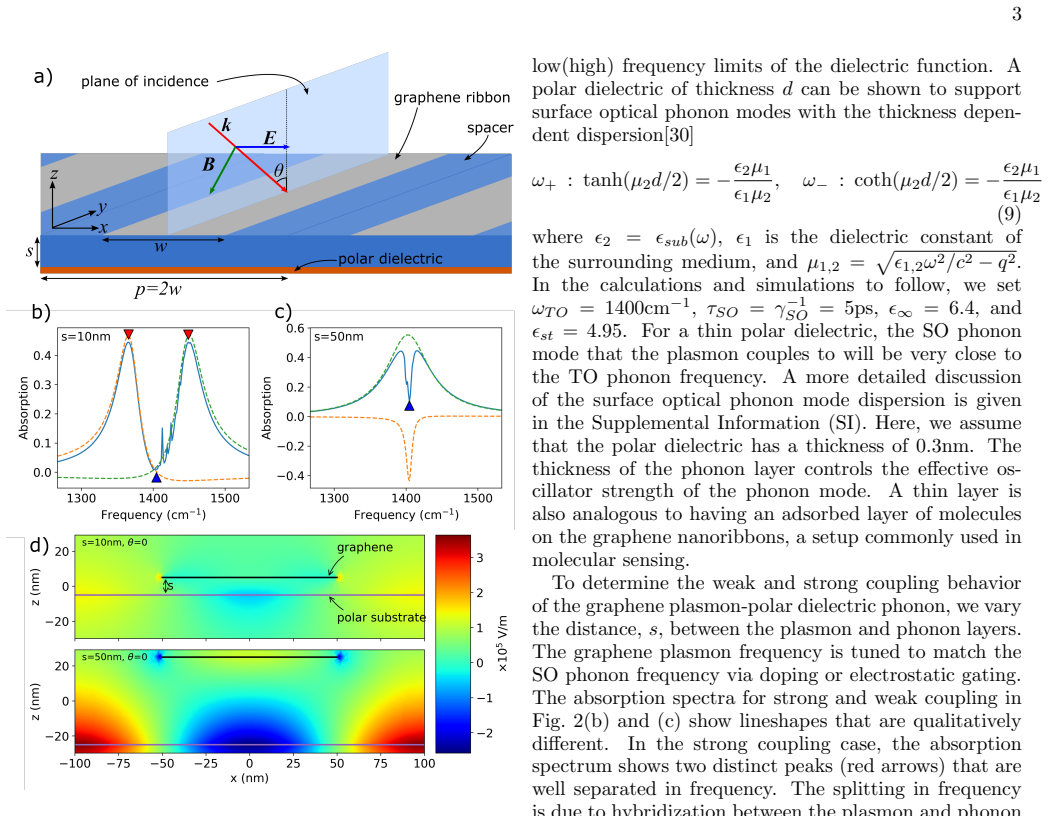

Figure 2. Figure 2: FIG. 2. (a) Schematic of the graphene ribbon/polar substrate [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3

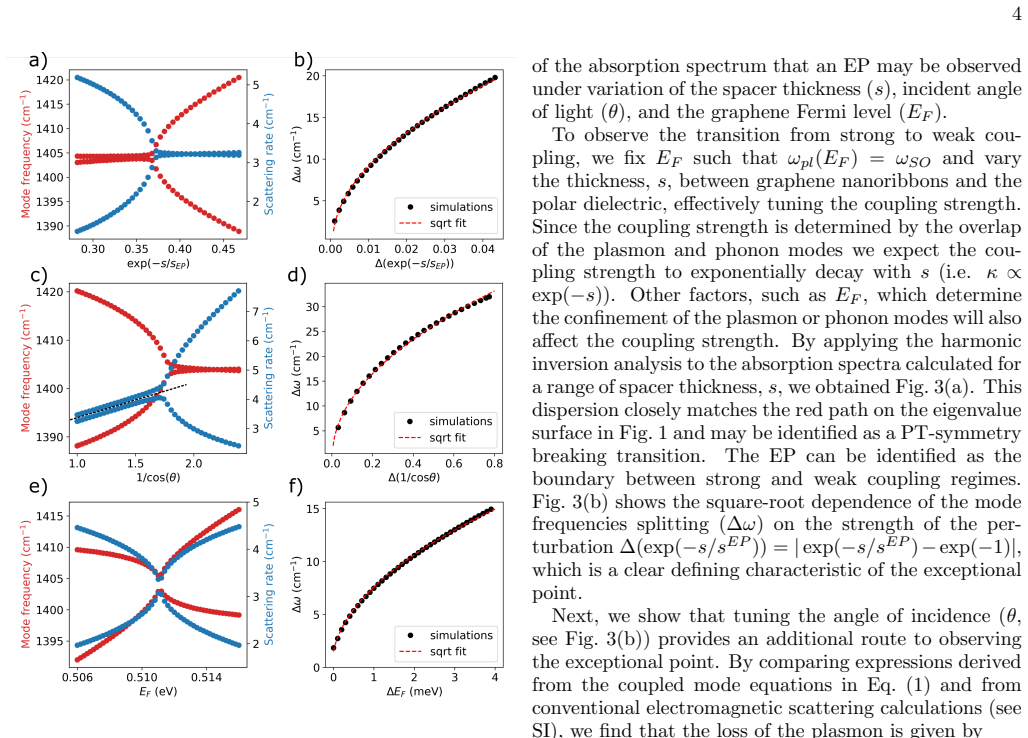

Figure 3. Figure 3: FIG. 3. The eigenmode dispersion and mode frequency split [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figure 4

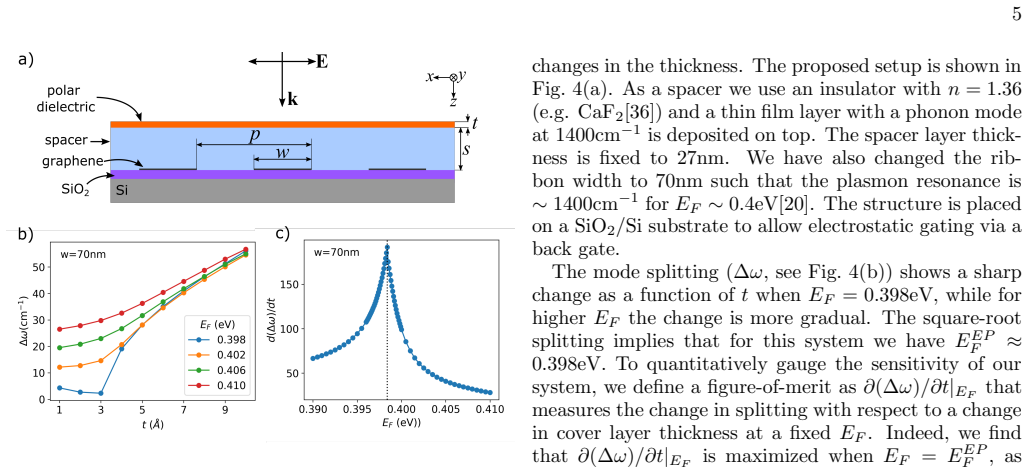

Figure 4. Figure 4: FIG. 4. (a) Schematic for proposed thin film sensor at ex [PITH_FULL_IMAGE:figures/full_fig_p005_4.png] view at source ↗
read the original abstract

Properties of graphene plasmons are greatly affected by their coupling to phonons. While such coupling has been routinely observed in both near-field and far-field graphene spectroscopy, the interplay between coupling strength and mode losses, and its exceptional point physics has not been discussed. By applying a non-Hermitian framework, we identify the transition point between strong and weak coupling as the exceptional point. Enhanced sensitivity to perturbations near the exceptional point is observed by varying the coupling strength and through gate modulation of the graphene Fermi level. Finally, we also show that the transition from strong to weak coupling is observable by changing the incident angle of radiation.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

0 major / 3 minor

Summary. The manuscript applies a non-Hermitian effective model to graphene plasmon-phonon coupled modes. It identifies the transition between strong and weak coupling regimes as an exceptional point (EP) where eigenvalues and eigenvectors coalesce, reports enhanced sensitivity to perturbations near the EP via changes in coupling strength and gate-tuned Fermi level, and demonstrates that the strong-to-weak transition is observable through variation of the incident radiation angle.

Significance. If the central identification and sensitivity claims hold, the work provides a concrete realization of EP physics in a 2D plasmonic system of experimental relevance. The angle-dependent observability offers a practical route to accessing the EP without additional fabrication. The non-Hermitian treatment is standard for two-mode lossy systems and does not appear to introduce graphene-specific inconsistencies.

minor comments (3)
  1. The abstract states the central claims but supplies no model equations or parameter values; the main text should include the explicit 2×2 non-Hermitian matrix (with loss and coupling terms) and the condition for EP coalescence so that the identification can be verified directly.
  2. Figure captions and axis labels should explicitly indicate whether the plotted spectra are experimental data, numerical solutions of the non-Hermitian model, or both, to clarify how the EP location is extracted.
  3. The manuscript should state the range of Fermi levels and coupling strengths over which the EP is claimed to be accessible, together with any assumptions about the phonon linewidth that enter the effective model.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for the positive assessment of our work and the recommendation for minor revision. No major comments were provided in the report, so we have no specific points requiring point-by-point rebuttal. We will incorporate any minor suggestions in the revised manuscript.

Circularity Check

0 steps flagged

No significant circularity detected

full rationale

The paper applies an established non-Hermitian 2x2 framework to identify the strong-to-weak coupling transition as an exceptional point in graphene plasmon-phonon modes. This identification follows from the square-root topology of the non-Hermitian matrix eigenvalues and eigenvectors, which is a direct mathematical consequence independent of graphene-specific data fitting or self-citation chains. No load-bearing step reduces by construction to a fitted parameter, ansatz smuggled via citation, or self-defined quantity; the derivation remains self-contained against external non-Hermitian benchmarks.

Axiom & Free-Parameter Ledger

2 free parameters · 1 axioms · 0 invented entities

The claim rests on the applicability of non-Hermitian effective models to lossy plasmon-phonon systems and on the experimental accessibility of the coupling-strength and Fermi-level parameters that locate the exceptional point.

free parameters (2)
  • plasmon-phonon coupling strength
    Varied to reach the transition point between strong and weak coupling regimes
  • graphene Fermi level
    Gate-tuned to demonstrate enhanced sensitivity near the exceptional point
axioms (1)
  • domain assumption Non-Hermitian framework accurately captures the eigenvalues and eigenvectors of the coupled plasmon-phonon system including losses
    Invoked to equate the strong-weak transition with the exceptional point
