Magnetic-Field-Induced Wigner Crystallization of Charged Interlayer Excitons in van der Waals Heterostructures

Igor V. Bondarev , Yurii E. Lozovik This is my paper

Pith reviewed 2026-05-24 12:55 UTC · model grok-4.3

classification ❄️ cond-mat.mes-hall
keywords Wigner crystallizationcharged interlayer excitonsTMD heterobilayersmagnetic fieldvan der Waals heterostructuresmagneto-photoluminescence
0
0 comments X

The pith

Perpendicular magnetic fields induce Wigner crystallization in charged interlayer excitons of TMD heterobilayers.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops a theory showing that a perpendicular magnetic field causes charged interlayer excitons in TMD heterobilayers to undergo Wigner crystallization. It derives the ratio of average potential interaction energy to average kinetic energy for the many-particle system at arbitrary field strengths. The analysis covers weak and strong field regimes and identifies a cold crystallization phase transition in the strong-field limit. The work also generalizes the effective g-factor to include CIE formation in electrostatically doped systems. These results indicate that the crystallization and its melting can be detected through strong-field magneto-photoluminescence measurements on samples with controlled electron-hole doping.

Core claim

The many-particle CIE system in a perpendicular magnetic field of arbitrary strength is described by the ratio of average potential interaction energy to average kinetic energy, which directly signals the onset of Wigner crystallization, including a cold phase transition in the strong-field regime.

What carries the argument

The ratio of average potential interaction energy to average kinetic energy for the CIE system, which indicates crystallization onset without additional system-specific fitting.

If this is right

  • In the strong-field regime the CIE system undergoes a cold crystallization phase transition.
  • Melting of the Wigner crystal can be controlled by changing the electron-hole doping concentration.
  • The effective g-factor extends to cover CIE formation in doped TMD heterobilayers.
  • The crystallization effect is observable in strong-field magneto-photoluminescence experiments.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Varying doping in experiments would allow mapping of the crystallization phase boundary as a function of field strength.
  • The same energy-ratio approach may apply to other charged quasiparticles in two-dimensional materials under magnetic fields.

Load-bearing premise

The many-particle CIE system in a perpendicular magnetic field can be described by a single energy ratio that directly indicates crystallization onset without extra fitting parameters.

What would settle it

Magneto-photoluminescence experiments on TMD heterobilayers with systematically varied doping concentrations that fail to show magnetic-field-induced crystallization and melting signatures in the strong-field regime would falsify the central claim.

Figures

Figures reproduced from arXiv: 2112.13995 by Igor V. Bondarev, Yurii E. Lozovik.

Figure 1
Figure 1. Figure 1: FIG. 1. Schematic of the bilayer TMD structure under study, w [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2

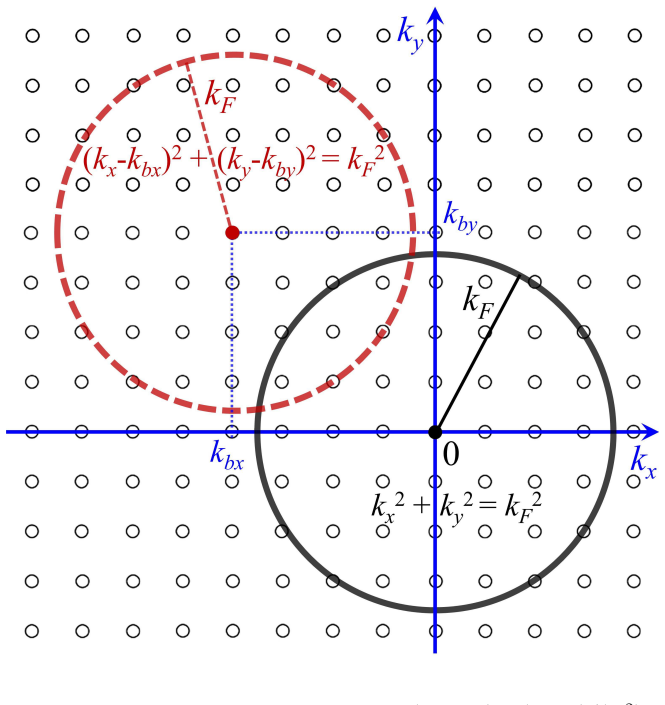

Figure 2. Figure 2: FIG. 2. The 2D Fermi surface center shift to the point ( [PITH_FULL_IMAGE:figures/full_fig_p007_2.png] view at source ↗
Figure 3

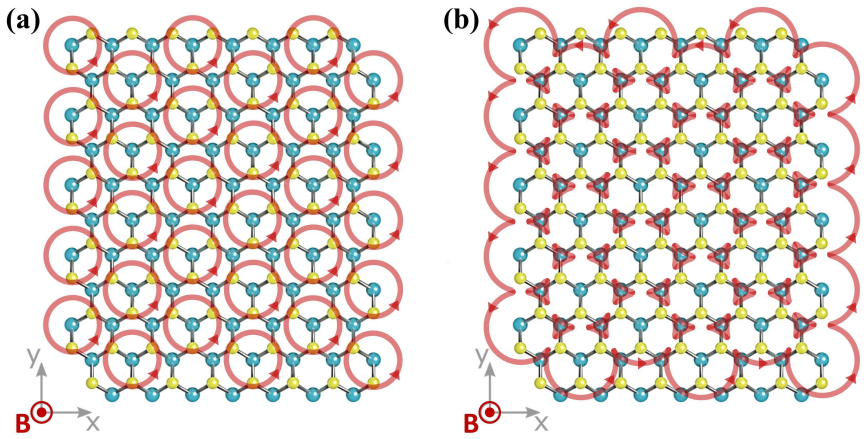

Figure 3. Figure 3: FIG. 3. Sketch (top view) of the crystal phase (a) and the liqu [PITH_FULL_IMAGE:figures/full_fig_p012_3.png] view at source ↗
Figure 4

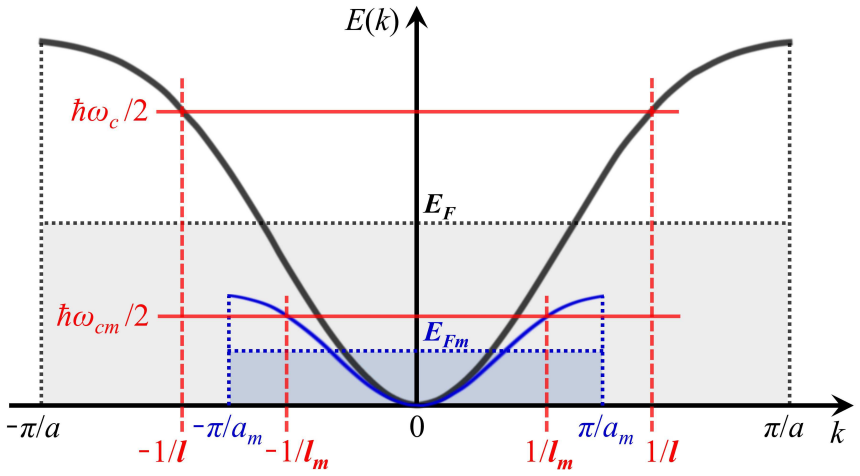

Figure 4. Figure 4: FIG. 4. Effective mass model sketch (not to scale) for the first B [PITH_FULL_IMAGE:figures/full_fig_p014_4.png] view at source ↗
Figure 5

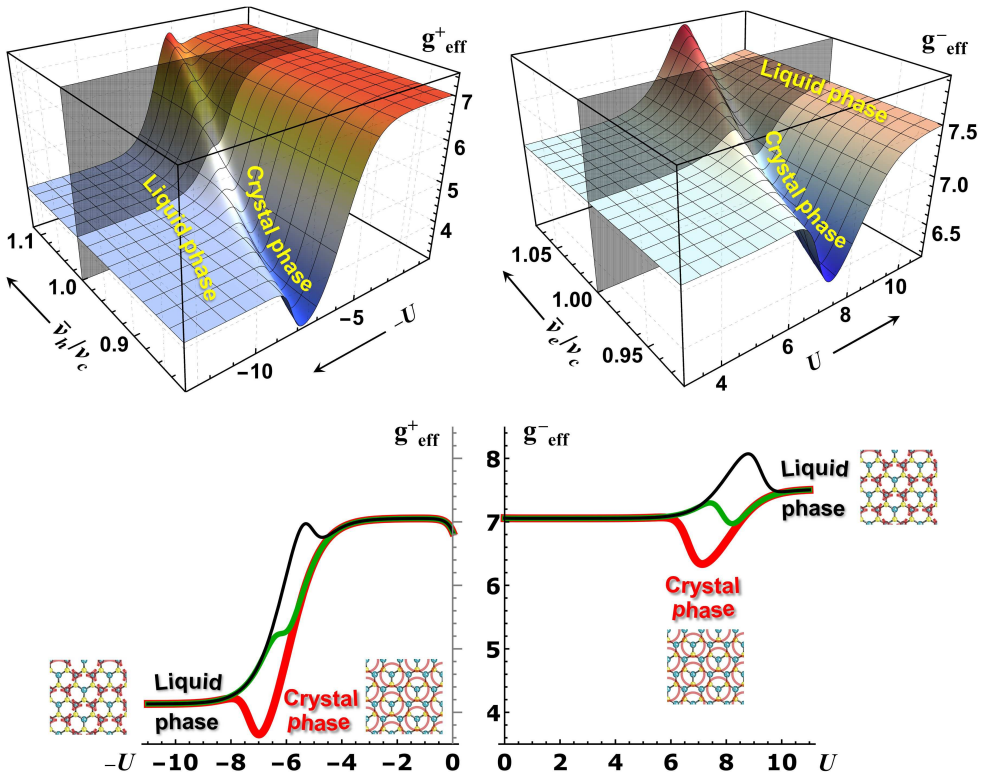

Figure 5. Figure 5: FIG. 5. The effective g-factor as given by Eqs. (24)–(28) of the [PITH_FULL_IMAGE:figures/full_fig_p017_5.png] view at source ↗
read the original abstract

We develop the theory of the magnetic-field-induced Wigner crystallization effect for charged interlayer excitons (CIE) discovered recently in transition-metal-dichalcogenide (TMD) heterobilayers. We derive the ratio of the average potential interaction energy to the average kinetic energy for the many-particle CIE system subjected to the perpendicular magnetic field of an arbitrary strength, analyze the weak and strong field regimes, and discuss the 'cold' crystallization phase transition for the CIE system in the strong field regime. We also generalize the effective g-factor concept previously formulated for interlayer excitons, to include the formation of CIEs in electrostatically doped TMD heterobilayers. We show that magnetic-field-induced Wigner crystallization and melting of CIEs can be observed in strong-field magneto-photoluminescence experiments with TMD heterobilayes of systematically varied electron-hole doping concentrations. Our results advance the capabilities of this new family of transdimensional quantum materials.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 2 minor

Summary. The paper develops a theory of magnetic-field-induced Wigner crystallization for charged interlayer excitons (CIEs) in TMD heterobilayers. It derives the ratio of average potential interaction energy to average kinetic energy for the many-particle CIE system in a perpendicular magnetic field of arbitrary strength, analyzes the weak- and strong-field regimes, discusses the cold crystallization transition in the strong-field limit, generalizes the effective g-factor to doped heterobilayers, and proposes that the effect and its melting can be observed in strong-field magneto-photoluminescence experiments on TMD heterobilayers with systematically varied electron-hole doping concentrations.

Significance. If the central derivation of the energy ratio holds without hidden fitting parameters or uncontrolled approximations, the work supplies a concrete, falsifiable diagnostic for magnetic-field-driven crystallization in a tunable 2D exciton system and directly motivates a specific class of magneto-optical experiments. The generalization of the g-factor and the doping-dependent predictions are natural extensions that strengthen the experimental relevance.

major comments (1)
  1. [Theory section (energy ratio derivation)] The derivation of the potential-to-kinetic energy ratio (central to the crystallization criterion) is presented without explicit error estimates or validation against known limiting cases (e.g., zero-field Wigner crystal or high-field Landau-level limit). A concrete check against an established result would strengthen the claim that the ratio is free of system-specific fitting.
minor comments (2)
  1. [g-factor generalization] Notation for the generalized g-factor should be introduced with an explicit equation showing how it reduces to the undoped interlayer-exciton case.
  2. [Abstract and strong-field discussion] The abstract states that the ratio 'directly indicates' crystallization; a brief sentence clarifying the numerical threshold adopted (e.g., Γ > 100 or similar) would improve clarity.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for their positive assessment of the work and the recommendation for minor revision. We address the single major comment below.

read point-by-point responses

  1. Referee: [Theory section (energy ratio derivation)] The derivation of the potential-to-kinetic energy ratio (central to the crystallization criterion) is presented without explicit error estimates or validation against known limiting cases (e.g., zero-field Wigner crystal or high-field Landau-level limit). A concrete check against an established result would strengthen the claim that the ratio is free of system-specific fitting.

    Authors: We agree that explicit benchmarks against established limits would strengthen the presentation. In the revised manuscript we will add a dedicated paragraph (or short subsection) in the Theory section that evaluates the derived energy ratio in the zero-field limit (recovering the standard ratio of Coulomb interaction energy to kinetic energy for a 2D Wigner crystal) and in the high-field Landau-level limit (where the kinetic energy is set by the cyclotron energy). These comparisons will also include a brief discussion of the approximations entering the derivation and the associated error estimates. The central analytic expression for arbitrary field strength remains unchanged, as it follows directly from the many-body Hamiltonian without adjustable parameters. revision: yes

Circularity Check

0 steps flagged

No significant circularity; derivation is self-contained

full rationale

The paper derives the ratio of average potential interaction energy to average kinetic energy for the many-particle CIE system in a perpendicular magnetic field of arbitrary strength by direct analysis of the system Hamiltonian in weak- and strong-field limits. This ratio is presented as a diagnostic for the onset of Wigner crystallization, consistent with standard many-body criteria rather than a fitted or self-defined quantity. Generalization of the effective g-factor to doped heterobilayers follows from the same model without reduction to prior self-citations or ansatzes. The suggestion of magneto-PL experiments is a direct implication of the derived quantities. No load-bearing step reduces by construction to its own inputs, and the central construction remains independent of fitted parameters or self-citation chains.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract provides no explicit free parameters, axioms, or invented entities; full text would be required to audit the underlying model assumptions for the many-particle CIE system.

pith-pipeline@v0.9.0 · 5699 in / 1045 out tokens · 22069 ms · 2026-05-24T12:55:22.094060+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Lean theorems connected to this paper

Citations machine-checked in the Pith Canon. Every link opens the source theorem in the public Lean library.

What do these tags mean?
matches
The paper's claim is directly supported by a theorem in the formal canon.
supports
The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
extends
The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
uses
The paper appears to rely on the theorem as machinery.
contradicts
The paper's claim conflicts with a theorem or certificate in the canon.
unclear
Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.
