arxiv: 2207.09264 · v2 · submitted 2022-07-19 · 🧬 q-bio.QM

Flow Rate Independent Multiscale Liquid Biopsy for Precision Oncology

Jing Yan , Jie Wang , Robert Dallmann , Renquan Lu , J\'er\^ome Charmet This is my paper

Pith reviewed 2026-05-24 11:23 UTC · model grok-4.3

classification 🧬 q-bio.QM
keywords liquid biopsycirculating tumor cellsCTC capturemultiscale meshflow rate independentimmunoaffinity enrichmentcancer detection
0
0 comments X

The pith

A multiscale mesh device captures circulating tumor cells with constant efficiency above 75 percent across flow rates from 50 to 200 microliters per minute.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper aims to solve the low throughput, complexity, and limited follow-up options that limit most immunoaffinity liquid biopsies for circulating tumor cells. It does so by building a simple mesh device whose structure is tuned separately at the binding, flow-path, and overall-device levels. This separation lets the device maintain high capture performance no matter how fast blood flows through it. Tests on blood from 79 cancer patients and 20 healthy people showed 96 percent sensitivity and 100 percent specificity, plus the ability to run further tests for treatment decisions.

Core claim

By decoupling and independently optimizing the nano-, micro- and macro-scales of an enrichment device that is simple to fabricate and operate, the scalable mesh approach enables optimum capture conditions at any flow rate, demonstrated with constant capture efficiencies above 75 percent between 50-200 uL/min. The device detected CTCs with 96 percent sensitivity and 100 percent specificity in 79 cancer patients and 20 healthy controls and supports post-processing such as identifying responders to immune checkpoint inhibition and detecting HER2 positive breast cancer, with results that compare well with other assays including clinical standards.

What carries the argument

The scalable mesh approach that decouples and independently optimizes the nano-, micro-, and macro-scales of the enrichment device to maintain capture efficiency independent of flow rate.

If this is right

  • Higher sample volumes can be processed without loss of capture performance.
  • Post-processing steps remain compatible, allowing identification of therapy responders and specific markers such as HER2.
  • The method performs at levels comparable to existing clinical assays.
  • Fabrication and operation are simplified relative to other affinity-based devices.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Flow-rate independence may allow the device to work with varying clinical equipment or sample volumes without recalibration.
  • The same mesh design principle could be tested on other rare cell types or biomarkers beyond tumor cells.
  • Larger or more varied patient groups would be needed to confirm whether the reported sensitivity and specificity hold outside the initial cohort.

Load-bearing premise

Tuning the binding sites, flow paths, and overall device size separately will keep capture rates steady no matter the speed of the blood flow, without hurting accuracy or later lab work.

What would settle it

An experiment that measures capture efficiency at several flow rates between 50 and 200 uL/min and finds the efficiency drops below 75 percent at any tested speed.

Figures

Figures reproduced from arXiv: 2207.09264 by J\'er\^ome Charmet, Jie Wang, Jing Yan, Renquan Lu, Robert Dallmann.

Figure 2
Figure 2. Figure 2: Flow rate independence. Panel (a) shows that capture efficiency can be kept constant (as confirmed by one-way ANOVA [F=0.37, p=0.05] and post-hoc Tukey’s test (Fig. S2)) as long as the velocity is kept constant. This is achieved by scaling the surface area by the same factor as the flow rate as given by v =αQ/αA. In comparison, one observes a significant capture efficiency decrease (one-way ANOVA [F=38.04,… view at source ↗
Figure 3

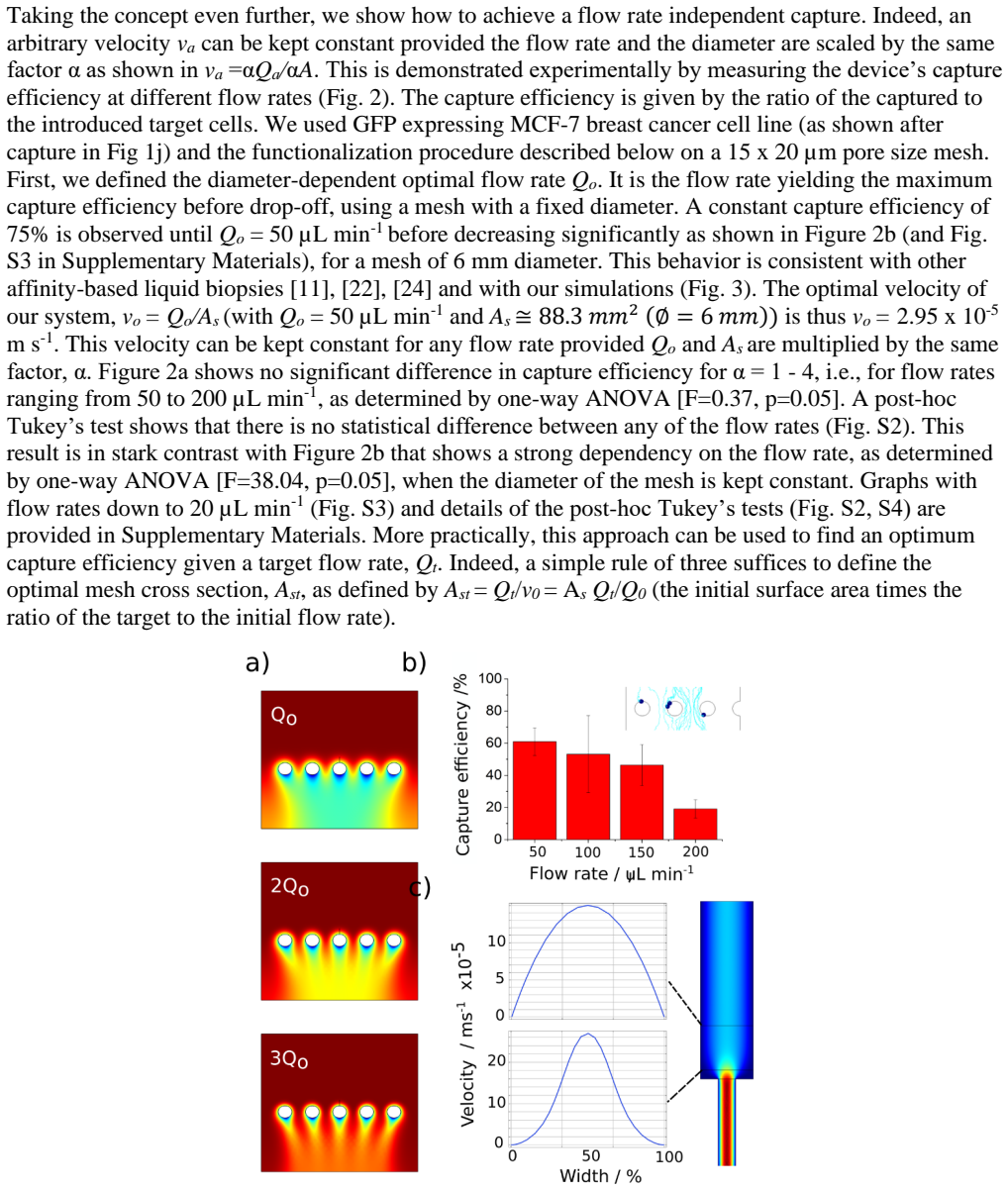

Figure 3. Figure 3: Comparative (semi-quantitative) multiphysics simulations. Panel (a) shows the effect of the flow rate on the capture of diluted species (arbitrary concentration C0 indicated in red) on the mesh. Here a cross section is represented. A depletion zone (blue) appears for a flow rate Q0 and decreases progressively as the flow rates are increased (2Q0 and 3 Q0). The same was observed for discrete events, [PITH_… view at source ↗
Figure 4

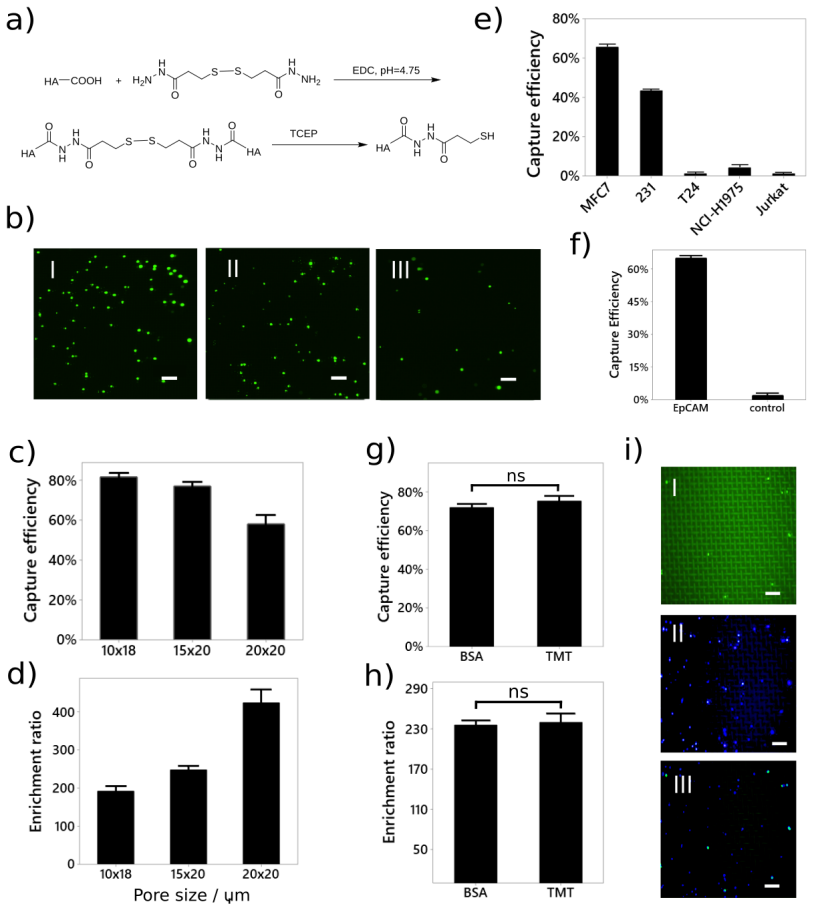

Figure 4. Figure 4: Nano-functionalization strategies and performance of the device. (a) the nanobranched sulfhydryl hyaluronic acid (HA-SH) synthesis steps. (b) the micrographs of MCF-7 cells on the mesh after being captured with different concentration (approximately 150, 100 and 50 cells per mL for l, ll and III respectively) with a scale bar of 200 µm. The effect of different meshes pore sizes (10x18, 15x20 and 20x20 µm) … view at source ↗
Figure 5
Figure 5. Figure 5: Clinical validation of the device on two cohorts, in three separate studies. The first study, shown in panel (a), with 79 cancer patients with a range of different cancer types and 20 healthy controls was used to characterize the performance of our device. CK+; DAPI+; CK- cells were identified as CTCs (inset), scale bar 20 µm. A subset of patients (n=33) from the initial cohort were selected to evaluate PD… view at source ↗
read the original abstract

Immunoaffinity-based liquid biopsies of circulating tumor cells (CTCs) hold great promise for cancer management, but typically suffer from low throughput, relative complexity and post-processing limitations. Here we address these issues simultaneously by decoupling and independently optimizing the nano-, micro- and macro-scales of an enrichment device that is simple to fabricate and operate. Unlike other affinity-based devices, our scalable mesh approach enables optimum capture conditions at any flow rate, as demonstrated with constant capture efficiencies, above 75% between 50-200 uL/min. The device achieved 96% sensitivity and 100% specificity when used to detect CTCs in the blood of 79 cancer patients and 20 healthy controls. We demonstrate its post processing capacity with the identification of potential responders to immune checkpoint inhibition therapy and the detection of HER2 positive breast cancer. The results compare well with other assays, including clinical standards. This suggests that our approach, which overcomes major limitations associated with affinity-based liquid biopsies, could help improve cancer management.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The manuscript describes a multiscale mesh-based immunoaffinity device for CTC enrichment that decouples and independently optimizes nano-, micro-, and macro-scales to achieve flow-rate-independent capture. It reports constant efficiencies above 75% across 50-200 µL/min, 96% sensitivity and 100% specificity on 79 cancer patients and 20 healthy controls, plus post-processing applications for immune checkpoint response prediction and HER2 detection, claiming advantages over existing affinity-based liquid biopsies.

Significance. If the flow-rate independence and clinical metrics are substantiated with full methods and mechanistic support, the approach could meaningfully improve CTC liquid biopsy throughput and operational simplicity, addressing key limitations of current affinity devices while maintaining compatibility with downstream analyses.

major comments (2)
  1. [Abstract] Abstract: The central claim that independent optimization of the three scales produces optimum capture conditions at any flow rate (constant efficiency >75% from 50-200 µL/min) is presented without any design rules, equations, or optimization framework that maps nano-scale antibody density, micro-scale mesh geometry, and macro-scale device dimensions onto a flow-rate-independent capture probability. The text proceeds directly from the assertion of scale decoupling to the empirical flat efficiency curve, leaving the mechanistic basis for generality unaddressed.
  2. [Abstract] Abstract (performance metrics): The reported 96% sensitivity and 100% specificity are stated without error bars, patient cohort stratification details, or direct head-to-head comparison data against clinical standards within the provided text; this weakens the claim that results 'compare well with other assays' and requires the full methods and results sections to verify load-bearing clinical performance.
minor comments (1)
  1. [Abstract] Abstract: Units are written as 'uL/min' rather than the conventional 'µL/min'.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their constructive comments on our manuscript. We address each major comment point by point below, providing clarifications from the full text and indicating revisions where they strengthen the presentation without altering the core findings.

read point-by-point responses

  1. Referee: [Abstract] Abstract: The central claim that independent optimization of the three scales produces optimum capture conditions at any flow rate (constant efficiency >75% from 50-200 µL/min) is presented without any design rules, equations, or optimization framework that maps nano-scale antibody density, micro-scale mesh geometry, and macro-scale device dimensions onto a flow-rate-independent capture probability. The text proceeds directly from the assertion of scale decoupling to the empirical flat efficiency curve, leaving the mechanistic basis for generality unaddressed.

    Authors: The abstract is intentionally concise. The full manuscript (Methods and Results sections) details the multiscale optimization framework, including how nano-scale antibody density, micro-scale mesh geometry parameters, and macro-scale device dimensions are independently tuned to yield flow-rate-independent capture probability. Supporting equations, design rules, and mechanistic rationale for the observed flat efficiency curve (constant >75% from 50-200 µL/min) are provided there, along with experimental validation. We will revise the abstract to include a brief clause referencing this optimization framework and its role in achieving generality. revision: yes

  2. Referee: [Abstract] Abstract (performance metrics): The reported 96% sensitivity and 100% specificity are stated without error bars, patient cohort stratification details, or direct head-to-head comparison data against clinical standards within the provided text; this weakens the claim that results 'compare well with other assays' and requires the full methods and results sections to verify load-bearing clinical performance.

    Authors: The abstract summarizes the primary clinical metrics from the 79-patient/20-control cohort. Full details—including error bars or confidence intervals, cohort stratification by cancer type/stage, and comparisons to literature values for other assays and clinical standards—are reported in the Results and Discussion sections. The claim of comparing well is based on those data. We will revise the abstract to note the cohort size and indicate that detailed verification appears in the main text, while preserving abstract length constraints. revision: partial

Circularity Check

0 steps flagged

No circularity; purely experimental results with no derivation chain

full rationale

The paper reports direct experimental measurements of capture efficiency across flow rates and clinical performance metrics from patient samples. No equations, models, predictions, or first-principles derivations are present that could reduce to fitted inputs or self-referential definitions. The multiscale optimization is asserted as a design premise but is not linked to any mathematical framework whose output would be forced by its own inputs. Self-citations, if present, are not load-bearing for any claimed result. The work is therefore self-contained against external benchmarks via empirical validation.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

The central claim rests on empirical performance data from clinical samples rather than theoretical axioms or new physical entities; no free parameters or invented entities are introduced.
