pith. sign in

arxiv: 2312.15171 · v1 · submitted 2023-12-23 · ❄️ cond-mat.mtrl-sci

Reduction of Magnetic Interaction Due to Clustering in Doped Transition-Metal Dichalcogenides: A Case Study of Mn, V, Fe-Doped rm WSe₂

Sabyasachi Tiwari , Maarten Van de Put , Bart Soree , Christopher Hinkle , William G. Vandenberghe This is my paper

Pith reviewed 2026-05-24 04:55 UTC · model grok-4.3

classification ❄️ cond-mat.mtrl-sci
keywords dopant clusteringWSe2magnetic exchange interactionitinerant magnetismtransition metal dichalcogenidesCurie temperatureDFT calculationsMonte Carlo simulations
0
0 comments X

The pith

In doped WSe2, clusters of Mn, V, and Fe dopants reduce the magnetic exchange interaction by shifting the order toward itinerant magnetism.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper investigates the effect of dopant clustering on the magnetic properties of WSe2 substituted with manganese, vanadium, and iron at tungsten sites. Calculations show that clusters form more readily than isolated dopants and that the exchange interaction drops substantially once clustering occurs. This drop arises because the magnetic order loses its localized character and becomes more itinerant. A reader would care because the result indicates that the spatial arrangement of dopants must be controlled if useful magnetic ordering temperatures are to be reached in these materials.

Core claim

Hubbard U corrected density functional theory calculations combined with lattice Monte-Carlo and spin-Monte-Carlo simulations establish that clusters of the period-four transition-metal dopants are energetically preferred over discrete distributions in WSe2. In the clustered geometry the magnetic exchange interaction is markedly weaker because the magnetic order acquires a more itinerant character. The authors therefore conclude that clustering exerts a detrimental effect on magnetism and that deliberate control of dopant distribution is required to obtain an optimal Curie temperature.

What carries the argument

Hubbard U corrected DFT together with lattice and spin Monte Carlo simulations that quantify both the energetic preference for clusters and the resulting reduction in exchange interaction arising from the localized-to-itinerant shift.

If this is right

  • Clusters of Mn, V, and Fe dopants are energetically more stable than isolated substitutions.
  • The magnetic exchange interaction decreases significantly once clustering is present.
  • Magnetic order in the clustered material becomes more itinerant.
  • Control of dopant spatial distribution is necessary to reach the highest possible Curie temperature.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Synthesis routes that suppress clustering could therefore raise the magnetic ordering temperature in these doped TMDs.
  • The same reduction in exchange may appear in other transition-metal dichalcogenides when period-four metals are introduced as dopants.
  • Magnetic susceptibility or neutron scattering experiments that distinguish localized from itinerant moments would provide a direct test of the predicted change.

Load-bearing premise

The Hubbard U corrected DFT plus Monte Carlo approach accurately captures the transition from localized to itinerant magnetism upon clustering without requiring explicit many-body corrections beyond U.

What would settle it

A measurement of exchange coupling or Curie temperature performed on WSe2 samples prepared with deliberately clustered versus uniformly dispersed Mn, V, or Fe dopants that shows no reduction (or an increase) in the clustered case.

Figures

Figures reproduced from arXiv: 2312.15171 by Bart Soree, Christopher Hinkle, Maarten Van de Put, Sabyasachi Tiwari, William G. Vandenberghe.

Figure 1
Figure 1. Figure 1: FIG. 1: Our model for calculating the Curie temperature with the dopant concentration (Mn, Fe and V) in [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2

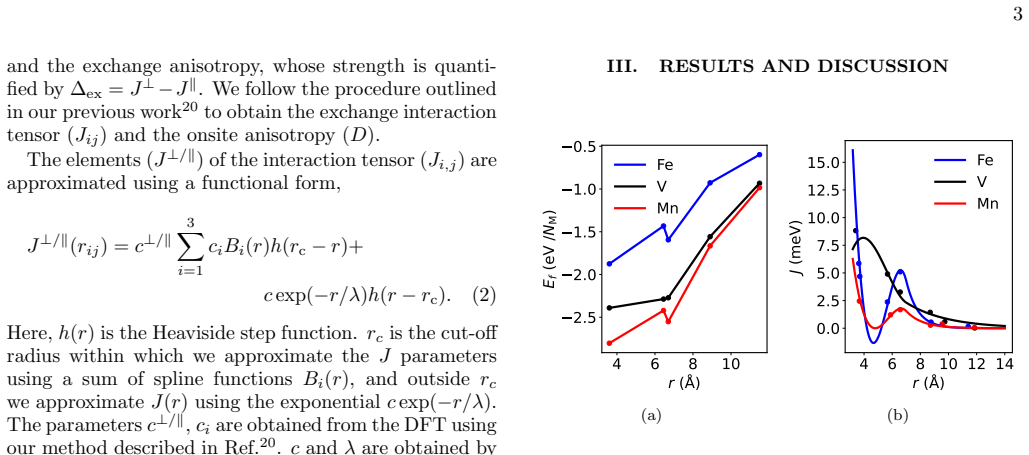

Figure 2. Figure 2: FIG. 2: (a) The energy of formation as a function per [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: FIG. 3: (a) The formation energies per dopant atom ( [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figure 4

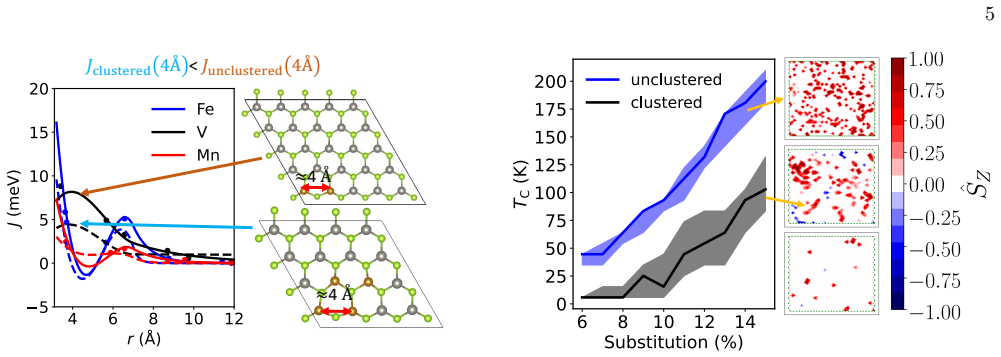

Figure 4. Figure 4: FIG. 4: The average magnetic exchange interaction [PITH_FULL_IMAGE:figures/full_fig_p005_4.png] view at source ↗
Figure 6
Figure 6. Figure 6: FIG. 6: The atomic type resolved density of states for the supercells shown in the inset [PITH_FULL_IMAGE:figures/full_fig_p006_6.png] view at source ↗
read the original abstract

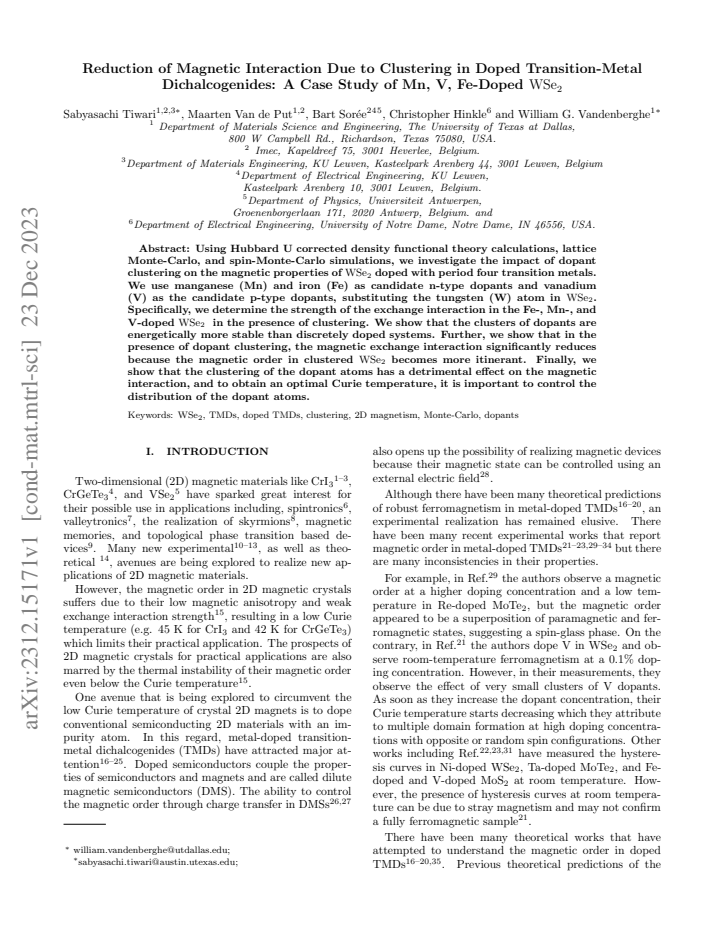

Using Hubbard U corrected density functional theory calculations, lattice Monte-Carlo, and spin-Monte-Carlo simulations, we investigate the impact of dopant clustering on the magnetic properties of WSe2~doped with period four transition metals. We use manganese (Mn) and iron (Fe) as candidate n-type dopants and vanadium (V) as the candidate p-type dopants, substituting the tungsten (W) atom in WSe2. Specifically, we determine the strength of the exchange interaction in the Fe-, Mn-, and V-doped WSe2~ in the presence of clustering. We show that the clusters of dopants are energetically more stable than discretely doped systems. Further, we show that in the presence of dopant clustering, the magnetic exchange interaction significantly reduces because the magnetic order in clustered WSe2~becomes more itinerant. Finally, we show that the clustering of the dopant atoms has a detrimental effect on the magnetic interaction, and to obtain an optimal Curie temperature, it is important to control the distribution of the dopant atoms.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript uses Hubbard-U corrected DFT, lattice Monte Carlo, and spin Monte Carlo to study Mn-, V-, and Fe-doped WSe2. It reports that dopant clusters are energetically preferred over random substitution, that clustering reduces the effective magnetic exchange interaction, and that this reduction occurs because the magnetism becomes more itinerant; the authors conclude that clustering is detrimental to Curie temperature and that dopant distribution must be controlled for optimal magnetism.

Significance. If the central claim holds, the work supplies concrete computational evidence that dopant clustering must be avoided in 2D TMD magnets to preserve strong exchange, a practical design rule for spintronic materials. The multi-method workflow (DFT+U mapping to Heisenberg parameters followed by lattice and spin MC) is a strength when the mapping is valid.

major comments (2)
  1. [Abstract / Methods] Abstract and the workflow description: the claim that clustering drives a transition to more itinerant magnetism (thereby reducing the extracted J) is in direct tension with the subsequent use of classical spin Monte Carlo on a Heisenberg Hamiltonian, which presupposes well-defined local moments. No diagnostic (non-integer moments, Stoner criterion, bandwidth vs. U scaling, or deviation from integer occupancy) is supplied to confirm that the DFT+U calculation has entered the itinerant regime inside the clustered configurations.
  2. [Results on exchange interaction] The reduction in exchange is attributed to itinerancy, yet the J values fed into the spin-MC step are obtained by mapping the DFT+U total energies onto a classical Heisenberg model. If the mapping itself becomes invalid under clustering, the reported reduction cannot be unambiguously ascribed to itinerancy rather than to a change in the validity of the effective-spin description.
minor comments (2)
  1. [Methods] The precise definition of the cluster geometries and the supercell sizes used for the lattice Monte Carlo should be stated explicitly with a figure or table.
  2. [Methods] The values chosen for the Hubbard U parameters for Mn, V, and Fe are not listed; a short table or sentence giving the adopted U values and their justification would improve reproducibility.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for highlighting the potential tension between our description of increased itinerancy under clustering and the use of an effective Heisenberg model. We address both major comments below with proposed revisions.

read point-by-point responses

  1. Referee: [Abstract / Methods] Abstract and the workflow description: the claim that clustering drives a transition to more itinerant magnetism (thereby reducing the extracted J) is in direct tension with the subsequent use of classical spin Monte Carlo on a Heisenberg Hamiltonian, which presupposes well-defined local moments. No diagnostic (non-integer moments, Stoner criterion, bandwidth vs. U scaling, or deviation from integer occupancy) is supplied to confirm that the DFT+U calculation has entered the itinerant regime inside the clustered configurations.

    Authors: We agree that the manuscript does not supply explicit diagnostics (e.g., moment values, DOS, or Stoner indicators) to quantify the itinerant character inside clusters. The claim of increased itinerancy rests on the reduction of the fitted J parameters. In revision we will add (i) site-projected magnetic moments and (ii) orbital-resolved DOS at the Fermi level for isolated versus clustered geometries. These quantities will be used to document the partial delocalization. The classical Heisenberg model remains an effective description fitted to DFT total-energy differences; the reduction in J is therefore an observed trend in the underlying energy landscape rather than an assumption of perfect locality. revision: yes

  2. Referee: [Results on exchange interaction] The reduction in exchange is attributed to itinerancy, yet the J values fed into the spin-MC step are obtained by mapping the DFT+U total energies onto a classical Heisenberg model. If the mapping itself becomes invalid under clustering, the reported reduction cannot be unambiguously ascribed to itinerancy rather than to a change in the validity of the effective-spin description.

    Authors: This concern is valid. The mapping is performed by total-energy differences between collinear spin configurations, and we have not previously reported the quality of the fit or possible non-Heisenberg contributions. In the revised manuscript we will (i) tabulate the root-mean-square error of the Heisenberg fit for both isolated and clustered supercells and (ii) discuss any systematic deviations. While these checks cannot prove the mapping remains equally valid, they will allow readers to assess whether the observed J reduction is an artifact of the model or a genuine feature of the DFT energetics. revision: partial

Circularity Check

0 steps flagged

No significant circularity; results emerge from DFT+U + MC workflow rather than by construction.

full rationale

The paper computes dopant clustering energetics and exchange parameters J directly from Hubbard-U DFT, then feeds those J values into spin Monte Carlo. The reported reduction in J upon clustering and the diagnosis of increased itinerancy are simulation outputs, not redefinitions or fitted inputs renamed as predictions. No self-citation chain, uniqueness theorem, or ansatz smuggling is invoked to force the central claim. The workflow is self-contained against external benchmarks and does not reduce the target result to its own inputs.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 0 invented entities

The central claim rests on standard DFT+U and classical Monte Carlo; no new entities are postulated. U values and cluster-size cutoffs are implicit free parameters whose specific values are not stated in the abstract.

free parameters (1)
  • Hubbard U for each dopant
    Standard DFT+U correction whose numerical value controls localization versus itinerancy and is chosen to match experiment or prior work.
axioms (1)
  • domain assumption Classical spin Monte Carlo on a lattice accurately represents the low-energy magnetic degrees of freedom after DFT+U relaxation.
    Invoked when mapping electronic structure to effective spin model for Tc estimation.

pith-pipeline@v0.9.0 · 5753 in / 1279 out tokens · 25297 ms · 2026-05-24T04:55:10.044666+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

51 extracted references · 51 canonical work pages

  1. [1]

    A.; Dixit, H.; Cooper, V

    McGuire, M. A.; Dixit, H.; Cooper, V. R.; Sales, B. C. Coupling of Crystal Structure and Magnetism in the Lay- ered, Ferromagnetic Insulator CrI 3. Chemistry of Mate- 8 rials 2015, 27, 612–620

    work page 2015

  2. [2]

    R.; Cheng, R.; Seyler, K

    Huang, B.; Clark, G.; Navarro-Moratalla, E.; Klein, D. R.; Cheng, R.; Seyler, K. L.; Zhong, D.; Schmidgall, E.; McGuire, M. A.; Cobden, D. H.; Yao, W.; Xiao, D.; Jarillo-Herrero, P.; Xu, X. Layer- dependent ferromagnetism in a van der Waals crystal down to the monolayer limit. Nature 2017, 546, 270 EP –

    work page 2017

  3. [3]

    Robust intrin- sic ferromagnetism and half semiconductivity in stable two-dimensional single-layer chromium trihalides

    Zhang, W.-B.; Qu, Q.; Zhu, P.; Lam, C.-H. Robust intrin- sic ferromagnetism and half semiconductivity in stable two-dimensional single-layer chromium trihalides. Jour- nal of Materials Chemistry C 2015, 3, 12457–12468

    work page 2015

  4. [4]

    Q.; Cava, R

    Gong, C.; Li, L.; Li, Z.; Ji, H.; Stern, A.; Xia, Y.; Cao, T.; Bao, W.; Wang, C.; Wang, Y.; Qiu, Z. Q.; Cava, R. J.; Louie, S. G.; Xia, J.; Zhang, X. Discovery of intrinsic fer- romagnetism in two-dimensional van der Waals crystals. Nature 2017, 546, 265 EP –

    work page 2017

  5. [5]

    Yu, W. et al. Chemically Exfoliated VSe 2 Monolayers with Room-Temperature Ferromagnetism.Advanced Ma- terials 31 , 1903779

    work page

  6. [6]

    L.; Causer, G

    Cortie, D. L.; Causer, G. L.; Rule, K. C.; Fritzsche, H.; Kreuzpaintner, W.; Klose, F. Two-Dimensional Magnets: Forgotten History and Recent Progress towards Spin- tronic Applications. Advanced Functional Materials 0 , 1901414

    work page

  7. [7]

    L.; Linpeng, X.; Cheng, R.; Sivadas, N.; Huang, B.; Schmidgall, E.; Taniguchi, T.; Watanabe, K.; McGuire, M

    Zhong, D.; Seyler, K. L.; Linpeng, X.; Cheng, R.; Sivadas, N.; Huang, B.; Schmidgall, E.; Taniguchi, T.; Watanabe, K.; McGuire, M. A.; Yao, W.; Xiao, D.; Fu, K.-M. C.; Xu, X. Van der Waals Engineering of Fer- romagnetic Semiconductor Heterostructures for Spin and Valleytronics. Science Advances 2017, 3

    work page 2017

  8. [8]

    Skyrmions in the Moir´ e of van der Waals 2D Magnets.Nano Letters 2018, 18, 7194–7199

    Tong, Q.; Liu, F.; Xiao, J.; Yao, W. Skyrmions in the Moir´ e of van der Waals 2D Magnets.Nano Letters 2018, 18, 7194–7199

    work page 2018

  9. [9]

    H.; Niu, Q

    Tse, W.-K.; Qiao, Z.; Yao, Y.; MacDonald, A. H.; Niu, Q. Quantum anomalous Hall effect in single-layer and bi- layer graphene. Phys. Rev. B 2011, 83, 155447

    work page 2011

  10. [10]

    W.-Y.; Zhang, X.; Huang, B.; Wilson, N

    Song, T.; Cai, X.; Tu, M. W.-Y.; Zhang, X.; Huang, B.; Wilson, N. P.; Seyler, K. L.; Zhu, L.; Taniguchi, T.; Watanabe, K.; McGuire, M. A.; Cobden, D. H.; Xiao, D.; Yao, W.; Xu, X. Giant tunneling magnetoresistance in spin-filter van der Waals heterostructures. Science 2018, 360, 1214–1218

    work page 2018

  11. [11]

    A.; Augustin, M.; Valero, S

    Wahab, D. A.; Augustin, M.; Valero, S. M.; Kuang, W.; Jenkins, S.; Coronado, E.; Grigorieva, I. V.; Vera- Marun, I. J.; Navarro-Moratalla, E.; Evans, R. F. L.; Novoselov, K. S.; Santos, E. J. G. Quantum Rescaling, Domain Metastability, and Hybrid Domain-Walls in 2D CrI3 Magnets. Advanced Materials 2021, 33, 2004138

    work page 2021

  12. [12]

    E.; Watanabe, K.; Taniguchi, T.; Muller, D

    Xu, Y.; Ray, A.; Shao, Y.-T.; Jiang, S.; Lee, K.; We- ber, D.; Goldberger, J. E.; Watanabe, K.; Taniguchi, T.; Muller, D. A.; Mak, K. F.; Shan, J. Coexisting ferromagnetic–antiferromagnetic state in twisted bilayer CrI3. Nature Nanotechnology 2022, 17, 143–147

    work page 2022

  13. [13]

    H.; Ren- nich, E.; Yan, S.; Fu, Y.; Tian, S.; Lei, H.; Hovden, R.; Sun, K.; He, R.; Zhao, L

    Xie, H.; Luo, X.; Ye, G.; Ye, Z.; Ge, H.; Sung, S. H.; Ren- nich, E.; Yan, S.; Fu, Y.; Tian, S.; Lei, H.; Hovden, R.; Sun, K.; He, R.; Zhao, L. Twist engineering of the two- dimensional magnetism in double bilayer chromium tri- iodide homostructures. Nature Physics 2022, 18, 30–36

    work page 2022

  14. [14]

    L.; Temst, K.; Vanden- berghe, W

    Tiwari, S.; Van de Put, M. L.; Temst, K.; Vanden- berghe, W. G.; Sor´ ee, B. Atomistic Modeling of Spin and Electron Dynamics in Two-Dimensional Magnets Switched by Two-Dimensional Topological Insulators. Phys. Rev. Appl. 2023, 19, 014040

    work page 2023

  15. [15]

    L.; Sor´ ee, B.; Van- denberghe, W

    Tiwari, S.; Van de Put, M. L.; Sor´ ee, B.; Van- denberghe, W. G. Critical behavior of the ferromag- nets CrI 3, CrBr3, and CrGeTe 3 and the antiferromag- net FeCl2: A detailed first-principles study. Phys. Rev. B 2021, 103, 014432

    work page 2021

  16. [16]

    J.; Pan- telides, S

    Mishra, R.; Zhou, W.; Pennycook, S. J.; Pan- telides, S. T.; Idrobo, J.-C. Long-range ferromagnetic ordering in manganese-doped two-dimensional dichalco- genides. Phys. Rev. B 2013, 88, 144409

    work page 2013

  17. [17]

    Mn-doped monolayer MoS2: An atomically thin dilute magnetic semiconduc- tor

    Ramasubramaniam, A.; Naveh, D. Mn-doped monolayer MoS2: An atomically thin dilute magnetic semiconduc- tor. Phys. Rev. B 2013, 87, 195201

    work page 2013

  18. [18]

    J.; Pham, A.; Yu, A.; Li, S

    Gil, C. J.; Pham, A.; Yu, A.; Li, S. An ab initio study of transition metals doped with WSe 2 for long-range room temperature ferromagnetism in two-dimensional transi- tion metal dichalcogenide. Journal of Physics: Con- densed Matter 2014, 26, 306004

    work page 2014

  19. [19]

    C.; Zhu, Z

    Cheng, Y. C.; Zhu, Z. Y.; Mi, W. B.; Guo, Z. B.; Schwingenschl¨ ogl, U. Prediction of two-dimensional di- luted magnetic semiconductors: Doped monolayer MoS 2 systems. Phys. Rev. B 2013, 87, 100401

    work page 2013

  20. [20]

    L.; Sor´ ee, B.; Vanden- berghe, W

    Tiwari, S.; Van de Put, M. L.; Sor´ ee, B.; Vanden- berghe, W. G. Magnetic order and critical temperature of substitutionally doped transition metal dichalcogenide monolayers. npj 2D Materials and Applications 2021, 5, 54

    work page 2021

  21. [21]

    J.; Duong, D

    Yun, S. J.; Duong, D. L.; Ha, D. M.; Singh, K.; Phan, T. L.; Choi, W.; Kim, Y.-M.; Lee, Y. H. Fer- romagnetic Order at Room Temperature in Monolayer WSe2 Semiconductor via Vanadium Dopant. Advanced Science 2020, 9, 1903076

    work page 2020

  22. [22]

    Ferromag- netism in CVT grown tungsten diselenide single crystals with nickel doping

    Habib, M.; Muhammad, Z.; Khan, R.; Wu, C.; ur Rehman, Z.; Zhou, Y.; Liu, H.; Song, L. Ferromag- netism in CVT grown tungsten diselenide single crystals with nickel doping. Nanotechnology 2018, 29, 115701

    work page 2018

  23. [23]

    Ta Doping Enhanced Room-Temperature Ferromagnetism in 2D Semiconduct- ing MoTe2 Nanosheets

    Yang, L.; Wu, H.; Zhang, W.; Lou, X.; Xie, Z.; Yu, X.; Liu, Y.; Chang, H. Ta Doping Enhanced Room-Temperature Ferromagnetism in 2D Semiconduct- ing MoTe2 Nanosheets. Advanced Electronic Materials 0 , 1900552

    work page

  24. [24]

    D.; Tiwari, S.; Van de Put, M

    Reyntjens, P. D.; Tiwari, S.; Van de Put, M. L.; Sor´ ee, B.; Vandenberghe, W. G. Ab-Initio Study of Magnetically Intercalated Platinum Diselenide: The Impact of Plat- inum Vacancies. Materials 2021, 14

    work page 2021

  25. [25]

    D.; Tiwari, S.; de Put, M

    Reyntjens, P. D.; Tiwari, S.; de Put, M. L. V.; Sor´ ee, B.; Vandenberghe, W. G. Magnetic properties and critical behavior of magnetically intercalated WSe2: a theoretical study. 2D Materials 2020, 8, 025009

    work page 2020

  26. [26]

    (GaMn)As: A new diluted mag- netic semiconductor based on GaAs

    Ohno, H.; Shen, A.; Matsukura, F.; Oiwa, A.; Endo, A.; Katsumoto, S.; Iye, Y. (GaMn)As: A new diluted mag- netic semiconductor based on GaAs. Applied Physics Let- ters 1996, 69, 363–365

    work page 1996

  27. [27]

    A ten-year perspective on dilute magnetic semi- conductors and oxides

    Dietl, T. A ten-year perspective on dilute magnetic semi- conductors and oxides. Nature Materials 2010, 9, 965 EP –, Review Article

    work page 2010

  28. [28]

    Spintronics: Fun- damentals and applications

    ˇZuti´ c, I.; Fabian, J.; Das Sarma, S. Spintronics: Fun- damentals and applications. Rev. Mod. Phys. 2004, 76, 323–410

    work page 2004

  29. [29]

    A.; Kumazoe, H.; Krishnamoorthy, A.; Susarla, S.; Idrobo, J

    Kochat, V.; Apte, A.; Hachtel, J. A.; Kumazoe, H.; Krishnamoorthy, A.; Susarla, S.; Idrobo, J. C.; Shi- mojo, F.; Vashishta, P.; Kalia, R.; Nakano, A.; Ti- wary, C. S.; Ajayan, P. M. Re Doping in 2D Transition Metal Dichalcogenides as a New Route to Tailor Struc- tural Phases and Induced Magnetism. Advanced Materi- als 2017, 29, 1703754

    work page 2017

  30. [30]

    J.; Cho, B

    Yun, S. J.; Cho, B. W.; Dinesh, T.; Yang, D. H.; 9 Kim, Y. I.; Jin, J. W.; Yang, S.-H.; Nguyen, T. D.; Kim, Y.-M.; Kim, K. K.; Duong, D. L.; Kim, S.- G.; Lee, Y. H. Escalating Ferromagnetic Order via Se- Vacancies Near Vanadium in WSe 2 Monolayers. Ad- vanced Materials 2022, 34, 2106551

    work page 2022

  31. [31]

    Growth of Fe-doped and V-doped MoS 2 and their magnetic-electrical effects

    Tao, R.; Yang, Z.-H.; Tan, C.; Hao, X.; Ke, Z.-G.; Yang, L.; Dai, L.-P.; Deng, X.-W.; Li, P.-J.; Wang, Z.- G. Growth of Fe-doped and V-doped MoS 2 and their magnetic-electrical effects. Journal of Electronic Science and Technology 2022, 20, 100167

    work page 2022

  32. [32]

    Robust room-temperature ferromagnetism in- duced by defect engineering in monolayer MoS 2

    Zhang, M.; Li, Q.; Cheng, W.; Gao, Y.; Liao, B.; Ying, M. Robust room-temperature ferromagnetism in- duced by defect engineering in monolayer MoS 2. Applied Surface Science 2023, 608, 155220

    work page 2023

  33. [33]

    Mirror twin boundaries in WSe 2 induced by vanadium doping

    Pathirage, V.; Lasek, K.; Krasheninnikov, A.; Komsa, H.; Batzill, M. Mirror twin boundaries in WSe 2 induced by vanadium doping. Materials Today Nano 2023, 22, 100314

    work page 2023

  34. [34]

    Zhang, F. et al. Monolayer Vanadium-Doped Tungsten Disulfide: A Room-Temperature Dilute Magnetic Semi- conductor. Advanced Science 2020, 7, 2001174

    work page 2020

  35. [35]

    Layer- Dependent Dopant Stability and Magnetic Exchange Coupling of Iron-Doped MoS2 Nanosheets

    Shu, H.; Luo, P.; Liang, P.; Cao, D.; Chen, X. Layer- Dependent Dopant Stability and Magnetic Exchange Coupling of Iron-Doped MoS2 Nanosheets. ACS Applied Materials & Interfaces 2015, 7, 7534–7541

    work page 2015

  36. [36]

    D.; Wagner, H

    Mermin, N. D.; Wagner, H. Absence of Ferromagnetism or Antiferromagnetism in One- or Two-Dimensional Isotropic Heisenberg Models. Phys. Rev. Lett. 1966, 17, 1133–1136

    work page 1966

  37. [37]

    Exchange cou- pling in transition metal monoxides: Electronic structure calculations

    Fischer, G.; D¨ ane, M.; Ernst, A.; Bruno, P.; L¨ uders, M.; Szotek, Z.; Temmerman, W.; Hergert, W. Exchange cou- pling in transition metal monoxides: Electronic structure calculations. Phys. Rev. B 2009, 80, 014408

    work page 2009

  38. [38]

    Ferromagnetism in Mn-doped GaAs due to substitutional-interstitial complexes

    Mahadevan, P.; Zunger, A. Ferromagnetism in Mn-doped GaAs due to substitutional-interstitial complexes. Phys. Rev. B 2003, 68, 075202

    work page 2003

  39. [39]

    Y.; Delley, B.; Freeman, A

    Cui, X. Y.; Delley, B.; Freeman, A. J.; Stampfl, C. Neu- tral and charged embedded clusters of Mn in doped GaN from first principles. Phys. Rev. B 2007, 76, 045201

    work page 2007

  40. [40]

    R.; Ogale, S

    Shinde, S. R.; Ogale, S. B.; Das Sarma, S.; Simp- son, J. R.; Drew, H. D.; Lofland, S. E.; Lanci, C.; Buban, J. P.; Browning, N. D.; Kulkarni, V. N.; Hig- gins, J.; Sharma, R. P.; Greene, R. L.; Venkate- san, T. Ferromagnetism in laser deposited anatase Ti1−xCoxO2−δ films. Phys. Rev. B 2003, 67, 115211

    work page 2003

  41. [41]

    v.; Mryasov, O

    Schilfgaarde, M. v.; Mryasov, O. N. Anomalous exchange interactions in III-V dilute magnetic semiconductors. Phys. Rev. B 2001, 63, 233205

    work page 2001

  42. [42]

    D.; Jackson, A

    Bruce, A. D.; Jackson, A. N.; Ackland, G. J.; Wild- ing, N. B. Lattice-switch Monte Carlo method. Phys. Rev. E 2000, 61, 906–919

    work page 2000

  43. [43]

    Supplementary document: Contains further information on lattice-switch Monte-Carlo method (Section S1), re- sults for MC simulation of 14% doping concentration, and formation energy as a function of Se chemical potential (Section S2)

    work page

  44. [44]

    G.; Faccio, R.; Gueorguiev, G

    Sangiovanni, D. G.; Faccio, R.; Gueorguiev, G. K.; Kakanakova-Georgieva, A. Discovering atomistic path- ways for supply of metal atoms from methyl-based pre- cursors to graphene surface. Phys. Chem. Chem. Phys. 2023, 25, 829–837

    work page 2023

  45. [45]

    Lundgren, C.; Kakanakova-Georgieva, A.; Gue- orguiev, G. K. A perspective on thermal stability and mechanical properties of 2D Indium Bismide from ab initio molecular dynamics. Nanotechnology 2022, 33, 335706

    work page 2022

  46. [46]

    Bl¨ ochl, P. E. Projector augmented-wave method. Phys. Rev. B 1994, 50, 17953–17979

    work page 1994

  47. [47]

    Efficient iterative schemes for ab initio total-energy calculations using a plane-wave ba- sis set

    Kresse, G.; Furthm¨ uller, J. Efficient iterative schemes for ab initio total-energy calculations using a plane-wave ba- sis set. Phys. Rev. B 1996, 54, 11169–11186

    work page 1996

  48. [48]

    P.; Burke, K.; Ernzerhof, M

    Perdew, J. P.; Burke, K.; Ernzerhof, M. Generalized Gradient Approximation Made Simple. Phys. Rev. Lett. 1996, 77, 3865–3868

    work page 1996

  49. [49]

    L.; Yun, S

    Duong, D. L.; Yun, S. J.; Kim, Y.; Kim, S.-G.; Lee, Y. H. Long-range ferromagnetic ordering in vanadium-doped WSe2 semiconductor. Applied Physics Letters 2019, 115, 242406

    work page 2019

  50. [50]

    L.; Botton, G

    Dudarev, S. L.; Botton, G. A.; Savrasov, S. Y.; Humphreys, C. J.; Sutton, A. P. Electron-energy-loss spectra and the structural stability of nickel oxide: An LSDA+U study. Phys. Rev. B 1998, 57, 1505–1509

    work page 1998

  51. [51]

    Linear response ap- proach to the calculation of the effective interaction pa- rameters in the LDA + U method

    Cococcioni, M.; de Gironcoli, S. Linear response ap- proach to the calculation of the effective interaction pa- rameters in the LDA + U method. Phys. Rev. B 2005, 71, 035105. 10 Table of content graphics

    work page 2005
