Method for SOFI-based spatial super-resolution in nanosensing with blinking emitters

Alexander Mikhalychev , Alex Ulyanenkov This is my paper

Pith reviewed 2026-05-24 03:49 UTC · model grok-4.3

classification ⚛️ physics.optics quant-ph
keywords SOFIblinking emitterscumulant imagingnanosensingsuper-resolutionfluorescence metrologylow-brightness regime
0
0 comments X

The pith

Cumulant images from blinking nanosensors recover finer parameter features than intensity maps.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops a technique that pairs blinking fluorescent nanosensors with super-resolution optical fluctuation imaging to map parameters such as temperature or pH at finer scales. By applying cumulant analysis and extending it through photon statistics for dim conditions, the method extracts more detail from the same data. Simulations across various model setups confirm that second- and fourth-order cumulants yield higher contrast and recover smaller structures that intensity averages miss. This matters because it could turn routine fluorescence measurements into spatially resolved probes inside living cells without needing brighter or more stable emitters.

Core claim

The authors show that second- and fourth-order cumulant images obtained via SOFI on blinking nanosensors provide improved contrast and allow successful reconstruction of smaller features in the spatial distribution of sensed parameters, outperforming the conventional intensity-based approach. This holds for both high- and low-brightness regimes when the QSIPS idea is incorporated, and for step-like as well as continuous parameter variations in one and two dimensions.

What carries the argument

Second- and fourth-order cumulant images from SOFI photon statistics of blinking emitters, extended via QSIPS for low brightness.

Load-bearing premise

The statistical model of blinking and its QSIPS extension remain valid for low-brightness regimes and the tested spatial variations without extra calibration.

What would settle it

An experiment or simulation in which second- and fourth-order cumulant images fail to reconstruct the smaller features while the intensity image succeeds would disprove the claimed gain.

Figures

Figures reproduced from arXiv: 2402.17391 by Alexander Mikhalychev, Alex Ulyanenkov.

Figure 1
Figure 1. Figure 1: FIG. 1. Sensing an environment parameter [PITH_FULL_IMAGE:figures/full_fig_p004_1.png] view at source ↗

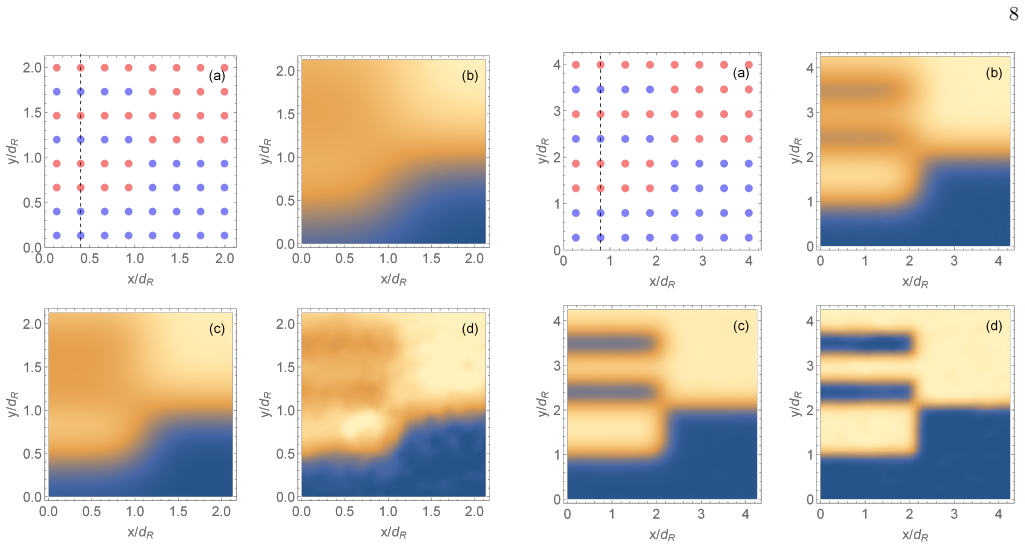

Figure 2
Figure 2. Figure 2: FIG. 2. Modeling results for sub-Rayleigh imaging with sens [PITH_FULL_IMAGE:figures/full_fig_p008_2.png] view at source ↗

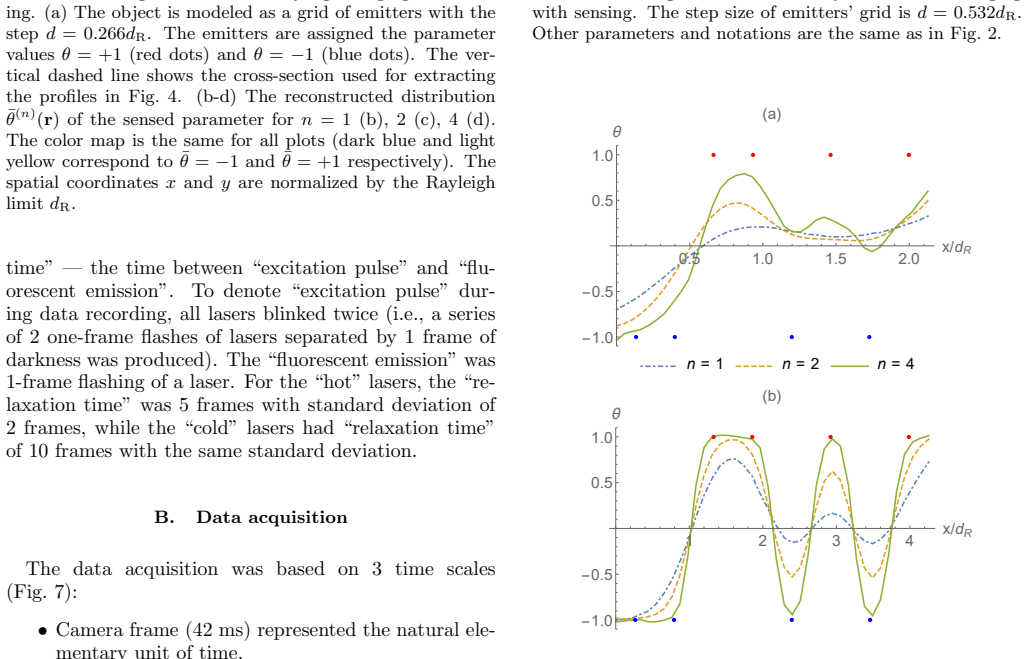

Figure 4
Figure 4. Figure 4: FIG. 4. Inferred parameter distributions for the vertical cross [PITH_FULL_IMAGE:figures/full_fig_p008_4.png] view at source ↗

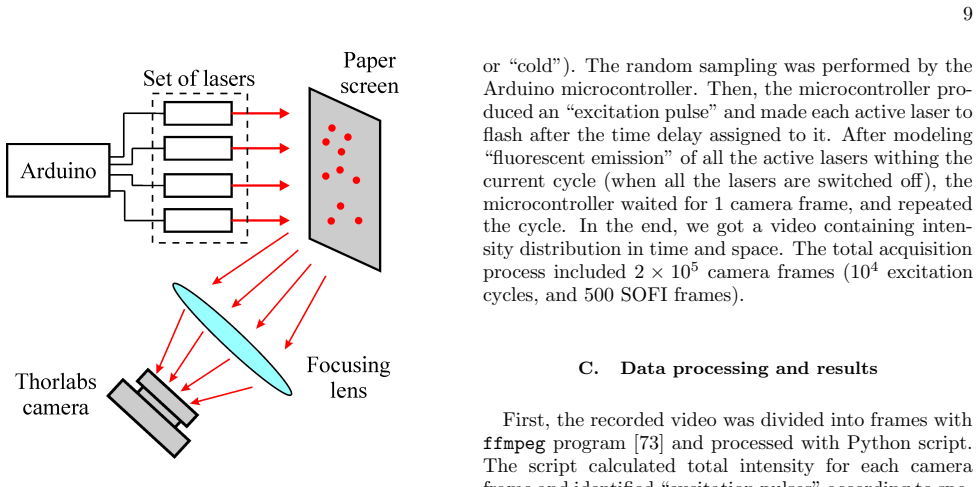

Figure 5
Figure 5. Figure 5: FIG. 5. The scheme of the model experiment. The lasers [PITH_FULL_IMAGE:figures/full_fig_p009_5.png] view at source ↗

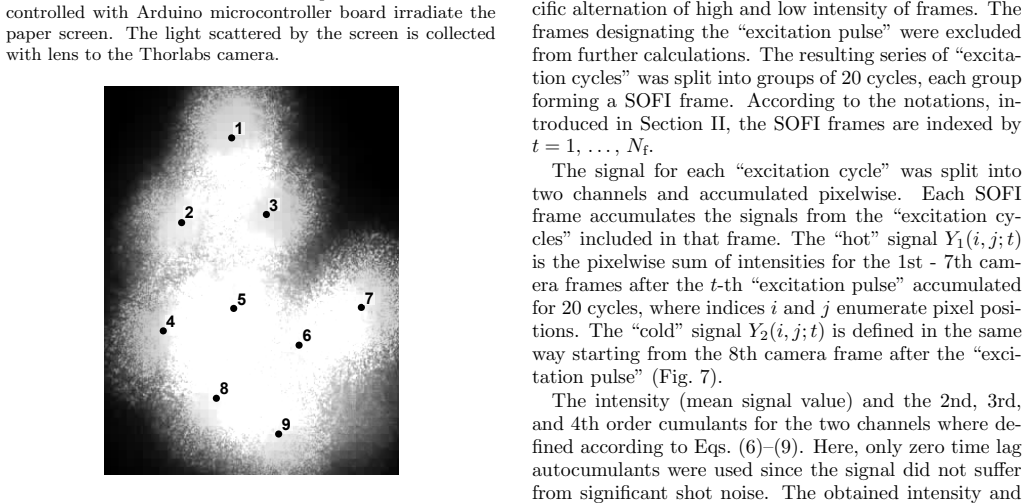

Figure 6
Figure 6. Figure 6: FIG. 6. Image of blurred laser spots on the paper screen for [PITH_FULL_IMAGE:figures/full_fig_p009_6.png] view at source ↗

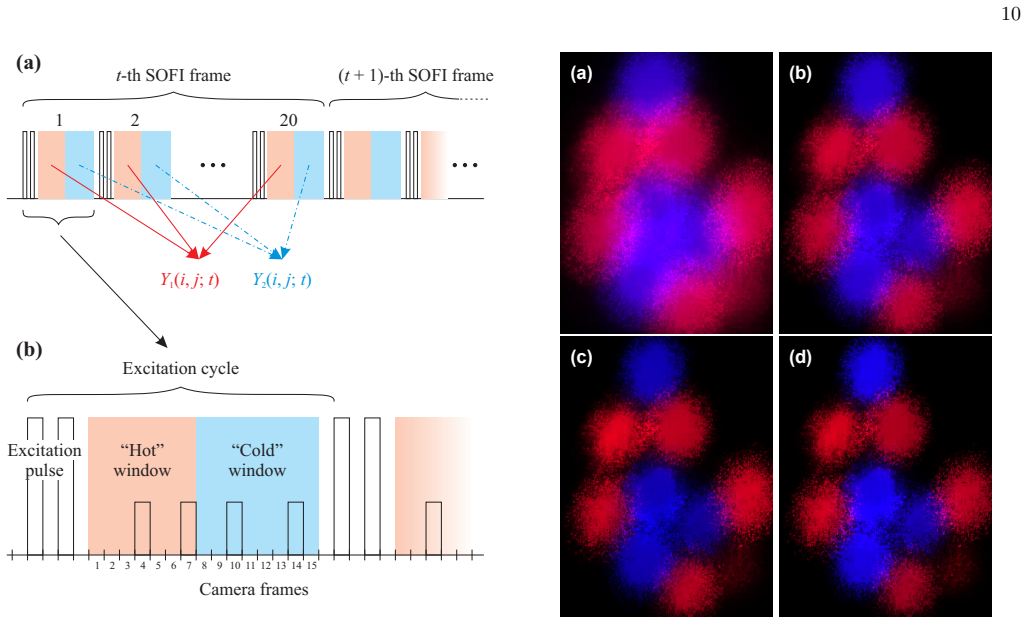

Figure 7
Figure 7. Figure 7: FIG. 7. Data acquisition timeline. (a) A SOFI frame consist [PITH_FULL_IMAGE:figures/full_fig_p010_7.png] view at source ↗

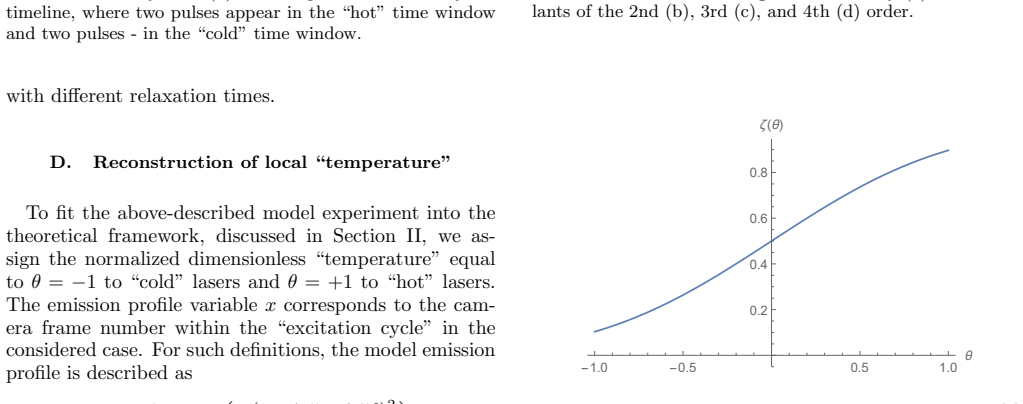

Figure 9
Figure 9. Figure 9: FIG. 9. Relation between the compressed signal [PITH_FULL_IMAGE:figures/full_fig_p010_9.png] view at source ↗
Figure 10
Figure 10. Figure 10: FIG. 10. Reconstructed distribution of the model normalized [PITH_FULL_IMAGE:figures/full_fig_p011_10.png] view at source ↗
Figure 11
Figure 11. Figure 11: FIG. 11. Cross-section of the reconstructed distributions of [PITH_FULL_IMAGE:figures/full_fig_p011_11.png] view at source ↗
Figure 13
Figure 13. Figure 13: FIG. 13. Influence of PSF shape on resolution enhancement. [PITH_FULL_IMAGE:figures/full_fig_p015_13.png] view at source ↗
read the original abstract

We propose a method of spatial resolution enhancement in metrology (thermometry, magnetometry, pH estimation, and similar methods) with blinking fluorescent nanosensors by combining sensing with super-resolution optical fluctuation imaging (SOFI). By utilizing the idea of quantum super-resolution imaging by photon statistics (QSIPS), the applicability of the proposed methodology is extended to low-brightness regime. Efficiency of the approach is demonstrated by numerical simulations performed for several model configurations, representing step-like and continuous variation of the sensed parameter, high and low brightness regimes, 1- and 2-dimensional structures. The 2nd and 4th order cumulant images provide improvement of the contrast and enable successful reconstruction of smaller features of the modeled parameter distribution relatively to the intensity-based approach. We believe that blinking fluorescent sensing agents being complemented with the developed image analysis technique could be utilized routinely in the life science sector for recognizing the local changes in the spectral response of blinking fluorophores, e.g. delivered targetly to the specific cell or even organelle. It is extremely useful for the local measurements of living cells' physical parameters changes due to applying any external "forces", including disease effect, aging, healing, or response to the treatment.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The manuscript proposes combining super-resolution optical fluctuation imaging (SOFI) with blinking fluorescent nanosensors for enhanced spatial resolution in metrology applications (e.g., thermometry), extending the approach to low-brightness regimes via quantum super-resolution imaging by photon statistics (QSIPS). Numerical simulations on 1D/2D model configurations with step-like and continuous parameter variations (high/low brightness) demonstrate that 2nd- and 4th-order cumulant images yield improved contrast and enable reconstruction of smaller features relative to intensity-based methods.

Significance. If the simulation assumptions hold, the work could enable hardware-free super-resolution sensing with standard blinking emitters, with direct relevance to life-science applications for local physical-parameter mapping in cells. The explicit use of higher-order cumulants and the QSIPS extension for low brightness constitute a clear technical strength, providing a simulation-tested route to contrast gains without fitted parameters.

major comments (2)
  1. [Simulations] Simulations section: The central claim that 2nd/4th-order cumulant images improve contrast and resolve smaller features is demonstrated exclusively via numerical simulations on idealized blinking statistics; no experimental data, error bars on reconstruction accuracy, or robustness checks against non-Poisson deviations or spatial heterogeneity are provided, which is load-bearing for the low-brightness QSIPS extension.
  2. [QSIPS Extension] QSIPS extension: The method assumes photon-arrival statistics remain governed by the same independent blinking process when the sensed parameter modulates emission rates spatially; this assumption is not tested for the low-brightness regime with continuous parameter maps, risking invalidation of the reported cumulant contrast gain.
minor comments (1)
  1. [Abstract] Abstract: The description of 'several model configurations' would be clearer if the exact brightness levels, structure sizes, and cumulant orders were stated explicitly.

Simulated Author's Rebuttal

2 responses · 1 unresolved

We thank the referee for the constructive feedback and for recognizing the technical strengths of combining SOFI with QSIPS for nanosensing applications. We respond to the major comments below.

read point-by-point responses

  1. Referee: [Simulations] Simulations section: The central claim that 2nd/4th-order cumulant images improve contrast and resolve smaller features is demonstrated exclusively via numerical simulations on idealized blinking statistics; no experimental data, error bars on reconstruction accuracy, or robustness checks against non-Poisson deviations or spatial heterogeneity are provided, which is load-bearing for the low-brightness QSIPS extension.

    Authors: The manuscript is a simulation-based proof-of-concept study. We will revise to include error bars from repeated runs and add explicit robustness checks against non-Poisson deviations and spatial heterogeneity. Experimental data cannot be added, as this would require new laboratory work beyond the scope of the current theoretical proposal. revision: partial

  2. Referee: [QSIPS Extension] QSIPS extension: The method assumes photon-arrival statistics remain governed by the same independent blinking process when the sensed parameter modulates emission rates spatially; this assumption is not tested for the low-brightness regime with continuous parameter maps, risking invalidation of the reported cumulant contrast gain.

    Authors: Our existing simulations already apply the QSIPS model to low-brightness continuous parameter maps in 1D and 2D. To strengthen the presentation, we will add a dedicated discussion of the assumption and supplementary simulations testing sensitivity to deviations from ideal independent blinking in the low-brightness regime. revision: yes

standing simulated objections not resolved
  • Provision of experimental data or validation, which cannot be generated without performing new experiments.

Circularity Check

0 steps flagged

No derivation reduces to fitted parameter or self-citation by construction; proposal tested via independent simulation

full rationale

The paper presents a methodological proposal that combines SOFI with blinking nanosensors and extends it via QSIPS to low-brightness regimes, with efficiency shown exclusively through numerical simulations of step/continuous parameter maps in 1D/2D under high/low brightness. No equations or claims reduce a prediction to a fitted input by the paper's own definitions, and no load-bearing step relies on self-citation chains. This matches the default expectation of non-circularity for a simulation-validated proposal.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Based on abstract only; the work relies on standard assumptions of optical fluctuation imaging and photon statistics without introducing new free parameters, axioms, or invented entities.
